Investigating the impact of the Chi-Chi earthquake on the
occurrence of debris flows using artificial neural networks
Fi-John Chang,* Yen-Ming Chiang and Wong-Shuo Lee
Department of Bioenvironmental Systems Engineering, National Taiwan University, Taiwan, Republic of China
Abstract:
Debris flows have caused enormous losses of property and human life in Taiwan during the last two decades. An efficient and reliable method for predicting the occurrence of debris flows is required. The major goal of this study is to explore the impact of the Chi-Chi earthquake on the occurrence of debris flows by applying the artificial neural network (ANN) that takes both hydrological and geomorphologic influences into account. The Chen-Yu-Lan River watershed, which is located in central Taiwan, is chosen for evaluating the critical rainfall triggering debris flows. A total of 1151 data sets were collected for calibrating model parameters with two training strategies. Significant differences before and after the earthquake have been found: (1) The size of landslide area is proportioned to the occurrence of debris flows; (2) the amount of critical rainfall required for triggering debris flows has reduced significantly, about half of the original critical rainfall in the study case; and (3) the frequency of the occurrence of debris flows is largely increased. The overall accuracy of model prediction in testing phase has reached 96Ð5%; moreover, the accuracy of occurrence prediction is largely increased from 24 to 80% as the network trained with data from before the Chi-Chi earthquake sets and with data from the lumped before and after the earthquake sets. The results demonstrated that the ANN is capable of learning the complex mechanism of debris flows and producing satisfactory predictions. Copyright 2009 John Wiley & Sons, Ltd.
KEY WORDS debris flows; the Chi-Chi earthquake; artificial neural network Received 3 January 2009; Accepted 7 May 2009
INTRODUCTION
Taiwan is situated at the junction of the Eurasian Plate and Philippine Sea Plates where earthquakes occur fre-quently. Resulting from the active orogenesis, the Central Mountain Range is therefore up-heaved that results in high elevations and steep slopes, and the mountain ter-rain is close to 70% of the island. Because of the lack of usable land, many housing units were built on the hillsides or the hills near the metropolitan areas. These highly concentrated engineering structures resulted in dif-ficulties in soil and water conservation. This phenomenon increases the surface runoff and shortens the concentra-tion time of peak flows during typhoon periods. Due to the special meteorological and geographical environment, people living in this island have suffered from many catastrophic disasters, such as floods and debris flows.
As compared with floods, debris flows are considered more dangerous and devastating because they typically carry large boulders and rocks that can affect or destroy structures in their paths. Because of the unique topo-graphical and meteorological characteristics of Taiwan, the calamities caused by debris flows often happened in the past. Nevertheless, the activities of earthquakes accelerate the occurrence of debris flows due to huge amounts of sediments that are generated from earth-quakes. Amongst the earthquakes that have occurred in
* Correspondence to: Fi-John Chang, Department of Bioenvironmen-tal Systems Engineering, National Taiwan University, Taipei, Taiwan, Republic of China. E-mail: [email protected]
Taiwan, the Chi-Chi earthquake (MWD7Ð6; at 23Ð85°N,
120Ð81°E), with a focal depth of 8Ð0 km, was triggered by reactivation of the Chelungpu fault in central Tai-wan on 21st September, 1999. This destructive earth-quake caused 2400 deaths, 8373 casualties and more than US$10 billion in damages (Lin et al., 2004) and caused serious landslides (more than 20 000 landslides in an area of 2400 km2) in central Taiwan. Once heavy rainfalls or typhoons occur, the loose colluvium is weakened, which easily leads to a debris flow. The follow-up impact of the Chi-Chi earthquake on the debris flows is that the frequency of debris flows occurrence has significantly increased.
Debris flows are usually caused by heavy rainfall in mountainous areas and consist of various materials such as water, trees, sand, mud, soil, gravel and rocks after the collapse of hillsides. Debris flows are some-times regarded as mudslides or landslides; however, the dynamics of a debris flow is quite different from pure landslide phenomenon. It can force faster velocities and make sudden and powerful impact that can often cause enormous destruction and damage (Chang et al., 2007b). Several factors contribute to the occurrence of debris flows, including loose deposits, steep slopes and sufficient rainfall. Debris flows that are initiated from the aforemen-tioned sources can further grow in volume by incorporat-ing materials in its path that therefore greatly increases its destructive power. On reaching flatter ground, the debris spread over a broad area and form the debris flow fan.
One of the most important tasks for hydrological researchers in Taiwan is to develop a reliable model for predicting the occurrence of debris flows. Neverthe-less, the mechanism of its development is not yet clearly understood. In the past, a number of studies on the evolu-tion of debris flows were carried out by statistical analysis (e.g. Lin et al., 2006). Parts of the research focused on understanding the basic mechanisms and physical fac-tors (Liu and Huang, 2006). However, debris flows are influenced by a range of factors, including hydrological, meteorological, geomorphologic and geological factors. The physical phenomena behind the debris flows present great complexity, high non-linearity and spatial and tem-poral variability. Moreover, it may be time-consuming for fully understanding all the natural processes of debris flows.
The artificial neural network (ANN) is a relatively new computational technique that is inspired by neuro-biology to perform brain-like computations and has been recently accepted as an efficient alternative tool for mod-elling complex and non-linear hydrological systems. In general, ANN is composed of a number of intercon-nected processing elements (neurons) with the attrac-tiveness of information-processing characteristics such as parallelism, noise tolerance, learning and generalization capability. They learn from examples and capture appro-priate functional relationships amongst the data even if the underlying mechanisms are unknown or difficult to be recognized. The applications of ANN to various aspects of hydrological modelling have provided many promis-ing results, includpromis-ing rainfall-runoff process (Dawson and Wilby, 1998; Zealand et al., 1999; Chang et al., 2007a; Chiang et al., 2007b), sediment concentration estimation (Nagy et al., 2002), landslide analysis (Kanungo et al., 2006; Lee et al., 2007; Pavel et al., 2008) and precipita-tion predicprecipita-tion (French et al., 1992; Chiang et al., 2007a). However, the application or investigation of ANN to the topic of debris flows prediction is still limited. Hence, it is necessary and important to continue the research on the applicability of the ANN models in dealing with debris flows prediction. The major goal of this study was to build a reliable ANN model for debris flows prediction and explore the impact of earthquakes on the occurrence of debris flows.
In this study, we briefly describe the study area and processes to obtain hydrological and geomorphologic fac-tors. Next, the structure of a backpropagation network and the procedure of model training are presented. Results obtained from different training strategies are discussed in the subsequent section, and finally conclusions are drawn.
STUDY AREA AND DATA ANALYSIS
Study area

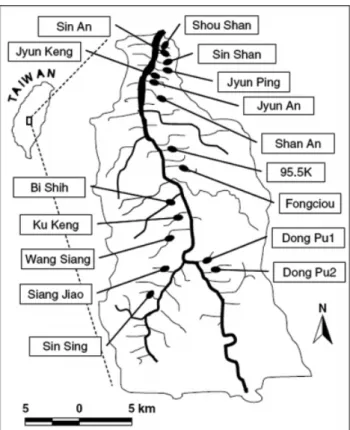

The Chen-Yu-Lan River watershed, as shown in Figure 1, was selected in the present study for investi-gating the debris flows hazards. It originates from the north peak of Yu Mountain, which is at an elevation of
3910 m, has a length of 42Ð4 km with an average slope on the order of 1/20 from the riverhead to the outfall and a watershed area of about 450 km2 with a mean annual
rainfall of about 3000 mm. The watershed is located in mountainous area and most of these mountains are more than 2000 m in elevation, indicating a topographical char-acteristic of deep and narrow valley with torrential and rapid flow. There are 16 sites in tributaries of the Chen-Yu-Lan River (see Figure 1) that are likely to have debris flows hazards are considered in this study. A better under-standing of the topographic characteristics might facilitate comprehending the concepts for predicting the potential occurrence of debris flows. The Chen-Yu-Lan River fol-lows a major fault, the Chen-Yu-Lan Fault, which is a boundary fault dividing two major geological zones of Taiwan: the western foothills and the Hsuehshan Range (Lin and Jeng, 2000). The study area also contains other faults that are accompanied by fractured zones that could generate great topographic relief and abundant rocks that have resulted in frequent landslides and debris flows.
Data collection
To evaluate the accuracy and reliability of debris flows prediction, hourly data of observed debris flows events and potential influential factors were collected. A total of 34 storm or typhoon events with debris flows occur-rence were recorded from 1985 to 2001. It is likely that the topographic conditions and hydrological characteris-tics have changed after the Chi-Chi earthquake. There-fore, these data were further classified into two groups: before and after the Chi-Chi earthquake. The first group consisted of 1036 records (1985 ¾ 1998), including 24
occurrences of debris flows data, and the second group consisted of 115 records (2000 ¾ 2001), including 21 occurrences of debris flows data. Thus, the impact of the earthquake on the occurrence of debris flows will also be discussed.
These data contain several types of information that have been identified as influential factors for the debris flows and can be divided into two basic cate-gories, hydrological and geomorphologic factors, includ-ing (1) effective rainfall duration (ED) and effective cumulative rainfall (ER) and (2) creek length, size of sub-basin area, slope and form factor (Chang and Chao, 2006; Lu et al., 2007). The hydrological data were analyzed according to the distance between rain gauges and sites of debris flows occurrences. To circumvent the difficulties in acquiring in situ data, a digital terrain model (DTM) with topographic maps (1 : 25 000 scale) was applied to calcu-late the geomorphologic factors in a geographic infor-mation system (GIS) environment. The pre-processing procedure has been adopted by most of the debris flows related researchers (Lin et al., 2002; Wan et al., 2008) for digitizing the map of terrain and analyzing the DTM data.
Analysis of hydrological factors
Due to the uncertainties and irregular temporal and spatial distribution of rainfall, different sites should have different rainfall, especially at a mountainous region such as the selected study area. However, the rainfall measured by ground gauging stations is generally used to represent a regional rainfall. This is unsuitable for debris flows prediction because accurate effective rainfall has been identified as one of the major forces that will initiate the instability processes for debris flows. To properly consider the influence of a storm event and the quantity of rainfall at ungauged sites, methods to estimate rainfall using observations at adjacent sites are necessary. The National Weather Service proposed the inverse distance weight method by using weights inversely proportional to the square distance between the rain gauge and the sub-basin (location of debris flows). The method is fast and easy to compute, and therefore, widely used (Lu et al., 2007). Formally, the inverse distance weight method is used to estimate the rainfall value OZat location Xo, given
the observed rainfall value Z at specific sites Xi. The
procedure is as follows: O ZXo D n iD1 iZXi 1
where i represents the weights that are calculated from
the distance between the rain gauge and the sub-basin and can be defined as
iD fdoi n iD1 fdoi 2
where f represents the inverse square ratio as shown in Equation (3):
fdoi D1/d2oi 3
where doi is the distance between Xo and Xi
ED (h) and ER (mm) are defined as follows. The ED was counted from the time (start raining) that the accumulative rainfall reached 10 mm to the time point (stop raining) that the accumulative rainfall was less than 10 mm within 24 h. The ER was defined as a continuous rainfall from the time of starting raining to the time of occurrence of debris flows. Therefore, the ER can be calculated by using Equation (4):
ER D
T
tD0
˛tRt 4
where Rtrepresents the actual rain at time t, in which t D
0 refers to start raining, and T represents the actual value for which ER is to be calculated. Parameter ˛t presents a decay coefficient that accounts for the decreasing influence of previous rainfall at time t and can be defined as follows:
˛ DpK 5
where K represents a coefficient proposed by Fedora and Beschta (1989) that depends on the area of the sub-basin (A) and can be calculated as shown in Equation (6):
K D0Ð881 C 0Ð00793 lnA 6
Analysis of geomorphologic factors
The occurrence of a debris flow is highly susceptible to the local topographical conditions. Even within the same watershed, different locations might have distinct terrain characteristics. The factors we considered in this study can be referred to previous works (Lu et al., 2007; Wan et al., 2008), that is, creek length (km), size of sub-basin area (km2), slope (degree) and form factor. The creek length is an important geomorphologic factor for predicting debris flows. It is obvious that the longer the creek, the more the deposits can be gathered together and carried down the stream. The size of the sub-basin area is related to the amount of rainwater that streams into the river. A larger watershed area receives a larger amount of rainwater and yields more floods, and therefore, has a higher likelihood of inducing debris flows (Vanacker et al., 2003). The slope is an essential and important factor triggering the occurrence of debris flows, as has been identified by many researchers (e.g. Lin
et al., 2004). The form factor represents the watershed
characteristic that is highly related to the distribution of streamflow hydrograph. A narrow watershed has a smaller form factor, which means the streamflow hydrograph is platykurtic, whereas a circular watershed has a larger form factor, which means the streamflow hydrograph is mesokurtosis or leptokurtosis. In sum, a larger form factor of a watershed means the watershed has a larger runoff quantity in unit time than that of a
smaller form factor. Besides, many previous studies have demonstrated that the size of the landslide area is highly related to the occurrence of debris flows. The landslide phenomenon usually provides a huge amount of soil, gravel and rocks, which is one of the major necessities for triggering debris flows.
Landslides are quite common in this watershed. Before the Chi-Chi earthquake, the landslide area was about 7Ð5 ð 106 m2 (January 1999), but it almost tripled to
20Ð8 ð 106 m2 (January 2000) after the earthquake (Lin et al., 2004). Since there was no abnormal storm event
during this period, the abrupt increase in landslide area was most likely attributed to the Chi-Chi earthquake. Such great change in the size of the landslide area could greatly increase the probability of the occurrence of debris flows over this region, and therefore was taken into consideration in this study.
To analyze and extract the above-mentioned geomor-phologic factors, the GIS tool that has been widely uti-lized by many researchers (Ayalew and Yamagishi, 2005; Wen and Aydin, 2005) was applied to gain the main fea-tures of each sub-basin. GIS provides a platform for data inventory and manipulation and increases the efficiency of data analysis. Table I shows the chosen geomorpho-logic parameters and size of landslide area of each sub-basin. The red parts in Figure 2 show the size of the area segmented for data analysis in each sub-basin and values in brackets represent the ratio of landslide area to sub-basin area. Basically, every sub-sub-basin has a drainage area larger than 0Ð1 km2 and a slope greater than 10°that has the necessary condition for triggering debris flows.
APPLICATION OF DEBRIS FLOWS PREDICTION
Methodology
An ANN consists of many simple elements/neurons operating in parallel. In general, these neurons are
Table I. The geomorphologic factors and size of landslide area of each sub-basin Location Creek length (m) Watershed area (km2) Slope (degree) Form factor Landslide area (m2) Shou Shan 820 0Ð64 21Ð3 0Ð95 6Ð7 ð 103 Sin An 1500 1Ð39 21Ð3 0Ð61 2Ð1 ð 104 Sin Shan 670 0Ð54 24Ð7 1Ð21 6Ð9 ð 103 Jyun Ping 1260 0Ð88 23Ð3 0Ð55 1Ð7 ð 104 Jyun Keng 1460 1Ð73 18Ð8 0Ð81 3Ð4 ð 104 Jyun An 2380 1Ð07 20Ð3 0Ð19 2Ð3 ð 104 Shan An 2680 2Ð47 17Ð2 0Ð34 5Ð9 ð 104 95.5K 2030 1Ð64 24Ð7 0Ð4 4Ð0 ð 103 Fongciou 1700 1Ð88 27Ð9 0Ð65 2Ð1 ð 104 Bi Shih 1590 1Ð44 11Ð3 0Ð57 0 Ku Keng 870 1Ð24 11Ð9 1Ð64 0 Wang Siang 1990 1Ð59 12Ð9 0Ð4 0 Siang Jiao 2100 2Ð2 22Ð3 0Ð5 0 Sin Sing 2790 2Ð18 23Ð3 0Ð28 1Ð6 ð 104 Dong Pu 1 960 0Ð65 23Ð3 0Ð71 0 Dong Pu 2 2520 2Ð54 26Ð6 0Ð4 5Ð6 ð 103
Figure 2. Area of sub-basins segmented for data analysis
arranged in the form of layers. A network usually includes three layers: (1) an input layer, (2) a hidden layer and (3) an output layer. The number of input and output neurons is always problem dependent. Neurons in the hidden or output layers receive various input infor-mation from former layer and then multiply by the con-nected weights. The sum of weighted inputs becomes the input for a specific transfer function that is settled in every hidden and output neuron. The network can vir-tually exhibit any desired output through adjusting the connected weights based on the difference between the model and target outputs. The process is known as train-ing: The network learns the relation between input and output sequences. In practice, the ANN is especially use-ful for forecasting, classification, function approximation and identification problems.
The most widely used architecture of ANNs in hydro-logical modelling is the backpropagation neural net-work (BPNN), which is applied in current study. The BPNN has unique advantages such as the excellent map-ping capability, fast learning and the ability of self-adaptation. There are many types of algorithms for train-ing the BPNN. Basically, the purpose of traintrain-ing is to calculate the error at each neuron and systematically search the optimal network weights. Even if the steepest descent method is a commonly used training algorithm, it often suffers from slow convergence and sub-optimal solutions. Therefore, researchers have encouraged search-ing for faster and more effective algorithms. The conju-gate gradient algorithm has now become more popular and widely used, since it represents a good compromise between the simplicity of the steepest descent algorithm and the fast quadratic convergence of Newton’s method (Battiti, 1992). In practice, the process makes good uni-form progress towards the solution at every step and has been found to be effective in finding better optimization than that of steepest descent method (Chiang et al., 2004). Based on the above description, the conjugate gradient algorithm was implemented in this study for training the
1 2 3 4 ED ER L A S occurrence non-occurrence hydrological factors geomorphological factors Model optimization Data preprocessing
effective rainfall duration effective cumulative rainfall
creek length
slope sub-basin area

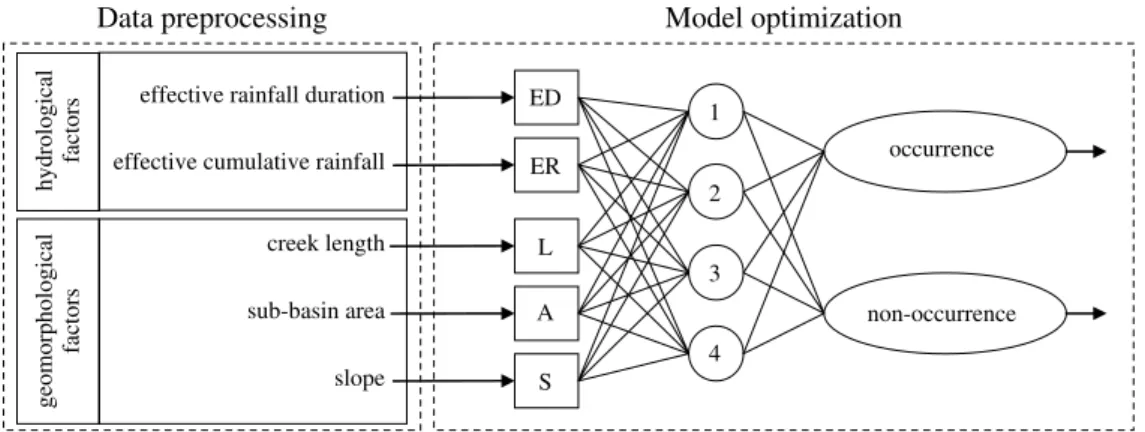

Figure 3. Architecture of the BPNN model for predicting debris flows
BPNN. Details of the conjugate gradient algorithm can be found in Ham and Kostanic (2001) and are summarized as follows.
1. The initial conjugate direction d0 and the gain vector
g0 are defined as in the following:
d0 D g0DpinCnwin0 7
where Cn is an estimate of the covariance matrix of the
inputs to the nth layer and pn
i is an estimate of the
cross-correlation vector between the inputs to the nth layer and the desired outputs.
2. Then, the conjugate vector coefficient can be defined as follows: ˛kD gkTdk dTkC dk 8 where gkDCnwink pin;
3. The weight vector w , gain vector g and conjugate gradient direction d are updated as follows:
wink C1 D wink C ˛kdk 9 gkC1 DCwnik C1 pin 10 dkC1 D gkC1Cˇkdk; ˇkD gkC1T C dk gkTgk 11
Steps 2 to 3 are repeated until the errors are less than stop criterion
BPNN model structure and training strategy
The model performance is highly dependent on the set-ting of the network structure and the optimization of its unknown parameters. Therefore, determining the num-bers of input, hidden and output neurons is an impor-tant procedure. As mentioned above, the selection of input, hidden and output dimensions is problem depen-dent. Appropriate input variables and hidden neurons will allow the network to successfully map the desired output. To determine the appropriate number of input and hidden neurons for predicting debris flows, the trial-and-error procedure suggested by most previous works was applied. The study collected six influence factors: ED, hourly ER, creek length (L), size of sub-basin area (A), slope
(S) and form factor (F). The strategy herein was to keep both hydrological factors, whereas the selection of geomorphologic factors is determined by trial-and-error. Finally, five variables were selected for the input layer. Three geomorphologic factors were selected except for the form factor. The results conform to previous work (Chang et al., 2007b), indicating that the impact of form factor on debris flows prediction is less than the other three geomorphologic factors in this case study. The trial-and-error procedure was also used for identifying the number of hidden neurons, since no general guidelines exist for the identification of ANN structure for specific applications. The hidden neurons vary from one to ten and eventually four hidden neurons are decided. The output layer consists of two neurons representing the occurrence and non-occurrence of debris flows in next step (h). Figure 3 shows the selected architecture of the BPNN model for debris flows prediction.
To learn the impact of the earthquake on the prediction of debris flows and evaluate the BPNN model perfor-mance, two training data sets with different quality were adopted for separately optimizing the network weights. The training data set 1 consists of 620 records that were all recorded before the Chi-Chi earthquake. Amongst the 620 records, 17 records represent occurrence and 603 records present non-occurrence. The 115 records that recorded after the Chi-Chi earthquake are used as the testing data, including 21 occurrences and 94 non-occurrences of debris flows data. The major reason for this training strategy was to investigate the influence of the earthquake on the mechanism of debris flows occur-rence and the diffeoccur-rence before and after earthquake. The samples of second training data set were randomly selected from the lump 1151 records (1036 C 115). A total of 699 records including 30 occurrences of debris flows data were used for training the model parame-ters, and the remaining 452 records with 15 occurrences of debris flows data were used for testing the BPNN. Furthermore, the data pre-processing procedure is also important for the model performance. In this study, all of the collected data are normalized within the range of (0, 1). Prior to training, the connected weights were initial-ized with random values within the range of (1, 1), and
0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
nonoccurrenceo occurrence overall
Accuracy (%)
Training Testing
Figure 4. The model accuracy of BPNN trained by data set 1
the stop criterion is dependent on either minimum mean squared error obtained or training iterations reached.
RESULTS AND DISCUSSION
Performance of model trained with data set 1
Figure 4 and Tables II and III show the detailed results obtained from BPNN. It should be noticed that the parameters of BPNN model are optimized by using data measured before the Chi-Chi earthquake only. The training performance on the prediction of non-occurrence is perfect with accuracy of 100% (see Table II). For the prediction of occurrence, the BPNN correctly predicts 15 out of 17 records and with an accuracy of 88%. The overall training accuracy reached 99Ð7%, which indicates that the BPNN can be well trained if sufficient data are provided. Testing results shown in Table III indicate the BPNN only predicts 5 out of 21 occurrence records even though the accuracy of non-occurrence prediction reaches 99%. This is because the BPNN model learns the knowledge merely from data recorded before the Chi-Chi earthquake, and therefore it is not able
to forthrightly predict the environmental status where both severe topographical and hydrological changes are encountered. These changes may result in (1) the total size of the landslide area being increased and (2) the amount of precipitation required for triggering debris flows being reduced.
As far as the above effects are concerned, both changes are related to the reduction of ER. Hence, a correction on this hydrological input factor was made without changing the model architecture. The equation is as follows.
ERRDEROCRLCc 12
where ERR and ERO represent the normalized revised
and original ER, respectively; RL represents the ratio
of landslide area to sub-basin area; and c represents a constant that reflects the amount of precipitation required for triggering debris flows was reduced.
Since no general guidelines exist for the identification of the constant, the trial-and-error procedure was again used for determining the constant c. The value of c was tested from 0 and stepped by 0Ð1 in this study. It is interesting that the overall accuracy is 87Ð8% (occurrence prediction: 8/21, non-occurrence prediction: 93/94 and overall: 101/115) when the value of c is 0, which means the information added to the input factor is only the landslide area. As compared with the results in Table III, the accuracy of the model outputs for the occurrence of debris flows prediction has increased, indicating that the probability of the occurrence of debris flows was actually affected by the landslide area. Moreover, the optimal value for the constant is 0Ð1 with occurrence prediction: 13/21, non-occurrence prediction: 90/94 and overall: 103/115 (89Ð6%), which resulted in an increase of 4% in terms of overall accuracy and strongly enhanced the occurrence of debris flows prediction from 5 records to 13 records as compared with results in Table III.
Table II. Training results of the BPNN trained by data set 1
Training Model outputs Accuracy (%)
Non-occurrence Occurrence
Observations Non-occurrence 603 0 100
Occurrence 2 15 88
Overall accuracy D 618/620 D 99Ð7%
Note: The italicized values indicate the numbers of correct predictions.
Table III. Testing results of the BPNN trained by data set 1
Testing Model outputs Accuracy (%)
Non-occurrence Occurrence
Observations Non-occurrence 93 1 99
Occurrence 16 5 24
Overall accuracy D 98/115 D 85Ð3%
0 50 100 150 200 250 300 350 400 450 Shou Shan Sin An
Sin ShanJyun Ping
Jyun KengJyun AnShan An 95.5K
FongciouBi ShihKu Keng Wang SiangSiang Jiao
Sin Sing Dong Pu 1Dong Pu 2
precipitation (mm)
Before earthquake After earthquake
Figure 5. The critical rainfall for triggering debris flows in each sub-basin
0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
nonoccurrence occurrence overall
Accuracy (%)
Training Testing
Figure 6. The model accuracy of BPNN trained by data set 2
Results obtained above demonstrated an important fact that the landslide phenomenon did contribute to the soil and rock deposits, and therefore accelerated the occurrence of debris flows. Besides, the requirement of quantity for rainfall-induced debris flows was reduced over this region. The critical rainfall for triggering debris flows in each sub-basin after the Chi-Chi earthquake has been calculated as shown in Figure 5. Basically, the critical rainfall required to touch off debris flows has been reduced at least 110 mm than that of before. The results are similar to that of Lin et al. (2004) and imply the debris flows may occur not only during torrential storm or typhoon events but also light rains. Inspection of Figure 5 clearly indicates about 10 sub-basins where debris flows occurred with less than half the rainfall that caused debris flows before the Chi-Chi earthquake.
Performance of model trained with data set 2
Figure 6 and Tables IV and V illustrate the perfor-mance of BPNN outputs that model parameters are
retrained with data set 2. Similarly, the training perfor-mance on the prediction of non-occurrence is almost per-fect, which only has one incorrect record and the overall accuracy of training reaches 99Ð1%. Furthermore, the test-ing results displayed in Table V show that the outcome of occurrence prediction is exciting with an accuracy of 80% even though the testing samples consisted of data observed before and after the Chi-Chi earthquake. By retraining the BPNN, the overall accuracy in the testing phase increased from 85Ð3 to 96Ð5% (see Tables III and V). Particularly, the accuracy of occurrence prediction strongly increased from 24 to 80%. The results demon-strated that the BPNN is capable of learning the complex mechanism of debris flows events and producing satis-factory predictions.
In fact, there are five occurrence records obtained from two locations that cannot be identified no matter whether the data are arranged in training or testing phases. Table VI shows these five data and their corresponding ER. It is surprising that the amount of rainfall for triggering debris flows is much less (under 45 mm) than the critical values (Figure 5). Before the Chi-Chi earthquake, the rainfall required for causing debris flows was 220 mm and 300 mm over Fongciou and Sin Sing areas, respectively. However, the truth is that the debris flows now can occur with only less than one fourth of the original critical rainfall. This means that the deposits resulting from a landslide over these areas are quite loose and unstable and debris flows can be initiated with a small amount of rainfall. Furthermore, before the earthquake, the recurrence time of a debris flow in this area was greater than 5 years, whereas these five records occurred within 15 months since the earthquake. Hence, further investigation on the variations of debris flows and their mechanism over the watershed is required.
CONCLUSIONS
The study area, Chen-Yu-Lan river watershed, possesses three essential factors in the occurrence of debris flows: sufficient rainfall, sufficient deposits and sufficient slope. In the aftermath of the destructive Chi-Chi earthquake on 21st September, 1999, the study area was further devastated by enormous debris flows that are likely to strike the same region in the future. Therefore, an effective and accurate debris flow warning system is extremely important to provide time for rescuing human life and property. The present study investigated the
Table IV. Training results of the BPNN trained by data set 2
Training Model outputs Accuracy (%)
Non-occurrence Occurrence
Observations Non-occurrence 668 1 99Ð9
Occurrence 6 24 80
Overall accuracy D 692/699 D 99Ð1%
Table V. Testing results of the BPNN trained by data set 2
Testing Model outputs Accuracy (%)
Non-occurrence Occurrence
Observations Non-occurrence 424 13 97
Occurrence 3 12 80
Overall accuracy D 436/452 D 96Ð5%
Note: The italicized values indicate the numbers of correct predictions.
earthquake’s impact on the mechanism of the occurrence of debris flows and constructed a reliable ANN model for debris flows prediction. To construct a stable and reliable model for accurately predicting debris flows in the Chen-Yu-Lan river watershed, six factors related to its occurrence were chosen in terms of geomorphologic and hydrological influences.
Two training data sets, i.e. (1) before the Chi-Chi earthquake and (2) lumped before and after the earth-quake, were given for calibrating the BPNN parameters. Performance from model trained with data set 1 indicated that the Chi-Chi earthquake significantly changed both topographical and hydrological conditions that resulted in the debris flows that have frequently occurred over this area. It was also shown that the consideration of landslide area as additional input information effectively increased the accuracy of BPNN predictions. Another important finding is that after the earthquake, the critical rainfall for initiating debris flows was reduced to about half of origi-nal critical rainfall. Results obtained from a model trained with data set 2 demonstrated that the constructed BPNN model was capable of learning the complex mechanism of debris flows events. The overall accuracy in testing phase reached 96Ð5%, including an accuracy of 97% for non-occurrence predictions and an accuracy of 80% for occurrence predictions. Therefore, the present model has been proven to successfully predict both occurrence and non-occurrence of debris flows.
The condition that triggers debris flow changes gradu-ally as time passes after the earthquake. Before the Chi-Chi earthquake, the typhoon-induced debris flows only occur when the typhoons accompany huge amount of rainfall, whereas the debris flows could easily occur after earthquake even though the rainfall is not heavy. The accumulation of rainfall for triggering debris flows has abnormally reduced, and the amount of deposits and size of landslide area are likely proportional to the probability of debris flows occurrences. As time passes, if there are
Table VI. Date and effective cumulative rainfall of unpredictable records
Location Effective cumulative rainfall (mm) Date
Fongciou 43Ð2 1.5.2000
Fongciou 44Ð4 20.7.2001
Sin Sing 39Ð9 28.4.2000
Sin Sing 27Ð4 2.5.2000
Sin Sing 36Ð5 20.7.2001
no more deposits resulted from landslide or earthquake, the amount of deposits will gradually reduce until the deposits are insufficient to form a debris flow. The topo-graphical condition of the watershed will also gradually stabilize to that of before earthquake. Consequently, re-training the model with updating input variables is more suitable for predicting debris flows within a short period after earthquake.
