A spatial interpolation method based on radial basis function

networks incorporating a semivariogram model

Gwo-Fong Lin*, Lu-Hsien Chen

Department of Civil Engineering, National Taiwan University, Taipei 10617, Taiwan Received 8 May 2003; revised 30 September 2003; accepted 29 October 2003

Abstract

Based on the combination of the radial basis function network (RBFN) and the semivariogram, a spatial interpolation method, named improved RBFN, is proposed in this paper. To evaluate the interpolation accuracy of the proposed method, reference surfaces with prescribed semivariograms of different sills and scale parameters are generated. The proposed method as well as two existing methods (ordinary kriging and standard RBFN) is then used in the restoration of these reference surfaces. Among three interpolation methods, the proposed method has the highest interpolation accuracy regardless of the arrangement of sample points. The proposed method is performing well especially when the variance of the reference surface is large. An application of the proposed method to the estimation of the spatial distribution of rainfall also shows that the proposed method can estimate more precisely as compare to the other two existing methods. The proposed method is recommended as an alternative to the existing methods, because it has a clear principle and a simple structure. In addition, it provides more flexibility adjusted with stochastic property.

Keywords: Spatial interpolation; Radial basis functions; Kriging; Semivariogram

1. Introduction

Spatial interpolation of population characteristic values from data that are limited in number and obtained at irregularly arranged points is an important process for further understanding geostatistical struc-ture in the natural fields. Geostatistics provides a set of statistical tools for analyzing spatial variability and spatial interpolation. A semivariogram is used to describe the structure of spatial variability. Kriging provides a best linear unbiased estimation for spatial

interpolation. Nowadays, geostatistics has become a popular means to describe spatial patterns and to interpolate the attribute of interest at unsampled locations. The geostatistical methods are increasingly used in many disciplines, such as mining, meteorol-ogy, hydrolmeteorol-ogy, geolmeteorol-ogy, remote sensing, soil science, ecology, and environmental science (Chirlin and Dagan, 1980; Bastin et al., 1984; Hill and Alexandar, 1989; White et al., 1997; Duc et al., 2000).

In the process of kriging analysis, the semivario-gram plays a central role in the analysis of geostatistical data. A valid semivariogram model is selected and the model parameters are estimated before kriging is performed. These inference

www.elsevier.com/locate/jhydrol

* Corresponding author. Fax: þ886-2-23631558. E-mail address: [email protected] (G.-F. Lin).

(2)

procedures are generally based upon examination of the experimental semivariogram, which consists of average squared differences of data taken at sites lagged the same distance. The calculation of the experimental semivariogram has a great influence on the accuracy of the model. On the other hand, if the experimental semivariogram is not well fitted, the kriging will not yield the best interpolation. Moreover, kriging has a disadvantage that it can be rather slow for larger data sets.

Neural networks, which devise via imitating brain activity and are capable of modeling nonlinear and complex systems, provide an alternative approach for hydrosystem modeling. Artificial neural networks were first developed in the 1940s. Generally speaking, neural networks are information processing systems. In recent decades, considerable interest has been raised over their practical applications, because the current algorithms can overcome the limitations of early networks. Bypassing the model construction and parameter estimation phases adopted by most of the conventional techniques, the neural networks can automatically develop a forecasting model through a simple process of the historic data. Such a training process enables the neural system to capture the complex and nonlinear relationships that are not easily analyzed using conventional methods. Based on the structure of the neural networks and the learning algorithm, various neural network models are frequently proposed and studied to solve different problems. The back-propagation network is the popular one. However, the back-propagation network has some disadvantages. For example, it tends to yield local solutions, the learning rate is slow and the network structure is difficult to develop. The architecture and training algorithms for radial basis function networks (RBFNs) are simple and clear. The RBFNs train more quickly than multiple layered perceptron networks. Unlike multiple layered perceptron networks, RBFNs allow for explanation when interpreted as fuzzy rule-based systems (Looney, 2002).

Radial basis functions were proposed in 1964 as potential functions (Aizerman et al., 1964; Bashkirov et al., 1964). RBFNs were first introduced to solve the real multivariate interpolation problem (Powell, 1987).Broomhead and Lowe (1988)were the first ones to exploit the use of radial basis functions in

the design of neural networks. RBFNs have been employed in nonlinear systems identification and time series prediction (Moody and Darken, 1989).Poggio and Girosi (1990) developed regularization networks from approximation theory with RBFNs as a special case.Park and Sandberg (1991)studied the universal approximation problem using the RBFNs. More recently, RBFNs have been used in a wide variety of applications, such as radar target recog-nition (Zhao and Bao, 1996), curve fitting (Xu, 1998), hardware integration of neurocomputers in an avionics system (Sanchez et al., 1998), classification of mammograms (Tsujii et al., 1999).

However, for the learning of RBFNs, the spatial correlation has been neglected in the past. Such a limitation has prompted a search for an improved approach to estimating the most suitable parameters. In this paper, a spatial interpolation method is developed. The method is based on the RBFN incorporating a semivariogram model. Restoration problems of known reference surfaces from ran-domly selected sample data are used to examine the interpolation accuracy of the proposed method. Then the method is applied to an actual watershed to estimate the spatial distribution of rainfall.

2. The proposed spatial interpolation method

In this section, the structure of RBFN is introduced. Furthermore, a spatial interpolation method, which is based on the RBFN incorporating a semivariogram model, is developed. The proposed interpolation method is referred to as Improved RBFN (IRBFN) method herein.

2.1. Standard RBFN

RBFN can be presented as a three-layer feedforward structure. The basic architecture of a three-layered neural network is shown inFig. 1. The input data X is an L-dimensional vector, X ¼ ½x1; x2; …; xLT: The input

layer serves only as input distributor to the hidden layer. The dimensionality of hidden units is the same as that of the input data. The response from the jth hidden unit for the ith input data xihas the following form

(3)

where k k denotes the Euclidean norm, cjis the center of

the jth unit (neuron) in the hidden layer,fð Þ is the activation function, and M is the number of hidden units. In the spatial interpolation, cjrepresents the jth

observed data point, and kxi2 cjkdenotes the distance

between the jth observed data point and the ith estimated location. The activation function is a nonlinear function that is radially symmetric in the input space. The response of the jth hidden unit depends only on the radial distance between the center of the jth hidden unit and the input vector. The activation function can have different forms, for example, the Gaussian function

fðXÞ ¼ exp 2kX 2 cjk

2

2s2

!

ð2Þ

wheresis the width of the hidden units andscan be obtained from (Haykin, 1994)

s¼ dmax_{ffiffiffiffiffi} 2M

p ð3Þ

where dmax is the maximum distance between the

centers of hidden units and M is the number of hidden units.

For an output layer of N units, the output of the kth unit, ^yk; can be obtained from

^yk¼

XM j¼1

wjkfjðxÞ k ¼ 1; 2; …; N ð4Þ

where fjðxÞ is the response of the jth hidden unit

resulting from all input data, wjk is the connecting

weight between the jth hidden unit and the kth output unit, and N is the number of output units.

In matrix notation, Eq. (4) becomes

Y ¼ WF ð5Þ where W ¼ w11 w21 · · · wM1 w₁₂ w₂₂ · · · w_M2 · · · · w1N w2N · · · wMN 2 6 6 6 6 6 6 4 3 7 7 7 7 7 7 5 ð6Þ and F¼ ½f1f2· · ·fMT ð7Þ 2.2. Improved RBFN

In RBFNs, each hidden unit has two parameters: center c and width s: It is often assumed that the

number of hidden units is significantly less than the number of data points. However, for the space interpolation method, the number of hidden units (neurons) equals the number of known data. Therefore, the calculation of widthsin each hidden unit becomes an important problem for the construction of an RBFN. The width s controls the smoothness property of the activation function. When the widthsis small, the corresponding area of the representation space is small. Hence, a high number of centers will be required during the process of training. This results in over-parameterization. On the contrary, the area of the representation space may be too extensive when the width s is large. For both cases, the generalization capabilities of the network will be poor (Oukhellou and Aknin, 1999). Since Eq. (3) is deterministic, the activation function of Eq. (2) does not have any stochastic property. However, the spatial variables correlate to each other within a range. Covariation analysis

(4)

displays the data in ways that reveal the correlation structure of the spatial data. The experimental semivariogram is the most important tool for covariation analysis. The experimental semivariogram represents the spatial variability in the data and is employed to determine the optimal weights used with kriging methods. Based on the combination of the RBFN and the semivariogram of kriging, a spatial interpolation method, named IRBFN, is proposed below.

The exponential form of the activation function for the hidden layer is adopted herein for developing the proposed spatial interpolation method. The exponential activation function is defined as

fjðxÞ ¼ exp 2

h

sj

!

ð8Þ

where h ¼ kx 2 cjk and sj is the width of the jth

hidden unit. It should be noted that the hidden units have different widths for the exponential activation function. On the contrary, all hidden units have the same width for the Gaussian activation function of Eq. (2).

The exponential form of the covariance function of semivariogram is popular in hydrologic applications (Kitanidis, 1993)

CðhÞ ¼ Cð0Þexp 2h a

ð9Þ

where Cð0Þ is the variance, a is the scale parameter, and CðhÞ is the covariance for distance h. Eq. (9) can be further written as CðhÞ Cð0Þ ¼ exp 2 h a ð10Þ

Eqs. (8) and (10) have the same form. Hence, once the covariance function is known, the widthsj

can be found. It should be noted that sj obtained in

this manner is the same for all hidden units because there is only one covariance value. To obtain the covariance function, one has to know the mean first. In practice, the mean is estimated from the observed data, which introduces a bias. Thus, the sample covariance also has a bias and results in inaccurate spatial interpolation. To avoid such a problem, the semivariogram will be used to estimate the widthsj:

The semivariogram can automatically filter the mean (Chiles and Delfiner, 1999).

The semivariogram gðhÞ is related to the covari-ance function CðhÞ through

gðhÞ ¼ Cð0Þ 2 CðhÞ ð11Þ

Inserting Eqs. (9) into Eq. (11) gives the exponen-tial semivariogram model

gðhÞ ¼ Cð0Þ 1 2 exp 2h a

ð12Þ

where the variance Cð0Þ is referred to as the sill. It should be noted that the range is a< 3a (Kitanidis, 1993).

Eqs. (8) and (12) have the same form. In a like manner, one can obtain the widthsj in Eq. (8), once

the experimental semivariogram is known. This still leads to a constantsjfor all hidden units because there

is only one semivariogram available. On the other hand, the experimental semivariogram is calculated from all sample points, and hence it cannot present the variety of small regions. An algorithm, that can account for the variety of small regions and yield different values of sj for different hidden units, is

proposed below.

For each hidden unit one can let the range a as a neighborhood, and then compute the average distance dn of the sample points in this

neighbor-hood. Half the average distance ð dn=2Þ in the jth

hidden unit’s neighborhood represents the width of the jth hidden unit. The use of d_n=2 is determined by experimentation herein. Among ratios of the average distance such as dn=2; dn=3; dn=4; etc. half

the average distance has the best interpolation accuracy. Two extreme cases of neighborhood are treated as follows. First, if the neighborhood is smaller than half the minimum distance between the jth hidden unit and its nearest sample point (i.e. there is no sample point within this neighborhood), the value of sj is set equal to half Euclidean

distance between the jth hidden unit and its nearest sample point. Second, if the neighborhood is larger than half the maximum distance between all sample points, the width of the jth hidden unit is set equal to half the average distance between all sample points.

(5)

3. Evaluation of interpolation accuracy

To evaluate the interpolation accuracy of the proposed method, three cases of semivariograms are considered and their corresponding random fields are generated. The random fields are obtained by HYDRO_GEN (Bellin and Rubin, 1996). The HYDRO_GEN can produce rapidly and accurately random fields of very large dimensions. One can refer to the work ofBellin and Rubin (1996)for the advantages of HYDRO_GEN over the turning bands method and the fast Fourier transform based method. Each random field is a square area that is divided equally into 81 squares to give 100 grid points. Each grid is 1 by 1 unit. Then, 25 points are randomly selected from the random field. These 25 points are then used to estimate the other 75 points using an interpolation method. The difference of the value at the same point between the original and the estimated ones is used to evaluate the interpolation accuracy.

It should be noted the generated random field is also referred to as the reference surface herein. In the following three cases, the proposed spatial interpolation method will be used in the restoration of the surfaces.

3.1. Isotropic semivariogram with sill C(0) ¼ 1 and scale parameter a ¼ 1

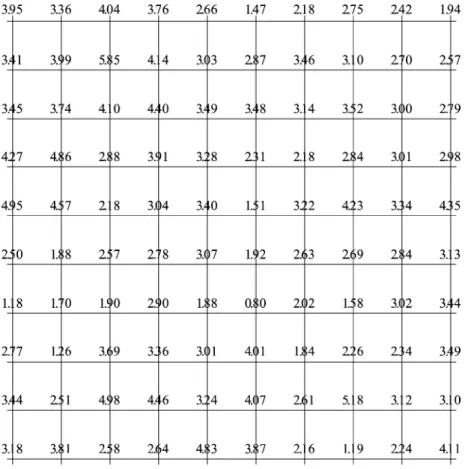

Fig. 2 presents the isotropic reference surface (random field) produced from Eq. (12) with sill Cð0Þ ¼ 1 and scale parameter a ¼ 1:Fig. 3presents the fitted and experimental semivariograms based on the sample data inFig. 2. The fitted semivariogram almost agrees with thegðhÞ defined in Eq. (12) with sill Cð0Þ ¼ 1 and scale parameter a ¼ 1:

Then, 10 different arrangements of the 25 grid points are prepared by selected randomly from the 100 data in Fig. 2. For each arrangement, the root mean square error (RMSE) is used to evaluate

(6)

the interpolation accuracy RMSE ¼ ffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi 1 Ne XNe p¼1 ^ Zp2 Zp Zp " #2 v u u t ð13Þ

where Neis the number of estimated values, ^Zpis the

estimated value at the pth grid point, and Zp is

the value of the reference surface at the pth grid point. The RMSE can be used to compare the performance of several interpolation methods. The method that yields the smallest value of RMSE is the best.

The RMSE values for the interpolation results using IRBFN are summarized inTable 1. These results are compared with those using the Ordinary Kriging (OK) and the Standard RBFN (SRBFN). It should be noted that the SRBFN uses Eq. (2) as the activation

function and employs only Eq. (3) to estimate the width of the hidden units. IRBFN achieves RMSE values ranging from 0.375 to 0.511 and has the lowest RMSE values. IRBFN yields an average RMSE reduction of 19% as compared to OK, and 20% as compared to SRBFN. IRBFN has the smallest RMSE values for all arrangement patterns and the variation of the RMSE values is small. The validity and stability of IRBFN is clearly demonstrated.

The isotropic reference surface generated with sill Cð0Þ ¼ 1 and scale parameter a ¼ 2 in Eq. (12) is shown in Fig. 4. The corresponding fitted and experimental semivariograms are presented inFig. 5. As shown inFig. 5, the fitted semivariogram is close to the prescribed semivariogram with sill Cð0Þ ¼ 1 and scale parameter a ¼ 2:

In a like manner, 10 arrangement patterns consisting of 25 sample points are made. The comparison of interpolation accuracy of the three methods based on RMSE for these 10 arrangement patterns of sample points is summarized in Table 2.

Table 2 shows that IRBFN achieves RMSE values ranging from 0.292 to 0.418. IRBFN yields an average RMSE reduction of 19% as compared to OK, and 26% as compared to SRBFN. It is noteworthy that the small interpolation error can be obtained by IRBFN for any arrangement pattern.

In a like manner, the reference surface is shown in

Fig. 6and the corresponding fitted and experimental semivariograms are presented in Fig. 7. As shown in

Fig. 7, the fitted semivariogram is in good agreement with the prescribed semivariogram with sill Cð0Þ ¼ 2 and scale parameter a ¼ 1:Table 3gives the RMSE values for the interpolation results by three methods. The results inTable 3are similar to those inTables 1 and 2. As shown inTable 3, one can find that IRBFN achieves RMSE values ranging from 0.545 to 2.667. The reduction in average RMSE obtained by IRBFN compared to OK exceeds 30% and is typically 33%.

Table 1

Comparison of interpolation accuracy of the three methods, IRBFN, OK and SRBFN, based on RMSE for 10 arrangement patterns of sample points selected randomly fromFig. 2

Pattern RMSE IRBFN OK SRBFN 1 0.375 0.442 0.405 2 0.423 0.627 0.552 3 0.447 0.479 0.485 4 0.411 0.485 0.663 5 0.451 0.543 0.628 6 0.414 0.483 0.488 7 0.457 0.562 0.482 8 0.427 0.520 0.716 9 0.418 0.615 0.483 10 0.511 0.612 0.549 Mean 0.433 0.537 0.545

Fig. 3. The fitted and experimental semivariograms based on the sample data inFig. 2.

(7)

Similar reduction in average RMSE is obtained compared to SRBFN.

Based on the results of these three cases, the RMSE values obtained by IRBFN are smaller than those obtained by OK and SRBFN. Therefore, IRBFN can be regarded as an interpolation method with high

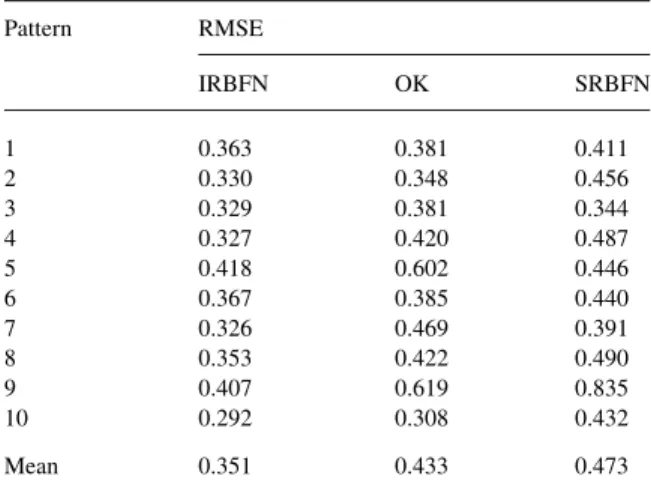

Table 2

Comparison of interpolation accuracy of the three methods based on RMSE for 10 arrangement patterns of sample points selected randomly fromFig. 4

Fig. 4. Isotropic reference surface with Cð0Þ ¼ 1 and a ¼ 2:

(8)

accuracy. In addition, one can find that the variance has a great influence on evaluating the interpolation accuracy. Especially when the variance of the reference surface is large, the range of reduction in average RMSE obtained by IRBFN becomes greater. In other words, IRBFN is performing well when the variance of the reference surface is large.

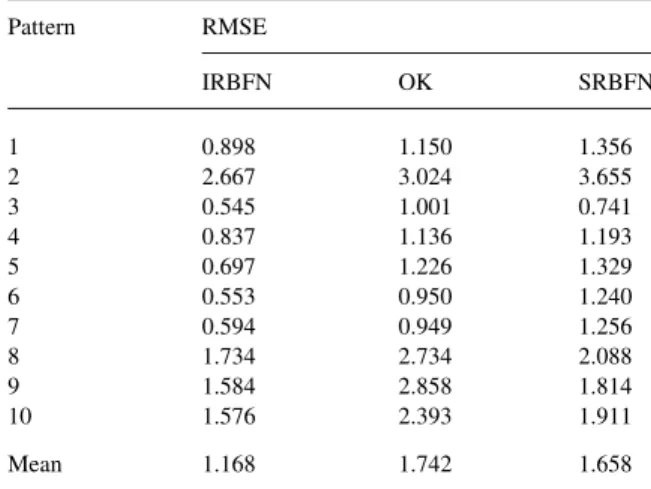

Table 3

Comparison of interpolation accuracy of the three methods based on RMSE for 10 arrangement patterns of sample points selected randomly fromFig. 6

Fig. 6. Isotropic reference surface with Cð0Þ ¼ 2 and a ¼ 1.

(9)

4. Application

The proposed spatial interpolation method is applied to estimate the spatial distribution of rainfall in the Tanshui River Basin in northern Taiwan. The average slope of the Tanshui River is 1/45, and the area of the basin is 2726 km2. There are 55 rain gauges in this basin. The rainfall data are collected from computer archives of the Central Weather Bureau. Fig. 8 shows the study area and the locations of 55 rain gauges. In total, 64 sets of hourly rainfall records are used to compare the performance of the proposed method and the other two methods.

Cross-validation (leave-one-out-method) is selected to check the performance of the three models herein. The principle of cross-validation is to estimate the value at each sample point from the other data. Thus at every sample point one can get an estimate. The true value being known, one can compute the RMSE. The interpolation method that yields the smallest value of error is the best method.

Table 4 summarizes the RMSE values for the

interpolation results by three methods. The average RMSE values for IRBFN, OK and SRBFN are 0.525, 0.746 and 0.793, respectively. IRBFN yields an average RMSE reduction of 30% as compared to

OK, and 34% as compared to SRBFN. Globally, the best method is IRBFN although for some data sets OK and SRBFN perform as well or even better than IRBFN. The results demonstrate the accuracy and reliability of the interpolation method proposed in this paper.

5. Summary and conclusions

A spatial interpolation method based on RBFNs incorporating a semivariogram model has been developed. The method is named Improved RBFN (IRBFN). The IRBFN, with a clear principle and a simple structure, provides more flexibility adjusted with stochastic property. Moreover, IRBFN has the higher computation speed for larger data set as compared to kriging. To evaluate the interpolation accuracy, three reference surfaces, which are based on isotropic semivariograms with different sills and scale parameters, are defined. Among three interpolation methods (IRBFN, OK and SRBFN) used in the restoration of the surfaces, IRBFN is shown to have the highest interpolation accuracy regardless of the arrangement of the sample points. Actual application also shows that IRBFN can

(10)

estimate the spatial distribution of rainfall more precisely as compared to the other two methods.

References

Aizerman, M.A., Braverman, E.M., Rozonoer, L.I., 1964. Theoretical foundations of the potential function method in pattern recognition learning. Automatic Remote Control 25, 821 – 837.

Bashkirov, O.K., Braverman, E.M., Muchnik, I.B., 1964. Potential function algorithms for pattern recognition learning machines. Automatic Remote Control 25, 629 – 631.

Bastin, G., Lorent, B., Duque, C., Gevers, M., 1984. Optimal estimation of the average rainfall and optimal selection of raingage locations. Water Resources Research 20 (4), 463 – 470. Bellin, A., Rubin, Y., 1996. HYDRO_GEN: a spatially distributed random field generator for correlated properties. Stochastic Hydrology and Hydraulics 10 (4), 253 – 278.

Broomhead, D.S., Lowe, D., 1988. Multilvariable functional interpolation and adaptive networks. Complex System 2, 321 – 355.

Chiles, J.P., Delfiner, P., 1999. Geostatistics: Modeling Spatial Uncertainty. Wiley, New York.

Chirlin, G.R., Dagan, G., 1980. Theoretical head variogram for steady flow in statistically homogeneous aquifers. Water Resources Research 16 (6), 1001 – 1015.

Table 4

Comparison of interpolation accuracy of the three methods based on RMSE for 64 data sets

Data set RMSE Data set RMSE

IRBFN OK SRBFN IRBFN OK SRBFN 1 0.535 0.591 0.650 33 0.495 0.899 0.602 2 0.485 0.506 0.894 34 0.345 0.522 0.653 3 0.437 0.555 0.682 35 0.723 0.807 1.142 4 0.504 0.758 0.699 36 0.815 0.935 0.835 5 0.400 0.570 0.638 37 0.563 0.913 0.714 6 0.948 0.957 1.350 38 0.522 0.688 0.691 7 0.439 0.456 0.683 39 0.621 0.838 0.606 8 0.438 0.412 0.588 40 0.366 0.660 0.688 9 0.623 0.709 0.905 41 0.400 0.566 0.632 10 0.937 1.140 1.459 42 0.383 0.606 0.535 11 0.492 0.696 0.854 43 0.309 0.360 0.496 12 0.636 0.844 0.948 44 0.425 0.474 0.605 13 0.339 0.371 0.595 45 0.253 0.244 0.510 14 0.469 0.808 0.838 46 0.275 0.283 0.512 15 0.422 0.503 0.709 47 0.324 0.523 0.503 16 0.489 0.877 0.804 48 0.355 0.358 0.503 17 0.482 0.481 0.656 49 0.251 0.231 0.579 18 0.678 1.175 0.848 50 0.299 0.426 0.495 19 0.442 0.480 0.642 51 0.312 0.657 0.501 20 0.447 0.474 0.607 52 0.404 0.469 1.009 21 0.452 0.535 0.700 53 0.439 0.734 0.808 22 0.537 0.618 0.545 54 0.631 0.979 0.830 23 0.591 0.622 0.944 55 0.713 0.905 1.442 24 0.766 1.738 1.670 56 0.637 0.737 1.303 25 0.690 1.662 0.801 57 0.512 0.807 0.702 26 0.733 1.144 1.033 58 0.716 1.159 0.878 27 0.621 1.079 1.109 59 0.632 1.573 0.584 28 0.712 1.941 1.220 60 0.410 0.494 0.680 29 0.857 1.010 0.684 61 0.694 1.011 0.700 30 0.474 0.799 0.929 62 0.810 0.883 1.645 31 0.342 0.436 0.706 63 0.383 0.414 0.624 32 0.494 0.595 0.786 64 0.687 1.046 0.590 Mean 0.525 0.746 0.793

(11)

Duc, H., Shannon, I., Azzi, M., 2000. Spatial distribution characteristics of some air pollutants in Sydney. Mathematics and Computers in Simulation 54 (1 – 3), 1 – 21.

Haykin, S., 1994. Neural Networks: A Comprehensive Foundation. IEEE Press, New York.

Hill, M., Alexandar, F., 1989. Statistical methods used in assessing the risk of disease near a source of possible environmental pollu-tion: a review. Journal of Royal Statistical Society 152, 353 – 363. Kitanidis, P.K., 1993. Geostatistics. In: Maidment, D.R., (Ed.), Handbook of Hydrology, McGraw-Hill, New York, pp. 2.01 – 20.39.

Looney, C.G., 2002. Radial basis functional link nets and fuzzy reasoning. Neurocomputing 48, 489 – 509.

Moody, J., Darken, C.J., 1989. Fast learning in networks of locally-tuned processing units. Neural Computation 1, 281 – 294. Oukhellou, L., Aknin, P., 1999. Hybrid training of radial basis

function networks in a partitioning context of classification. Neurocomputing 28, 165 – 175.

Park, J., Sandberg, I.W., 1991. Universal approximation using radial-basis-function networks. Neural Computation 3, 246 – 257.

Poggio, T., Girosi, F., 1990. Networks for approximation and learning. Proceedings of the IEEE 78 (9), 1481 – 1497. Powell, M.J.D., 1987. Radial basis functions for multivariable

interpolation: a review. In: Mason, J.C., Cox, M.G. (Eds.), Algorithms for Approximation, Carendon Press, Oxford, pp. 143 – 167.

Sanchez, V.D., Sloat, S., Guerrero, J., Shullo, D., Lefebvre, M., 1998. The design of a real-time neurocomputer based on RBF networks. Neurocomputing 20 (3), 111 – 114.

Tsujii, O., Freedman, M.T., Mun, S.K., 1999. Classification of microcalcifications in digital mammograms using trend-oriented radial basis function neural network. Pattern Recog-nition 32 (5), 891 – 903.

White, J.G., Welch, R.M., Norvell, W.A., 1997. Soil zinc map of the USA using geostatistics and geographic information systems. Soil Science Society of America Journal 61 (1), 185 – 194. Xu, L., 1998. RBF nets, mixture experts, and Bayesian Ying-Yang

learning. Neurocomputing 19 (3), 223 – 257.

Zhao, Q., Bao, Z., 1996. Radar target recognition using a radial basis function neural network. Neural Networks 9 (4), 709 – 720.
