Rapid and sensitive detection of rare cancer cells by the coupling of immunomagnetic nanoparticle separation with ELISA analysis

Rapid and sensitive detection of rare cancer cells

by the coupling of immunomagnetic nanoparticle

separation with ELISA analysis

Hao-Yuan Cheng1

Lee-Jene Lai2

Fu-Hsiang Ko1

1_{Department of Materials Science and}

Engineering, National Chiao Tung University, Taiwan, Republic of China;

2_{National Synchrotron Radiation}

Research Center, Taiwan, Republic of China

Correspondence: Hao-Yuan Cheng National Chiao Tung University, 1001 University Road, Hsinchu, Taiwan, Republic of China Tel +88 635 780 281 Fax +88 635 789 816

Email haoyuan818.nano97g@g2.nctu. edu.tw

Abstract: This study presents a rapid and sensitive method for detecting cancer cells occurring

at low concentration. The method involves the simultaneous detection of two biomarkers of T helper cancer cells. One biomarker conjugates with immunofunctionalized magnetic nano-particles (MNPs), enabling the separation of the T helper cells from a mixed population of cells. The other biomarker is used for detection during enzyme-linked immunosorbent assay (ELISA) analysis. The specific T helper cells can be quantified according to their ELISA absorbance values following magnetic separation. The experimental results demonstrate that immunofunctional-ized MNPs can function as magnetic sensors and separate specific T helper cells from a mixed population with high efficiency and high specificity. Coupled with the ELISA technique, the immunofunctionalized MNPs can simultaneously detect rare cells. Results indicated increasing absorbance with increasing T cell number (from 10 to 106_{). The total detection time was less than}

15 minutes, even at a low T cell count. The advantages of the proposed method for detecting specific cells at low concentration include ease of preparation, low cost, rapid detection, and high sensitivity. The proposed system can be adopted to detect circulating tumor cells in early tumor stages for diagnostic or prognostic purposes.

Keywords: ELISA, magnetic nanoparticles, immunoassay, cancer cell

Introduction

In biotechnological research, the development of methods that enable the rapid and sensitive detection of rare cells and the early diagnosis, staging, and prognosis of viral infections or cancer has become a high priority.1,2 _{Systems to rapidly and sensitively} detect low-frequency cancer cells have the potential to significantly improve cancer diagnosis and prognosis.3,4 _{In the human circulatory system, particularly in the blood,} the number of circulating tumor cells is closely correlated with the recurrence of cancer and relapse. During the early stages of a tumor, cells circulate in the blood at extremely low concentrations, and their detection is thus a difficult task.5 _The con-ventional methods for detecting trace cells are culture techniques and enzyme-linked immunospot assays. These require increasing cell numbers by culturing in vitro or by incubating with specific peptides.6,7 _{Studies have reported other approaches, based on} flow cytometry, to detect low-frequency cells for the prognosis of minimal residual disease in childhood acute lymphoblastic leukemia.8–10 _{However, detecting numerous} cells is a relatively labor-intensive and time-consuming process when using enzyme-linked immunospot or flow cytometric approaches. Developing highly sensitive and rapid methods of detecting specific cancer cells occurring at low frequency after appropriate treatment is, therefore, of significant prognostic value.

O R I g I N A L R E S E A R C H open access to scientific and medical research Open Access Full Text Article

Number of times this article has been viewed

This article was published in the following Dove Press journal: International Journal of Nanomedicine

Immunological methods provide powerful tools for the chemical detection of proteins in situ. The enzyme-linked immunosorbent assay (ELISA) is one of the most com-monly used techniques for the detection and quantification of antibodies, antigens, hormones, cytokines, and various other molecules, including synthetic peptides. Because of its quantitative, sensitive, and rapid response, the use of ELISA in research and clinical laboratories has become widespread.11,12 In addition, immunomagnetic separation has been shown to be a simple, fast, and efficient method of isolating specific micro-metastatic cells from colorectal cancer and stem cells.13,14

The present study demonstrates a high-throughput and sensitive method for detecting cells occurring in low numbers, using specific immunofunctionalized magnetite nanoparticles (MNPs) coupled with the ELISA technique. Human Jurkat cells (T helper lymphocytes) provided a model for circulating tumor cells, with antibodies and immu-nofunctionalized MNPs targeting CD3 and CD4 markers, respectively, on the T helper cell membrane. Human C1R cells (B lymphocytes) provided the other cells in the mixed population. Experimental results indicated that the detection of specific cells occurs within approximately 15 minutes, even at a low cell number, and that the sensitivity for distinction of specific T helper lymphocytes from B cells is approximately 0.001%. The proposed system thus provides a rapid and sensi-tive method for detecting and quantifying rare cells.

Materials and methods

Chemical materials

Chemicals such as iron (III) chloride hexahydrate (FeCl₃ ⋅6H₂O), 3-aminopropyltriethoxysilane (APTES), glutaraldehyde solution, 10 × concentrated phosphate buff-ered saline (10 × PBS) (diluted to 1 × PBS using ultrapure water for further use), and 3,3′,5,5′-tetramethylbenzidine were obtained from Sigma-Aldrich (St Louis, MO). Iron (II) chloride tetrahydrate (FeCl₂ ⋅4H₂O) was obtained from Alfa Aesar (Ward Hill, MA). The reagents ammonium hydroxide (NH₄OH) and horseradish peroxidase-streptavidin (HRP-stv) were purchased from J.T. Baker (Covidien, Mansfield, MA) and Thermo Scientific (Thermo Fisher Scientific). Human T helper lymphocytes (ATCC TIB-152, Jurkat cell line) and human B lymphocytes (ATCC CRL-1993, C1R) were obtained from the American Type Culture Collection (Manassas, VA). Anti-human CD4 (14-0049) and biotinylated anti-human CD3 (13-0038) antibodies were purchased from eBioscience, Inc (San Diego, CA). Ultrapure water (18 MΩcm), obtained using a Milli-Q purification system (Millipore, MA), was used for the preparation of all solutions.

Cell culture

The Jurkat cells (T helper lymphocytes) were maintained in an RPMI-1640 medium (11875, Gibco®_{; Life Technologies,} Carlsbad, CA) supplemented with 25 mm HEPES (SH30237, HyClone; Thermo Fisher Scientific, Waltham, MA), 10% (v/v) heat-inactivated fetal clone III serum (SH30109; Hyclone), 1% penicillin (P0781; Sigma-Aldrich), and 0.005 mM 2-Mercaptoethanol (M7522; Sigma-Aldrich) at 37°C and 5% CO₂. The C1R cells (B lymphocytes) were cultured in an Iscove’s Modified Dulbecco’s medium (12200-028, Gibco; Life Technologies), supplemented with 10% (v/v) heat- inactivated fetal clone III serum and 1% penicillin at 37°C and 5% CO₂ in a humidified atmosphere. A hemocytometer was used to count the number of cells in the cultured solutions. Cells were then concentrated by centrifuging or diluted and washed with 1 × phosphate buffered saline (PBS) for further use.

Transmission electron microscopy

For preparation of the samples for transmission electron microscopy, the particles were placed on a copper mesh surface for critical point drying using CO₂ (CPD 030; Leica Microsystems [Bal-Tec], Wetzlar, Germany). The morphol-ogy of the sample was observed using a JEOL (Tokyo, Japan) 2010F transmission electron microscope.

Experimental protocols

MNPs were synthesized according to the following procedure. Iron (II) chloride tetrahydrate and FeCl₃ ⋅6H₂O were mixed in the ratio Fe+2_:Fe+3_{= 1:2 and dissolved in ultrapure water.} The mixtures were then placed in a water bath maintained at 80°C, and aqueous NH₄OH solution (8 M) was added until a black precipitate appeared. The mixture was stirred continuously for 30 minutes in the 80°C water bath. When the reaction was complete, the MNPs in the solution were isolated using a magnet and washed repeatedly with hot water to remove any unreacted impurities. The synthesized MNPs were reacted with APTES overnight to create MNPs-APTES. To introduce functional immunoglobulin on the particles, glutaraldehyde was conjugated to the terminal NH₂ group of MNPs-APTES. Excess anti-CD4 antibodies were added to create the immunofunctionalized MNPs.

For immunomagnetic separation, anti-CD4 MNPs were introduced to the mixture of T helper cells and B lympho-cytes for 15 minutes on ice, yielding MNP-bound T cells. The suspension of the mixed cell population containing these MNP-bound T cells was transferred into a new tube, and 1 × PBS solution was added to reach a total volume of 1.5 mL. The tube was loaded onto the magnet for separation

of the immunomagnetic particles from the mixed cells. The supernatant fraction was pipetted off, leaving the immunomag-netically labeled specific T helper cells remaining in the tube. The immunomagnetic separation procedure was conducted three times.

The specific lymphocytes were then detected using ELISA. Four µL of biotinylated anti-human CD3 antibody and HRP-stv were added to 100 µL of the separated T helper cells and incubated at room temperature for 15 minutes. The samples were washed with 1 × PBS to remove unreacted mat-ter, and 3,3′-,5,5′- tetramethylbenzidine was added for ELISA detection through measurement of absorbance at 650 nm (OD₆₅₀). Detection was done using the EMax® _endpoint ELISA microplate reader (Molecular Devices, Sunnyvale, CA), running SoftMax® _{Pro analysis software (Molecular} Devices Corporation, Sunnyvale, CA). During detection, correction was done using B cells as blanks.

Results and discussion

Proof of concept

The present study demonstrates a method for rapid and sensitive detection of specific lymphocytes occurring at low frequency using immunofunctionalized MNPs and ELISA analysis. Figure 1A displays the methods employed for syn-thesis of MNPs using Fe+2_{- and Fe}+3_{-containing materials.} Synthesis of the MNPs occurred after treatment of the Fe+2_/Fe+3 _{mixtures with alkaline solution in a water bath} maintained at 80°C. Reaction of the MNPs with APTES then led to the formation of MNPs-APTES. To introduce functional immunoglobulin onto the particles, glutaraldehyde was conjugated to the terminal NH₂ group of MNPs-APTES. The addition of excess anti-CD4 antibodies then created the immunofunctional MNPs. As shown in Figure 1B and C, the antigens on the membranes of the T helper cells differ from those on the membranes of the B cells. All T helper cell membranes contain the markers CD3 and CD4, whereas the membranes of B cells contain CD19 and CD40 mark-ers. The presented method takes advantage of these characteristics, using the CD3 and CD4 biomarkers to distin-guish the T helper cells (targets) from the B cells. The tight binding affinity of biotin-streptavidin15–17 _{enables linkage to} the target T helper cells through biotinylated CD3 anti-body and HRP-stv. The membranes of the T helper cells thus conjugated with anti-human CD4-MNPs through the antigen-antibody reaction, yielding the MNP-bound T helper cells. After selection using a magnet, the membranes of the T helper cells were associated with biotin-conjugated anti-human CD3 antibodies and HRP-stv, creating the labeled T cells.

ELISA TMB(ox) TMB(red) Magnet Anti-CD4 MNPs Anti-CD4 antibody Si-(CH2)3NH2 Biotinylated Anti-CD3 Ab HRP-stv T cell CD3 marker CD4 marker B cell CD40 marker CD19 marker Anti-CD4 magnetic nanoparticle Biotinylated anti-CD3 antibody Horseradish peroxidase-streptavidin OH A B C OH OH OH OH OH _OH OH OH OH OH OH OH OHC OHC OHC OHC CHO CHO CHO CHO Glutaraldehyde Si(OEt)3(CH2)3NH2 FeC12 • 4H2O + FeCI3 • 6H2O NH4OH ∆ 80°C NH2 NH2 NH2 NH2 NH2 H2N H2N H2N Magnetic nanoparticles O O O

Figure 1 (A) Synthesis of MNPs and immunofunctionalized MNPs. (B) The schema

illustrates the process for detection of specific T helper cells using two biomarkers: immunofunctionalized MNPs for immunoseparation and the ELISA technique for detection. Absorbance was recorded at a wavelength of 650 nm. (C) Diagrammatic

representations of the T helper cells, B cells, and other materials.

Abbreviations: MNPs, magnetite nanoparticles; ELISA, enzyme-linked

immunosorbent assay; HRP-stv, horseradish peroxidase-streptavidin; TMB, 3,3′,5,5′-tetramethylbenzidine.

Following the catalysis of 3,3′,5,5′-tetramethylbenzidine, the isolated T helper cells could be quantified according to their ELISA absorbance values.

Morphology evaluation

To verify the dimensions of the synthesized MNPs, transmission electron microscopy images were evaluated (Figure 2). The MNPs were spherical, with a uniform diameter (Figure 2A). The APTES-modified MNPs were also spherical

A B C B A 12 10 8 6 4 2 0 nm 15 nm 15 nm

Figure 2 Typical transmission electron microscopy images of (A) synthesized MNPs and (B) APTES-modified MNPs, with (C) a bar chart indicating their respective average

diameters.

Abbreviations: MNPs, magnetite nanoparticles; APTES, 3-aminopropyltriethoxysilane.

in transmission electron microscopy images (Figure 2B). Figure 2C shows the diameters of the MNPs (less than 6 nm) and the APTES-modified MNPs (less than 10 nm).

Phase identification

Previous studies have demonstrated that varying the prepara-tion condiprepara-tions of ferrites can create versatile magnetites.18,19 _In the present study, the X-ray diffraction technique was selected for MNP identification. Phase identification of the samples was performed with a BL01C2 X-ray powder diffraction beam-line in the National Synchrotron Radiation Research Center, using an X-ray wavelength of 0.688807 Å. Figure 3A–C, and 3D represent the spectra of α-Fe2O3, Fe3O4, MNPs, and the APTES-modified MNPs, respectively. The diffraction peaks in Figure 3C are more consistent with those in Figure 3B than those in Figure 3A, indicating that the MNPs are more similar to Fe₃O₄ than to α-Fe2O3. The diffraction pattern of Figure 3D is identical to that of Figure 3C, indicating that APTES is amorphous. This suggests that APTES modifies MNPs yet has no apparent effects on their crystalline structures. Structural characterization

Fourier transform infrared spectra were obtained using a BL14A1 beamline at the National Synchrotron Radiation

Research Center and used to characterize the APTES- modified MNPs and immunofunctionalized MNP composites. The spectra were compared with the MNP results. As shown in Figure 4A, the Fourier transform infrared spectrum of the MNPs displays a characteristic broad peak, from approximately 3000 cm−1 _{to approximately 3500 cm}−1_{, assigned to the} stretch-ing vibration of O–H groups on the MNPs. In Figure 4B, the spectrum of the APTES-modified MNPs displays a further peak at approximately 1020 cm−1_{, corresponding to the Si–O} stretching vibration. Common biomolecules, such as nucleic acids, proteins, lipids, and carbohydrates, have characteristic and well-known vibration fingerprints, which can be identi-fied using infrared spectroscopy.20 _{As shown in Figure 4C,} the spectrum of the anti-CD4 immunofunctionalized MNPs displays peaks that are frequently observed in biological samples, including lipids (at approximately 2900 cm-1_{), amide I} (at approximately 1650 cm-1_{), and amide II (at approximately} 1549 cm-1_{), representing stretching vibrations of the antibody} signature. These results indicated the successful creation of anti-CD4 immunofunctionalized MNPs during multiple stages.

Specific binding and separation ability

the CD3 markers of the T helper cells and biotinylated anti-human CD3, followed by a coupling reaction between biotinylated anti-human CD3 and HRP-stv and between the CD4 marker of the T helper cells and anti-human CD4-conjugated MNPs. Incubation of the T cells with first the anti-human CD4-conjugated MNPs, then biotinylated anti-human CD3, and finally, HRP-stv led to the formation of the HRP-tagged MNP-bound T cells. Figure 5A shows the specificity of the magnetic separation process for the T helper cells, following the sequential incubation of 106 _{T cells and} 106 _{B cells with anti-human CD4-conjugated MNPs,} bioti-nylated anti-human CD3, and HRP-stv. A high proportion of the target T helper cells were captured. In contrast, most of the B cells were not captured, despite the high cell count (106_{). This indicated that the anti-human CD4-conjugated}

MNPs successfully attached to the membranes of T helper cell through the direct specificity of the antigen-antibody reaction and that cross-reaction with nontarget B cells did not occur. The separation ability was evaluated using dif-ferent numbers of T helper cells, from approximately 104 to 106_{, with results indicating an efficiency of almost 90%} (Figure 5B). The experimental results further demonstrated that the anti-CD4 immunofunctionalized MNPs could func-tion as a magnetic sensor, separating T helper cells with high specificity and separation efficiency. When coupled with A (3.1.1) (4.4.0) (2.2.0) B C D 0 5 10 15 20 25 30 35 40 45 2θ (degree)

Figure 3 Synchrotron XRD spectra of (A) α-Fe2O3, (B) Fe3O4, (C) MNPs, and (D)

APTES-modified MNPs.

Abbreviations: XRD, X-ray diffraction; MNPs, magnetite nanoparticles; APTES,

3-aminopropyltriethoxysilane. A O—H Si-O B C Antiboby C—H bonds Antiboby amide bonds 1000 1500 2000 2500 3000 3500 4000 Wave number (cm-1₎

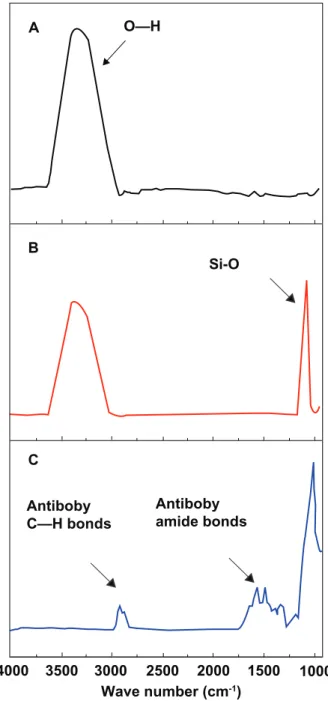

Figure 4 Synchrotron Fourier transform infrared spectra of (A) MNPs, (B)

APTES-modified MNPs, and (C) immunofunctionalized MNPs.

T cells B cells

A B

Upper row image: MNP-captured cells

Lower row image: uncaptured cells Number of specific T cells

% 106 ₁₀5 ₁₀4 80 100 60 40 20 0

Figure 5 (A) Optical microscopic images indicating the specificity of immunofunctionalized MNPs for the T helper cells during magnetic separation and (B) a bar chart

indicating the separation efficiency of immunofunctionalized MNPs at various T cell counts.

Abbreviation: MNPs, magnetite nanoparticles.

1.4 1.2 1.0 0.8 0.6 0.4 0.2 0.0 Absorbance Number of T cells 0 101 ₁₀2 ₁₀3 ₁₀4 ₁₀5 ₁₀6 y = 0.1779X + 0.0481 R2 _{= 0.9976}

Figure 6 Semi-log plot of absorbance and the number of T helper cells detected by

ELISA in a mixed cell population.

Abbreviation: ELISA, enzyme-linked immunosorbent assay.

the ELISA technique, the anti-CD4 immunofunctionalized MNPs provide the further advantage of being able to detect rare cells.

Detection of T helper cells in a mixed cell population using ELISA

Following the sequential incubation of cells with anti-CD4 immunofunctionalized MNPs, biotinylated anti-human CD3, and the HRP-stv catalytic probe, a magnet was applied to separate the specific CD3- and MNP-labeled T helper cells. The separated T helper cell population was then quantified by measuring the absorbance according to CD3-labeling. Figure 6 displays the absorbance and T helper cell population

number (from 0 to approximately 106 _{cells) following} magnetic separation from the B cells. Absorbance was recorded at a wavelength of 650 nm. Experimental results indicated increasing absorbance of the CD3-labeled T cells with increasing T helper cell quantity (from 10 to 106_{) in} a mixed population with B cells. Detection time was less than 15 minutes, including the scanning period, even at a low T cell count. These results indicated that the system has high sensitivity for the detection of specific rare cells from a mixed cell population.

Conclusion

This study presents an efficient, specific, and sensitive method for detecting cancer cells occurring at low concentra-tion using ELISA and MNPs as probes. After funcconcentra-tionaliza- functionaliza-tion of the surfaces of the MNPs using APTES, the antibody is covalently immobilized on the MNPs. The immobilized molecules retain their specific binding activity. The immu-nofunctionalized MNPs display high ability to capture and separate target cancer cells. Coupled with the ELISA tech-nique, they can detect specific T cells from a mixed B cell-T cell population. Absorbance increases with increasing T cell population (from 10 to 106 _{cells). The} immunofunctional-ized MNPs have approximately 90% separation efficiency and approximately 0.001% detection sensitivity for specific T helper lymphocytes from B cells, with detection occurring within 15 minutes. The anti-CD4-conjugated MNPs can, therefore, function as magnetic sensors and separate specific
