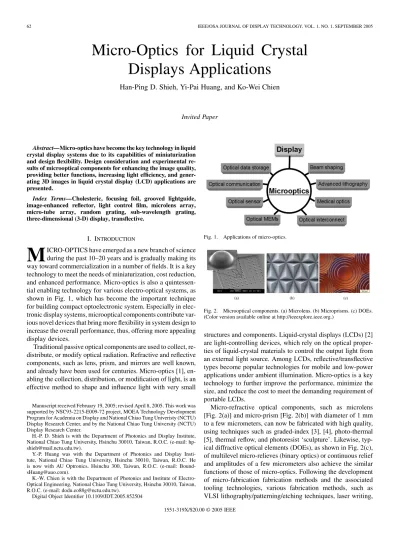

Micro-Optics for Liquid Crystal
Displays Applications
Han-Ping D. Shieh, Yi-Pai Huang, and Ko-Wei Chien
Invited Paper
Abstract—Micro-optics have become the key technology in liquid
crystal display systems due to its capabilities of miniaturization and design flexibility. Design consideration and experimental re-sults of microoptical components for enhancing the image quality, providing better functions, increasing light efficiency, and gener-ating 3D images in liquid crystal display (LCD) applications are presented.
Index Terms—Cholesteric, focusing foil, grooved lightguide,
image-enhanced reflector, light control film, microlens array, micro-tube array, random grating, sub-wavelength grating, three-dimensional (3-D) display, transflective.
I. INTRODUCTION
M
ICRO-OPTICS have emerged as a new branch of science during the past 10–20 years and is gradually making its way toward commercialization in a number of fields. It is a key technology to meet the needs of miniaturization, cost reduction, and enhanced performance. Micro-optics is also a quintessen-tial enabling technology for various electro-optical systems, as shown in Fig. 1, which has become the important technique for building compact optoelectronic system. Especially in elec-tronic display systems, microoptical components contribute var-ious novel devices that bring more flexibility in system design to increase the overall performance, thus, offering more appealing display devices.Traditional passive optical components are used to collect, re-distribute, or modify optical radiation. Refractive and reflective components, such as lens, prism, and mirrors are well known, and already have been used for centuries. Micro-optics [1], en-abling the collection, distribution, or modification of light, is an effective method to shape and influence light with very small Manuscript received February 19, 2005; revised April 8, 2005. This work was supported by NSC93-2215-E009-72 project, MOEA Technology Development Program for Academia on Display and National Chiao Tung Univeristy (NCTU) Display Research Center, and by the National Chiao Tung University (NCTU) Display Research Center.
H.-P. D. Shieh is with the Department of Photonics and Display Institute, National Chiao Tung University, Hsinchu 30010, Taiwan, R.O.C. (e-mail: [email protected]).
Y.-P. Huang was with the Department of Photonics and Display Insti-tute, National Chiao Tung University, Hsinchu 30010, Taiwan, R.O.C. He is now with AU Optronics, Hsinchu 300, Taiwan, R.O.C. (e-mail: [email protected]).
K.-W. Chien is with the Department of Photonics and Institute of Electro-Optical Engineering, National Chiao Tung University, Hsinchu 30010, Taiwan, R.O.C. (e-mail: [email protected]).
Digital Object Identifier 10.1109/JDT.2005.852504
Fig. 1. Applications of micro-optics.
Fig. 2. Microoptical components. (a) Microlens. (b) Microprisms. (c) DOEs. (Color version available online at http://ieeexplore.ieee.org.)
structures and components. Liquid-crystal displays (LCDs) [2] are light-controlling devices, which rely on the optical proper-ties of liquid-crystal materials to control the output light from an external light source. Among LCDs, reflective/transflective types become popular technologies for mobile and low-power applications under ambient illumination. Micro-optics is a key technology to further improve the performance, minimize the size, and reduce the cost to meet the demanding requirement of portable LCDs.
Micro-refractive optical components, such as microlens [Fig. 2(a)] and micro-prism [Fig. 2(b)] with diameter of 1 mm to a few micrometers, can now be fabricated with high quality, using techniques such as graded-index [3], [4], photo-thermal [5], thermal reflow, and photoresist ‘sculpture’. Likewise, typ-ical diffractive opttyp-ical elements (DOEs), as shown in Fig. 2(c), of multilevel micro-relieves (binary optics) or continuous relief and amplitudes of a few micrometers also achieve the similar functions of those of micro-optics. Following the development of micro-fabrication fabrication methods and the associated tooling technologies, various fabrication methods, such as VLSI lithography/patterning/etching techniques, laser writing, 1551-319X/$20.00 © 2005 IEEE
and demonstrated.
II. PRINCIPLE OFMICROOPTICALCOMPONENTS Most classical macrooptical components, such as lens, prism, and mirror, are designed using the theory of geometrical optics, treating light as geometrical rays which are refracted and re-flected at optical interface, for example, between air and glass, as described by Snell’s law. However, such a structure is not easily fabricated in microstructure, especially in the dimensions of a few microns. Therefore, in the 1970s and 1980s, planner DOEs were developed. DOEs have several advantages. They: 1) allow manipulating light fields in ways that would be difficult by traditional refractive and reflective optics; 2) can be inexpensive and light weight; and 3) are more flexible in the design process. To determine the optical path and efficiency of light trans-mitting in DOEs, scalar and vector diffractions are two main theories used in the design. Vector diffraction theory is a rig-orous electromagnetic theory, where light is treated as electro-magnetic wave, and the propagation in optical system is de-rived by Maxwell equations. However, in most cases, the nu-merical computing is prohibitively time consuming. In contrast, scalar diffraction theory is simple and efficient in calculation. However, scalar diffraction theory, derived from the Fourier op-tics, cannot deal with the phenomenon of polarization. In ad-dition, scalar diffraction theory is only applicable for the large scale microstructure; namely, the variation of the surface-relief or index-modulation profile is larger than the wavelength of light , or the aspect ratio (depth/width) is close to [6]. Fortunately, most microoptical elements are not so small in feature dimen-sion, hence, the scalar diffraction theory is adequate to deal with most functions of DOEs [7].
A. Binary Micro-Gratings
Binary grating elements have the stepped approximation with respect to an ideal continuous phase profile. Diffraction efficiency of binary microoptical component depends on the number of steps in this staircase-like binary optical element. The continuous blazed grating, shown in Fig. 3, make it possible for 100% of incident light diffracted into a single first diffrac-tion order if the peak-to-peak variadiffrac-tion introduces exactly rad. The binary optic approximation to grating is a quantized version with -levels. If there are steps of equal spaces and thickness existed in one period, one micro prism in grating, of this blazed phase grating, the thickness of the th step is
(1)
If denotes refraction index of the grating substrate, and denotes wavelength of light in air, the phase retardation of each step is expressed as
(2) Thus, the diffraction efficiency of this step approximation can be obtained by expanding its periodic amplitude transmission in a Fourier series. From these calculations, the diffraction efficiency
of th diffraction order can be expressed by
(3)
where is the peak-to-peak phase difference of this blazed grating, and is related to the peak-to-peak thickness variation through
(4) where is the refraction index of the surrounding.
Of special interest is the case of a quantized approximation to the blazed grating with a peak-to-peak phase difference of
, yielding
(5) Therefore, diffraction efficiency of the primary order of interest,
namely, the order , is
(6) The primary order diffraction efficiency increases with the number of step , reaching 81% for a four-level grating and 95% for an eight-level grating.
The classical diffraction grating function can be taken to calculate the diffraction angle, as described by the following grating equation:
(7) where is the period of grating and m is the diffraction order. B. Fresnel Microlens
If the phase quantization procedure described above is ap-plied to the circularly symmetrical phase profiles of microlens,
Fig. 4. Diffraction microlens of continuous and binary phase structure.
it yields a set of annular rings which are typical for diffrac-tive lenses. This annular ring structure is designed based on the Fresnel zone plate (FZPs) theory. The ring system consists of continuous phase function or binary phase function structures to achieve whole phase diffraction elements. In both cases, the annular rings are designed such that the optical path lengths for the light deflected from adjacent zones toward a common focal point differ by an integral multiple of a design wavelength, as shown in Fig. 4. If and denote the radius of the -th ring and the focal plane, respectively, this condition is expressed mathe-matically as [8]
r f f i (8)
Thus, the radius r of the th zone follows that
r 2i f i (9)
To meet this condition, the phase function of the binary Fresnel microlens is rewritten as
(10) where K is an integer, f is the period, and is the design wavelength. As is a periodic function, it can be expanded into Fourier series:
(11)
where is the coefficient of Fourier series, namely the ampli-tude of each diffraction order
(12)
From the L-level quantized phase profile shown in Fig. 4, the phase function of this binary Fresnel lens is rewritten as
(13)
Substituting (14) into (13) yields the amplitude function as
(14)
Observing (14), we can get
when integer
others (15)
In order to enhance the intensity of focused light, this diffrac-tive lens is optimized in certain diffraction orders. From the above discussion, we use the order diffraction to design the binary Fresnel lens. The diffraction efficiency is normalized by
(16)
We obtain similar diffraction efficiency equations of tive grating (6) and diffractive lens (16). Exactly, the diffrac-tive lens structure can be considered as an annular grating with varying periods for reflected light focusing. In the central part of lens, the grating periods are larger, therefore, the quantization of the phase profile into more levels is simple and not crit-ical. However, the grating periods become smaller toward the rim. The number of the phase levels is limited by the resolution of fabrication process, such as VLSI lithography. This limitation in fabrication also restricts the F-number of diffractive lens as
# (17)
III. FABRICATION OFSURFACERELIEFMICROOPTICAL COMPONENTS
Making microoptical elements by creating a surface relief pattern is presently a common practice of micro-optics. Due to multitude of applications for surface relief microoptical com-ponents, a range of materials, pattering techniques and actual
Fig. 5. Detail processes of lithography and etching to realize the technology of half-tone mask. (Color version available online at http://ieeexplore.ieee.org.)
relief fabrication tools are available. For the continuous and bi-nary surface relief structures, there are different pattern designs and fabrication processes, respectively.
Except direct tooling techniques, all these processes are sim-ilar to the VLSI fabrication processes. The patterning processes include normal lithography/direct writing to produce the binary pattern on the photoresist (PR) layer. After the development, the desired features are patterned on PR layer. Then the fab-rication processes transfer the structure from PR to the sub-strate. However, for the continuous surface relief optical com-ponents, the -beam/laser direct writing with the thermal reflow and gray-tone mask technology are developed for different ap-plications.
The selection of the most suitable material for each specific application depends on the required performance and cost of microoptical device. Polymers with the molding fabrication process have been considered for low cost and high volume replication, thus setting an upper limit to optical precision and performance, such as surface uniformity and substrate birefrin-gence. If low volume products is involved, a broad range of materials, such as silica glass, quartz, bulk plastic, or thin film deposited on a transparent substrate, are available.
A. Semiconductor Process and Plastic Replication for Binary Relief Optical Components
The fabrication process to produce a microoptical structure on Si-wafer includes mask generating, lithography, and etching

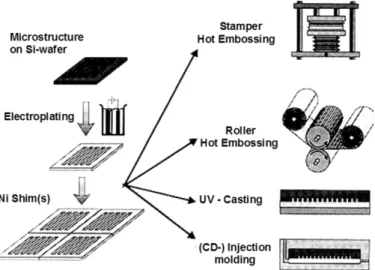

Fig. 6. Replication processes and the corresponding techniques.
is similar to VLSI fabrication processes. An example of the process is illustrated in Fig. 5.
The above process is suitable for generating the microop-tical structure on Si-wafer. However, for the cost concern and mass production, replication is necessary. Fig. 6 illustrates an overview of the major replication technologies. To replicate the original structure on Si-wafer, a Ni shim is formed by electro-plating as a master. From this first Ni master, second and third generation masters can be formed. The stamper hot embossing and roller hot embossing are well-established technologies for
Fig. 7. Flow of the traditional multibinary mask lithography. (Color version available online at http://ieeexplore.ieee.org.)
replication of surface relief elements with depths up to 1 m. Deeper structures can be replicated as well by UV-casting or in-jection molding, which have demonstrated good results for ele-ments with a minimum segment size of 5 m and a relief depth of 5 m.
The light control films presented in this paper were fabricated by using the mentioned techniques. Utilizing a standard VLSI process, the binary pattern of designed structure is generated on a Si wafer. Then the patterns are economically replicated on a 100- m thick plastic thin foil using the stamper hot embossing. B. Half-Tone Mask by Excimer Laser Micromachining for Continuous Relief Structures
Conventional well-developed VLSI technology uses a set of sequential binary masks to build up discrete phase levels of micro-optics. binary masks can produce binary relief levels by means of successive photoresist spinning, exposure, development, etching steps, as shown in Fig. 7. Nevertheless, due to the limitation of alignment accuracy, the error introduced from alignment, coating, exposure, development, and etching increase rapidly with the increase of the mask number, thus de-grading efficiency of the device.
Half-tone mask technology is a binary mask whose critical di-mension is of smaller than the resolution limit of the optical ex-posure system. Gray levels are encoded through the density and diameter of binary structure, as shown in Fig. 8. The continuous profiles are achievable through this technique by using only one mask, hence, great potential for mass fabrication cost-ef-fectively.
IV. MICRO-OPTICS FORLC DISPLAYS
Design flexibility is one of the advantages of micro-optics. We presented various microoptical structures for demanding display applications: 1) multidirectional asymmetrical mi-crolens array light control films (MAMA-LCF) and random
Fig. 8. Coded half-tone masks.
Fig. 9. Typical office illumination and the reflected light distribution of reflective LCDs. (Color version available online at http://ieeexplore.ieee.org.)
grating light control films [12], [13] for increasing the bright-ness of reflective images; 2) image-enhanced reflector (IER) for achieving “transflective” cholesteric LCDs; 3) microtube array for improving the backlight utilization of transflective LCDs; 4) sub-wavelength grating [17] for doubling the backlight efficiency; and 5) grooved-lightguide with focusing foil [19] for generating 3-D images. We will use MAMA-LCF as an example to illustrate the issues of color dispersion, moiré effect, surface scattering and lamination of very thin microoptical foils on LCDs. The detailed design and experimental results are described in the following.
A. Microoptics in Portable LCDs
Low brightness and poor contrast ration (CR) are among two major issues for reflective LCDs, and inadequate transmittance and unmatched color saturation are the disadvantages for trans-flective ones. Therefore, microoptical components, which meet the needs of miniaturization and performance improvement, bring various novel optical designs to enhance the image quality for portable LCDs.
1) Microoptics in Reflective LCDs: Conventional reflec-tive LCDs with metallic reflectors reflect modulated light for viewing. Under oblique illumination, the specular reflection of planar reflector reflects the oblique incident light to its corresponding reflection angle. Consequently, the viewers cannot perceive the brightest image near the normal direction, a typical viewing region for common viewers, as shown in Fig. 9. Moreover, the brightest reflected image is at the glare angle where surface reflection from the front glass interferes with image, thus, degrades the contrast.
Many methods have been reported for improving the bright-ness and CR of reflective LCDs. The two successful methods of micro-optics in reflective LCDs are rough surface reflector [9] and microslant reflector (MSR) [10]. Rough surface reflector as depicted in Fig. 10(top), implemented on the inner side of the rear substrate can scatter the reflective light into wider viewing region. Therefore, the observers see brighter image

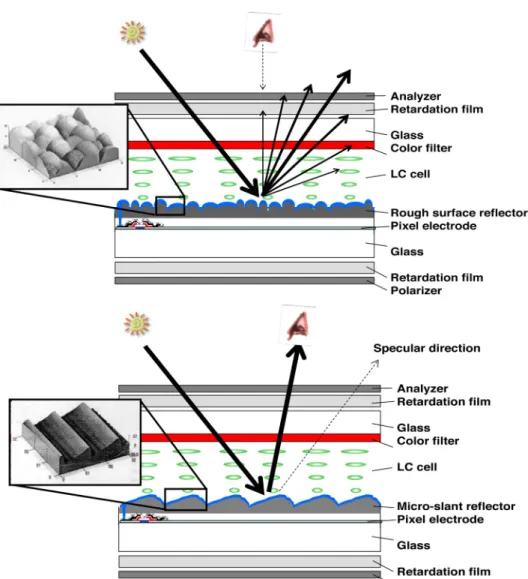

Fig. 10. Optical configuration of a reflective LCD with (top) rough surface reflector and (bottom) MSR. (Color version available online at http://ieeexplore.ieee.org.)
in the normal direction. Additionally, the TFT structures are hidden beneath the reflector. Thus, the aperture ratio is greater than 90%, and can further increase the brightness. The MSR, as shown in Fig. 10(bottom), is formed as an asymmetrical slant reflector, which can shift the peak of the reflected light away from specular direction by . Therefore, CR in the range 20–30:1 has been achieved. Due to the optical gain, the reflectance normal to the surface is about 0.4X over the MgO standard white, a factor of 4 brighter than an LC cell with a mirror reflector.
Many methods, for example, laminating front scattering film on color STN-LCDs, building rough surface reflector (bump reflector) on the bottom substrate of PDLC, and using single surface rubbed cell for Ch-LCDs, have been proposed for im-proving the brightness and the contrast ratio. An unidirectional asymmetrical microlens array light control film (AMA-LCF) [11] had been proposed to enhance the brightness of reflective LCDs. AMA-LCFs constructed by cutting in the direction of the microlens array diameter to form an off-axis array and then lam-inating it onto the front surface of reflective LCDs, are effective yet low in cost. As shown in Fig. 11, oblique incident light can be reflected to a near-normal viewing zone, yielding significant gain in brightness, and thus, enhanced image quality.
However, the AMA-LCF fabricated was for unidirectional ambient illumination. The brightness and CR enhancement de-crease if the light source is not illuminated from the designed direction. Therefore, the concept of AMA-LCF was extended to multidirectional asymmetrical microlens array light control film (MAMA-LCF) [12], [13] and random grating light con-trol film (RG-LCF) so that multiple ambient illuminations can be effectively collected and redirected. MAMA-LCF can focus the reflected light in a specific viewing angle and yield ultra high brightness image with high CR. By optimizing the grating pitches and orientations of RG-LCF, the reflective light distribu-tion can be well controlled and results in high brightness, wide viewing angle, and high uniformity images. Light control films are also applicable to other modes of reflective LCDs: color STN-LCD, PDLC, and Ch-LCD.
B. Optical Design of Multidirectional AMA-LCF
Multidirectional AMA-LCF (MAMA-LCF) with a fill factor of 100% was designed for a typical ambient environment to sig-nificantly improve image quality. In addition to high ambient light utilization, laminating the MAMA-LCF onto various re-flective displays can also yield a wide light-collecting angle.
Fig. 11. Panel configuration of a reflective display laminating a light control film for collecting and redirecting ambient illuminations. (Color version available online at http://ieeexplore.ieee.org.)
Fig. 12. Simulated results of color dispersion. (Color version available online at http://ieeexplore.ieee.org.)
To avoid color dispersion, the MAMA-LCF structure was modeled as multiple slit gratings of aperture width and pitch . Furthermore, color dispersion should be considered in terms of diffraction angle and intensity, which can be calculated from (18) and (19)
for (18)
Here, denotes the order of diffraction and is the angle of diffraction. The relationship between wavelength and diffrac-tion angle can be defined from (18). A diffracdiffrac-tion intensity, of different order is then derived using
(19) where is the zeroth-order diffraction intensity,
and is the diffraction angle
which can be derived from (18), and is the wavenumber . The factor renders when . Therefore, by comparing the intensity of different diffraction orders, we can determine which order is relevant, and then (19) can be used to derive the dispersion angle. Accordingly, the human pupil and the viewing distance determine the minimum grating period of
indistinguishable color dispersion, and are taken into account in the design of MAMA-LCF.
We assumed the human pupil to be 3 mm in diameter and the viewing distance to be 30 cm, therefore, the difference in the red (R), green (G), and blue (B) diffraction angles should be, at most, 0.573 . The three curves shown in Fig. 12 depict the diffraction angle for three different wavelengths and grating periods where the grating period of less than 25 m may cause a difference in the R, G, and B diffraction angle of larger than 0.5 , resulting in visible dispersion. Accordingly, the minimum grating period of MAMA-LCF is 25 m.
The moiré pattern, which might occur when periodic LCF structures and periodic pixels of a color filter are superimposed, was also considered by adopting a specific ratio of the periods of those two structures with a fixed angular difference, which can be calculated by the following equations:
(20)
for a color STN-LCD of pixel size of 252 50 m. (Color version available online at http://ieeexplore.ieee.org.)
where and are the frequencies of the periodic patterns on the color filter and MAMA-LCF, respectively. The vector denotes the spatial frequency required for the moiré pattern to occur. The angle is the angular difference between two structures, and are the harmonic terms of each fre-quency. Thus, the frequency and the period at which the moiré pattern occurs are given by the sum vector f
(22) (23) The human eyes cannot resolve the moiré pattern with a pe-riod of less than 1. Because the frequency of the color filter is fixed, the non-moiré frequency and the orientation of MAMA-LCF can be derived from (20) to (23). Then, MAMA-LCF can be designed to have microlenses with mul-tiple orientations, where each microlens has different pitch and orientation [14].
Therefore, the MAMA-LCF shown schematically in Fig. 13(b), whose microlenses are rotated in three different ori-entations 0 45 and rearranged into a particular structure, was designed and fabricated. The superimposition of a unidirec-tional LCF and a color STN-LCD caused several undesirable oblique strips, i.e., moiré patterns, have been successfully eliminated by using the new MAMA-LCF. Additionally, to be applicable to a reflective color STN-LCD with pixel size with 210 m 210 m, there are more than 50 microlenses within each pixel. Thus, moiré patterns are not visible as the designed structure and the pitch of the microlenses are much smaller than the pixel size.
C. Surface Scattering
From Fresnel equation and Snell’s law, the surface reflective ratio [14] between two layers with different refractive index for S wave (TE) and P wave (TM) can be, respectively, shown as
(24)
(25)
(27) For example, while the light illuminated on a plastic film of refractive index from 30 , the total surface reflection is 5.15%. Compared to the 12.5% reflective light efficiency of a reflective LCD, as signified in Fig. 14, the surface reflection results in very serious degradation to the CR. Additionally, the microlens on MAMA-LCF was approximated by using a four-step Fresnel lens instead of traditional curvature lens. Therefore, the edge of each step may scatter the incident light, which results in increased dark state light leakage and degraded CR.
D. Reflective LCDs With MAMA-LCF
Several methods were proposed, respectively, for laminating the LCF on the following three different kinds of LCDs: re-flective color STN, PDLC, and cholesteric, to overcome the above-mentioned issues. Coating an index matching material on LCF and laminating it below the polarizer, as depicted in, is found to greatly reduce the intensity of interface reflection and front scattering light. As a result, MAMA-LCF laminated below the polarizer should be made of a very low birefringence material to avoid the color shift caused by the retardation effect. MAMA-LCF is preferred to be laminated between the bottom substrate of the plastic PDLC panel and the aluminum reflector with an index matching material coated, as depicted in Fig. 15 to avoid deteriorating the blackness of the dark state. Moreover, the plastic LCF is flexible and can be easily combined with the plastic PDLC displays.
Integrating a MAMA-LCF on the two-surface rubbed cell to control viewing angle while preserving high reflectivity shall be more appealing for cholesteric liquid crystal display (Ch-LCD) applications. As shown in Fig. 16, the MAMA-LCF helps to direct light to a normal viewing angle. Moreover, by coating an index matching material can reduce the interface reflections. Benefited from the light control film, the two-surface rubbed Ch-LCD is expected to exhibit high reflectivity in normal viewing direction.
E. Image Quality Enhancement by MAMA-LCF
The photographs of displayed images using the MAMA-LCF on a color STN-LCD, PDLC, and Ch-LCD, taken under am-bient condition are shown in the Fig. 17(a)–(c), respectively. In comparison, Fig. 17(a) is the photograph of STN-LCD with an MAMA-LCF (left) and an 80% haze diffuser (right), which is commonly used to enhance the brightness of mobile displays. The photographs of PDLC with MAMA light control film and a bare PDLC are shown in Fig. 17(b). Additionally, Fig. 17(c)

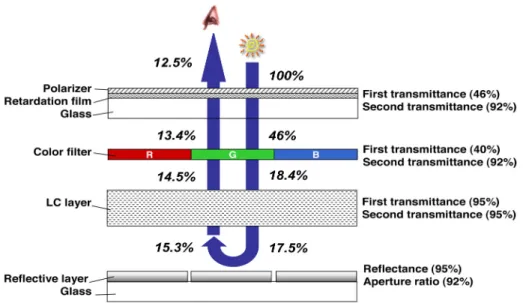

Fig. 14. Estimated reflective light efficiency of a reflective LCD. (Color version available online at http://ieeexplore.ieee.org.)
Fig. 15. Schematic plot of system configuration of the MAMA-LCF on a reflective PDLC. (Color version available online at http://ieeexplore.ieee.org.)
displays the two-surface buffed Ch-LCD with and without MAMA-LCF, and also the photos of using MAMA-LCF on a conventional numerical TN panel by injected Ch-LC material, which reflected green and orange colors, respectively. The high image quality by the MAMA-LCF on the three different LCDs is clearly demonstrated.
F. Random Grating Light Control Film (RG-LCF)
RG-LCF, as shown in Fig. 18, which can direct light incident from multiple directions collectively for viewing, can achieve much enhanced brightness of reflective image. The grating pitches and orientations were designed properly to improve the brightness and uniformity. Additionally, the size of each grating is 25 25 m and the arrangement in a single pixel is randomized in order to avoid the moiré patterns and dispersion. A standard microfabrication and stamp molding processes can be used to fabricate the random grating structure on a 100 m thick plastic thin foil economically. The fabricated grating structure imaged by AFM is shown in Fig. 19(a). The reflected light distribution of a transflective LCD with RG-LCF is shown as the solid line in Fig. 19(b), where the dashed lines show the specular reflection without the RG-LCF. Obviously, the trans-flective LCDs using LCF provides more uniform reflected light within typical viewing region from 0 to 25 , with higher re-flectance and better image quality.
Fig. 16. Schematic plot of system configuration of the MAMA-LCF on a reflective cholesteric LCD.
V. IMAGEENHANCEDREFLECTOR
Reflective Ch-LCD is a strong contender for e-papers, e-books, etc. To enable a display to be usable from dark to bright sunlight conditions, transflective display is a good op-tion. However, the conventional transflective approach does not apply to the cholesteric display. Both reflective and transmis-sive sub-pixels display bright state, but lack of dark state. We demonstrated a transflective Ch-LCD by placing an image-en-hanced reflector (IER) above the transmissive part to reflect the backlight into the reflection pixels, as illustrated in Fig. 20 [15]. This IER design functions equally well for both monochrome and full color cholesteric displays. Due to the similar paths of transmissive and reflective light, the same bright state for both reflective and transmissive channels can be obtained. Thus, the Ch-LCD maintains good readability in any ambience.
The half-tone mask technology equipped with excimer laser micromachining was used to fabricate the prototype IER struc-ture on a glass substrate, as shown in Fig. 21(a). Prior to exam-ining the function of IER, we prepared a simple monochrome Ch-LCD test sample with conventional backlight. The images of reflective (left) and transmissive (right) mode are shown in Fig. 21(b). The photos successfully demonstrate that this novel transflective Ch-LCD can display same image color in any am-bient condition by using microoptical component of IER.
Fig. 17. Sample photographs of: (a) color-STN LCD, (b) PDLC, and (c) Ch-LCD. The displays with MAMA-LCF clearly show much better image quality. (Color version available online at http://ieeexplore.ieee.org.)
Fig. 18. Configuration of a TR-LCD with the RG-LCF laminated onto the front surface. (Color version available online at http://ieeexplore.ieee.org.)
VI. MICROTUBEARRAY
In conventional transflective LCDs, the reflective area is re-garded as a block that backlight can not pass through. In order to overcome the issue, a novel structure, micro-tube array, was
proposed to collect the backlight into the transmissive area to increase light utilization efficiency of backlight in transflective LCDs. The characteristic of this design is to make use of a mi-crooptical component of micro-tube structure which is similar to a funnel in shape and to allow most backlight enter this
struc-Fig. 19. (a) 3-D view and (b) the reflectance profile of the RG-LCF laminated on a TR-LCD. (Color version available online at http://ieeexplore.ieee.org.)
Fig. 20. Cross-sectional plot of the transflective Ch-LCD with an IER. (Color version available online at http://ieeexplore.ieee.org.)
ture from larger aperture, as shown in Fig. 22. On account of the characteristic of the funnel structure, most of incident light can be collected to smaller aperture so that light efficiency of the backlight can be increased substantially.
A prototype micro-tube array, as shown in Fig. 23(a), was fabricated by a typical TFT-LCD process. The measured trans-missive light efficiency enhancement of micro-tube array
struc-Fig. 21. (a) Top view of fabricated IER. (b) Demonstration photos of the same color images for both reflective and transmissive modes. (Color version available online at http://ieeexplore.ieee.org.)
ture is shown in Fig. 23(b). The measured enhancement in different viewing angle was a factor of 1.65 to 2.3, and the averaged enhancement was a factor of 1.81. As a result, the
Fig. 22. Schematic diagram of a single cell-gap transflective LCD with micro-tube array. (Color version available online at http://ieeexplore.ieee.org.)

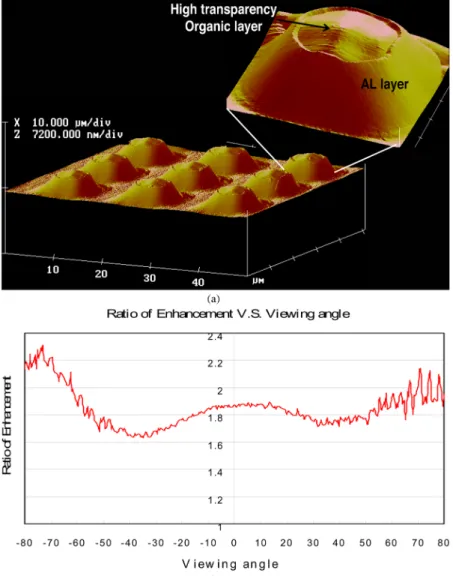

Fig. 23. (a) 3-D view and (b) the measured backlight efficiency enhancement plot. (Color version available online at http://ieeexplore.ieee.org.) novel transflective LCDs with micro-tube array can be made
with lower power consumption due to the higher backlight efficiency, which will be more competitive in the mobile dis-play applications.
VII. SUB-WAVELENGTHGRATING
The optical efficiency of conventional backlight modules is low due to the lack of p-polarized to s-polarized light
Fig. 24. Schematics of polarized backlights based on (a) selective T.I.R. and (b) sub-wavelength grating. (Color version available online at http://ieeexplore.ieee.org.)
conversion. Many approaches were reported to improve light efficiency. The most well-known approach is using Dual brightness enhancement film (DBEF) to recycle the undesired polarized light, as shown in Fig. 24(a) [16]. DBEF, which consists of a stack of alternate isotropic-birefringent films, can reflect the complimentary light which polarized in the direction of the extraordinary axis. The reflected polarized light is again reflected by a depolarizing reflector. However, the complex assembling and high cost of optical films, such as brightness enhancement film (BEF), DBEF, and diffuser, usually hinders compact packaging.
An integrated backlight using sub-wavelength grating was, therefore, proposed to achieve polarization conversion and com-pactness for LCD illumination, as shown in Fig. 24(b), [17]. When unpolarized light was coupled to the lightguide, slot struc-tures on the bottom surface guided light outcoupling. Light was then reflected by the reflective sheet. Upon the impingement on the sub-wavelength grating on the top surface, only p-polar-ized light was transmitted while s-polarp-polar-ized light was reflected. S-polarized light was then converted into p-polarized light by passing through the quarter wave plate twice. The sub-wave-length grating consists of Al (100-nm thick) and SiO (200-nm thick) layers with 0.2 m period of 50% duty cycle. Moreover, the sub-wavelength grating is not so critical on incident angle. Therefore, outcoupling light was uni-polarized, which was re-quired for LCD illumination.
The fabricated pattern of sub-wavelength grating is presented in Fig. 25(a). The transmission and reflection of fabricated sub-wavelength grating were measured by a white light source ac-companied with R (630 nm), G (532 nm), B (437 nm) three pri-mary wavelength color filters. The measured and simulated re-flection efficiencies versus wavelength are shown in Fig. 25(b).
Fig. 25. (a) SEM photograph and (b) measured results of the sub-wavelength grating. (Color version available online at http://ieeexplore.ieee.org.)
Fig. 26. Micro-grooved lightguide in combination with a focusing foil to redirect light to left and right eyes. (Color version available online at http://ieeexplore.ieee.org.)
In such an arrangement, the measured reflection efficiencies at , and nm are 70%, 76% and 85% for s-po-larized light; transmission efficiencies for p-pos-po-larized light are 68%, 65% and 70%, respectively. Thus, gain factor of 1.7 in polarization efficiency was yielded compared with conventional backlights, which increases utilization light for LC illumination.
VIII. GROOVED-LIGHTGUIDEWITHFOCUSINGFOIL Autostereoscopic 3-D display can be generally classified into “spatial-multiplexed type” and “time-multiplexed type”. Using parallax barrier [18] and lenticular lens are the most popular spatial-multiplexed approaches to obtain two emitting cones of light to respective eyes, yet, resulting in resolution of one half or less and light efficiency degradation compared to time-multi-plexed approach. Furthermore, critical alignment to LCD pixels is a serious concern.
(a) (b)
Fig. 27. Angular distributions of the backlight module with LC panel when (a) left and (b) right side LEDs are switched on. (Color version available online at http://ieeexplore.ieee.org.)
Therefore, we demonstrated a switching, directional back-light in combination with fast switching LCD to realize time-multiplexed 3-D displays [19]. Two restricted viewing cones were sequentially emitted from switching backlights. Two sets of light sources were switched on sequentially to emit light to the left and the right eyes, respectively. A directional backlight, shown in Fig. 26, is composed of a micro-grooved lightguide in combination with a focusing foil. When the light source was switched on, a large inclined angle of viewing cone was emitted from a micro-grooved lightguide. In order to focus the light by the desired viewing angles, a focusing foil, which consists of asymmetric grooves, was then utilized to redirect the light to the eyes.
Observers left and right eyes were typically located around 10 and 10 to the normal direction of the display, re-spectively. For backlight brightness intensity of 2100 cd/m , Fig. 27(a) and (b) depicts the measured angular distributions of directional backlight with LC panel by sequentially switching the left and right side LEDs. For cross-section, the measured luminous intensity is 109 cd/m at viewing angle of (left eye) while 7 cd/m at viewing angle of 10 (right eye). In the measurement, crosstalk is of approximately 6%. Additionally, when our left eye is located at viewing angle between 7.5 and 20 while our right eye at viewing angle between 7.5 and 20 , crosstalk is of less than 10%, which is the minimum criterion to produce stereoscopic image perception for our brain. The position of viewer can be moved within the range of viewing angle between 7.5 and 20 . Therefore, the viewing distance can be adjusted within 90 and 250 mm.
Furthermore, 2-D/3-D compatibility is provided by switching on two sets of light sources simultaneously or sequentially, re-spectively. 2-D image perception is achieved when there is no binocular disparity while simultaneously observing the same image. In contrast, 3-D image perception is obtained by com-bining sequentially switching images in our brain.
IX. CONCLUSION
Micro-optics can meet the needs of miniaturization, cost re-duction, and improved performance in LCDs. Design consid-eration and fabrication processes were described for microop-tical components used for LCDs. MAMA-LCF and (RG-LCF enhance the reflectance of reflective image to 0.8x MgO stan-dard white with excellent uniformity. IER provides transflective
function for Ch-LCDs, which become readable in any ambi-ence. Micro-tube array increases the backlight utilization to a factor of 1.8 in transflective LCDs. Sub-wavelength gating al-most doubles the backlight efficiency. Furthermore, grooved-lightguide with focusing foil using switchable backlight gen-erates the 2-D images into 3-D images. Accordingly, the mi-crooptical technology can greatly enhance the image quality of display systems, and allows the display to be more and more ap-pealing and attractive in various applications.
