Adsorption Capacity of a Nylon Filter of Filter Pack
System for HCl and HNO
3
Gases
Dr. Chuen‐Jinn Tsai a , Cheng‐Hsiung Huang b & Hsiue‐Hsing Lu a a
Institute of Environmental Engineering , National Chiao Tung University , No. 75 Poai St., HsinChu, Taiwan, R.O.C.
b
Department of Environmental Engineering and Health , Yuanpei University of Science and Technology , HsinChu, Taiwan, R.O.C.
Published online: 08 Jul 2010.
To cite this article: Dr. Chuen‐Jinn Tsai , Cheng‐Hsiung Huang & Hsiue‐Hsing Lu (2005) Adsorption Capacity of a Nylon
Filter of Filter Pack System for HCl and HNO3 Gases, Separation Science and Technology, 39:3, 629-643, DOI: 10.1081/ SS-120027998
To link to this article: http://dx.doi.org/10.1081/SS-120027998
PLEASE SCROLL DOWN FOR ARTICLE
Taylor & Francis makes every effort to ensure the accuracy of all the information (the “Content”) contained in the publications on our platform. However, Taylor & Francis, our agents, and our licensors make no
representations or warranties whatsoever as to the accuracy, completeness, or suitability for any purpose of the Content. Any opinions and views expressed in this publication are the opinions and views of the authors, and are not the views of or endorsed by Taylor & Francis. The accuracy of the Content should not be relied upon and should be independently verified with primary sources of information. Taylor and Francis shall not be liable for any losses, actions, claims, proceedings, demands, costs, expenses, damages, and other liabilities whatsoever or howsoever caused arising directly or indirectly in connection with, in relation to or arising out of the use of the Content.
This article may be used for research, teaching, and private study purposes. Any substantial or systematic reproduction, redistribution, reselling, loan, sub-licensing, systematic supply, or distribution in any
form to anyone is expressly forbidden. Terms & Conditions of access and use can be found at http:// www.tandfonline.com/page/terms-and-conditions
HNO
3Gases
Chuen-Jinn Tsai,1,* Cheng-Hsiung Huang,2and
Hsiue-Hsing Lu1
1
Institute of Environmental Engineering, National Chiao Tung University, HsinChu, Taiwan, R.O.C.
2
Department of Environmental Engineering and Health, Yuanpei University of Science and Technology, HsinChu,
Taiwan, R.O.C.
ABSTRACT
Laboratory and field studies were conducted to evaluate the collection capacity of the nylon filter (Nylasorb membrane, 47 mm diameter, 1.0 mm pore size, Gelman Laboratory, USA) for HCl and HNO3. In ambient
sampling, the field results show that one piece of the nylon filter in the filter pack of an annular denuder system (ADS) or a honeycomb denuder system (HDS) has enough capacity to adsorb HCl and HNO3 gases
evaporated from the particles collected on the Teflon filter. The laboratory
629
DOI: 10.1081/SS-120027998 0149-6395 (Print); 1520-5754 (Online) Copyright # 2004 by Marcel Dekker, Inc. www.dekker.com
*Correspondence: Dr. Chuen-Jinn Tsai, Institute of Environmental Engineering, National Chiao Tung University, No. 75 Poai St., HsinChu, Taiwan, R.O.C.; Fax: þ886-3-5381183-8603; E-mail: chhuang@mail.yust.edu.tw.
results show that the individual capacity of the nylon filter to adsorb HCl gas is 8, 160, and 240 mg and that of HNO3gas is 160, 1400, 1900 mg at
20% + 5%, 55% + 5%, and 80% + 5% relative humidity, respectively. At low humidity, the efficiency of the nylon filter for HCl gas will be decreased substantially when HNO3co-exists. It is decreased to as little as
35 – 50% when relative humidity is low, at 20% + 5% for the added amount of HNO3is from 40 to 145 mg. A monolayer adsorption theory
was successfully employed to estimate the reduction of adsorbing capacity to adsorb HCl gas when HNO3gas co-exists. There is no significant effect
on the adsorbing efficiency of HNO3when HCl co-exists; the collection
efficiency is greater than 95% at all relative humidities. Key Words: Nylon filter; Filter pack system; HCl; HNO3.
INTRODUCTION
The annular denuder/filter pack system (ADS) and honeycomb denuder system (HDS) are commercial instruments and commonly used in atmos-pheric research. The filter pack of the ADS consists of a Teflon filter to collect fine particles, two nylon filters to collect HCl and HNO3, and a glass fiber filter
coated with citric acid to collect NH3released from the collected particles
(Possanzini et al.[1]). Instead of using two nylon filters, the filter pack of HDS contains only one nylon filter following the Teflon filter (Koutrakis et al.,[2] Sioutas et al.[3]). The nylon filter is used to collect HCl and HNO3evaporated
from particulate NH4NO3and NH4Cl collected on the Teflon filter (Stelson
et al.,[4]Doyle et al.,[5]Stelson and Seinfeld,[6]Pio and Harrison[7]).
NH4Cl(p) HCl(g) þ NH3(g) (1)
NH4NO3(p) HNO3(g) þ NH3(g) (2)
Appel et al.[8]evaluated the collection efficiency of nylon filters for HNO3
gas at ambient levels (25 mg/m3
) in the laboratory. The results showed that the collection efficiency of the nylon filters for HNO3was greater than 97% when
the collected amount of HNO3was less than 250 mg. Karakas et al.[9]used the
nylon filter (47 mm in diameter and 0.45 mm pore size, Sartorius) to adsorb HNO3gas at room temperature and 50– 60% relative humidity (RH) at the
sampling flow rate of 15 L/min. The results showed that the nylon filter had collection efficiency greater than 95% and collection capacity of the nylon filter for HNO3gas was 3500 mg. The collection efficiency of the nylon filter (47 mm
in diameter and 0.45 mm pore size, Sartorius) for HCl gas was studied by William et al.[10]The collection efficiency was generally better than 80% at 18–248C and 10– 80% RH at sampling flow rate of 0.6 – 6.0 L/min when the
total collected HCl was less than 100 mg. However, the collection efficiency was decreased at higher Cl2loading. For example, the collection efficiency was 64% for Cl2loading of 1336 mg. When dual nylon filters were used, the collection efficiency was greater than 90% at all humidity (10– 80% RH), flow rates (0.6– 6.0 L/min) and Cl2
loading levels (,100 mg). Tsai et al.[11] compared the acidic aerosol concentrations measured by the ADS and HDS in Hsinchu, Taiwan. Incomplete adsorption of HCl and HNO3gas by the first nylon filter in
the filter pack of the ADS was observed. About 14% of the total Cl2and NO 32
were measured in the second nylon filter of the filter pack of the ADS. In this study, ambient sampling was performed to evaluate the capacity of the nylon filters to adsorb HCl and HNO3gases using an ADS and a HDS. In
the laboratory, an experiment was conducted to determine the collection capacity of nylon filter (Nylasorb membrane, 47 mm diameter, 1.0 mm pore size, Gelman Laboratory, USA) of ADS and HDS to adsorb individual or mixed HCl and HNO3gases evaporated from particles on the Teflon filter at
different RHs. A possible adsorption of HCl and HNO3gases on the Teflon
filter of the filter pack was also investigated.
METHODS Laboratory Analysis
To determine the collection capacity of the nylon filter and Teflon filter to adsorb HCl and HNO3 gases, test gas was generated in the laboratory as
described in Tsai et al.[12]The Experimental setup is shown in Fig. 1. Aerating clean air through a bubbler containing a known concentration of acidic solution generated the desirable test gas concentration. A hot plate was used to heat up the bubbler to facilitate gas generation. The generated concentration of HCl and HNO3 gases was about 200 and 800 mg/m3 (about 140 and 320 ppb),
respectively. The relative bias of the gas concentration was below 10%. Heating tape was used to wrap the bubblers and connecting tubes to maintain a constant temperature throughout the sampling system to prevent gas condensation on the wall. The mixed gases were then divided into three branches: one went to the filter pack system to test the capacities of the two-stage nylon filter (Nylasorb membrane, 47 mm diameter, 1.0 mm pore size, Gelman Laboratory, USA) or Teflon filter (Zefluor membrane, 47 mm diameter, 2.0 mm pore size, Gelman Laboratory, USA) at 10 L min21; the other went to an impinger to examine the concentration of the test gas in 2 L min21, and the third went to exhaust for temperature and RH measurement. After sampling, the nylon filters were extracted with 10 ml of anion eluent (1.8 mM of Na2CO3 and 1.7 mM of
NaHCO3) to extract the Cl2 and NO32 efficiently. The Teflon filters were
extracted with 10 mL of DI water. The concentrations of the test gas collected on the two-stage filters (first section: C1, second section: C2) and impinger was
determined by an ion chromatograph (Model 4500i, Dionex Corp., CA). The acid gas collection efficiency of the filter (h, %) was calculated as
h, % ¼ C1 C1þC2
100 (3)
Ambient Sampling
A HDS and an ADS were collocted at 11 m above ground level on the roof of the Institute of Environmental Engineering, National Chiao Tung University, located in Hsinchu, Taiwan for a sampling period of 24 hr to compare the ambient concentrations of HCl and HNO3gases collected on the
nylon filters in filter pack system. A total of 10 ambient samples were collected from May 2001 to June 2001 at a sampling flow rate of 10 L/min21.

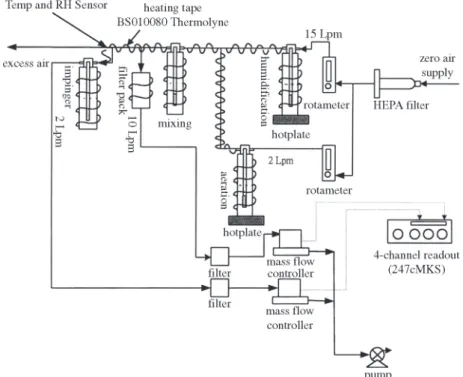

Figure 1. Test setup for measuring the gas capacity of Nylon filter and Teflon filter.
The daily average temperature was from 258C to 348C and the daily average relative humidity was from 40% to 82%.
The components of the HDS include an impactor with a cutoff aerodynamic diameter at 2.5 mm, a glass-transition section, two honeycomb denuders, a spacer, and a filter pack (Koutrakis et al.,[2]Sioutas et al.,[3]). The first-stage honeycombs of the HDS were coated using 1% (w/v) sodium carbonate, 1% (w/v) glycerol in 1 : 1 (v/v) methanol/water solution for acid gases. For ammonia gas, 2% (w/v) citric acid in ethanol was used in the second-stage honeycombs. A three-stage filter pack was placed downstream of the denuders. The filter pack consists of a Teflon filter (Gelman Science, 2 mm pore size) to collect fine particles, a nylon filter (Gelman Science, 1- mm pore size) to collect HNO3and HCl, and a glass fiber filter (AP40, Millipore Inc.)
coated with citric acid to collect NH3 that volatilized from the collected
particles on the Teflon filter. The concentrations of the samples were determined by an ion chromatograph (Model 4500i, Dionex Corp., CA).
Details of the ADS sampler were described by the US Environmental Protection Agency (EPA).[13]The ADS consists of a cyclone (model URG-2000-30EN) with the cutoff aerodynamic diameter at 2.5 mm (10 L min21flow rate) to remove fine particles and four denuders to collect acidic and basic gas species. As in the case of HDS, following the fourth denuders is a PTFE Teflon filter pack, containing a Teflon filter upstream of two nylon filters (to collect HNO3and HCl) and a citric acid coated glass fiber filter (to collect NH3).
In this study, the filter packs of both the HDS and ADS were used to examine the collection capacity of the nylon filter to adsorb HNO3and HCl
gases. QA/QC procedure in this study included establishment of calibration curve using standard solutions and method detection limit (MDL), blank analysis, repeated analysis, and spike sample analysis. The MDL was determined as three times the standard deviation of repeated analysis at five times the lowest possible standard concentration. The recovery efficiencies were estimated using spike samples with the sampling concentrations based on sampling volume. The results of MDL, blank analysis, and recovery efficiency of filters were shown in Table 1. The results of precision analysis showed that the relative bias of detected values was below 4%.
RESULTS AND DISCUSSION
Laboratory Results of Adsorbing Capacity of Nylon Filter for Individual Gas
The gas collection efficiencies of nylon filter were first tested in our laboratory. The individual collection capacity of nylon filter is defined as the
maximum amount of HCl and HNO3gases that can be collected on the filter
with a collection efficiency greater than 95% (breakthrough line). Figure 2 shows that the individual collection efficiencies of the nylon filter for HCl gas when the temperature is 308C + 28C and the RH is 20% + 5%, 55% + 5%, and 80% + 5%, respectively. For RH of 80% + 5%, the gas collection efficiency of the nylon filters are about 100% for the initial gas loading smaller than 200 mg. The collection efficiency decreased to 85.4% for gas loading increases to 332 mg. The capacity of nylon filter to adsorb HCl gas was found to be 240 mg. Similarly, the collection efficiency decreased to 80.0% as the gas loading increases to 233 mg and the capacity was found to be 160 mg for a RH of 55% + 5%. For a RH of 20% + 5%, the collection efficiency decreased drastically, from 100% to 80.4%, when the gas loading increased from 6 to 10 mg and the capacity was found to be only 8 mg.
A similar conclusion can be reached in the case of adsorbing HNO3gas by
the nylon filter. Figure 3 shows that the individual collection efficiencies of the nylon filter for HNO3 gas at 308C + 28C and 20% + 5%, 55% + 5%, and
80% + 5% RH, respectively. It is seen that the collection efficiencies remain constant and then drop below 95%, except for a RH of 20% + 5%. The capacity of nylon filter to adsorb HNO3gas is found to be 160, 1400, and
1900 mg at 20% + 5%, 55% + 5%, and 80% + 5% RH, respectively. The results show that the individual capacity of a nylon filter to adsorb HNO3gas
was higher than that of HCl gas at different relative humidities. We infer that the nylon filter is more selective to adsorb HNO3than HCl. In addition, the
individual capacities of nylon filter to adsorb HNO3and HCl gas increase with
an increasing RH. It may be because that a hydrogen bond is formed by the reaction of water vapor and the function group ( – CONH) of the nylon filter. The water molecules laden the surface of the filters and become better
Table 1. Method detection limit, blank analysis, and recovery efficiency of filters.
Species nc MDLa (ppbv) Blank analysis Recovery efficiency + SDb(%) Teflon filter Nylon filter Teflon filter Nylon filter Cl2 7 0.021 NDd ND 107.2 + 2.6 95.4 + 1.5 NO32 7 0.018 ND ND 100.1 + 4.5 98.5 + 2.5 a
MDL, Method detection limit based on 10 L min21and 24 hr. b SD, Standard deviation. c n, Number of samples. d ND, Detected value ,MDL.
adsorbing sites for HNO3and HCl gas. The following reactions of gases with
water vapor may take place on the filter surface. HCl(g)þH2O(s)!Cl ÿ þH3O þ (4) HNO3(g)þH2O(s)!NO3ÿþH3Oþ (5)
Therefore, a high relative humidity causes an increase in the adsorption capacity for HNO3and HCl gas of the nylon filter.
Laboratory Results of Adsorbing Capacity of Nylon Filter for Mixed Gas
The possible interference of co-existing gas on the collection efficiency of a nylon filter was determined. Figure 4 shows that the collection efficiency for HCl gas of the nylon filter when HNO3is present at three relative humidities of
20% + 5% [Fig. 4(a)], 55% + 5% [Fig. 4(b)], and 80% + 5% [Fig. 4(c)].
Figure 2. Individual collection efficiency of the Nylon filter for different loading HCl gases.
When the added amount of HNO3was from 40 to 145 mg, the collection
effi-ciency for HCl gas of the nylon filter was decreased substantially to 35 – 50% at the testing RH of 20% + 5%, as shown in Fig. 4(a), while the collection efficiency was greater than 95% for HCl gas only. For a higher testing RH, such as 55% + 5% [Fig. 4(b)] and 80% + 5% [Fig. 4(c)], the interference by co-existing HNO3gas on the collection efficiency of HCl gas for the nylon
filter was less severe. The collection efficiency was decreased to 65 – 97%, when the added amount of HNO3was from 203 to 1310 mg for 55% + 5%
RH; and it was 67 – 100%, when the added amount of HNO3was from 97 to
2150 mg for 80% + 5% RH.
In comparison, there is no significant effect for the nylon filter to adsorb HNO3 gas when HCl co-exists. The collection efficiency was greater than
95%, as shown in Fig. 5(a) (20% + 5%), Fig. 5(b) (55% + 5%) and Fig. 5(c) (80% + 5%), when the added amount of HCl was from 1 to 4, 18 to 127, and 44 to 195 mg for 20% + 5%, 55% + 5%, and 80% + 5% RH, respectively. It is seen that the influence of the RH on the collection efficiency for the nylon filter to adsorb HNO3gas when HCl co-exists can be also neglected.
Figure 3. Individual collection efficiency of the Nylon filter for different loading HNO3gases.
Figure 4. Collection efficiency for HCl gas of the nylon filter when HNO3is present
(HNO3is added) (a) 20% + 5%, (b) 55% + 5%, and (c) 80% + 5%.

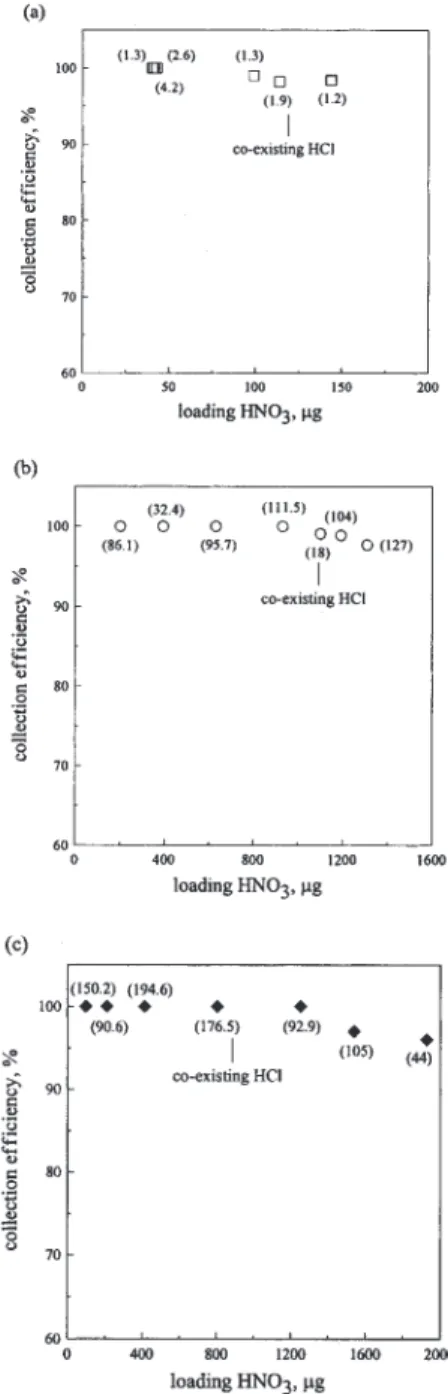

Figure 5. Collection efficiency for HNO3gas of the Nylon filter when HCl is present
(a) 20% + 5%, (b) 55% + 5%, and (c) 80% + 5%.
To further explain the interference by co-existing HNO3 gas on the
collection efficiency of HCl gas for a nylon filter, this study employed a monolayer adsorption theory to estimate the capacity of the nylon filter to adsorb HCl gas when HNO3gas coexists based on the following assumptions:
1. The total adsorption site of the nylon filter is equal to the individual collection capacity of the nylon filter to adsorb HNO3gases.
2. The nylon filter is more selective to adsorb HNO3than HCl.
3. Before the filter is saturated, the adsorption of HCl and HNO3gases
by the nylon filter is a monolayer adsorption process.
4. When HCl and HNO3gases co-exist, the interference of co-existing
gas on the collection efficiency of the nylon filter is the same. A form of this theoretical equation can be expressed mathematically as follows: m0 HCl¼ 1 ÿ wHNO3 mHNO3 mHCl (6) where m0
HCl(mg) is the collection capacity of the nylon filter to adsorb HCl gas
when HNO3coexists, mHCl(mg) is the individual collection capacity of nylon
filter to adsorb HCl gas, wHNO3(mg) is the added amount of HNO3gas, and
mHNO3(mg) is the individual collection capacity of the nylon filter to adsorb
HNO3gas.
Figure 6 shows the relationship between the collection efficiency of the nylon filter to adsorb HCl gas when HNO3 co-exists (h0HCl, %) and the
interference by co-existing HNO3gas on the collection capacity of HCl gas
(mHCl– m
0
HCl, mg) at different RHs. It is seen that the collection efficiency for
HCl gas when HNO3 co-exists decreases with increasing interference by
co-existing HNO3gas on the collection capacity of HCl gas. When the RH is
increased, the influence of interference by HNO3 gas on the collection
efficiency of HCl gas of the nylon filter is not apparent. It is due to the fact that the capacities of the nylon filter to adsorb HNO3and HCl gas increase with an
increased RH.
Laboratory Results of Teflon Filter to Adsorb HCl and HNO3
It is interesting to know whether the prefilter (Teflon filter) of the filter pack system has a possible interference to adsorb HCl and HNO3 gases on
particulate concentration measurement. Table 2 shows that the gas adsorption amount (mg) of the Teflon filter for HCl and HNO3gas when temperature was
308C + 28C and RH was 20% + 5% and 80% + 5% at different sampling periods. When the RH was low, such as 20% + 5%, the gas amounts collected by the Teflon filter were less than MDL for 1, 2, and 3 hr sampling periods. For high RH, such as 80% + 5%, the adsorption amounts of HCl gas by the Teflon filter were still less than MDL, but those of HNO3 gas were
2.8 + 0.5, 4.1 + 0.5, and 4.4 + 0.3 mg (about 1.87 + 0.33, 1.37 + 0.17, and 0.98 + 0.07 ppb) for 1, 2, and 3 hr sampling periods. It indicates that the water molecule, which is retained by the surface of the Teflon filter in high RH, will collect HNO3 gas. Also, the adsorption amounts of HNO3 for 2 and 3 hr
sampling periods are close to each other due to the fact that the retained water molecule approaches saturation to adsorb HNO3gas. In addition, we calculated
the percentage of total HNO3collected on the Teflon filter and found those were
6.2%, 3.4%, and 1.8% for 1, 2, and 3 hr sampling periods at 80% + 5% RH. It indicates that the interference to adsorb HNO3by the Teflon filter can be
neglected for atmosphere sampling in a general period of 24 hr.
Figure 6. Relationship between the collection efficiency of the Nylon filter to adsorb HCl gas when HNO3co-exists (h
0
HCl, %) and the interference by co-existing HNO3gas
on the collection capacity of HCl gas (mHCl– mHCl0 , mg) at different RHs.
Field Results
It is important to know whether the nylon filters of an ADS and a HDS have sufficient capacity to adsorb HCl and HNO3gases for ambient sampling.
Two nylon filters were used in the filter pack of ADS and HDS to absorb HCl and HNO3gases. The results of the field experiments are given in Table 3. The
concentrations of HCl and HNO3gases on the first nylon filter of the ADS
were 0.15 + 0.16 and 0.14 + 0.12 ppb. Those on the first nylon filter of the HDS were 0.20 + 0.22 ppb and 0.14 + 0.10 ppb, respectively. Both of the gas concentrations on the second nylon filters of the ADS and HDS were less than method detection limiting (0.021 and 0.018 ppb for HCl and HNO3). The
concentrations of Cl2 and NO
32 particulate on the Teflon filter of the ADS
were 0.38 + 0.35 and 0.73 + 0.44 mg/m3
, and those of the HDS were 0.47 + 0.45 and 0.69 + 0.49 mg/m3
, respectively. Because of the low NO32
Table 2. Adsorption mass of Teflon filter for HCl and HNO3gas.
Time (hr) nc RH:a20% + 5% [mean + SDb(mg)] RH: 80% + 5% [mean + SD (mg)] HCl HNO3 HCl HNO3 1 3 NDd ND ND 2.8 + 0.5 2 3 ND ND ND 4.1 + 0.5 3 3 ND ND ND 4.4 + 0.3 a RH; Relative humidity. b SD, Standard deviation. c
n, Number of test samples.
d
ND, Detected value ,MDL.
Table 3. Concentrations of HCl and HNO3in Nylon filters of ADS and HDS in field
test.
Species n
ADSa[average + SD (ppb)] HDSb[average + SD (ppb)] First nylon filter Second nylon filter First nylon filter Second nylon filter HCl 10 0.15 + 0.16 ND 0.20 + 0.22 ND HNO3 10 0.14 + 0.12 ND 0.14 + 0.10 ND a
ADS, annular denuder system.
b
HDS, honeycomb denuder system.
and Cl2concentrations in particulate, one piece of the nylon filter in the filter pack of the ADS and HDS has enough capacity to adsorb HCl and HNO3gases
for ambient sampling.
CONCLUSIONS
This study evaluated whether the collection capacity of a nylon filter of an annular denuder system is enough to adsorb HCl and HNO3gases evaporated
from particles on a Teflon filter. In the collection capacity test, the individual capacity of nylon filter to adsorb HNO3gas was found to be higher than that of
HCl gas at different humidities. In the interference test, experiment data show that the collection efficiency of the nylon filter for HCl gas was decreased substantially when HNO3was present. A monolayer adsorption theory was
employed to estimate the theoretical capacity of the nylon filter to adsorb HCl gas when HNO3gas coexists. The results showed that the collection efficiency
of the nylon filter for HCl gas decreases with increasing interference of HNO3
gas. However, there is no significant effect of nylon filter to adsorb HNO3
when HCl co-exists, the collection efficiency of the nylon filter for HNO3gas
is greater than 95%.
The possible collection of the Teflon filter for HCl and HNO3gases was
also investigated. The results show that HCl and HNO3collected on the Teflon
filter can be neglected in a general period of 24 hr. In ambient sampling, the results show that one piece of the nylon filter in the filter packs of the ADS and HDS has enough capacity to adsorb HCl and HNO3gases.
ACKNOWLEDGMENT
The authors thank for the Taiwan National Science Council of the Republic of China for the financial support under Contract No. NSC 89-2211-E-009-006.
REFERENCES
1. Possanzini, M.; Febo, A.; Liberti, A. New design of a high-performance denuder for the sampling of atmospheric pollutants. Atmos. Environ. 1983, 17, 2605.
2. Koutrakis, P.; Sioutas, C.; Ferguson, S.T.; Wolfson, J.M. Development and evaluation of a glass honeycomb denuder/filter pack system to collect atmospheric gases and particles. Environ. Sci. Technol. 1993, 27, 2497.
3. Sioutas, C.; Wang, P.Y.; Ferguson, S.T.; Koutrakis, P. Laboratory and field evaluation of an improved glass honeycomb denuder/filter pack sampler. Atmos. Environ. 1996, 30, 885.
4. Stelson, A.W.; Friedlander, S.K.; Seinfeld, J.H. A note on the equilibrium relationship between ammonia and nitric acid and particulate ammonium nitrate. Atmos. Environ. 1979, 13, 369.
5. Doyle, G.J.; Tuazon, E.C.; Graham, R.A.; Mischke, T.M.; Winer, A.M.; Pitts, J.N. Simultaneous concentrations of ammonia and nitric acid in a polluted atmosphere and their equilibrium relationship to particulate ammonium nitrate. Environ. Sci. Technol. 1979, 13, 1416.
6. Stelson, A.W.; Seinfeld, J.H. Relative humidity and temperature dependence of the ammonium nitrate dissociation constant. Atmos. Environ. 1982, 19, 983.
7. Pio, C.A.; Harrison, R.M. The equilibrium of ammonium chloride aerosol with gaseous hydrochloric acid and ammonia under tropospheric conditions. Atmos. Environ. 1987, 21, 1243.
8. Appel, B.R.; Wall, S.M.; Tokiwa, Y.; Haik, M. Simultaneous nitric acid, particulate nitrate and acidity measurements in ambient air. Atmos. Environ. 1980, 14, 549.
9. Karakas, D.; Semra, G.T. Optimization and field application of a filter pack system for simultaneous sampling of atmospheric HNO3, NH3and
SO2. Atmos. Environ. 1997, 31, 1657.
10. William, T.S.; Harrison, R.M. The use of nylon filters to collect HCl: Efficiencies, interferences and ambient concentrations. Atmos. Environ. 1989, 23, 1987.
11. Tsai, C.J.; Perng, S.B.; Chiou, S.F. Use two different acidic aerosol samplers to measure acidic aerosols in hsinchu taiwan. J. Air & Waste Manage. Assoc. 2000, 50, 2120.
12. Tsai, C.J.; Huang, C.H.; Wang, S.H.; Shih, T.S. Collection efficiency and capacity of three samplers for acidic and basic gases. Environ. Sci. Technol. 2001, 35, 2572.
13. U. S. EPA, Compendium Method IO-4.2. Center for Environmental Research Information Office of Research and Development: Cincinnati, OH 45268, 1999.
Received January 2003 Revised July 2003
