Analysis and Improvement of Fair Certified E-Mail Delivery Protocol

Analysis and Improvement of Fair Certified E-Mail Delivery Protocol

Chih-Hua Lai and Ren-Junn Hwang

Department of Computer Science and Information Engineering, Tamkang University,

Damsui, Taipei County, Taiwan, R.O.C.

[email protected]

Abstract

Fair exchange, Security.

1. Introduction

Due to characteristics of rapidity and inexpensive, electronic letter (e-mail) has become more and more popular communication tool for business instead of traditional manuscript letter nowadays. Although we can use digital signature such as well-known RSA [20] or S/MIME [21, 25] appended into e-mail to ensure non-repudiation of origin, the non-repudiation of receipt still relies on the willingness of the recipient.

Certified e-mail delivery (CEMD) protocol [11, 13, 17, 23] is developed to establish reliable e-mail system. It allows two mistrusting parties to exchange the certified e-mail and its receipt in a fair way. Obviously, the CEMD protocol is a kind of fair exchange. Fair exchange protocols include the following different but related variants [1, 26]: non-repudiation protocols [9, 22], electronic contract signing protocols [5, 7, 8, 12], certified e-mail delivery protocols [11, 13, 17], and fair document exchange protocols [18, 27]. A non-repudiation and electronic contract signing protocols aimed for fairly exchanging irrefutable signatures. However, CEMD is an e-mail system

which fairly exchanges messages and its receipt. The other kind of fair exchange is fair document exchange protocol that developed for fairly exchanging respective documents. Although fair document exchange protocol can be regarded as the generalization case of fair exchange protocol, it is not the efficient way to exchange only one e-mail message and its receipt. For more details of fair exchange protocols, please refer to [2, 10].

Formally, CEMD protocol provides following main security requirements [11, 23]:

(1) non-repudiation of origin: the recipient must have a way of proving that the e-mail indeed sent from the original sender.

(2) non-repudiation of receipt: the sender must have a way of proving that his/her e-mail has been successfully obtained by the designated recipient.

(3) Strong fairness: at the end of CEMD protocol, the recipient is able to obtain the e-mail if and only if the sender can obtain its receipt. For fairness assurance in CEMD protocol, the help of a trusted third party between two mutually distrusting parties is necessary [6, 14]. Based on the extent of involvement of the trusted third party, certified e-mail delivery protocol can be classified into two main types including on-line TTP [17] and off-line TTP [11, 13, 14]. The on-line TTP actively involved during each transmission of exchange. However, on-line TTP could be expensive for maintenance, and usually will cause the communication bottleneck. The off-line TTP of CEMD protocol only needs to interact with the participators when dispute occurs for restoring fairness.

Generally, the verifiable encrypted signature (VES) [4] is used to construct CEMD. The concept of VES technology is verifiability and recoverability. The verifiability ensures that the e-mail sender can verify the VES without obtaining the real signature. The recoverability permits that the real receipt can be recovered with the assistance of an agreed off-line TTP to maintain the fairness if any party misbehaves or unexpectedly aborts. Hence, off-line TTP-based

CEMD protocol using VES technology is the state-of-the-art solution since it is efficiently solving the difficult problem of strong fairness.

In this article, the contributions contain twofold. At first, we present the critique that Ma et al.’s CEMD protocol [11] unfortunately still can not achieve the requirement of strong fairness. In this article, we revise the weakness of Ma et al.’s CEMD protocol. Secondly, we design a novel certified e-mail delivery protocol. The proposed protocol provides an efficient pre-computation function for continued transmission when to the same recipient. Therefore, our protocol is more efficiently suitable for the common e-mail delivery circumstance that the sender will send a number of different e-mails to the same recipient frequently. With pre-computation function of our protocol, the computational cost can be reduced about 30% than Ma et al.’s CEMD protocol [11].

The remainder of the paper is organized as follows. The notations and assumptions used throughout the paper are defined in Section 2. Next, we review and analysis the weakness for Ma et al.’s protocol [11] in Section 3. Afterward, we propose a novel CEMD with pre-computation in Section 4. The security analyses and the performance evaluations of our CEMD protocol are shown in Section 5 and Section 6. Eventually, we give the briefly conclusions in Section 7.

2. Notations and assumptions

Throughout the paper, the notations are defined in Section 2.1, and the assumptions are defined in Section 2.2.

2.1. Notations

• A, B, T: the unique identity of e-mail sender A, recipient B, and trusted third party T, respectively.

• H(.): collision-resistant one-way hash function such as SHA-1 [16].

• x||y: the concatenation of messages x and y. • A→B: m denotes that the message m is sending

from party A to party B.

2.2. Assumptions

• E-mail sender A and recipient B have both agreed to employ an off-line trusted third party T. The off-line TTP will not conspire with any participators.

•

ski={di, ni} such that ni is a product of two

distinct large prime pi and qi and (ei×di)≡1 (mod (pi−1)(qi−1)). The public key pki is assumed that certified by the Certification Authority (CA) and known by all the other parties. The party i keeps his/her own private key ski in secret. • Initially, recipient B has obtained a recovery

certificate CBT={pkBT, wBT, sBT}, issued from the party T. The values embedded in CBT are defined as following. Note that, off-line TTP T has no need to store any temporary key x and

CBT. The temporary key x=wBT×H(skT||pkBT) mod nB can be recovered using the private key

skT of party T.

• pkBT=(g, y, nB), where g∈ *

B n

Z is selected prime integer with large order, and y=gx mod

nB such that x is the random integer;

• wBT=x×H(skT||pkBT)−1 mod nB, such that skT is the private key of party T;

• sBT=H(pkBT||wBT||eB||nB)dT mod nT is the RSA-based signature.

3. Review of Ma et al.’s CEMD protocol

Firstly, we review Ma et al.’s CEMD protocol [11] in Section 3.1. Afterward, we demonstrate the weakness of Ma et al.’s protocol in Section 3.2.

3.1. Ma et al.’s CEMD protocol

Ma et al.’s protocol consists exchange phase and receipt recovery phase, and describes below.

3.1.1. Exchange phase. We assumed that party A

attempts to use e-mail m in exchange of its receipt

σB=H(m)dB mod nB from party B. The exchange phase contains Step (E1) to Step (E4) as following. The message flows are shown in Figure 1.

(E1): Party A sends h=H(m) and the signature σA=H(m)dA mod nA to party B.

(E2): After verifying the RSA-based signature σA for h, the party B sends the VES values (U, V, c, r) and CBT to party A. The details of Step (E2) are described as following sub-steps:

(E2-1): selects random numbers α and w ∈ *

B n

Z ;

(E2-2): computes σB=hdB mod nB;

(E2-3): computes the values U=gα mod nB and

V=σB×yα mod nB;

(E2-4): computes the values tg=gw mod nB and

ty=(yeB)w mod nB;

(E2-5): computes two values c=H(h||A||B||tg||ty) and r=w−c×α;

(E2-6): sends values {U, V, c, r} and CBT to A.

(E3): Party A performs the following sub-steps to

verify the values {U, V, c, r, CBT} and then sends the real e-mail message m to party B.

(E3-1): checks RSA-based signature sBT on CBT;

(E3-2): computes tg=gr×Uc mod nB;

(E3-3): computes ty=(yeB)r×(VeB/H(m))c mod nB;

(E3-4): If equation c=H(H(m)||A||B||tg||ty) holds, sends e-mail message m to party B.

(E4): After receiving e-mail m and verifying the

equation h=H(m), party B sends back the real receipt σB to party A. Eventually, party A checks H(m)=σBeB mod nB. If it is valid, the certified e-mail delivery protocol is completed. Otherwise, party A initiates the receipt recovery phase.

(E1): : ( ), ( ) mod (E2): : ( , , , ), (E3): : (E4): : A d A A BT B A B h H m H m n B A U V c r C A B m B A σ σ → = = → → →

Figure 1. Exchange phase of Ma et al.’s protocol. 3.1.2. Receipt recovery phase. In the

circumstance that party A fails to obtain the party B’s receipt σB, party A may request for involving in the receipt recovery phase with the help of off-line TTP T. The steps including Step (R1) and Step (R2) of this phase are illustrated in Figure 2.

(R1): Party A sends {U, V, c, r, CBT, m} to the agreed off-line trusted third party T.

(R2): party T checks {U, V, c, r, CBT} for e-mail m by the same procedures shown in the step (E3) of exchange phase above. If verification passed, party T recovers the secret key x=wBT×H(skT||pkBT) mod

nB. Afterward, party T recovers the real receipt

σB=V/Ux mod nB. Finally, party T securely sends e-mail m to party B and sends receipt σB to party A, respectively. (R1): : ( , , , ), , (R2): : and : BT B A T U V c r C m T A σ T B m → → →

Figure 2. Receipt recovery phase of Ma et al.’s

protocol.

3.2. Weakness in Ma et al.’s protocol

Unfortunately, the weakness of unfairness occurs since the party B always can easily forge the unrecoverable VES values (U’, V’, c’, r’) to pass all the party A’s verifications in the exchange phase. Hence, it will cause erroneous decision for the party A to send back the real e-mail message m to party B in Step (E3) of exchange phase. In this moment, the party B gives up sending the receipt

σB to party A in Step (E4) of exchange phase. Although party A can try to initiate the receipt recovery phase, party T will generate the wrong receipt σB’≠σB from the forged VES values (U’, V’,

c’, r’). Party B performs the following Step (E2’)

in place of Step (E2) of original exchange phase to forge the unrecoverable VES values (U’, V’, c’, r’). The details of Step (E2’) are described in follows and shown in Figure 3.

(E2’): After receiving these values and verifying

the signature σA for h, party B sends the forged VES values {U’, V’, c’, r’, CBT} back to the party A. The details are described in following sub-steps:

(E2’-1): randomly selects three distinct integers r’, β and λ ∈ *

B n

Z ;

(E2’-2): computes the values tg’=gr’+β mod nB and ty’=(yeB)r’×hλ mod nB;

(E2’-3): computes c’=H(h||A||B||tg’||ty’);

(E2’-4): computes the value U’=gβ×(c’)−1 mod nB, where c’×(c’)−1_{≡1 (mod (p}

B−1)(qB−1));

(E2’-5): computes the value V’=hdB×(λ×(c’)−1+1)

mod nB using the private key skB={dB,

nB} of B;

(E2’-6): sends the forged VES values {U’, V’, c’, r’} and CBT to party A.

Therefore, party A will get the valid values {tg’,

ty’} in the Step (E3) of exchange phase. The correctness for the values {tg’, ty’} are presented below: • tg’=gr’×(U’)c’ = gr’×(gβ × (c’)−1)c’ = gr’+βmod nB. • ty’=(yeB)r’×((V’)eB / H(m))c’ mod nB =(yeB₎r’×((hdB × (λ × (c’)−1+1)₎eB _{/ h)}c’ _{mod n} B =(yeB₎r’×((h (λ × (c’)−1+1)_{) / h)}c’ _{mod n} B =(yeB₎r’×(h (λ × (c’)−1₎c’ _{mod n} B =(yeB₎r’×hλ _{mod n} B

Therefore, the equation c’=H(H(m)||A||B||tg’||ty’) will always pass for the forged VES values {U’, V’,

c’, r’}. However, when dispute occurs, the party A

uses the forged VES {U’, V’, c’, r’} and CBT to request receipt recovery, the party T will recover the error receipt σB’≠σB. As the demonstrated aforementioned, the error receipt would be

σB’ = (V’)/(U’)x mod nB

= (hdB × (λ × (c’)-1+1)_{) / (g}β × (c’)-1₎x _{mod n}

B

≠ H(m)dB mod nB.

It is obviously to find that σB’≠σB. Hence, it is unable to provide evidence because of H(m)≠(σB’)eB mod nB. The main weakness of Ma et al.’s protocol [11] is that party B can try to forge the values U’ and V’. Therefore, we just needs to use c=H(h||A||B||tg||ty||U||V) in place of original

c=H(h||A||B||tg||ty) in the Ma et al.’s protocol to overcome the weakness of unfairness. Although Ma et al.’s protocol can be easily revised, it still wastes too much computational cost.

(E1): : ( ), ( ) mod (E2'): : ( ', ', ', '), (E3): : (E4'): : nothing A d A A BT A B h H m H m n B A U V c r C A B m B A σ → = = → → →

Figure 3. The forgery attack on Ma et al.’s

protocol.

4. Our CEMD protocol

Our proposed protocol consists two phases: the main exchange phase and the receipt recovery phase. The notations and assumptions are as defined in Section 2 above. We assumed that the RSA-based receipt σB is re-defined as σB

=H(m||I)dB _{mod n}

B, where the notation I=(A, B, T,

TimeStamp, info) is the unique session identify for

each exchange phase. The notation TimeStamp means that the timestamp of seeding the e-mail message to against replay attack. The info contains the abstract and simple titles of the e-mail message used for authenticity of originator. The details of our CEMD protocol are described as follows.

4.1. Main exchange phase

Without loss of generality, we assume that part A attempts to send e-mail message m in exchange of its receipt σB from party B. The main exchange phase contains four Steps (M1)-(M4) as shown in Figure 4 and describes in following.

(M1): Party A sends the values I=(A, B, T, TimeStamp, info), h=H(m||I) and the signature σA=H(m||I)dA mod nA to the designated party B.

(M2): After verifying the unique identity I and the

RSA-based signature σA for h, the party B performs the following sub-steps to send the VES values (U, V, c, r) and CBT back to the party A.

(M2-1): selects a random integer α∈ *

B n

Z ;

(M2-2): computes σB=hdB mod nB;

(M2-3): computes U=gdB _{mod n}

B; (The value U is pre-computable.)

(M2-4): computes V=σB×ydB mod nB, where the value y=gx mod nB is obtained from

CBT;

(M2-5): computes R=gα mod nB;

(M2-6): computes c=H(I||h||U||V||R||y); (M2-7): computes r=α−c×dB;

(M2-8): sends the VES values {U, V, c, r} and CBT to party A. Note that, the value U is needless in sending the other mails to the same recipient.

(M3): After receiving {U, V, c, r, CBT}, party A performs the following sub-steps to verify the VES. If the VES is valid, party A will send the real e-mail message m to party B. Note that, it is easily

to use the public key encryption such as RSA [20] under party B’s public key to protect e-mail message for confidentiality.

(M3-1): checks the signature sBT of CBT;

(M3-2): verifies the equation UeB ≡g (mod n

B); Note that, this sub-step can be omitted while pre-computation supported.

(M3-3): verifies the equation VeB ≡H(m||I)×y

(mod nB);

(M3-4): computes R=gr×Uc (mod nB);

(M3-5): verifies c=H(I||H(m||I)||U||V||R||y). (M3-6): If all verifications above are passed,

party A sends e-mail message m to party B. Otherwise, party A aborts the protocol.

(M4): After receiving the e-mail message m and

verifying h=H(m||I), party B sends back the real receipt σB to party A. Eventually, party A checks H(m||I)=σBeB mod nB. If it is valid, the certified e-mail delivery protocol is completed. Otherwise, party A initiates the receipt recovery phase described in the following Section 4.2.

(M1): : , ( || ), ( || ) mod (M2): : ( , , , ), (M3): : (M4): : A d A A BT B A B I h H m I H m I n B A U V c r C A B m B A σ σ → = = → → →

Figure 4. Main exchange phase of our CEMD.

4.2. Receipt recovery phase

In the circumstance that party A fails to obtain the party B’s receipt σB, party A may request for receipt recovery with the help of off-line TTP T. The steps including Step (T1) and Step (T2) of this phase are illustrated as following.

(T1) Party A sends the VES values (U, V, c, r),

recovery certificate CBT and e-mail m to party T.

(T2) Party T runs the same procedures as Step (M3)

of main exchange phase. If all verification passed, party T recovers secret key x=wBT×H(skT||pkBT) mod nB, and the real receipt σB=V/Ux mod nB. Finally, the party T securely sends e-mail m to party B and the receipt σB to party A, respectively.

5. Security analyses

In this section, we demonstrates that our CEMD protocol can prevent all known security attacks including replay attack, existential forgery attack, and satisfies strong fairness property.

5.1. Replay attack

The unique identify I=(A, B, T, TimeStamp, info) is embedded in both digital signature σA and σB. Legitimate expired time will be checked using the

timestamp. Hence, our proposed protocol not only can authenticate the identity of all participators, but also can resist the replay attack.

5.2. Existential forgery attack

As being pointed out in [24], our verifiable encrypted signature (VES) is based on variant RSA-based signature to design the existentially unforgeable signature. It is proven to be semantic security [24] against existential forgery attack. Moreover, anyone except party T is computational infeasible to derive the real receipt σB from the values (U, V) under the well-known difficulty of RSA problem [19]. Hence, the adversary including party A is unable to forge the VES (U, V, c, r).

5.3. Strong fairness

The strong fairness of our proposed CEMD protocol is achieved with the consideration for the following two cases:

(1) We assume that sender A has obtained the receipt before revealing the e-mail to party B. (2) We assume that recipient B has been received

the e-mail before sending its receipt.

In the first case, it implicitly means that the sender A has been received the receipt σB from Step (M4) of main exchange phase or has been recovered the receipt σB from Step (T2) of receipt recovery phase. Obviously, the recipient B had received the e-mail from Step (M3) of main exchange phase or Step (T2) of receipt recovery phase. Hence, fairness is achieved.

In the second case, it implies that the recipient B has been obtained e-mail from Step (M3) of main exchange phase or from Step (T2) of receipt recovery phase. Because the VES values (U, V, c, r) of our protocol is secure against existential forgery as demonstrated above in Section 5.2, the sender A must obtain the valid receipt from Step (M4) of main exchange phase or has a way of receiving the receipt using the recoverable VES with the help of an agreed off-line TTP in the receipt recovery phase. In addition, if recipient B unexpectedly

aborts Step (M4) of main exchange phase after receiving the e-mail m, the sender A can initiate the receipt recovery phase to recover the real receipt σB by using recoverable VES {U, V, c, r} and recovery certificate CBT. In summary of two cases above, our CEMD protocol can satisfy the strong fairness property.

6. Performance evaluations

In Nenadic et al.’s CEMD protocol [13], the recipient can cheat the e-mail sender by sending an unrecoverable VES to pass all verifications [11]. Hence, the e-mail sender can not obtain the irrefutable receipt after sending the real e-mail to the dishonest recipient. As the demonstrated above, Ma et al.’s CEMD protocol [11] also exists weakness of unfairness and wastes too much computational cost. However, our protocol can support the pre-computation function. This feature will greatly reduce the computational cost and save communication overhead for continued e-mail delivery. As shown in Table 1, our CEMD protocol can reduce the computational cost about 30% than Ma et al.’s protocol and the communication overhead of VES is only 1280 bits in the same security level while sending the other mails to the same recipient.

7. Conclusions

This paper proposes a novel CEMD protocol. The proposed protocol provides pre-computation function for continued e-mail communication. Our protocol efficiently reduces about 30% computational costs than Ma et al.’s scheme. In addition, we point out the weakness in Ma et al.’s CEMD protocol and revise it for fairness.

Acknowledgement

This work was partially supported by the National Science Council, Taiwan, under the grants no. 97-2221-E-032-019.

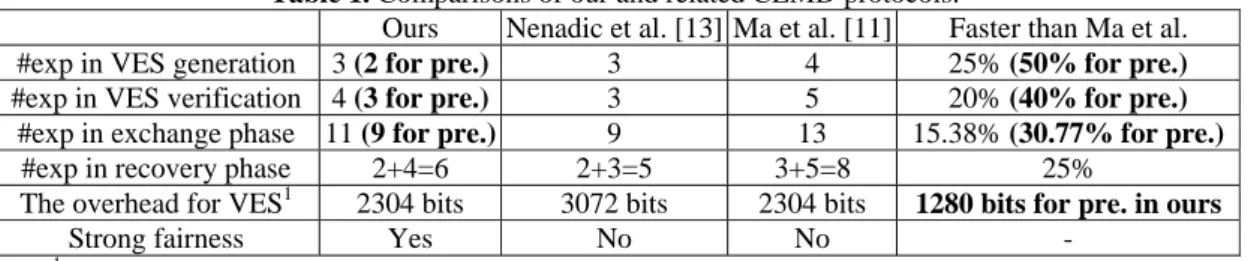

Table 1. Comparisons of our and related CEMD protocols.

Ours Nenadic et al. [13] Ma et al. [11] Faster than Ma et al. #exp in VES generation 3 (2 for pre.) 3 4 25% (50% for pre.)

#exp in VES verification 4 (3 for pre.) 3 5 20% (40% for pre.)

#exp in exchange phase 11 (9 for pre.) 9 13 15.38% (30.77% for pre.)

#exp in recovery phase 2+4=6 2+3=5 3+5=8 25%

The overhead for VES1 2304 bits 3072 bits 2304 bits 1280 bits for pre. in ours

Strong fairness Yes No No -

VES1: we assume that the overhead of traditional RSA signature encrypted in VES is 1024 bits. pre.: it means pre-computation used for sending the other mails to the same recipient in our CEMD. #exp: it stands for exponentiation operation times.
