A framework for video event classiﬁcation by modeling temporal context

of multimodal features using HMM

Hsuan-Sheng Chen

⇑

, Wen-Jiin Tsai

Department of Computer Science, National Chiao-Tung University, Taiwan 1001 University Road, Hsinchu 300, Taiwan, ROC

a r t i c l e

i n f o

Article history: Received 23 April 2013

Available online 7 December 2013 Keywords:

Multimedia system Video semantic analysis Baseball event classiﬁcation Co-occurrence symbol

Interval-based multimodal feature HMM

Probabilistic temporal modeling Multivariate temporal data classiﬁcation

a b s t r a c t

Semantic high-level event recognition of videos is one of most interesting issues for multimedia search-ing and indexsearch-ing. Since low-level features are semantically distinct from high-level events, a hierarchical video analysis framework is needed, i.e., using mid-level features to provide clear linkages between low-level audio-visual features and high-low-level semantics. Therefore, this paper presents a framework for video event classification using temporal context of mid-level interval-based multimodal features. In the framework, a co-occurrence symbol transformation method is proposed to explore full temporal relations among multiple modalities in probabilistic HMM event classification. The results of our experiments on baseball video event classification demonstrate the superiority of the proposed approach.

1. Introduction

The amount of multimedia information has grown explosively over the past decade. To search and index through these data is a difficult task and dependent upon techniques that can recognize events in videos. Event mining has been an active research area with notable recent progress and a detail review can be found in [1]. The event application systems from these works make the delivery and searching of video contents more effective and effi-cient. However, most of current systems employed domain specific heuristics to model audiovisual feature patterns in event classifica-tion.[2–4]pointed out that there is a lack of a framework for event classification. In this paper, a framework of modeling interval based multimodal features is proposed for video event classification. In this framework, videos from different domains are represented by interval-based structures and reasoned by their temporal context.

Temporal context of interval-based features can be utilized as important cues for video classification. Take a fly ball event in base-ball video for example as shown inFig. 1, where the video starts with a pitching scene. After the hitter hits the ball, the video is chan-ged into an outfield scene and the cameraman tracks the ball loca-tion, producing pan up camera motions. At the same time, the audience cheers loudly as the ball fly. After the ball was caught by the outfielder, the video is switched to a close up scene of the pitch-er to show his reaction. This example indicates that the high-level

event, ﬂy ball, can be recognized by detecting interval-based fea-tures: pitching scene, outﬁeld scene, close-up scene, camera pan-up as well as audience cheering in the video and verifying whether all these features meet the temporal context described above.

Researchers have made some progresses in modeling the tem-poral context structure inherent to high-level events. Zhu et al. [6]took into account the temporal continuity besides association rules. Therefore, they introduced multilevel sequential association mining to explore associations among the audio and visual cues. However, the temporal knowledge used in their work is rather simplified. Chen et al.[7,8]proposed a hierarchical temporal asso-ciation analysis framework using multimodal data mining method. In their method, temporal analysis is used to identify significant temporal patterns. Unfortunately, since the temporal pattern adopted is sequential, this method cannot detect events with com-plex temporal relationships. Allen[9]defined all possible temporal relations between time intervals. According to Allen[9], the tem-poral relation between any two features can be described by one of 7 temporal logics: before, meet, overlap, equal, during, start, and finish. Snoek et al.[10]used a relaxed version of Allen’s relations, called TIME, to detect events in two different domains: soccer and news. But the relaxed Allen’s relations cannot convey temporal interval information precisely. Fleischmann et al.[11,12]proposed an unsupervised method based on Allen temporal algebra[9]by searching for commonly occurring event temporal relationships. The main contribution of their work is the temporal structures of complex events and the integration of external text-modal infor-mation. However, as pointed out by Wu et al.[13], there are two ambiguous problems in Allen’s temporal algebra when dealing 1047-3203/$ - see front matter Ó 2013 Elsevier Inc. All rights reserved.

http://dx.doi.org/10.1016/j.jvcir.2013.12.001 ⇑ Corresponding author.

E-mail addresses: [email protected] (H.-S. Chen), [email protected]

(W.-J. Tsai).

Contents lists available atScienceDirect

J. Vis. Commun. Image R.

j o u r n a l h o m e p a g e : w w w . e l s e v i e r . c o m / l o c a t e / j v c i

(2)

with more than two features. They are (1) different representations may exist for the same temporal relation among features, and (2) the same representation can stand for different temporal relations among features. To overcome these problems, Wu et al. [13] proposed a new non-ambiguous representation (called temporal sequence, or TS) by using feature type, start/end symbols, occur-rence number, and temporal order. For example, the temporal relation ‘‘x meets y’’ in Allen’s method is represented by x+1< x1_{= y}+1

< y1 _{in Wu et al.’s method, where x and y are} feature types, < and = are temporal order relation, + and mean feature start/end, and the number following the +/ is the occur-rence times of this feature type. For m features, we can construct 2m

1 TSs to describe all of their temporal relations: one TS for one relation. Given ﬁve features as shown inFig. 2, there would be 25_{1 = 31 TSs among them. Due to space limit, we only show} three TS examples inFig. 2. Moreover, for two temporal sequences, if one is a subset of the other one, we say there is a containment between them. As shown inFig. 2, ts3is contained in ts1, but not contained in ts2. The formal deﬁnition of temporal sequence can be found in[13]and thus, it is not described in details here.

By using Wu et al.’s representation, Dao et al.[14]proposed a temporal frequent pattern-based event classification (TFPEC) method for event detection of sports video. Their method has two stages: training and testing. In training stage, frequent pattern set (FPS) for each event are constructed using its training TSs, where the FPS is a set of frequently occurring feature patterns among the training sequences of an event class. Since any subset of a TS could be a frequent pattern candidate, all the subsets for each training TS are enumerated and verified by counting their occurrence number. If any subset occurs more than N times for an event class, it is called a frequent pattern, where the N is spec-ified by users[13]. In TFPEC method, an event class is distinguished by its FPS. Therefore, for N event classes, there will be N frequent pattern sets (FPS1, . . . , FPSN) after the training stage. In the testing stage, for a test sequence, containment check is performed between all its TSs and each FPS. This test sequence is classified to an event class (say i) if one of its TSs are contained by one of the patterns in FPSi. If some of its TSs are contained by multiple FPSs, the event class corresponding to the one with the longest containment is selected. Although this method is able to represent events with

complex temporal relations, their classiﬁcation method of using containment match makes it suffer from multiple-recognition problem (i.e., one test data is recognized as multiple exclusive event classes), resulting in a poor accuracy rate. Therefore, proba-bilistic classiﬁcation based on HMM would be adopted to solve this problem.

HMM has been regarded as an effective tool to recognize con-tinuous-time signals since it has been successfully used in many applications including speech recognition[15], gesture/action rec-ognition[16,17]and biological sequence modeling[18]. A discrete HMM is characterized by a set of parameters k ¼ ðA; B;

p

Þ, where A is the state transition probability matrix, B is the observation sym-bol probability matrix, and

p

is the initial state distribution. Using HMM for events classiﬁcation involves training and testing stages. At training stage, each event class will have a HMM trained with corresponding sequences for it. At testing stage, maximum likeli-hood method is used to classify events. The details of HMM can be found in[15].

HMM was also introduced to video event analysis[19]such as soccer[20], baseball[21], and basketball[22]. Even though these works of using HMM can classify events in video content effi-ciently, most of them use information from one single modality such as scene transitions, camera motions, or object motions, etc. This kind of approaches is called the single-model approach. Effec-tive event analysis, however, requires a multimodal approach in which information from different modalities are exploited[23– 28]. However, multiple modalities produces more temporal rela-tionships which make it hard to apply HMM which can only model temporally sequential data. To apply HMM, each video (no matter training video or testing video) must be transformed into a symbol sequence, with different symbols representing different features and the order of symbols in the sequence standing for the temporal order of the features in that video. Note that if all the features used for classification belong to one feature model, then the resulting symbols for this video sequence will be sequential, which can be fed into HMM directly. However, if the features used for classifica-tion are from more than one feature modal, these features may have overlap in time within the video and thus, cannot be repre-sented as one sequential symbol sequence.

Huang et al.[29]proposed a method called product-HMM which applies multimodal information on HMM-based classiﬁcation. In product-HMM, modalities are assumed to be mutually indepen-dent. Thus, for each video, different symbol sequences are gener-ated independently for different feature modalities; and for each event class, multiple HMMs are trained, one for each feature mod-al. Taking three feature modalities: visual, motion and audio, as an example, instead of using one HMM ki for each event class, three HMMs kVi, k

M i , k

A

i are trained for each event class, where k V

i is for vi-sual model, kM

i for motion and k A

i for audio. At testing stage, symbol sequences of different feature models generated from test video are fed into corresponding HMMs of each event class. Since prod-uct-HMM assumes that feature models are mutually independent, the observation probability of event class i is computed as:

PðOjkiÞ ¼ PðOVjkViÞ PðO M

jkMi Þ PðO A

jkAiÞ;

Fig. 1. Temporal compositions of interval-based features, including pitching scene, camera pan up, ﬁeld scene, and cheer for a ﬂy ball event in baseball video[5].

Time

(3)

where kV_{¼ ðA}V

;BV;

p

V_{Þ; k}M_{¼ ðA}M

;BM;

p

M_{Þ and k}A_{¼ ðA}A

;BA;

p

A_{Þ. The} test video is classiﬁed to the class with maximum likelihood accord-ing to this probability. Note that although product-HMM provides a way of utilizing multimodal features in HMM-based event classiﬁ-cation, it did not utilize full temporal relations among different modalities because modalities are assumed to be mutually independent.

In light of these discussions, this paper proposes a new method of applying multimodal features on HMM for video event classifi-cation. There are two main contributions in our approach. (1) A HMM-based event classification framework is proposed using mul-timodal interval features. (2) A co-occurrence symbol transforma-tion method is proposed with the capability of exploiting full temporal relations among multiple modalities in HMM-based clas-sification without suffering the multiple-recognition problem. In the remainder of this paper, detailed procedures of the proposed framework are introduced in Section 2. Section 3 gives perfor-mance evaluations from baseball event recognition and the results indicate that the performance and effectiveness of the proposed framework are satisfactory. Conclusions are drawn in Section4.

2. Proposed method

As described, TFPEC-based methods exploit multimodal fea-tures in event classiﬁcation by using temporal sequence represen-tation. But they suffer from a multiple-recognition problem (i.e., one test data is recognized as multiple exclusive event classes since one frequent pattern could occur in multiple event classes) by using frequent pattern match, resulting in poor accuracy rate of recognition. This could happen easily especially when some event classes have parts of frequent patterns in common. With probabi-listic model and maximum likelihood decision making, although HMM-based methods will not encounter the multiple-recognition problem, it is hard to exploit temporal relationship among multi-modal features. The assumption that feature models are indepen-dent of each other may result in poor recognition performance because temporal relationship is not fully utilized.

The proposed event classification method aims at taking advan-tages of both TFPEC- and HMM-based methods. In order to achieve a better recognition performance, multimodal features are exploited in our approach; and to overcome the multiple-recogni-tion problem, probability based HMM rather than pattern-match based TFPEC is adopted. To utilize full temporal relationship of multimodal features in HMM, a co-occurrence symbol transforma-tion method is proposed, which encodes multimodal features as a sequence of symbols. The sequence not only keeps full temporal relationship among features, but also can be fed to HMM directly. The conceptual diagram of the proposed system is shown inFig. 3. It consists of three functional blocks: interval-based multimodal fea-ture representations, co-occurrence symbol coding transformation, and event classification using HMM. First, input videos are processed to find selected multimodal features and these features are repre-sented in temporal structure called temporal database. Then, they are transformed to the proposed co-occurrence symbol sequences which exploit temporal context of multimodal features in a man-ner that HMM can use. These sequences are then used as the inputs of HMM for video event recognition based on probabilistic classifi-cation. The details of each functional block are described in the fol-lowing subsections.

2.1. Interval-based multimodal feature representation

Our approach adopts time interval-based temporal representa-tion to denote video data using selected features and the resulting data is called a temporal database. To generate a temporal database,

the event classes for recognition and the corresponding interval-based features should be determined ﬁrst. Both of them are decided based on domain speciﬁc knowledge. Here, we use baseball appli-cation as an example to explain this module as shown inFig. 4.

High-level events such as homerun, outfield hit, outfield out, in-field out, strike out, walk, etc. are the typical baseball event classes for recognition. The features used to recognize these high-level events can be low-level features such as color and texture or mid-level features such as video shot, scene, camera motion, etc. Compared with low-level features, since mid-level features are more semantically related to high-level events, they are widely employed in the recent researches and the methods for mid-level feature detection have been developed well and proven efficient in sports domain [30–32].Fig. 4 shows the interval-based mid-level feature detection in baseball from different sources: visual shot, camera motion, audio, and misc. Eight baseball shots includ-ing Pitchinclud-ing, Infield, Outfield, Audience, Base, Close-up, Runninclud-ing, and Misc can be detected and classified using a decision tree classifier based on feature vectors composed of different low level visual features[12]. In addition to video shots, camera motions such as Pan Right, Pan Left, Zoom In, Zoom Out, Tilt Up and Tile Down can be detected by the methods in[33]using an affine mod-el. Audio features such as exciting commentator speech, audience cheering can be detected by segmenting, classifying and clustering audio frames represented by feature vectors composed of different low-level audio features[12]. The interval-based features utilized in the proposed framework can be low-level or mid-level. Since mid-level feature detection is somewhat mature now, we adopt mid-level features in the proposed framework to illustrate inter-val-based representation and high-level event recognition. When the mid-level features are selected from different source models such as visual scene shot, camera motion, audio, object, replay, and misc, they are called multimodal mid-level features.

Since mid-level features are strongly application-related, how to select them properly will not be discussed in details in this pa-per. Here we only focus on proposing a framework based on se-lected mid-level features. Assume seven baseball mid-level feature types (Close-up, Outﬁeld, Audience, Zoom In, Pan Right, Excited Speech, Cheering) from three modalities (Baseball Shot, Camera Motion, Audio) are selected.Fig. 5(b) shows an example of temporal database for the video inFig. 5(a). A mid-level feature selection for baseball event detection in Section3.1can be refer-enced for better comprehension.

Interval-based Multimodal Feature Representation

Co-occurrence Symbol Coding Transformation

Event Classification using HMM

Interval -based Multimodal Temporal Database

Videos

Event Class Co-occurrence Symbol

Sequence

(4)

2.2. Co-occurrence symbol transformation

As described, we adopt a probabilistic classiﬁcation method, HMM, to solve the multiple-recognition problem in event classiﬁ-cation. HMM requires that the symbols fed into it are sequential

temporally without symbol durations overlapped in time. Namely, when a temporal database is constructed from multimodal fea-tures, it cannot be utilized by HMM directly because the features selected from different modalities may occurs simultaneously in video, resulting in overlapped symbol durations within a temporal

Homerun

High-Level Events/Semantics

• Pitching • Outfield • Infield • Audience • Base • Close-up • Running • Misc

Interval-based Mid-Level Features

Shot

Low-Level Features

• Motion Outfield Hit Outfield Out Infield Out Strike Out Walk • Pan Right • Pan Left • Tilt Up • Tilt Down • Zoom In • Zoom Out • Excited Speech • Cheering • Misc

Camera

Motion

Audio

• Camera Motion • Grass/Field Pixels • Frame/ Region Entropy • Line

• Face Color Blob • Color Histogram • MFCC • Number of Zero Crossing • Spectral Entropy • Relative Power between different Frequency Bands

Misc

• Object • Replay Misc

Misc

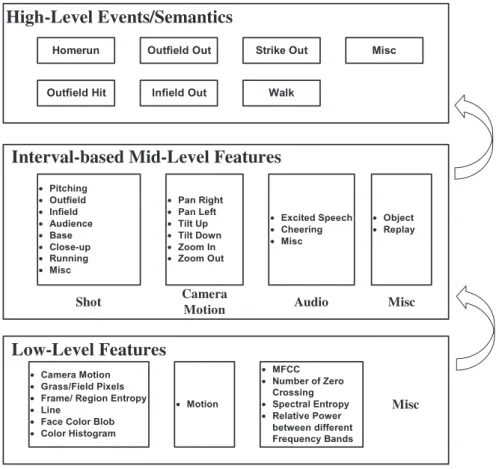

Fig. 4. Interval-based mid-level feature detection from different source models in baseball.

(a) A video consisting of seven feature types from three modalities

Feature

Type

Time

Period

Feature

Type

Time

Period

Feature

Type

Time

Period

Close-up

{0, 4}

Zoom In

{0, 4}

Excited

Speech

{4, 8}

Outfield

{4, 10}

Pan Right

{8, 12}

Cheering

{12, 15}

Audience

{10, 15}

Zoom In

{15, 19}

Excited

Speech

{19, 23}

Close-up

{15, 19}

Pan Right

{21, 26}

Cheering

{26, 30}

Audience {19,

24}

Outfield {24,

30}

(b) An example of temporal database

Close-up Outfield Audience Close-up Audience Outfield Zoom In Zoom In Excited Speech 4 8 12 19 21 24 26 0 Pan Right Cheer ing Excited Speech Pan Right Cheer ing 10 15 23 30

(5)

sequence. To apply multimodal features in HMM-based classiﬁca-tion, a symbol transformation method is proposed to convert a temporal database into co-occurrence symbol representation.

Co-occurrence symbol transformation method includes two steps: temporal segmentation and symbol coding. In temporal seg-mentation, a time period is segmented whenever a new feature(s) starts or the feature which occurred previously ends. Features from each modality should be considered in order to convey the context of multimodal features. There is a buffer called BUF to record the occurring feature type(s) in the current time period. In symbol cod-ing, each segmented time period is coded by a single symbol which represents all the feature-type(s) occurring during it and the cod-ing process is achieved by lookcod-ing up a codebook which records all the generated symbols for the mapping that have occurred. The mapping could be one-to-one (one symbol to one feature) or one-to-many (one symbol to many co-occurring features). If the mapping is found in the codebook, the corresponding symbol is output. Once a mapping cannot be found, a new symbol is gener-ated to represent the co-occurrence feature type(s) in BUF and then this mapping is added to the codebook and the symbol is output. After a series of symbol outputs, a sequential symbol sequence, called a co-occurrence symbol sequence, can be obtained for used in HMM. The detailed algorithm is described inFig. 6.

The visualization of symbol transformation process using the proposed algorithm is shown inFig. 7, where the example tempo-ral database inFig. 5is used as input data. The vertical dashed lines show how the input temporal database is segmented according to the start times and end times of features; and each symbol on the bottom of the ﬁgure represents the co-occurring feature(s) in the corresponding segmented time period. In this example, the output symbol string (called the co-occurrence symbol sequence) is ‘abc-deaefdcb’. A step by step explanation of process inFig. 7is shown inTable 1. At t = 0, features Close-up & Zoom In are inserted into BUF because of their occurrence. At t = 4, the codebook is looked up using the content of BUF, Close-up & Zoom In, but the symbol mapping is not found. Therefore, the mapping between features Close-up & Zoom In and a new codeword symbol ‘a’ is added to codebook and the symbol ‘a’ is outputted to represent the co-occurring features Close-up & Zoom In in time period [0,4]. Then, Close-up & Zoom In are removed from BUF because of their end; and Outﬁeld & Excited Speech are added into BUF because of their occurrence. Similar process goes till t = 15 and four more new

symbols, b, c, d, and e, are produced to represent the co-occurring features, Outfield & Excited Speech, Outfield & Pan Right, Audience & Pan Right, Audience & Cheering, respectively. At t = 19, the codebook is looked up for the content of BUF, up & Zoom In. Since Close-up & Zoom In can be found in codebook, the corresponding map-ping symbol ‘a’ is outputted to represent it in time period [15,19]. Then, features Close-up & Zoom In are removed from BUF because they end; and Audience & Cheering are added into BUF be-cause of their occurrence. The process goes for each time period of the input temporal database and finally, the co-occurrence symbol sequence is ‘abcdeaefdcb’. It is observed that, with this representa-tion, full temporal relations (including overlapping) among multi-modal features are captured by using co-occurring symbols in a sequential manner that HMM can use.

2.3. HMM classiﬁcation for event detection

Multimodal features in a video can be represented by co-occur-rence symbol sequences after data representation and symbol transformation; then event class is obtained by HMM classiﬁcation which consists of training and testing. In training, separate HMM of each event class is trained by training co-occurrence symbol se-quences of each category using the Baum-Welch method and trained HMMs are used for reference during testing. In testing, the event class of an un-annotated test sequence O is obtained

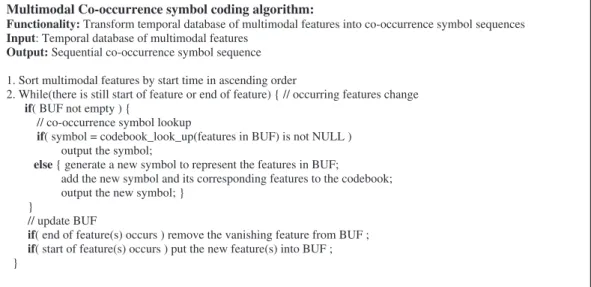

Multimodal Co-occurrence symbol coding algorithm:

Functionality: Transform temporal database of multimodal features into co-occurrence symbol sequences Input: Temporal database of multimodal features

Output: Sequential co-occurrence symbol sequence

1. Sort multimodal features by start time in ascending order

2. While(there is still start of feature or end of feature) { // occurring features change

if( BUF not empty ) {

// co-occurrence symbol lookup

if( symbol = codebook_look_up(features in BUF) is not NULL )

output the symbol;

else { generate a new symbol to represent the features in BUF;

add the new symbol and its corresponding features to the codebook; output the new symbol; }

}

// update BUF

if( end of feature(s) occurs ) remove the vanishing feature from BUF ; if( start of feature(s) occurs ) put the new feature(s) into BUF ;

}

Fig. 6. Multimodal co-occurrence symbol coding algorithm. Close-up Outfield Audience Close-up Audience Outfield Zoom In Zoom In Excited Speech

a

b c d e

a e f

4 8 12 19 21 24 26 0 Cheer ing Excited Speech Pan Right Cheer ing 10 15 23 30

dc b

Time (Sec) Co-occurrence symbol sequence Pan Right

Fig. 7. Co-occurrence symbol coding of the example temporal database inFig. 5, including temporal segmentation (dashed line) and output co-occurrence symbol sequence.

(6)

by choosing the maximum likelihood between test sequence O and each trained HMM.

3. Experiments 3.1. Experiment setup

Baseball event recognition is used to evaluate the performance of the proposed framework. Six major event classes in typical base-ball video are chosen: home run (HR), outfield hit (OutHit), outfield out (OutOut), infield out (InOut), strike out (SO), and walk. The mid-level features adopted come from three modalities: visual, camera motion and audio. For visual modality, a game is seg-mented into video shots based on changes in the visual scene

due to editing and video shots are classified into eight categories: pitching, infield, outfield, audience, base, close-up, running, misc. For camera motion modality, they are clustered into six kinds: pan right, pan left, tilt up, tilt down, zoom in and zoom out. For audio modality, we extract audience cheering and exciting com-mentator speech. Manually labeled ground truth features are used since this study focuses on the event recognition performance using temporal context of multimodal mid-level features. How-ever, labeling of these mid-level features can be potentially auto-mated with methods in [12,33,34]. Fig. 8 shows an example temporal database of a homerun event, using selected features from three modalities.

In our experiments, baseball videos from ﬁve baseball games of MLB (Major League Baseball/USA) and NPB (Nippon Professional Table 1

Step by step operations of co-occurrence symbol coding algorithm.

Time BUF Codebook Output symbols

t = 0 Empty Empty

t = 4 Close-up & Zoom In a: Close-up & Zoom In a

t = 8 Outﬁeld & Excited Speech a: Close-up & Zoom In b

b: Outﬁeld & Excited Speech

t = 10 Outﬁeld & Pan Right a: Close-up & Zoom In c

b: Outﬁeld & Excited Speech c: Outﬁeld & Pan Right

t = 12 Audience & Pan Right a: Close-up & Zoom In d

b: Outﬁeld & Excited Speech c: Outﬁeld & Pan Right d: Audience & Pan Right

t = 15 Audience & Cheering a: Close-up & Zoom In e

b: Outﬁeld & Excited Speech c: Outﬁeld & Pan Right d: Audience & Pan Right e: Audience & Cheering

t = 19 Close-up & Zoom In a: Close-up & Zoom In a

t = 21 Audience & Cheering a: Close-up & Zoom In e

t = 23 Audience & Pan Right & Cheering a: Close-up & Zoom In f

f: Audience & Pan Right & Cheering

t = 24 Audience & Pan Right a: Close-up & Zoom In d

t = 26 Outﬁeld & Pan Right a: Close-up & Zoom In c

b: Outﬁeld & Excited Speech c: Outﬁeld & Pan Right d: Audience & Pan Right e: Audience & Cheering;

t = 30 Outﬁeld & Excited Speech a: Close-up & Zoom In b

(7)

Baseball/Japan) totalling 18.5 h are evaluated. All the videos are compressed in MPEG-1 format with frame size of 352 240 and frame rate of 30 fps. The event numbers of experimental videos are shown inTable 2. One-third videos of each event class were used as training set while the other two-thirds were used for test-ing set. The manually labeled events in the testtest-ing data were used as the ground truth to evaluate the event classification of our sys-tem. Confusion matrix is used to give the full picture of the classi-fication performance. The precision/recall rates of each event class are calculated from the confusion matrix. Accuracy is the overall correctness of the model and is calculated as the sum of correct classifications divided by the total number of classifications. The number of original vocabularies in our experiments is 16, including 8 visual scenes, 6 camera motions, and 2 audio interval features. 3.2. Experiment results

The performance of the proposed method is evaluated with re-spect to six parts: event recognition results, effect of multimodal feature integration, effect of dataset selection, recognition of more event classes, testing on type of sequences not learned before, and comparisons of computational complexity and execution time. 3.2.1. Event recognition results

Three different methods integrating temporal information of multimodal features are compared to evaluate the event recogni-tion performances: (1) proposed co-occurrence HMM, (2) Product-HMMs, (3) FP-match methods, where Product-HMM and FP-match are the approaches described in introduction.

Table 3shows the performance comparison of the three meth-ods. It is observed that the proposed method outperformed the other two methods and the accuracy of FP-match method is appar-ently lower than the two HMM-based methods. To detail the clas-sification results for each type of event, Tables 4–6 show the confusion matrix of the three methods separately. For the pro-posed method, OutHit and OutOut are classified better than the other four baseball events. Homeruns, compared to other event classes, are much easier to be misclassified by all three methods. Since our experiments consist of much fewer Homerun samples than others, the misclassification problem may be due to insuffi-cient training samples. For learning-based methods such as the proposed method and the product-HMM, the classification perfor-mance could be improved if more training samples are provided. Although InOut samples are the largest set among all categories, there are still some misclassification. More samples need to be col-lected for each category so that HMM could learn different transi-tion patterns among the event class. The classificatransi-tion of Walk is apparently low. The SO and Walk events are different in semantics (the batter is out or safe), however, they are quite similar in feature context: a short close-up shot transitions of the pitcher, batter, or coach. Therefore, it is very difficult to tell SO from Walk by selected mid-level features. More distinguishable mid-level features need to be investigated to solve this problem. For Product-HMMs meth-od, the overall classification is somewhat lower than the perfor-mance of proposed method, and it performs poorly for InOut

classification, obtaining relatively low ratio in recall. For FP-match method, we impute the poor performance to the multiple-match-ing problem. Durmultiple-match-ing the experiments of total 255 test sequences, 182 test sequences (about 71%) are classified to multiple events, resulting in overall poor performance. As for the non-integer val-ues in the confusion matrix of FP-match method, this phenomenon is due to different classification results of multiple candidates of maximum length. Suppose three candidates with maximum length L are matched for one test sequence, two candidates are classified Pitching Outfield Audience Close-up Close-up Close-up

Pan Right Pan Right Zoom_In Cheering Excited Speech 4 7 8 10 11 12 13 18 21 0 Time (Sec)

Fig. 8. Temporal database of a homerun event.

Table 2

Event statistics of experimental video dataset.

HR OutHit OutOut InOut SO Walk Total

NPB 7 40 33 65 31 17 193

MLB 8 30 47 48 43 15 191

NPB + MLB 15 70 80 113 74 32 384

Table 3

Performance comparison of three methods.

Proposed method Product-HMMs FP-match

Accuracy 64.3% 54.5% 34.2%

Table 4

Confusion matrix of proposed Co-occurrence HMM method.

Homerun OutHit OutOut InOut SO Walk Recall (%) Homerun 5 5 0 0 0 0 50.0 OutHit 0 30 16 0 1 0 63.8 OutOut 2 0 44 0 7 0 83.0 InOut 0 1 0 37 36 1 49.3 SO 1 0 0 0 45 3 91.8 Walk 0 1 0 0 17 3 14.3 Precision 62.5% 81.1% 73.3% 100% 42.5% 42.9% Table 5

Confusion matrix for Product-HMMs method.

Homerun OutHit OutOut InOut SO Walk Recall (%) Homerun 2 5 3 0 0 0 20.0 OutHit 4 31 12 0 0 0 66.0 OutOut 2 7 42 0 2 0 79.2 InOut 1 5 48 13 7 1 17.3 SO 0 0 2 0 47 0 96.0 Walk 0 0 0 0 17 4 19.0 Precision 22.2% 64.6% 39.3% 100% 64.4% 80.0% Table 6

Confusion matrix for FP-match method.

Homerun OutHit OutOut InOut SO Walk Recall (%) Homerun 10 10 0 0 0 0 50.0 OutHit 22.8 41.6 3 0.2 0 0 61.5 OutOut 12 29.5 20.3 1.9 1.2 0 31.3 InOut 10.9 30.1 16.4 27.3 1.3 0.3 31.6 SO 26 26 0 0 4.5 18.5 6.0 Walk 5 6.3 0 0 2.1 12.6 48.5 Precision 11.5% 29.0% 51.1% 92.9% 49.5% 40.1%

(8)

into homerun and one is classiﬁed into OutHit. The test sequence is recognized as 0.66 HR and 0.33 OutHit.

Number of states is an important design parameter in the con-text of HMM. To know how it affects recognition performance, experiments were conducted for using different numbers of HMM states in the proposed method, where mixed dataset (MLB + NPB) with multimodal features (Visual/Motion/Audio) were adopted and the result is shown inFig. 9. It is observed that the maximum recognition accuracy occurred at state number = 8, which is the value the proposed method used in our experiments. Since the optimal number of state is not universal for all HMM methods, we also conducted similar experiments for Product-HMMs. By comparingFig. 9andTable 3, it is worth noticing that, even with non-optimal state number (e.g., 10), the proposed meth-od still outperformed Prmeth-oduct-HMMs with optimal state number, indicating the superiority of the proposed method.

3.2.2. Effect of multimodal feature integration

To explore the effect of multimodal features integration, differ-ent combinations of multimodal features were employed for the three methods and the performance comparisons are listed in Table 7. It is worth noticing that if only single-modality feature is employed, both proposed co-occurrence HMM and Product-HMM become conventional HMM and therefore, obtain the same perfor-mance as shown in the last three rows of the table. As the number of adopted feature types increases, however, the performance of the proposed method improves significantly, but that of Product-HMM does not have obvious improvement. The difference of accu-racy rates can be up to 11.0% when three modalities are employed. The reason is that Product-HMM which assumes independent rela-tion among different feature-types utilizes only before, after, and meet temporal relationships among single features. Besides before, after, and meet relationships, the proposed co-occurrence coding can describe temporal overlapping relationships among multi-modal features such as the overlap among outfield shot, pan right, and excited speech or the overlap between close-up shot and cheering in homerun example ofFig. 7. Therefore, Product-HMM cannot obtain much benefit from the increase of adopted feature types, while the proposed method which can utilize full temporal relationship among multimodal features can improve the perfor-mance much more. Moreover, the proposed method performed better for visual + motion than for visual + audio. The reason is that, compared to the integration of visual and audio features, the integration of visual and motion makes the event classes more distinguishable to each other by the proposal method. However, this may not be always true for all the test data and all the appli-cations. As for FP-match method, it did not have obviously improvement when the number of adopted feature types increases. The reason is that it suffers from multiple-matching

problems. As the simple example shown inFig. 10, the temporal sequence of SO event is also contained by that of OutHit event, therefore the SO test data will be recognized as both SO and OutHit events. Such multiple-matching problems make FP-match method unable to take advantages from multimodal features.

3.2.3. Effect of dataset selection

To examine how dataset selection affects event recognition per-formance, baseball videos are divided into three datasets: MLB, NPB and MLB + NPB (mixed), according to the countries that broad-casted them. The three methods are performed on each dataset and the event recognition performances are compared. Since the shoot-ing habits of the cameramen and the reactions of the sports anchor and the audience could be different, mixed dataset combined dif-ferent temporal feature transition patterns from difdif-ferent broad-casts. As shown inTable 8, the performances of product-HMMs and FP-match methods on single dataset alone were better than on the mixed dataset. On the contrary, the proposed method per-formed better on mixed dataset, indicating that the more training data we used, the more benefits the proposed method can take from the different feature-patterns of different datasets and there-fore, improve the recognition performance. Since HMM is essen-tially a statistical method, large training set is needed to obtain the statistical characteristics. The more and different the training samples are adopted, the better classification performances the HMM is probably to perform unless the training set has been large enough to cover all the characteristics to distinguish all the event classes. Because of the statistical property of HMM, the proposed method benefits from more training datasets.

3.2.4. Recognition of more event classes

This section shows event recognition performances of recogniz-ing more event types. In addition to event recognition on six-type events (described in the experiment setup section), experiments were also conducted for four more event types: double play (DP), sacrifice hit (SH), infield hit (InHit), and hit by pitch (HBP). We col-lected 15 DP, 13 SH, 7 InHit, and 4 HBP events from 8 baseball games totaling 28 h. The sample set is not large because the four event types are not frequent events in baseball games. The occur-rence rate of the four event types in 8 games is about 9% which is approximated by dividing (15 + 13 + 7 + 4) to 432 (8 games ⁄ 9 inn-ings in a game ⁄ 6 events in an inning). The results of recognizing 10 events were shown inTables 9 and 10and it is observed that all three methods achieved a lower recognition rate than on six-type events. This is due to that the more event six-types we selected for recognition, the more similarities there may exist among them and therefore, it is more difficult for recognition methods to distin-guish them correctly. Noticing that, compared to 6-type event clas-sification, even though the performance of all the methods dropped on 10-type event classification, the proposed method still performed the best, with 52.1% accuracy rate. For the proposed method, recognition of Homerun, OutHit, OutOut, SO and Walk events are nearly not affected by the new event types. However, many InOut events are misclassified into DP, SH and InHit because they are all infield events. The multiple matching problem of FP-match method became more serious for 10-type event recognition with a poor accuracy rate of 21.6%.

3.2.5. Testing on type of sequences not learned before

This section examines the performance of the proposed method by using the kind of test sequences that are not learned before. To-wards this goal, a CPBL (Chinese Professional Baseball League/Tai-wan) baseball dataset consisting of 70 events as shown inTable 11 is adopted for event testing on the HMMs trained from MLB and NPB training datasets. Note that these trained HMMs were not trained by any CPBL sequence. The classiﬁcation results of the Fig. 9. Variation of recognition accuracy over number of HMM states.

(9)

three methods are shown in the tables below where Table 12 shows the accuracy rate andTable 13shows the precision and re-call rates. It is observed that the accuracy of all methods drop since this kind of sequences were not learned before. However, the Table 7

Performance comparisons for different multimodal feature integration.

Proposed method (%) Product-HMMs (%) FP-match (%)

Visual + motion + audio 64.3 54.5 34.2

Visual + motion 58.0 53.3 33.9 Visual + audio 54.5 53.3 40.3 Motion + audio 48.6 51.8 32.5 Visual 53.3 40.9 Motion 47.1 38.1 Audio 40.0 27.0

Fig. 10. A simple example of multiple recognition problem of FP-match method.

Table 8

Performance comparisons for different dataset selection. Proposed method (%) Product-HMMs (%) FP-match (%) MLB dataset 54.1 60.3 35.7 NPB dataset 61.7 67.2 40.3 MLB + NPB dataset 64.3 54.5 34.2 Table 9

Performance comparison of three methods for 10 event recognition.

Accuracy 52.1% 48.6% 21.6%

Table 10

Precision/Recall of the three methods for 10 event recognition.

Prec. (%) Recall (%) Prec. (%) Recall (%) Prec. (%) Recall (%)

Homerun 50 40 25 20 13.5 48.8 OutHit 73.7 59.6 73.7 59.6 37.2 52.4 OutOut 70.7 77.4 55.3 79.2 74.5 25 InOut 93.3 18.7 100 8 89 3.2 SO 55.6 91.8 73.4 95.9 0 0 Walk 100 14.3 100 19 39.1 33.8 DP 17.4 40 12.5 20 4.7 20.5 SH 13.3 44.4 15.4 44.4 4.6 29.7 InHit 5.9 25 2.4 25 2.5 3.6 HBP 28.6 100 0 0 2.5 50 Table 11 The CPBL dataset.

HR OutHit OutOut InOut SO Walk Total

CPBL 3 13 14 21 13 6 70

Table 12

Performance comparison of three methods.

(10)

decrease is not very large (about 5.9% on average). The results im-ply that the interval feature structures of different baseball video dataset are similar in some extent although they might have differ-ent shot transitions and editing habits.

3.2.6. Comparisons of computational complexity and execution time The computational complexity of HMM consists of time com-plexity and memory space comcom-plexity. Given a HMM which has N states, M symbols, average length of training sequences as T, and average length of testing sequences as L, the time complexity of HMM training is O(N2_{T) using Baum-Welch method and the time} complexity of HMM testing is O(L).

Therefore, the time complexity bound of HMM training and testing is determined by HMM training. The space complexity of HMM is O(N2_{+ NM). Let L}

v, Lm, and Labe the average lengths of training sequences from visual, motion, and audio sources, respec-tively. The training time complexity of product HMM method is O(N2

max (Lv, Lm, La)). The average sequence length of proposed co-occurrence HMM method is determined by endpoint number of multiple source features, therefore it is bounded by O(Lv+ Lm+ La). The average sequence length of the two methods are the same order, therefore the training time complexities of proposed co-occurrence HMM and product-HMMs methods are both O(N2_{max (L}

v, Lm, La)), and the testing time complexities are both O(L). The total time complexities of both methods are O(N2

max (Lv, Lm, La)). On the other hand, the proposed co-occurrence HMM method have higher space complexity than product-HMMs method since combined features generates more symbols. The space complexity of product-HMMs method is OðN maxðLv; Lm; LaÞÞ and the space complexity of the proposed co-occurrence HMM method is OðN ðLvþ 1Þ ðLmþ 1Þ ð Laþ 1ÞÞ. For the actual case in the experiments, the maximum symbol number of proposed co-occurrence HMM method is (8 + 1)(2 + 1)(2 + 1) (2 + 1)(2 + 1) = 729 which is obtained by multiplying feature-type number of visual, pan, tilt, zoom, and audio. After incrementally adding new symbols for co-occurrence features during the coding process, the total number of produced co-occurrence symbols is 159.

The FP-match method has two main steps: (1) frequent pattern mining, and (2) classification by TS containing verification. There-fore, the time depends totally on these two steps. Let TMdenote the training time which is the time to mine the frequent pattern sets of each event class. Let L denote the average length of testing temporal sequences, and W denote the sliding window size. The classification by TS containing verification consists of (L-W + 1)

times of window slides and generates (L W + 1)2W _candidate temporal sequences for veriﬁcation. Let TCdenote the containment veriﬁcation time between one temporal sequence and the frequent pattern sets. Then the testing complexity is OððL W þ 1Þ2W_T

C, and the total complexity of FP-match method will be O(2W_{) .}

Besides computational analysis, execution time comparison has also been made by running the three methods on an Intel Duo CPU T7300, 2.00 GHz with 2 GB RAM for our baseball experimental data-set. The execution times of the three methods are compared and listed inTable. 14. It is observed that the two HMM-based methods have similar training times, while the FP-match method has a rela-tively short training time. However, the two HMM-based methods have much shorter testing time, compared to FP-match method. This is due to that, once HMMs have been trained, the classiﬁcation using HMMs can be done very fast by computing probabilities. The testing time of FP-match method is much slower because of con-tainment veriﬁcation of candidate temporal sequences.

4. Conclusions and future work

In this paper, we have developed a novel system that is able to automatically detect and classify high-level events by using tem-poral context of multimodal mid-level features. A new event clas-sification approach aiming at taking advantages of full temporal relationship of multimodal features and recognizing events by HMM probabilistic classification is proposed. By representing a vi-deo using a temporal database of mid-level features, a co-occur-rence symbol transformation method is proposed, which encodes multimodal features as a sequence of symbols with full temporal relationship kept among them. Then, the resulting co-occurrence symbol sequence is fed into HMM directly for maximum likelihood event classification. The experimental results have demonstrated the efficiency, effectiveness, and robustness of the proposed meth-od. In the future, more features will be studied to explore the fea-ture selection problem. The following questions need to be answered: (1) How to find the optimal set of mid-level features; (2) How to decide whether a mid-level feature should be selected; (3) What kind of measurement could be used for feature selection. Automatic detected features would be tested to demonstrate the fault tolerance of proposed method. Moreover, more application domains will be investigated thoroughly, not only in baseball do-main but other sports dodo-main and stocks etc., to support the gen-erality of the proposed method.

References

[1]X. Lexing, H. Sundaram, M. Campbell, Event mining in multimedia streams, Proc. IEEE 96 (4) (2008) 623–647.

[2] C. Poppe, S.D. Bruyne, R.V.d. Walle, Generic architecture for event detection in broadcast sports video, in: Paper presented at the Proceedings of the 3rd International Workshop on Automated Information Extraction in Media Production, Firenze, Italy.

[3]D.W. Tjondronegoro, Y.P.P. Chen, Knowledge-discounted event detection in sports video, IEEE Trans. Syst. Man Cybernet. A: Syst. Hum. 40 (5) (2010) 1009– 1024.

Table 13

Precision/recall of the three methods CPBL dataset.

Prec. (%) Recall (%) Prec. (%) Recall (%) Prec. (%) Recall (%)

Homerun 50 33.3 0 0 11.1 50 OutHit 55.6 38.5 46.7 58.3 28.4 59.4 OutOut 58.8 71.4 35.7 71.4 53.1 33.7 InOut 100 38.1 100 9.5 92.3 22.7 SO 33.3 76.9 65 100 71.4 11.8 Walk 50 33.3 66.7 33.3 29.1 33.3 Table 14

Execution time comparison of three methods.

Proposed method (s) Product-HMMs (s) FP-match (s)

Training Time 0.197 0.188 0.016

(11)

[4] T. Zhang, C. Xu, G. Zhu, S. Liu, H. Lu, A generic framework for event detection in various video domains, in: Paper presented at the Proceedings of the International Conference on Multimedia, Firenze, Italy.

[5] M. Fleischman, D. Roy, Grounded language modeling for automatic speech recognition of sports video, in: Proceedings of ACL-08: HLT, 2008, pp. 121–129. [6]X.-Q. Zhu, X.-D. Wu, A.K. Elmagarmid, Z. Feng, L. Wu, Video data mining: semantic indexing and event detection from the association perspective, IEEE Trans. Knowl. Data Eng. 17 (5) (2005) 665–677.

[7] M. Chen, S.-C. Chen., M.-L. Shyu, Hierarchical temporal association mining for video event detection in video databases, in: Data Engineering Workshop, IEEE 23rd International Conference on, 17–20 April 2007, pp. 137–145.

[8]M. Chen, S.-C. Chen, M.-L. Shyu, K. Wickramaratna, Semantic event detection via multimodal data mining, IEEE Sig. Proc. Mag. 23 (2) (2006) 38–46. [9]J.F. Allen, Maintaining knowledge about temporal intervals, Commun. ACM 26

(11) (1983) 832–843.

[10]C.G.M. Snoek, M. Worring, Multimedia event-based video indexing using time intervals, IEEE Trans. Multimed. 7 (4) (2005) 638–647.

[11] M. Fleischman, P. Decamp, D. Roy, Mining temporal patterns of movement for video content classiﬁcation, in: Paper presented at the Proceedings of the 8th ACM International Workshop on Multimedia Information Retrieval, Santa Barbara, California, USA.

[12] M. Fleischman, D. Roy, Unsupervised content-based indexing of sports video, in: Paper Presented at the Proceedings of the International Workshop on Workshop on Multimedia Information Retrieval, Augsburg, Bavaria, Germany. [13]S.-Y. Wu, Y.-L. Chen, Mining nonambiguous temporal patterns for

interval-based events, IEEE Trans. Knowl. Data Eng. 19 (6) (2007) 742–758. [14]M.-S. Dao, N. Babaguchi, A new spatio-temporal method for event detection

and personalized retrieval of sports video, Multimed. Tools Appl. 50 (1) (2010) 227–248.

[15]L.R. Rabiner, A tutorial on hidden Markov models and selected applications in speech recognition, Proc. IEEE 77 (2) (1989) 257–286.

[16]T. Starner, J. Weaver, A. Pentland, Real-time American sign language recognition using desk and wearable computer based video, IEEE Trans. Pattern Anal. Mach. Intell. 20 (12) (1998) 1371–1375.

[17] J. Yamato, J. Ohya, K. Ishii, Recognizing human action in time-sequential images using hidden Markov model, in: Computer Vision and Pattern Recognition, 1992, Proceedings CVPR ‘92, 1992 IEEE Computer Society Conference on, 15–18 Jun 1992, pp. 379–385.

[18]P. Baldi, Y. Chauvin, T. Hunkapiller, M.A. McClure, Hidden Markov models of biological primary sequence information, Proc. Nat. Acad. Sci. 91 (3) (1994) 1059–1063.

[19] B. Li, M. I. Sezan, Event detection and summarization in sports video, in: Content-Based Access of Image and Video Libraries, 2001 (CBAIVL 2001). IEEE Workshop on, 2001, pp. 132–138.

[20]J. Assfalg, M. Bertini, C. Colombo, A. Del Bimbo, W. Nunziati, Semantic annotation of soccer videos: automatic highlights identiﬁcation, Comput. Vis. Image Underst. 92 (2–3) (2003) 285–305.

[21] P. Chang, M. Han, Y.-H. Gong, Extract highlights from baseball game video with hidden Markov models, in: Image Processing. 2002. Proceedings. 2002 International Conference on, 2002, pp. 609–612.

[22] G. Xu, Y.-F. Ma, H.-J. Zhang, S. Yang, Motion based event recognition using HMM, in: Pattern Recognition, 2002. Proceedings of the 16th International Conference on, 2002, vol. 832, pp. 831–834.

[23]N. Babaguchi, Y. Kawai, T. Kitahashi, Event based indexing of broadcasted sports video by intermodal collaboration, IEEE Trans. Multimed. 4 (1) (2002) 68–75.

[24] C.G.M. Snoek, M. Worring, A review on multimodal video indexing, in: Multimedia and Expo, 2002. ICME ‘02. Proceedings. 2002 IEEE International Conference on, 2002, vol. 22, pp. 21–24.

[25] M.-F. Weng, Y.-Y. Chuang, Multi-cue fusion for semantic video indexing, in: Paper presented at the Proceedings of the 16th ACM International Conference on Multimedia, Vancouver, British Columbia, Canada.

[26] H. Xu, T.-S. Chua, The fusion of audio-visual features and external knowledge for event detection in team sports video, in: Paper presented at the Proceedings of the 6th ACM SIGMM International Workshop on Multimedia Information Retrieval, New York, NY, USA.

[27]M. Brand, N. Oliver, A. Pentland, Coupled Hidden Markov Models for Complex Action Recognition, Proc. IEEE Computer Vision and Pattern Recognition (1996).

[28] A. V. Neﬁan, L. H. Liang, X. X. Liu, X. Pi, C. Mao, K. Murphy, A coupled HMM for audio-visual speech recognition, Proc. IEEE ICASSP’2002, Vol. 2, pp. 2013– 2016, May, 2002.

[29] J. Huang, Z. Liu, Y. Wang, Y. Chen, E.K. Wong, Integration of multimodal features for video scene classiﬁcation based on HMM, in: Multimedia Signal Processing, 1999 IEEE 3rd Workshop on, 1999, pp. 53–58.

[30] L.-Y. Duan, M. Xu, T.-S. Chua, Q. Tian, C.-S. Xu, A mid-level representation framework for semantic sports video analysis, in: Paper presented at the Proceedings of the Eleventh ACM International Conference on Multimedia, Berkeley, CA, USA.

[31]L.-Y. Duan, M. Xu, Q. Tian, C.-S. Xu, J.S. Jin, A uniﬁed framework for semantic shot classiﬁcation in sports video, IEEE Trans. Multimed. 7 (6) (2005) 1066– 1083.

[32] Y. Ding, G. Fan, Event detection in sports video based on generative-discriminative models, in: Paper presented at the Proceedings of the 1st ACM International Workshop on Events in Multimedia, Beijing, China. [33]P. Bouthemy, M. Gelgon, F. Ganansia, A uniﬁed approach to shot change

detection and camera motion characterization, IEEE Trans. Circ. Syst. Video Technol. 9 (7) (1999) 1030–1044.

[34] G. Tardini, C. Grana, R. Marchi, R. Cucchiara, Shot detection and motion analysis for automatic MPEG-7 annotation of sports videos, image analysis and processing – ICIAP 2005, in: F. Roli, S. Vitulano (Eds.), Lecture Notes in Computer Science, vol. 3617. Springer, Berlin/Heidelberg, 2005, pp. 653–660.
