An H.323 Gatekeeper Prototype: Design,
Implementation, and Performance Analysis
Cheng-Yue Chang, Ming-Syan Chen, Fellow, IEEE, and Pai-Han Huang
Abstract—In recent years, Internet telephony or voice-over IP is attracting an increasing amount of attention for the reason that it has the potential to significantly reduce the cost of long-dis-tance voice communication. To provide the interoperability between different manufacturers and vendors, ITU-T is actively drawing up the standard for the Internet telephony as ITU-T Recommendation H.323. While H.323 is continuously revised, there are, however, still many important issues needed to be further discussed. In particular, the bandwidth management, address translation, and intelligent call signaling/routing, which are the major functions of an H.323 gatekeeper, have not yet been fully addressed. In view of this, we develop in this paper an H.323 gatekeeper prototype which fully complies with the H.323 recommendation, and explicitly illustrate the usefulness of this prototype by devising two improved call-routing methods to deal with the load-balancing problem among the gatekeepers. As a matter of fact, the existing call-routing method used in the current version of the H.323 is very primitive and will cause the loads of the gatekeepers unbalanced. Using the gatekeeper prototype devised, two improved call-routing methods are proposed based on Multiple-Registration with Multicasted Location Request (MRML) and Multiple-Registration with Hierarchical Database (MRHD). To evaluate the performance improvement by these two load-bal-ancing methods, we design an event-driven simulator and conduct some experiments on it. We focus on two performance metrics, call-blocking rate and channel utilization, which are both sensitive to the load distribution. The experimental results show that the call-blocking ratio and channel utilization are optimized with the proposed load-balancing methods. It is also observed from our empirical results that the call-blocking ratio is more sensitive to the traffic load whereas the channel utilization is more sensitive to the duration of a call.
Index Terms—Communication system signaling, ITU, Protocol, teleconferencing, traffic control (communication).
I. INTRODUCTION
I
N RECENT years, Internet telephony or voice-over IP is at-tracting an increasing amount of attention for the reason that it has the potential to significantly reduce the cost of long-dis-tance voice communication [10], [24]. Architectures for real-time audiovisual communication are proposed in [2], [8], [11], [17], [19], [25], [30], [31], and [34] to provide telephony ser-vices over packet-based networks. Among others, ITU-T Rec-ommendation H.323 [17], [22], [32] is the primary standard for the Internet telephony. The H.323, first approved in 1996 Manuscript received April 11, 2001; revised August 26, 2002. The associate editor coordinating the review of this manuscript and approving it for publica-tion was Dr. Chung-Sheng Li.The authors are with the Department of Electrical Engineering, National Taiwan University, Taipei, Taiwan, R.O.C. (e-mail: cychang@arbor.ee.ntu.edu.tw; mschen@cc.ee.ntu.edu.tw; bh-huang@arbor.ee.ntu.edu.tw).
Digital Object Identifier 10.1109/TMM.2004.834857
by ITU Study Group 15, specifies the technical requirements for audio, video, and data communication across packet-based networks. In essence, the H.323 is an umbrella recommenda-tion which includes the specificarecommenda-tions of the system compo-nents [i.e., terminals, gateways, gatekeepers and multipoint con-trol units (MCUs)], audio/video codecs [4], [12], [15], [16], call-signaling/control protocols [14], [18], and network inter-face [13]. By complying with the H.323, Internet telephony products and applications from multiple vendors can interop-erate with one another, allowing users of communicating with each other without concern for compatibility.
While the H.323 is continuously revised, there are, however, still many important issues needed to be further discussed [20], [23]. In particular, the bandwidth management, address transla-tion, and intelligent call signaling/routing, which are the major functions of an H.323 gatekeeper, have not yet been fully ad-dressed. In view of this, it is necessary to build a prototype of an H.323 gatekeeper for further experiments and develop-ments. In this study, we explore several methodologies for the implementation of an H.323 gatekeeper prototype, and based on these methodologies, devise the corresponding architecture and implement an H.323 gatekeeper prototype. As will be ex-plained in details later, the gatekeeper prototype built consists of three software modules, i.e., the registration, admission, and status (RAS) module, the call-routing module and the registra-tion database. Using an H.323 protocol stack [1], we have suc-cessfully implemented the H.323 gatekeeper prototype and vali-dated the system built by having fluent two-way communication according to the call-routing scenarios specified in the H.323.
It is worth mentioning that the H.323 gatekeeper prototype we devised is very versatile and can be easily to incorporate various features for further experiments. Specifically, we ex-tend our gatekeeper prototype to deal with the load-balancing problem among the gatekeepers by incorporating two improved call-routing methods into it. As will be explained later, the ex-isting call-routing method used in the current version of the H.323 is very primitive and will cause the loads of the gate-keepers unbalanced (See Section III-A). Using the gatekeeper prototype devised, two improved call-routing methods are pro-posed based on Multiple-Registration with Multicasted
Loca-tion Request (MRML) and Multiple-RegistraLoca-tion with Hierar-chical Database (MRHD). We will describe the design
prin-ciples and discuss the effects of these two methods upon the system performance later. In addition, to evaluate the perfor-mance improvement by our load-balancing methods, we design an event-driven simulator and conduct some experiments on it. The system model of the simulation is designed to reflect the load-balancing problem among the gatekeepers. We focus on 1520-9210/04$20.00 © 2004 IEEE
two performance metrics, call-blocking ratio and channel
uti-lization, which are both sensitive to the distribution of the load.
The experimental results show that the call-blocking ratio and
channel utilization can be significantly improved by the
pro-posed load-balancing methods by 34.2% and 13.1%, respec-tively. It is also observed from our empirical results that the
call-blocking ratio is more sensitive to the traffic load whereas
the channel utilization is more sensitive to the duration of a call. The contributions of this paper are twofold. We not only de-vise an H.323 gatekeeper prototype for further developments and experiments, but also, using the gatekeeper prototype de-vised, propose two improved call-routing methods to tackle the load-balancing problem among gatekeepers. To the best of our knowledge, despite of their importance, the design, implementa-tion and performance analysis of an H.323 gatekeeper were little explored in the literature thus far. The fast growth of IP-based applications justifies the timeliness and importance of this study. Note that another competing architecture proposed by IETF also plays a decisive role and has becomes increasingly important in recent years [30]. IETF’s architecture addresses more on the signaling protocol, SIP [9]. Accompanying this signaling pro-tocol, several auxiliary protocols (e.g., RTP [28], RTSP [27], and TRIP [26]) are adopted as the building blocks to provide the infrastructure for the Internet telephony. We refer interested readers to [7], and [29] for the comparison of the H.323 and IETF’s architecture and to [6], [21], [33] for the extensions to SIP protocol.
The rest of this paper is organized as follows. The methodolo-gies for building an H.323 gatekeeper prototype is introduced in Section II. In Section III, we explain the design principles of the two improved call-routing methods to deal with the load-bal-ancing problem among the gatekeepers. The performance of the extended gatekeeper prototype is evaluated and analyzed in Sec-tion IV. We conclude this paper with SecSec-tion V.
II. BUILDING ANH.323 GATEKEEPERPROTOTYPE In this section, we devise methodologies for building an H.323 gatekeeper prototype. The prototype devised consists of three software modules. The RAS module is designed in Section II-A. The call-routing module is explained in Sec-tion II-B. The registraSec-tion database is described in SecSec-tion II-C. Section II-D depicts the corresponding architecture for the H.323 gatekeeper prototype.
A. RAS Module Design
RAS messages are used in the H.323 to exchange informa-tion between H.323 gatekeepers and the other endpoints (i.e., terminals, gateways, and MCUs). The details of the RAS mes-sages are defined in the ITU-T Recommendation H.225.0 [13]. An H.323 gatekeeper utilizes RAS messages to provide manda-tory functions (i.e., admission control, address translation, band-width control and zone management) as specified in the H.323. To facilitate our later discussion in Section III, we focus on the designs of the endpoint registration and the call-admission pro-cesses in this subsection.
1) Endpoint Registration: The H.323 gatekeeper only
pro-vides services for the endpoints who have registered with it. In other words, an endpoint has to register with a gatekeeper be-fore it is able to take advantages of the services provided. To determine which gatekeeper to register with, an H.323 endpoint shall carry out the gatekeeper discovery process first. As speci-fied in the H.323, gatekeeper discovery may be done manually or automatically. Since our gatekeeper prototype is devised for empirical studies, all the test endpoints are manually configured in such a way that their mapping with gatekeepers is known a
priori.
After the gatekeeper discovery process, the endpoint knows which gatekeeper to be associated with, and then sends a registration request (RRQ) message to that gatekeeper. Upon receiving the RRQ messages from the endpoints, our gatekeeper prototype authorizes the registration based on the following rules:
1) the endpoint is our own test program;
2) the endpoint resides in the same subnet as our gatekeeper prototype;
3) the number of the registered endpoints is smaller than the threshold of the gatekeeper’s capacity.
If the above rules are satisfied, our gatekeeper prototype con-firms the registration by sending an registration confirm (RCF) message back to the endpoint, and keeps the registration infor-mation in the local database (which will be explained later in Section II-C). Note that the authorization rules of the registra-tion can be customized by the gatekeeper administrator to facil-itate the management of the registered endpoints. For example, we may limit the vendors or manufacturers of the endpoints to the trusted ones.
2) Call Admission: As specified in the H.323, the endpoints
shall get the admission from their registered gatekeepers be-fore they initiate or answer a call. In our design of the gate-keeper prototype, the endpoints will have the qualifications for call admission if they have registered at our gatekeeper and the load of the gatekeeper is smaller than the administrator-defined threshold. However, the request for the call admission would still fail if the address translation process did not succeed. Note that the H.323 allows three kinds of addressing methods (i.e., the E.164 [3] number, the H.323 ID and the transport address) for the calling party to indicate the called party. To establish calls with E.164 numbers or H.323 IDs, the H.323 gatekeeper has to first translate these alias addresses to the transport addresses. If the called party has registered at the same gatekeeper as the calling party, the gatekeeper can finish the address translation by looking up the local registration database. If not, the gatekeeper would have to multicast LRQ messages to all other gatekeepers and wait for the result of the address resolution from them. If no gatekeeper replies, the address translation will fail, and the request for the call admission will be rejected. In this case, our gatekeeper will send an admission reject (ARJ) message back to the calling party. The algorithm for our gatekeeper prototype to authorize an admission request is listed in the Appendix for interested readers.
The admission control is very critical for the gatekeeper to manage the resource (including the network bandwidth, CPU
time, memory, etc.) owned by it. As noted in the previous sub-section, the qualifications for call admission could be also cus-tomized by the gatekeeper administrator to facilitate the man-agement of the resource owned by the gatekeeper. For example, we can extend our gatekeeper built to work with other mech-anisms (such as bandwidth management or call-management modules).
B. Call-Routing Module Design
An H.323 call can be established directly between the end-points or routed via the H.323 gatekeepers. To deal with all kinds of scenarios effectively, we unify them into one call state
ma-chine, and design a specific data structure to keep track of the
state and the routing information for each call. The call state
ma-chine is developed based on the methodology described in [5].
The data structure designed contains the following information: 1) the state of the call (i.e., idle, call offering, call connected, or call disconnected); 2) the duration of the call; 3) the transport address of the call routed from; 4) the transport address of the call routed to; 5) the call signaling address of the calling party; and 6) the call-signaling address of the called party. Note that the transport address of the call routed from may be different from the call-signaling address of the calling party. The transport ad-dress of the call routed from is the transport adad-dress of the last intermediate node along the routing path. It can be either the transport address of the calling party or the transport address of some gatekeeper along the routing path. If the transport address of the call routed from is the same as the call-signaling address of the calling party, it means that no other gatekeeper is between the calling party and this gatekeeper. For the same reason, the transport address of the call routed to may be different from the call-signaling address of the called party.
The primitive method in the current version of the H.323 is by sending the LRQ message to a specific Gatekeeper’s RAS
Channel TSAP Identifier, or by multicasting the LRQ message
to the gatekeeper’s well-known discovery multicast address. The gatekeeper which the requested endpoint is registered with shall respond the LCF message containing the contact informa-tion of the endpoint or the endpoint’s gatekeeper. It is noted that such a routing method suffers from several drawbacks. First, it may cause the loads of the gatekeepers unbalanced. In addition, multicasting LRQ messages will cause considerable bandwidth consumption. To eliminate these problems, we design two improved call-routing methods and incorporate them into the gatekeeper prototype built.
C. Registration Database
As mentioned in Section II-A, the H.323 gatekeeper shall keep the registration information to provide address translation, call admission, and other mandatory functions defined in the H.323. To this end, the schema of the registration database is designed as shown in Fig. 1.
The attributes of call-signaling address and call-signaling
port are used to keep the transport address of the endpoint. Since
every endpoint is associated with only one transport address, we set the combination of these two attributes as the primary key to identify an endpoint. The attribute of the RAS Port is where
Fig. 1. Schema of the relational database.
Fig. 2. Architecture of the H.323 gatekeeper prototype.
the endpoint keeps listening for incoming RAS messages.
End-point Type indicates the type of the endEnd-points (which may be a
terminal, gateway, or MCU). The attributes of E.164 and H.323
ID are the E.164 number and the H.323 ID of the endpoint,
re-spectively. Time to live (TTL) records the remaining time of the valid registration. With this information, our prototype is able to provide the mandatory functions of an H.323 gatekeeper, in-cluding address translation, zone management, and admission control.
D. Architecture of the H.323 Gatekeeper Prototype
We then construct the corresponding architecture for our H.323 gatekeeper prototype. As shown in Fig. 2, the architec-ture is built on top of the H.323 protocol stack and composed of five components, i.e.,: 1) the call-routing module; 2) the RAS module; 3) the database of the registration information; 4) the graphical administrator interface; and 5) the configuration file. The arrows in Fig. 2 stand for the data flows among these components. It is noted that all incoming messages (i.e., RAS messages, Q.931 call-signaling messages and H.245 call-con-trol messages) are first processed by the call-routing module. For the call-related messages, the call-routing module triggers the call state machine (described in Section II-B) and updates the call state and the call-routing information stored in the data structure of the corresponding call. For the other messages, the call-routing module passes them directly to the RAS module for further processing. The RAS module is composed of four submodules which implement the four mandatory functions of an H.323 gatekeeper, i.e., zone management, admission con-trol, bandwidth concon-trol, and address translation. The graphical administrator interface is used by the system administrator to monitor the status of each ongoing call, manipulate the database and change the system configuration. The configuration file
Fig. 3. Illustrative scenario of the load-balancing problem.
stores the system parameters such as system capacity, existing subnet, and so on.
Our H.323 gatekeeper prototype and the H.323 terminal pro-gram (i.e., which is used to test our gatekeeper) are developed on a PC with Pentium III 450 CPU and 128-MB RAM. The oper-ating system we adopt is Windows NT version 4.0 with service pack 6a. We utilize an H.323 protocol stack to implement our gatekeeper. The network interface to the Internet is 100-base-T Ethernet card. We use Microsoft Visual C++ 6.0 as the devel-oping tool.
III. IMPROVEDH.323 CALLROUTINGMETHODS Based on the gatekeeper prototype built in Section II, we de-vise two improved H.323 call-routing methods in this section to deal with the load-balancing problem among the gatekeepers. These two methods are MRML and MRHD. We introduce the load-balancing problem in Section III-A. The proposed MRML and MRHD methods are explained in Sections III-B and III-C, respectively. The effects of these two methods upon the system performance is discussed in Section III-D.
A. Load-Balancing Problem
As pointed out in Section II-B, the primitive call-routing method of the H.323 will cause the loads of the gatekeepers unbalanced. One reason is that the H.323 only allows the end-point of registering with one gatekeeper but does not provide any mechanism for load balancing. Hence, if the endpoints are not equally distributed among the gatekeepers, the loads of the gatekeepers will be unbalanced. Consider the scenario shown in Fig. 3. Assume that two gatekeepers, GK11 and GK12, are available for the endpoints on MAN1, and two gatekeepers, GK21 and GK22, are available for the endpoints on MAN2 after the gatekeeper discovery process. Suppose that all the endpoints on MAN1 choose GK11 to register with. In this case, every call from/to the endpoints on MAN1 will be routed via GK11. As a result, GK11 will be heavily loaded whereas GK12 will be idle all the time. The situation is similar if all the endpoints on MAN2 choose GK22 to register with.
Second, the load-balancing problem will occur even though the endpoints are equally distributed among the gatekeepers. For example, assume that both GK11 and GK12 have two registered endpoints on MAN1. However, if the registered endpoints of GK11 make more calls than the registered endpoints of GK12, the load of GK11 will be heavier than that of GK12. Thus, even
though the endpoints are equally distributed among the gate-keepers, the load-balancing problem will still occur. Further-more, the gatekeepers are likely to be different from one to an-other in computing power, disk storage and bandwidth connec-tivity. If the endpoints are not distributed in accordance with the gatekeepers’ capabilities, the load-balancing problem also exists. In view of this, we shall devise improved call-routing methods to deal with the load-balancing problem among the gatekeepers.
B. MRML
The first improved call-routing method devised is based on
MRML. Conventionally, each terminal always chooses “one”
gatekeeper to register with after the gatekeeper discovery process in the H.323. In our method, we design our terminal program to allow of registering with more than one gatekeeper. Explicitly, after the endpoint multicasts gatekeeper request (GRQ) messages to the gatekeeper’s well-known discovery multicast address, the endpoint will probably receive more than one gatekeeper confirm (GCF) message replied from the available gatekeeper. Instead of choosing one gatekeeper to register with, we allow our terminal program of registering with all the gatekeepers who have responded with GCF messages. The motivation of such multiple registration is that we would like the endpoint to have the opportunities of selecting the gatekeeper with the lightest load for routing its call.
Next, recall that the endpoints shall get the admission from their registered gatekeepers before they initiate or answer a call. In our method, having registered with multiple gatekeepers, an endpoint will send the ARQ messages to all the registered gatekeepers before initiating or answering a call. In the case that the endpoint wants to initiate a call, the registered gatekeepers of the caller will authorize the admission request as described in Section II-A.2 with the following modifications. First, to learn about the load conditions of the called gatekeepers (i.e., the registered gatekeepers of the callee), the calling gatekeepers (i.e., the registered gatekeepers of the caller) will multicast LRQ messages to all other gatekeepers no matter which type is the indicated callee’s address in the ARQ messages. After the called gatekeepers receives the LRQ messages, they will respond LCF messages with their load conditions piggybacked. As such, the calling gatekeepers will know the load condition of each called gatekeepers and thus be able to choose a called gatekeeper with the lightest load to route their calls later.
Fig. 4. Scenarios of admission request and LRQ processes in the MRML method.
Fig. 5. Scenarios of LCF and admission confirm processes in the MRML method.
Note, however, that such an approach would consume much bandwidth if every calling gatekeeper multicasts the LRQ mes-sages once to all other gatekeepers and every called gatekeeper sends back the LCF messages to all the calling gatekeepers. To remedy this drawback, our terminal program is designed to possess the capability of specifying one calling gatekeeper as the master and leaving the other calling gatekeepers as the slaves in the ARQ messages. If the calling gatekeeper is speci-fied as a master gatekeeper, it shall multicast the LRQ messages to all other gatekeepers to inquire the callee’s transport address and the load conditions of the called gatekeepers. If the calling gatekeeper is specified as a slave gatekeeper, it shall send the LRQ message to the master gatekeeper and waits for the reply.
Fig. 4 illustrates the scenarios of the admission request and location request (LRQ) processes in the MRML method. As-sume that GK11, GK12, and GK13 are the caller’s gatekeepers, whereas GK21, GK22 and GK23 are the callee’s gatekeepers. To initiate a call, the caller sends the ARQ messages to all the
registered gatekeepers (i.e., GK11, GK12, and GK13) and spec-ifies GK12 as the master gatekeeper and GK11 and GK13 as the slave gatekeepers for example. After receiving the ARQ sage from the caller, GK12 will then multicast the LRQ mes-sages to all other gatekeepers to inquire callee’s transport ad-dress and the load conditions of the called gatekeepers. Since GK11 and GK13 are the slaves, they will simply send the LRQ messages to GK12 and wait for the replies. Note that when GK12 receives the LRQ messages from GK11 and GK13, it will first examine the call IDs associated with those messages to determine whether the LRQ messages are sent from the slave gatekeepers or they are “real” LRQs from other gatekeepers. If the LRQ messages are sent from the slave gatekeepers, GK12 will not respond to them until it obtains the replies to the LRQ messages multicasted to all other gatekeepers. Otherwise, GK12 will respond to them accordingly.
Fig. 5 shows the scenarios of the LCF and admission con-firm processes in the MRML method. Following the above
ex-Fig. 6. Routing path of the Q.931 call-setup message.
Fig. 7. Proposed architecture of the MRHD method.
ample, since GK21, GK22, and GK23 are the callee’s gate-keepers, they will return LCF messages indicating the trans-port address of the callee and piggyback the load conditions of themselves to GK12. Thereafter, GK12 will know the callee’s transport address and the lightest gatekeeper in the called party side. Assume that the lightest gatekeeper in the called party side is GK23. GK12 will then return LCF messages containing the transport address of the callee and the information that GK23 is the lightest gatekeeper in the called party side to GK11 and GK13. Finally, GK11, GK12, and GK13 will return the ACF messages with their load conditions piggybacked to the caller, so that the caller will be able to determine which gatekeeper in the calling party side is of the lightest load and then set up the call via the lightest calling gatekeeper. Suppose that GK11 is the lightest gatekeeper in the calling party side. The Q.931 call-setup message will be sent from the caller, routed through GK11 and GK23, and then forwarded to the callee, as shown in Fig. 6.
It is noted that, in this MRML method, the dissemination of the load conditions is totally based on the piggybacking tech-nique. These piggybacked load conditions are stuffed in the
non-standard parameter reserved by the H.323 protocol for testing purpose. Hence, the improved MRML routing method not only achieves the goal of load balancing, but also remains compatible with the conventional routing method of the H.323.
C. MRHD
The second call-routing method devised for load balancing is based on MRHD. The concept of multiple registration in MRHD follows the one in MRML. However, we notice that multicasting LRQ messages for address translation are costly in MRML, es-pecially when many gatekeepers are loosely distributed on the Internet. In addition, multicast channel is an unreliable channel which does not guarantee that the LRQ messages be sent to all gatekeepers. In view of this, we employ the concept of a
hier-archical database and propose an extended architecture for the
purposes of address translation and load balancing as well. Fig. 7 shows the extended architecture we propose. A two-level hierarchical database is designed for the address transla-tion and load balancing. The first level of the hierarchical data-base is the local registration datadata-base in each gatekeeper, and the second level of the hierarchical database is the regional LRQ
Fig. 8. Scenarios of the admission request and LRQ in the MRHD method.
Fig. 9. Scenarios of the LCF and admission confirm in the MRHD method.
server which covers all registration information of the
gate-keepers residing in that region. When one endpoint attempts to register with the gatekeeper, the gatekeeper will keep a version of the registration information in its local database and forward a version to the LRQ server for record. Similarly, when the end-point attempts to un-register with the gatekeeper, the gatekeeper will not only delete the registration information in its local data-base but also send a request to the LRQ server for deleting the corresponding record. Furthermore, to provide the mechanism of load balancing, the LRQ server also keeps track of the load condition of each gatekeeper. Whenever a message is sent to the
LRQ server, the load condition of the source gatekeeper will be
updated with the piggybacked information.
Based on the proposed architecture, the MRHD method works as the scenarios shown in Fig. 8 and Fig. 9. When initiating a call, the caller will send the ARQ messages to all the regis-tered gatekeepers (i.e., GK11, GK12, and GK13). To acquire the callee’s transport address and the load conditions of the called
gatekeepers, the calling gatekeepers GK11, GK12, and GK13 will send the LRQ messages to the LRQ Server 1, no matter which type is the indicated callee’s address in the ARQ mes-sages. Since the called gatekeepers are not within the resident region of the LRQ Server 1, the LRQ Server 1 will send a dis-tributed database query message to retrieve the callee’s transport address and the load conditions of the called gatekeepers. After the LRQ Server 1 receives the response from the LRQ Server 2, it will return the LCF messages with the load conditions of the called gatekeepers piggybacked to GK11, GK12, and GK13. Therefore, the calling gatekeepers will know which gatekeeper in the called party side is of the lightest load and will route the call to it later. Finally, GK11, GK12, and GK13 will return the ACF messages with their load conditions piggybacked to the caller, so that the caller will be able to determine which gate-keeper in the calling party side is of the lightest load and then set up the call via the lightest calling gatekeeper. Assume that GK11 and GK23 are the lightest gatekeepers in the calling and

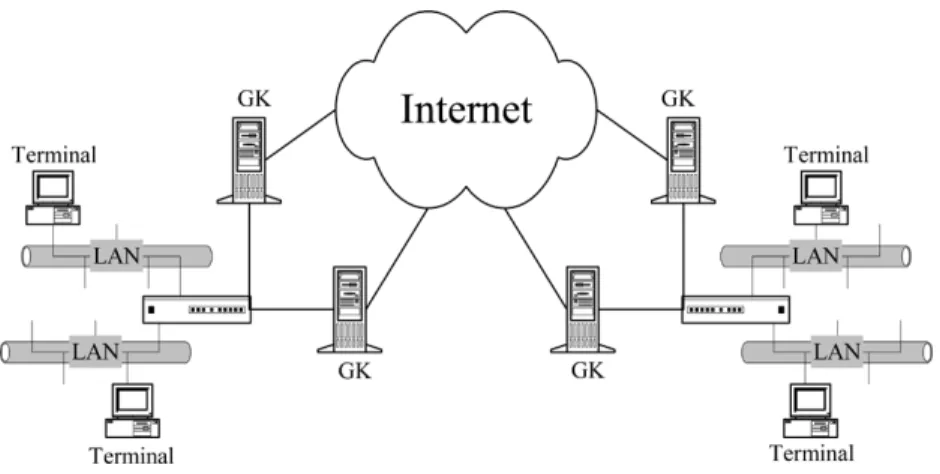

Fig. 10. System model of the simulation.
called party sides, respectively. As a result, the Q.931 call-setup message will be sent from the caller, routed through GK11 and GK23, and then forwarded to the callee, as shown in Fig. 9.
D. Discussion
With the help of the two improved call-routing methods (i.e.,
MRML and MRHD), we can obtain better performance than the
circumstance without using them. First, the technique of
mul-tiple registration allows an endpoint of registering with more
than one gatekeeper. The potential benefit of this feature is that a terminal will be served by the gatekeeper with the lightest load and thus gain better quality of service. The extra cost for this technique is only on slightly increased storage capacity for more registration entries. Such cost is deemed negligible in view of the huge capacity of current hard drives.
Second, we piggyback the load condition of each gatekeeper in the ACF and LCF messages. This technique allows the caller of choosing a calling gatekeeper with the lightest load to set up a call and allows the calling gatekeeper of choosing a called gate-keeper with the lightest load to route the call. Clearly, this fea-ture is able to achieve the goal of load balancing among the gate-keepers and in turn accept more users to initiate video-confer-ences (as will be shown in Section IV). Note that the extra data piggybacked in the ACF or LCF message takes only 4 bytes, re-sulting in very small overhead.
In the MRHD method, we propose a two-level hierarchical database to reduce the network traffic incurred by multicas-ting LRQ messages. This method not only solves the lobal-ancing problem among the gatekeepers but also improve the ad-dress translation efficiency, especially when all gatekeepers are loosely distributed on the Internet. With the H.323 gatekeeper prototype built, we can devise customized functions to achieve the goal of a high quality of service and low transmission cost.
IV. PERFORMANCEANALYSIS
We experimentally compare the performance of an H.323 gatekeeper under the circumstances with and without the load-balancing methods. The system model is introduced in Sec-tion IV-A. The experimental results are discussed and analyzed in Section IV-B.
A. System Model
In order to evaluate the performance of the improved call-routing methods described in Section III, we develop a system model as depicted in Fig. 10. This model is designed to reflect the load-balancing problem among the gatekeepers. Without loss of generality, we assume that the number of available gate-keepers in the calling and called party side are both . That is, there are total gatekeepers in our model. Without load-bal-ancing methods, the calling party randomly selects a certain gatekeeper in the calling party side to set up the Internet tele-phony call, and the selected gatekeeper then also randomly se-lects a certain gatekeeper in the called party side to route this call. On the other hand, with the help of our load-balancing methods, the gatekeepers with the lightest loads will be always selected in the calling and called party sides to initiate and route the call.
In addition, we assume that each gatekeeper can admit at most full-duplex channels, i.e., allows at most Internet telephony calls to be established simultaneously. The interarrival time of two consecutive call-setup attempts follows an exponential dis-tribution with the mean value of . The mean duration of each call is assumed to be . Table I provides a summary of the pa-rameters and the default values used in the simulation.
B. Experimental Results
Based on the system model designed, we implement a simu-lator using Microsoft Visual C++ package on an IBM-compat-ible PC with Pentium III 450 CPU and 128-MB RAM. We focus on two performance metrics, call-blocking ratio and channel
utilization, which are both sensitive to the distribution of the
load. The main objective of our simulation is to show the im-pact of our load-balancing methods on the call-blocking ratio with the aim to minimize it, and also the impact on the channel
utilization with the aim to maximize it. Each value is the result
of 10 000 inputs of the call-setup attempts.
In the first experiment, we compare the call-blocking ratios under the circumstances with and without the load-balancing methods. First, we fix the mean duration of each call to 100 s, and examine the call-blocking ratios when the value of the mean interarrival time of two consecutive call-setup attempts
TABLE I
PARAMETERS OF THESYSTEMMODEL
Fig. 11. Mean call-blocking rates under various mean interarrival time of call-setup attempts.
increases. The call-blocking ratio in the experiment is calculated as
call blocking ratio number of call setup rejects number of call setup attempts Fig. 11 shows the call-blocking ratio as the value of the mean interarrival time of two consecutive call-setup attempts varies. We observe that the call-blocking ratio under the circumstance with load-balancing methods is in general smaller for different values of the mean interarrival time of two consecutive setup attempts. Specifically, the mean improvement of the
call-blocking ratio is 34.2%. The reason is that without
load-bal-ancing methods, the probability of which the overall load will be rivetted on some gatekeepers raises as the overall traffic in-creases. It will, in turn, increase the call-blocking ratio. How-ever, with our load-balancing methods, the overall load will be equally distributed to each gatekeeper while the overall traffic increases. Thus, the call-blocking ratio can be decreased. Note that as the traffic load increases to some level, the call-blocking
ratios are high in both cases.
Next, we fix the mean interarrival time of two consecutive call-setup attempts to 5 s, and increase the mean duration of each call to examine the variation of the call-blocking ratio. Fig. 12 shows the call-blocking ratio against the mean duration of each call. We note that the call-blocking ratio is minimized with proposed load-balancing methods when the mean duration of each call increases. Specifically, the mean improvement of the call-blocking ratio is 25.5%. This is also due to the fact that the overall load is fairly distributed among all gatekeepers. Note that the increasing slopes of the unbalanced and balanced load are similar to each other. It is because the call-blocking ratio is more sensitive to the traffic load (as shown in Fig. 11) rather than to the mean duration of each call (as shown in Fig. 12).
Fig. 12. Mean call-blocking rates under various mean duration of each call.
Fig. 13. Channel utilization under various mean interarrival time.
In the second experiment, we evaluate the effect on the
channel utilization under the circumstances with
load-bal-ancing methods. Similar to the first experiment, we first fix the mean duration of each call to 100 s, and examine the channel
utilization when the value of the mean interarrival time of
two consecutive call-setup attempts increases. The channel
utilization in the experiment is calculated as
channel utilization mean number of channels occupied total number of available channels Fig. 13 shows the channel utilization against the mean interar-rival time of two consecutive call-setup attempts. It can be seen that channel utilization performs better with our load-balancing methods especially when the traffic load is high (i.e., the mean interarrival time of two consecutive call-setup attempts is short). Specifically, the mean improvement of the channel utilization is 13.1%. The reason is that the call-blocking ratio is minimized by our load-balancing methods, so the channel utilization is, in turn, increased.
Then, we fix the mean interarrival time of two consecutive call-setup attempts to 5 s, and increase the mean duration of each call to examine the variation of the channel utilization. Fig. 14 shows the channel utilization against the mean duration of each call. The result also reveals that the channel utilization performs better under the effect of our load-balancing methods on mini-mizing the call-blocking ratio. Specifically, the mean improve-ment of the channel utilization is 11.7%. It is noted that the
channel utilization raises more sharply under the circumstance
Fig. 14. Channel utilization under various mean duration of each call.
call increases. The reason is that the channel utilization is more sensitive to the mean duration of each call than the traffic load.
V. CONCLUSIONS
In this paper, we designed and implemented an H.323 gatekeeper prototype for video conferencing on packet-based networks. The gatekeeper prototype is designed to follow the ITU-T H.323 Recommendation, and is hence interoperable with other H.323 compatible endpoints on the Internet. To illus-trate the usefulness of this prototype, we devised two improved call-routing methods to deal with the load-balancing problem among the gatekeepers. Using the gatekeeper prototype built, one method for load balancing is based on MRML and the other is based on MRHD. To evaluate the performance improvement by these two methods, we designed an event-driven simulator and conducted some experiments on it. We focused on two performance metrics, call-blocking ratio and channel
utiliza-tion, which are both sensitive to the distribution of the load.
The experimental results showed that the call-blocking ratio and channel utilization can be significantly improved by the proposed load-balancing methods since the overall load will be equally distributed to every participating gatekeeper. It is also observed from our empirical results that the call-blocking
ratio is more sensitive to the traffic load, whereas the channel utilization is more sensitive to the duration of a call.
APPENDIX
ALGORITHM FORADMISSIONCONTROL
Algorithm Admission Control()
if (the caller has registered at the GK){ if (the type of the callee’s address != Transport Address){
if (the callee has registered at the GK){ Search the local registration database for address translation;
send ACF to the callee; return true;
} else {
Multicast LRQ to other GKs; Wait for LCF (timeout = 2 second); if (LCF is received){
send ACF to the callee; return true;
} else {
send ARJ to the callee; return false;
} } } else {
Send ACF to the caller; return true;
} } else
Send ARJ to the caller; return false;
}
REFERENCES
[1] RADVISION, Ltd. [Online] Available http://www.radvision.com [2] N. Anerousis, R. Gopalakrishnan, C. R. Kalmanek, A. E. Kaplan, W. T.
Marshall, P. P. Mishra, P. Z. Onufryk, K. K. Ramakrishanan, and C. J. Sreenan, “TOPS: an architecture for telephony over packet networks,”
IEEE J. Select. Areas Commun., vol. 17, pp. 91–108, Jan. 1999.
[3] Recommendation E.164: Telephone Network and ISDN Operation,
Numbering, Routing and Mobile Service, CCITT/ITU-T.
[4] Recommendation G.711: Pulse Code Modulation of Voice Frequencies, CCITT/ITU-T.
[5] C.-Y. Chang and M.-S. Chen, “On building an internet gateway for in-ternet telephony,” in Proc. IEEE Int. Conf. Multimedia and Expo, New York, Aug. 2000.
[6] I. Dalgic, M. Borella, R. Dean, J. Grabiec, J. Mahler, G. Schuster, and I. Sidhu, “True number portability and advanced call screening in a SIP-based IP telephony system,” IEEE Commun. Mag., vol. 37, pp. 96–101, July 1999.
[7] T. Eyers and H. Schulzrinne, “Predicting internet telephony call setup delay,” in Proc. 1st IP Telephony Workshop (IPTel 2000), Berlin, Ger-many, 2000.
[8] P. Goyal, A. Greenberg, C. R. Kalmanek, W. T. Marshall, P. Mishra, D. Nortz, and K. K. Ramakrishnan, “Integration of call signaling and re-source management for IP telephony,” IEEE Network, vol. 13, pp. 24–32, May/June 1999.
[9] M. Handley, H. Schulzrinne, E. Schooler, and J. Rosenberg, RFC 2543: SIP: Session Initiation Protocol.
[10] M. Hassan, A. Nayandoro, and M. Atiquzzaman, “Internet telephony: Services, technical challenges, and products,” IEEE Commun. Mag., vol. 38, pp. 96–103, Apr. 2000.
[11] C. Huitema, J. Cameron, P. Mouchtaris, and D. Smyk, “An architecture for residential internet telephony service,” IEEE Network, vol. 13, pp. 50–56, May–June 1999.
[12] Recommendation G.723: Dual Rate Speech Coder for Multimedia
Com-munications Transmitting at 5.3 and 6.3 Kbps Using Low-delay Code Excited Linear Prediction, ITU-T.
[13] Recommendation H.225: Media Stream Packetization and
Synchroniza-tion on Non-Guaranteed Quality of Service LANs, ITU-T.
[14] Recommendation H.245: Control Protocol for Multimedia
Confer-encing, ITU-T.
[15] Recommendation H.261: Video Codec for Audiovisual Services at p2
64 Kbps, ITU-T.
[16] Recommendation H.263: Video Coding for Low Bit Rate
Communica-tion, ITU-T.
[17] Recommendation H.323: Visual Telephone Systems and Equipment for
Local Area Networks Which Provide a Non-Guaranteed Quality of Ser-vices, ITU-T.
[18] Recommendation Q.931: ISDN User-Network Interface Layer 3
Speci-fication for Basic Call Control, ITU-T.
[19] C. R. Kalmanek, W. T. Marshall, P. P. Mishra, D. M. Nartz, and K. K. Ramakrishnan, “DOSA: an architecture for providing a robust IP tele-phony service,” in Proc. 19th Annu. Joint Conf. IEEE Computer and
Communications Societies (INFOCOM), Tel-Aviv, Israel, 2000.
[20] W.-J. Liao, “Mobile internet telephony: Mobile extensions to H.323,” in Proc. 18th Annu. Joint Conf. IEEE Computer and Communications
Societies (INFOCOM), New York, Mar. 1999.
[21] M. Moh, G. Berquin, and Y. Chen, “Mobile IP telephony: Mobility sup-port of SIP,” in Proc. IEEE ICCN, San Juan, PR, 1999.
[22] S. Okubo, S. Dunstan, G. Morrison, M. Nilsson, H. Radha, D. L. Skran, and G. Thom, “ITU standardization of audiovisual communication sys-tems in ATM and LAN environment,” IEEE J. Select. Areas Commun., vol. 15, pp. 965–982, Aug. 1997.
[23] B. Pagurek, J. Tang, T. White, and R. Glitho, “Management of advanced services in H.323 internet protocol telephony,” in Proc. 19th Annu. Joint
Conf. IEEE Computer and Communications Societies (INFOCOM),
Tel-Aviv, Israel, 2000.
[24] C. A. Polyzois, K. H. Purdy, P. F. Yang, D. Shrader, H. Sinnreich, F. Mard, and H. Schulzrinne, “From POTS to PANS—a commentary on the evolution to internet telephony,” IEEE Network, vol. 3, May/June 1999.
[25] D. Rizzetto and C. Catania, “A voice over IP service architecture for integrated communications,” IEEE Internet Comput., vol. 3, pp. 53–62, May/June 1999.
[26] J. Rosenberg and H. Schulrinne, RFC 2871: A Framework for Telephony Routing Over IP (TRIP).
[27] H. Schulrinne, A. Rao, and R. Lanphier, RFC 2326: Real Time Streaming Protocol (RTSP).
[28] H. Schulzrinne, S. Casner, R. Frederick, and V. Jacobson, RFC 1889: RTP—A Transport Protocol for Real-Time Applications.
[29] H. Schulzrinne and J. Rosenberg, “A comparison of SIP and H.323 for internet telephony,” in Proc. Network and Operating System Support for
Digital Audio and Video (NOSSDAV), Cambridge, U.K., 1998.
[30] , “Internet telephony: architecture and protocols—an IETF per-spective,” Comput. Networks ISDN Syst., vol. 31, Feb. 1999.
[31] A. Srinivasan, K. G. RamaKrishnan, and K. Kurnaran, “Optimal design of signaling networks for internet telephony,” in Proc. 19th Annu. Joint
Conf. IEEE Computer and Communications Societies (INFOCOM),
Is-rael, 2000.
[32] G. A. Thom, “H.323: the multimedia communications standard for local area networks,” IEEE Commun. Mag., pp. 52–56, Dec. 1996. [33] H. J. Wang, A. D. Joseph, and R. H. Katz, “A signaling system using
lightweight call sessions,” in Proc. 19th Annu. Joint Conf. IEEE
Com-puter and Communications Societies (INFOCOM), Israel, 2000.
[34] M. H. Willebeek-LeMair and Z.-Y. Shae, “Videoconferencing over packet-based networks,” IEEE J. Select. Areas Commun., vol. 15, pp. 1101–1114, June 1997.
Cheng-Yue Chang received the M.S. and Ph.D.
de-grees in electrical engineering from National Taiwan University, Taipei, Taiwan, R.O.C., in 1998 and 2003, respectively.
He is currently a Senior Researcher with Philips Research East Asia—Taipei. His research interests include World Wide Web systems, multimedia net-works, and home networks.
Ming-Syan Chen (M’88–SM’93–F’04) received the
B.S. degree in electrical engineering from National Taiwan University, Taipei, Taiwan, R.O.C., and the M.S. and Ph.D. degrees in computer, information, and control engineering from The University of Michigan, Ann Arbor, in 1985 and 1988, respec-tively. He is currently a Professor in the Electrical Engineering Department, National Taiwan Uni-versity. He was a Research Staff Member at IBM Thomas J. Watson Research Center, Yorktown Heights, NY, from 1988 to 1996. His research inter-ests include database systems, data mining, mobile computing systems, and multimedia networking,. He has published more than 140 papers in his areas of research. He holds, or has applied for, 18 U.S. patents and seven R.O.C. patents in the areas of data mining, Web applications, interactive video playout, video server design, and concurrency and coherency control protocols.
Dr. Chen has served as an Associate Editor (1997–2000) and Guest Co-Editor (1996) for the IEEE TRANSACTIONS ONKNOWLEDGE ANDDATAENGINEERING
and as an Editor of the Journal of Information Science and Engineering. He served as Program Vice-Chair of Very Large Data Bases (VLDB-2002), as General Chair of the Real-Time Multimedia System Workshop (2001), as Pro-gram Chair for the IEEE ICDCS Workshop on Knowledge Discovery and Data Mining in the World Wide Web (2000) and the Pacific Area Knowledge Dis-covery and Data Mining Conference (PAKDD-02), and as Program Co-Chair of the International Conference on Mobile Data Management (2003), the International Computer Symposium (ICS) on Computer Networks, Internet and Multimedia (1998 and 2000), and ICS on Databases and Software Engineering (2002). He was a keynote speaker on Web data mining for the International Computer Congress in Hong Kong (1999), a tutorial speaker on Web data mining for DASFAA-1999 and on parallel databases for the Eleventh IEEE International Conference on Data Engineering in 1995, and a Distinguished Visitor of the IEEE Computer Society for the Asia-Pacific Region (1998–2000). He has coauthored (with his student) a paper which received the ACM SIGMOD Research Stduent Award. He received the Outstanding Innovation Award from IBM Corporation in 1994 for his contribution to parallel transaction design and implementation for a major database product, and numerous awards for his research, teaching, inventions, and patent applications.
Dr. Chen is a member of ACM.
Pai-Han Huang received the B.S. degree in civil
engineering in 1998 and the Master’s degree in electrical engineering in 2000, both from National Taiwan University, Taipei, Taiwan, R.O.C.
His research interests include multimedia net-working and Web computing.
