Wafer defect pattern recognition by multi-class support vector machines by using a novel defect cluster index

(1)

Wafer defect pattern recognition by multi-class support vector machines

by using a novel defect cluster index

Li-Chang Chao

a,b,*

, Lee-Ing Tong

a

Department of Industrial Engineering and Management, National Chiao Tung University, 1001 Dah-Hsei Road, Hsin-Chu 300, Taiwan, ROC b_{Department of Industrial Engineering and Management, Diwan University, No. 87-1, Nanshi Li, Madou Town, Tainan County 72153, Taiwan, ROC}

a r t i c l e

i n f o

Keywords: IC

Cluster index Defect pattern Support vector machines

a b s t r a c t

Wafer yield is an important index of efficiency in integrated circuit (IC) production. The number and clus-ter intensity of wafer defects are two key declus-terminants of wafer yield. As wafer sizes increase, the defect cluster phenomenon becomes more apparent. Cluster indices currently used to describe this phenome-non have major limitations. Causes of process variation can sometimes be identified by analyzing wafer defect patterns. However, human recognition of defect patterns can be time-consuming and inaccurate. This study presents a novel recognition system using multi-class support vector machines with a new defect cluster index to efficiently and accurately recognize wafer defect patterns. A simulated case dem-onstrates the effectiveness of the proposed model.

1. Introduction

As an important index for evaluating the production efﬁciency of integrated circuits (IC) manufacturers, wafer yield refers to the probability that a chip on a wafer is defect-free. Defects are phys-ical anomalies which result in circuit faults. A common method of monitoring wafer yield is on-line defect detecting in IC manufac-turing. Wafers are inspected during manufacturing by retrieving information about defect patterns by manually inspecting or auto-matically classifying defects (Merino, Cruceta, Garcia, & Recio, 2000). Each of these patterns is associated with a well known man-ufacturing problem and can provide process and product engineers with valuable clues for identifying the underlying cause and there-by improve yield (Friedman, Hansen, Nair, & James, 1997).

Stapper (1985) indicated that defects are typically clustered rather than dispersed randomly over a wafer, and these clusters become more evident as wafer size increases. Many cluster indices have been developed to depict the intensity of defects scattered on a wafer (Stapper, 1973; Tyagi & Bayoumi, 1992, 1994). The nega-tive binomial yield model (Stapper, 1973) utilizes a cluster param-eter

a

to evaluate the intensity of defects clustered. Cluster parameter

a

can be quite scattered and sometimes negative ( Cunn-ingham, 1990).Tyagi and Bayoumi (1992, 1994)proposed a vari-ance/mean ratio V/M to measure the intensity of defects

clustered. The values of V/M depend on how the grids are selected and cannot indicate the gradualness of cross-wafer defect density variations (Tyagi & Bayoumi, 1992, 1994). Jun, Hong, Kim, Park, and Park (1999)proposed a cluster index CI to evaluate the inten-sity of defects clustered on a wafer. In some cases, CI values calcu-lated from different defect patterns may be similar.

Constructing a wafer defect recognition system is a very impor-tant issue in IC manufacturing. Three fundamental approaches to solving pattern recognition problems are statistical approach, heu-ristic approach and simulation approach (Nieddu & Patrizi, 2000). The statistical approach classiﬁes patterns based on an extracted features set and an underlying statistical model for generating these patterns. The heuristic approach utilizes soft computing schemes such as genetic algorithms and fuzzy sets to perform pat-tern recognition. However, genetic systems typically require expensive evaluation processes to achieve optimal solutions ( Bha-nu, Lee, & Ming, 1995). Further, a major limitation of the fuzzy logic controller is that the linguistic control rules are hard to generate. The fuzzy logic controller also requires knowledge and experience of human experts (Chen & Chang, 1998). The simulation approach emulates the computational paradigm of a biological system, sub-sequently leading to a class of artiﬁcial neural systems termed neu-ral networks (Jain, Duin, & Mao, 2000; Nieddu & Patrizi, 2000). However, a major limitation of neural networks is their inability to determine the number of layers and number of neurons per layer (Fiesler, 1994).

Support vector machines (SVMs) have been widely used for pat-tern recognition in recent years. Several studies report that the SVM classiﬁcation is more accurate than existing classiﬁcation algorithms (Hsu & Lin, 2002; Joachims, 1998). The SVM has proven

*Corresponding author. Address: Department of Industrial Engineering and Management, National Chiao Tung University, 1001 Dah-Hsei Road, Hsin-Chu 300, Taiwan, ROC. Tel.: +886 35 731896; fax: +886 35 733873.

E-mail addresses: [email protected], [email protected] (L.-C. Chao).

Contents lists available atScienceDirect

Expert Systems with Applications

(2)

very effective for pattern recognition (Burges, 1998). Zhou, Su, Jiang, Deng, and Li (2007)presented a novel face and fingerprint authentication system based on multi-route detection. Fusion of face and fingerprint recognition by SVM improved authentication accuracy.Nemmour and Chibani (2006)applied SVM for detecting land cover changes. An SVM-based change detection approach has also been used for mapping urban growth. A combination frame-work was then used to improve change detection accuracy.Jiang, Huang, Ye, and Gao (2006)proposed an SVM scheme for selecting traditional Chinese paintings from general images and categorizing them as Gongbi (traditional Chinese realistic painting) or Xieyi (freehand style).David and Lerner (2005)presented an SVM-based image classification system for genetic syndrome diagnosis. In the David system, a percentage of the miss-classified patterns are re-jected to reduce the expected risk by thresholding the distance of patterns from the hyperplane separating the classes.

Given the limitations of previous cluster indices for wafer de-fects and the importance of an accurate wafer defect recognition system to the IC industry, this study presents a novel recognition system using multi-class support vector machines with a new de-fect cluster index. A simulation demonstrates the efde-fectiveness of the proposed model. The new defect cluster index is compared with three existing cluster indices, and the recognition system is compared with existing neural network-based recognition systems.

2. Related literature

This section surveys pertinent literature. The defect cluster indi-ces which are utilized to depict the intensity of defects clustered on a wafer are introduced. Approaches to solving pattern recognition problems are then surveyed.

2.1. Defect cluster index

The intensity of defects clustered on a wafer can be depicted by a defect cluster index. The cluster parameter

a

of the negative binomial model, the variance/mean ratio V/M and the non-param-eters assumption cluster index CI are commonly used. The negative binomial yield model is as follows:

Y ¼ 1

ð1 þ k=

a

Þa ð1Þ

where parameter

a

, the cluster parameter, is calculated as

a

¼ k 2

ð

r

2_kÞ; ð2Þ

kis the mean number of defects per chip, and

r

2

is the variance in defects per chip. Earlier reports show that cluster parameter

a

in the negative binomial model may be quite scattered and may even have a negative value when the model is used to predict yield (Cunningham, 1990).Tyagi and Bayoumi (1992, 1994)utilized var-ious grid sizes superimposed on a wafer map to measure the inten-sity of defects distributed on a wafer. The defects contained within each grid can be used to judge the spatial distribution of defects. The distribution of defects follows a Poisson distribution if the de-fects are randomly distributed. Because both variance (V) and mean (M) are equal in the Poisson distribution, the value of V/M equals 1 if the wafer defects are randomly scattered. The value of V/M exceeds 1 if the defects distributed on a wafer are clustered. The values of V/ M depend on how the grids are selected and cannot indicate the gradualness of cross-wafer defect density variations. Jun et al. (1999) proposed a cluster index based on the projected x and y coordinates of defect locations on a wafer. Defect clustering tends to show clumps in the x and the y coordinates, which result in a

large variance in defect intervals. However, showing clumps either on the x-axis or on the y-axis does not necessarily represent the clus-tered defects. The clustering index CI can be calculated as

CI ¼ min s 2 v

v

2; s2 w w2 ð3Þ

where

v

iand wiare a sequence of defect intervals on the x-axis and

y-axis deﬁned as

v

i¼ xðiÞ xði1Þ; i ¼ 1; 2; . . . ; n ð4Þ wi¼ yðiÞ yði1Þ; i ¼ 1; 2; . . . ; n ð5Þ

where x(i)and y(i)denote the ith smallest defect coordinates on the x

-axis and y-axis, respectively;

v

and s2

v represent the sample mean

and the sample variance of

v

i, respectively; w and s2w denote the

sample mean and the sample variance of wi, respectively. The value

of CI is close to 1 if the defects are randomly scattered, and the value of CI exceeds 1 if defects are clustered. However, in some cases, the CI of different defect patterns may have similar values. Thus, the intensity of defects clustered on a wafer may be erroneously recog-nized when using cluster index CI.

In summary, existing wafer cluster indices have the following drawbacks: cluster parameter

a

of the negative binomial model may be substantially scattered and sometimes negative; the same defect pattern may have different V/M values when the selected grids differ; further, the CI values for different defect patterns may also be similar. Such drawbacks affect performance when these cluster indices are employed to depict defect cluster intensity.

2.2. Recognizing defect patterns

Wafer defect patterns may be random or systematic. Ideally, manufacturing defects should be randomly distributed, and sys-tematic pattern defects should be minimal (Kaempf, 1995). Conse-quently, the yield loss caused by random defects remains constant (Friedman et al., 1997). Some of the many techniques used for wa-fer defect pattern recognition are statistical approach, heuristic ap-proach and simulation apap-proach (Nieddu & Patrizi, 2000). The statistical approach classifies patterns based on an extracted fea-ture set and an underlying statistical model for generating these patterns. These features are a set of characteristic measurements extracted from the input data and are used to assign each feature vector to one of c classes. The statistical approach can be viewed as determining a strategy for classifying samples based on the measurement of feature vector, such that classification error is minimized. The heuristic approach attempts to clarify the essential problem and use available personal knowledge to solve it with the assistance of soft computing schemes such as genetic algorithms and fuzzy sets. However, genetic systems usually require the eval-uation of numerous candidate solutions. In application domains in which the evaluation process is expensive, the computational ef-fort required to perform numerous evaluations may be prohibitive (Bhanu et al., 1995). Further, a major limitation of the fuzzy logic controller is that the linguistic control rules are hard to generate. The fuzzy logic controller also requires knowledge and experience of human experts (Chen & Chang, 1998). The simulation approach emulates the computational paradigm of a biological system. Cur-rent knowledge of cerebral processes is transferred from a neuro-physiological medium to an electronic one. This leads to a class of artificial neural systems termed neural networks (Jain et al., 2000; Nieddu & Patrizi, 2000). The networks most frequently uti-lized to perform the pattern recognition are the feed-forward net-works (Jain, Mao, & Mohiuddin, 1996). However, a major drawback of neural networks is the lack of knowledge for determining net-work topology (number of layers and number of neurons per layer)

(3)

(Fiesler, 1994). The radial basis function (RBF) neural network (Duda & Hart, 1973) is a new technique for pattern recognition and has been successful applied to many ﬁelds. The RBF neural net-work can reduce training time and enhance netnet-work learning efﬁ-ciency. Therefore, the RBF network is utilized for comparing with the proposed method in this study.

2.2.1. Radial basis function

The RBF neural network (Duda & Hart, 1973) is a supervised learning network. AsFig. 1shows, the network architecture con-sists of three layers: input layer, hidden layer and output layer. The transformation from the input layer to the hidden layer is non-linear whereas the transformation from the hidden layer to the output layer is linear. The hidden layer is typically a single layer of processing elements, and the number of hidden nodes in the RBF networks is usually determined experimentally. The hidden layer units that use Gaussian transfer functions are called the ker-nel. The Gaussian transfer function can be described in the follow-ing form: hj¼ exp ðxp cjÞTðxp cjÞ 2

r

j " # j ¼ 1; 2; . . . N ð6Þ

where hjis the output of the jth node in the hidden layer, xpis the

input pattern, cjis the center of the Gaussian function for node j,

r

j

is the width associated with the Gaussian function of node j, and N is the number of hidden layer nodes.

Training in an RBF network involves ﬁnding the centers and widths associated with each kernel function and weights connect-ing the hidden neurons to the output neurons. The k-means clus-tering algorithm (Pandys & Macy, 1996) is often used to search for the appropriate center of the kernel function. A node in the hidden layer will produce a great output when the presented in-put pattern is closed to its center. After the cluster centers of the kernel function are found, appropriate width parameters are se-lected. These parameters control the extent of overlap in kernel functions. For Gaussian kernel functions, the width parameter represents the standard deviation of the function. The width parameter is most commonly made equal to the average distance between the cluster centers and the training patterns. The ing in the output layer is conducted after the hidden layer learn-ing is complete, and the Least Mean Squares (LMS) algorithm is used to train the RBF network. The LMS algorithm uses the delta rule to adjust connection strengths. Output layer node values are calculated as follows:

ok¼ XN

j¼1

ðwjk hjÞ ð7Þ

where okis the output of the kth node in the output layer, wjkis the

weight of the jth hidden layer neuron to the kth output layer neu-ron, hjis the output of the jth node in the hidden layer, and N is

the number of nodes in the hidden layer. The output, ok, is formed

by a weighted linear combination of the output from the hidden layer without nonlinear transformation.

The RBF network is applied to many areas.Su, Yang, and Ke (2002) utilized the RBF network for semiconductor wafer post-sawing inspection. The pros and cons of their technique in compar-ison with two other inspection methods, visual inspection and fea-ture extraction inspection, were discussed.Doganis, Alexandridis, Patrinos, and Sarimveis (2006)proposed a time series sales fore-casting method for short shelf-life food products by combining the RBF network and a specially designed genetic algorithm. The technique was applied successfully to sales data for fresh milk. Sar-imveis, Doganis, and Alexandridis (2006)combined the RBF net-work with fuzzy means algorithm to propose a new classiﬁcation method. The method is particularly useful for manufacturing pro-cesses, particularly in cases where on-line sensors for classifying product quality are unavailable.Yu, Wang, and Lai (2008)utilized the RBF network and the Lagrange multiplier theory to develop a model for solving mean–variance–skewness tradeoffs to optimize portfolio selection.

2.2.2. Support vector machines

The support vector machines (SVM) technique was introduced byCortes and Vapnik (1995). The original intent of the SVM algo-rithm was to use a linear separating hyperplane to build a classiﬁer. AsFig. 2(Schölkopf & Smola, 2002) shows, for all hyperplanes sep-arating data, there exists a unique optimal hyperplane distin-guished by the maximum margin of separation between any training point and the hyperplane. The optimal hyperplane is shown as a solid line inFig. 2.

A training set of instance-label pairs is given as follows:

ðx1;y1Þ; ðx2;y2Þ; . . . ; ðxm;ymÞ; xi2 Rn; yi2 fþ1; 1g

The training set can be divided into two classes by the hyperplane. The hyperplane can be expressed as

hw; xi þ b ¼ 0 ð8Þ

where handi are the operators of dot product, w is a weight vector orthogonal to the hyperplane, and b is a threshold. The w and b are rescaled such that the points closest to the hyperplane satisfy:

hw; x1i þ b ¼ þ1 ð9Þ

hw; x2i þ b ¼ 1 ð10Þ

Combining Eqs.(9) and (10)obtains Eq.(11):

w

jjwjj;ðx1 x2Þ

¼ 2

jjwjj ð11Þ

where ||w|| is the length of a vector w. The distance from the closest point to the hyperplane, called the margin, equals 1

jjwjj. If the optimal

hyperplane exists, Eqs.(9) and (10)imply:

yiðhxi;wi þ bÞ P 1; i ¼ 1; . . . ; m ð12Þ

The optimal hyperplane which generalizes well can thus be con-structed by solving the following problem:

Min:

s

ðwÞ ¼1 2kwk

2

; ð13Þ

s:t: yiðhxi;wi þ bÞ P 1; i ¼ 1; . . . ; m ð14Þ

(4)

In this case, the dual is more convenient for calculation and is de-rived by the Lagrangian function as follows:

Lðw; b;

a

Þ ¼1 2kwk 2 X m 1

a

iðyiðhxi;wi þ bÞ 1Þ; ð15Þ

with Lagrange multipliers

a

iP0. The Lagrange L must be

maxi-mized with respect to

a

iand minimized with respect to w and b.

Consequently, at this saddle point, the derivatives of L are

@

@wLðw; b;

a

Þ ¼ 0; ð16Þ

@

@bLðw; b;

a

Þ ¼ 0; ð17Þ

Eqs.(16) and (17)get

Xm 1

a

iyi¼ 0; ð18Þ w ¼X m 1

a

iyixi: ð19Þ

The solution vector thus has an expansion in terms of training examples. The instances xi, for which

a

i> 0, are called Support

Vec-tors. Substituting Eqs.(18) and (19)into Eq.(15), the dual form of the optimization problem, gets

Max: Wð

a

Þ ¼X m i¼1

a

i 1 2 Xm i;j¼1

a

i

a

jyiyjhxi;xji; ð20Þ s:t:

a

iP0; i ¼ 1; . . . ; m ð21Þ Xm 1

a

iyi¼ 0; ð22Þ

Once

a

iis found, the optimal hyperplane can be found. The decision

function of the optimal hyperplane can thus be expressed as

f ðxÞ ¼ X m 1

a

iyixi;x * + þ b ð23Þ

To allow the possibility of examples violating Eq. (14), the slack variables niP0 are used to relax the separation constraints, and

the optimal hyperplane can thus be constructed by solving the fol-lowing problem: Min:

s

ðw; nÞ ¼1 2kwk 2 þ CX m i¼1 ni; ð24Þ s:t: yiðhxi;wi þ bÞ P 1 ni; i ¼ 1; . . . ; m ð25Þ niP0 ð26Þ

where the constant C > 0 is the penalty parameter of the error term and determines the tradeoff between margin maximization and training error minimization.

If the training set of instance-label pairs are nonlinearly separa-ble, the linear SVM may not work well again. The nonlinear kernel can then solve the classiﬁcation problem. The most commonly ap-plied nonlinear kernels are the polynomial kernel, the Gaussian kernel and the sigmoid kernel. The classiﬁcation problem can ob-tain reasonable results when the Gaussian kernel is applied to map samples into a higher dimensional space (Keerthi & Lin, 2003). Therefore, the Gaussian kernel selected for sample mapping in this study can be described as

Kðxi;xjÞ ¼ expð

c

jjxi xjjj 2

Þ;

c

>0 ð27Þ

where

c

is the kernel parameter. The penalty parameter C and the kernel parameter

c

are the most critical parameters while the SVM technique is used to classify samples. The grid search in cross-validation can be used to select the best (C,

c

) parameter com-bination. Applying this parameter combination to the training and testing data can enhance generalization accuracy.

2.2.3. Multi-class SVM

The classification problem mentioned above refers to binary classification, in which class labels can only take two values: 1 or +1. Many real-world problems, however, have more than two classes. This study utilizes a multi-class SVM for wafer defect pat-tern recognition. Methods of multi-class classification are compared.

(5)

The one-against-all method (Bottou et al., 1994) constructs m binary SVM classifiers where m is the number of classes. Each clas-sifier is trained to separate one class from the rest, and the ith SVM is trained with all examples in the ith class with +1 labels as well as all other examples with 1 labels. Solving the optimal solution of the one-against-all method can get m decision functions. The un-known x is in the class with the largest decision function value. The one-against-one method (KreBel, 1999) trains a classifier for each possible pair of classes and constructs m(m 1)/2 binary clas-sifiers. The one-against-one method can get m(m 1)/2 decision functions when solving the optimal solution. The unknown x is classified to the class with the highest number of votes. A vote for a given class is defined as the sample frequency attributed by a classifier. The Directed Acyclic Graph solution (Platt, Cristianini, & Shawe-Taylor, 2000) is the same as the one-against-one solution for m(m 1)/2 binary SVMs in the training phase. However, in the testing phase, Directed Acyclic Graph method uses a rooted binary directed acyclic graph which includes m(m 1)/2 internal nodes and m leaves. Each internal node represents a binary SVM, and each leaf represents a class. The unknown x starts at the root and moves through a path to either the left node or right node depend-ing on the output value before reachdepend-ing a leaf node. The unknown x is then classified to the appropriate class.Vapnik (1998)proposed a method for simultaneously considering all data in multi-class problems by solving a single optimization problem. Solving the optimal solution of the all-data method can get m decision func-tions. Each decision function can separate one class from the rest. However, the optimal solutions of the m decision functions are not derived from m optimal problems but are obtained by solving one problem. The unknown x is in the class with the largest decision function value. Because the training time of the one-against-one method is the shortest of these methods (Hsu & Lin, 2002), this method is used for wafer defect pattern recognition in this study.

3. Proposed approach 3.1. A new cluster index

Section 2.1 introduced several defect cluster indices for depict-ing the intensity of defects clustered on a wafer. This study pro-poses a new cluster index for depicting the varying intensity of wafer cluster defects. The proposed cluster index CIEis

CIEðp1;p2; . . . ;psÞ ¼ Xs i¼1 pi log2 1 pi ð28Þ

where s represents the number of defect clusters; pirepresents the

proportion of defects in the ith cluster to total number of wafer de-fects.Fig. 3is the sketch diagram of the proposed cluster index in this study. The more profound the cluster phenomenon, the larger the CIE, asFig. 3a1 shows, and vice versa, asFig. 3b1 and c1 shows.

If several wafers have the same total defect number, the more pro-found the cluster phenomenon, the smaller the CIE, as Fig. 3a2

shows, and vice versa, asFig. 3b2 and c2 shows. Clearly, the pro-posed cluster index CIE possesses the advantage of accurately

detecting the intensity of clustering defects. 3.2. Constructing the defect pattern recognition system

A major cause affecting yield is the degree to which defects are clustered (Friedman et al., 1997; Stapper, Armstrong, & Saji, 1983). In addition to the random pattern inFig. 4a, common wafer defect clustering patterns include bull’s eye pattern, crescent moon pat-tern, bottom pattern and edge patpat-tern, asFig. 4b–e shows ( Fried-man et al., 1997). The speciﬁc defect distribution pattern must be determined when wafer yield is medium or low. The

manufactur-ing process can be moderately adjusted by recognizmanufactur-ing defect patterns.

Wafers with medium or low yield must be further analyzed to determine whether a speciﬁc defect pattern causes the medium or low yield. Therefore, the factors affecting yield are selected as the features for recognizing the ﬁve defect patterns.

Yield models are generally a function of D, the average number of defects per unit area, and A, the chip area. Yield models can be described as

Y ¼ f ðD; A; KÞ ð29Þ

where K represents an empirical correction factor for chip area A (Cunningham, 1990). The average number of defects per unit area D can be used to describe the intensity of the defect-dense areas on a wafer. The average number of defects per unit area D can be used as a feature factor for recognizing defect patterns.

Further, the angle variation CVAand the distance variation CVD

obtained by measuring the angle variation and the distance varia-tion of the individual defect on a wafer are also utilized as feature factors.Fig. 5depicts the angle and distance of defects observed in this study. The CVAand CVDcan be derived as follows:

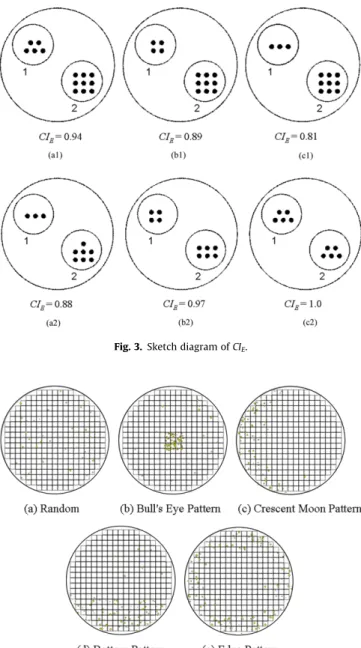

Fig. 3. Sketch diagram of CIE.

(6)

Step 1: Determine the positive angle hi, which is the angle

be-tween the coordinates of individual defect and the x-axis. The hi

can be described as hi¼ tan1 yi xi ; i ¼ 1; 2; :::; n ð30Þ

where xiand yidenote the x and the y coordinates, respectively, of

the ith defect in the x–y plant. Sorting hiin ascending order obtains

h(i). A sequence of angle differences is deﬁned as

Ai¼ hðiÞ hði1Þ; i ¼ 1; 2; :::; n ð31Þ

where h(0)= 0.

Step 2: Determine Lias the distance between the individual

de-fect and the origin in the coordinate axes. The Lican be described as

Li¼ ffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi x2 i þ y 2 i q ; i ¼ 1; 2; :::; n ð32Þ

Sorting Liin ascending order obtains L(i). The sequence of distance

differences is deﬁned by

Di¼ LðiÞ Lði1Þ; i ¼ 1; 2; :::; n ð33Þ

where L(0)= 0.

Step 3: The CVAand CVDare deﬁned as

CVA¼ S2A A2 ð34Þ CVD¼ S2 D D2 ð35Þ

where A and S2_Adenote the sample mean and the sample variance of Ai, respectively, and D and S2Ddenote the sample mean and the

sam-ple variance of Di, respectively. The variations of the angle

differ-ences and the distance differdiffer-ences are smaller when defects are randomly distributed than when defects are clustered. One of these two variations is increased regardless of the defect pattern. There-fore, the wafer map presents certain patterns of defect clusters as long as one of these differences posses a large variation. Therefore, CVAand CVDcan provide feature factors for recognizing defect

pat-terns. Finally, given the superior accuracy of the proposed cluster index CIEin detecting cluster defect intensity, CIEis employed as

the feature factor for recognizing defect patterns.

Four feature factors (D, CVA, CVDand CIE) are suggested for

rec-ognizing defect patterns. A multi-class SVM classiﬁes wafer defect

patterns by employing these four feature factors as inputs and one of ﬁve defect patterns as output. The relationships between these feature factors and defect patterns can be constructed by present-ing the adequate trainpresent-ing and testpresent-ing samples in the multi-class SVM. The multi-class SVM can be used to classify wafers with med-ium or low yield.Fig. 6shows the framework of the proposed sys-tem for recognizing wafer defect patterns.

4. Implementation 4.1. Simulation study

Fig. 4shows the common wafer defect cluster patterns. In this study, Borland Delphi programming language is employed to sim-ulate various defect cluster patterns in 8-in. wafers. This study em-ploys three design factors to simulate defect cluster patterns: defect number, percentage of defects located in grey regions and size of grey regions. The following brieﬂy describes these three de-sign factors.

(1) Defect number: The number of defects distributed over the entire wafer. Five factor levels for 25, 50, 100, 200 and 300 defects are simulated.

(2) Percentage of defects located in grey region: The grey region represents the defect-dense areas on a wafer. In the four clustering patterns, four percentages, 80%, 85%, 90% and 95%, of the total number of defects are located in grey regions, and the remaining defects are distributed randomly. Distribution of defects for the four clustering patterns depends on the percentage of defects located in grey regions. (3) Size of grey region: Three sizes of grey regions considered are:

25, 49 and 81 cm2_.

According to the above three design factors, 15 factor-level combinations exhibit random pattern and 60 factor-level combina-tions exhibit the other four defect patterns. Each trial of factor-le-vel combination is replicated ﬁve times, to obtain 1275 simulation trials. Speciﬁcally, there are 1275 simulated wafer maps. In order to compare the differences between the proposed cluster index CIEand the other cluster indices. There are four responses, namely

a

, V/M, CI and CIE, are used for each simulation trial. Moreover, to

utilize the proposed multi-class SVM for classifying defect patterns and comparing the accuracy of the method with RBF neural net-work, four feature factors (D, CVA, CVD and CIE) are obtained for

each simulation trial by simple calculation.

4.2. Relationship between cluster indices and design factors

The inﬂuences of the three designed factors, which are defect number, percentage of defects located in grey region and size of grey region, are analyzed for each defect pattern. The 1275 simu-lated wafer maps described in Section 4.1 are used to calculate the value of the following four cluster indices:

a

, V/M, CI and CIE.

The cluster intensity presented on a speciﬁc defect pattern is uti-lized to analyze the effectiveness of those cluster indices.

First, consider ﬁve levels for the defect number factor: 25, 50, 100, 200 and 300. The more serious the cluster phenomenon, the

Fig. 5. Angle and distance of wafer defects.

(7)

larger the proposed CIE, and vice versa.Fig. 7depicts the

relation-ship between the cluster indices and defect number for ﬁve defect patterns.Fig. 7shows that cluster parameter

a

is quite scattered and even negative for some levels, and the other cluster indices can reflect the cluster intensity when the defect number is in-creased. Further, the cluster index CI cannot clearly reflect the clus-ter intensity for the crescent moon patclus-tern and the edge patclus-tern. However, the proposed cluster index CIE can clearly reflect the

cluster intensity for all defect patterns.

Second, consider four different percentages of defects located in the grey region factor: 80%, 85%, 90% and 95%. The remaining de-fects are distributed randomly. If several wafers have the same number of total defects, the more serious the cluster phenomenon, the smaller the proposed CIE, and vice versa.Fig. 8depicts the

rela-tionship between the cluster indices and the four different defect percentages for ﬁve defect patterns. Fig. 8 shows that cluster parameter

a

is quite scattered and even negative for some levels. The cluster index V/M cannot clearly reﬂect the cluster intensity for the edge pattern. The cluster index CI cannot clearly reﬂect the cluster intensity for crescent moon pattern, bottom pattern and edge pattern. However, the proposed cluster index CIE can

clearly reﬂect the cluster intensity for all defect patterns. Finally, consider three levels for the size of grey region factor: 25, 49 and 81 cm2_{. The smaller the size of the grey region, the more}

serious the cluster phenomenon. If several wafers have the same total number of defects, the more serious the cluster phenomenon, the smaller the proposed CIE, and vice versa.Fig. 9depicts the

rela-tionship between the cluster indices and the three levels of region size for ﬁve defect patterns.Fig. 9shows that cluster parameter

a

is quite scattered and even negative. The cluster index V/M cannot clearly reflect the cluster intensity of the edge pattern. The cluster index CI also cannot clearly reflect the cluster intensity of the cres-cent moon pattern or the edge pattern. However, the proposed cluster index CIEcan clearly reflect the cluster intensity for all

de-fect patterns. The above discussion of cluster indices and these three design factors shows that the proposed cluster index CIE

de-tects the cluster intensity for the ﬁve defect patterns more accu-rately than the other cluster indices.

4.3. Multi-class SVM wafer pattern recognition

A wafer must be further diagnosed to detect whether there ex-ists a speciﬁc clustering pattern of defects when the wafer presents a medium or low yield. To recognize wafer defect patterns, the 1275 simulated wafer maps described in Section 4.1 were utilized as samples for constructing the multi-class SVM. The 1275 wafers were divided into two parts: one part containing 1020 wafers used to train the multi-class SVM; the second part containing 255 wa-fers used to test the accuracy of the multi-class SVM. Four feature factors, D, CVA, CVDand CIE, are obtained for each simulation wafer

by simple calculation. These four feature factors and the respective defect pattern of the 1275 wafer maps are utilized as inputs and outputs for the proposed multi-class SVM. The trained multi-class SVM can then be used to classify wafers presenting a speciﬁc defect pattern.Fig. 10shows some of the defect patterns observed in this study. Cluster intensity is not considered for random pattern.

Fig. 10ashows three wafers with 50 defects and three wafers with 100 defects for random pattern. For cluster intensity of 90%,Figs. 10b–10eshow three wafers with 50 defects and three wafers with 100 defects for the other defect patterns.

The classification accuracy of the proposed multi-class SVM is compared with that of RBF neural network. The classification accu-racy for a specific defect pattern is employed to analyze the perfor-mance of these two classification techniques. Software utilized in this study for multi-class SVM and RBF neural network were LIB-SVM (Chang & Lin, 2004; Hsu & Lin, 2002) and NeuroSolutions 5.0, respectively. To obtain the generalization results for wafer pat-tern recognition, fivefold cross-validation was used to determine

(8)

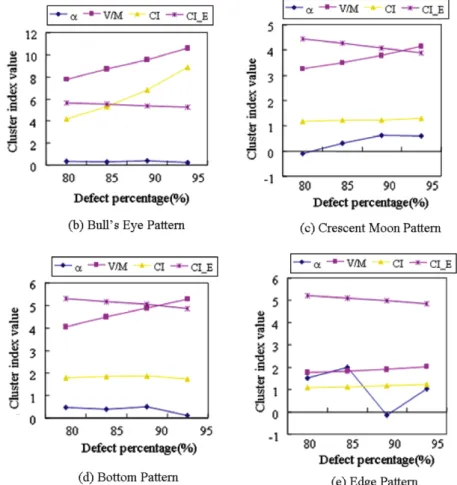

Fig. 8. Relationship between cluster indices and defect percentage factor.

(9)

optimal parameter combinations for these two classiﬁcation tech-niques. The penalty parameter C and the kernel parameter

c

are the most critical parameters for multi-SVM. In this study, the optimal parameter combinations for penalty parameter C and kernel parameter

c

were 2048 and 0.03125, respectively. Of 255 wafers, 233 could be accurately classiﬁed into respective classes. Restated,

recognition accuracy when using the proposed multi-class SVM is 91.3725%. Similarly, the same four feature factors and the respec-tive defect pattern of the 1275 wafer were also utilized as the input and output for the RBF neural network. The optimal combination of parameters is obtained by using the following stop criteria: maxi-mum training of 105_{epochs or mean square error is less than 10}6_.

The RBF neural network is used to classify wafers which present a specific defect pattern. Of the 255 wafers, 160 can be accurately classified into respective classes. Restated, the recognition accu-racy rate achieved by utilizing the RBF neural network is 62.7451%. The classification results for wafer defect pattern recog-nition shows that the proposed multi-class SVM achieves a more accurate recognition rate than the RBF neural network.

5. Conclusion

As wafer sizes increase, the defect cluster phenomenon in-creases. Both defect number and defect clustering affect wafer yield. Some proposed defect cluster indices monitor whether a wa-fer exhibits the cluster phenomenon. The cluster parameter

a

of the negative binomial model can be quite scattered and sometimes negative. The values of cluster index V/M depend on how the grids are selected. The CI values for different defect patterns may also be similar. Among the techniques for recognizing wafer defect pat-terns, genetic systems usually require expensive evaluation pro-cesses to achieve optimized solutions; the linguistic control rules

Fig. 10a. Random patterns for defect number 50 and 100.

Fig. 10b. Bull’s eye patterns with cluster intensity of 90% for defect number 50 and 100.

Fig. 10c. Crescent moon patterns with cluster intensity of 90% for defect number 50 and 100.

Fig. 10d. Bottom patterns with cluster intensity of 90% for defect number 50 and 100.

(10)

for the fuzzy logic controller are hard to generate; neural networks lack the knowledge for determining the number of layers and num-ber of neurons per layer.

This study presents a novel recognition system that utilizes multi-class support vector machines incorporating a new defect cluster index for recognizing wafer defect patterns. A simulated case is applied to demonstrate the effectiveness of the proposed model by constructing a new defect cluster index and a new recog-nition system. The new defect cluster index is compared with three existing cluster indices, and the recognition system is compared with one constructed by neural network.

The merits of the proposed approach are summarized as follows:

1. The proposed cluster index CIEis more accurate than other

clus-ter indices (

a

, V/M and CI) in terms of detecting the cluster intensity for ﬁve various defect patterns.

2. The proposed method utilizes four relevant variables: D, CVA,

CVDand CIEas input for constructing the wafer defect

recogni-tion system. The classiﬁcarecogni-tion results for wafer defect patterns show that the proposed multi-class SVM achieves more accu-rate recognition than RBF neural network.

3. The proposed system can be integrated with KLA inspection machines to recognize wafers presenting medium or low yield to minimize improvement time.
