Effects of GaAsSb capping layer thickness on the optical properties of InAs

quantum dots

Wei-Ting Hsu,1Yu-An Liao,1,2Feng-Chang Hsu,1Pei-Chin Chiu,2Jen-Inn Chyi,2 and Wen-Hao Chang1,a)

1

Department of Electrophysics, National Chiao Tung University, Hsinchu 300, Taiwan

2

Department of Electrical Engineering, National Central University, Chung-li 320, Taiwan

(Received 1 June 2011; accepted 20 July 2011; published online 17 August 2011)

The optical properties of GaAsSb-capped InAs quantum dots (QDs) with different capping layer thickness are investigated. Both the emission energy and the recombination lifetime are found to be correlated with the capping layer thicknesses. Theoretical calculations indicate that the quantum confinement and the wave function distribution of hole states are sensitive to the GaAsSb capping layer thickness. The Sb induced change in QD size also plays a role in the optical properties of GaAsSb-capped QDs. Controlling the GaAsSb capping layer thickness is a feasible way to tailor the InAs QDs for long-wavelength applications. VC _{2011 American Institute of Physics.}

[doi:10.1063/1.3624464]

Recently, GaAsSb-capped InAs/GaAs quantum dots (QDs) have attracted much attention because of its capability of extending the emission wavelength to 1.55 lm or beyond.1,2It has been demonstrated that the impacts of the GaAsSb capping layer (CL) on the underlying InAs QDs are manifold. First, like the conventional InGaAs CL,3 the GaAsSb CL acts as a strain reducing layer for the QDs, resulting in a redshift in the emission wavelength. Second, the reduced strain in the CL together with the surfactant effect of Sb atoms would suppress the decomposition of InAs QDs during the capping processes4,5and thereby pre-serving the island height as compared with GaAs-capped QDs. The third and the most prominent effect is the large va-lence band offset at the InAs-GaAs1xSbx heterointerface,

which could lead to the formation of type-II QDs as x exceeds 0.14.6,7 _{Experimental evidences for the type-II}

QDs have been reported based on photoluminescence (PL)7 and time-resolved PL (TRPL) measurements.8,9 The long recombination lifetime of spatially indirect excitons and the confinement of only one carrier species make the type-II QDs very promising for memory devices10and solar cells.11 Therefore, tailoring the transition energy, the band align-ment, the wave function overlaps, and hence the carrier dy-namics are desirable for specific applications. Variation of the Sb content in the GaAsSb CL (Refs.5and6) and post-growth thermal treatments12have been employed to achieve this goal. Another approach is to change the GaAsSb CL thickness, which is expected to affect the quantum confine-ment of hole states and the strain distribution surrounding the type-II QDs. However, not much attention has been paid to the evolution of optical properties of the GaAsSb-capped InAs/GaAs QDs with the CL thickness. In this letter, we investigate the evolutions of emission energy and recombi-nation lifetime of the GaAsSb-capped InAs/GaAs QDs with the CL thickness. The effects of the CL thickness on the hole states and their wave function distributions are discussed and compared with eight-band k p model calculations.

The samples were grown by molecular beam epitaxy. A layer of self-assembled InAs QDs (2.7 MLs) were grown at 500C on the GaAs buffer layer and subsequently capped by a GaAs0.8Sb0.2 layer with a thickness t. Four samples with

t¼ 0, 2.5, 5, and 10 nm have been grown. The samples were finally capped by a 50 nm GaAs layer. Atomic force micros-copy revealed that uncapped surface QDs are lens shaped, with an average height of 8.0 6 0.5 nm, an average diameter of 20 nm, and an areal density of about 3 1010 _cm2_{. PL}

was excited by an Arþ laser (488 nm) and detected by an InGaAs photomultiplier tube. TRPL measurements were per-formed using a 50 ps pulsed laser diode (405 nm/2.5 MHz) and recorded using the time-correlated single photon count-ing technique with a temporal resolution of150 ps.

Figure1(a)shows the PL spectra measured at T¼ 12 K for the QD samples under a low excitation power (Pex¼ 10 lW). A clear redshift of the PL peak with the

increasing GaAsSb CL thickness is observed. For the nomi-nal Sb content ofx¼ 0:2 in the CL, the InAs-GaAsSb inter-face is expected to exhibit a type-II band alignment.5–7 Therefore, the PL redshift with the increasing CL thickness can be attributed to the combined effects of the formation of type-II QDs,5–7 the reduced quantum confinement of the hole states, as well as the modifications in the strain distribu-tion in the CL layer. Besides, the GaAs1xSbxcapping (with

x > 0:2) could increase in the dot height due to the sup-pressed QD decomposition.4,5However, the evolution of QD size with the GaAsSb CL thickness remains unknown. To gain information about the structural changes by the GaAsSb capping, cross-sectional transmission electron microscopy (TEM) have been performed, which are shown in Figs.1(c)–

1(f). For the GaAs-capped QDs, the islands are flat in shape, with dimensions of about h¼ 2.5 nm in height and d ¼ 18 nm in diameter. After the GaAsSb capping, a gradual increase in the QD size with the CL thickness is observed. The estimated heights (diameters) are 3.1 nm (21 nm), 4.1 nm (21 nm), and 5.2 nm (24 nm) for CL thickness t¼ 2.5, 5, and 10 nm, respectively. Although accurate deter-minations of the QD size and shape are hindered by the strong strain field contrast in the TEM images, a clear

a)_{Author to whom correspondence should be addressed. Electronic mail:}

[email protected].

0003-6951/2011/99(7)/073108/3/$30.00 99, 073108-1 VC2011 American Institute of Physics

APPLIED PHYSICS LETTERS 99, 073108 (2011)

(3)

increasing trend of the QD size with the CL thickness can still be inferred. This means that the enlarged QD size should also be considered in the PL redshift with the CL thickness.

To clarify the major effect of the CL thickness, we have performed power dependent PL measurements, which are shown in Fig.2. For the GaAs-capped QDs, the ground-state peak energy remains nearly constant in the investigated power range. By contrast, the GaAsSb-capped samples with t¼ 5 and 10 nm show large blueshifts with the increasing ex-citation power, which are clear signatures of the formation of type-II QDs after GaAsSb capping.1,7,9However, as the CL thickness was reduced tot¼ 2.5 nm, only a moderate blue-shift of 15 meV is observed. This indicates that a thinner CL

thickness tends to reduce the type-II character of the GaAsSb-capped InAs QDs.

The effect of CL thickness on the radiative recombina-tion lifetime in the GaAsSb-capped QDs has also been inves-tigated by TRPL measurements. For a type-II system, the spatially separated electrons and holes would increase the radiative recombination lifetime sR, which is inversely

pro-portional to the square of the overlap integral of the electron and hole wave functions and proportional to the emission energy EPL, i.e., 1=sR/ jhueðrÞjuhðrÞij

2

=EPL, where

ueðhÞðrÞ is the electron (hole) wave function. Since ueðrÞ is

still well-confined in the QDs even after the GaAsSb cap-ping, the measured sR can thus be a measure of the

propor-tion of uhðrÞ that remains in the QDs. Figure3(a)shows the

PL decay recorded at the PL peak under low excitation con-ditions. The determined sR as function of CL thickness are

shown in Fig. 3(b). For the GaAs-capped InAs QDs, we obtain sR¼ 0:77 ns, which is comparable to the value

reported in literature.13By contrast, a gradual lengthening of the PL decay time with the increasing CL thickness is observed for the GaAsSb-capped samples. The deduced sR

are 1.9, 14, and 45 ns for the samples with t¼ 2.5, 5, and 10 nm, respectively. If we assume thathueðrÞjuhðrÞi ¼ 1 in

the type-I InAs QDs, the overlap in the GaAsSb-capped sam-ples still has 58% fort¼ 2.5 nm, but decreases to 21% and 11% for t¼ 5 and 10 nm, respectively. This means that the hole wave function distribution in the GaAsSb layer is sensi-tive to the CL thickness, especially fort < 5 nm.

Theoretical calculations based on eight-band k p model14 have been performed in order to understand the effects of CL thickness quantitatively. For a comparison pur-pose, we model the InAs QD as a truncated pyramid with {101} facets and having a conformal GaAs0.8Sb0.2CL

cover-ing thereon with a thicknesst. All the material parameters are adapted from Ref.15, except that the unstrained valence band offsets and the deformation potentials are obtained from Refs.

16 and 17. The strain-induced piezoelectric polarization has also been included. In order to separate the effects of CL thickness on the hole states and the enlarged QD size on the electron states, we have performed two sets of calculations. In the first set, we considered a constant QD size (h¼ 3.5 and b¼ 14 nm) and varying the CL thickness from t ¼ 0 to 10 nm. The calculated wave function distributions of the hole ground state on the (110) plane are displayed in Figs. 4(a)–4(d). For the GaAs-capped QD, the hole is well-confined in the QD with a high wave function overlap up to 98%. With the increasingt, the hole wave function penetrates gradually into the GaAsSb layer due to the reduced quantum confinement of FIG. 2. (Color online) Power-dependent PL spectra for the GaAsSb-capped

samples with a CL thickness of (a) 2.5 nm, (b) 5 nm, and (c) 10 nm. All the PL spectra have been offset and the intensities have been normalized to their ground-state peak. (d) The ground-state peak energy of the QDs as a func-tion ofP1=3

ex.

FIG. 3. (Color online) (a) Time-resolved PL spectra and (b) the deduced decay time for the investigated QD samples.

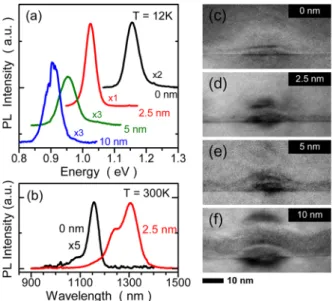

FIG. 1. (Color online) (a) The PL spectra measured at T¼ 12 K for the investigated QD samples. (b) The room-temperature PL spectra for the sam-ples witht¼ 0 and 2.5 nm. (c)–(f) The cross-sectional TEM images for the samples with different CL thicknesses.
