Preheating-temperature effect on structural and photoluminescent
properties of sol
–gel derived ZnO thin films
C.H. Chia
a,n, W.C. Tsai
a, W.C. Chou
ba
Department of Applied Physics, National University of Kaohsiung, Kaohsiung 81148, Taiwan bDepartment of Electrophysics, National Chiao Tung University, Hsinchu 30010, Taiwan
a r t i c l e i n f o
Article history:
Received 30 August 2013 Received in revised form 30 November 2013 Accepted 5 December 2013 Available online 14 December 2013 Keywords: ZnO Sol–gel Photoluminescence Exciton
a b s t r a c t
We investigated the evolution of structural and low-temperature photoluminescence properties of sol– gel derived ZnO thinfilms, as a function of heating temperature between 300 1C and 600 1C. The pre-heating crystallization plays an important role in the lineshape of PL spectra. The increase in pre-pre-heating temperature enables rearrangement of atoms at the pre-heating stage, leading to c-axis oriented growth offilms, modification in lineshape of impurity-defect emission, and reduction of deep-level emission intensity.
& 2013 Elsevier B.V. All rights reserved.
1. Introduction
ZnO thin films show a versatile combination of interesting optical, electrical and magnetic properties[1]. Consequently, this material has been attracting great attention due to its potential applications in ultra-violet optoelectronics devices[2,3], solar cells
[4], thinfilm transistors[5], gas sensors[6], and surface acoustic wave devices[7]and so on. In particular, wide band gap (3.37 eV) at room-temperature (RT) and large exciton binding energy (60 meV) [1] of ZnO enable the utilization of exciton-related transitions in ultra-violet light-emitting devices even at RT. It is therefore a promising semiconductor for photonics applications such as polariton lasers[8]and microcavity-based devices[9].
Sol–gel technique is much cheaper and easier to grow large area of ZnOfilms than much sophisticated techniques. The sol–gel derived ZnO thinfilms have already been realized in transparent p–n junction diodes[10]and transistors[4]. The ZnO-films synth-esis by sol–gel route includes three major steps: (i) solution preparation, (ii) coating and (iii) heat treatment. These three steps involve several parameters that influence the physical properties of the films. One of them is pre-heating temperature (Tph). The Tphis an important factor affecting the solvent
vapor-ization, decomposition of precursor-material, and crystallization process. Ohyama et al.[11]studied crystalline orientations of ZnO thinfilms, prepared by acetate solution, with Tphbetween 2001C
and 5001C. The authors found that Tph¼300 1C is the optimum
condition for preferred growth offilm with (0 0 2)-orientation. Kim et al.[12]also revealed that 2751C is the optimum Tphfor preferred
growth of film with (0 0 2)-orientation. Santos et al.[13], however, challenged low-Tphgrowth of ZnO thinfilm. The authors claimed that
highly c-axis oriented film has been obtained at Tph¼120 1C.
Although abundant literatures have been reported[11–16], the Tph
effect on low-temperature photoluminescence (PL) characteristics of sol–gel derived ZnO thin film is rarely studied. Moreover, to control the crystallization process at pre-heating stage, we adopted relatively high Tph, compared with the other studies[12–16]. For a large use of
sol–gel derived ZnO thin film for optoelectronic devices, a better understanding of the PL mechanisms in sol–gel ZnO thin film is necessary. Some literatures have reported the PL of sol–gel derived ZnO thinfilms[17–20]. However, neither of them discusses the Tph
-effect on the luminescent properties despite of this factor playing an important role in the crystallization of ZnO.
In this letter, we studied the evolution of PL from ZnO thinfilm grown by sol–gel spin-coating technique, as a function of Tph. The
focus of the present work is investigation of structural and PL proper-ties of the ZnO thinfilms. The emphasis has been given on the PL spectra of ZnO thinfilm, measured at low-temperature (T). We found that the low-T PL band of the ZnO thinfilms is characterized by the radiative recombination of donor-bound excitons and impurity-defect-related transitions. The latter transition is greatly influenced by the Tph.
2. Experimental details
The ZnO thin films were grown from aqueous solution pre-pared using zinc nitrate hexahydrate (Zn(NO3)2 6H2O) as the
Contents lists available atScienceDirect
journal homepage:www.elsevier.com/locate/jlumin
Journal of Luminescence
0022-2313/$ - see front matter& 2013 Elsevier B.V. All rights reserved. http://dx.doi.org/10.1016/j.jlumin.2013.12.006
nCorresponding author. Tel.:þ886 7 5919713; fax: þ886 7 5919357. E-mail address:[email protected] (C.H. Chia).
starting material, isopropanol as the solvent, and monoethanola-mine (MEA) as the stabilizer. The molar ratio of zinc nitrate to MEA was kept at 2:1 and the molar concentration of Zn2þis 0.3 mol/L. The precursor solution was mixed thoroughly with a magnetic stirrer at 501C for an hour until the formation of a homogenous and transparent sol, which was aged for 7 days at RT before the coating of thin films. The ZnO thin films were formed by spin-coating the sol solution on the sapphire substrate at 2000 rpm (revolutions per minute) for 15 s. After the spin-coating process, the samples were subjected to pre-heating treatment. Four samples treated at pre-heating temperature Tph¼300, 400, 500,
6001C for 10 min were grown. The procedure was repeated 10 times in order to obtain desired thickness. The samples were finally annealed in air atmosphere in a furnace at T¼600 1C for 2 h. Structural properties of the films were examined by X-ray diffraction method (XRD) using a monochromatized X-ray beam CuKαwith wavelength of 0.154 nm. Field-emission scanning
elec-tron microscopy (SEM) was employed to investigate the morpho-logical properties of the samples. The PL spectra were measured by a 32-cm-long monochromator and a charge-coupled device cam-era. The pump source for the low-excitation spectra was the 310 nm-line of Xenon lamp. The excitation power for the PL measurement was kept at 2 mW/cm2. A closed cycle refrigerator
was used to perform the T-dependent measurement.
3. Results and discussion

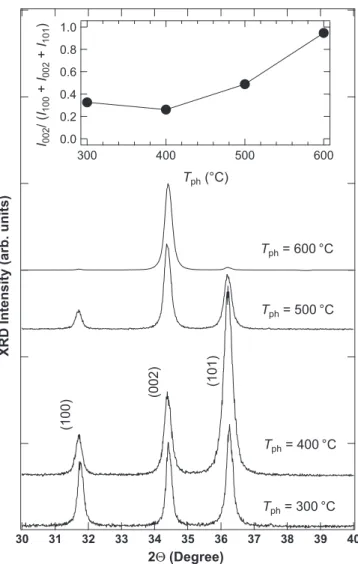

Fig. 1shows the XRD patterns of the ZnO thinfilms. The pattern suggests all of thefilms have hexagonal wurtzite structure. Three diffraction signals with peaks located at 31.71, 34.41 and 36.21 are attributable to (1 0 0), (0 0 2) and (1 0 1) diffraction, respectively
