Volume 2011, Article ID 357906,14pages doi:10.1155/2011/357906
Research Article
Complexity-Aware Quantization and Lightweight
VLSI Implementation of FIR Filters
Yu-Ting Kuo,
1Tay-Jyi Lin,
2and Chih-Wei Liu
11Department of Electronics Engineering, National Chiao Tung University, Hsinchu 300, Taiwan
2Department of Computer Science and Information Engineering, National Chung Cheng University, Chiayi 621, Taiwan
Correspondence should be addressed to Tay-Jyi Lin,[email protected]
Received 1 June 2010; Revised 28 October 2010; Accepted 4 January 2011 Academic Editor: David Novo
Copyright © 2011 Yu-Ting Kuo et al. This is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. The coefficient values and number representations of digital FIR filters have significant impacts on the complexity of their VLSI realizations and thus on the system cost and performance. So, making a good tradeoff between implementation costs and quantization errors is essential for designing optimal FIR filters. This paper presents our complexity-aware quantization framework of FIR filters, which allows the explicit tradeoffs between the hardware complexity and quantization error to facilitate FIR filter design exploration. A new common subexpression sharing method and systematic bit-serialization are also proposed for lightweight VLSI implementations. In our experiments, the proposed framework saves 49%∼51% additions of the filters with 2’s complement coefficients and 10%∼20% of those with conventional signed-digit representations for comparable quantization errors. Moreover, the bit-serialization can reduce 33%∼35% silicon area for less timing-critical applications.
1. Introduction
Finite-impulse response (FIR) [1] filters are important building blocks of multimedia signal processing and wire-less communications for their advantages of linear phase and stability. These applications usually have tight area and power constraints due to battery-life-time and cost (especially for high-volume products). Hence, multiplier-less FIR implementations are desirable because the bulky multipliers are replaced with shifters and adders. Various techniques have been proposed for reducing the number of additions (thus the complexity) through exploiting the computation redundancy in filters. Voronenko and Püschel [2] have classified these techniques into four types: digit-based encoding (such as canonic-signed-digit, CSD [3]), common subexpression elimination (CSE) [4–10], graph-based approaches [2,11–13], and hybrid algorithms [14,15]. Besides, the differential coefficient method [16–18] is also widely used for reducing the additions in FIR filters. These techniques are effective for reducing FIR filters’ complexities but they can only be applied after the coefficients have been quantized. In fact, the required number of additions strongly depends on the discrete coefficient values, and therefore
coefficient quantization should take the filter complexity into consideration.
In the literature, many works [19–29] have been pro-posed to obtain the discrete coefficient values such that the incurred additions are minimized. These works can be classified into two categories. The first one [19–23] is to directly synthesize the discrete coefficients by formulating the coefficient design as a mixed integer linear program-ming (MILP) problem and often adopts the branch and bound technique to find the optimal discrete values. The works in [19–23] obtain very good result; however, they require impractically long times for optimizing high-order filters with wide wordlengths. Therefore, some researchers suggested to first design the optimum real-valued coefficients and then quantize them with the consideration of filter com-plexity [24–29]. We call these approaches the quantization-based methods. The results in [24–29] show that great amount of additions can be saved by exploiting the scaling factor exploration and local search in the neighbor of the real-valued coefficients.
The aforementioned quantization methods [24–29] are effective for minimizing the complexity of the quantized coefficients, but most of them cannot explicitly control
the number of additions. If designers want to improve the quantization error with the price of exactly one more addition, most of the above methods cannot efficiently make such a tradeoff. Some methods (e.g., [19, 21, 22]) can control the number of nonzero digits in each coe ffi-cient, but not the total number of nonzero digits in all coefficients. Li’s approach [28] offers the explicit control over the total number of nonzero digits in all coefficients. However, his approach does not consider the effect of CSE and could only roughly estimate the addition count of the quantized coefficients, which thus might be suboptimal. These facts motivate the authors to develop a complexity-aware quantization framework in which CSE is considered and the number of additions can be efficiently traded for quantization errors. In the proposed framework, we adopt the successive coefficient approximation [28] and extend it by integrating CSE into the quantization process. Hence, our approach can achieve better filter quality with fewer additions, and more importantly, it can explicitly control the number of additions. This feature provides efficient tradeoffs between the filter’s quality and complexity and can reduce the design iterations between coefficient optimization and computation sharing exploration. Though the quantization methods in [27,29] also consider the effect
of CSE; however, their common subexpressions are limited to 101 and 101 only. The proposed quantization frame-work has no such limitation and is more comprehensible because of its simple structure. Besides, we also present an improved common subexpression sharing to save more additions and a systematic VLSI design for low-complexity FIR filters.
The rest of this paper is organized as follows. Sec-tion 2 briefly reviews some existing techniques that are adopted in our framework. Section3describes the proposed complexity-aware quantization as well as the improved com-mon subexpression sharing. The lightweight VLSI imple-mentation of FIR filters is presented in Section4. Section5
shows the simulation and experimental results. Section 6
concludes this work.
2. Preliminary
This section presents some background knowledge of the techniques that are exploited in the proposed complexity-aware quantization framework. These techniques include the successive coefficient approximation [28] and CSE optimizations [30].
2.1. Successive Coefficient Approximation. Coefficient
quan-tization strongly affects the quality and complexity of FIR filters, especially for the multiplierless implementation. Con-sider a 4-tap FIR filter with the coefficients: h0=0.0111011, h1 = 0.0101110, h2 = 1.0110011, and h3 = 0.0100110,
which are four fractional numbers represented in the 8-bit 2’s complement format. The filter output is computed as the inner product
yn=h0·xn+h1·xn−1+h2·xn−2+h3·xn−3. (1)
Additions and shifts can be substituted for the multiplica-tions as yn=xn»2 +xn»3 +xn»4 +xn»6 +xn»7 + xn−1»2 +xn−1»4 +xn−1»5 +xn−1»6 − xn−2+xn−2»2 +xn−2»3 +xn−2»6 +xn−2»7 +xn−3»2 +xn−3»5 +xn−3»6, (2)
where “»” denotes the arithmetic right shift with sign extension (i.e., equivalent to a division operation). Each filter output needs 16 additions (including subtractions) and 16 shifts. Obviously, the nonzero terms in the quantized coefficients determine the number of additions and thus the filter’s complexity.
Quantizing the coefficients straightforwardly does not consider the hardware complexity and cannot make a good tradeoff between quantization errors and filter complexities. Li et al. [28] proposed an effective alternative, which successively approximates the ideal coefficients (i.e., the real-valued ones) by allocating nonzero terms one by one to the quantized coefficients. Figure1(a)shows Li’s approach. The ideal coefficients (IC) are first normalized so that the maximum magnitude is one. An optimal scaling factor (SF) is then searched within a tolerable gain range (the searching range from 0.5 to 1 is adopted in [28]) to collectively settle the coefficients into the quantization space. For each SF, the quantized coefficients are initialized to zeros, and a signed-power-of-two (SPT) [28] term is allocated to the quantized coefficient that differs most from the correspondent scaled and normalized ideal coefficient (NIC) until a predefined budget of nonzero terms is exhausted. Finally, the best result with the optimal SF is chosen. Figure1(b)is an illustrating example of successive approximation when SF = 0.5. The approximation terminates whenever the differences between all ideal and quantized coefficient pairs are less than the precision (i.e., 2−w,w denotes the wordlength), because the quantization result cannot be improved anymore.
Note that the approximation strategy can strongly affect the quantization quality. We will show in Section 5 that approximation with SPT coefficients significantly reduces the complexity then approximation with 2’s complement coe ffi-cients. Besides, we will also show that the SPT coefficients have comparable performance to the theoretically optimum CSD coding. Hereafter, we use the approximation with SPT terms, unless otherwise specified.
2.2. Common Subexpression Elimination (CSE). Common
subexpression elimination can significantly reduce the com-plexity of FIR filters by removing the redundancy among the constant multiplications. The common subexpressions can be eliminated in several ways, that is, across coefficients (CSAC) [30], within coefficients (CSWC) [30], and across iterations (CSAI) [31]. The following example illustrates the elimination of CSAC. Consider the FIR filter example in (2). The h0 and h2 multiplications, that is, the first and
1: Normalize IC so that the maximum coefficient magnitude is 1
2: SF= lower bound
3: WHILE (SF< upper bound)
4: { Scale the normalized IC with SF
5: WHILE (budget>0 & the largest difference between QC & IC >2−w)
6: Allocate an SPT term to the QC that differs most from the scaled NIC
7: Evaluate the QC result
8: SF = SF + 2−w}
9: Choose the best QC result
(a)
IC= [0.26 0.131 0.087 0.011]
Normalized IC (NIC)= [1 0.5038 0.3346 0.0423], NF = max(IC) = 0.26 When SF= 0.5 Scaled NIC= [0.5 0.2519 0.1673 0.0212] QC 0= [0 0 0 0] QC 1= [0.5 0 0 0] QC 2= [0.5 0.25 0 0] QC 3= [0.5 0.25 0.125 0] QC 4= [0.5 0.25 0.15625 0] QC 5= [0.5 0.25 0.15625 0.015625] (b)
Figure 1: Quantization by successive approximation (a) algorithm (b) example.
0 0 1 1 0 1 1 0 0 1 0 1 1 0 0 0 1 0 1 1 0 0 0 0 0 1 0 0 0 0 0 1 0 1 1 1 0 0 0 1 0 0 1 1 0 0 0 1 1 0 0 1 1 b7 b6b5b4 b2b1b0 h0 h1 h2 h3 h0 h1 h2 h3 x0+x2 −1 0 1 1 1 1 0 b3 b7 b6b5b4b3b2b1b0 0 0 1 1 −1 0 0 0 0 0 0 0
Figure 2: CSAC extraction and elimination.
Restructuring (2) by first addingxnandxn−2eliminates the
redundant CSAC as yn=(xn+xn−2)»2 + (xn+xn−2)»3 + (xn+xn−2)»6 + (xn+xn−2)»7 + xn»4−xn−2 +xn−1»2 +xn−1»4 +xn−1»5 +xn−1»6 +xn−3 »2 +xn−3»5 +xn−3 »6, (3)
where the additions and shifts for an output are reduced to 13 and 12, respectively. The extraction and elimination of CSAC can be more concisely manipulated in the tabular form as depicted in Figure2.
On the other hand, bit-pairs with identical bit displace-ment within a coefficient or a CSAC term are recognized as CSWC, which can also be eliminated for computation reduction. For example, the subexpression in (3) can be simplified as (x02+x02»1)»2+(x02+x02»1)»6, wherex02stands
forxn+xn−2, to further reduce one addition and one shift.
The CSE quality of CSAC and CSWC strongly depends on the elimination order. A steepest-descent heuristic is applied
in [30] to reduce the search space, where the candidates with more addition reduction are removed first. One-level look-ahead is applied to further distinguish the candidates of the same weight. CSWC elimination is performed in a similar way afterwards because it incurs shift operations and results in intermediate variables with higher precision. Figure 3
shows the CSE algorithm for CSAC and CSWC [30]. It should be noted that an input datumxnis reused forL iterations in anL-tap direct-form FIR filter, which introduces another subexpression sharing [31]. For example,xn+xn−1+ xn−2+xn−3can be restructured as (xn+xn−1)+z−2·(xn+xn−1)
to reduce one addition, which is referred to as the CSAI elimination. However, implementing z−2 is costly because
the area of aw-bit register is comparable to a w-bit adder. Therefore, we do not consider CSAI in this paper.
Traditionally, CSE optimization and coefficient quantiza-tion are two separate steps. For example, we can first quantize the coefficients via the successive coefficient approximation and then apply CSE on the quantized coefficients. However, as stated in [21], such two-stage approach has an apparent drawback. That is, the successive coefficient approximation method may find a discrete coefficient set that is optimal in terms of the number of SPT terms, but it is not optimal in terms of the number of additions after CSE is applied. Moreover, designers cannot explicitly control the number of additions of the quantized filters during quantization. Combining CSE with quantization process can help designers find the truly low-complexity FIR filters but is not a trivial task. In the next section, we will present a complexity-aware quantization framework which seamlessly integrates the successive approximation and CSE together.
Eliminate zero coefficients
Merge coefficients with the same value (e.g. linear-phase FIR)
Construct a coefficient matrix of size N×W // N: # of coefficients for CSE, W: word-length WHILE (highest weight> 1) // CSAC elimination
{ Find the coefficient pair with the highest weight Update the coefficient matrix}
FOR each row in the coefficient matrix // CSWC elimination
{Find bit-pairs with identical bit displacement Extract the distances between those bit-pairs
Update the coefficient matrix and record the shift information} Output the coefficient matrix
Figure 3: CSE algorithm for CSAC and CSWC [30].
3. Proposed Complexity-Aware
Quantization Framework
In the proposed complexity-aware quantization framework, we try to quantize the real-valued coefficients such that the quantization error is minimized under a predefined addition budget (i.e., the allowable number of additions). The proposed framework adopts the aforementioned suc-cessive coefficient approximation technique [28], which, however, does not consider CSE during quantization. So, we propose a new complexity-aware allocation of nonzero terms (i.e., the SPT terms) such that the effect of CSE is considered and the number of additions can be accurately controlled. On the other hand, we also describe an improved common subexpression sharing to minimize the incurred additions for the sparse coefficient matrix with signed-digit representations.
3.1. Complexity-Aware FIR Quantization. Figure4(a)shows the proposed coefficient quantization framework, which is based on the successive approximation algorithm in Figure 1(a). However, the proposed framework does not simply allocate nonzero terms to the quantized coefficients until the addition budget is exhausted. Instead, we replace the fifth and sixth lines in Figure 1(a) with the proposed complexity-aware allocation of nonzero terms, which is depicted in Figure4(b).
The proposed complexity-aware allocation distributes the nonzero terms into the coefficient set with an exact addition budget (which represents the true number of additions), instead of the rough estimate by the number of nonzero terms. This algorithm maximizes the utilization of the predefined addition budget by trying to minimize the incurred additions in each iteration. Every time the allocated terms amount to the remnant budget, CSE is performed to introduce new budgets. The allocation repeats until no budget is available. Then, the zero-overhead terms are inserted by pattern-matching. Figure5shows an example of zero-overhead term insertion, in which the allocated nonzero term enlarges a common subexpression so no addition overhead occurs. In this step, the most significant term may be skipped if it introduces addition overheads. Moreover, allocating zero-overhead terms sometimes decreases the required additions, just as illustrated in Figure5. Therefore,
a queue is needed to insert more significant but skipped terms (i.e., with addition overheads) whenever a new budget is available as the example shown in Figure5. The already-allocated but less significant zero-overhead terms, which emulate the skipped nonzero term, are completely removed when inserting the more significant but skipped nonzero term.
Actually, the situation that the required additions decrease after inserting a nonzero term into the coefficients occurs more frequently due to the steepest-descent CSE heuristic. For example, if the optimum CSE does not start with the highest-weight pair, the heuristic cannot find the best result. Allocating an additional term might increase the weight of a coefficient pair and possibly alters the CSE order, which may lead to a better CSE result. Figure6shows such an example where the additions decrease after the insertion of an additional term. The left three matrices are the coefficients before CSE with the marked CSAC terms to be eliminated. The right coefficient matrix in Figure 6(a) is the result after CSAC elimination with the steepest-descent heuristic, where the CSWC terms to be eliminated are highlighted. This matrix requires 19 additions. Figure 6(b) shows the refined coefficient matrix with a new term allocated to the least significant bit (LSB) of h1, which reorders the CSE.
The coefficient set now needs only 17 additions. In other words, a new budget of two additions is introduced after the allocation. Applying the better CSE order in Figure6(b)for Figure6(a), we can find a better result before the insertion as depicted in Figure6(c), which also requires 17 additions. For this reason, the proposed complexity-aware allocation performs an additional CSE after the zero-overhead nonzero term insertion to check whether there exists a better CSE order. If a new budget is available and the skip queue is empty, the iterative allocation resumes. Otherwise, the previous CSE order is used instead.
Note that the steepest-descent CSE heuristic can have a worse result after the insertion, and the remnant budget may accidentally be negative (i.e., the number of additions exceeds the predefined budget). We save this situation by canceling the latest allocation and using the previous CSE order as the right-hand-side in Figure4(b). With the previous CSE order, the addition overhead is estimated with pattern matching to use up the remnant budget. It is similar to the zero-overhead insertion except that no queue
1: Normalize IC so that the maximum coefficient magnitude is 1
2: SF= lower bound
3: WHILE (SF< upper bound)
4: { Scale the normalized IC with SF
5: Perform the complexity-aware nonzero term allocation
6: Evaluate the QC result
7: SF = Min [SF×(|QD|+|coef|)/|coef|]}}
8: Choose the best QC result
(a)
Start
Allocate nonzero terms until the remnant budget
is used up CSE CSE Remnant budget? Remnant budget? Remnant budget? Zero-overhead
nonzero term insertion (with a skip queue)
End < 0 < 0 =0 =0 =0 > 0 > 0 > 0
Cancel the latest allocation
Nonzero term insertion with overhead estimation
by patten matching
Use the previous order
(b)
Figure 4: (a) Proposed quantization framework. (b) Complexity-aware nonzero term allocation.
1 1 0 1 0 0 0 1 1 1 1 0 0 0 0 0 0 0 0 0 1 h0 h1 h2 h3 h01 h012 h0123 h0 h1 h2 h3 h01 h012 h0123 Insert one SPT term P att er n mat ch
Figure 5: Insertion that reduces additions with pattern matching.
is implemented here. Note that the approximation stops, of course, whenever the maximum difference between each quantized and ideal coefficient pair is less than 2−w(w stands
for the wordlength), because the quantization result cannot improve anymore.
We also modify the scaling factor exploration in our pro-posed complexity-aware quantization framework. Instead of the fixed 2−w stepping (which is used in the algorithm of Figure1(a)) from the lower bound, the next scaling factor (SF) is calculated as next SF=min current SF×|QD||+|coef| coef| , (4) where |coef| denotes the magnitude of a coefficient and
|QD|denotes the distance to its next quantization level as the SF increases. Note that |QD| depends on the chosen approximation scheme (e.g., rounding to the nearest value, toward 0, or toward −∞, etc). To be brief, the next SF is the minimum value to scale the magnitude of an arbitrary coefficient to its next quantization level. Hence, the new SF exploration avoids the possibility of stepping through multiple candidates with identical quantization results or missing any candidate that has new quantization result.
1 1 1 1 0 1 0 0 0 0 0 0 1 0 0 0 0 1 0 0 1 0 0 1 1 1 1 1 0 0 1 1 1 1 1 0 1 1 1 0 1 0 0 0 0 0 0 1 1 1 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 1 0 0 1 0 0 0 1 1 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 0 0 1 0 0 1 1 1 1 0 1 0 0 0 0 0 0 0 0 0 1 0 0 1 0 1 0 0 0 0 0 0 h03 h23 h0 h1 h2 h3 h0 h1 h2 h3 −1 −1 −1 −1 (a) 1 1 1 1 0 1 0 0 0 0 0 0 1 0 1 0 0 1 0 0 1 0 0 1 1 1 1 1 0 0 1 1 1 1 1 0 1 1 1 0 1 0 0 0 0 0 0 1 1 1 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 1 0 0 0 1 1 0 0 0 0 0 0 0 0 1 0 1 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 1 1 1 0 0 1 0 0 1 0 1 0 0 0 0 1 0 0 0 0 0 1 0 1 0 0 0 0 0 0 0 h03 h01 h23 h0 h1 h2 h3 h0 h1 h2 h3 −1 −1 −1 (b) 1 1 1 1 0 1 0 0 0 0 0 0 1 0 0 0 0 1 0 0 1 0 0 1 1 1 1 1 0 0 1 1 1 1 1 0 1 1 1 0 1 0 0 0 0 0 0 1 1 1 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 1 0 0 1 0 0 0 1 1 0 0 0 0 0 0 0 0 1 0 1 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 0 0 1 0 0 1 0 1 0 0 0 0 1 0 0 0 0 0 1 0 1 0 0 0 0 0 0 0 h03 h01 h23 h0 h1 h2 h3 h0 h1 h2 h3 −1 −1 −1 (c)
Figure 6: Addition reduction after nonzero term insertion due to the CSE heuristic.
0 1 0 0 0 0 0 1 0 0 0 0 0 0 1 0 0 1 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 1 0 1 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 x0−x2 −1 −1 −1 −1 −1 −1 −1 −1 −1 −1 −1 −1 −1 −1 −1 −1 −1 −1 −1 −1 −1 −1 h0 h1 h2 h3 h0 h1 h2 h3 h0 h1 h2 h3 b7b6b5b4b3b2b1b0 b7b6b5b4b3b2b1b0 b7b6b5b4b3b2b1b0 (a) (b) x2−x31
Figure 7: (a) CSAC for signed-digit coefficients. (b) the proposed shifted CSAC (SCSAC).
0 0 0 0 1 0 0 0 0 0 1 0 1 1 1 0 0 0 0 0 0 0 0 0 0 1 0 0 1 1 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 1 0 0 0 0 0 1 0 0 0 0 0 1 0 1 1 1 0 0 0 0 0 0 0 0 0 0 1 0 0 1 1 0 0 0 1 1 0 0 1 1 −1 −1 h02 h0 h1 h2 h3 h0 h1 h2 h3 x0+x2 b7b6b5b4b3b2b1b0 b7b6b5b4b3b2b1b0 x02+x021

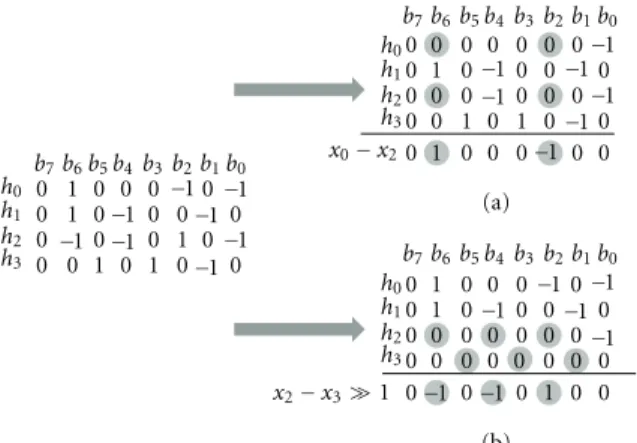

Figure 8: SCSAC notation of the CSWC of the example in Figure2.
The scaling factor is searched within a ±3 dB gain range (i.e., 0.7∼1.4 for a complete octave) to collectively settle the coefficients into the quantization space.
3.2. Proposed Shifted CSAC (SCSAC). Because few coe
ffi-cients have more than three nonzero terms after signed-digit encoding and optimal scaling, we propose the SCSAC elimination for the sparse coefficient matrices to remove the common subexpressions across shifted coefficients. Figure 7(a) shows an example of CSAC and Figure 7(b) shows the SCSAC elimination. The SCSAC terms are notated left-aligned with the other coefficient(s) right-shifted (e.g.,
x2−x3»1). The shift amount is constrained to reduce the
search space and more importantly—to limit the increased wordlengths of the intermediate variables. A row pair with SCSAC terms is searched only if the overall displacement is within the shift limit. Our simulation results suggest that
±2-bit shifts within a total 5-bit span are enough for most cases. Note that both CSAC and CSWC can be regarded as special cases of the proposed SCSAC. That is, CSAC is SCSAC with zero shifts, while CSWC can be extracted by self SCSAC matching with exclusive 2-digit patterns as shown in Figure8. The SCASC elimination not only reduces more additions, but also results in more regular hardware structures, which will be described in Section5. Hereafter, we apply the 5-bit span (±2-bit shifts) SCASC elimination only, instead of individually eliminating CSAC and CSWC.
0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 x2 −x0 a0 a1 Out + + + + + + + −1 −1 −1 −1 −1 −1 h0 h1 h2 h3 b7 b6 b5 b4 b3 b2 b1 b0 (a) (b) (c) x2−x31 x2−x31−x0 −x31 −x07 −x27 −x16 a15 −x13 a03 x11 −a11
Figure 9: (a) The coefficient matrix of the filter example described in Figure7, (b) the generator for subexpressions, and (c) the symmetric binary tree for remnant nonzero terms.
4. Lightweight VLSI Implementation
This section presents a systematic method of implement-ing area-efficient FIR filters from results of the proposed complexity-aware quantization. The first step is generating an adder tree that carries out the summation of nonzero terms in the coefficient matrix. Afterwards, a systematic algorithm is proposed to minimize the data wordlength. Finally, an optional bit-serialization flow is described to further reduce the area complexity if the throughput and latency constraints are no severe. The following will describe the details of the proposed method.
4.1. Adder Tree Construction. Figure 9(a) is the optimized coefficient matrix of the filter example illustrated in Figure7, where all SCSAC terms are eliminated. A binary adder tree for the common subexpressions is first generated as Figure9(b). This binary tree also carries out the data merging for identical constant multiplications (e.g., the symmetric coefficients for linear-phase FIR filters). A symmetric binary adder tree of depth log2N is then generated for the N nonzero terms in the coefficient matrix to minimize the latency. This step translates the “tree construction” problem into a simpler “port mapping” one. Nonzero terms with similar shifts are assigned to neighboring leaves to reduce the wordlengths of the intermediate variables. Figure9(c) shows the summation tree of the illustrating example.
Both adders and subtractors are available to implement the inner product, where the subtractors are actually adders with one input inverted and the carry-in “1” at the LSB (least significant bit). For both inputs with negative weights, such
as the topmost adder in Figure 9(c), the identity (−x) + (−y) = −(x + y) is applied to instantiate an adder instead of a subtractor. Graphically, this transformation corresponds to pushing the negative weights toward the tree root.
Similarly, the shifts can be pushed towards the tree root by moving them from an adder’s inputs to its output using the identity (x k) + (y k) = (x + y) k. The
transformation reduces the wordlength of the intermediate variables. The shorter variables either map to smaller adders or improve the roundoff error significantly in the fixed-wordlength implementations. But prescaling, on the other hand, is sometimes needed to prevent overflow, which is implemented as the shifts at the adder inputs. In this paper, we propose a systematic way to move the shifts as many as possible toward the root to minimize the wordlength, while still preventing overflow. First, we associate each edge with a “peak estimation vector (PEV)” [M N], where M is the maximum magnitude that may occur on that edge andN denotes the radix point of the fixed-point representation. The input data are assumed fractional numbers in the range [−1 1), and thus the maximum allowableM without overflow is one. The radix pointN is set as the shift amount of the corresponding nonzero term in the coefficient matrix. The PEV of an output edge can be calculated by following the three rules:
(1) “M divided by 2” can be carried out with “N minus 1”, and vice versa,
(2) the radix points should be identical before summa-tion or subtracsumma-tion,
[1 7] [1 7] [1 6] [0.625 3] [1 3] [0.75 2] [1 1] [0.625−1] x2 x0 x1 a1 x1 a0 x1 a1 + + + + + + + + + (−) (−) (−) (−) (−) (−) [1 6] [0.75 3] [0.625 1] [0.875−1] [1 0] [1 0] [1 1] x2 x3 x0 [0.75−1] a0 a1 [0.625−2] [0.875 3] [0.515625−2] Out [0.54296875−2] (a) x2 x2 x3 x0 x0 x1 a1 x1 a0 a0 x1 a1 a1 + + + + + + + + + >> 3 >> 3 >> 1 Out (−) (−) (−) (−) (−) (−) 1 1 1 2 1 2 3 2 2 5 (b)

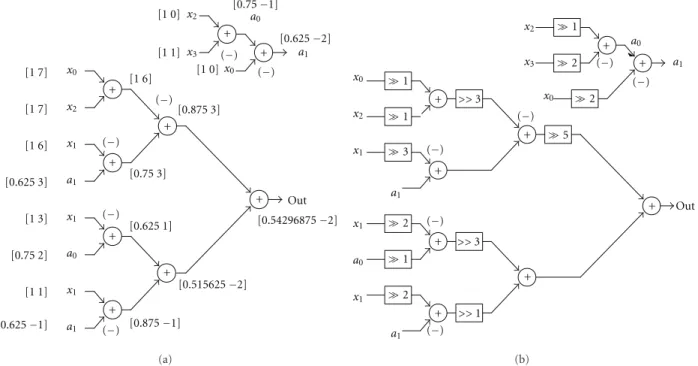

Figure 10: (a) Maximum value estimation while moving the negative weights toward the root using the identity (−x) + (−y)= −(x + y), and (b) the final adder tree.
For example, the output PEV of the topmost adder (a0) is
calculated as
Step (1) normalizex3to equalize the radix point, and
the input PEV becomes [0.5 0],
Step (2) sum the inputM together, and the output PEV now equals [1.5 0],
Step (3) normalize a0 to prevent overflow, and the
output PEV is [0.75 −1].
Finally, the shift amount on each edge of the adder tree is simply the difference of its radix point N from that of its output edge. Figure 10shows all PEV values and the final synchronous dataflow graph (SDFG) [3] of the previous example. Note that the proposed method has similar effect to the PFP (pseudo-floating-point) technique described in [32]. However, PFP only pushes the single largest shift to the end of the tree whereas the proposed algorithm pushes all the shifts in the tree wherever possible toward the end.
For full-precision implementations, the wordlength of the input variables (i.e., the input wordlength plus the shift amount) determines the adder size. Assume all the input data are 16 bits. The a0 adder (the top-most one in
Figure 10(b)), which subtracts the 18-bit sign-extended x3
from the 17-bit sign-extended x2, requires 18 bits. Finally,
if the output PEV of the root adder has a negative radix point (N), additional left shifts are required to convert the output back to a fractional number. Because the proposed PEV algorithm prescales all intermediate values properly, overflow is impossible inside the adder tree and can be suitably handled at the output. In our implementations, the overflow results are saturated to the minimum or the maximum values. x 1 1 x (−) (-) 3d d d d d d x7 x6 x5 x4 x3 x2 x1 x0 y7 y7 y7 y7 y6 y5 y4 y3 a b s x y ci co + + + + (a) (b) (c) y3 y3
Figure 11: Addition with a shifted input: (a) word-level notation, (b) bit-serial architecture (c) equivalent model.
After instantiating adders with proper sizes and the saturation logic, translating the optimized SDFG into the synthesizable RTL (register transfer level) code is a straightforward task of one-by-one mapping. If the system throughput requirement is moderate, bit-serialization is an attractive method for further reducing the area complexity and will be described in the following.
4.2. Bit-Serialization. Bit-serial arithmetic [33–37] can fur-ther reduce the silicon area of the filter designs. Figure11
illustrates the bit-serial addition, which adds one negated input with the other input shifted by 3 bits. The arithmetic right shift (i.e., with sign extension) by 3 is equivalent to the division of 23. The bit-serial adder has a 3-cycle
input-to-output latency that must be considered to synthesize a functionally correct serial architecture. Besides, the bit-serial architecture with wordlength w takes w cycles to
Pa ra ll el to se ri al (P/S) con ve rsion x(n) x(n−1) . . . Adder tree Serial to parallel (P/S) conversion y(n) Saturation logic x0 x0 x1 x1 x1 x2 x2 x3 wl + 1 wl + 1 wl + 1 wl wl wl wl + 3 wl + 3 wl + 3 wl + 3 wl + 2 wl + 2 wl + 2 wl + 4 wl + 4 wl + 4 d d d d d d d d d d d d d d d d d d d d d d d d d d d d 2d 2d 2d 2d 2d 3d 3d 7d 6d 1 1 1 1 1 0 0 0 1 + wl + 5 wl + 4 wl + 5 wl + 6 wl + 6 wl + 6 wl + 7 wl + 7 wl + 8 wl + 9 wl + 9 wl + 8 wl + 8 wl + 7 wl + 11 wl + 12 wl + 13 wl + 14 wl + 15 wl + 10 wl + 16 4d 4d l=0, 1, 2,· · · Out + + + + + + + + x(n−L + 1) (a) (b) w: wordlength
Figure 12: (a) Bit-serial FIR filter architecture (b) Serialized adder tree of the filter example in Figure10(b).
compute each sample. Therefore, the described bit-serial implementation is only suitable for those non-timing-critical applications. If the timing specification is severe, the word-level implementation (such as the example in Figure10) is suggested.
Figure 12(a) is the block diagram of a bit-serial direct-form FIR filter withL taps. It consists of a parallel to serial converter (P/S), a bit-serialized adder tree for inner product with constant coefficients, and a serial to parallel converter (S/P) with saturation logic. We apply a straightforward approach to serialize the word-level adder tree (such as the example in Figure10) into a bit-serial one. Our method treats the word-level adder tree as a synchronous data flow graph (SDFG [3]) and applies two architecture transformation techniques, retiming [38,39] and hardware slowdown [3], for serialization. The following four steps detail the bit-serialization process.
(1) Hardware Down [3]. The first step is to slow down the
SDFG by w (w denotes the wordlength) times. This step replaces each delay element by w cascaded flip-flops and lets each adder takew cycles to complete its computation. Therefore, we can substitute those word-level adders with the bit-serial adders shown in Figure11(b).
(2) Retiming [38,39] for Internal Delay. Because the latencies
of the bit-serial adders are modeled as internal delays, we need to make each adder has enough delay elements in its output. Therefore, we perform the ILP-based (integer
linear programming) retiming [38], in which the require-ment of internal delays is model as ILP constraints. After retiming the SDFG, we can merge the delays into each adder node to obtain the abstract model of bit-serial adders.
(3) Critical Path Optimization. Since the delay elements in a bit-serial adder are physically located at different locations from the output registers that are shown in the abstract model. Therefore, additional retiming for critical path minimization may be required. In this step we use the systematic method described in [3] to retime the SDFG for a predefined adder-depth or critical-path constraints.
(4) Control Signal Synthesis. After retiming for the serialization, we synthesize the control signals for the bit-serial adders. Each bit-bit-serial adder needs control signals to start by switching the carry-in (to “0” or “1” at LSB, for add and subtract, resp.) and to sign-extend the scaled operands. This is done by graph traversal with the depth-first-search (DFS) algorithm [40] to calculate the total latency from the input node to each adder. Because the operations are w-cyclic (w denotes the wordlength), the accumulated latency along the two input paths of an adder will surely be identical with modulo w. Note that special care must be taken to reset the flip-flops on the inverted edges of the subtractor input to have zero reset response. Figure 12(b) illustrates the final bit-serial architecture of the FIR filter example in Figure10(b).

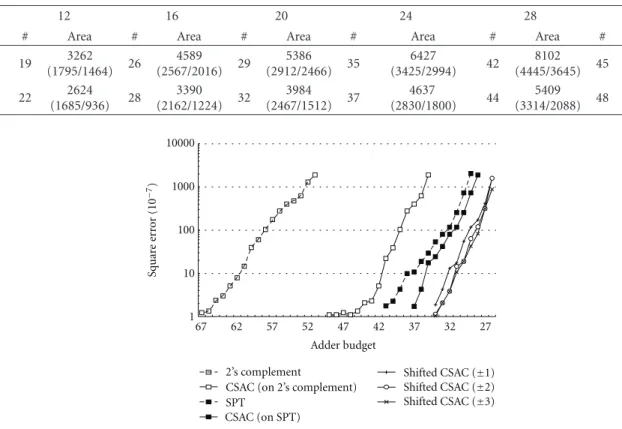

Table 1: Comparison of±2-bit SCSAC and the MCM-based RAG-n [11].
TAP 12 16 20 24 28 32
# Area # Area # Area # Area # Area # Area
RAG-n 19 3262 (1795/1464) 26 4589 (2567/2016) 29 5386 (2912/2466) 35 6427 (3425/2994) 42 8102 (4445/3645) 45 8718 (4611/4095) SCSAC 22 2624 (1685/936) 28 3390 (2162/1224) 32 3984 (2467/1512) 37 4637 (2830/1800) 44 5409 (3314/2088) 48 6036 (3651/2376) 1 10 100 1000 10000 67 62 57 52 47 42 37 32 27 Adder budget Squar e er ro r (10 − 7) 2’s complement
CSAC (on 2’s complement) SPT
CSAC (on SPT)
Shifted CSAC (±1) Shifted CSAC (±2) Shifted CSAC (±3)
Figure 13: Performance of the proposed complexity-aware quantization.
5. Simulation and Experimental Results
5.1. Effectiveness of SCSAC. We first compare the proposed
SCSAC elimination with RAG-n [11], which stands for a representative computation complexity minimization tech-nique of FIR filters. The ideal coefficients are synthesized using the Parks-McClellan’s algorithm [41] and represented in the IEEE 754 double-precision floating-point format. The passband and the stopband frequencies are at 0.4π and 0.6π, respectively. The coefficients are then quantized to the nearest 12-bit fractional numbers, because the complexity of the RAG-n algorithm is impractical for longer wordlengths [11]. The proposed SCSAC elimination depends on the coefficient representation, and therefore the 12-bit quantized coefficients are first CSD-recoded. RAG-n always has fewer additions than the±2-bit SCSAC elimination as shown in Table1. In order to have the information on implementation complexity, full-precision and nonpipelined SDFG are then constructed (see Section4) from the coefficients after CSE.
The filters are synthesized using Synopsys Design Compiler with the 0.35μm CMOS cell library under a fairly loose 50-ns cycle-time co50-nstraint and optimized for area only. The area estimated in the equivalent gate count is shown beside the required number of additions in Table1. The combina-tional and noncombinacombina-tional parts are listed in parentheses, respectively. Although RAG-n requires fewer additions, the proposed SCSAC has smaller area complexity because RAG-n applies oRAG-nly oRAG-n the traRAG-nsposed-form FIR filters with the MCM (multiple constant multiplications) structure,
which requires higher-precision intermediate variables and increases the silicon area of both adders and registers. Note we do not use bit-serialization when comparing our results with RAG-n.
5.2. Comparison of Quantization Error and Hardware Com-plexity. In order to demonstrate the “complexity awareness”
of the proposed framework, we first synthesize the coeffi-cients of a 20-tap linear-phase FIR filter using the Parks-McClellan’s algorithm [41]. The filter’s pass and the stop frequencies are 0.4π and 0.6π, respectively. These real-valued coefficients are then quantized with various approximation strategies. An optimal scaling factor is explored from 0.7 to 1.4 for a complete octave about±3 dB gain tolerance during the quantization. The search range is complete because the quantization results repeat for a power-of-two factor. Figure 13 displays the quantization results. The two dash lines show the square errors versus the predefined addition budgets without CSE for the 2’s complement (left) and SPT (right; the Li’s method [28]) quantized coefficients. In
other words, these two dash lines represent the coefficients quantized with pure successive approximation, in which no complexity-aware allocation or CSE was applied. The allocated nonzero terms are thus the given budget plus one. For comparable responses, the nearest approximation with SPT reduces 37.88% ∼ 43.14% budgets of the results of approximation with 2’s complement coefficients. This saving is even greater than the 29.1% ∼ 33.3% by performing CSE on the 2’s complement coefficients, which is shown as
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 1 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 0 0 0 0 0 0 0 0 0 0 0 1 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 0 0 0 0 0 0 0 0 0 1 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 1 0 1 0 0 0 0 0 0 0 0 0 0 1 0 1 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 0 0 0 0 0 0 1 0 0 1 0 0 1 0 1 0 0 0 h0 h1 h2 h3 h4 h5 h6 h7 h8 h9 h10 h11 h12 h13 h0 h1 h2 h3 h4 h5 h6 h7 h8 h9 h10 h11 h12 h13 −1−1 −1 −1 −1 −1 −1 −1 −1 −1 −1 −1 −1 −1 −1 −1 x9+x51 −(x9+x51) +x12 x8+x22 (x9+x51−x12) +x13
Figure 14: Quantization result of a 28-tap low-pass FIR filter.
Table 2: Quantization error comparison.
SCSAC (±0) SCSAC (±2)
taps # CSD+CSE∗ Proposed∗ # CSD + CSE∗ Proposed∗
12 23 8.817235 2.727223 21 5.084159 2.727223 16 31 6.773190 3.696292 28 5.209612 3.835811 20 39 5.645929 4.975382 33 17.641685 15.349970 24 44 11.626458 20.547154 40 9.803638 17.781817 28 53 18.317564 8.483186 48 7.218225 20.590703 32 57 20.067199 15.768930 52 23.353057 17.632664
∗square error in the unit of 10−10.
Table 3: Comparison of different quantization approaches.
Algorithm # tap w NPRM (dB) # SPT # ADD
Li et al. [28] 28 12 −50.35 60 —
Chen and Willson [27] 28 11 −50.12 60 40
Xu [29] 28 12 −50.05 62 32
Proposed 28 12 −50.21 66 38
28 10 −49.78 56 32
the solid line between [42]. CSE also saves the additions of SPT coefficients, but with much less significant reduction. As shown in the figure, the two curves almost go in parallel as the budget decreases, which indicates that no more shared subexpressions are extracted and eliminated [43]. Finally, the rightmost three curves are results from our complexity-aware quantization with the proposed SCSAC elimination. Different amount of shift limits are applied to show that SCSAC with±2 shifts is enough. For comparable responses, the proposed SCSAC saves 10.34%∼19.51% budgets of the SPT coefficients, while reducing 49.06%∼ 50.94% budgets of the 2’s complement case. Figure13clearly demonstrates that the proposed quantization framework can precisely trade the complexity for quantization errors with the fine stepping of a single addition.
Table 2 summarizes the square errors of different taps of FIR filters for demonstrating the performance of
the proposed approach. The coefficients are generated using the Parks-McClellan’s algorithm with the same pass and the stop frequencies. We first convert quantized results (using straightforward quantization with 16 fractional bits) into CSD representations and apply CSE to reduce the additions. An optimal scaling factor is applied on the CSD coefficients for fair comparison. The second and the fifth columns list the minimum number of additions of all scaled coefficient sets with the ±0 and ±2 SCSAC elimination, respectively. These numbers are used as addition budgets for our complexity-aware quantization algorithms. The fourth and sixth columns show the quantization errors of the proposed algorithm. As shown in the table, our approach outperforms in most cases because of the direct control over the additions and the zero-overhead SPT allocation. Beside, the results show that approximation using SPT coefficients has comparable coding performance with CSD.
Table 3 compares the quantization results of the pro-posed framework and other methods. We first generate the ideal coefficients for a 28-tap low-pass FIR filter using Parks-McClellan’s algorithm. The stopband and passband frequencies are set at 0.3π and 0.5π, respectively. Besides, the stopband and passband ripples have equal weightings. We then quantize the ideal coefficient with 12-bit wordlength to achieve−50 dB normalized peak ripple magnitude (NPRM [19]). The fifth column of Table 3 shows the number of SPT terms in the quantized coefficients and the sixth column shows the required additions after CSE being applied. Note that the third column shows the wordlength (w) of the quantized coefficients. The proposed method requires 38 additions to achieve−50.21 dB NPRM. This is because the proposed method tries to minimize the square error (between the quantized and ideal coefficients) but not NPRM. In fact, modifying the proposed complexity-aware allocation such that NPRM is minimized is possible and should be able to improve the results. However, it is interesting to note that our method still can achieve−49.78 NPRM (which is still comparable to other algorithms’ results) when only using 32 additions. Figure14shows this
0 4 8 12 16 20 42-tap (bit-parallel) (bit-parallel) 42-tap (bit-serial) (bit-serial) 62-tap 62-tap
Adder tree (computational elements) P/S + S/P (delay-line registers) Gat e count ( × 1, 000)
Figure 15: Area reduction of bit-serialization.
quantization result (the left shows the quantized coefficients and the right shows the coefficient matrix after CSE being applied). Because of the symmetry of the coefficients, only the first half coefficients are given. This complexity is smaller than other works except [29]. Nevertheless, the method in [29] only considers common subexpression pattern 101 and 101. So, our method should be able to find better results for high-order filters, in which the higher-weighting common subexpression patterns are more likely to present. Besides, the proposed method can accurately control the number of addition in filters, so efficient and fine-grain tradeoff between filters’ qualities and complexities is possible, just as demonstrated in Figure13.
5.3. Evaluation of Bit-Serialization. For less timing-critical
applications, the proposed bit-serialization by retiming can effectively reduce the silicon area. We design a 42-tap and a 62-tap low-pass FIR filter and synthesize their bit-serial architectures, including P/S, the adder tree, and S/P with saturation logic using Synopsys Design Compiler with 0.35μm CMOS cell library. Figure 15 shows the areas of the bit-serial and bit-parallel implementations for the 42-tap and 62-42-tap filters. The bit-serialization mainly reduces the adder tree’s area so the delay-line registers’ area changes not much. Our results show that bit-serialization saves 58% and 53% areas of the adder trees, which turns into 35% and 33% saving on the overall areas, for the 42-tap and 62-tap filter examples, respectively. Note that the bit-serial implementations are retimed with adder depth five and the synthesis timing constraint is 8ns. However, the filters may need to be retimed with shorter adder depths to meet stricter timing constraints. For example, we have to retime the bit-serial filters with adder dept one for a 3 ns timing constraint.
6. Conclusions
This paper presents the complexity-aware quantization framework of FIR filters. We adopt three techniques for minimizing the FIR filters’ complexity, that is, signed-digit coefficient encoding, optimal scaling factor exploration, and
common subexpression elimination (CSE). The proposed framework seamlessly integrates these three techniques with the successive coefficient approximation approach such that designers can explicitly control the number of additions of FIR filters. The simulation result shows that our approach provides a smooth tradeoff between the quantization errors and filter complexities. Besides, we also propose an improved common subexpression sharing for sparse coefficient matri-ces to save more additions. The proposed quantization framework saves 49.06%∼50.94% additions of the quan-tization results simply using 2’s complement coefficient for comparable filter responses. Moreover, under the same con-straints of required additions, our method has comparable performance to the optimally scaled results using canonic signed digits (CSD) encoding, which has the theoretically minimum nonzero terms. By the way, it outperforms CSD in most cases because of the direct control over the number of additions and the insertion of zero-overhead terms.
For area-efficient implementations, the proposed frame-work incorporates a systematic algorithm to minimize the wordlengths of the intermediate variables by pushing as many shifts as possible toward the root of the adder tree while still preventing overflow. The shorter wordlengths either result in smaller adders and registers or reduce the roundoff error in fixed-wordlength implementations. We also describe the synthesis of bit-serial FIR filters by retiming to further reduce the silicon area for less timing-critical applications. The simulation result shows the area efficiency of various adder depths under different timing constraints and indicates that 32.99% ∼ 34.97% silicon areas can be saved by bit-serialization. Note that although we only discuss the hardwired implementations in this paper, the proposed complexity-aware quantization algorithm can be easily adapted to other implementation styles, such as the multiplier-less FIR filters on programmable processors.
Acknowledgments
This research was supported by the National Science Council under Grants 009-057 and NSC99-2220-E-009-0140. The authors would like to thank David Novo and the anonymous reviewers for their helps on improving this paper.
References
[1] A. V. Oppenheim, R. W. Schafer, and J. R. Buck,
Discrete-Time Signal Processing, Prentice Hall, New York, NY, USA, 2nd
edition, 1999.
[2] Y. Voronenko and M. Püschel, “Multiplierless multiple con-stant multiplication,” ACM Transactions on Algorithms, vol. 3, no. 2, Article ID 1240234, pp. 1–39, 2007.
[3] K. K. Parhi, VLSI Digital Signal Processing Systems—Design
and Implementation, John Wiley & Sons, New York, NY, USA,
1999.
[4] M. Potkonjak, M. B. Srivastava, and A. P. Chandrakasan, “Multiple constant multiplications: efficient and versatile framework and algorithms for exploring common subex-pression elimination,” IEEE Transactions on Computer-Aided
[5] R. I. Hartley, “Subexpression sharing in filters using canonic signed digit multipliers,” IEEE Transactions on Circuits and
Systems II, vol. 43, no. 10, pp. 677–688, 1996.
[6] R. Pasko, P. Schaumont, V. Derudder, S. Vernalde, and D. Durackova, “A new algorithm for elimination of common subexpressions,” IEEE Transactions on Computer-Aided Design, vol. 18, no. 1, pp. 58–68, 1999.
[7] M. Martínez-Peiró, E. I. Boemo, and L. Wanhammar, “Design of high-speed multiplierless filters using a nonrecursive signed common subexpression algorithm,” IEEE Transactions on
Circuits and Systems II, vol. 49, no. 3, pp. 196–203, 2002.
[8] C. Y. Yao, H. H. Chen, T. F. Lin, C. J. Chien, and C. T. Hsu, “A novel common-subexpression-elimination method for synthesizing fixed-point FIR filters,” :IEEE Transactions on
Circuits and Systems I: Regular Papers, vol. 51, no. 11, pp. 2215–
2221, 2004.
[9] C. H. Chang, J. Chen, and A. P. Vinod, “Information theoretic approach to complexity reduction of FIR filter design,” IEEE
Transactions on Circuits and Systems I: Regular Papers, vol. 55,
no. 8, pp. 2310–2321, 2008.
[10] F. Xu, C. H. Chang, and C. C. Jong, “Contention resolution—a new approach to versatile subexpressions sharing in multiple constant multiplications,” IEEE Transactions on Circuits and
Systems I: Regular Papers, vol. 55, no. 2, pp. 559–571, 2008.
[11] A. G. Dempster and M. D. Macleod, “Use of minimum-adder multiplier blocks in FIR digital filters,” IEEE Transactions on
Circuits and Systems II, vol. 42, no. 9, pp. 569–577, 1995.
[12] D. B. Bull and D. H. Horrocks, “Primitive operator digital filters,” IEE Proceedings, Circuits, Devices and Systems, vol. 138, no. 3, pp. 401–412, 1991.
[13] H. J. Kang, “FIR filter synthesis algorithms for minimizing the delay and the number of adders,” IEEE Transactions on Circuits
and Systems II, vol. 48, no. 8, pp. 770–777, 2001.
[14] H. Choo, K. Muhammad, and K. Roy, “Complexity reduction of digital filters using shift inclusive differential coefficients,”
IEEE Transactions on Signal Processing, vol. 52, no. 6, pp. 1760–
1772, 2004.
[15] Y. Wang and K. Roy, “CSDC: a new complexity reduction technique for multiplierless implementation of digital FIR filters,” IEEE Transactions on Circuits and Systems I: Regular
Papers, vol. 52, no. 9, pp. 1845–1853, 2005.
[16] S. Ramprasad, N. R. Shanbhag, and I. N. Hajj, “Decorrelating (DECOR) transformations for low-power digital filters,” IEEE
Transactions on Circuits and Systems II, vol. 46, no. 6, pp. 776–
788, 1999.
[17] T. S. Chang, Y. H. Chu, and C. W. Jen, “Low-power FIR filter realization with differential coefficients and inputs,” IEEE
Transactions on Circuits and Systems II, vol. 47, no. 2, pp. 137–
145, 2000.
[18] A. P. Vinod, A. Singla, and C. H. Chang, “Low-power differ-ential coefficients-based FIR filters using hardware-optimised multipliers,” IET Circuits, Devices and Systems, vol. 1, no. 1, pp. 13–20, 2007.
[19] Y. C. Lim, “Design of discrete-coefficient-value linear phase FIR filters with optimum normalized peak ripple magnitude,”
IEEE Transactions on Circuits and Systems, vol. 37, no. 12, pp.
1480–1486, 1990.
[20] O. Gustafsson and L. Wanhammar, “Design of linear-phase FIR filters combining subexpression sharing with MILP,” in
Proceedings of the 45th Midwest Symposium on Circuits and Systems, pp. III9–III12, August 2002.
[21] Y. J. Yu and Y. C. Lim, “Design of linear phase FIR filters in subexpression space using mixed integer linear program-ming,” IEEE Transactions on Circuits and Systems I: Regular
Papers, vol. 54, no. 10, pp. 2330–2338, 2007.
[22] J. Yli-Kaakinen and T. Saramäki, “A systematic algorithm for the design of multiplierless FIR filters,” in Proceedings of
the IEEE International Symposium on Circuits and Systems (ISCAS ’01), pp. 185–188, May 2001.
[23] M. Aktan, A. Yurdakul, and G. Dündar, “An algorithm for the design of low-power hardware-efficient FIR filters,” IEEE
Transactions on Circuits and Systems I: Regular Papers, vol. 55,
no. 6, pp. 1536–1545, 2008.
[24] R. Jain, G. Goossens, L. Claesen et al., “CAD tools for the optimized design of VLSI wave digital filters,” in Proceedings
of the IEEE International Conference on Acoustics, Speech, and Signal Processing (ICASSP ’85), pp. 1465–1468, Tampa, Fla,
USA, March 1985.
[25] H. Samueli, “Improved search algorithm for the design of multiplierless FIR filters with powers-of-two coefficients,”
IEEE Transactions on Circuits and Systems, vol. 36, no. 7, pp.
1044–1047, 1989.
[26] D. A. Boudaoud and R. Cemes, “Modified sensitivity criterion for the design of powers-of-two FIR filters,” Electronics Letters, vol. 29, no. 16, pp. 1467–1469, 1993.
[27] C. L. Chen and A. N. Willson, “A trellis search algorithm for the design of FIR filters with signed-powers-of-two coefficients,” IEEE Transactions on Circuits and Systems II:
Analog and Digital Signal Processing, vol. 46, no. 1, pp. 29–39,
1999.
[28] D. Li, Y. C. Lim, Y. Lian, and J. Song, “A polynomial-time algorithm for designing FIR filters with power-of-two coefficients,” IEEE Transactions on Signal Processing, vol. 50, no. 8, pp. 1935–1941, 2002.
[29] F. Xu, C. H. Chang, and C. C. Jong, “Design of low-complexity FIR filters based on signed-powers-of-two coefficients with reusable common subexpressions,” IEEE Transactions on
Computer-Aided Design, vol. 26, no. 10, pp. 1898–1907, 2007.
[30] M. Mehendale and S. D. Sherlekar, LSI Synthesis of
DSP Kernels—Algorithmic and Architectural Transformations,
Kluwer Academic, Boston, Mass, USA, 2001.
[31] Y. Jang and S. Yang, “Low-power CSD linear phase FIR filter structure using vertical common sub-expression,” Electronics
Letters, vol. 38, no. 15, pp. 777–779, 2002.
[32] A. P. Vinod and E. M. K. Lai, “Low power and high-speed implementation of FIR filters for software defined radio receivers,” IEEE Transactions on Wireless Communications, vol. 5, no. 7, Article ID 1673078, pp. 1669–1675, 2006.
[33] P. B. Denyer and D. Renshaw, VLSI Signal Processing—A
Bit-Serial Approach, Addison-Wesley, Reading, Mass, USA, 1985.
[34] R. Jain, F. Catthoor, J. Vanhoof et al., “Custom design of a VLSI PCM-FDM transmultiplexor from system specifications to circuit layout using a computer aided design system,” IEEE
Transactions on Circuits and Systems, vol. 33, no. 2, pp. 183–
195, 1986.
[35] R. I. Hartley and J. R. Jasica, “Behavioral to structural translation in a bit-serial silicon compiler,” IEEE Transactions
on Computer-Aided Design, vol. 7, no. 6, pp. 877–886, 1988.
[36] K. K. Parhi, “A systematic approach for design of digit-serial signal processing architectures,” IEEE Transactions on Circuits
and Systems, vol. 38, no. 4, pp. 358–375, 1991.
[37] H. de Man, L. Claesen, J. van Ginderdeuren, and L. Darcis, “A structured multiplier-free digital filter building block for LSI implementation,” in Proceedings of the European Conference on
[38] C. E. Leiserson and J. B. Saxe, “Retiming synchronous circuitry,” Algorithmica, vol. 6, no. 1, pp. 5–35, 1991.
[39] L. Claesen, H. DeMan, and J. Vandewalle, “Delay management algorithms for digital filter implementations,” in Proceedings
of the 6th European Conference on Circuit Theory and Design (ECCTD ’83), pp. 479–482, 1983.
[40] T. H. Cormem, C. E. Leiserson, R. L. Rivest, and C. Stein,
Introduction to Algorithms, MIT Press, Cambridge, Mass, USA,
2nd edition, 2001.
[41] J. H. McClellan, T. W. Parks, and L. R. Rabiner, “A computer program for designing optimum FIR linear phase digital filters,” IEEE Transactions on Audio and Electroacoustics, vol. 21, no. 6, pp. 506–526, 1973.
[42] T. J. Lin, T. H. Yang, and C. W. Jen, “Area-effective FIR filter design for multiplier-less implementation,” in Proceedings of
the IEEE International Symposium on Circuits and Systems (ISCAS ’03), vol. 5, pp. V173–V176, 2003.
[43] T. J. Lin, T. H. Yang, and C. W. Jen, “Coefficient optimization for area-effective multiplier-less FIR filters,” in Proceedings of
the International Conference on Multimedia and Expo, pp. 125–
![Table 1: Comparison of ± 2-bit SCSAC and the MCM-based RAG-n [ 11 ].](https://thumb-ap.123doks.com/thumbv2/9libinfo/7527790.119507/10.900.129.752.129.558/table-comparison-bit-scsac-mcm-based-rag-n.webp)
