異質雙核心嵌入式即時系統之有效低能源消耗排程演算法

國

立

交

通

大

學

網路工程研究所

碩

士

論

文

異質雙核心嵌入式即時系統之

有效低能源消耗排程演算法

An Efficient Low Power Scheduling for Heterogeneous Dual-Core

Embedded Real-Time Systems

研 究 生：林柏君

指導教授：王國禎 教授

異質雙核心嵌入式即時系統之有效低能源消耗排程演算法

An Efficient Low Power Scheduling for

Heterogeneous Dual-Core Embedded Real-Time Systems

研 究 生：林柏君 Student：Pochun Lin

指導教授：王國禎 Advisor：Kuochen Wang

國 立 交 通 大 學

資 訊 學 院

網 路 工 程 研 究 所

碩 士 論 文

Submitted to Institute of Network Engineering College of Computer Science

National Chiao Tung University in Partial Fulfillment of the Requirements

for the Degree of Master

in

Computer Science June 2008

i

異質雙核心嵌入式即時系統之

有效低能源消耗排程演算法

學生：林柏君

指導教授：王國禎 博士

國立交通大學 資訊學院 網路工程研究所

摘 要

近年來，異質雙核心嵌入式即時系統，如個人數位助理及手機越來

越受到歡迎。為了達到即時以及低能源的耗損，低能源消耗排程成為一個

值得重視的研究課題。大多數現有低能源消耗排程的動態電壓調整演算

法，其目標多在單一 CPU 或是在同質性的多核心系統上。本論文中，在

異質性的雙核心嵌入式即時系統上，我們提出一個較長共同執行時間

(LCET)演算法，以適用在具動態電壓調整能力的異質雙核心。本演算法包

含兩個階段：第一，運用所提出的排班演算法來縮短在異質雙核心嵌入式

即時系統上的工作總執行時間；第二，我們更進一步探討利用縮短過後的

總執行時間來調整電壓及頻率以達到低能量的耗損。模擬結果顯示，相較

於 Kim et al. 方法，在使用(不使用)動態電壓調整之下，我們所提出的方

法分別在可插隊的 LCET (P-LCET)及不可插隊的 LCET (NP-LCET)，各節

省了 8%及 16% ~ 25% (13%及 33% ~ 38%)的總能量耗損。

關鍵詞：動態電壓調整，嵌入式即時系統，異質雙核心，低能源消耗排程，

總執行時間。

iii

An Efficient Low Power Scheduling for

Heterogeneous Dual-Core Embedded

Real-Time Systems

Student: Pochun Lin Advisor: Dr. Kuochen Wang

Department of Computer Science National Chiao Tung University

Abstract

In recent years, heterogeneous dual-core embedded real-time systems, such as personal digital assistants (PDAs) and cellular phones, have become more and more popular. In order to achieve real time performance and low energy consumption, low power scheduling becomes a critical issue. Most researches on low power scheduling with dynamic voltage scaling (DVS) were targeted at only one CPU or homogeneous multi-core systems. In this thesis, we propose a low power scheduling algorithm called Longer Common Execution

Time (LCET) for DVS enabled heterogeneous dual-core embedded real-time systems,

which includes two steps. First, we reduce total execution time of tasks by using LCET in heterogeneous dual-core embedded real-time systems. Second, we further exploit the reduced total execution time to adjust voltage and frequency levels in order to reduce the total energy consumption. Simulation results show that the proposed P-LCET (a preemptive version) and NP-LCET (a non-preemptive version) can effectively reduce the total energy consumption by 8% and 16% ~ 25% (13% and 33% ~ 38%) compared with the work by Kim et al. with (without) dynamic voltage scaling.

v

Acknowledgements

Many people have helped me with this thesis. I deeply appreciate my thesis advisor, Dr. Kuochen Wang, for his intensive advice and instruction. I would like to thank all the classmates in Mobile Computing and Broadband Networking Laboratory (MBL) for their invaluable assistance and suggestions. The support by the NCTU EECS-MediaTek Research Center under Grant Q583 and the National Science Council under Grants NSC96-2628-E-009-140-MY3 and NSC96-2628-E-002-138-MY3 is also grateful acknowledged.

Contents

Abstract (in Chinese)……….i

Abstract (in English).………...iii

Acknowledgements………v

Contents... vi

List of Figures ...viii

List of Tables ... ix

Chapter 1 Introduction ... 1

Chapter 2 Preliminaries ... 4

2.1 Categories of inter-task DVS strategies... 4

2.2 Priority scheduling... 5

Chapter 3 Related Work ... 6

Chapter 4 Proposed Low Power Scheduling Algorithm ... 9

4.1 System model ... 9

vii

4.4 Proposed mechanisms: P-LCET and NP-LCET... 13

Chapter 5 Simulation Results and Discussion... 18

5.1 Simulation model... 18

5.2 Effects of worst-case utilization on total energy consumption... 19

5.3 Effects of worst-case utilization on average waiting time... 19

5.4 Effects of worst-case utilization on deadline miss ... 20

5.5 Effects of task number on total energy consumption ... 21

5.6 Effects of task number on average waiting time ... 22

Chapter 6 Conclusions and Future Work... 23

6.1 Concluding remarks... 23

6.2 Future work ... 23

List of Figures

Fig. 1 Heterogeneous dual-core architecture [6]... 2

Fig. 2 Heterogeneous dual-core task model... 9

Fig. 3 Processor power states of ACPI [9]... 11

Fig. 4 An example: two different tasks. ... 12

Fig. 5 Different scheduling policies... 12

Fig. 6 Task scheduling for P-LCET and NP-NCET... 14

Fig. 7 Two thresholds used in the ready queue. ... 15

Fig. 8 Algorithm of NP-LCET. ... 15

Fig. 9 Algorithm of P-LCET. ... 16

Fig. 10 Total energy consumption under different worst-case utilization. ... 19

Fig. 11 Average waiting time under different worst-case utilization... 20

Fig. 12 Deadline miss under different worst-case utilization. ... 21

Fig. 13 Total energy consumption under different number of tasks. ... 22

ix

List of Tables

Table 1 Comparison of related work. ... 8 Table 2 Example task set. ... 13

Chapter 1

Introduction

With more and more multimedia applications, low energy consumption is extremely important for heterogeneous dual-core embedded real-time systems, like the PDA and smart-phone. Most mobile handhelds are dual-core systems [6] . A dual-core system is mainly composed of an ARM processor and a DSP. Fig. 1 shows a heterogeneous dual-core architecture. Like the OMAP processor, which is manufactured by TI (Texas Instruments) for mobile applications, includes two cores, ARM926 (ARM9 core) and TMS320C55X (DSP coprocessor) [12] . The Freescale i.300-30 processor also includes two cores: ARM11 and StarCore SC140 (DSP processor) [13].

In order to conserve energy for battery-powered real-time systems, several low power techniques were proposed. Dynamic voltage scaling (DVS) and dynamic power management (DPM) have been employed as available techniques to reduce the energy consumption of CMOS microprocessor systems [1]. The DVS is a design technique to adjust the CPU’s supply voltage and frequency. The primary design goal is to exploit the slack time. Since in battery-powered systems, the battery lifetime impacts the utility and duration of the system directly, reducing the energy consumption and extending the battery lifetime should be a primary design metric [16].

2

Fig. 1 Heterogeneous dual-core architecture [6].

We know that the energy consumption E of a CMOS circuit is dominated by its supply voltage and is proportional to the square of its supply voltage, which is expressed as

C V C E= eff ⋅ dd⋅ 2 _{[2], where} eff

C is the effective switched capacitance, Vdd is the supply

voltage, and Cis the number of execution cycles. Reducing the supply voltage also drops the maximum operating frequency proportionally (Vdd ∝f). Thus, E could be approximated

as being proportional to the operating frequency squared ( 2 f

E∝ ). Therefore, lowering

operating frequency and according supply voltage is an effective technique for reducing energy consumption [14] .

In real-time systems with periodic tasks, no deadline miss is an important requirement of the systems. For example, embedded real-time systems must complete the tasks before their deadlines to maintain the system stability. Energy-efficient scheduling for hard real-time tasks on DVS processors is to minimize the energy consumption, while all the real-time tasks are done in time.

In this paper, we focus on low power scheduling for heterogeneous dual-core embedded real-time systems. In contrast to most of existing low power scheduling approaches that were targeted at only one CPU or homogeneous multi-core systems, we consider low power scheduling for heterogeneous dual-core embedded real-time systems.

ARM DSP

Memory I/O

Dual-core Processor

The rest of the thesis is organized as follows. Chapter 2 includes DVS and scheduling preliminaries. Chapter 3 reviews related work. The system model and the proposed design approach are described in Chapter 4. Simulation results are discussed in Chapter 5 and conclusions and future work are given in Chapter 6.

4

Chapter 2

Preliminaries

DVS exploits the slack time to adjust the CPU frequency and voltage levels in order to reduce the energy consumption and guarantee all tasks completed before the deadlines. Therefore, a good slack time estimation method is very important to reduce energy consumption.

2.1 Categories of inter-task DVS strategies

There are two categories of DVS algorithms [3]: inter-task DVS and intra-task DVS. The inter-task DVS algorithm adjusts the CPU frequency task-by-task, which allocates the slack time between the current task and the following tasks. And the intra-task DVS algorithm adjusts the CPU frequency within a task, which uses the slack time when a task is predicted to complete before its worst-case execution time (WCET).

In this thesis, we consider inter-task DVS algorithms for periodic tasks, which usually exploit one or more of the following four strategies to estimate the slack time.

(1) Minimum constant speed [3] [7]

This strategy is defined as the lowest possible clock speed that guarantees the feasible scheduling of the task set.

(2) Stretching to NAT [3] [7]

This strategy is based on that the scheduling already knows the next task arrival time (NAT) of periodic tasks.

(3) Priority-based slack stealing [3] [7]

Not all the execution times of tasks are in the worst cases. If high priority tasks complete earlier than their WCETs, the next lower priority task can use the remaining slack time to adjust the frequency.

(4) Utilization updating [3] [7]

The utilization updating technique estimates the required processor performance at the current scheduling point by recalculation the expected worst case processor utilization using the actual execution times of completed task instances.

2.2 Priority scheduling

Existing real-time scheduling policies can be classified into rate-monotonic (RM) scheduler and earliest-deadline-first (EDF) scheduler. Both of them are dynamic scheduling.

(1) Rate-Monotonic scheduling (RM)

The RM scheduling is the fixed-priority scheduling. It always gives the highest priority to the task which has the shortest period in the ready queue.

(2) Earliest-Deadline-First scheduling (EDF)

The EDF scheduling is the dynamic-priority scheduling. It always gives the highest priority to the task which has the latest deadline in the ready queue.

6

Chapter 3

Related Work

Recently, to achieve high computation performance and lower energy consumption, the researches on multi-core embedded systems have become more and more popular [4] [5] [6] [10] [11] [15]. There are two categories of multi-core architecture. The cores in a given chip package are symmetric, called a homogeneous multi-core; otherwise, it is called a heterogeneous multi-core for asymmetric processors in a chip package.

In homogeneous multi-core systems, Alon et al. [4] shows that the total energy consumption of applications with single-thread (ST) is different from that of multi-thread (MT). It shows that the energy consumption by using an MT code is twice less than that by an ST code in corresponding performance-states and reduces the half of total execution time in Intel Core Duo systems. In the real-time loop task scheduling problem, Chen et al. [15] proposed the retiming and rotation algorithms. By reducing the task schedule length and using slack time, it can reduce more energy consumption and solve this problem.

In the periodic hard real-time tasks scheduling problem on heterogeneous dual-core systems composed by ARM core and DSP, Gai et al. [5] proposed a mechanism that divides the tasks into two groups: regular and DSP, where regular is the tasks without DSP workload and the one with DSP workload is called DSP, and each group has its corresponding queue: regular and DSP queues. It can increase the schedulability bound in the considered architecture and allow a more efficient use of the computational resources without still maintaining some kind of real-time guarantee. However, there are two problems in [5]. One is that the high priority DSP tasks will be blocked by the low priority DSP tasks and the other is that a regular task with low priority can be executed earlier than a DSP task with high priority. Due to these two problems, Kim et al. [6] proposed a new scheduling model using only a

queue combined with regular tasks and DSP tasks ordered by priority. It has better schedulability and fewer deadline misses.

In task critical problems with the mixed workload composed of periodic and aperiodic real-time jobs on heterogeneous distributed real-time embedded system, Marcus et al. [10] proposed an energy-efficient genetic list scheduling algorithm (EE-GLSA) and an energy-efficient genetic list mapping approach (EE-GMA) algorithm to get each aperiodic job’s task mapping and find the shortest tasks scheduling length. It has higher energy reductions compared to previous DVS scheduling approaches based on constructive techniques and total energy savings for mapping and scheduling optimized DVS systems.

In the valid power-efficient scheduling based on task critical path analysis, Luo et al. [11] shows that the static and dynamic variable voltage scheduling algorithms in hard and soft real-time systems have hard task deadlines miss in heterogeneous distributed real-time embedded systems.

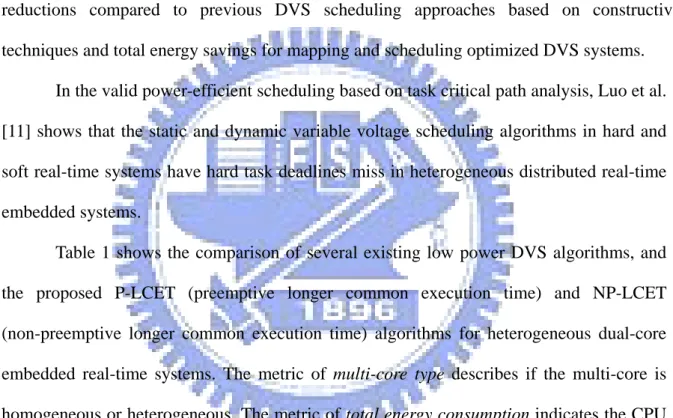

Table 1 shows the comparison of several existing low power DVS algorithms, and the proposed P-LCET (preemptive longer common execution time) and NP-LCET (non-preemptive longer common execution time) algorithms for heterogeneous dual-core embedded real-time systems. The metric of multi-core type describes if the multi-core is homogeneous or heterogeneous. The metric of total energy consumption indicates the CPU total energy consumption using each algorithm. The metric of number of preemptions indicates the frequency of preemptions. The metric of average waiting time indicates the average queuing time of tasks. The metric of deadline miss indicates the real-time tasks can not complete before the time constraint. In Chapter 5, we will compare our proposed P-LCET and NP-LCET with the work by Kim et al. [6], since it has no deadline miss.

8

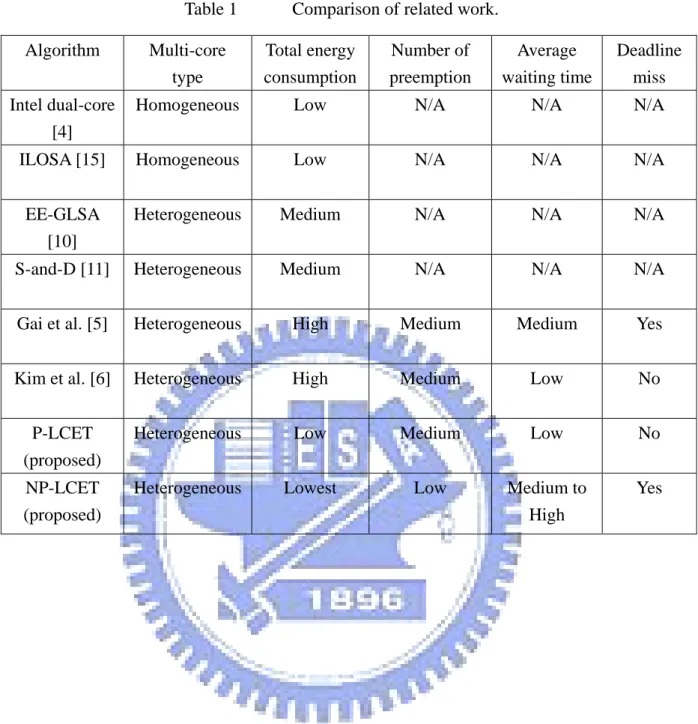

Table 1 Comparison of related work. Algorithm Multi-core type Total energy consumption Number of preemption Average waiting time Deadline miss Intel dual-core [4]

Homogeneous Low N/A N/A N/A ILOSA [15] Homogeneous Low N/A N/A N/A

EE-GLSA [10]

Heterogeneous Medium N/A N/A N/A S-and-D [11] Heterogeneous Medium N/A N/A N/A Gai et al. [5] Heterogeneous High Medium Medium Yes Kim et al. [6] Heterogeneous High Medium Low No

P-LCET (proposed)

Heterogeneous Low Medium Low No NP-LCET

(proposed)

Heterogeneous Lowest Low Medium to High

Chapter 4

Proposed Low Power Scheduling

Algorithm

4.1 System model

The target architecture is a heterogeneous dual-core embedded real-time systems, composed by ARM and DSP cores, that can change their supply voltage and operating frequency continuously within its operational ranges, [Vmin,Vmax] and [fmin,fmax], and all

cores need to be executed at the same frequency [8]. A task set T of n periodic tasks is denoted as T ={T₁,T₂,T₃,...,T_n}. Each task Ti has its own period pi and worst-case

execution time (WCET) wi. The deadline di of Ti is assumed to be equal to its periodpi.

The _jth _{instance of} i

T is denoted byT_i,j. Each task releases its instance periodically and all tasks are assumed to be mutually independent [14].

The task model we used for low power scheduling with DVS is illustrated in Fig. 2. Each task executes for C units of time on the master CPU, and may request a DSP _i

activity for DSP i

C . We assume that each task performs at most one DSP request, after pre i

C

units of time, and then execution for other post i

C units, such as post i pre i i C C C = + [6]. CPU DSP pre i

C

C

10

Besides, in consideration to hardware power saving support, ACPI spec. (Advanced Configuration and Power Interface Specification) [9] is the most used technique for the CPU. The power states transition flow diagram of ACPI is shown in Fig. 3 and detailed descriptions are shown as follows.

4.2 State definitions [9]

G Working

In this state, peripheral devices (peripherals) are having their power states changed dynamically.

0

C Processor Power State

While the processor is in this state, it executes instructions.

0

P Performance State

While a device or processor is in this state, it uses its maximum performance capability and may consume maximum power.

1

P Performance State

In this performance state, the performance capability of a device or processor is limited below its maximum and consumes less than maximum power.

n

P Performance State

In this performance state, the performance capability of a device or processor is at its minimum level and consumes minimal power while remaining in an active state.

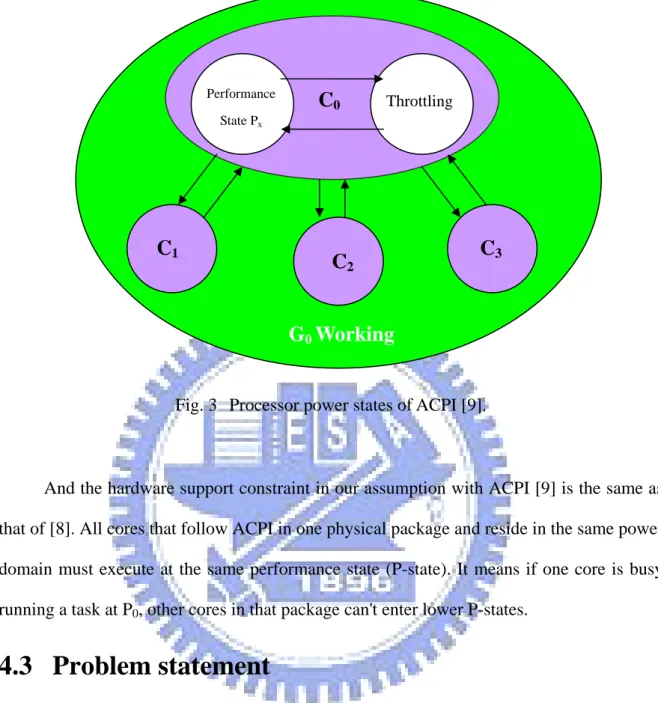

Fig. 3 Processor power states of ACPI [9].

And the hardware support constraint in our assumption with ACPI [9] is the same as that of [8]. All cores that follow ACPI in one physical package and reside in the same power domain must execute at the same performance state (P-state). It means if one core is busy running a task at P0, other cores in that package can't enter lower P-states.

4.3 Problem statement

In this thesis, we propose a longer common execution time (LCET) algorithm to

reduce the total execution time of tasks and total energy consumption in heterogeneous dual-core embedded real-time systems. From [4], we know that if tasks could execute more concurrently in the multi-core, the total execution time of the tasks and the total energy consumption can be decreased.

To illustrate our LCET algorithm we use an example which has two tasks, task 1 and Throttling Performance State Px

C

C

C

C

G

Working

12

Fig. 4 An example: two different tasks.

Fig. 5 Different scheduling policies.

Fig. 5 shows that different scheduling priorities have different total execution time and total energy consumption for task 1 and task 2. We assume the two tasks arrive at the same time. If task 1 has higher priority than task 2 and executes first, we can see that the total execution time would become longer than that if task 2 executes first, and thus have higher total energy consumption. Therefore, the tasks, which have a different structure of

pre i

C and C_iDSP , at different scheduling priorities will affect the total execution time and total energy consumption. To deal with this problem, we propose a priority scheduling algorithm which intends to improve the total execution time and the total energy consumption in heterogeneous dual-core systems.

ARM DSP DSP ARM ARM DSP DSP ARM CPU DSP CPU DSP Arrival time

(a) Task 1 executes first.

(b) Task 2 executes first.

ARM DSP DSP ARM

Task 1

Task 2

4.4 Proposed mechanisms: P-LCET and NP-LCET

Before describing our algorithm, we first define the scheduling priority as shown in equation (1): post i DSP i pre i C C C priority scheduling : / / ………...……….………(1)

We set task i with scheduling priority / / ipost <1

DSP i pre

i C C

C to have higher priority than task

j with / / post >1 j DSP j pre j C C

C . For those tasks with / / ipost <1

DSP i pre

i C C

C , we set the shorter pre

i

C to have higher priority. Similarly, for tasks with / / ipost >1

DSP i pre

i C C

C , we set the

longer task C_iDSP to have higher priority. The objective is that we want to find a scheduling solution of tasks with the shortest total execution time.

We propose two different scheduling algorithms: preemptive LECT (P-LCET) and non-preemptive LECT (NP-LCET) with/without consideration of the preemptive policy,

which are shown in Fig. 8 and Fig. 9, respectively. In the P-LCET algorithm, a high priority task can preempt the running task with low priority. However, in the NP-LCET algorithm, we need to wait for all the tasks arrived before executing NP-LCET.

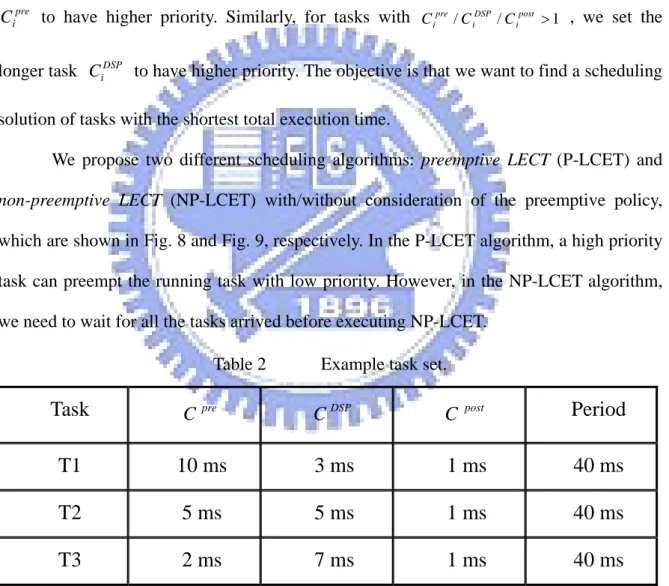

Table 2 Example task set.

Task

C CDSP C post

Period

T1

10 ms

3 ms

1 ms

40 ms

T2

5 ms

5 ms

1 ms

40 ms

14

(a). An example of P-LCET.

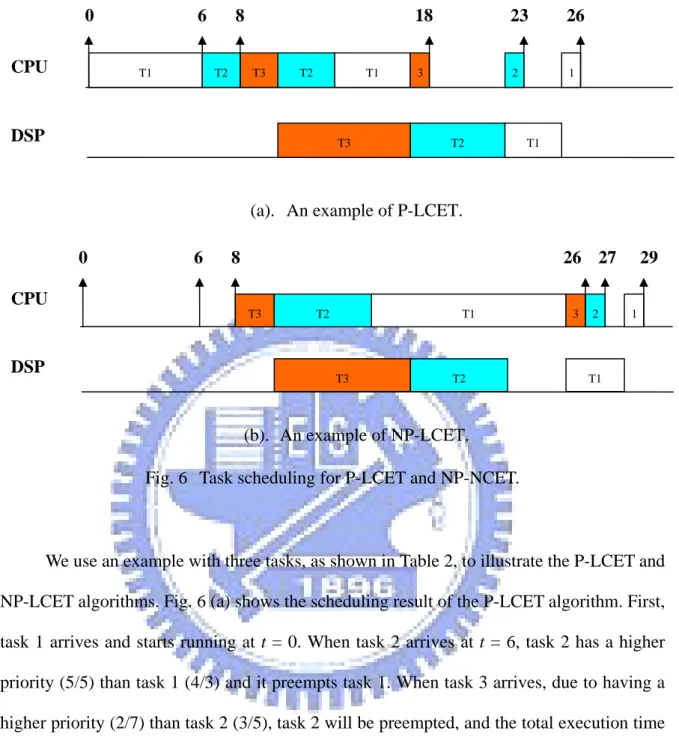

(b). An example of NP-LCET. Fig. 6 Task scheduling for P-LCET and NP-NCET.

We use an example with three tasks, as shown in Table 2, to illustrate the P-LCET and NP-LCET algorithms. Fig. 6 (a) shows the scheduling result of the P-LCET algorithm. First, task 1 arrives and starts running at t = 0. When task 2 arrives at t = 6, task 2 has a higher

priority (5/5) than task 1 (4/3) and it preempts task 1. When task 3 arrives, due to having a higher priority (2/7) than task 2 (3/5), task 2 will be preempted, and the total execution time is 25 ms. In Fig. 6 (b), because the NP-LCET algorithm needs to wait for all the tasks

arrived, the execution order of the three tasks is, task 3, task 2 and task 1, based on their scheduling priorities 2/7, 5/5 and 10/3, and the total execution time is 21 ms.

Fig. 6 (b) shows that the scheduling result of NP-LCET has the shortest total execution time of CPU and DSP and the lowest total energy consumption. Although we know that the NP-LCET algorithm has the better scheduling result, it will increase the average waiting time due to waiting for the next task arrived. In embedded real-time

T3 T3 T1 T1 3 T2 T2 1 2 CPU DSP 0 6 8 26 27 29 T2 T2 T1 T2 1 T3 T3 T1 T1 3 2 CPU DSP 6 8 18 0 23 26

systems, in order to ensure that each task can complete its work before its deadline and avoid having longer average waiting time, we use two different thresholds, called

Task-Threshold (TTH) and Timer-Threshold (TTR), to solve these problems, as shown as Fig.

7, where TTH is the bound of tasks number which can wait and be scheduled in the ready queue and TTR is the time interval which can wait until the next task arrival.

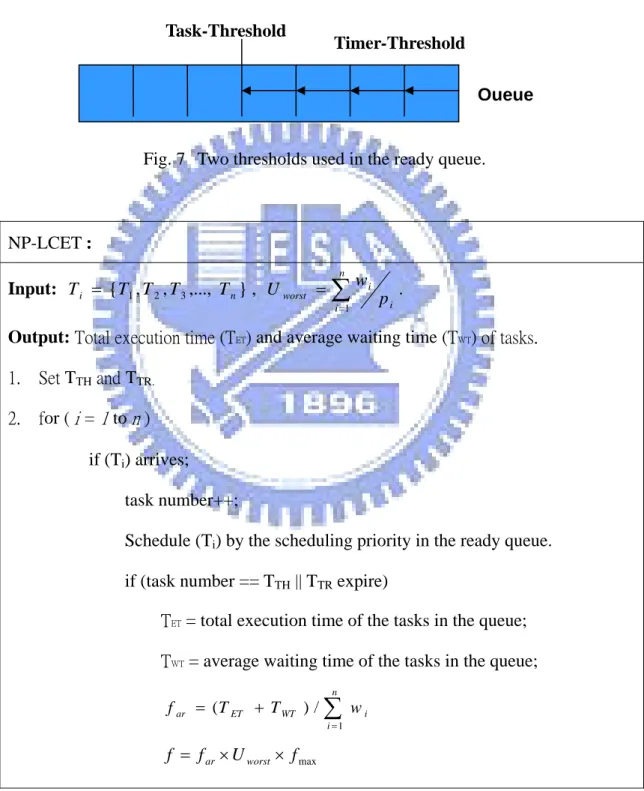

Fig. 7 Two thresholds used in the ready queue.

NP-LCET : Input: T_i = {T₁,T₂,T₃,..., T_n},

∑

Output: Total execution time (TET) and average waiting time (TWT) of tasks.

1. Set TTH and TTR. 2. for ( i = 1 to n ) if (Ti) arrives; task number++;

Schedule (Ti) by the scheduling priority in the ready queue. if (task number == TTH || TTR expire)

TET = total execution time of the tasks in the queue;

TWT = average waiting time of the tasks in the queue;

∑

16 P-LCET : Input: T_i ={T₁,T₂,T₃,..., T_n},

∑

Output: Total execution time (TET) and average waiting time (TWT) of tasks.

1. for ( i = 1 to n ) if (Ti) arrives;

if ( priority of (Ti) > priority of the running task (Tj) )

Preempt and schedule (Tj) by the scheduling priority in the queue. else

Schedule (Ti) by the scheduling priority in the queue. TET = total execution time of the tasks in the queue;

TWT = average waiting time of the tasks in the queue;

∑

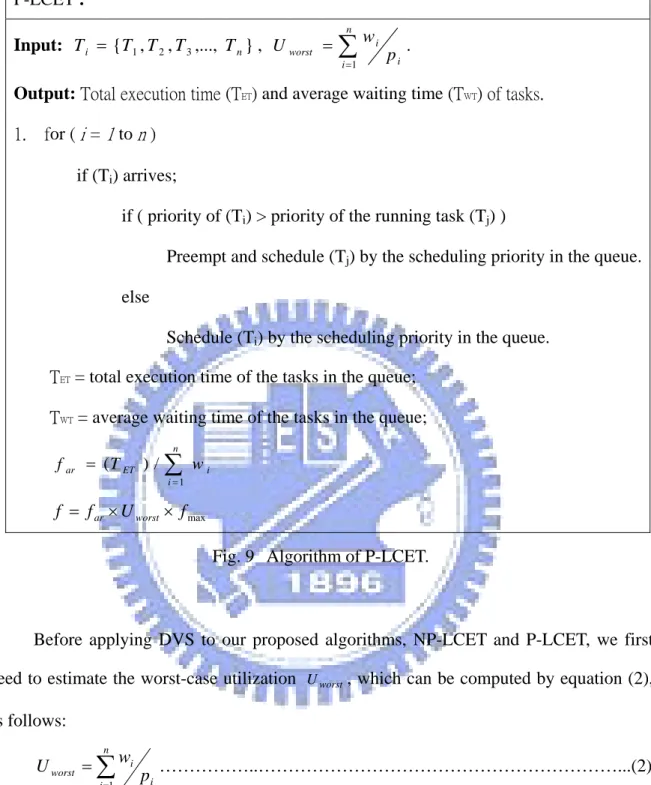

Fig. 9 Algorithm of P-LCET.

Before applying DVS to our proposed algorithms, NP-LCET and P-LCET, we first need to estimate the worst-case utilization Uworst, which can be computed by equation (2),

as follows:

∑

i

T , and pi is the period of task Ti. Based on the scheduling results of the P-LCET and

NP-LCET algorithms, we use the total execution time (TET), average waiting time (TWT) and

the worst-case execution time (

∑

= n i i w 1

) to derive a frequency adjustment ratio (far), as shown in equations (3) and (4), respectively:

In NP-LCET:

∑

∑

max

f U

f

f = _ar × _worst × ……….………….………...….(5) where fmax is the maximum CPU frequency.

For the task set in Table 2, if we use the maximum frequency and set f_max =1 to run the task scheduling as shown in Fig. 6 (a), the total energy consumption is 26 mJ. If we use

the minimum constant speed, f =U_worst × f_max, and 35/40

1 = =

∑

∑

f . So the operating frequency can be changed to 40 / 26 max = × × = f U f

f ar worst and the total execution time will become 40 ms. The total

energy consumption is 19.31 mJ. In Fig. 6 (b), our algorithm, NP-LCET, can get the shortest total execution time of 21 ms and the average waiting time of 11 ms (T1 = 15 ms, T2 = 10 ms, T3 = 8 ms and average waiting time TWT = (15 + 10 + 8) / 3 = 11 ms). So we can get

35 / 32 / ) ( 1 = + =

∑

f and f = f_ar ×U_worst × f_max =32/40. After we change the frequency, the total execution will become 26.25 ms and the total energy consumption will become 16.8 mJ.

18

Chapter 5

Simulation Results and Discussion

5.1 Simulation model

In the simulation, we assume the heterogeneous dual-core can change its operating frequency and supply voltage continuously within its operational ranges, [fmin,fmax] and

] ,

[V_min V_max , and all cores need to be execute at the same frequency [8]. The task sets were generated using random parameters with uniform distribution with the following characteristics [5] [6]:

z The number of tasks was chosen as a random variable from 10 to 50. z Task periods were generated from 10 to 100 ms.

z Tasks which perform at most one DSP request needs to be executed.

z The worst-case execution times were selected in such a way that the worst-case utilization

∑

z

C

10% to 80% of tasks. z TTR was set to 10 ms.

z TTH was ranging from 2 to 6.

In the following discussions, we have normalized all the simulation results of total energy consumption to that of all tasks with the worst-case execution time

∑

= n i i w 1 using the maximum frequency, fmax.

5.2 Effects of worst-case utilization on total energy

consumption

Fig. 10 compares the total energy consumption of NP-LCET under different TTH and of

P-LCET under different worst-case utilization Uworst.

z P-LCET reduces the total energy consumption by an average of 8% compared with Kim et al. [6] using minimum constant speed.

z NP-LCET reduces the total energy consumption by an average of 16%, 25%, 20%, compared with Kim et al. [6] using minimum constant speed as TTH was set to be 2, 4,

and 6, respectively.

z The result with TTH = 6 has the worse total energy consumption than that with TTH = 4

because higher average waiting time will affect the derivation of f . _ar

0 0.2 0.4 0.6 0.8 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 Worst-Case Utilization N o rm al iz ed T ot al E ner gy C ons u m pt ion Kim et al. [6] P-LCET NP-LCET (2) NP-LCET (6) NP-LCET (4)

Fig. 10 Total energy consumption under different worst-case utilization.

5.3 Effects of worst-case utilization on average waiting

time

20

z NP-LCET increased the average waiting time by an average of 40%, 71% and 113%, compared with Kim et al. [6], as TTR was set to be 2, 4, and 6, respectively.

z From simulation results, we know that NP-LECT will have more average waiting time due to that NP-LCET needs to wait until the number of arrival tasks is equal to TTR.

0 5 10 15 20 25 30 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 Worst-Case Utilization Av er ag e W ai ti n g T im e (m s) NP-LCET (6) NP-LCET (4) NP-LCET (2) Kim et al. [6] P-LCET

Fig. 11 Average waiting time under different worst-case utilization.

5.4 Effects of worst-case utilization on deadline miss

Fig. 12 compares the deadline miss of NP-LCET under different TTR and of P-LCET

under different worst-case utilization Uworst.

z The percentage of tasks completed before the deadline using NP-LCET decreases slightly when the worst-case utilization increases. This is because that when TTH or the

worst-case utilization increases, the average waiting time of each task will also increase. So it will result in the increase of deadline miss.

0.95 0.96 0.97 0.98 0.99 1 1.01 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 Worst-Case Utilization % of T asks C om

pleted Kim et al. [6]

P-LCET NP-LCET (2) NP-LCET (4) NP-LCET (6)

Fig. 12 Deadline miss under different worst-case utilization.

5.5 Effects of task number on total energy consumption

Fig. 13 compares the total energy consumption of NP-LCET under different TTR and of

P-LCET under different task numbers. The worst-case utilization was set to 95%.

z We observed that the total energy consumption improvement of the Kim et al. [6] and P-LCET are almost no change when the number of tasks increases. It is because that the DVS algorithm relies on the worst-case utilization, but not on the task number. z The total energy consumption improvement using NP-LCET decreases conspicuously

when the number of tasks in a task set increases. It is because the task arrival frequency increases duo to lower average waiting time and a lower frequency used.

22 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 10 15 20 25 30 35 40 45 50 Number of Tasks N or m ali zed To tal En er gy Con sum pt io n Kim et al. [6] P-LCET NP-LCET (2) NP-LCET (6) NP-LCET (4)

Fig. 13 Total energy consumption under different number of tasks.

5.6 Effects of task number on average waiting time

Fig. 14 compares the average waiting time of NP-LCET under different TTH and of

P-LCET under different task numbers. The worst-case utilization was set to 95%.

z The average waiting time of NP-LCET algorithms decreased clearly when the number of task increases due to the increased task arrival frequency.

0 5 10 15 20 25 10 15 20 25 30 35 40 45 50 Number of Tasks A ve ra ge W aiting T ime ( ms ) NP-LCET (6) NP-LCET (4) NP-LCET (2) Kim et al. [6] P-LCET

Chapter 6

Conclusions and Future Work

6.1 Concluding remarks

In this thesis, we have presented two efficient low power scheduling techniques, called P-LCET and NP-LCET, for heterogeneous dual-core embedded real-time systems. Our design approach was motivated by the heterogeneous dual-core architecture, task scheduling and DVS techniques. The main contribution of the P-LCET and NP-LCET is that the two proposed scheduling algorithms for heterogeneous dual-core systems have better power saving and less total execution time than existing approaches. The proposed NP-LCET has better power saving and no preemptive overhead, but has higher average waiting time and deadline misses. The proposed P-LCET has less power saving than NP-LCET, but the average waiting time will be lower and no deadline miss. Besides, the overhead of P-LCET is an increase in the number of preemptions, which results in increased energy consumption and clock cycles. Fortunately, these overheads are usually small enough and can be neglected.

6.2 Future work

In this thesis, the proposed LCET has two different policies, preemptive LCET (P-LCET) and non-preemptive LCET (NP-LCET). We know that to have shorter total execution time and lower total energy consumption for all tasks is using NP-LCET. But it will have higher average waiting time. The other scheduling policy, P-LCET, may not have better power saving than NP-LCET, but the average waiting time will be lower. How to

24

Bibliography

[1] L. Miao, Y. Qi, D. Hou, C. I. Wu, Y. H. Dai, “Dynamic power management and dynamic voltage scaling in real-time CMP systems,” in Proceedings of International

Conference on Networking, Architecture, and Storage, pp. 249 – 250, July 2007.

[2] B. Moyer, “Low-power design for embedded processors,” in Proceedings of IEEE, Volume 89, Issue 11, pp. 1576-1587, November 2001.

[3] W. Kim, D. Shin, H. S. Yun, J. Kim and S. L. Min, “Performance comparison of dynamic voltage scaling algorithms for hard real-time systems,” in Proceeding of the

Eighth IEEE on Real-Time and Embedded Technology and Applications Symposium,

pp. 219 – 228, Sept. 2002. [4] “Intel dual-core”

http://www.intel.com/technology/itj/2006/volume10issue02/art03_Power_and_Therma l_Management/p02_intro.htm.

[5] P. Gai, L. Abeni and G. Buttazzo, ”Multiprocessor DSP scheduling in system-on-a-chip architectures,” in Proceedings of 14th Euromicro Conference on Real-Time Systems, pp. 231 – 238, June 2002.

[6] K. Kim, D. Kim and C. Park, “Real-time scheduling in heterogeneous dual-core architectures,” in Proceedings of 12th International Conference on Parallel and

Distributed Systems, pp. 1 - 6, July 2006.

[7] P. Pillai and K.G. Shin. “Real-time dynamic voltage scaling for low-power embedded operating systems,” in Proceedings of 18th ACM symposium on Operating Systems, pp.

26 [8] Intel multi-core,

http://www.intel.com/technology/itj/2007/v11i4/9-process/6-linux-scheduler.htm. [9] ACPI spec., http://www.acpi.info/DOWNLOADS/ACPIspec30a.pdf.

[10] M.T. Schmitz, B.M. Al-Hashimi and P. Eles, “Energy-efficient mapping and scheduling for DVS enabled distributed embedded systems,” in Proceedings of Europe

Conference and Exhibition on Design, Automation and Test, pp. 514 – 521, March

2002.

[11] J. Luo and J. N, “Static and dynamic variable voltage scheduling algorithms for real-time heterogeneous distributed embedded systems,” in Proceedings of ASP-DAC

2002. 7th Asia and South Pacific and the 15th International Conference on VLSI Design, pp. 719 – 726, Jan. 2002.

[12] OMAP processor,

http://focus.ti.com/general/docs/wtbu/wtbuproductcontent.tsp?templateId=6123&navig ationId=11991&contentId=4670.

[13] Freescale i.300-30 processor,

http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=i.300-30&nodeId= 01J4Fsm6cyDbFf.

[14] J. M. Chen, K. Wang and M. H. Lin, “Energy efficient scheduling for real-time systems with mixed workload”, in Proceedings of International Federation for Information

Processing, pp. 33–44, Dec. 2007.

[15] Y. Chen, Z. Shao, Q. Zhuge, C. Xue, B. Xiao and E.H.-M. Sha, “Minimizing energy via loop scheduling and DVS for multi-core embedded systems” in Proceedings of

11th International Conference on Parallel and Distributed Systems, pp, 2–6, July 2005.

[16] C. Yuan, S.M. Reddy, I. Pomeranz and B.M. Al-Hashimi, “Battery-aware dynamic voltage scaling in multiprocessor embedded system” in Proceedings of IEEE
