Region-based image retrieval using color-size features of watershed regions

(1)

Region-based image retrieval using color-size features of watershed regions

Cheng-Chieh Chiang

a,*

, Yi-Ping Hung

b

, Hsuan Yang

c

, Greg C. Lee

d

a

Department of Information Technology, Takming University of Science and Technology, Taipei, Taiwan b

Graduate Institute of Networking and Multimedia, National Taiwan University, Taipei, Taiwan

c_{Department of Computer Science and Information Engineering, National Taiwan University, Taipei, Taiwan} d_{Department of Computer Science and Information Engineering, National Taiwan Normal University, Taipei, Taiwan}

a r t i c l e

i n f o

Article history:

Received 13 February 2007 Accepted 13 January 2009 Available online 27 January 2009 Keywords:

Content-based image retrieval Region-based image retrieval Visual feature

Color-size feature Region ﬁltering Earth mover’s distance

a b s t r a c t

This paper presents a region-based image retrieval system that provides a user interface for helping to specify the watershed regions of interest within a query image. We first propose a new type of visual fea-tures, called color-size feature, which includes color-size histogram and moments, to integrate color and region-size information of watershed regions. Next, we design a scheme of region filtering that is based on color-size histogram to fast screen out some of most irrelevant regions and images for the preprocess-ing of the image retrieval. Our region-based image retrieval system applies the Earth Mover’s Distance in the design of the similarity measure for image ranking and matching. Finally, we present some experi-ments for the color-size feature, region filtering, and retrieval results that demonstrate the efficiency of our proposed system.

1. Introduction

Content-based image retrieval (CBIR) [3,6,7,9,20,30] has be-come a very active research area since the 1990’s due to the rapid increase in the use of digital images. The goal of CBIR is to retrieve desired images from a large image database based on their con-tents. Many techniques have been proposed for yielding efﬁcient and effective CBIR systems in the past decade. This paper focuses on region-based approach to CBIR.

Region-based image retrieval (RBIR) is a special type of CBIR by use of regions that are parts of an image with relatively homogeneous subjects or features. Regions are used to represent and index images in RBIR. The contents in an image or region are represented using extracted visual features, e.g., color[18,25,26], texture [13,17,18], and then the corresponding similarity mea-sure is computed. Therefore, RBIR system returns images having regions that are similar to the query regions. In general, RBIR system can be categorized as two types according to the chosen query format: whole-image-as-query (WIQ) and image-region-as-query (IRQ). In a WIQ RBIR, the user provides the example image, and the system extracts feature information from the whole image for performing the query [2,15,24,30]. In an IRQ RBIR, the user performs a query by choosing regions of interest

from the example image according to their requirements

[3,5,28,31].

In this paper, we design an IRQ RBIR system that focuses on three tasks: visual feature extraction, image/region representation, and image/region similarity measure. We propose a new type of visual features, called color-size feature, which embeds region-size infor-mation in color features for representing both color and texture of images. In the image/region representation, we adopt a set of wa-tershed regions instead of a whole image. The user can specify region combinations on the subject of interest, rather than the whole im-age, as the query. This approach allows the retrieval system to focus more precisely on the user’s requests, but using regions as the retrie-val units increases the computational cost since the retrieved data-base contains a huge number of regions. We, therefore, design a two-phase scheme for computing the similarity measure: (1) region ﬁl-tering based on color-size histogram and (2) calculating the similar-ity measure based on Earth Mover’s Distance (EMD)[21]. The region ﬁltering removes the most irrelevant regions/images, with the sys-tem only needing to apply the EMD-based similarity to matching of the resulting subset of candidate images.

The rest of this paper is organized as follows. Section2provides an overview of our RBIR system. In Section3, we present the pro-posed color-size histogram and moments, and use them in region filtering in Section4. The design of the image similarity measure, based on EMD, is presented in Section5. Some experiments and the results that demonstrate the efficiency of our method are pre-sented in Section6, and finally conclusions are drawn and future work is described in Section7.

* Corresponding author.

E-mail addresses:[email protected](C.-C. Chiang),[email protected] (Y.-P. Hung),[email protected](H. Yang),[email protected](G.C. Lee).

Contents lists available atScienceDirect

J. Vis. Commun. Image R.

(2)

2. System overview

Fig. 1shows the flowchart of the proposed system. All images in the database are initially segmented into regions using the watershed segmentation algorithm [27,29]. A set of features, comprising the color-size feature and Gabor texture [13,17,18], is then extracted from each watershed region. All images, regions, and features are stored in the database. Each query involves the acquisition of a set of regions of interest specified by the user, and visual features are extracted from the query regions. A set of candidate images is then produced by region filtering. In this way, the system computes the similarity measure between the query and each candidate image, which is used for image match-ing and rankmatch-ing.

Similar to most CBIR systems, we employ ‘‘query by example” for the interface in our system, in which the user specifies an image as the query and then the system retrieves similar images from the database.Fig. 2shows the user interface including three parts in our system. The top-left area provides the parameter con-figuration for the retrieval. The right area lists the retrieval results containing eight similar images on each page, where the image captions contain the file names and similarity scores of the images. The bottom-left area shows the query image. The user

can choose an image ﬁle and select regions of interest as the query regions.

The interface provides four display modes that aim to help the user to easily specify the query regions in the bottom-left area ofFig. 2. These four models displays the original image, all wa-tershed regions, only user-selected regions, and the contour of user-selected regions, which are illustrated in Fig. 3(a)–(d), respectively. The user can choose the regions of interest by click-ing on the image in order to best represent a collection of focused subjects using any of the four modes. This approach does not only reduce the effort of delineating the subject boundary, but also en-hances the accuracy of the query. Therefore, the retrieval task can focus on the speciﬁed regions of interest. If Ri denotes a

wa-tershed region selected by the user, then a query Q, either a part of an image of or an entire image, can be expressed in general terms as

Q ¼[ i

Ri: ð1Þ

Fig. 1. The ﬂowchart of our system.

Fig. 2. The user interface of our system.

(3)

3. Color-size feature

Extracting visual features for image representation is one of the fundamental tasks in image retrieval. Many kinds of visual features have been proposed for color, texture, or shape representation[4]. For example, MPEG-7 contains several color descriptors including dominant color, scalable color, color structure, and color layout

[18]. These color descriptors are designed for different goals to ex-tract the characteristics of image contents.

In this section, we present a new type of visual feature, called color-size feature, which contains the distribution information of both color and region-size. On one hand color features are widely used for characterizing image contents[4], and on the other re-gion-size information is often used for weighting regions in image matching and ranking in region-based image retrieval[15,30,31]. Moreover, region-size information can somehow reﬂect the ‘‘struc-ture” in images, which is described in Section3.2, according to the segmentation results. Hence, we design the color-size feature by embedding region-size information into color features in this section.

3.1. Image segmentation

The goal of image segmentation is to partition an image into a set of regions. Different methods for image segmentation have been applied to region-based tasks for different goals, e.g., image retrieval, image annotation, and object recognition. The most intu-itive method for image segmentation is to segment objects (or foreground subjects) from an image for region-based image matching[1,3,14,15,30], even though this is very difﬁcult. How-ever, the segmentation results greatly affect the performances of region-based tasks. Hence, some researchers divided an image into rectangular grids[11,19]or a large number of overlapping circular regions[12,23].

Our opinion is not to generate the best or perfect regions with segmentation, but rather to make useful ones. In this work, we use the watershed segmentation [27,29], which is an efﬁcient, automatic, and unsupervised segmentation method for gray-level images, to partition an image into non-overlapping regions. We ﬁrst convert the color images to the grey images and then partition them by watershed segmentation. Pixels in a watershed region are homogeneous in the intensity space, and hence we take the wa-tershed regions to represent units of an image in our RBIR system. In addition, the system allows the user for specifying the com-pound of watershed regions within the query regions.

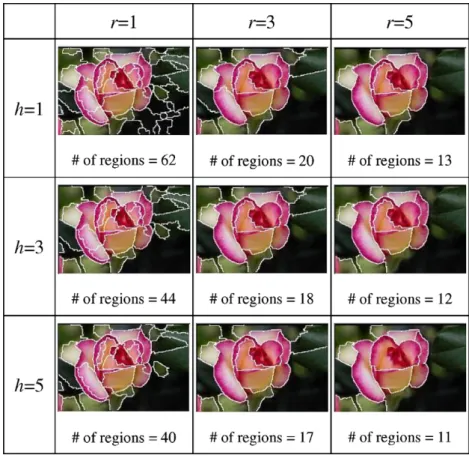

Because the basic watershed algorithm is highly sensitive to gradient noise, it usually results in segmentation. To over-come this problem, small local minima in the gradient image should be eliminated[29]. These minima are deﬁned as local min-ima consisting of a small number of pixels or having low contrast with their neighbors, and are eliminated by assigned two scaling parameters: r and h. Parameter r is the size of the structuring ele-ment of dilation operators, whose application eliminates local min-ima of size less than r pixels, and parameter h is the height of elevation used to remove the local minima with low contrast. These two parameters can be used to control the coarseness of the segmentation results: as r or h increases, the number of regions generated decreases.Fig. 4illustrates how the number of regions changes associated with different scaling parameters r and h. In the evaluation of the proposed color-size feature, we set these parameters as r = 1 and h = 3, which results in 75,000 regions for the 5000 images that are used in our retrieval experiments in Section6.2.

3.2. Region-size feature

The region-size is deﬁned as the number of pixels in a region, or the size percentage of a region in an image when normalized.

(4)

While segmenting an image, different images can yield different numbers of regions with the same segmentation parameters; that presents some ‘‘structure” information involved in images. In addi-tion, the region-size information is often used for weighting regions in images. These reasons motivate us to extract the re-gion-size information, that is simple but necessary in RBIR, from regions of images and embed it in the color feature in order to improve the color feature.

Fig. 5illustrates the ‘‘structure” information of images, that the structure of the image inFig. 5(b) is more fragmental than that in

Fig. 5(a), by demonstrating the distributions of the region-size of two images with the same size (both 192 128 pixels). The region-size distribution is based on the results of image segmenta-tion. Images with different structures will exhibit different seg-mentation results with the same scaling parameters, and hence the region-size distribution contains the structural information of an image. We, therefore, do not only consider the well-known color feature but also include the region-size information to involve the ‘‘structure” of the image. We expect that considering both the re-gion-size information and color features will yield more represen-tative and discriminable features.

Given a pixel p in a region R of an image I, we deﬁne that the region-size attribute for p equals the percentage size of I repre-sented by R, and hence all pixels in the same region have the same

region-size attribute. The range of the region-size attribute is from 0 to 1, and then we need to deﬁne the quantization in the extrac-tion of the region-size histogram.

Fig. 6shows the statistics of the region-size attribute. Here, we adopt the image data that is used in Section6.2to produce the re-gion-size histogram. The dataset contains 5000 images and each image is divided by watershed segmentation with scaling parame-ters r = 1 and h = 3.Fig. 6(a) plots the region-size histogram of all regions, where we uniformly quantize the region-size percentage into 100 levels, i.e., 0.01 in each level.Fig. 6(a) shows that most re-gions are concentrated in the ﬁrst two or three size levels, and the average region-size is 0.0681. Hence, using equal quantization throughout the region-size histogram is inappropriate because the region-size histogram is not uniform. We computed the cumu-lative distribution, which is shown inFig. 6(b), and set the number of quantized bins in the region-size attribute, S, to four in our implementation, and then we can deﬁne the quantization bound-aries of the region-size attribute at 0.001, 0.012, and 0.049 for 25%, 50%, and 75% of regions, respectively.

3.3. Color-size histogram and color-size moments

Embedding the region-size within the color feature results in each pixel of an image having four attributes: three color

compo-Original image

(a)

# of regions: 67

Original image

(b)

# of regions: 131

Fig. 5. Distributions of the region-size in the two examples, where both (a) and (b) contain the original image, the watershed results, and the distributions. Note that the scaling parameters of the watershed segmentation are r = 1 and h = 3.

(5)

nents and one region-size component. Let K1, K2, and K3 be the

number of bins used to quantize the three color attributes, and K4be that to quantize the region-size attribute. Then, a color-size

histogram (CSH) of an image is a K1 K2 K3 K4-dimensional

fea-ture set,

CSH ¼ f

c

ijklj1 i K1;1 j K2;1 k K3;1 l K4g ð2Þ

where each

c

ijklvalue in the histogram corresponds to the number

of pixels having the values in color and region-size channels. Let p = {p1, p2, p3, p4} be the values of pixel p consisting of the

three color components (p₁;p₂;p₃) and the region-size component

(p4), and N be the number of pixels in the image. The color-size

mo-ments (CSM), with ﬁrst- and second-order momo-ments, of an image are deﬁned as:

CSM ¼

l

₁;

l

₂;

l

₃;

l

₄;

r

1;

r

2;

r

3;

r

4 ð3Þ

where

l

i¼1N

P

ppi, and

r

i¼_N1Ppðpi

l

iÞ

2_{, i = 1, 2, 3, 4.}

Fig. 7illustrates an example of extracting the color-size histo-gram. In this example, pixel A of the image is blue, and is contained in an extra-large (XL) region, and hence its presence will increment the bin corresponding to the color blue and region-size XL by one.

Fig. 8shows the color panel for visualizing both the color (in CIE-Lab space) and the region-size atrribute, with L, Size, a, and b are quantized into 4, 4, 8, and 8 bins, respectively, whereFig. 8(a) is for color histogram andFig. 8(b) is for color-size histogram. That is to say, the feature space of color histogram is divided into four (K4= 4) bins to form that of color-size histogram.

Therefore, we draw an example inFig. 9for showing the differ-ence of color histogram and color-size histogram, which are based on the visualization panel ofFigs. 8 and 9(a)shows two images and their corresponding color histograms, and Fig. 9(b) shows the segmentation results of the two images and their color-size histograms. In this example, the two images have similar color histograms, but they are actually different within the color-size histograms.

Note that other methods of image segmentation can be also employed to extract the region-size information for the color-size feature. Obviously, the color-size feature, either color-size histo-gram or moments, is rotation and shift invariant. However, the color-size feature is not scaling invariant because the region-size feature is sensitive to the segmentation. A simple solution for the scaling invariance is to tune the quantization scale K4of the

re-gion-size component. The bigger value K4, the more insensitive

to the scaling change the color-size feature. Another possible method to overcome this problem is to design a multiscale repre-sentation for the color-size feature associated with the scales of image segmentation.

4. Region ﬁltering

The goal of region ﬁltering [15,31] is to rapidly determine whether an image may contain regions similar to the query regions and thereby speed up the computation for the retrieval process. We use the color-size histogram (in Lab color space) to build a

Fig. 7. Extraction of color-size histogram.

L dark light a* b*

histogram

L dark light small large a* b* Size

histogram

Fig. 8. The color panel for visualizing color histogram and color-size histogram, where L, Size, a, and b are quantized into 4, 4, 8, and 8 bins, respectively.

(6)

region ﬁltering to screen out most of irrelevant regions and images. All regions of an image in the image database should be tested in the region ﬁltering in order to decide whether the image is a can-didate for image matching and ranking.

Since the color-size histogram has K1 K2 K3 K4bins, as

de-scribed in Section 3.3, the corresponding feature space can be divided into K1 K2 K3 K4 hypercubes. A straightforward

method of region filtering is to mask hypercubes by use of query regions in the feature space, where regions that do not fall on masked hypercubes are filtered out. The main drawback of this method is its high sensitivity, in that regions with similar color and size may belong to neighboring hypercubes because of noises or a quantization effect. Hence, we have to loosen the constraint of region filtering to include these potential regions. The modified idea of our region filtering is based on dilation of the color-size hypercubes corresponding to the query regions. Given a color-size hypercube in which a query region falls, its neighboring hyper-cubes are appended to the masks of the region filtering. An illustra-tion of hypercube dilaillustra-tion in three-dimensional feature space is given inFig. 10.

Let R denote a region, and RL_{, R}a_{, R}b_{, and R}S_{denote the quantized}

indices, associated with L, a, b, and region-size, respectively, of the hypercubes that contain this region in the feature space. The hypercube dilation of the region R based on color-size histogram, denoted as D(CSH(R)), is deﬁned as follows:

DLðCSHðRÞÞ ¼

c

ijklj maxð0; R L 1Þ i minðK1 1; RLþ 1Þ; n j ¼ Ra_;_{k ¼ R}b_;_{l ¼ R}So_; DaðCSHðRÞÞ ¼

c

ijklji ¼ R L ;maxð0; Ra 1Þ j minðK2 1; Raþ 1Þ; n k ¼ Rb_;_{l ¼ R}So_; DbðCSHðRÞÞ ¼

c

ijklji ¼ R L ;j ¼ Ra;maxð0; Rb 1Þ n k minðK3 1; Rbþ 1Þ; l ¼ RS o ; DSðCSHðRÞÞ ¼

c

ijklji ¼ R L ;j ¼ Ra;k ¼ Rb;maxð0; RS 1Þ n l minðK4 1; RSþ 1Þ o ð4Þ and DðCSHðRÞÞ ¼ DL ðCSHðRÞÞ [ DaðCSHðRÞÞ [ DbðCSHðRÞÞ [ DSðCSHðRÞÞ ð5Þ

where K1¼ K4¼ 4; and K2¼ K3¼ 8 in our implementation.

Therefore, we deﬁne the color-size matching matrix, corre-sponding to the query regions Q and an image I in the database, as a matrix whose row and column dimensions are the numbers of regions in Q and I, respectively, which is deﬁned as

WQ ;IðRi;R0jÞ ¼

1; if CSHðR0jÞ DðCSHðRiÞÞ 0; otherwise

ð6Þ

where Riis the i-th region of Q, and R’jis the j-th region of I.

We then extract information about whether image I contains similar regions to Ri. The counting matrix for image I is a matrix

whose column dimension is one and its row dimension is the num-ber of regions of Q. It is deﬁned as

PQ ;IðRiÞ ¼ 1; if P j WQ ;JðRi;R0jÞ 1 0; otherwise 8 < : ð7Þ

Therefore, we deﬁne the score of the candidate image as:

scoreðQ; IÞ ¼ P

iPQ;IðRiÞ

of regions in Q ð8Þ

Thus we take images with the highest scores as the candidate set for query Q. Here, we deﬁne that the threshold value ThresholdFequal

to the number of images in the candidate set (see Section6.2.2). Region filtering is implemented using inverted indexing to build links between hypercubes and region features. Let M be the total number of regions in the image set, and c be the number of hyper-cubes in the feature space: M is about 75,000 in our experiments, and c is 1024 in the color-size histogram. On average, M/c regions will fall in a hypercube in the feature space. In region filtering, the system does not need to consider all hypercubes in the feature space, but instead check dilated hypercubes containing these query regions. Note that the computational loading of region filtering is proportioned to the number of query regions.

5. Image matching and ranking

Applying the region ﬁltering presented in Section4yields a can-didate set of retrieved images from the database. We then perform image matching and ranking to all members of the candidate set, and report the results to the user. In this section, we ﬁrst describe the visual features, including color and texture, for image represen-tation, and then we describe the image similarity measure based on EMD used in this work.

5.1. Visual features and image representation

Assume that an image I comprises n regions, written as I = {R1,

..., Rn}. We adopt two types of visual features for region and image

representation: color-size moments, for the color feature and Ga-bor texture[13,17,18]for the texture feature, with 8 and 48 dimen-sions, respectively. Note that we adopt color-size moments instead of color-size histogram for its lower dimensions.

Let RF(Ri) be the features extracted from the region Ri, then

RFðRiÞ ¼ CSMðRf iÞ; GðRiÞg: ð9Þ

where CSM(Ri) and G(Ri) are color-size moments and Gabor texture,

respectively, of region Ri. Moreover, the feature of an image I is the

collection of the features of its regions:

IFðIÞ ¼ [

i RFðRiÞ; where I ¼ [iRi: ð10Þ

5.2. Image similarity measure

Since images often comprise different numbers of regions, the common distance measures, e.g., Euclidean distance, are not very feasible for region-based image matching and ranking. Earth Mover’s Distance (EMD) was ﬁrst introduced by Rubner et al.

[21]for color and texture images. EMD is appropriate for measur-ing the distance between two variable-length distributions and allowing many-to-many relationship of regions [15], hence, we adopt EMD as the kernel of the similarity measure in our RBIR system.

(7)

Given a query image Q and a candidate image I, we deﬁne the similarity measure between them as the distance of EMD between their feature sets,

SimðQ; IÞ ¼ EMDðIFðQÞ; IFðIÞÞ; ð11Þ

where similar images can have small distances of EMD. EMD mea-sures the minimal cost that must be paid to transform one distribu-tion to another[21], where the distribution is represented by a set of signatures. In order to compute EMD, we need to deﬁne (i) the representation of a signature in an image and (ii) the ground dis-tance between two signatures. Both of them are described as the follows.

5.2.1. Signature

The matching unit in our RBIR system is the region, so it is appropriate to deﬁne a region feature as a signature in the EMD measure. Thus the signature set of an image I can be deﬁned as the collection of ordered pairs consisting of a region feature and the corresponding region-size:

SignatureðIÞ ¼ [

ifðRFðRiÞ; wiÞg where I ¼ [

i Riand wi¼

#of pixels in region Ri #of pixels in image I

ð12Þ

5.2.2. Ground distance

The ground distance between two signatures in EMD can be intuitively deﬁned as the distance between two region features. Thus the ground distance could be a mixture of distances on indi-vidual feature spaces. We deﬁne the ground distance between two region features RF(Ri) and RF(Rj) as:

dij¼ ffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi kCðdCijÞ 2 þ kGðdGijÞ 2 q ; ð13Þ

where dC_ijand dG_ijare the L2-distance of the color-size moments and

Gabor texture, respectively, between RF(Ri) and RF(Rj), and both kC

and kG are weights for which kC+ kG= 1. Note that the user can

set the two weighting parameters by specifying the field ‘‘distance level” in the configuration of the user interface of theFig. 2. For the example shown inFig. 2, that the field ‘‘distance level” is set 3 for texture means kGis set 3/10 and kCis the other 7/10.

6. Experimental results

Our experiments contain two parts: (i) evaluation for the efﬁ-ciency of color-size histogram and moments and (ii) evaluation for our RBIR system.

6.1. Evaluation for color-size feature

6.1.1. Dataset

Two public sets of image are adapted in the evaluation for color-size features. We took ‘‘Wang 1000”[16]for the ﬁrst image set, de-noted ‘‘W10” in this paper, that contains 10 categories from Corel

Table 1

The illustration of the two datasets, containing the semantic names and the numbers of images in the categories, used in the experiments. Table 2

The recognition rates (%) using color-size moments with changing r and k.

r = 1 r = 3 r = 5

(a) Using dataset W10

k = 1 0.831 0.783 0.767 k = 5 0.837 0.796 0.782 k = 9 0.836 0.801 0.782 (b) Using dataset CT10 k = 1 0.67 0.632 0.629 k = 5 0.689 0.639 0.633 k = 9 0.688 0.642 0.635

(8)

Photos, with each category consisting of 100 photo images, giving a total of 1000 images in the dataset. CalTech 101-object[10]is the second image set used in our experiments. The original data-set contains 101 object categories with a total of over 8000 images. In order to compare with dataset Wang10, we chose 10 categories that contain similar numbers of images, denoted ‘‘CT10” in this paper, with about 800 images totally. Table 1(a) and (b) illustrate each category in W10 and CT10, respectively, which indicates the diverse contents of the two datasets. We also present the category names and the numbers of images of each category inTable 2.

6.1.2. Results and discussion

To precisely evaluate the efficiency of using the color-size fea-ture, we need to design a compact experiment to avoid the influ-ence of other factors. This is achieved by performing image classification (instead of image retrieval) using k-NN, which is sim-ply performed with the leave-one-out strategy[8]. The experi-ments for color-size histogram and moexperi-ments are based on the two image sets W10 and CT10.

We first consider the influence of color-size features by chang-ing the scalchang-ing parameter r and h in watershed segmentation and the value k in k-NN.Fig. 4shows the different numbers of regions with different scaling parameters, and it presents that r is more important than h in controlling the number of regions. Hence, in the subsequent experiments, we fix h at 3 and only change r and k for simplifying the comparison in the experiments.Table 2lists the recognition rates using color-size moments with different values of r and k, and that shows the recognition rates are stable with different k. Hence, we set k fixed at 5 in our experiments. Also, the results ofTable 2show that the accuracies are worse while the parameter r increases (r = 5 is the worst). The main reason is that the additional region-size attributes are not discriminative in im-age classification if most regions are larger in segmentation. Hence, we fixed r at 1 in the rests of the experiments.

Another important issue is to verify the influence of the dimen-sion for color-size histogram. The original dimendimen-sion of color-size histogram is 1024 in our design, and we reduced it to 5, 20, 50, and 100 by PCA (principal component analysis)[8].Table 3lists the accuracies with different dimensions, denoted d, on the two datasets. We do not need to employ a large dimension of color-size histogram in classification because principal components of the features have been preserved in the first several dimensions.

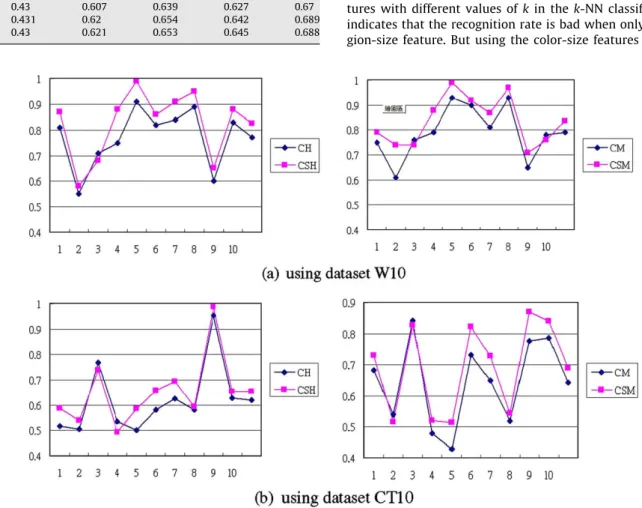

Table 4lists the recognition accuracies using ﬁve types of fea-tures with different values of k in the k-NN classiﬁer. This table indicates that the recognition rate is bad when only using the re-gion-size feature. But using the color-size features is better than

Table 3

The recognition rates (%) using color-size histogram with different dimensions d, where r = 1, h = 3, and k = 5.

d = 5 d = 20 d = 50 d = 100 d = 1024

W10 0.791 0.825 0.81 0.799 0.802

CT10 0.623 0.654 0.641 0.629 0.639

Table 4

The recognition rates (%) using Size: region-size feature, CH, color histogram; CSH, color-size histogram; CM, color moments; and CSM, color-size moments; where r = 1, h = 3 (for Size, CSH, CSM), and d = 20 (for CH and CSH).

Size CH CSH CM CSM

(a) Using dataset W10

k = 1 0.472 0.763 0.82 0.775 0.831

k = 5 0.51 0.771 0.825 0.791 0.837

k = 9 0.507 0.779 0.825 0.8 0.836

(a) Using dataset CT10

k = 1 0.43 0.607 0.639 0.627 0.67

k = 5 0.431 0.62 0.654 0.642 0.689

k = 9 0.43 0.621 0.653 0.645 0.688

(9)

using the color feature, when comparing either color-size histo-gram vs. color histohisto-gram or color-size moments vs. color moments. Note that recognition rates using dataset W10 are between 84.1% and 37.5% described in [19], and our tests by trying different parameters achieve error rates between 76.7% and 83.6%. More-over,Fig. 11shows the detailed classiﬁcation rates of categories with k = 5, which indicates that the color-size feature is better than the color feature in most cases.

6.2. Evaluation for region ﬁltering and image retrieval

6.2.1. Dataset

For the retrieval task, we extend the dataset W10 used in the previous experiments of Section6.1to 50 categories by arbitrarily choosing extra 40 categories from Corel Photos and list their IDs and semantic names inTable 5. Each of these 50 categories con-tains 100 images, giving a dataset with 5000 images. Two images are viewed as relevant in our experiments if they are in the same category. The data categories are classiﬁed according to human concepts such as ‘‘Buses” or ‘‘Elephants”. Hence, images in the same category have very variable contents. We random select 20 images as the query, where each query is set as an entire image be-cause we need to automatically perform the experiment on the large query set: 20 50 = 1000 query images.

6.2.2. Results and discussion for region ﬁltering

The main goal of region ﬁltering is to screen out as many of irrelevant images as possible, so we use the recall of candidate images to measure the performance of the proposed ﬁltering method. There is a threshold ThresholdF, also described in Section

4, in region ﬁltering, which corresponds to the number of candi-date images available for a query. Obviously, the recall increases with the number of candidate images. We test the recall values for four numbers of candidate images: 500, 1000, 1500, and 2000. The average recalls of 50 categories are plotted inFig. 12(a).

Fig. 12(a) indicates that the recall is about 45% in 1000 of the 5000 images (filtering out 80% of the dataset, and denoted as 1000/5000 for simplicity), and about 60% in 1500/5000 (filtering out 70% of the dataset). We show the best-10 and the worst-five categories inTable 6. The scheme of region filtering is shown to be stable since most categories are duplicated in different numbers of candidate images in the top-10 ranks. Most of these categories with better recalls contain obvious objects in images, e.g., ‘‘Bus”, ‘‘Cuisine”, and ‘‘Doors of Paris”. On the other hand, most categories with bottom-five ranks are also duplicated because of non-object involved in images (e.g., ‘‘Cloud” and ‘‘Waves”) or the foreground camouflages in the background (e.g., ‘‘Weasels and Hares” and ‘‘Reptilia”). Because we use the whole image instead of a part of image as the query for the automatic evaluation, the background in images hugely influences the results.

6.2.3. Results and discussion for image retrieval

We ﬁrst illustrate two experimental examples in this section.

Fig. 13 shows the query, ‘‘rose”, and its retrieval results. In this example, the rose can be retrieved well because most regions in the rose are discriminated in the color-size histogram to other red objects.Fig. 14shows another type of experimental example for our system. In this example, the query subject is the white horse, but the results are not as good when query regions only de-pict the horse. This is due to white being widely represented in images, which consequently results in the region ﬁltering not judg-ing correctly. The retrieval results are better if the query regions contain some background. Combining the backgrounds with differ-ent contdiffer-ents of query subjects is helpful in eliminating irrelevant regions.

The two examples presented inFigs. 13 and 14indicate that it is difﬁcult to quantitatively evaluate the performance of an IRQ RBIR system because the retrieval results vary with different selections of query regions. Following our experiments of region ﬁltering pre-sented in Section6.2.2,Fig. 12(b) shows the average precisions for

Table 5

The category IDs and the semantic names of the extended dataset.

ID 11 12 13 14 15 16 17 18 19 20

Name Glaciers and Mountains

Monument Valley

Autumn Cavems Fireworks Doors of Paris Dolphins and Whales

Owls Fitness Prehistoric World

ID 21 22 23 24 25 26 27 28 29 30

Name Bonsai and Penj ing Tropical Plants Beautiful Roses Museum Duck Decoys Museum Easter Eggs Plants and Animals in Desert

Chimpanzee Close-up Moths Hawks and Falcons

ID 31 32 33 34 35 36 37 38 39 40

Name Bears Lions Orchids of the World

Penguins Weasels and Hares

Garden Leopards Models Cloud Insects

ID 41 42 43 44 45 46 47 48 49 50

Name Waves Reptilia Poker Moths and

Butterﬂie

Ofﬁce Interiors

Pedigree Cates Heads of Animals Bird Illustrations Dinosaur Illustrations Wild Birds

(a) Average recalls of region filtering (b)

Average precisions of retrieval results

(10)

Table 6

Details of averages recalls for the best-10 and worst-5 categories.

Rank 500/5000 1000/5000 1500/5000 2000/5000

Category Name Recall(%) Category Name Recall(%) Category Name Recall(%) Category Name Recall(%)

1 Buses 93.25 Buses 98.65 Buses 99.65 Buses 99.95

2 Cuisine 66.85 Doors of Paris 83.45 Doors of Paris 92.8 Doors of Paris 96.7

3 African 60.6 Cuisine 80.8 Cuisine 88.7 Cuisine 92.7

4 Doors of Paris 59.4 African 77.45 African 86.65 African 91.75

5 Poker 51.5 Historical Remains 70.8 Bird Illustrations 81.05 Bird Illustrations 89.65

6 Historical Remains 48.4 Poker 65.9 Historical Remains 80.9 Historical Remains 88.1

7 Beautiful Rose 42.55 Penguins 62.15 Ofﬁce Interiors 79.3 Ofﬁce Interiors 87.1

8 Tropical Plants 42.2 Tropical Plants 61.85 Poker 76.75 Dinosaur Decoys 86.6

9 Orchids of the World 41.75 Orchids of the World 60.5 Tropical Plants 75 Poker 83.4

10 Museum Duck Decoys 40 Bird Illustrations 56.6 Penguins 72.55 Tropical Plants 82.95

46 Hawks and Falcons 15.45 Waves 26.15 Waves 39.15 Lions 50.85

47 Heads of Animals 14.45 Heads of Animals 25.15 Heads of Animals 36.7 Leopards 49.85

48 Reptilia 12.9 Reptilia 24.85 Reptilia 32.6 Weasels and Hares 44.75

49 Weasels and Hares 12.3 Weasels and Hares 22.1 Weasels and Hares 30.1 Reptilia 44.75

50 Cloud 11.35 Cloud 20.9 Cloud 28.2 Cloud 41.2

Fig. 13. Retrieval example with query by the subject of interest.

(11)

different numbers of retrieval results when we adopt the same query set with the query being a whole image.

7. Conclusion and future work

This paper presents the color-size feature for integrating color and region-size information in an image. We explore the use of col-or and region-size features as the visual representation of image regions. We have also designed an IRQ RBIR system to allow the user to specify regions of interest as a query. The proposed region ﬁltering method can screen out most irrelevant images based on the color-size histogram, with only the resulting candidate images being ranked using the EMD-based similarity measure. The results from our experiments demonstrate the efﬁciency of using the pro-posed color-size feature and our RBIR system.

Some future tasks are needed to extend this work. The first is to design a scheme of relevance feedbacks[6,22]to learn what the user wants to retrieve, based on positive and negative examples specified by the user. Because modeling human perception is very difficult both in terms of visual features and the similarity measure, rele-vance feedbacks is a good way to interactively estimate and learn the concepts including in the user query. The second task is to design a multiscale representation for the color-size feature to overcome the problem of the scaling invariance. Besides, we need to design an evaluation model for an IRQ RBIR system. In our system, the query is dependent on the regions selected by the user, and it is challenging to design automatic evaluation for an IRQ RBIR system.

Acknowledgment

This work was in part supported by National Science Council, Tai-wan, under Grant No. NSC 97-2218-E-147-002 and by Ministry of Economic Affairs, Taiwan, under Grant No. 97-EC-17-A-02-S1-032.

References

[1] K. Barnard, D. Forsyth, Learning the semantics of words and pictures, Proceedings of International Conference on Computer Vision, 2 (2001) 408–415. [2] K. Barnard, N.V. Shirahatti, A method for comparing content based image

retrieval methods, Internet Imaging IX, Electronic Imaging, 2003.

[3] C. Carson, S. Belongie, H. Greenspan, J. Malik, Blobworld: image segmentation using expectation-maximization and its application to image querying, IEEE Transaction on Pattern Analysis and Machine Intelligence 24 (8) (2002) 1026– 1038.

[4] V. Castelli, L.D. Bergman, Image Databases: Search and Retrieval of Digital Imagery, John Wiley & Sons, Inc, 2002.

[5] C.-C. Chiang, M.-H. Hsieh, Y.-P. Hung, G.C. Lee, Region Filtering Using Color and Texture Features for Image Retrieval, Proceedings of International Conference on Image and Video Retrieval, Singapore, 2005, pp. 487–496.

[6] I.J. Cox, M.L. Miller, T.P. Minka, T.V. Papathomas, P.N. Yianilos, The Bayesian image retrieval system, PicHunter: theory, implementation, and psychophysical experiments, IEEE Transaction on Image Processing 9 (1) (2000) 20–37. [7] R. Datta, J. Li, J.Z. Wang, Content-based image retrieval—approaches and trends

of the new age, Proceedings of ACM SIGMM International Workshop on Multimedia information retrieval, 2005.

[8] R.O. Duda, P.E. Hart, D.G. Stork, Pattern Classiﬁcation, second ed., John Wiley & Sons, Inc, 2001.

[9] C. Faloutsos, R. Barber, M. Flickner, J. Hafner, W. Niblack, D. Petkovic, W. Equitz, Efﬁcient and effective querying by image content, Journal of Intelligent Information Systems 3 (3–4) (1994) 231–262.

[10] L. Fei-Fei, R. Fergus, P. Perona, Learning generative visual models from few training examples: an incremental Bayesian approach tested on 101 object categories, Proceedings of IEEE Conference on Computer Vision and Pattern Recognition, Workshop on Generative-Model Based Vision, 2004.

[11] S.L. Feng, R. Manmatha, V. Lavrenko, Multiple bernoulli relevance models for image and video annotation, Proceedings of IEEE Conference on Computer Vision and Pattern Recognition, Washington, DC, 2004.

[12] R. Fergus, L. Fei-Fei, P. Perona, A. Zisserman, Learning object categories from Google’s image search, Proceedings of International Conference on Computer Vision, 2005.

[13] P. Howarth, S. Ruger, Evaluation of texture features for content-based image retrieval, Proceedings of International Conference on Image and Video Retrieval, 2004.

[14] J. Jeon, V. Lavrenko, R. Manmatha, Automatic image annotation and retrieval using cross-media relevance models, Proceedings of International ACM SIGIR Conference on Research and Development in Information Retrieval, 2003.

[15] F. Jing, M. Li, H.-J. Zhang, B. Zhang, An efﬁcient and effective region-based image retrieval framework, IEEE Transaction on Image Processing, 13(5) (2004).

[16] J. Li, J.Z. Wang, Automatic linguistic indexing of pictures by a statistical modeling approach, IEEE Transactions on Pattern Analysis and Machine Intelligence 25 (9) (2003) 1075–1088.

[17] B.S. Manjunath, W.Y. Ma, Texture features for browsing and retrieval of image data, IEEE Transaction on Pattern Analysis and Machine Intelligence (1996) 837–842.

[18] B.S. Manjunath, J.-R. Ohm, V.V. Vasudevan, A. Yamada, Color and texture descriptors, IEEE Transaction Circuits Systems Video Technologies (Special Issue on MPEG-7) 11 (6) (2001) 703–715.

[19] R. Maree, P. Geurts, J. Piater, L. Wehenkel, Random Subwindows for Robust Image Classiﬁcation, Proceedings of IEEE Conference on Computer Vision and Pattern Recognition, 2005.

[20] S. Mehrotra, Y. Rui, M. Ortega-Binderberger, T.S. Huang, Supporting content-based queries over images in MARS, Proceedings of IEEE International Conference on Multimedia Computing and Systems, (1997) 632–633. [21] Y. Rubner, C. Tomasi, L.J. Guibas, The Earth Mover’s Distance as a metric for

image retrieval, International Journal of Computer Vision 40 (2) (2000) 99– 121.

[22] Y. Rui, T.S. Huang, M. Ortega, S. Mehrotra, Relevance feedback: a power tool for interactive content-based image retrieval, IEEE Transactions on Circuits and Systems for Video Technology 8 (5) (1998) 644–655.

[23] J. Sivic, B.C. Russell, A.A. Efros, A. Zisserman, W.T. Freeman, Discovering objects and their location in images, Proceedings of International Conference on Computer Vision, 2005.

[24] J.R. Smith, C.S. Li, Image classiﬁcation and querying using composite region templates, Computer Vision and Image Understanding (1999) 165–174. [25] M. Stricker, M. Orengo, Similarity of color images, Proceedings of SPIE

Conference on Storage and Retrieval for Image and Video Databases (1995) 381–392.

[26] M.J. Swain, D.H. Ballard, Color indexing, International Journal of Computer Vision 7 (1) (1991) 11–32.

[27] L. Vincent, P. Soille, Watersheds in digital spaces: an efﬁcient algorithm based on immersion simulations, IEEE Transaction on Pattern Analysis and Machine Intelligence 13 (6) (1991) 583–598.

[28] K. Vu, A. Hua, J.H. Oh, A noise-free similarity model for image retrieval systems, Proceedings of SPIE Conference on Storage and Retrieval Media Databases, San Jose, CA., 2001, pp. 1–11.

[29] D. Wang, A multiscale gradient algorithm for image segmentation using watersheds, Pattern Recognition 30 (12) (1997) 2043–2052.

[30] J.Z. Wang, J. Li, G. Wiederhold, SIMPLIcity: semantics-sensitive integrated matching for picture libraries, IEEE Transaction on Pattern Analysis and Machine Intelligence (2001) 947–963.

[31] R. Weber, M. Mlivoncic, Efﬁcient region based image retrieval, Proceedings of ACM International Conference on Information and Knowledge Management, New Orleans, Louisiana, USA, 2003.
