R E G U L A R A R T I C L E
The elusive excited states of bithiophene:
a CASPT2 detective story
Marcin Andrzejak•Henryk A. Witek
Received: 1 March 2011 / Accepted: 3 March 2011 / Published online: 20 March 2011 Ó The Author(s) 2011. This article is published with open access at Springerlink.com
Abstract A systematic multi-reference perturbation theory investigation of the excitation energies and oscillator strengths for the lowest excited states of 2,20-bithiophene unequivocally shows that its optical spectrum is produced by two1Bustates separated from each other by approximately
1 eV. This picture is confirmed by additional calculations with alternative quantum chemical methods. Our findings are in strong contrast with the previous CASPT2 results of Rubio et al. [J Chem Phys 102:3580 (1995) and Chem Phys Chem 4:1308 (2003)], who predicted that the two lowest1Bu
states are quasi-degenerate. The methodological reasons responsible for the previous seemingly erroneous assign-ment of the optical spectrum of bithiophene are identified and explained in terms of unusually large coupling between the1Bustates introduced by dynamical correlation effects. A
general discussion of applicable computational techniques is offered aiming at avoiding similar problems for other molecular systems.
Keywords Excited states Bithiophene CASSCF CASPT2 Vertical excitation energies Absorption spectrum
1 Introduction
Spectroscopy of 5-membered heterocyclic rings has been extensively studied for several decades [1–15]. Excited states of thiophene attracted particular attention as this molecule constitutes the smallest building block of oligo and polythiophenes—materials extensively used in organic electronics [16–20]. In consequence, the energetics and electronic structure of thiophene are quite firmly estab-lished. The situation is different for 2,20-bithiophene (hereafter referred to as bithiophene or 2T), mostly due to the relatively large size of the molecule. It is, however, well documented [21–23] that the adiabatic energy of the lowest, dipole-allowed excitation is located at 3.83–3.88 eV. Room temperature gas-phase [23] and solution spectra [24] revealed an intensive band with oscillator strength f = 0.29 located just above 4 eV and a weaker one with f = 0.13, at about 5 eV. These transitions were tentatively classified as X1Ag? 11Bu and X1Ag? 21Bu,
respec-tively, assuming planar, C2h conformation of
trans-bithi-ophene (Fig.1). Another low-intensity band of 2T was tentatively located above 6 eV.
Bithiophene can be regarded as a challenging system also for quantum chemistry because of its non-planarity and very flat torsional potential in its ground state. It is perhaps the reason that there have been only few theoret-ical studies dealing with the excited states of bithiophene. Rubio et al. [25, 26] applied the CASSCF/CASPT2 methodology to study the lowest p–p* excitations of 2T. They reported a pair of Bustates of similar energies (3.88
and 4.15 eV) and a third state of considerably higher energy (5.53 eV). The same excitations computed for trans-gauche conformation of bithiophene (optimized for the ground state at the MP2 level of theory) yielded slightly higher energies of 4.22, 4.36, and 5.79 eV. The agreement
Electronic supplementary material The online version of this article (doi:10.1007/s00214-011-0916-x) contains supplementary material, which is available to authorized users.
M. Andrzejak (&)
Department of Theoretical Chemistry, Faculty of Chemistry, Jagiellonian University, Ingardena 3, 30-060 Krako´w, Poland e-mail: andrzeja@chemia.uj.edu.pl
H. A. Witek
Department of Applied Chemistry and Institute of Molecular Science, National Chiao Tung University, Hsinchu, Taiwan e-mail: hwitek@mail.nctu.edu.tw
with experimental findings was considered quite satisfac-tory, which might indicate that our understanding of the lowest excited states of bithiophene is thorough.
The theoretical prediction of a pair of quasi-degenerate states is neither confirmed nor ruled-out by the existing experimental data. However, the fact that the two lowest, optically allowed excited singlet states of 2T belong to the same irreducible representation and simultaneously have nearly degenerate energies of about 4 eV is somewhat disquieting. Both of these states originate from the p–p* excitations. One would intuitively expect a strong coupling between the corresponding wave functions, leading to their considerable mixing, and consequently, to a substantial energy separation between the resulting states. Such an effect could be missing if the states originate from different types of excitations (e.g., p–p* and n–p*), but this does not seem to be the case for 2T. An analysis of the 11Buand
21Bu CASSCF wave functions suggests close similarity
between both states. The major configuration (43%) in the 11Buwave function originates from the HOMO ? LUMO
excitation; there are also sizable additions of the HOMO -2?LUMO (20%) and HOMO ? LUMO ? 2 (7%) excita-tions. The 21Buwave function structure is strikingly similar,
with the contributions of the respective configurations equal to 36, 19, and 9%.
Is it possible that the quasi-degeneracy of the two lowest excited states of 2T is merely an artifact of the applied computational methodology? The quoted results of Rubio et al. were computed using single-state CASPT2 formalism in conjunction with state-averaged CASSCF orbitals, the p-only valence active space, and relatively small atomic basis sets of double-f quality. This means that there is plenty of room for possible improvement of the theoretical treatment with respect to the methodological parameters: choice of the one-electron basis, definition of the many-electron basis, estimating the effect of state-averaging, accounting for the dynamical correlation mixing between both wave functions, etc. Another aspect that is worth a careful inspection concerns the presence of intruder states in the CASPT2 treatment. Our recent work [27,28] shows that spectroscopic and molecular parameters computed
with multi-reference perturbation theory using shift tech-nique may heavily depend on the magnitude of the shift parameter in situations when the calculations are plagued by severe intruder states [29]. Taking into account all the issues raised here, we feel that there exists a need for careful inspection of the previous theoretical results and testing various assumptions made in the previous work in order to give a final interpretation of the experimentally observed optical spectrum of 2T.
The natural way to verify the findings of Rubio et al. would be to apply the multi-state version of the CASPT2 method, which allows for coupling of the correlated states via the off-diagonal elements of the effective CASPT2 Hamiltonian. Usually, the off-diagonal dynamical correlation is small and does not introduce large changes to the energy spectrum. Such a physical picture is expected since most of the interactions between the states is supposed to be accounted for by the static correlation at the CASSCF level. The situation, however, may be different in cases of nearly degenerate excited states, which can be strongly mixed even by small off-diagonal coupling. The off-diagonal coupling may introduce considerable changes also in situations when the CASSCF description of the excited states is inadequate, which is signalized by unusually large off-diagonal elements of the effective Hamiltonian. Clearly, non-vanishing off-diagonal elements of the CASPT2 Hamiltonian in Rubio’s calculations could cause additional splittings and lead to a completely different description of the low-lying electronic states of bithiophene.
The primary goal of this work is to investigate the excitation energies and oscillator strengths of the lowest singlet states of bithiophene using a series of computational approaches in order to obtain unequivocal assignment of the observed experimental optical spectra. To this end, we extend the previously applied single-state CASSCF/CASPT2 treatment of Rubio et al. by using a wider selection of basis sets and a variety of active spaces. Additionally, we perform the multi-state CASPT2 calculations to verify the interpretational problems found in Rubio’s results. Finally, we compare the results of our extended CASPT2 calculations with analogous results obtained by other quantum chemical methods. The structure of this paper is as follows. Section2gives detailed information about available experimental results on the low-lying singlet states of 2T. Section3summarizes the details of computational techniques employed. Section4constitutes the main body of this paper, giving the analysis and discussion of the obtained results. Finally, Sect. 5 contains the conclusions and lists the most important findings of our work.
2 Experimental evidence
Owing to the size of the molecule, conclusive experimental data concerning excited states of bithiophene are by far
scarcer than for thiophene or other 5-membered heterocy-clic rings. The supersonic-jet [21] and the photodetachment photoelectron spectra [22] show that the gas-phase adia-batic excitation energy for the lowest dipole-allowed state (X1Ag? 11Bu) can be quite firmly set at 3.86–3.88 eV.
A slightly lower value of 3.83 eV, based on the room temperature absorption spectrum of bithiophene vapors, was reported by Belleˆtete et al. [23]. This spectrum shows an intense, broad band centered at 4.31 eV and a weaker band with maximum at 5.08 eV. These energies can be tentatively adopted for vertical energies of the lowest dipole-allowed transitions of 2T.
A delicate point concerning the comparison of the experimental energies with the calculated ones is asso-ciated with the torsional potential for the ground and the lowest excited states of 2T. The potential for the ground state is known to possess a double minimum around the trans-planar conformation, with the equilibrium structure corresponding to the dihedral angle of about 150°. The corresponding energy barrier is only 0.01–0.04 eV. [23,
24,30–33] By contrast, in the lowest excited state, 2T has been found to be trans-planar with a deep, steep single minimum on the potential energy surface (PES) [23,24]. One should thus expect that if the 2T molecule assumed the planar conformation, the lowest vertical absorption energy would be considerably lower than the gas-phase value, whereas the adiabatic energy would be reduced only marginally. Such a behavior was indeed observed by Becker et al. [24], who measured absorption spectra of 2T in dioxane in 298 K and in 77 K. The band center underwent a red shift of 0.12 eV when the temperature was lowered, and at the same time, the energy of the 0–0 line was decreased only by 0.025 eV. Becker et al. attributed these changes to the planarization of 2T enforced by freezing of the solvent. Accordingly, the vertical energy of the X1Ag? 11Bu excitation,
calcu-lated for the planar trans conformation of 2T, ought to be compared to 4.19 eV, which is the experimental gas-phase value corrected by the shift inferred from the 2T dioxane spectra. Note, however, that according to Rubio et al. the low-energy absorption band is formed by two unresolved excita-tions to closely spaced1Bustates. If it is the case, the
experi-mental value of 4.31 eV has to be regarded only as an effective value for two overlapping bands, and the temperature dependence of the absorption spectra described above may have an alternative explanation.
Following the discussion in the last two Sections, we assume for the rest of this paper that the experimental vertical excitation energies for planar 2T are 4.19 eV for X1Ag? 11Bu and 5.08 eV for X1Ag? 21Bu.
Conse-quently, the energy gap between both excited states is 0.89 eV. The corresponding oscillator strengths of both transitions are 0.29 and 0.13.
3 Computational details
The vertical excitation energies for the two lowest 1Bu
states of 2T were computed using the second-order single-and multi-state complete active space perturbation theory (CASPT2) with the IPEA shift of 0.25 eV and the imagi-nary shift of 0.1 hartree as implemented in the MOLCAS 7.4 package of programs [34]. The calculations were per-formed using a set of correlation-consistent basis sets of Dunning: cc-pVDZ, pVDZ, cc-pVTZ, and aug-cc-pVTZ [35–37]. The zeroth-order wave functions were optimized at the complete active space self-consistent field (CASSCF) level. The CASSCF calculations for the ground state (X 1Ag) were performed state-specifically, while for
the excited states, state averaging with the ratio 1:1 was performed for 11Bu and 21Bu. The effect of
state-aver-aging was assessed by performing additional, state-specific CASSCF calculation for the 11Bustate alone and projecting
the resultant wave function onto its state-averaged analog. The vertical excitation energies and the corresponding oscillator strengths (determined with the CASSCF wave functions) were computed using the equilibrium, trans-planar (C2h)
geometrical structures of 2T in its ground state optimized at the CASPT2 level using the valence (0550) active space. The resulting CASPT2/0550 equilibrium geometries for each of the employed here basis sets are given in auxiliary materials. The subsequent CASPT2 calculations of the vertical excitation energies were performed using a variety of active spaces. Their choice was dictated by the following facts. Simple orbital analysis of bithiophene in its trans-planar conformation leads to a general conclusion that the lowest valence electronic states belong either to Agor Bu
irreducible representations. The lowest excited states originate from the p–p* excitations; the n–p* and r–p* transitions are located much higher in energy. Therefore, the natural choice of the active space for 2T comprises of ten valence p orbitals (five bgand five au) and 12 active
electrons. We denote this active space briefly as 0550, where the consecutive numbers refer to the number of active orbitals in the following irreducible representations: ag, bg, au, and bu, respectively. Note that this active space is
identical to that used previously by Rubio et al. It was pointed out by Pastore et al. that some of the lowest p–p* excitation energies calculated for 5-membered heterocyclic rings (pyrrole, furan, and thiophene), [6, 11, 15] are strongly sensitive to the presence of additional, virtual p orbitals in the active space. Therefore, we extended the natural valence active space by adding to it additional virtual p orbitals. The resulting extended complete active spaces can be briefly denoted as 0570, 0660, and 0770. The results obtained with the augmented basis sets showed considerably higher degree of sensitivity to the choice of the active space. To understand this dependence better, we have additionally
investigated a number of auxiliary active spaces: 0560, 0580, 0650, 0670, 0680, 0750, 0760, and 0780.
4 Results
4.1 Single-state CASPT2 results
The single-state CASPT2 excitation energies and the cor-responding CASSCF oscillator strengths computed using the cc-pVDZ and cc-pVTZ basis sets are presented in Table1. The CASSCF energies of both transitions appear to be only weakly dependent on the choice of the active space or the basis set. The CASSCF energy separation between the two excited states ranges from 0.27 to 0.44 eV. Different performance of the two basis sets becomes evident when the dynamic correlation effects are included. In the cc-pVDZ basis sets, the two1Bustates are
almost quasi-degenerate, while in the cc-pVTZ basis set, the CASPT2 energy separations are similar to those com-puted with CASSCF. Moreover, the CASPT2 corrections calculated with the cc-pVDZ basis set are considerably larger for the 21Bu state leading to a reversed energy
ordering of the two 1Bu states at the CASPT2 level. It is
evident from this discussion that the basis set effect is large, and the quasi-degeneracy of two low-lying1Bustates
obtained earlier by Rubio et al. in a basis set of double-f quality seems to be at least disputable. As the reader will be able to see from the following paragraphs, this controversy is further supported by other results.
The single-state CASPT2 excitation energies and the corresponding CASSCF oscillator strengths computed using the aug-cc-pVDZ and aug-cc-pVTZ basis sets are presented in Tables2 and3, respectively. These results in general tend to confirm the picture obtained with the cc-pVTZ basis set and are in contrast to the data obtained
Table 1 State-average CASSCF/single-state CASPT2 excitation energies (in eV) and oscillator strengths for transitions to two lowest Businglet states of 2T, obtained with the non-augmented basis sets, and selected active spaces
Basis set Active space 11B u 21Bu DE CASSCF DE CASPT2 ECASSCF ECASPT2/ (osc. strength) CASPT2 correction ECAS ECASPT2/ (osc. strength) CASPT2 correction cc-pVDZ 0550 5.69 4.76 (0.23) 0.93 6.13 4.72 (0.39) 1.41 0.44 -0.04 0570 5.63 4.77 (0.23) 0.86 6.01 4.76 (0.39) 1.25 0.38 -0.01 0660 5.71 4.89 (0.16) 0.83 6.07 4.56 (0.41) 1.51 0.36 -0.33 0770 5.64 4.78 (0.20) 0.86 6.01 4.72 (0.38) 1.29 0.37 -0.06 cc-pVTZ 0550 5.73 4.40 (0.30) 1.33 6.15 4.83 (0.31) 1.32 0.42 0.43 0570 5.63 4.38 (0.32) 1.25 6.00 4.94 (0.27) 1.06 0.37 0.56 0660 5.76 4.48 (0.25) 1.29 6.03 4.73 (0.30) 1.30 0.27 0.25 0770 5.64 4.39 (0.28) 1.25 5.98 4.91 (0.25) 1.07 0.34 0.52
Table 2 State-average CASSCF/single-state CASPT2 excitation energies (in eV) and oscillator strengths for transitions to two lowest Businglet states of 2T, obtained with the aug-cc-pVDZ basis set, and a series of active spaces
Active space 11Bu 21Bu DE CASSCF DE CASPT2 ECASSCF ECASPT2/ (osc. strength) CASPT2 correction ECAS ECASPT2/ (osc. strength) CASPT2 correction 0550 5.63 4.36 (0.27) 1.27 6.02 4.64 (0.32) 1.38 0.39 0.28 0560 5.54 4.10 (0.31) 1.44 5.84 5.00 (0.19) 0.83 0.30 0.90 0570 5.45 4.15 (0.32) 1.30 5.79 4.98 (0.20) 0.81 0.34 0.83 0580 5.40 4.13 (0.33) 1.26 5.73 4.98 (0.19) 0.76 0.34 0.85 0650 5.60 4.35 (0.25) 1.25 6.02 4.63 (0.31) 1.38 0.42 0.28 0660 5.62 4.05 (0.29) 1.58 5.86 4.94 (0.18) 0.92 0.23 0.89 0670 5.46 4.22 (0.27) 1.24 5.80 4.87 (0.22) 0.92 0.34 0.65 0680 5.38 4.17 (0.30) 1.21 5.78 4.92 (0.21) 0.86 0.37 0.75 0750 5.55 4.28 (0.27) 1.28 5.98 4.77 (0.26) 1.21 0.43 0.49 0760 5.54 4.06 (0.31) 1.49 5.86 5.00 (0.16) 0.86 0.32 0.94 0770 5.47 4.11 (0.29) 1.36 5.83 4.97 (0.17) 0.86 0.36 0.86 0780 5.39 4.12 (0.31) 1.27 5.71 5.01 (0.17) 0.69 0.32 0.89
with the cc-pVDZ basis set. The results obtained with the cc-pVTZ basis set show mediocre agreement with experiment. In general, the energy separation between the 11Buand 21Bustates is too small, and the intensity pattern
of both transitions does not match the experimental picture. Including the diffuse functions in the basis set allows for substantial improvement of the calculated results in com-parison with experiment. The CASPT2 excitation energies obtained with the augmented basis sets are substantially lowered for the 11Bustate and slightly increased for the
21Bustate. Consequently, the energy splitting between the
two excited states becomes much larger. Also, the calcu-lated oscillator strengths reveal considerable intensity shift in favor of the lower transition. The X1Ag? 11Buexcitation
energies are confined to a narrow range of 3.99–4.22 eV (experimentally & 4.19 eV) and the X1Ag? 21Bu
excita-tion energies, to 4.87–5.17 eV (experimentally & 5.08 eV). The calculated oscillator strength for the lower transition, equal to 0.27–0.34, is in excellent agreement with the experimental value of 0.29. The intensity of the higher excitation is somewhat overestimated (0.13–0.22), as compared to the experimental value of 0.13. [24] Note that the results obtained with the largest studied here basis set, aug-cc-pVTZ, allow for the best reproduction of the experimental findings.
The results obtained with augmented basis sets show more pronounced dependence on the composition of the active space. To exploit the character of this dependence in detail, we carried out a more detailed study involving 12 different variants of the active space (see Tables2and3, and Fig.2 for details). The CASSCF excitation energies are reduced upon addition of extra auorbitals to the active
space, while they are relatively insensitive when extra bg
Table 3 State-average CASSCF/single-state CASPT2 excitation energies (in eV) and oscillator strengths for transitions to two lowest Businglet states of 2T, obtained with the aug-cc-pVTZ basis set, and a series of active spaces
Active space 11Bu 21Bu DE CASSCF DE CASPT2 ECASSCF ECASPT2/ (osc. strength) CASPT2 correction ECAS ECASPT2/ (osc. strength) CASPT2 correction 0550 5.69 4.19 (0.32) 1.50 6.11 4.85 (0.27) 1.26 0.42 0.66 0560 5.55 4.08 (0.34) 1.47 5.95 5.17 (0.15) 0.78 0.40 1.09 0570 5.48 4.14 (0.33) 1.34 5.90 5.15 (0.17) 0.75 0.42 1.01 0580 5.41 4.12 (0.34) 1.29 5.84 5.12 (0.16) 0.71 0.43 1.00 0650 5.66 4.20 (0.29) 1.46 6.10 4.81 (0.26) 1.29 0.44 0.61 0660 5.66 3.99 (0.32) 1.67 5.98 5.10 (0.14) 0.87 0.31 1.11 0670 5.50 4.17 (0.29) 1.32 5.89 5.08 (0.18) 0.81 0.39 0.91 0680 5.41 4.17 (0.31) 1.24 5.87 5.08 (0.17) 0.80 0.47 0.91 0750 5.62 4.15 (0.32) 1.47 6.07 4.90 (0.22) 1.17 0.45 0.75 0760 5.60 4.01 (0.33) 1.59 5.96 5.13 (0.13) 0.84 0.37 1.12 0770 5.51 4.10 (0.31) 1.42 5.94 5.10 (0.15) 0.83 0.42 1.00 0780 5.41 4.11 (0.32) 1.29 5.81 5.14 (0.13) 0.67 0.41 1.03
Fig. 2 The X1Ag? 11Buand X1Ag? 21Buexcitation energies (upper panels) and oscillator strengths (lower panels) of 2T computed using the single-state CASPT2 (filled symbols) and CASSCF (open symbols) methods, and a variety of active spaces. The results for the 11B
ustate are depicted using red circles (state-averaged calculations) and black triangles (state-specific calculations) and the results for the 21B
ustate, using blue diamonds (state-averaged calculations). For the definition of the active spaces (in abscissas), see text. Broken lines indicate the relevant experimental values
orbitals are added. For the active spaces without additional au orbitals, i.e., 0550, 0650, and 0750, the computed
CASPT2 excitation energies and oscillator strengths are distinctly different than for the remaining active spaces. Therefore, we treat 0550, 0650, and 0750 as outliers and do not consider them in the analysis of the results. A detailed discussion concerning the role and characteristics of the extra auorbitals in the active space will be given in Sect.5.
It should be noted in passing that the X1Ag? 11Bu
excitation energies obtained from the state-specific calcula-tions for the 11Bustate are relatively insensitive to the choice
of the active space, which agrees with the observation that the active space substitution effect in the state-averaged calcula-tions is visible mainly for the 21Bustate. The state-specific
11Buwave function projected onto its state-averaged analog
gives overlap larger than 95% for the both augmented basis sets and all choices of active spaces but 0660 and 0760. These results demonstrate that the description of the 11Bustate of 2T
is not strongly affected by the averaging of the orbitals. Summarizing the results obtained in this Section, we can state that accurate reproduction of experimental energy gap between the two1Bustates and the correct intensity pattern
requires two key factors: i) augmenting the natural active space (0550) with at least one additional orbital of sym-metry au, and ii) using basis sets with auxiliary diffuse
functions. It is also recommended to use a basis set of preferably triple-f quality, as the results obtained with the cc-pVDZ basis set raise severe interpretational controver-sies and can be most likely regarded as computational artifacts. Note that in light of these results, the previous findings of Rubio et al. concerning two almost quasi-degenerate 1Bu states computed with a double-f quality
basis set seem to be erroneous. 4.2 Multi-state CASPT2 results
The results discussed in Sect.4.1were obtained with sin-gle-state CASPT2 formalism. Accordingly, the coupling
between the 11Buand 21Bustates was accounted for only
at the CASSCF level. In most situations this is sufficient; possible exceptions may concern systems with quasi-degen-erated electronic level or extraordinary large CASPT2 cou-plings between the considered states. In this paragraph, we show that the quasi-degeneracy of the 11Buand 21Bustates
obtained with the single-state CASPT2 formalism and the cc-pVDZ basis set is removed if one uses two-state CASPT2 formalism. Moreover, the two-state CASPT2 results obtained with all the considered here basis sets and active spaces dis-play high level of consistency giving similar estimates of the X1Ag? 11Buand X 1Ag? 2 1Buexcitation energies and
oscillator strengths.
The multi-state CASPT2 excitation energies, the corre-sponding CASSCF oscillator strengths, and the magnitude of the off-diagonal coupling elements computed using the cc-pVDZ and cc-pVTZ basis sets are presented in Table4. Analogous results obtained with the cc-pVDZ and aug-cc-pVTZ basis sets are presented in Tables5 and 6, respectively, and in Fig.3. The first, most surprising observation concerning the presented data is the unusually large magnitude of the off-diagonal CASPT2 coupling elements, H_
eff
1;2, between the 1
1B
u and 21Bustates. Such
large values suggest that the active spaces employed here are not flexible enough to describe efficiently the static correlation in both studied wave functions. The coupling is the largest (0.91–0.98 eV) for the smallest active space studied here: 0550. In general, the coupling is reduced if the size of the active space and/or basis set is enlarged. The smallest coupling (0.40 eV) is observed for the largest active space and basis set considered in this study (0780/ aug-cc-pVTZ), which furnish most variational freedom to account properly for the multi-reference character of both wave functions.
For the cc-pVDZ basis set, the magnitude of the off-diagonal coupling element exceeds vastly single-state CASPT2 separation energy between the both1Bustates and Table 4 Single-state versus multi-state CASPT2 results (on top of the state-average CASSCF wave functions) obtained with the cc-pVDZ and cc-pVTZ basis sets and selected active spaces. All the energies and coupling elements are given in eV
Basis set Active space Single-state CASPT2 Multi-state CASPT2
11Bu 21Bu DE 11Bu 21Bu H_ eff 12 DE cc-pVDZ 0550 4.76 (0.23) 4.72 (0.39) -0.04 3.84 (0.44) 5.65 (0.09) 0.91 1.81 0570 4.77 (0.23) 4.76 (0.39) -0.01 3.88 (0.45) 5.64 (0.09) 0.88 1.76 0660 4.89 (0.16) 4.56 (0.41) -0.33 3.88 (0.42) 5.56 (0.09) 0.82 1.68 0770 4.78 (0.20) 4.72 (0.38) -0.07 3.90 (0.42) 5.59 (0.08) 0.85 1.69 cc-pVTZ 0550 4.40 (0.30) 4.83 (0.31) 0.43 3.64 (0.42) 5.59 (0.09) 0.95 1.95 0570 4.38 (0.32) 4.94 (0.27) 0.56 3.75 (0.42) 5.57 (0.09) 0.86 1.82 0660 4.48 (0.25) 4.73 (0.30) 0.25 3.66 (0.38) 5.55 (0.08) 0.94 1.89 0770 4.39 (0.28) 4.91 (0.25) 0.52 3.77 (0.39) 5.53 (0.07) 0.84 1.76
brings about dramatic changes to the CASPT2 energies of the two states and to the character of their wave functions. The resulting splitting is now as large as 1.69–1.81 eV. A comparably vast energy gap between the 11Buand 21Bu
states is also found for other basis sets. The oscillator strengths show a similarly weak dependence on the choice of the basis set and active space, with lower transition being about 4–5 times more intense than the higher one for all the applied combinations of the methodological parameters. It is apparent that the differences of both energies and inten-sities obtained in the multi-state CASPT2 calculations substantially overestimate the experimental values. The best agreement with experiment is again obtained for the largest active space and basis set investigated here (0780/ aug-cc-pVTZ). The lower excited state, 11Bu, is located
3.97 eV above the ground state (experimentally & 4.19 eV) and the higher excited state, 2 1Bu, 5.28 eV higher
than X 1Ag (experimentally & 5.08 eV). The computed
oscillator strengths of the corresponding transitions (0.35 and 0.09, respectively) follow the experimental intensity pattern (0.29 and 0.13). Even if the positions of both excited states and the intensities of associated transitions are reproduced quite well, the resulting energy splitting (1.31 eV) is still overestimated by almost 50% in compar-ison with the experimental value (0.89 eV).
It is quite surprising that it is possible to obtain much better agreement with experiment using the single-state rather than the multi-state CASPT2 formalism. One of the possible explanations for this behavior can be overesti-mation of dynamical correlation by CASPT2. It is well known that the second-order perturbation theory (PT) usually overshoots the correlation energy and the
third-Fig. 3 The comparison between the single-state and multi-state CASPT2 excitation energies (upper panels) and oscillator strengths (lower panels) for the 11B
u(red circles) and 21Bu(blue diamonds) states of 2T computed using various active spaces. The single-state results are depicted using filled symbols, and the multi-state results, using open symbols. For the definition of the active spaces (in abscissas), see text. Broken lines indicate the relevant experimental values
Table 5 Single-state versus multi-state CASPT2 results (on top of the state-average CASSCF wave functions) obtained with the aug-cc-pVDZ and a series of active spaces. All the energies and coupling elements are given in eV
Active space
Single-state CASPT2 Multi-state CASPT2
11Bu 21Bu DE 11Bu 21Bu H_ eff 12 DE 0550 4.36 (0.27) 4.64 (0.32) 0.28 3.51 (0.40) 5.49 (0.09) 0.98 1.98 0560 4.10 (0.31) 5.00 (0.19) 0.90 3.69 (0.36) 5.41 (0.09) 0.73 1.72 0570 4.15 (0.32) 4.98 (0.20) 0.83 3.72 (0.37) 5.42 (0.10) 0.74 1.70 0580 4.13 (0.33) 4.98 (0.19) 0.85 3.74 (0.37) 5.37 (0.10) 0.70 1.63 0650 4.35 (0.25) 4.63 (0.31) 0.28 3.52 (0.38) 5.46 (0.09) 0.96 1.94 0660 4.05 (0.29) 4.94 (0.18) 0.89 3.65 (0.34) 5.33 (0.08) 0.72 1.68 0670 4.22 (0.27) 4.87 (0.22) 0.65 3.67 (0.34) 5.43 (0.09) 0.82 1.76 0680 4.17 (0.30) 4.92 (0.21) 0.75 3.70 (0.36) 5.39 (0.09) 0.75 1.69 0750 4.28 (0.27) 4.77 (0.26) 0.49 3.61 (0.38) 5.44 (0.08) 0.88 1.84 0760 4.06 (0.31) 5.00 (0.16) 0.94 3.74 (0.35) 5.31 (0.09) 0.62 1.57 0770 4.11 (0.29) 4.97 (0.17) 0.86 3.75 (0.34) 5.34 (0.08) 0.67 1.59 0780 4.12 (0.31) 5.01 (0.17) 0.89 3.80 (0.35) 5.33 (0.08) 0.62 1.53
order PT, usually underestimates it. It is entirely possible that the multi-state CASPT3 results would be more accu-rate that single-state ones, which would allow for explaining favorable performance of single-state CASPT2 by cancelation of errors resulting from neglecting the higher-order perturbative corrections and the off-diagonal coupling between states. Another possible explanation may come from shortcomings of our multi-state approach. Taking into account large magnitude of the off-diagonal CASPT2 coupling elements, it may be necessary to con-struct an effective CASPT2 Hamiltonian involving more than just two states of interest in order to describe addi-tional static-like correlation effects in the studied wave functions. Initial results along this line show that the energy separation between the 11Bu and 21Bu states is
indeed reduced upon such a modification. We are planning to present detailed account of such investigations in our next communication.
Summarizing, we have demonstrated that the multi-state CASPT2 calculations give an overall picture consistent with that obtained from single-state CASPT2 in large basis sets, unambiguously confirming existence of the substantial energy splitting between the two lowest1Bustates of 2T.
The multi-state CASPT2 results in the cc-pVDZ basis set allow us to demonstrate that the incidental quasi-degeneracy of the 11Bu and 21Bu states communicated
earlier by Rubio et al. originates from neglecting unusually large off-diagonal CASPT2 coupling between these two states. In general, the changes introduced by the multi-state CASPT2 procedure are too large to be regarded as small corrections to the single-state results and seem to account for new physics of the problem. The counterintuitive, better performance of the single-state CASPT2 formalism is
highlighted, and possible explanations for this behavior are offered.
4.3 Comparison with alternative methods
The modern quantum chemistry offers a number of other approaches capable of estimating the X1Ag? 1 1Bu and
X1Ag? 2 1Bu excitation energies and the corresponding
oscillator strengths. Table7 gives a comparison of such data obtained using the following quantum chemical methods: time-dependent density functional theory (TDDFT [38]) with the B3LYP exchange–correlation functional, approximate single and double coupled clusters (CC2 [39]), equation-of-motion single and double coupled clusters (EOM-CCSD [40]), as implemented in the Tur-bomole 6.1 [41] and Molpro 2010 [42] packages. The calculations were performed using the molecular geome-tries optimized at the MP2 level of theory with the aug-cc-pVDZ and aug-cc-pVTZ basis sets. In all the wave function-based methods (MP2, CC2, EOM-CCSD), the 18 core orbitals (1s, 2s, and 2p orbitals for sulfur, and 1s for carbons) were kept frozen after the HF stage. All the remaining orbitals were included in the correlated calcu-lations. The results thus obtained are compared to the best single-state CASPT2 results from the current study, as well as to the experimental findings. We also attempted to account for dynamic correlation by performing the MR-CISD(Q) [43, 44] calculations (with the Pople correction for size-extensivity [45]) on top of the 0560/aug-cc-pVDZ CASSCF wave functions. Owing to the size of the system, for each of the states in question (XAg, 1
1
Bu, and 2 1
Bu) the
most important of the configurations constituting their CASSCF wave functions were selected for the reference

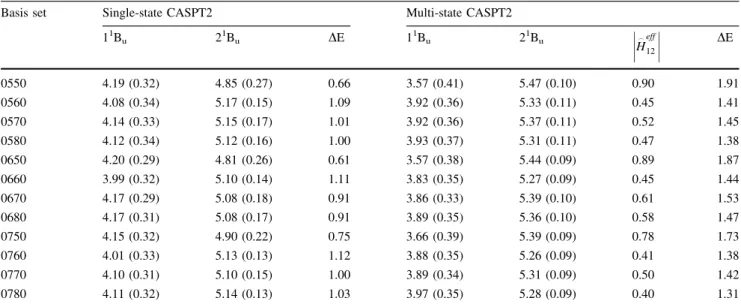

Table 6 Single-state versus multi-state CASPT2 results (on top of the state-average CASSCF wave functions) obtained with the aug-cc-pVDZ and a series of active spaces. All the energies and coupling elements are given in eV
Basis set Single-state CASPT2 Multi-state CASPT2
11Bu 21Bu DE 11Bu 21Bu H_ eff 12 DE 0550 4.19 (0.32) 4.85 (0.27) 0.66 3.57 (0.41) 5.47 (0.10) 0.90 1.91 0560 4.08 (0.34) 5.17 (0.15) 1.09 3.92 (0.36) 5.33 (0.11) 0.45 1.41 0570 4.14 (0.33) 5.15 (0.17) 1.01 3.92 (0.36) 5.37 (0.11) 0.52 1.45 0580 4.12 (0.34) 5.12 (0.16) 1.00 3.93 (0.37) 5.31 (0.11) 0.47 1.38 0650 4.20 (0.29) 4.81 (0.26) 0.61 3.57 (0.38) 5.44 (0.09) 0.89 1.87 0660 3.99 (0.32) 5.10 (0.14) 1.11 3.83 (0.35) 5.27 (0.09) 0.45 1.44 0670 4.17 (0.29) 5.08 (0.18) 0.91 3.86 (0.33) 5.39 (0.10) 0.61 1.53 0680 4.17 (0.31) 5.08 (0.17) 0.91 3.89 (0.35) 5.36 (0.10) 0.58 1.47 0750 4.15 (0.32) 4.90 (0.22) 0.75 3.66 (0.39) 5.39 (0.09) 0.78 1.73 0760 4.01 (0.33) 5.13 (0.13) 1.12 3.88 (0.35) 5.26 (0.09) 0.41 1.38 0770 4.10 (0.31) 5.10 (0.15) 1.00 3.89 (0.34) 5.31 (0.09) 0.50 1.42 0780 4.11 (0.32) 5.14 (0.13) 1.03 3.97 (0.35) 5.28 (0.09) 0.40 1.31
space based on their CI coefficients, with the threshold value of 0.055. We used the same set of core orbitals as in other wave function-based methods. All the MR-CI cal-culations were carried out with the MOLPRO 2010 package.
The common feature for all the employed techniques is a considerable energy splitting between the two1Bustates
in question in contrast to the previous findings of Rubio et al. The largest energy gap, exceeding 1.25 eV, is obtained in the DFT calculations. The coupled cluster methods yield a smaller value of 1.08–1.15 eV, much closer to our best single-state CASPT2 results. Moreover, the MR-CI results again demonstrated that dynamic cor-relation is vital in reproducing the correct energy gap between the two lowest 1Bu states of 2T, which after the
MRCI treatment became considerably larger than the cor-responding CASSCF value (0.30 eV, see Table2 for details).
Remarkably, the CASPT2/CASSCF excitation energies and intensities are in better agreement with experiment than the coupled cluster or MR-CI results. As we discussed in Sect. 4.2, the agreement may be somewhat fortuitous. However, an excellent agreement with experiment has been achieved also for the energy difference between the states, which should be less sensitive to the approximations mentioned above, owing to at least partial cancellation of errors.
5 Discussion
The analysis of the CASPT2 results clearly shows that the presence of a single additional orbital of the ausymmetry
in the active space is one of the key factors responsible for the correct reproduction of the energy gap between the two
1B
u states and the corresponding intensity pattern. The
relevant changes originate mainly from the altered description of the 21Bustate, as the properties of the 11Bu
state are relatively unaffected by the modifications of the active space. The extension of the active space from 0550 to 0560 lowers the CASSCF excitation energy of the 21Bu
state by 0.17–0.18 eV. More spectacular are the corre-sponding changes at the CASPT2 level, where the X1Ag? 2 1Bu excitation energy is amplified by
0.32–0.36 eV. In consequence, the calculated energy sep-aration between the 11Buand 21Bustates is brought closer
to the experimental value. Analogous effect is observed for the oscillator strength of the X 1Ag? 21Bu transition,
which is reduced by over 40 % becoming similar to experiment. Another important aspect of including single additional orbital of the ausymmetry in the conventional
0550 active space is the dramatic reduction (26–50 %) of the off-diagonal CASPT2 coupling between the1Bustates,
which again brings the corresponding multi-state CASPT2 energy splitting much closer to the experimental value.
The 6th auorbital is considerably more diffused than the
other active orbitals, but it has no distinct Rydberg char-acter. We verified this by adding the Rydberg basis func-tions generated according to the standard procedure [13,
46] to the cc-pVDZ and aug-cc-pVDZ basis sets and repeating the calculations for several of the extended active spaces studied in this work. In none of the cases, we obtained a sizable Rydberg contribution in either of the two investigated excited states, which demonstrates that the two lowest1Bustates of 2T have clear valence character.
Perhaps the most interesting aspect of the current study is explaining the role of the 6th orbital of the ausymmetry.
As discussed above, its presence in the active space brings about dramatic changes to the CASPT2 energies. It is thus somewhat puzzling that this orbital remains virtually empty—its occupation number hardly exceeds 0.02. On the other hand, the occupation numbers of other valence
Table 7 Comparison of the results of our alternative calculations, the best CASSCF/CASPT2 results from this study, and the experimental findings
Method Basis set 11Bu 21Bu DE [eV]
Eexc.[eV] f Eexc.[eV] f
TDDFT/B3LYP aug-cc-pVDZ 3.80 0.38 5.09 0.07 1.29 aug-cc-pVTZ 3.79 0.37 5.06 0.07 1.27 CC2 aug-cc-pVDZ 4.16 0.43 5.30 0.12 1.14 aug-cc-pVTZ 4.13 0.42 5.24 0.11 1.11 EOM-CCSD aug-cc-pVDZ 4.32 0.40 5.40 0.14 1.08 aug-cc-pVTZ 4.36 0.39 5.48 0.14 1.12 CASSCF/CASPT2 aug-cc-pVDZ 4.12 0.31 5.01 0.17 0.89 aug-cc-pVTZ 4.11 0.32 5.14 0.13 1.03 MR-CISD(Q) aug-cc-pVDZ 4.57 0.27 5.57 0.06 1.00 Exp. 4.19 0.29 5.08 0.13 0.89
orbitals undergo considerable changes upon including the additional au orbital in the active space (for details, see
Fig.4.). It is clear that extending the valence active space results in significant rearrangement of the active orbitals occupation pattern; the effect being particularly strong when the first orbital of the au symmetry is added
(0550 ? 0560). Apparently, the function of the 6th au
orbital is to provide additional variational flexibility important for improving the description of the CASSCF orbitals and wave functions. We have verified this con-jecture by taking the CASSCF orbitals from the state-average 0560/aug-cc-pVDZ calculations and using them in the CASPT2 calculations employing the following refer-ence wave functions:
a. the 0550 CAS-CI reference wave function with the 6th auorbital entirely deleted from the orbital space;
b. the 0550 CAS-SCF reference wave function with the 6th auorbital entirely deleted from the orbital space;
c. the 0550 CAS-CI reference wave function with the 6th auorbital shifted to the virtual orbital subspace;
d. the 0550 CAS-SCF reference wave function with the 6th auorbital shifted to the virtual orbital subspace and
kept frozen.
The results are given in Table8. One can easily see that the effects of orbital optimization are marginal. Moreover, the CASPT2 energies and transition intensities are very similar to those obtained with the 0560 active space. The CASSCF energies obtained with the 0550 active space are some 0.2 eV higher for both states, but this shift is compensated in the subsequent CASPT2 treatment. Inter-estingly, including the single 6th auorbital into the virtual
subspace (cases c and d) resulted in a sizable increase (0.15–0.18 eV) of the CASPT2 corrections, which again indicates the importance of this particular orbital. The energy gap, however, is only marginally reduced with respect to the 0560 results. It should be stressed here that if
Fig. 4 Orbital occupation numbers obtained from the aug-cc-pVDZ CASSCF calculations for the 11Buand 21Buexcited states of bithiophene using the 0550, 0560, 0570, and 0580 active spaces. The state-specific and state-averaged results for 11Buare denoted with multiple sign and circle, respectively, and the state-averaged results for 21B
u, with diamond. The occupation numbers for the additional, non-valence au orbitals were negligible in all calculations and equal to 0.017–0.022 (6th au), 0.005–0.008 (7th au), and 0.005–0.006 (8th au)
Table 8 CASSCF/CASPT2 energies [eV] and oscillator strengths from the test calculations (for details see text), using the orbitals obtained in the full 0560/aug-cc-pVDZ state-average CASSCF calculations
Case 11Bu 21Bu DE CASSCF DE CASPT2 ECASSCF ECASPT2/ (osc. strength) CASPT2 correction ECAS ECASPT2/ (osc. strength) CASPT2 correction a 5.72 4.13 (0.33) 1.59 6.07 5.03 (0.22) 1.04 0.35 0.90 b 5.74 4.13 (0.34) 1.61 6.07 5.04 (0.22) 1.03 0.33 0.91 c 5.74 4.00 (0.33) 1.74 6.07 4.85 (0.22) 1.22 0.33 0.85 d 5.72 3.94 (0.32) 1.78 6.07 4.79 (0.22) 1.28 0.35 0.85 Active space: 0560 5.54 4.10 (0.31) 1.44 5.84 5.00 (0.19) 0.83 0.30 0.90
the 6th auorbital was allowed to mix with the other orbitals
in the CASSCF calculations, the results would become identical to those obtained with the original 0550 active space. The presented analysis demonstrates that the major role of the 6th auorbital in the active space is to assist in
shaping up the valence active orbitals into the correct form. Examples of such a situation, in which adding additional orbitals to the valence active space is required for obtain-ing, correct results have been previously reported for oli-goenes [47], as well as for 5-membered heterocyclic rings [6,11]. Our analysis suggests that it may be sufficient to extend the original active space using just a single addi-tional (non-valence) orbital, which can thus be regarded as a key ingredient for constructing an appropriate active space. This observation may be especially important in calculations for larger systems, for which the size of the active space is often a critical issue.
6 Conclusions
In the present study, we systematically investigated the excitation energies and the corresponding oscillator strengths for the two lowest excited states of bithiophene, 11Buand 21Bu. It is found that accurate description of the
energetic separation between the two1Bustates and of the
corresponding intensity patterns requires using diffused basis sets of preferable triple-f quality and augmenting the traditionally used 0550 active space with additional, non-valence auorbital possessing significant diffuse character.
The 11Bu state is reasonably described in all but the
smallest basis sets, and fairly insensitive to the composition of the active space. The description of the 21Bu state is,
however, very sensitive to both factors. We explicitly demonstrate that single-state CASPT2 calculations performed with a too small basis set (cc-pVDZ) yield distinctly different results than other single-state and multi-state CASPT2 calculations. The single-multi-state CASPT2/cc-pVDZ results cause severe interpretational difficulties, which, most likely, can be regarded as computational artifacts. The reasons of pathological behavior of CASPT2 in small basis sets are analyzed, and an apt explanation in terms of multi-state CASPT2 formalism is given (unusually large couplings between the perturbed wave functions). In light of the current results, the previous findings of Rubio et al. concerning two almost quasi-degenerate 1Bu states
computed with a double-f quality basis set seem to be erroneous. The actual splitting between the two1Bustates
is relatively large. Our CASPT2 results obtained with large basis sets and a variety of active spaces estimate it to be approximately 1 eV; these results are further confirmed in independent excited-state density functional and coupled cluster calculations. The best agreement with experiment
was obtained in the single-state CASPT2/aug-cc-pVTZ/ 0780 calculations giving energy gap of 1.03 eV and oscillator strengths of 0.32, and 0.13. The corresponding experimental values are 0.86 eV, 0.29, and 0.13.
Acknowledgments National Science Council of Taiwan (grants NSC96-2113-M009-022 and NSC99-2113-M009-011) and Ministry of Education (MOE-ATU project) are acknowledged for financial support. We thank the National Center for High-Performance Com-puting for computer time.
Open Access This article is distributed under the terms of the Creative Commons Attribution Noncommercial License which per-mits any noncommercial use, distribution, and reproduction in any medium, provided the original author(s) and source are credited.
References
1. Bak B, Christensen D, Dixon WB, Hansen-Nygaard L, Andersen JR, Schottla¨nder M (1962) J Mol Spectr 9:124
2. Nakatsuji H, Kitao O, Yonezawa T (1985) J Chem Phys 83:723 3. Serrano-Andre´s L, Merchfi M, Nebot-Gil I, Roos BO, Fu¨lscher M
(1993) J Am Chem Soc 115:6184
4. Palmer MH, Walker IC, Ballard CC, Guest MF (1995) Chem Phys 192:111
5. Burcl R, Amos RD, Handy NC (2002) Chem Phys Lett 355:8 6. Pastore M, Angeli C, Cimiraglia R (2006) Chem Phys Lett 426:445 7. Cooper CD, Williamson AD, Miller JC, Compton RN (1980) J
Chem Phys 73:1527
8. Rawlings DC, Davidson ER (1983) Chem Phys Lett 98:424 9. Nakano H, Tsuneda T, Hashimoto T, Hirao K (1996) J Chem
Phys 104:2313
10. Palmer MH, Walker IC, Guest MF (1990) Chem Phys 238:179 11. Pastore M, Angeli C, Cimiraglia R (2006) Chem Phys Lett
422:522
12. Bendazolli GL, Bertinelli F, Palmerieri P, Brillante C, Taliani C (1978) J Chem Phys 69:5077
13. Serrano-Andres L, Merchan M, Fulscher M, Roos BO (1993) Chem Phys Lett 211:125
14. Palmer MH, Walker IC, Guest MF (1999) Chem Phys 241:275 15. Pastore M, Angeli C, Cimiraglia R (2007) Theor Chem Acc
118:35
16. Garnier F, Hajlaoui R, Yassar A, Srivastava P (1994) Science 265:1684
17. Dobalapur A, Torsi L, Katz HE (1995) Science 268:280 18. Garnier F, Hajlaoui R, El Kassmi A, Horowitz G, Laigre L,
Porzio W, Armanini M, Provasoli F (1998) Chem Mater 10:3334 19. Friend RH et al (1999) Nature (London) 397:121
20. Meng H, Bao Z, Lovinger AJ, Wang B, Mujsce AM (2001) J Am Chem Soc 123:9214
21. Chadwick J, Kohler B (1994) J Phys Chem 98:3631
22. Rentsch S, Yang JP, Paa W, Birckner E, Schiedt J, Weinkauf R (1999) Phys Chem Chem Phys 1:1707
23. Belleˆtete M, Leclerc M, Durocher G (1994) J Phys Chem 98:9450 24. Becker RS, de Melo JS, Mac¸anita AL, Elisei F (1996) J Phys
Chem 100:18683
25. Rubio M, Mercha´n M, Orti E, Roos B (1995) J Chem Phys 102:3580
26. Rubio M, Mercha´n M, Pou-Amerigo R, Orti E (2003) Chem Phys Chem 4:1308
27. Camacho C, Cimiraglia R, Witek HA (2010) Phys Chem Chem Phys 12:5058
28. Camacho C, Yamamoto S, Witek HA (2009) J Comput Chem 30:468
29. Choe Y-K, Witek HA, Finley JP, Hirao K (2001) J Chem Phys 114:3913
30. Takayanagi M, Gejo T, Hanazaki I (1994) J Phys Chem 98:12893 31. Duarte H, Dos Santos H, Rocha W, De Almeida W (2000)
J Chem Phys 113:4206
32. Raos G, Famulari A, Marcon V (2003) Chem Phys Lett 379:364 33. Fedor A, Allis D, Korter T (2009) Vib Spectrosc 49:124 34. Karlstro¨m G, Lindh R, Malmqvist P-A˚ , Roos BO, Ryde U,
Veryazov V, Widmark P-O, Cossi M, Schimmelpfennig B, Neogrady P, Seijo L (2003) Computational Material Science 28:222
35. Dunning TH Jr (1989) J Chem Phys 90:1007
36. Kendall RA, Dunning TH Jr, Harrison RJ (1992) J Chem Phys 96:6769
37. Peterson KA, Dunning TH Jr (2002) J Chem Phys 117:10548 38. Casida ME, Jamorski C, Casida KC, Salahub DR (1998) J Chem
Phys 108:4439
39. Ha¨ttig C, Weigend F (2000) J Chem Phys 113:5154 40. Korona T, Werner H-J (2003) J Chem Phys 118:3006
41. TURBOMOLE V6.1 2009, A development of University of Karlsruhe and Forschungszentrum Karlsruhe GmbH, 1989–2007, TURBOMOLE GmbH, since 2007
42. Werner H-J, Knowles PJ, Lindh R, Manby FR, Schu¨tz M et al MOLPRO, version 2010. 1, a package of ab initio programs 43. Werner H-J, Knowles PJ (1988) J Chem Phys 89:5803 44. Knowles PJ, Werner H-J (1988) Chem Phys Lett 145:514 45. Pople JA, Binkley JS, Seeger R (1976) Int J Quantum Chem 10:1 46. Roos BO, Andersson K, Fu¨lscher MP, Malmqvist P-A˚ , Serrano-Andre´s L, Pierloot K, Mercha´n M (1996) Multiconfigurational perturbation theory: applications in electronic spectroscopy. In: Prigogine I, Rice SA (eds) Advances in chemical physics: new methods in computational quantum mechanics, vol XCIII:219. Wiley, New York
47. Nakayama K, Nakano H, Hirao K (1998) Int J Quant Chem 66:157
