Interfacial microstructure and electrical properties of PT/Al2O3/Si annealed at high temperatures

(1)

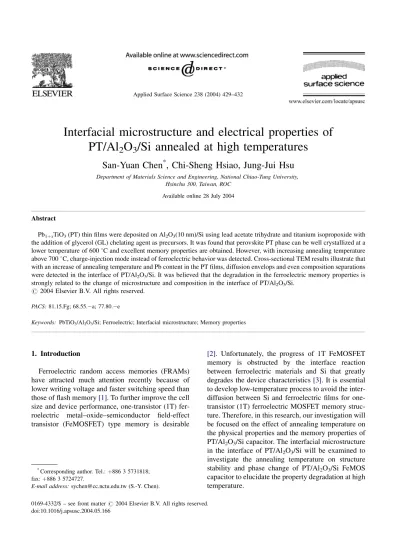

Interfacial microstructure and electrical properties of

PT/Al

2

O

3

/Si annealed at high temperatures

San-Yuan Chen

*

, Chi-Sheng Hsiao, Jung-Jui Hsu

Department of Materials Science and Engineering, National Chiao-Tung University, Hsinchu 300, Taiwan, ROC

Available online 28 July 2004

Abstract

Pb1þxTiO3(PT) thin films were deposited on Al2O3(10 nm)/Si using lead acetate trihydrate and titanium isopropoxide with

the addition of glycerol (GL) chelating agent as precursors. It was found that perovskite PT phase can be well crystallized at a lower temperature of 600 8C and excellent memory properties are obtained. However, with increasing annealing temperature above 700 8C, charge-injection mode instead of ferroelectric behavior was detected. Cross-sectional TEM results illustrate that with an increase of annealing temperature and Pb content in the PT films, diffusion envelops and even composition separations were detected in the interface of PT/Al2O3/Si. It was believed that the degradation in the ferroelectric memory properties is

strongly related to the change of microstructure and composition in the interface of PT/Al2O3/Si.

PACS: 81.15.Fg; 68.55.a; 77.80.e

Keywords: PbTiO3/Al2O3/Si; Ferroelectric; Interfacial microstructure; Memory properties

1. Introduction

Ferroelectric random access memories (FRAMs) have attracted much attention recently because of lower writing voltage and faster switching speed than those of flash memory[1]. To further improve the cell size and device performance, one-transistor (1T) fer-roelectric metal–oxide–semiconductor field-effect transistor (FeMOSFET) type memory is desirable

[2]. Unfortunately, the progress of 1T FeMOSFET memory is obstructed by the interface reaction between ferroelectric materials and Si that greatly degrades the device characteristics [3]. It is essential to develop low-temperature process to avoid the inter-diffusion between Si and ferroelectric films for one-transistor (1T) ferroelectric MOSFET memory struc-ture. Therefore, in this research, our investigation will be focused on the effect of annealing temperature on the physical properties and the memory properties of PT/Al2O3/Si capacitor. The interfacial microstructure in the interface of PT/Al2O3/Si will be examined to investigate the annealing temperature on structure stability and phase change of PT/Al2O3/Si FeMOS capacitor to elucidate the property degradation at high temperature.

Applied Surface Science 238 (2004) 429–432

*_{Corresponding author. Tel.:}_{þ886 3 5731818;} fax:þ886 3 5724727.

E-mail address: sychen@cc.nctu.edu.tw (S.-Y. Chen).

(2)

2. Experimental procedure

2.1. PT stock solution synthesis and thin film deposition

A10 nm thick Al2O3gate dielectric was depos-ited on p-type (1 0 0) Si wafers [4]. Lead acetate trihydratem, titanium isopropoxide and glycerol (GL) chelating agent were used as PT precursors to deposit PT thin films on Al2O3/Si by spinning coating [5]. After multiple coatings, the wet multi-layer films were further annealed at 450–800 8C under oxygen ambient.

2.2. Film and capacitor characterization

The crystal phase of the PT films was determined by x-ray diffraction (XRD) method. The surface mor-phology and the thickness of PT were observed by transmission electron microscopy (TEM). For elec-trical measurement, Au was used as upper electrode with area of 5 104cm2 and Al bottom electrode was deposited at the back side of Si substrates. Capa-citance–voltage (C–V) and current density–voltage (J–V) characteristics of PT capacitors were measured.

3. Results and discussion

3.1. Phase evolution and interfacial microstructure The XRD patterns ofFig. 1show that the perovskite phase can be developed below 500 8C and well

crystallized above 550 8C for GL-added Pb1.1TiO3 (PT) film on Al2O3/Si. In contrast, without the addi-tion of glycerol chelating agent, no apparent crystal-line phase was detected from PT/Al2O3/Si annealed at 500 8C, but, above 600 8C, the perovskite phase starts to appear. The cross-sectional TEM images in

Fig. 2(a) illustrate that a sharp interface was observed for GL-added Pb1.1TiO3/Al2O3/Si annealed at 700 8C and no trace of Si was detected in the PT film. As increasing the Pb content in the GL-added PT films, a diffusion envelop marked with arrow can be clearly discerned fromFig. 2(b) for the GL-added Pb1.3TiO3 films annealed at 700 8C and the GL-added PT film has been separated into two-layers. As increasing Fig. 1. XRD patterns of Pb1.1TiO3/Al2O3/Si annealed at 450–

800 8C.

Fig. 2. Cross-sectional TEM images of (a) Pb1.1TiO3/Al2O3/Si annealed at 700 8C, and Pb1.3TiO3/Al2O3/Si annealed at (b) 700 and (c) 800 8C.

(3)

annealing temperature up to 800 8C, a strong action and diffusion has occurred in the inter-face and the diffusion envelop is further transformed into diffusion layer as shown inFig. 2(c) where the Al2O3insulator layer has been damaged. When the composition in each layer ofFig. 2(b) was further analyzed using EDS, as shown inFig. 3, it was found that not only Ti but also Pb has been diffused into Si through Al2O3 insulator. The top PT-1 layer was composed of Pb, Ti, O and Si, indicating that the Si has been diffused into the PT film through Al2O3 barrier. In contrast, although Pb, Si, O and few Al can be detected from the PT-2 layer, the Ti peak almost disappears compared to that from PT-1 layer. In addition, it was observed that the diffusion envelop near to Al2O3contains more Pb and some Ti. Therefore, the formation mechanism of the dif-fusion envelop in the GL-added PT/Al2O3/Si struc-ture can be tentatively elucidated as follows. During annealing process, both elements of Pb and Ti tend

to diffuse into Si and this results in the formation of (Pb, Ti)-deficient PT near to Al2O3. With increasing annealing temperature or Pb content, the driving force for Pb diffusion is increased. Therefore, the diffusion envelop will be enlarged and becomes flatten.

3.2. Memory properties

Fig. 4 shows the C–V characteristics of GL-added Pb1.1TiO3/Al2O3/Si stacked dielectrics. It was found that as the GL-added Pb1.1TiO3/Al2O3/Si stacked structure was annealed at 600–700 8C, well-behaved C–V curves without distortion were obtained. A mem-ory window of 1.9 V is measured for GL-added Pb1.1TiO3/Al2O3/Si at 5 V bias voltage. For the sample annealed at 700 8C, it is noticed that the memory window value of GL-added PT/Al2O3/Si capacitors would change from positive to negative as increasing bias voltage above 5 V, which may be due to the increased leakage current and charge trap-ping at high voltages. A clockwise hysteresis loop corresponds to ferroelectric mode[6]while the coun-ter-clockwise hysteresis loop is caused by the charge-injection phenomenon. In sharp contrast, as the GL-added PT/Al2O3/Si was annealed above 800 8C, although the GL-added PT film shows good crystal-lite, no discerned C–V memory window can be detected.

Although the C–V curves can be obtained for the Pb-excess GL-added Pb1.3TiO3 films on Al2O3/Si Fig. 3. Composition analysis of PT-1, PT-2 and diffusion envelop

inFig. 2(b).

Fig. 4. C–V characteristics of PbTi1.1O3/Al2O3/Si capacitors annealed at 600–800 8C.

(4)

annealed at 600 8C, a smaller memory window was obtained compared to that of GL-added Pb1.1TiO3/ Al2O3/Si because a charge-injection mode was gen-erated, indicating a great number of defects or trap sites have been created. Furthermore, as the films were annealed at temperature above 650 8C, no apparent C–V memory window can be detected.

Fig. 5illustrates that the leakage current density of GL-added Pb1.1TiO3/Al2O3/Si annealed at 600 8C is 1:3 107_A/cm2 _{at 100 kV/cm, much lower than} that of the film annealed at 700 8C. This smaller leakage current and larger breakdown voltage may be related to the microstructure of GL-added PT films. Furthermore, with an increase of annealing tempera-ture and Pb content in the GL-added PT films, the leakage current density was rapidly increased that is strongly correlated with the formation of the diffusion envelop in the interface of Al2O3/Si. However, the leakage current is still low enough for advanced deep sub-mm application.

4. Conclusions

The perovskite PT phase can be well crystallized at a lower temperature of 600 8C and excellent memory properties are obtained for GL-added PT/Al2O3/Si. However, with increasing annealing temperature above 700 8C, charge-injection mode instead of ferro-electric behavior was detected. Cross-sectional TEM results illustrate that diffusion envelops and even composition separations will be generated in the inter-face of GL-added PT/Al2O3/Si at a higher annealing temperature and Pb-rich composition. It was believed that the degradation in the ferroelectric memory prop-erties is strongly related to the change of microstruc-ture and composition in GL-added PT/Al2O3/Si.

Acknowledgements

The authors gratefully acknowledge the financial support by the National Science Council of the Repub-lic of China through NSC91-2215-E-009-051 con-tract.

References

[1] C.A. Paz De Araujo, J.D. Cuchiaro, L.D. McMillan, M.C. Scott, J.F. Scott, Nature (London) 374 (1995) 627.

[2] A. Chin, M.Y. Yang, C.L. Sun, S.Y. Chen, IEEE Electron Device Lett. 22 (2001) 336.

[3] Y. Lin, B.R. Zhao, H.B. Peng, B. Xu, H. Chen, F. Wu, H. J Tao, Z.X. Zhao, J.S. Chen, Appl. Phys. Lett. 73 (1998) 2782. [4] A. Chin, C.C. Liao, C.H. Lu, W.J. Chen, C. Tsai, in:

Proceedings of the Symposium on VLSI Technology, 1999, 135 pp.

[5] T.-C. Mo, S.Y. Chen, Ferroelectrics 259 (2001) 305. [6] Y. Fujisaki, T. Kijima, H. Ishiwara, Appl. Phys. Lett. 78 (2001)

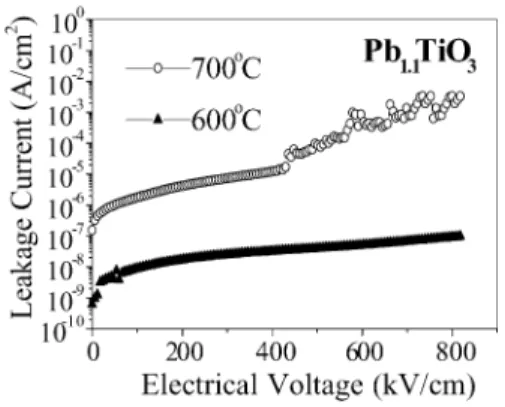

1285. Fig. 5. J–V characteristics of PbTi1.1O3/Al2O3/Si capacitors

annealed at 600 and 700 8C.
