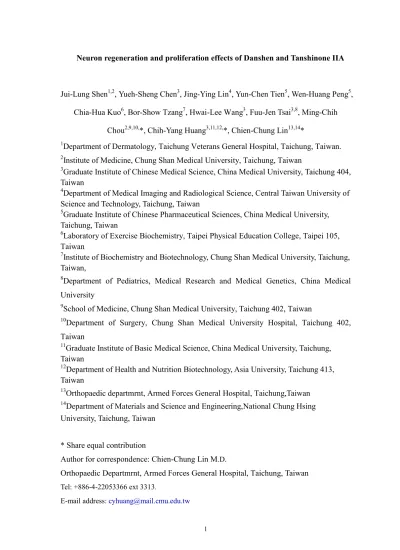

1Neuron regeneration and proliferation effects of Danshen and Tanshinone IIA
Jui-Lung Shen1,2, Yueh-Sheng Chen3, Jing-Ying Lin4, Yun-Chen Tien5, Wen-Huang Peng5, Chia-Hua Kuo6, Bor-Show Tzang7, Hwai-Lee Wang3, Fuu-Jen Tsai3,8, Ming-Chih
Chou2,9,10,*, Chih-Yang Huang3,11,12,*, Chien-Chung Lin13,14*
1
Department of Dermatology, Taichung Veterans General Hospital, Taichung, Taiwan.
2
Institute of Medicine, Chung Shan Medical University, Taichung, Taiwan
3
Graduate Institute of Chinese Medical Science, China Medical University, Taichung 404, Taiwan
4
Department of Medical Imaging and Radiological Science, Central Taiwan University of Science and Technology, Taichung, Taiwan
5
Graduate Institute of Chinese Pharmaceutical Sciences, China Medical University, Taichung, Taiwan
6
Laboratory of Exercise Biochemistry, Taipei Physical Education College, Taipei 105, Taiwan
7
Institute of Biochemistry and Biotechnology, Chung Shan Medical University, Taichung, Taiwan,
8
Department of Pediatrics, Medical Research and Medical Genetics, China Medical University
9
School of Medicine, Chung Shan Medical University, Taichung 402, Taiwan
10
Department of Surgery, Chung Shan Medical University Hospital, Taichung 402, Taiwan
11
Graduate Institute of Basic Medical Science, China Medical University, Taichung, Taiwan
12
Department of Health and Nutrition Biotechnology, Asia University, Taichung 413, Taiwan
13
Orthopaedic departmrnt, Armed Forces General Hospital, Taichung,Taiwan
14
Department of Materials and Science and Engineering,National Chung Hsing University, Taichung, Taiwan
* Share equal contribution
Author for correspondence: Chien-Chung Lin M.D.
Orthopaedic Departmrnt, Armed Forces General Hospital, Taichung, Taiwan Tel: +886-4-22053366 ext 3313.
2 Abstract
This study evaluates the prolifrative effects of danshen and its monomer extract, tanshinone IIA, on Schwann cell proliferation. A piece of silicone rubber was guided across a 15-mm gap in the sciatic nerve of a rat. This nerve gap was then filled with different concentrations of danshen (0-100 mg/mL). The results showed that danshen increased the expressions of uPA, cyclin D1, E and ERK, JNK and P38 MAP kinases via the FGF-2 signaling pathway in a dose-dependent manner. RSC96, Schwann cells were also administered with danshen (0, 20, 40, 60, 80 and 100μg/ml) and tanshinone II A(0, 2, 4, 6, 8 and 10μg/ml). In lower concentrations, danshen and tanshinone IIA exhibited an apparent effect on Schwann cells. Similar effects were also demonstrated in the FGF-2-uPA regulating cascade and cell cycle proliferative protein results. Schwann cell migration was elevated as well. We used MAPK-signaling chemical inhibitors and identified the prolifrative effects of danshen and tanshinone IIA as MAPK – signaling dependent. The results from the in vitro systems indicate that danshen and tanshinone IIA can be used to induce Schwann cell proliferation and in vivo results potentially suggest that danshen and tanshinone IIA might enhance neuron regeneration.
Key words: Danshen; Tanshinone IIA; Proliferative& migrative effect; Schwann cells; Peripheral nerve regeneration
3 1. Introduction
The central and peripheral nervous systems are composed of neurons with different anatomical structures and regeneration ability. Neuron injury elicits a cascade of
physiological responses that stimulate nerve cell regeneration. In mammals, the central neurons do not have a myelin sheath and therefore do not regenerate. Neurons in the peripheral nervous system are surrounded by a myelin sheath and can undergo regrowth (1). The ability of neurons to regenerate is due to intrinsic neuronal activities and the presence of surrounding non-neuronal components, such as Schwann cells. Schwann cells play a crucial role in endogenous repair of peripheral nerves because of their ability to dedifferentiate, migrate, proliferate, express growth promoting factors, and myelinate regenerating axons. These cells migrate from the periphery into the injury site, where they apparently participate in endogenous repair processes(2). If regenerating axons gain a distal nerve, they elongate within the endoneurial tubes, in association with the
Schwann cells and the basal lamina, constituting regenerative units (3). Schwann cells also produce some growth factors which are crucial for peripheral nerve repair. Fibroblast growth factor-2 (FGF-2) has a neruotrophic effect on peripheral nerve regeneration by maintaining cell survival (4) and stimulating cell proliferation(5). Interestingly,
up-regulation of FGF-2 in Schwann cells occurs only when the peripheral nerves are injured (6). Furthermore, urokinase plasminogen activator (uPA) is involved in tissue regeneration. uPA cleaves plasminogen to plasmin to promote extracellular matrix (ECM) degradation for cell proliferation during the recovery from injury(7). Therefore, the ability of Schwann cells to promote regeneration in peripheral neurons has led to an increasing interest in using Schwann cells to study peripheral nervous system repair. Enhancing the prolifrative effect of Schwann cells might be another potential approach to induce neuron regeneration.
4
Biomaterials combined with Chinese herbal medicine have been applied in the study of nerve regeneration. For example, a silicon rubber chamber filled with Schwann cells bridged a 15-mm defect in rat sciatic nerves. Several Chinese medicines have been identified to enhance neuron regeneration. Therefore, targeting Schwann cells with herbal medicines to induce neuron regrowth may be a possible therapeutic approach for treating injured nerves. danshen (Salvia miltiorrhiza) is a Chinese herb commonly used in
mainland China for the treatment of atherosclerosis related disorders such as
cardiovascular and cerebro-vascular diseases. In traditional Chinese medicine, danshen is believed to remove blood stasis and promote blood flow, stimulate menstrual bleeding, relieve pain and inflammation and reduce stress(8). danshen has been shown to have anti-cancer effects(9) and inhibit oxysterol induced endothelial cell apoptosis (10). Whether danshen has a nerve regenerating effect and growth enhancing effect on
Schwann cells is largely unknown. However, tanshinone II A, a monomer extracted from Danshen, has been reported to have neuro-protective effects on neonatal
hypoxia-ischemia brain damage (11) and in transient focal cerebral ischemia (12). Therefore, we used an in vivo and in vitro system to compare the effects of danshen and tanshinone IIA on Schwann cell proliferation neuron regeneration. In the animal model, danshen at different concentrations (0, 20,40,60,80 and 100 mg/mL) was injected into dissected rat sciatic nerves. In the in vitro model, Schwann cells were treated with different concentrations of danshen (0, 20, 40, 60, 80 and 100μg/mL) and tanshinone IIA(0, 2, 4, 6, 8 and 10μg/mL).
5 2. Materials and methods
2.1 Danshen extraction
Danshen (Ko Da pharmaceutical company, Taoyuan, Taipei County, Taiwan) powder was weighed and extracted using sterilized distillated deionized water. The concentrations used in the animal model were 0, 20, 40, 60, 80 and 100 mg/mL. The doses for the in vitro model were 0, 20, 40, 60,80 and 100μg/mL for Schwann cell treatment. All of the solutions were stored at -20℃ Pure danshinone IIA (Jing-Ming chemical industry .
company, Taichung, Taiwan) was dissolved in dimethyl sulfoxide (DMSO).The following concentrations were prepared: 2, 4, 6,8 and 10μg/mL.
2.2 Animal model and treatments
The surgery was performed as described in a previous study (13). Twenty-four adult Sprague-Dawley rats (National Science Council) weighing 220±20 gm, underwent silicone chamber placement. Animals were equally divided into six groups. For each animal, the right legs received experimental treatment and the left legs were used as the control. In the first group, the chambers were filled with saline only.
The chambers in groups 2~6 were filled with different concentrations of danshen at 20, 40, 60, 80 and 100 mg/mL, respectively.
The chamber lumen volume was 25.5 µl. danshen was injected through a pre-cooled micro-pipette into the lumen by passing the tip of the needle into the silicone rubber chamber. Loading was performed as slowly as possible to prevent the formation of air bubbles. The distal stump was then secured at the other end of the chamber.
Both the proximal and distal stumps were secured to a depth of 1 mm into the chamber, leaving a 15 mm gap between the stumps. The muscle layer was re-approximated using 4-0 chromic gut sutures, and the skin was closed with 2-0 silk sutures. All animals were
6
housed at 22℃ and 45% humidity with a 12-h light/dark cycle. They had free access to rodent chow and water at libitum. After eight weeks, animals were anesthetized by isoflurane (Abbott Laboratories Ltd., Queenborough, Kent, England) the nerves were re-exposed and the chambers across the 15 mm gap were examined for nerve
regeneration. All animals were maintained in facilities approved by the China Medical University for Accredited Laboratory Animal Care, according to the regulations and standards of the National Science Council of Health of the Republic of China.
2.3 Cell culture and treatments
RSC96 cells were purchased from American Type Culture Collection (ATCC) and were cultured in Dulbecco’s modified Eagle’s medium (DMEM) supplemented with 10% fetal bovine serum (FBS), 4mM L-glutamate, 1.5 g/L sodium bicarbonate and 1%
Non-essential amino acids (NEAA) in humidified atmosphere of 5% CO2 and 95% air. After 4-hour serum starvation, the cells were treated with danshen and tanshinone IIA at concentrations of 0, 20, 40, 60,80 and 100μg/mL and 2, 4, 6,8 and 10μg/mL,
respectively. The incubation was continued for another 16 h, according to our preliminary test and then the cells were harvested and extracted for analysis.
2.4 Inhibitors
RSC96 schwann cells were treated with several inhibitors, including SB203580 (p38 MAP kinase inhibitor; Promega, Madison, WI, USA), U0126 (MEK1 and MEK2 inhibitor; Promega, Madison, WI, USA) and SP600125 (JNK inhibitor; Promega, Madison, WI, USA). The final concentration of each inhibitor was 0.5 µM, according to our previous experiments.
7
Sciatic nerve sections were extracted from the middle of the regenerated nerve in the chamber. Cultured RSC96 cells were scraped and washed. The procedure was described in our previous study (5). Proteins were then separated by 12% gradient SDS-PAGE and transferred to nitrocellulose membranes. Nonspecific protein binding was stopped in blocking buffer (5% milk, 20 mM Tris-HCl, pH 7.6, 150 mM NaCl, and 0.1% Tween 20) and blotted with specific antibodies in the blocking buffer at 4 °C overnight. For repeated blotting, nitrocellulose membranes were stripped with Restore Western blot stripping buffer (Pierce Biotechnology, Inc, Rockford, IL, USA) at room temperature for 30 min.
2.6 MTT assay
Cell viability was estimated using a colorimetric assay based on tetrazolium dye (MTT) conversion into a blue formazan product. The procedure was described in our previous study (Chen et al., 2007). After harvesting and washing twice with PBS, the cells were cultured in phenol red-free DMEM (1 ml) with MTT (0.5 mg/mL) at 37º C for 4 h. The cells were incubated in iso-propenol (1 mL) with shaking for 10 min. They were then aspirated and measured spectrophotometerically at 570 nm.
2.7 Wound healing
Cells were initially seeded uniformly in 60-mm culture plates with an artificial “wound” carefully created at 0 h, using a sterile P-200 pipette tip to scratch on the subconfluent cell monolayer to make a 1.0 mm gap. After 24-h exposure to different concentrations of danshen and tanshinone IIA, cells were calculated by counting the number of cells that had advanced into the cell-free space randomly selected from the initial wound border area. Photographs were taken of the wounded regions using an inverted Olympus microscope.
ŀ
8 2.8 ZymograthphyMMP-2 and MMP-9 activity was determined using gelatin zymography. RSC96 cells were treated with different concentrations of danshen and tanshinone IIA which already showed. Cell medium was collected after incubation for 16 hours. Sample medium was electrophoresed on an 8% polyacrylamide gel containing 0.1% gelatin. After electrophoresis, the gel was washed for 30 min 2 times in washing buffer (2.5% Triton X-100).The gel was then incubated in incubation buffer (1% NaN3;2M
Tris-HCl, pH 8.0; 1M CaCl2) at 37°C for 48hours with shaking and subsequently stained
with Coomassie blue. The presence of MMP-2 and MMP-9 gelatinolytic activity was identified as clear bands on a blue background after destaining.
2.9 Migration Assay
We used a Boyden chamber and polyvinyl-pyrrolidone-free polycarbonate membranes with 8μm pores (Neuro Probes, Inc.) for the migration assay. The bottom wells of the chamber were filled with 10% FBS DMEM medium. The wells were covered with a membrane sheet. The membranes were stained with Giemsa stain (Sigma). Cells that migrated through the membrane were counted using a counting grid fitted into the eyepiece of a phase contrast microscope.
2.10 Statistical Analysis
Statistical differences were assessed using one way-ANOVA. P<0.05 was considered statistically significant. Data are expressed as the mean± SEM.
ŀ
9 3. Results3.1 Proliferative effects of danshen on damaged peripheral nerves in animals
To investigate whether danshen can promote damaged nerve regeneration, various concentrations of danshen were injected into silicon chambers connecting the distal and proximal stumps of sciatic nerves. Danshen activated the FGF-signaling pathway as evidenced by increased levels of FGF-2 and uPA. The cyclin proteins, D1, E were also increased (Fig1A). To identify the role of MAPK signaling in danshen induced nerve cell proliferation, we examined the MAPK signaling activities in regenerated nerves and found that the levels of phosphorylated ERK, JNK and P38 were increased (Fig 1B). These observations indicate that danshen might promote nerve regenerative markers, such as FGF-signaling, cell cycle activity and MAPKs, ERK- , JNK- and P38- signaling pathways.
3.2 Dose-dependent proliferation of RSC cells by Danshen and Tanshinone IIA in vitro
At 16 h of culture, MTT assay revealed that danshen (20~100μg/ml) and tanshinone IIA(2~10μg/ml) had a significant proliferative effect on RSC cells in a dose-dependent manner using MTT assay for 24h culture. However, cellular viability was no effect with high concentrations of danshen (Fig. 2A). The level of PCNA (proliferation cell nuclear antigen) protein expression in RSC cells also increased after treatment with danshen and tanshinone IIA (Fig. 2B). Therefore, we performed an in vitro would healing assay to evaluate the migration potential of Schwann cells treated with various
concentrations of danshen and tanshinone IIA, and found that the cell migration was promoted by danshen and tanshinone IIA treatment (Fig 2C,D). These observations provide that danshen and tanshinone IIA not only induce Schwann cell proliferation but also migration, thereby enhancing nerve regeneration.
ŀ
103.3 Proliferative and migrative effects of Danshen and Tanshinone IIA on Schwann cells
We evaluated the proliferative effect of danshen and tanshinone IIA on the
regenerative ability of Schwann cells, which play an important role in nerve regeneration. As shown in Fig 3A, representing the protein level results, administration of danshen and tanshinone IIA increased the level of FGF-2, MMP 9 and uPA but decreased the level of PAI-1. The two compounds also promoted cell cycle activity by increasing the levels of cyclin proteins, D1, E and A (Fig 3B). Zymography revealed MMP 9 enzyme activity increased after danshen and tanshinone IIA treatment (Fig 3C). Using the Boyden
chamber to observe Schwann cell migration, we found that cell migration increased after danshen and tanshinone IIA treatment (Fig 3D). These results provide evidence that danshen and tanshinone IIA have proliferative and migrative effects on Schwann cells. The maximum danshen and tanshinone IIA effects were observed at concentrations of 20-60μg/mL and 2-8μg/mL, respectively. Some of the effects reversed back to the basal level at doses of 80 and 100μg/mL in Danshen,10μg/mL in Tanshinone IIA, indicating that danshen and tanshinone IIA are toxic at those concentrations.
3.4 RSC cell proliferation enhanced by danshen and tanshinone IIA is MAPK signaling-dependent in vitro
Intracellular MAPK signaling components, ERK1/2, JNK1/2, P38 and their phosphorylations were measured by western blotting. Our data showed danshen and tanshinone IIA treatment increased the level of ERK1/2, JNK1/2 and P38
phosphorylation. Treatment also increased the total protein levels of ERK1/2, JNK1/2, but did not increase that of P38. However, danshen and tanshinone IIA at concentrations of 100μg/mL and 10μg/mL, respectively, reduced the level of phosphorylation and total
11
protein levels of ERK1/2, JNK1/2 and P38 (Fig. 4A). To further investigate the roles that MAPKs play in danshen and tanshinone IIA -induced cell proliferation, RSC cells were pretreated with pharmacological inhibitors of individual MAPKs, followed by incubation with danshen and tanshinone IIA at concentrations of 40μg/mL and 4μg/mL,
respectively, for 24 h. All inhibitors, U0126 (a potent inhibitor of MEK), SP600125 (a potent inhibitor of JNK) and SB203580 (a potent inhibitor of P38). MTT assay revealed that all three MAPK inhibitors significantly decreased the level of danshen and
tanshinone IIA -induced cell viability (Fig. 4B). PCNA protein levels in danshen and tanshinone IIA -treated RSC cells that had been pretreatment with individual inhibitors were also examined. We found that the PCNA levels were significantly reduced after pretreatment with inhibitors of ERK1/2, JNK1/2 and P38 (Fig. 4C). These results indicate that signaling of MAPK signaling pathway is involved in the proliferative effect of
￠
12 4. DiscussionThe combination of herbal medicine and biomedical material science to promote functional recovery of damaged peripheral neurons has received much attention in recent years. Based on our previous study (13, 14), using a silicone rubber chamber filled with a mixture of herbal product and Schwann cells for bridging a 15-mm gap for rat sciatic nerves is a good model to evaluate the capacity for regenerating neurons. Schwann cells produce and release adhesion molecules and trophic factors which are vital requirements for successful nerve regeneration following injury (15). Danshen (Salvia miltiorrhiza) is a commonly used Chinese herb in mainland China for the treatment of
atherosclerosis-related disorders such as cardiovascular and cerebro-vascular diseases. It has been reported to have anticancer effect and to inhibit oxysterol-induced endothelial cell apoptosis.
However, whether danshen can enhance the growth of peripheral neurons and Schwann cells is unknown. tanshinone IIA, a monomer extracted from danshen, has been reported to have neuro-protective effects on damage area of the brain. In the present study, treatments of different concentrations of danshen (0, 20, 40, 60, 80, 100 mg/ml) had a proliferative effect on the sciatic nerve regeneration in rats. Consistently, RSC96
Schwann cells treated with concentrations of danshen (0, 20, 40, 60, 80 and 100μg/ml) and tanshinone IIA(0, 2, 4, 6, 8 and 10μg/ml), had a dose-dependent proliferative effects. These proliferative effects of danshen and tanshinone IIA were also observed in the
results of FGF2-uPA regulating cascade, cell cycle proliferative proteins, cyclins. In addition, Zymography showed that the enzyme activity of extracellular matrix regulating protein (MMP 9) and the migration of Schwann cells were increased after danshen and tanshinone IIA treatment. Furthermore, using chemical inhibitors, the proliferative effects of danshen and tanshinone IIA on RSC cells were found to be P38-,
13
ERK- and JNK-, MAPK-signaling-dependent. These results provide evidence that danshen and tanshinone IIA promote the proliferation of Schwann cells and might enhance the reconstructing of peripheral nerve defects.
Fibroblast growth factor (FGF), a 16-18 kDa protein and potent trophic factor for a number of tissues, can promotes survival and stimulates proliferation of neural cells and Schwann cells(16-18). FGF also can promotes the extension of early regenerating axons by directly influencing the axons unaccompanied by Schwann cells(19). This evidence suggests that there is a possible connection between FGF expression and injured-neuron repair. In this study, dissected sciatic nerves and Schwann cells that had been exposed to danshen showed increased levels of FGF-2. tanshinone IIA also increased the protein expression of FGF-2, indicating that these two compounds have a proliferative effect on neuronal cells.
Degradation of the extracellular matrix (ECM) is associated with the development of tumor metastasis and tissue growth. One of the key regulators of this process is the serine protease, urokinase plaminogen activator (uPA), which converts the zymogen
plasminogen into active plasmin it is known to act on a wide variety of components of the ECM (20). Consistent with its role in metastasis, high uPA levels are present in cancers with poor prognosis. The cell proliferation and differentiation process is also an event involving uPA catalytic ECM degradation that increases cell migration by activating MMP 9 (21). FGF is one of the mediators of uPA activity(22-24).In contrast, PAI-1 is thought to be the major inhibitor of uPA (20). Our results show that danshen and tanshinone IIA increased the level of uPA and decreased the level of PAI-1 in a dose dependent manner.
Mitogen-activated protein kinases (MAPKs) mediate critical signaling pathways that involved in cell proliferation and differentiation (25). There are three sub-families of MAPKs: extracellular signal-regulated kinases (ERK), NH2-terminal kinases (JNK) and
14
P38 kinase. They are important players in regulating a variety of signaling pathways during organism development, cell cycle regulation, cell proliferation and differentiation, and other cellular and physiological processes(21, 26). In our study, the results from western blotting analysis and MTT-with inhibitors assay (fig 1B and fig 4A-C), revealed that JNK, ERK and P38 are involved in the proliferative effect of danshen on neuron regeneration both in vivo and in vitro. Tanshinone IIA had a similar effect on Rsc 96 cells. It is also reported that the highly expressed uPA in the epidermal of damaged tissue is regulated by FGF-2 which affects MAPK kinase kinase (MEKK-1) and MEKK-1’s
downstream NH2-terminal kinases (JNK) and extracellular signal-regulated kinases (ERK)
for controlling uPA activity (22-24).Therefore, danshen and tanshinone IIA enhanced uPA activity using FGF2 might mediate through the JNK and ERK signaling pathways.
Due to the requirement for appropriate basal lamina scaffolds for regenerating axons to attach and a sufficient nutritional supply, the Schwann cell plays an important role for axon regeneration. The results of Fujimoto’s study (19) demonstrated that the FGF receptor was expressed on the plasma membrane of regenerating axons and that
exogenously applied FGF bound to the basal lamina, indicating that the binding of FGF and to its receptor facilitates axon regeneration. During regeneration, Schwann cells supplied the sources of exogenous FGF and the basal lamina to promote nerve regeneration. In our results, danshen and tanshinone IIA -treated Schwann cells
demonstrated dose-dependently increased growth rate (fig 2A-C), protein levels of FGF-2, its downstream JNK, ERK and even P38 signaling, and uPA activity with inhibited PAI-1 and the activation of cyclin D, E and B (fig 3A-B and fig 4A-C) at lower doses of two components, indicating danshen and tanshinone IIA sufficiently enhancing the potential of Schwann cell proliferation for neuron regeneration.
Danshen is a commonly used Chinese medicine. In addition to the discovered health-promoting effects mentioned above, the findings of this study provide another
15
novel danshen neuron regeneration function. However, high doses of danshen and tanshinone IIA suppressed nerve regeneration in Rsc96 Schwann cells, indicating that excessively high concentrations of danshen and tanshinone IIA in the tube or medium may have an adverse effect. Therefore, an appropriate dosage of danshen and tanshinone IIA should be carefully selected for enhancing neuron regeneration.
Moreover, further studies are needed to investigate whether the combination of Schwann cells or other biomaterials with danshen and tanshinone IIA at appropriate dosage can act additively on the regenerating neuron in the chamber transected into the dissected sciatic nerve in rats.
Acknowledgements
This work was supported by grant from China Medical University (CMU95-058 & CMU95-060) and supported in part by Taiwan Department of Health Clinical Trial and Research Center of Excellence (DOH99-TD-B-111-004) and in part by Taiwan
￠
16 Figure LegendsFig 1. The regeneration of dissected sciatic nerves in the chambers filled with danshen and tanshinone IIA. The sciatic nerves from the chamber in rats with surgery were taken and the FGF and cell cycle signaling activities (A) and MAPK signaling activities (B) examined using western blotting analysis. The chambers in the right legs were filled with various concentrations of danshen and tanshinone IIA as indicated. The left represents the sciatic nerves treated with saline from the left legs of each animal as an experimental control.β- actin was used as a loading control.
Fig 2. Proliferative effects of danshen and tanshinone IIA on RSC96 cell viability and migration. RSC cells were incubated with different doses of danshen and tanshinone IIA as indicated. Cell viability was measured using MTT assay (A), and western blotting analysis (B); cell migration was measured using wound healing analysis (C).The procedures are described in the materials and methods section. The wound healing data were quantified by measuring the number of cells that had advanced into the cell-free space (D). Data are shown as the mean of three independent experiments ± SE. * , **and *** denote significant differences between experimental and control values, with P < 0.05 , P<0.01and P < 0.001, respectively. α-Tubulin was used as a loading control. PCNA, proliferating cell nuclear antigen.
Fig 3.Exaimination of cell cycle signaling (A) activated FGF signaling (B,C)and Schwann cell migration of danshen and tanshinone IIA on RSC. RSC cells were incubated with different doses of danshen and tanshinone IIA as indicated for 16 hrs. Cells were then lysed. Protein was extracted and analyzed using western blotting. α-tubulin was used as a loading control. (C) Matrix metalloprotease-9 and -2 enzyme
17
activity was examined using zymography. (D) The Schwann cell migration was examined using the Boyden chamber system. The number of cells that had migrated were
quantitated using the mean value of 10 microscopic fields in every condition. * , **and *** denote significant differences between experimental and control values, with P < 0.05 , P<0.01and P < 0.001.
Fig 4.The proliferative effect of danshen and tanshinone IIA on RSC96 cell viability was ERK- ,JNK- and P38-signaling dependent. The RSC96 cells were treated with various doses of danshen and tanshinone IIA. The treatments and procedures are the same as those described for fig 3. The MAPK-signaling activities were measured using western blotting (A). The RSC96 cells were treated with danshen and tanshinone IIA at
concentrations of 40μg/mL and 4μg/mL, respectively, and MAPK signaling inhibitors as indicated. Cell viability was examined using MTT assay (B); the cell proliferation was analyzed using western blot analysis of PCNA (C). α-tubulin was used as a loading control. U0126, SB203508 and SP600125 are inhibitors of MEK, P38 and JNK, respectively. ## and ### denote significant differences between experimental and control values with P<0.01and P < 0.001. * ,**and *** denote significant differences between danshen and tanshinone IIA values with P < 0.05 , P<0.01and P < 0.001.
Fig 5. Schematic model of the proliferative effects and nerve regeneration involving MAPK- signaling pathways in Schwann cells and peripheral neurons exposed to danshen and tanshinone IIA. Stimulation of neurons and Schwann cells with danshen and tanshinone IIA activates FGF-2 signaling, leading to the up-regulation of uPA , down-regulating of PAI-1, which in turn activated the cell cycle by increasing cyclin protein A, D and E, thereby enhancing proliferation and regeneration.
18 Reference
1. Bunge RP. Expanding roles for the Schwann cell: ensheathment, myelination, trophism and regeneration. Curr Opin Neurobiol 1993;3:805-809. Available at
2. Oudega M, Xu XM. Schwann cell transplantation for repair of the adult spinal cord. J Neurotrauma 2006;23:453-467.
3. Navarro X, Vivo M, Valero-Cabre A. Neural plasticity after peripheral nerve injury and regeneration. Prog Neurobiol 2007;82:163-201.
4. Kushima Y, Nishio C, Nonomura T, Hatanaka H. Effects of nerve growth factor and basic fibroblast growth factor on survival of cultured septal cholinergic neurons from adult rats. Brain Res 1992;598:264-270.
5. Kuo WW, Liu CJ, Chen LM, Wu CH, Chu CH, Liu JY, Lu MC, Lin JA, Lee SD, Huang CY. Cardiomyoblast apoptosis induced by insulin-like growth factor (IGF)-I resistance is IGF-II dependent and synergistically enhanced by angiotensin II.Apoptosis. 2006 ;11:1075-89.
6. Grothe C, Nikkhah G. The role of basic fibroblast growth factor in peripheral nerve regeneration. Anat Embryol (Berl) 2001;204:171-177.
7. Michalopoulos GK, DeFrances MC. Liver regeneration. Science 1997;276:60-66. 8. Chen LM, Kuo WW, Yang JJ, Wang SG, Yeh YL, Tsai FJ, Ho YJ, Chang MH, Huang CY, Lee SD. Eccentric cardiac hypertrophy was induced by long-term intermittent
hypoxia in rats. Exp Physiol 2007;92:409-416.
9. Liu J, Shen HM, Ong CN. Salvia miltiorrhiza inhibits cell growth and induces apoptosis in human hepatoma HepG(2) cells. Cancer Lett 2000;153:85-93.
10. Nakazawa T, Xui N, Hesong Z, Kinoshita M, Chiba T, Kaneko E, Yui K, Shimokado K. Danshen inhibits oxysterol-induced endothelial cell apoptosis in vivo. J Atheroscler Thromb 2005;12:132-137.
19
11. Xia WJ, Yang M, Fok TF, Li K, Chan WY, Ng PC, Ng HK, Chik KW, Wang CC, Gu GJ, Woo KS, Fung KP. Partial neuroprotective effect of pretreatment with tanshinone IIA on neonatal hypoxia-ischemia brain damage. Pediatr Res 2005;58:784-790.
12. Lam BY, Lo AC, Sun X, Luo HW, Chung SK, Sucher NJ. Neuroprotective effects of tanshinones in transient focal cerebral ischemia in mice. Phytomedicine
2003;10:286-291.
13. Chen YS, Liu CJ, Cheng CY, Yao CH. Effect of bilobalide on peripheral nerve regeneration. Biomaterials 2004;25:509-514.
14. Cheng CY, Yao CH, Liu BS, Liu CJ, Chen GW, Chen YS. The role of astragaloside in regeneration of the peripheral nerve system. J Biomed Mater Res A 2006;76:463-469.. 15. Jessen KR, Mirsky R. Schwann cells and their precursors emerge as major
regulators of nerve development. Trends Neurosci 1999;22:402-410..
16. Besnard F, Perraud F, Sensenbrenner M, Labourdette G. Effects of acidic and basic fibroblast growth factors on proliferation and maturation of cultured rat oligodendrocytes. Int J Dev Neurosci 1989;7:401-409.
17. Davis JB, Stroobant P. Platelet-derived growth factors and fibroblast growth factors are mitogens for rat Schwann cells. J Cell Biol 1990;110:1353-1360.
18. Unsicker K, Reichert-Preibsch H, Schmidt R, Pettmann B, Labourdette G,
Sensenbrenner M. Astroglial and fibroblast growth factors have neurotrophic functions for cultured peripheral and central nervous system neurons. Proc Natl Acad Sci U S A 1987;84:5459-5463.
19. Fujimoto E, Mizoguchi A, Hanada K, Yajima M, Ide C. Basic fibroblast growth factor promotes extension of regenerating axons of peripheral nerve. In vivo experiments using a Schwann cell basal lamina tube model. J Neurocytol 1997;26:511-528.
20. Andreasen PA, Georg B, Lund LR, Riccio A, Stacey SN. Plasminogen activator inhibitors: hormonally regulated serpins. Mol Cell Endocrinol 1990;68:1-19.
20
21. Legrand C, Polette M, Tournier JM, de Bentzmann S, Huet E, Monteau M,
Birembaut P. uPA/plasmin system-mediated MMP-9 activation is implicated in bronchial epithelial cell migration. Exp Cell Res 2001;264:326-336.
22. Varnholt H, Asayama Y, Aishima S, Taguchi K, Sugimachi K, Tsuneyoshi M. C-met and hepatocyte growth factor expression in combined hepatocellular and
cholangiocarcinoma. Oncol Rep 2002;9:35-41.
23. Witowsky J, Abell A, Johnson NL, Johnson GL, Cuevas BD. MEKK1 is required for inducible urokinase-type plasminogen activator expression. J Biol Chem
2003;278:5941-5946.
24. Zhao J, Bian ZC, Yee K, Chen BP, Chien S, Guan JL. Identification of transcription factor KLF8 as a downstream target of focal adhesion kinase in its regulation of cyclin D1 and cell cycle progression. Mol Cell 2003;11:1503-1515.
25. Dhanasekaran DN, Kashef K, Lee CM, Xu H, Reddy EP. Scaffold proteins of MAP-kinase modules. Oncogene 2007;26:3185-3202.
26. Perdiguero E, Ruiz-Bonilla V, Serrano AL, Munoz-Canoves P. Genetic deficiency of p38alpha reveals its critical role in myoblast cell cycle exit: the p38alpha-JNK connection. Cell Cycle 2007;6:1298-1303.
