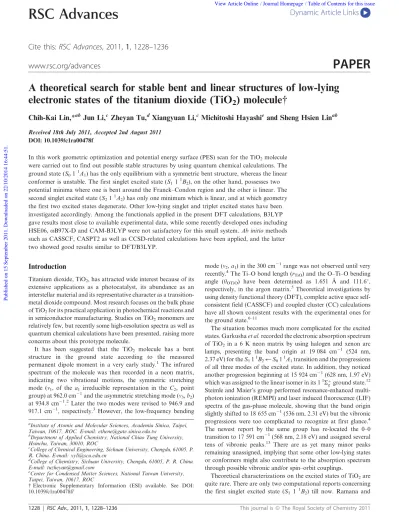

A theoretical search for stable bent and linear structures of low-lying
electronic states of the titanium dioxide (TiO
2
) molecule{
Chih-Kai Lin,*
abJun Li,
cZheyan Tu,
dXiangyuan Li,
cMichitoshi Hayashi
eand Sheng Hsien Lin
abReceived 18th July 2011, Accepted 2nd August 2011 DOI: 10.1039/c1ra00478f
In this work geometric optimization and potential energy surface (PES) scan for the TiO2molecule were carried out to find out possible stable structures by using quantum chemical calculations. The ground state (S011A1) has the only equilibrium with a symmetric bent structure, whereas the linear conformer is unstable. The first singlet excited state (S111B2), on the other hand, possesses two potential minima where one is bent around the Franck–Condon region and the other is linear. The second singlet excited state (S211A2) has only one minimum which is linear, and at which geometry the first two excited states degenerate. Other low-lying singlet and triplet excited states have been investigated accordingly. Among the functionals applied in the present DFT calculations, B3LYP gave results most close to available experimental data, while some recently developed ones including HSE06, vB97X-D and CAM-B3LYP were not satisfactory for this small system. Ab initio methods such as CASSCF, CASPT2 as well as CCSD-related calculations have been applied, and the latter two showed good results similar to DFT/B3LYP.
Introduction
Titanium dioxide, TiO2, has attracted wide interest because of its extensive applications as a photocatalyst, its abundance as an interstellar material and its representative character as a transition-metal dioxide compound. Most research focuses on the bulk phase of TiO2for its practical application in photochemical reactions and in semiconductor manufacturing. Studies on TiO2monomers are relatively few, but recently some high-resolution spectra as well as quantum chemical calculations have been presented, raising more concerns about this prototype molecule.
It has been suggested that the TiO2 molecule has a bent structure in the ground state according to the measured permanent dipole moment in a very early study.1 The infrared spectrum of the molecule was then recorded in a neon matrix, indicating two vibrational motions, the symmetric stretching mode (n1, of the a1 irreducible representation in the C2n point group) at 962.0 cm21and the asymmetric stretching mode (n3, b2) at 934.8 cm21.2 Later the two modes were revised to 946.9 and 917.1 cm21, respectively.3 However, the low-frequency bending
mode (n2, a1) in the 300 cm 21
range was not observed until very recently.4The Ti–O bond length (rTiO) and the O–Ti–O bending angle (hOTiO) have been determined as 1.651 A˚ and 111.6u, respectively, in the argon matrix.5 Theoretical investigations by using density functional theory (DFT), complete active space self-consistent field (CASSCF) and coupled cluster (CC) calculations have all shown consistent results with the experimental ones for the ground state.6–11
The situation becomes much more complicated for the excited states. Garkusha et al. recorded the electronic absorption spectrum of TiO2in a 6 K neon matrix by using halogen and xenon arc lamps, presenting the band origin at 19 084 cm21 (524 nm, 2.37 eV) for the S111B2r S011A1transition and the progressions of all three modes of the excited state. In addition, they noticed another progression beginning at 15 924 cm21(628 nm, 1.97 eV) which was assigned to the linear isomer in its 11Sþ
g ground state.
12 Steimle and Maier’s group performed resonance-enhanced multi-photon ionization (REMPI) and laser induced fluorescence (LIF) spectra of the gas-phase molecule, showing that the band origin slightly shifted to 18 655 cm21(536 nm, 2.31 eV) but the vibronic progressions were too complicated to recognize at first glance.4 The newest report by the same group has re-located the 0–0 transition to 17 591 cm21(568 nm, 2.18 eV) and assigned several tens of vibronic peaks.13 There are as yet many minor peaks remaining unassigned, implying that some other low-lying states or conformers might also contribute to the absorption spectrum through possible vibronic and/or spin–orbit couplings.
Theoretical characterizations on the excited states of TiO2are quite rare. There are only two computational reports concerning the first singlet excited state (S1 1
1
B2) till now. Ramana and
aInstitute of Atomic and Molecular Sciences, Academia Sinica, Taipei,
Taiwan, 10617, ROC. E-mail: [email protected]
bDepartment of Applied Chemistry, National Chiao Tung University,
Hsinchu, Taiwan, 30010, ROC
cCollege of Chemical Engineering, Sichuan University, Chengdu, 61005, P.
R. China. E-mail: [email protected]
dCollege of Chemistry, Sichuan University, Chengdu, 61005, P. R. China.
E-mail: [email protected]
e
Center for Condensed Matter Sciences, National Taiwan University, Taipei, Taiwan, 10617, ROC
{Electronic Supplementary Information (ESI) available. See DOI: 10.1039/c1ra00478f/
Cite this: RSC Advances, 2011, 1, 1228–1236
www.rsc.org/advances
PAPER
Phillips studied the state at the configuration interaction (CI) level, predicting that it lies just 1.63 eV above the ground state, which is much lower than the experimental value, and the equilibrium structure is linear with the bond length 1.73 A˚ .14 Grein performed DFT optimization and obtained a bent equilibrium structure with the bond length and bending angle as 1.703 A˚ and 96.3u, respectively.9 The adiabatic transition energy to this state was calculated as 2.14 eV, which is close to the most recent experimental report.13
For the second singlet excited state (S21 1
A2), two DFT results with different functionals indicated that the bent structure is stable. The bond lengths were calculated both as 1.72 A˚ and the bending angles as 143.9u and 153.7u, respectively.9,10
The adia-batic excitation energies for this state were reported as 2.50 eV and 1.85 eV, respectively, where the latter was apparently under-estimated. On the other hand, a brief potential energy scan depending on the bending angle showed a very wide and shallow potential basin for this state,9implying that the structure shall no longer be a harmonic oscillator and might even be unstable.
In this work, we aimed to identify the possible stable struc-tures of the ground and low-lying excited states. The geometric and electronic properties of TiO2monomer would be unveiled with the full optimization and a thorough scan on the potential energy surfaces at the DFT, CAS and CC levels, providing us more insights into the complicated spectroscopic problems.
Computational methods
Three categories of TiO2isomers have been reported, that is, the symmetric bent/linear form (oxo, O–Ti–O), the cyclic side-on form (peroxo) and the end-on form (superoxo, Ti–O–O), by calculation (Fig. 1).15We mainly focused on the first category since its ground state is at least 4 eV more stable than the other two.15
For the optimization and vibrational frequency calculation of the ground state, S01
1
A1, CASSCF, CASPT2 and CCSD(T)
have been carried out. The augmented correlation-consistent polarized valence triple-zeta (aug-cc-pVTZ) basis set was
generally applied. The Los Alamos effective core potentials (ECPs) plus MBS or DZ (that is, LanL2MB or LanL2DZ)16of the Ti atom were also adopted in some tests. For clarity only aug-cc-pVTZ results are presented here, while the comparison between different basis sets is listed in the ESI.{ In CASSCF calculations, the choice of the largest active space included all 16 valence electrons and 14 orbitals, forming the (16,14) active space. A smaller one excluded the inner orbitals mainly composed of the O2s atomic orbitals, giving the (12,12) active space. The global minimum on the potential energy surface was searched according to previously reported geometric data, and other possible local minima were considered as well.
In addition to ab initio methods mentioned above, DFT with several different functionals were applied. Besides the commonly accepted B3LYP functional, some recently developed functionals that attracted much interest have also been tested including HSE06,17,18which takes screened short-range Coulomb potential and has been applied in TiO2 crystal systems, and CAM-B3LYP19and vB97X-D,20which add in long-range corrections. The results of these new functionals were compared to verify if they could give proper or even better descriptions.
For the first and second singlet excited states, S111B2and S21 1
A2, time-dependent DFT (TD-DFT), CASSCF, CASPT2 and
equation-of-motion CCSD (EOM-CCSD) were applied to localize the minimum and to calculate vibrational modes. The search for equilibrium structures was first around the Franck– Condon (vertical excitation) region and then expanded to other conformers.
In order to understand the characters of the low-lying excited states, a systematic scan on the potential energy surfaces was carried out by changing the geometry of the molecule. Keeping the point group symmetry as C2n, the Ti–O bond length and the O–Ti–O bending angle were varied from 1.50 A˚ to 2.00 A˚ and from 80u to 180u, respectively. TD-DFT was applied to locate singlet states up to S5. CASSCF followed by CASPT2 was done in an eight-state-averaged manner, with two states of each irreducible representation (1A
1,1B1,1B2and1A2) included. In the last part of this work, triplet excited states such as T11 3
B2and T213A2 were also studied. Spin–orbit couplings were calculated to verify possible interactions between neighbor singlet and triplet states. Additionally, cyclic and end-on isomers were looked at briefly. All the quantum chemical calculations were performed with GAUSSIAN 09,21 M
OLPRO 200622 and ACESII23computational packages.
Results and discussion
Equilibrium geometry and vibrational frequencies of the ground state (S011A1)
The most stable TiO2 mono-molecular isomer possesses a symmetric bent form within the C2npoint group.15 The O–Ti– O bending angle was measured as 110 ¡ 15u in a very early experiment2 and revised to 113 ¡ 5u according to infrared spectra in a following report.3 In a recent molecular beam microwave spectroscopy experiment by Bru¨nken et al., the rotational spectrum was resolved, and the bending angle and the Ti–O bond length were precisely determined as 111.6u and 1.651 A˚ , respectively.5
Fig. 1 Three categories of TiO2mono-molecular isomers: (a) symmetric
bent form, (b) cyclic form and (c) end-on form.
In this work the optimization and vibrational frequency calculation of the S011A1ground state were performed at levels including Hartree–Fock (HF), Møller–Plesset second-order perturbation (MP2), CASSCF, CASPT2, CCSD(T) and DFT with several different functionals. Referring to Table 1, the geometric data obtained by HF and MP2 significantly differed from the experimental reference as reported previously,6 while the other methods performed rather well with deviations within 0.01 A˚ (0.6%) for the bond length, 2u (2%) for the bending angle and 0.6 debye (9%) for the permanent dipole moment. The choice of basis set and the size of active space showed minor effects in these calculations (Table S1 in the ESI).
The three vibrational modes, i.e. symmetric stretching (n1), bending (n2) and asymmetric stretching (n3), have been reported from experimental studies. The calculated harmonic frequencies, also shown in Table 1, were slightly higher by a factor within 5%, which is reasonable. In a critical comparison, CCSD(T) presented the best performance on reproducing both geometric and vibrational properties, and CASSCF, CASPT2 as well as DFT (with all tested functionals) showed acceptable agreements in describing the equilibrium structure.
Furthermore, it was suggested that a symmetric linear structure would exist with the 11Sþ
g ground state in the D‘h point group.12The search for such a stable structure was carried out by fixing the bending angle at 180u, and the converged results were obtained with energies about 2 eV higher than the bent equilibrium. However, as shown in Table 2 (and Table S2), they
all corresponded to a saddle point instead of a true minimum, giving imaginary frequencies to the bending mode. It indicated that there is no stable linear conformer in the ground state, which was implied in a previous energy scan.9This point shall be demonstrated more clearly with a thorough potential energy surface scan in the next sections. It is noticed that while the gas-phase linear molecule is unstable, the possibility of stabilization of such a molecule in the inert gas matrix could not be entirely excluded.12,13
Vertical excitation energies
The vertical excitation energies of low-lying excited states have been calculated with the ground state equilibrium geometry at several levels of theory including TD-DFT (with different functionals), CASSCF, CASPT2 and EOM-CCSD. The resulted excitation energies and major excitation configurations are listed in Table 3 with a comparison to the previous MRCI report.9The oscillator strengths are additionally listed in Table S3 in the ESI. The energetic data and state sequences are rather consistent with each other between TD-B3LYP, CASPT2, EOM-CCSD and MRCI. CASSCF presented a large deviation from the above-mentioned levels of theory in certain excitations, which would be attributed to the lack of dynamical electron correlation. On the other hand, the HSE06 and CAM-B3LYP functionals showed a systematic overestimate of 0.2 to 0.3 eV, while vB97X-D gave an overestimate of 0.5 to 0.6 eV, for each state compared to B3LYP. It implies that these recently developed functionals which

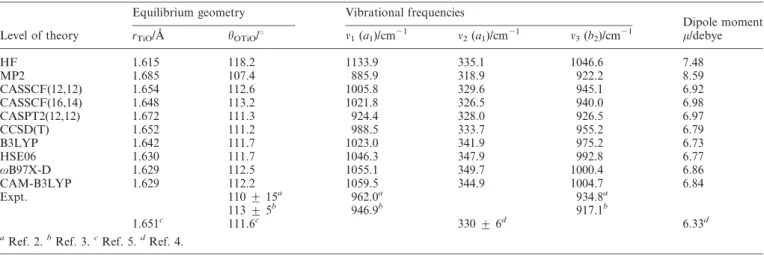

Table 1 Calculated equilibrium geometry and vibrational frequencies of the ground state (S011A1) of TiO2
Level of theory
Equilibrium geometry Vibrational frequencies
Dipole moment rTiO/A˚ hOTiO/u n1(a1)/cm 21 n2(a1)/cm 21 n3(b2)/cm 21 m/debye HF 1.615 118.2 1133.9 335.1 1046.6 7.48 MP2 1.685 107.4 885.9 318.9 922.2 8.59 CASSCF(12,12) 1.654 112.6 1005.8 329.6 945.1 6.92 CASSCF(16,14) 1.648 113.2 1021.8 326.5 940.0 6.98 CASPT2(12,12) 1.672 111.3 924.4 328.0 926.5 6.97 CCSD(T) 1.652 111.2 988.5 333.7 955.2 6.79 B3LYP 1.642 111.7 1023.0 341.9 975.2 6.73 HSE06 1.630 111.7 1046.3 347.9 992.8 6.77 vB97X-D 1.629 112.5 1055.1 349.7 1000.4 6.86 CAM-B3LYP 1.629 112.2 1059.5 344.9 1004.7 6.84 Expt. 110 ¡ 15a 962.0a 934.8a 113 ¡ 5b 946.9b 917.1b 1.651c 111.6c 330 ¡ 6d 6.33d a
Ref. 2.bRef. 3.cRef. 5.dRef. 4.
Table 2 Calculated properties of the linear structure of the ground state (11Sþ g) of TiO2
Level of theory
Adiabatic energya Equilibrium geometry Vibrational frequencies
DEad/eV rTiO/A˚ hOTiO/u n1(sþg)/cm
21 n2(pu)/cm 21 n3(s { g)/cm 21 MP2 1.852 1.750 180.0 760.5 (340i) 783.5 CASSCF(12,12) 1.507 1.722 180.0 881.6 (340i) 719.4 CASSCF(16,14) 1.419 1.713 180.0 — — — CASPT2(12,12) 1.705 1.735 180.0 — — — CCSD(T) 1.689 1.716 180.0 866.8 (284i) 889.2 B3LYP 1.834 1.707 180.0 896.7 (380i) 901.5 HSE06 1.871 1.698 180.0 915.2 (382i) 908.5 vB97X-D 1.874 1.696 180.0 929.0 (392i) 914.1 CAM-B3LYP 1.821 1.695 180.0 932.9 (380i) 910.8
aWith respect to the ground state equilibrium calculated at the same level of theory; without zero-point energy (the same in the following tables).
emphasize some important factors in periodic or long-range systems might not be suitable to describe such a small mono-molecular case.
According to more reliable methods like EOM-CCSD and CASPT2, the lowest two singlet excited states are unquestionably S111B2and S211A2, and the triplet ones are T113B2and T21 3
A2. The sequence of following excited states slightly differs by levels of theory. Nevertheless the difference is insignificant since the energy gaps between neighboring states are quite small, i.e. within 0.2 eV.
One-dimensional potential energy curves
For a more detailed understanding of the energetics of the ground and low-lying excited states, scanning on the potential energy surfaces with respect to geometric changes was per-formed. In the preliminary test by TD-DFT with the B3LYP functional, the geometry of the TiO2 molecule was kept symmetric in the C2npoint group. The bending angles were set through 40u to 180u with a step of 10u, while the bond lengths were optimized solely for the ground state at each fixed angle. The calculated one-dimensional angle-dependent potential energy curves of 1 1A
1, 1 1B2, 1 1A2, 2 1B2, 2 1A1 and 1 1B1 states, which are the lowest six singlet states at the Franck– Condon point, are shown in Fig. 2(a). Our results were rather similar to those reported by Grein9except that (1) the S211A2 state does not have any minimum with the bent structure, and (2) the equilibrium geometry of the S321B2state shifts to a larger bending angle. The potential energy curves of corresponding triplet states are illustrated in Fig. 2(b), where the trend resembles that of singlet states.
First singlet excited state (S11 1
B2)
The electronic configuration of the first singlet excited state, S11 1B
2, is dominantly composed of the HOMO (#19, 6b2) A LUMO (#20, 10a1) excitation. A previous calculation showed that the vertical excitation energy is 2.43 eV while the adiabatic
Table 3 A comparison of vertical excitation energies of low-lying singlet and triplet excited states of TiO2calculated at different levels of theory
State Excitationa TD-B3LYP TD-HSE06 TD-vB97X-D TD-CAM-B3LYP EOM-CCSD CASSCF(16,14) CASPT2(16,14) MRCIa
11B 2b 6b2–10a1 2.672 2.966 3.352 2.939 2.367 1.981 2.386 2.43 11A2 6b2–4b1 3.256 3.517 3.730 3.506 3.019 3.654 3.150 3.09 21B 2 6b2–11a1 3.337 3.645 3.934 3.658 3.191 4.021 3.365 3.21 21A1 9a1–10,11a1 3.520 3.799 4.179 3.755 3.294 3.167 3.480 3.13 11B 1 3b1–10,11a1 3.811 4.114 4.450 4.110 3.547 3.294 3.601 3.57 21B 1 9a1–4b1 4.028 4.259 4.417 4.212 3.682 4.658 3.979 3.74 21A2 1a2–10,11a1 4.116 4.433 4.755 4.409 3.880 3.862 3.948 4.07 31A 1 9a1–11a1 4.218 4.476 4.651 4.450 3.993 4.321 4.586 3.83 31B2 5b2–10,11a1 4.403 4.720 5.011 4.661 4.255 4.574 4.250 4.19 13B 2 6b2–10a1 2.556 2.834 3.248 2.808 2.324 2.069 2.495 2.40 13A2 6b2–4b1 3.133 3.376 3.608 3.376 2.996 3.598 2.991 3.07 23B 2 6b2–11a1 3.181 3.428 3.748 3.457 3.114 4.017 3.253 3.20 13A1 9a1–10, 11a1 3.226 3.435 3.651 3.322 3.072 3.160 3.425 3.12 13B 1 3b1–10, 11a1 3.551 3.774 4.042 3.741 3.332 3.214 3.612 3.43 23A 1 9a1–11a1 3.600 3.789 4.232 3.892 3.657 4.201 3.886 3.85 23B 1 9a1–4b1 3.706 3.920 4.299 3.923 3.474 4.286 3.616 3.59 33A 1 3b1–4b1 3.845 4.048 4.412 4.080 3.843 4.479 4.449 4.00 23A2 1a2–10, 11a1 3.885 4.148 4.508 4.107 3.696 3.665 3.932 3.81 33B 2 5b2–10, 11a1 4.130 4.338 4.551 4.258 4.044 4.720 4.122 4.02 aMajor excitation configurations and MRCI data from ref. 9.bExperimental vertical excitation energy to this state is 2.46 eV according to ref. 2.
Fig. 2 TD-B3LYP/aug-cc-pVTZ potential energy curves of low-lying (a) singlet and (b) triplet states of TiO2. The relative energy is with respect
to the equilibrium of the 11A1ground state.
energy is 2.14 eV, indicating that the equilibrium geometry of this state locates around the Franck–Condon region with the bond length (1.703 A˚ ) slightly longer and the bending angle (96.3u) smaller than the ground state, and the vibrational modes are somewhat relaxed.9 These predictions were in good agree-ment with a recent spectroscopic measureagree-ment which determined the adiabatic energy, bond length and bending angle as 2.18 eV, 1.704 A˚ and 100.1u, respectively.4,13 In our work, TD-DFT, CASSCF, CASPT2 and EOM-CCSD were applied to investigate the properties of this equilibrium structure, and the results were generally consistent with previous findings as shown in Table 4. In the case of TD-DFT calculations, B3LYP and HSE06 functionals achieved similar geometry although the latter some-what overestimated the excitation energy. vB97X-D gave apparent overestimates in energies, and CAM-B3LYP failed to verify this equilibrium. As for ab initio methods, the major problems are that CASSCF always converged with an imaginary-frequency vibra-tional mode for this state (and for all following excited states investigated in this work), and that CASPT2 could not afford frequency calculation. Despite these failures, the TD-DFT and EOM-CCSD data as well as experimental reports are enough to convince us of the existence and stability of such an equilibrium. Moreover, it is noticed that CASSCF (incidentally) well repro-duced the permanent dipole moment which was measured as 2.55
debye4 while TD-B3LYP, TD-HSE06 and CASPT2 gave
over-estimates of about 50%, although this had only a minor influence on the energetic and geometric results.
In addition to the bent equilibrium, other possible stable con-formers of this state have been searched. A second minimum was found with a symmetric linear structure at all levels of theory. To our surprise, this conformer is nearly isoenergetic with the bent one, showing that the ‘‘linearization energy’’ is almost zero or even negative as listed in Table 5, which is much smaller than previously estimated 0.42 eV.9Within the computational error, the linear form might be even more stable than the bent form. This implies that the linear conformer of the first singlet excited state, rather than that of the ground state, could be a candidate that contributes to the minor peaks as well as to the red of band origin on the S11
1
B2r S01 1
A1absorption spectrum. Second singlet excited state (S211A2)
To the second singlet excited state, S21 1
A2, there has not been any experimental analysis yet. A previous calculation suggested that the equilibrium is located at the bond length of 1.724 A˚ and the bending angle of 143.9u.9
However, according to the brief potential scan with optimized bond length at varied bending angle in the same report, the energy of this state just decreased smoothly as the angle increased and formed a very wide, extremely shallow potential basin betweeny130u to 180u. The linearization energy was reported to be only 0.06 eV for this state, probably within the computational error.
In our work, we could not find any stable bent conformer at any TD-DFT level. The optimization process in fact converged
Table 4 Calculated energies, equilibrium geometry and vibrational frequencies of the first singlet excited state (S111B2) of TiO2
Level of theory
Vertical energya Adiabatic energya Equilibrium geometry Vibrational frequencies Dipole moment
DEFC/eV DEad/eV rTiO/A˚ hOTiO/u n1(a1)/cm 21 n2(a1)/cm 21 n3(b2)/cm 21 m/debye CASSCF(12,12) 2.223 2.036 1.703 97.7 890.6 228.3 (555i) 3.14 CASSCF(16,14) 2.168 1.918 1.700 95.6 908.9 241.3 (323i) 2.68 CASPT2(12,12) 2.454 2.139 1.727 93.7 — — — 3.92 EOM-CCSD 2.370 2.324 1.662 100.4 1009.1 198.3 499.0 4.31 TD-B3LYP 2.672 2.579 1.673 100.2 945.6 212.5 374.7 3.57 TD-HSE06 2.966 2.868 1.662 99.5 966.9 209.6 390.3 3.58 TD-vB97X-D 3.352 3.278 1.670 111.7 920.7 115.9 339.7 5.19 TD-CAM-B3LYP 2.939 2.874 1.646 110.0 10918.8 (494i) 10494.3 15.24 BPW91b — 2.14 1.703 96.3 875 196 480 5.07 Expt. 2.46c 2.37d 836d 201d 498d 2.31e 1.704e 100.1e 2.55e 2.18f 876f 184f 316f a
With respect to the ground state equilibrium calculated at the same level of theory.bRef. 9, with the 6-311++G(3df) basis set.cRef. 2.dRef. 12.
e
Ref. 4.fRef. 13.
Table 5 Calculated properties of the linear structure of the first singlet excited state (11Du) of TiO2
Level of theory
Adiabatic energya Linearization energyb Equilibrium geometry Vibrational frequencies DEad/eV DElin/eV rTiO/A˚ hOTiO/u n1(sþg)/cm
21 n2(pu)/cm21 n3(s{g)/cm 21 CASSCF(12,12) 2.026 20.010 1.735 180.0 782.9 (59i) 173.4 CASSCF(16,14) 2.039 0.121 1.735 180.0 782.7 (61i) 292.6 CASPT2(12,12) 2.153 0.014 1.749 180.0 — — — EOM-CCSD 2.387 0.063 1.684 180.0 887.9 297.3 879.4 TD-B3LYP 2.609 0.030 1.700 180.0 837.2 253.8 658.8 TD-HSE06 2.865 20.003 1.688 180.0 853.2 215.8 701.6 TD-vB97X-D 2.976 20.302 1.684 180.0 877.3 225.7 789.7 TD-CAM-B3LYP 2.812 20.062 1.682 180.0 873.2 233.9 820.7 BPW91c 2.56 0.42 1.728 180.0 — — — a
With respect to the ground state equilibrium calculated at the same level of theory.bWith respect to the local minimum around the Franck– Condon region of the same electronic state surface.cRef. 9, with the 6-311++G(3df) basis set.
to the linear form, at which geometry the S21 1
A2and S11 1
B2 states become degenerate and correlate to the 11D
ustate of the D‘hpoint group. The only stable form found for the S211A2 state was therefore essentially the same as the linear structure of the S111B2state. EOM-CCSD gave the same consequence as TD-DFT which are summarized in Table 6. It is noticed that these outcomes are slightly different from Table 5, originating from computational errors under different initial symmetry settings (C2nvs. D‘h). CASSCF and CASPT2, on the other hand, indicated a non-linear equilibrium point with the bond angle of y103u. Unfortunately the calculated vibrational frequency of the asymmetric stretching mode was imaginary from CASSCF and unavailable from CASPT2, hence the existence of a stable bent conformer of this electronic state remains questionable. Two-dimensional potential energy surface scan
The potential energy surfaces of the ground and low-lying singlet excited states, depending not only on bending angles but also on bond lengths, were then extensively considered. Following the simple one-dimensional scan described above, the two-dimen-sional TD-DFT scan with the B3LYP functional was carried out where the bond lengths varied from 1.50 A˚ to 2.00 A˚ with a step of 0.05 A˚ and the bending angles from 80u to 180u with a step of 5u. The energies of the above-mentioned six singlet states were calculated simultaneously at each geometric point. The shapes of these surfaces are illustrated in Fig. 3.
It is clearly seen that the S011A1ground state possesses only one minimum which has a symmetric bent structure. The linear conformer is located on a saddle point of the ground state surface: it is a minimum along the symmetric stretching coordinate but a barrier top along the bending coordinate. The S11
1
B2 state, on the other hand, possesses two minima, one being around the Franck–Condon region (r = 1.673 A˚ , h = 100.2u and DEad = 2.579 eV) and the other being linear (r = 1.700 A˚ , h = 180.0u and DEad= 2.609 eV). As noted above, these two structures are almost isoenergetic. The linearization energy is just 0.03 eV, although there is a barrier about 0.25 eV between the two conformers.
The energy of the S211A2state slides down smoothly as the bending angle increases up to 180u, at which point the state reaches its only minimum degenerate with the 11B2state (r = 1.700 A˚ , h = 180.0u and DEad= 2.609 eV). The S321B2state has only one minimum whose bending angle is larger than the
ground equilibrium (r = 1.680 A˚ , h = 130.6u and DEad = 3.066 eV). In fact this geometry is located in a potential pit, which is much like the coupling region between the two 1B2 surfaces (S1and S3) with the energy difference ofy0.2 eV. The potential shapes of S421A1 and S5 11B1states are somewhat similar to those of S0 1
1
A1 and S1 1 1
B2 states, respectively, although the potential wells of the higher excited states are much shallower.
It should be noticed that a potential minimum obtained in such a two-dimensional scan does not always guarantee a truly stable structure because there is still a third degree of freedom, i.e. the coordinate of asymmetric stretching motion, which has not been scanned. To check whether the geometry at the minimum is stable, the full optimization has to be executed. In this work we have made sure that the minimum points on the S0 to S3surfaces do correspond to stable structures, and thus the two-dimensional potential scan could provide meaningful insights into the characters of these states.
In addition to TD-DFT, CASSCF potential energy surface scan was carried out in the same geometric range, and in order to count in dynamical electron correlation, CASPT2 was also applied. The active space was constructed of 12 electrons and 12 orbitals in the scan. The state-average calculation included two 1A
1, two1B1, two1B2and two1A2states, which are the lowest eight states around the ground equilibrium. It was noticed that the CAS procedure depends subtly on the averaged states, and the results may alter a lot if other ‘‘unwanted’’ states, e.g. the 3 1A
1state which was not counted in, lie below any of the chosen eight states when the geometry is far from the ground equilibrium. This effect caused the surfaces to be rougher than those obtained by TD-DFT, and the data of the highest states were unreliable. Fortunately it had a relatively smaller influence on the ground and lower excited states. The potential energy surfaces of the first six singlet states scanned by multi-reference multi-state CASPT2(12,12) are generally similar to the TD-DFT results, and hence are illustrated as Fig. S1 in the ESI{. Triplet states and spin–orbit couplings
It has been reported that triplet excited states lie extremely close to the corresponding singlet excited states.9,14 For example, the vertical excitation energies of S111B2and T113B2states were found to be 2.43 and 2.40 eV, respectively, and those of S211A2 and T21
3
A2states were 3.09 and 3.07 eV, respectively, by the
Table 6 Calculated energies, equilibrium geometry and vibrational frequencies of the second singlet excited state (S211A2) of TiO2
Level of theory
Vertical energya Adiabatic energya Equilibrium geometry Vibrational frequencies b
Dipole moment DEFC/eV DEad/eV rTiO/A˚ hOTiO/u n1(a1)/cm
21 n2(a1)/cm 21 n3(b2)/cm 21 m/debye CASSCF(12,12) 4.081 3.629 1.750 103.0 633.3 320.4 (2718i) 4.64 CASSCF(16,14) 4.056 3.527 1.745 102.0 — — — 3.73 CASPT2(12,12) 3.872 3.401 1.774 104.2 — — — 5.34 EOM-CCSD 2.964 2.387 1.684 180.0c 887.9 297.3 879.4 0.00 TD-B3LYP 3.256 2.609 1.701 180.0c 837.1 254.0 658.7 0.00 TD-HSE06 3.517 2.865 1.689 180.0c 853.0 216.0 701.3 0.00 TD-vB97X-D 3.730 2.980 1.679 179.8 853.5 237.8 751.8 0.06 TD-CAM-B3LYP 3.506 2.812 1.683 179.9 873.0 234.4 820.5 0.01 BPW91d — 2.50 1.724 143.9 767 127 575 —
aWith respect to the ground state equilibrium calculated at the same level of theory.bIn the case of linear structure, the three vibrational modes
have the symmetry of sþ
g, puand s { g, respectively. c Degenerate with S1 1 1
B2, both belonging to the doubly degenerate state 1 1
Duof the D‘h
point group for the linear structure.dRef. 9, with the 6-311++G(3df) basis set.
MRCI calculation.9In our TD-DFT calculations, the same trend was obtained as introduced in Table 3, where the energy difference between the closest pair of singlet and triplet states, e.g. 11B2and 13B2, isy0.1 eV. Furthermore, the equilibrium geometries and related features of the lowest two triplet states have been calculated at this level as listed in Table 7. The geometric and energetic properties of these triplet states are seen very similar to the corresponding singlet states (cf. Tables 4 and 6) as expected.
Since the neighboring states of the same spatial symmetry but different spin multiplicity are nearly isoenergetic, it is queried if these states could interact with each other through spin–orbit coupling and consequently induce level-splitting and numerous absorption/emission spectral peaks which fit the experimental
observation. This could be verified by the spin–orbit coupling Hamiltonian, ^HSO~
X
j:^L:^S, where the summation runs over all electrons, j is the potential parameter, and Lˆ and Sˆ are the orbital and spin angular momentum operators, respectively. It is found that the x, y and z components of Lˆ ?Sˆ transform as B2, B1 and A2, respectively, in the C2n point group. As a result, the spin–orbit coupling between states of the same spatial term but different spins is zero, e.g. SW0 1B 2 ^ HSO W0 3B 2T~0 where W 0
denotes the zeroth-order adiabatic electronic wavefunction, since the totally symmetric term in the spatial part of the operator is not available.
How about the spin–orbit coupling between states of different spatial terms? In this work it has been calculated in a perturbative manner at the CASSCF level including five states:

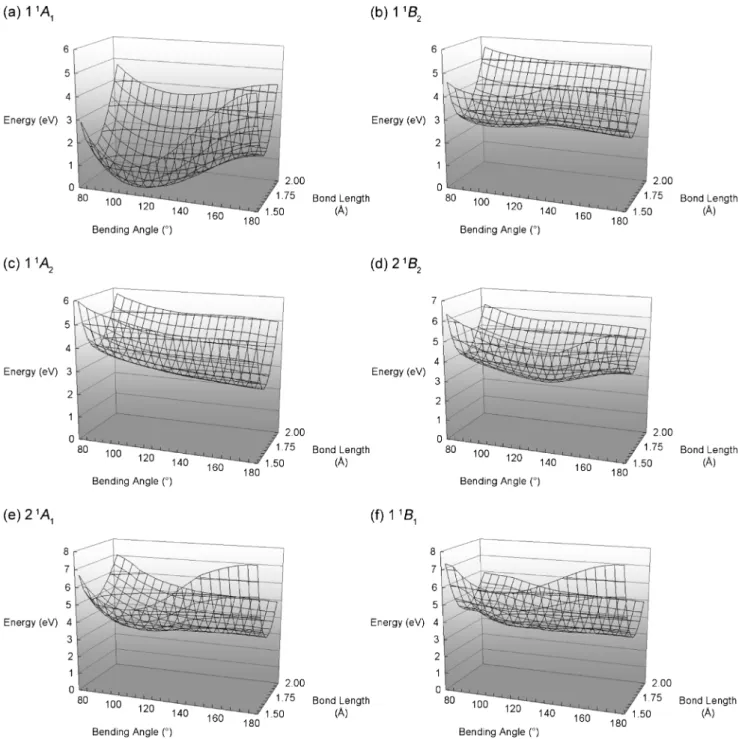

Fig. 3 Two-dimensional TD-B3LYP/aug-cc-pVTZ scan on the potential energy surfaces of the lowest singlet states of TiO2.
the ground, the first two singlet excited and the first two triplet excited states. The spin–orbit coupled results showed negligible shifts in energy eigenvalues of these states, say, less than 0.2 cm21. Therefore the couplings could be omitted from this system, indicating that the effect contributes extremely little to spectral peaks. A related phenomenon is that the phosphores-cence emission, which is preceded by singlet–triplet intersystem crossing through spin–orbit coupling, should be rather weak and hardly observed.
Other categories of isomers
In addition to symmetric bent/linear structures, the cyclic (oxo) and end-on (superoxo) isomers of the TiO2molecule were briefly examined. The geometries of the lowest singlet and triplet states were optimized at the DFT level with the B3LYP functional. As shown in Table 8, the geometric and energetic properties obtained in this work are in good agreement with previous theoretical studies.9,10,15For the cyclic isomers, the lowest triplet state is slightly more stable than the singlet one. The Ti–O bond length of the former is slightly longer than the latter while the O– Ti–O angles are both around 48u. For the end-on isomers, both of its lowest triplet and singlet states have the linear structure. Among all these isomers, the cyclic one in its 13A1state has the lowest equilibrium energy, yet is 3.8 eV higher than the global minimum belonging to the symmetric bent isomer. As a result, none of them could be expected to make an important contribution to the pronounced absorption band around 2.3 eV.
Conclusion
In this work the geometric and energetic properties of the ground and low-lying electronic excited states of the titanium dioxide mono-molecule have been investigated at several levels of theory including DFT and TD-DFT with different functionals, CASSCF and CASPT2, CCSD(T) and EOM-CCSD. A two-dimensional potential energy surface scan was carried out to check the energy dependence on both the bond length and the bending angle. The global minimum was found as a symmetric bent O–Ti–O structure belonging to the S0 11A1ground state with the equilibrium bond length of 1.65 A˚ and the bending angle of 111u, in good agreement with previous experimental and theoretical reports. A symmetric linear conformer was also found on the ground state potential surface but attributed to a saddle point rather than a true minimum. For the first singlet excited state, S1 1 1B2, two nearly isoenergetic minima were obtained, one being around the Franck–Condon vertical excitation region and the other linear. For the second singlet excited state, S21
1
A2, there is not any stable bent structure. The only stable one is linear, at which point this surface degenerates with the first excited state.
Comparing the performances of different levels of theory, all methods achieved very similar results for the ground state. As for excited states, EOM-CCSD appear to be most reliable in both energetic and geometric data. CASSCF fails in excitation energies attributed to lack of dynamical electron correlation,
Table 7 Calculated properties of the lowest two triplet states, T113B2and T213A2, of TiO2
State Level of theory
Vertical energya Adiabatic energya Equilibrium geometry Vibrational frequencies b
Dipole moment DEFC/eV DEad/eV rTiO/A˚ hOTiO/u n1(a1)/cm
21 n2(a1)/cm 21 n3(b2)/cm 21 m/debye T113B2 CASSCF(16,14) 2.003 1.781 1.694 95.3 925.7 235.6 (830i) 1.97 EOM-CCSD 2.324 2.135 1.660 101.9 1003.7 174.2 460.5 4.12 TD-B3LYP 2.556 2.500 1.671 103.0 937.3 175.9 370.7 3.49 BPW91c — 2.19 1.700 96.6 882 192 457 — T213A2 CASSCF(16,14) 3.887 3.402 1.741 102.8 — — — 3.55 EOM-CCSD 2.996 2.402 1.684 180.0 886.7 288.0 862.1 0.00 TD-B3LYP 3.133 2.609 1.699 180.0 839.8 251.6 663.0 0.00 BPW91c — 2.53 1.722 143.7 772 131 561 — a
With respect to the global minimum (S0 1 1
A1equilibrium) calculated at the same level of theory. b
In the case of linear structure, the three vibrational modes have the symmetry of sþ
g, puand s{g, respectively.
cRef. 9, with the 6-311++G(3df) basis set.

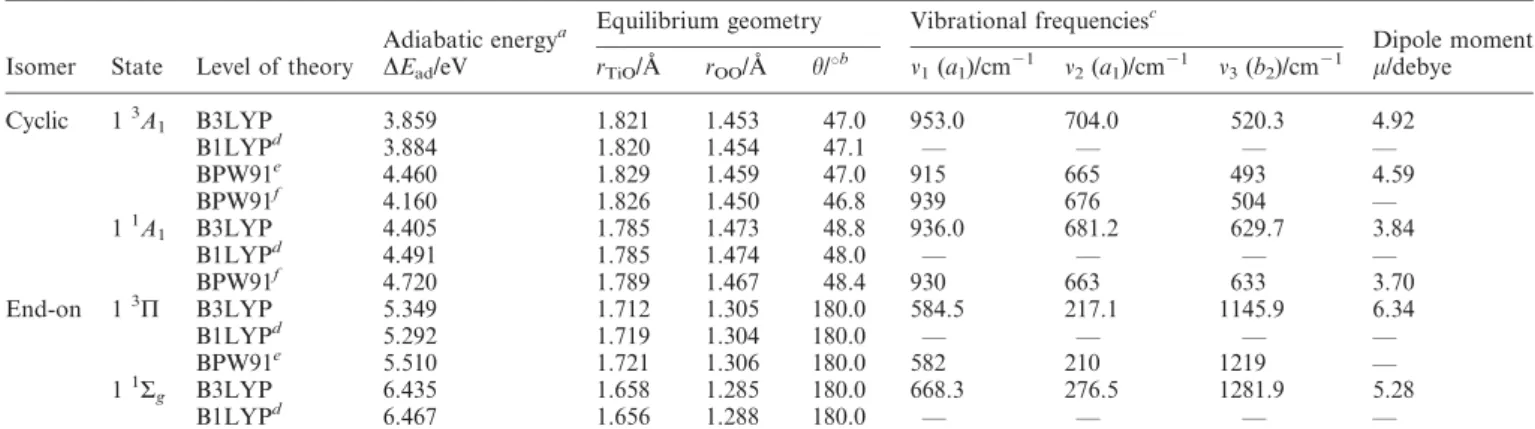

Table 8 Calculated properties of cyclic and end-on isomers of TiO2
Isomer State Level of theory
Adiabatic energya Equilibrium geometry Vibrational frequencies
c
Dipole moment DEad/eV rTiO/A˚ rOO/A˚ h/ub n1(a1)/cm21 n2(a1)/cm21 n3(b2)/cm21 m/debye
Cyclic 13A1 B3LYP 3.859 1.821 1.453 47.0 953.0 704.0 520.3 4.92 B1LYPd 3.884 1.820 1.454 47.1 — — — — BPW91e 4.460 1.829 1.459 47.0 915 665 493 4.59 BPW91f 4.160 1.826 1.450 46.8 939 676 504 — 11A1 B3LYP 4.405 1.785 1.473 48.8 936.0 681.2 629.7 3.84 B1LYPd 4.491 1.785 1.474 48.0 — — — — BPW91f 4.720 1.789 1.467 48.4 930 663 633 3.70 End-on 13P B3LYP 5.349 1.712 1.305 180.0 584.5 217.1 1145.9 6.34 B1LYPd 5.292 1.719 1.304 180.0 — — — — BPW91e 5.510 1.721 1.306 180.0 582 210 1219 — 11S g B3LYP 6.435 1.658 1.285 180.0 668.3 276.5 1281.9 5.28 B1LYPd 6.467 1.656 1.288 180.0 — — — — a
With respect to the global minimum (S01 1
A1equilibrium) of the symmetric bent isomer. b
Bending angle refers to hOTiOfor cyclic isomers and
hTiOOfor end-on isomers.cIn the case of end-on isomers, the three vibrational modes have the symmetry of sg, p and sg, respectively.dRef. 10,
with the 6-311+G(d) basis set.eRef. 15, with the 6-311+G(d) basis set.fRef. 9, with the 6-311+G(3df) basis set.
whereas CASPT2 effectively revises this point. TD-DFT with the B3LYP functional is trustworthy, while HSE06, vB97X-D and CAM-B3LYP functionals always overestimate excitation ener-gies, implying that introducing correction factors which are important in periodic crystal or long-range systems into this simple molecular monomer might not be suitable.
In order to clarify the cause of spectral peaks to the red of the S11
1
B2r S01 1
A1absorption system around 2.3 eV, influences from triplet states and other categories of isomers have been further considered. The triplet excited states were found quite close in energy and similar in structure to their corresponding singlet excited states. Spin–orbit couplings between states of the same spatial symmetry are zero and those between any other low-lying states are negligible. Furthermore, cyclic and end-on isomers of titanium dioxide were briefly examined, and all resulted energies are much higher than the equilibria of the S0to S2states of the symmetric bent/linear isomer. In consequence, these factors could not give satisfactory interpretation of the spectral peaks to the red. The cause of those low-energy absorption transitions then could be attributed only to singlet states with the symmetric geometry. We suggest that the linear conformer of the ground state might be excluded for its instability, while the linear one of the first singlet excited state might contribute according to its possible low energy.
