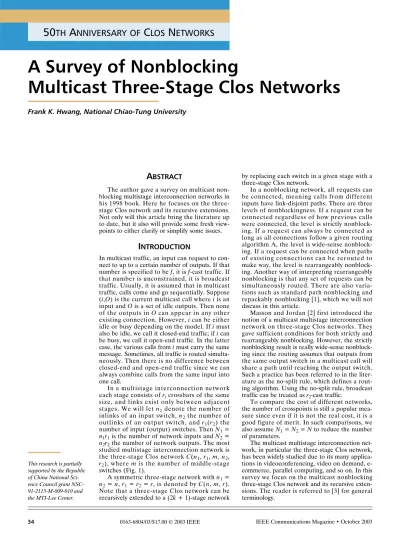

Frank K. Hwang, National Chiao-Tung University
A
BSTRACT
The author gave a survey on multicast non-blocking multistage interconnection networks in his 1998 book. Here he focuses on the three-stage Clos network and its recursive extensions. Not only will this article bring the literature up to date, but it also will provide some fresh view-points to either clarify or simplify some issues.
A Survey of Nonblocking
Multicast Three-Stage Clos Networks
This research is partially supported by the Republic of China National Sci-ence Council grant NSC-91-2115-M-009-010 and the MTI-Lee Center.
IEEE Communications Magazine • October 2003 35
S
TRICTLY
N
ONBLOCKING
Friedman [4] proved a fundamental result for a general multicast strictly nonblocking network (not necessarily a multistage interconnection network).
Theorem 1 — A strictly nonblocking network
with closed-end broadcast traffic has at least O(N2) crosspoints.
Since an N× N crossbar is broadcast strictly nonblocking and has N2crosspoints, any hope to
design an unbounded multicast strictly nonblock-ing network to save cost is dashed, but one can still save cost on f-cast networks.
Although a sufficient condition on strictly nonblocking three-stage Clos networks was attempted early [2] (but turned out to be a con-dition on wide-sense nonblocking), genuine nec-essary and sufficient conditions were given much later. Actually, several sets of conditions were given that were not in complete agreement. Besides, there are different hardware models to consider. It is typical to assume that a crossbar has fan-out capability (i.e., a crossbar itself is a strictly nonblocking multicast network). But we may restrict the crossbars of a given stage to be without the fan-out capability (i.e., only capable of point-to-point connection). Presumably, such a crossbar has lower cost due to either less hard-ware or a simpler control mechanism.
Let model i, i = 1, 2, 3 denote the hardware model in which stage i has no fan-out capability, and let model 0 denote that in which every stage has fan-out capability.
It is messy to get the exact necessary and suf-ficient conditions for these methods (which explains why there are several different sets of such conditions), especially when one has to take the boundary effect from the input and output sizes into consideration. Recently, the author gave a unifying approach to compute the neces-sary and sufficient conditions, which simplifies derivation as well as verification [3]. Further-more, this approach works not only for the above four strictly nonblocking models, but also for some wide-sense nonblocking models. We sum-marize these findings for the strictly nonblocking model in Table 1.
From Theorem 1, we know that to get a bet-ter cost than O(N2), we must bound f. For f = r
2,
all strictly nonblocking networks of Table 1 need
O(N5/3) crosspoints by setting n
1= O(N1/3) and n2= O(N2/3), but model 1 needs O(N2)
cross-points. For C(n, m, r), all models need O(N2)
crosspoints.
W
IDE
-S
ENSE
N
ONBLOCKING
There are three general classes of routing algo-rithms for a multicast multistage interconnection network. The 0-1 fan-out class is characterized by whether the routing algorithm allows fan-out at a stage. (Note that if a crossbar cannot per-form fan-out due to hardware structure, the result is strictly nonblocking.) The size fan-out class is characterized by the specification of the fan-out size at a stage. The window class is char-acterized by the specification of the partition of a multicast request into multicast subrequests that are independently routed.The first 0-1 fan-out algorithm, as well as the first wide-sense nonblocking multicast algorithm, is the no-split algorithm of Masson and Jordan on a three-stage Clos network. They gave a suffi-cient condition for wide-sense nonblocking. Hwang used the unifying approach introduced earlier to obtain a necessary and sufficient con-dition similar to those in Table 1.
Note that the no-split rule plus the fan-out capability of the output switch guarantee that only one path is needed to reach all outputs in the same output switch in an f-cast call. Thus, f2
> r2 can be reduced to f2 = r2 . Therefore, it is
not surprising that the cost under the no-split rule is on the same order as those strictly non-blocking networks in Table 1 with f2 = r2.
While the 0-1 fan-out class was started
acci-■Figure 1. A three-stage Clos network.
1 1 1 1 1 m r1 r2 m n1 n2 1 1 11 1 1 1 1 1 m r1 r2 m n1 n2 1 r1 m r12 1
■Table 1. Conditions for f-cast strictly nonblocking Clos networks.
Fan-out availabilty Traffic model Necessary and sufficient condition
Fan-out capability at every stage Closed end
m≥ min{(n1– 1)f + n2, (N1– 1)f + 1, N2}
Open end No fan-out at stage 1 Closed end
Open end No fan-out at stage 2 Closed end
Open end No fan-outat stage 2 Closed end
m≥ min{(n1– 1)f + n2, (N1–1)f + min{f, n2}, N2} Open end m≥ N − +r n +n − n N ∞ min{ 2 2 ( 1 2 1) / 2, 1} m n f n f r N f f r N m n f n N f N ≥ − + − + − + ≥ + −
min{( ) min{ , }, ) min{ , }, }
min{ , , } 1 2 2 2 2 1 2 1 2 1 1 1 1 ( 1
IEEE Communications Magazine • October 2003
36
dentally by a “strictly nonblocking” result of Masson and Jordan, the size fan-out class was started accidentally by a rearrangeably nonblock-ing result of Kirkpatrick, Klawe, and Pippenger [5]. This algorithm was later interpreted to be a wide-sense nonblocking algorithm that sets an upper bound of either n2or log2n2 on the
fan-out size at the input stage [3].
Yang and Masson [6] first explicitly proposed a out size algorithm by restricting the fan-out size at the input stage to be at most p (to be optimally determined). The no-split rule is also tacitly assumed. They proved the following.
Theorem 2 — C(n1, r1, m, n2, r2) is f-cast
wide-sense nonblocking for the closed-end traffic under the p-restriction routing if m > (n1– 1)p
+ (n2– 1)f1/p.
They showed that a correct set of p middle switches can be found in O(n2f) time, and the
optimal choice of p is log f/2 log log f.
At f = r2, the number of crosspoints is O(N3/2
log r/log log r) = O(N3/2logN/log logN) obtained
by setting O(n1) = O(n2) = O(N1/2). Yang and
Masson also extended it to a (2k + 1)-stage Clos network and showed that the number of cross-points is
Feldman, Friedman, and Pippenger [7] con-sidered a two-stage network such that the first stage consists of concentrators (a bipartite graph, but not necessarily complete as a crossbar), the second stage of copies of r1× N2crossbars. In
their construction, each pair of inputs share exactly two neighbors. The routing algorithm allows no fan-out at the first stage, and an out-put of the concentrator can be selected to carry the path only if its selection would not cause any input to have too many busy neighbors(a thresh-old is defined). They showed that a multicast wide-sense nonblocking three-stage network with O(N5/3) crosspoints can be constructed, and also
a five-stage extension with O(N3/2) crosspoints.
They also gave a nonconstructive s-stage version with O(N1+1/s(logN)1–1/s) crosspoints, which is
slightly better than Yang and Masson’s construc-tion.
Tscha and Lee [8] proposed the first window algorithm on the multi-log2N network by
parti-tioning the N = 2noutputs into groups called windows, each consisting of 2n/2outputs that can reach the same set of switches in stage n/2 + 1. A multicast request is correspondingly par-titioned into several subrequests where outputs from the same window are in the same subre-quest. Two subrequests from the same input must have link disjoint paths just as if they were from different inputs. Kabacinski and Danilewicz [9] extended to windows of variable sizes with some comparisons among different sizes. Unfor-tunately, the number of crosspoints is O(N2logN).
Hwang applied the window algorithm to the three-stage Clos network. Again, the author used the unifying approach to obtain a necessary
and sufficient condition, and also showed that √—r is a near-optimal choice of window size for C(n, m, r), while m≥ (2n — 1) √—r is a sufficient condition.
Note that C(n, (2n – 1) √—r, r) has O(N7/4)
crosspoints by setting n = O(N1/2). Setting the
window size to r2, the window algorithm equals
the routing in model 1. Setting the window size to 1, the window algorithm equals the routing in model 2 except that the no-split rule is in force. Therefore, the window algorithm unites the two models and provides a spectrum of choices in between.
R
EARRANGEABLY
N
ONBLOCKING
Masson and Jordan gave a sufficient condition on multicast rearrangeably nonblocking C(n1, r1, m, n2, r2). Hwang refined it to be both sufficientand necessary.
Theorem 3 — For model 2, C(n1, r1, m, n2, r2)
is f-cast rearrangeably nonblocking if and only if m≥ min{min{n1f, N2}, min{n2,N1}}
For f = r2the network has O(N5/3)
cross-points by setting n1= O(N1/3) and n2= O(N2/3).
Note that the symmetric network would need O(N2) crosspoints.
Unlike the strictly noblocking case, neces-sary and sufficient conditions for rearrangeably nonblocking are not known for models 0, 1, and 3. An O(N7/4) cost network for model 1 was
given by Kirkpatrick, Klawe, and Pippenger. As mentioned before, their rearrangeably non-blocking results for model 0 are actually wide-sense nonblocking results. The cost of either their three-stage network or its s-stage recur-sive extension is larger than those of Yang and Masson.
Hwang and Lin [10] conjectured: “For model 1, C(n, 2n, r) is 2-cast rearrangeably nonblocking.” Their motivation for studying this conjecture is to provide rearrangeable nonblocking for some occasional bicast calls in an strictly nonblocking point-to -point network. Note that if the conjecture holds, a point-to-point call (i, j) can always be routed without rearranging, since the (n – 1) co-inputs (co-outputs) can occupy at most n – 1 middle switches regardless of their calls being point-to-point or bicast. Also, note that this is true only under model 1.
Du and Ngo [11] extended the conjecture to an asymmetric three-stage Clos network with n1
≥ n2. They also gave a counterexample if n1< n2, and proved the conjecture for n2= 2 or 3.
Hwang, Liao, and Tong [12] proved for r2≤ 4.
They also considered the case where the multi-cast calls do not have to be bimulti-cast.
Richards and Hwang [13] considered a net-work that is mathematically equivalent to a three-stage network where the input switch is of size 1 × k, k ≤ m, and the linking between the first two stages is not a complete bipartite graph (i.e., input i is linked to the set Miof middle switches). They actually proposed the elimina-tion of the input stage by assigning input i to an inlink of each middle switch in Mi. They called it a two-stage network. For easier comparison with
O N k N N k k 1 1 1 2 2 1 1 + +
[
]
+ − + ( ) log / log log ( )/ /( ) .
Note that the
no-split rule plus
the fan-out
capability of the
output switch
guarantee that
only one path is
needed to reach
all outputs in the
same output
switch in a
IEEE Communications Magazine • October 2003 37 other three-stage networks, we will treat it as a
three-stage network, although no crosspoint is counted in the first stage since each input switch can be a splitter.
Note that outputs on different output switches can compete only for stage 1 links, but in the two-stage network each stage 1 link is dedicated to an input and not subject to com-petition. Therefore, we can study the rear-rangeably nonblocking condition as if there were only one output switch. Let B denote the bipartite graph between the first two stages. Then the network is rearrangeably nonblocking if and only if B is a partial concentrator of capacity n2(i.e., up to n2inputs have at least
that many neighbors). By Hall’s theorem on a system of distinct representatives, for any set of q≤ n2inputs requested by the outputs of the
output switch, there exist q middle switches, each carrying a distinct requested input to con-nect to the output switch. The number of cross-points depends on n2as a function of k (not
completely determined yet). O(N7/4) is
prov-able while O(N5/3) is conjectured.
C
ONCLUSIONS
A survey of multicast nonblocking multistage interconnection networks was given in [1, Ch. 4]. Here we focus on three-stage Clos networks and bring the literature up to date. Some interesting new developments are:
• A unifying approach to compute necessary and sufficient conditions for many multicast strictly nonblocking and wide-sense non-blocking models
• A new class, the window class, of routing algorithms that unites some previous seem-ingly unrelated models
• Recent progress on the bicast conjecture for model 1
We also provided some fresh viewpoints: • We provided a more structured framework
to study multicast wide-sense nonblocking three-stage Clos networks by classifying the routing algorithms into three classes. In particular, we pointed out that the input stage fan-out size can be controlled by hard-ware structure.
• We observed the close relation between two problems thus far studied separately: the
rearrangeably nonblocking network under model 1; and satisfying the strictly non-blocking requirement for point-to-point traffic but the rearrangeably nonblocking requirement for multicast traffic.
The author wishes to thank the reviewers for careful reading and many helpful suggestions.
