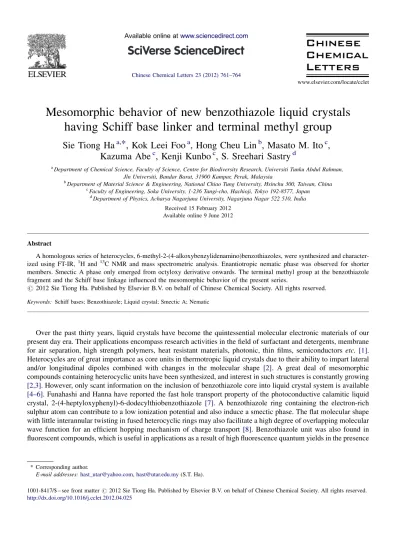

Mesomorphic behavior of new benzothiazole liquid crystals having Schiff base linker and terminal methyl group

(1)

Mesomorphic

behavior

of

new

benzothiazole

liquid

crystals

having

Schiff

base

linker

and

terminal

methyl

group

Sie

Tiong

Ha

a,

*

,

Kok

Leei

Foo

a

,

Hong

Cheu

Lin

b

,

Masato

M. Ito

c

,

Kazuma

Abe

c

,

Kenji

Kunbo

c

,

S. Sreehari

Sastry

d

a

DepartmentofChemicalScience,FacultyofScience,CentreforBiodiversityResearch,UniversitiTunkuAbdulRahman, JlnUniversiti,BandarBarat,31900Kampar,Perak,Malaysia

b

DepartmentofMaterialScience&Engineering,NationalChiaoTungUniversity,Hsinchu300,Taiwan,China

c

FacultyofEngineering,SokaUniversity,1-236Tangi-cho,Hachioji,Tokyo192-8577,Japan

d

DepartmentofPhysics,AcharyaNagarjunaUniversity,NagarjunaNagar522510,India Received15February2012

Availableonline9June2012

Abstract

Ahomologousseriesofheterocycles,6-methyl-2-(4-alkoxybenzylidenamino)benzothiazoles,weresynthesizedand character-izedusing FT-IR,1_H_and 13_C _NMR_and_mass _{spectrometric} _analysis._{Enantiotropic}_nematic_phase_was_observed_for_shorter

members.SmecticAphaseonlyemerged fromoctyloxyderivativeonwards.Theterminalmethylgroupatthebenzothiazole fragmentandtheSchiffbaselinkageinfluencedthemesomorphicbehaviorofthepresentseries.

#₂₀₁₂_Sie_Tiong_Ha._Published_by_Elsevier_B.V._on_behalf_of_Chinese_Chemical_Society._All_rights_reserved.

Keywords: Schiffbases;Benzothiazole;Liquidcrystal;SmecticA;Nematic

Overthe pastthirtyyears,liquidcrystalshave becomethequintessentialmolecularelectronic materialsof our

presentdayera.Theirapplicationsencompassresearchactivitiesinthefieldofsurfactantanddetergents,membrane

for airseparation, highstrength polymers, heat resistant materials,photonic, thin films,semiconductors etc. [1].

Heterocyclesareofgreatimportanceascoreunitsinthermotropicliquidcrystalsduetotheirabilitytoimpartlateral

and/or longitudinal dipoles combined with changes in the molecular shape [2]. A great deal of mesomorphic

compoundscontainingheterocyclicunitshavebeensynthesized,andinterestinsuchstructuresisconstantlygrowing

[2,3].However,onlyscantinformationontheinclusionofbenzothiazolecoreintoliquidcrystalsystemisavailable

[4–6].Funahashi andHannahavereportedthefastholetransportpropertyofthephotoconductivecalamitic liquid

crystal, 2-(4-heptyloxyphenyl)-6-dodecylthiobenzothiazole [7].A benzothiazole ring containing the electron-rich

sulphuratomcancontributetoalowionizationpotentialandalsoinduceasmecticphase.Theflatmolecularshape

withlittleinterannulartwistinginfusedheterocyclicringsmayalsofacilitateahighdegreeofoverlappingmolecular

wave function for an efficienthopping mechanism of charge transport [8].Benzothiazole unit was alsofound in

fluorescentcompounds,whichisusefulinapplicationsasaresultofhighfluorescencequantumyieldsinthepresence

www.elsevier.com/locate/cclet

Availableonlineatwww.sciencedirect.com

ChineseChemicalLetters23(2012)761–764

*Correspondingauthor.

E-mailaddresses:[email protected],[email protected](S.T.Ha).

1001-8417/$–seefrontmatter#₂₀₁₂_Sie_Tiong_Ha._Published_by_Elsevier_B.V._on_behalf_of_Chinese_Chemical_Society._All_rights_reserved.

(2)

oftherigidcorestructure[9].Recently,benzothiazolederivativeshavebeencontinuouslyinvestigatedforapplication

inthin-film, organicfield-effecttransistors[10].

InordertofurtherexplorebenzothiazoleasamesogeniccoreinSchiffbaseliquidcrystals,here,wereportedanew

homologous series of 6-methyl-2-(4-alkoxybenzylidenamino)benzothiazoles. The synthetic route for the

benzothiazole derivatives is illustrated in Scheme 1. 2-Amino-6-methylbenzothiazole and 2,

4-dihydroxybenz-aldehydewerecoupledbyrefluxinethanolforthreehours,followingwhichtheSchiffbaseintermediatewassubjected

toWilliamsonetherificationwiththeappropriatebromoalkanesinthepresenceofpotassiumcarbonateanhydrous.

Thecrudeproductswerepurifieduponrepeatedrecrystallizationusingethanolandtheirstructureswereelucidatedvia

elementalanalysis,FT-IR,NMRandEI-MSspectroscopictechniques [11].

Theliquidcrystallinetexturesoftheproductswereobservedunderapolarizingopticalmicroscopeequippedwitha

hotstageandtemperatureregulator.Phaseidentificationwas madebycomparing theobservedtextures withthose

reportedintheliterature[12,13].Transitiontemperaturesandassociatedenthalpychangesweredeterminedusinga

differentialscanning calorimeter.The resultsaresummarizedinTable1.

Underthepolarizingmicroscope,shortestmemberoftheseries,6MeBTHexhibitednematicphase.Themesophase

wasidentifiedbythenematicdropletstexture.Brownianflashes,afeatureofthenematicphasewerealsoobserved

beforerecrystallization[14].Byreferringtothechemicalconstitutionofthepresentseries,thenematicphasewhich

wasobservedcouldhaveresultedfromtheterminalmethylgroupatthesixthpositionwhichdisruptedthelamellar

arrangementofthesmecticphase.Thesimilarphenomenonwasalsoreportedforahomologousseriesofazoliquid

crystals witha benzothiazole core [5].Furthermore, the Schiff base(CH N) linker whichconferred astep like

structureresultedinthe thickeningeffectwhichinturnenhancedthe nematicphasestability[15].

Aninterestingphenomenonwasobservedfor8MeBTHwhereanadditionalphasewithfan-shapedtextureassigned

assmecticA(SmA)phase(Fig.1b)wasobservedaftertheformationofthenematicdroplets(Fig.1a)onthecooling

run.SmAphaseemergedasmonotropicphase(metastable)in8MeBTH.FromC10derivativeonwards,SmAphase

S.T.Haetal./ChineseChemicalLetters23(2012)761–764 762

+

O OH H C H₃ NH₂ N S H3C N N S C OH C H₃ N N S C OC_nH_2n+1 K₂CO₃ CH₃COCH₃ C_nH_2n+1Br C₂H₅OH CH₃COOH nMeBTH n = 6,8,10,12,14 Scheme1. Syntheticrouteforthetargetcompounds.

Table1

PhasetransitionandtransitionenthalpyfornMeBTHuponheatingandcoolingcycle.

Compound Phasetransition,8C(correspondingenthalpychanges,kJmol 1) Heating Cooling 6MeBTH Cr105.5(39.83)N119.5(1.03)I Cr83.3(35.60)N119.4(1.47)I 8MeBTH Cr108.2(49.10)N118.3(1.33)I Cr70.4(33.94)SmA96.2(1.43)N118.2(1.84)I 10MeBTH Cr99.0(49.84)SmA110.7(3.41)N118.4(1.79)I Cr61.1(37.42)SmA110.8(3.13)N118.1(1.94)I 12MeBTH Cr81.6(44.98)SmA116.1(8.25)I Cr68.9(41.13)SmA116.7(8.90)I 14MeBTH Cr83.2(48.79)SmA113.6(8.6)I Cr69.7(47.86)SmA115.1(8.97)I

(3)

existsasenantiotropicphase(stable)andpersiststoC14derivative.Highermembersoftheseries(C12andC14)

displayedonly smecticphase.This suggestedthat withincreasingthelength oftheterminal chain,thenematic

properties decreased andledto theemergenceofthesmectic phase.Thisis duetoattraction betweenthe long

alkyloxy chainsleading totheir intertwining,whichfacilitates thelamellar packingand isvital forthesmectic

phase[14].It canthereforebe proposedthatinorder togenerate theenantiotropic(stable) smecticphaseinthe

analogoussubstitutedC7H5SNCH NC6H5compounds,thenumberofcarbonsinthealkylchainmustbeatleast

10 (n10) [16].

Aplotofthetransitiontemperatureagainstthenumberofcarbonsinthealkyloxychainduringtheheatingscanis

depictedinFig.2.Themeltingtemperaturewasconsiderablyreducedbytheincreaseinthelengthofthechainowing

to the increase in its flexibility [15]. As for clearing temperature, it descended as the number of carbon atoms

increased, resultingfrom thedilutionofthe coreinduced bytheincrease inthe lengthof theterminalchain[17].

Furthermore,the nematicphaserange isreducedandthe SmAphaserange isincreasedas thealkylchainlength

ascended.TheincreasingvanderWaalsforcestendtostabilizetheSmAphasebyfavoringthelamellarpacking,onthe

otherhand,suppressedthenematicphaserange.

Inconclusion,allthesynthesizedcompoundsexhibitedmesomorphicpropertieswherebynematicphaseexistsfor

theshortermembersandSmAphaseemergedfromtheC8derivativesonwards.Thepresenceoftheorderedsmectic

structureinthetitlecompoundsbecomespotentialinterestinelectricalstudiesfordeviceapplication.

Acknowledgment

The author (S.T. Ha) would liketothank UniversitiTunku Abdul Rahman andMinistry of Higher Education

(MOHE)for thefinancialsupportsvia LRGS(No.LR003-2011A)andresearchfacilities.

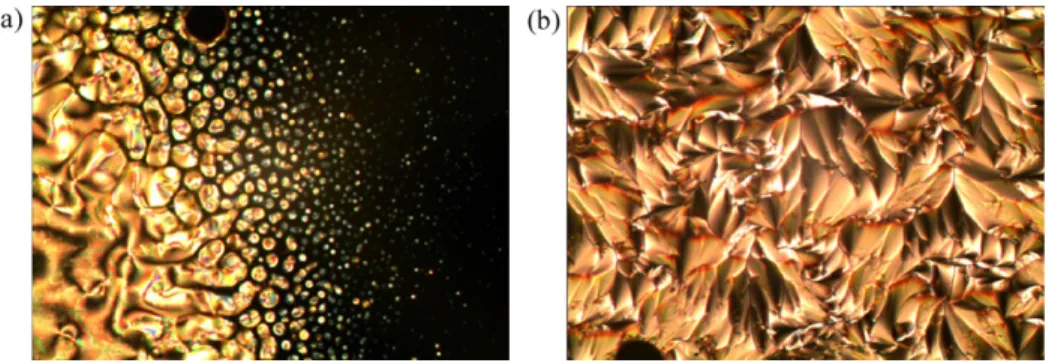

Fig.1. Opticalphotomicrographsof8MeBTHuponcooling.Formationofnematicdroplets(a)cooledfromisotropicanduponfurthercooling, SmecticAphasewithfocalconictexture(b)wasobserved.

70 80 90 100 110 120 130 14 12 10 8 6

Number of carbon atoms (n) in alkyloxy chain

Transition Temperature (deg Celcius)

Cr-SmA/N SmA-N SmA/N-I Cr N I SmA

(4)

References

[1] (a) J.W.Goodby,Chem.Soc.Rev.36(2007)1855;

(b)M.R.Huang,X.G.Li,J.Appl.Polym.Sci.54(1994)463; (c) X.G.Li,M.R.Huang,Sep.Sci.Technol.29(1994)1905;

(d)X.G.Li,M.R.Huang,G.Lin,P.C.Yang,Sep.Sci.Technol.29(1994)671; (e) X.G.Li,M.R.Huang,J.Macromol.Sci.PureAppl.Chem.A36(1999)859; (f)X.G.Li,Polym.Test.19(2000)43.

[2] A.Seed,Chem.Soc.Rev.36(2007)2046.

[3] (a) A.S.Matharu,D.Chambers-Asman,Liq.Cryst.34(2007)1317; (b)H.Gallardo,R.F.Magnago,A.J.Bortoluzzi,Liq.Cryst.28(2001)1343;

(c) L.L.Lai,C.H.Wang,W.P.Hsien,H.C.Lin,Mol.Cryst.Liq.Cryst.287(1996)177; (d)V.F.Petrov,A.I.Pavluchenko,N.I.Smirnova,Mol.Cryst.Liq.Cryst.265(1995)47; (e) N.L.Campbell,W.L.Duffy,G.I.Thomas,etal. J.Mater.Chem.12(2002)2706; (f)S.T.Ha,K.L.Foo,R.T.Subramaniam,etal. Chin.Chem.Lett.22(2011)1191; (g)G.Y.Yeap,T.N.Chan,W.S.Yam,etal. Chin.Chem.Lett.22(2011)947; (h)W.S.Yam,G.Y.Yeap,Chin.Chem.Lett.22(2011)229.

[4] (a) A.I.Pavluchenko,N.I.Smirnova,V.V.Titov,etal. Mol.Cryst.Liq.Cryst.37(1976)35; (b)J.Belmar,M.Parra,C.Zuniga,etal. Liq.Cryst.26(1999)389;

(c) M.Matsui,Y.Kamino,M.Hayashi,etal. Liq.Cryst.25(1998)235; (d)M.P.Aldred,P.Vlachos,D.Dong,etal. Liq.Cryst.32(2005)951; (e) C.Sekine,N.Konya,M.Minai,K.Fujisawa,Liq.Cryst.28(2001)1361. [5] (a) A.K.Prajapati,N.L.Bonde,J.Chem.Sci.118(2006)203;

(b)A.K.Prajapati,N.L.Bonde,Mol.Cryst.Liq.Cryst.501(2009)72.

[6] S.T.Ha,T.M.Koh,G.Y.Yeap,H.C.Lin,etal. Mol.Cryst.Liq.Cryst.506(2009)56. [7] (a) M.Funahashi,J.Hanna,Jpn.J.Appl.Phys.35(1996)L703;

(b)M.Funahashi,J.HannaPhys.Rev.Lett.78(1997)2184.

[8] P.Vlachos,B.Mansoor,M.P.Aldred,etal. Chem.Commun.(2005)2921.

[9] B.M.Krasovitski,B.M.Bolotin,OrganicLuminescentMaterials, VCH,Weinheim,1988. [10] G.K.Dutta,S.Guha,S.Patil,Org.Electron.11(2010)1.

[11] Analyticalandspectroscopicdatafortherepresentativecompound12MeBTH:Yield65%;IRnmax(KBr,cm 1):3053(C–Haromatic),2919,

2849(C–Haliphatic),1597(C NSchiffbase),1567(C Nthiazole),1286(C–Oaromaticether);1HNMR(400MHz,CDCl3):d0.90(t,3H,

J=6.9Hz,CH3–),1.27–1.49(m,18H,CH3–(CH2)9–),1.80(p,2H,J=6.9Hz,–CH2–CH2–O–),2.48(s,3H,CH3–),4.03(t,2H,J=6.6Hz,–

CH2–O–Ar–),6.99(d,2H,J=8.7Hz,Ar–H),7.27(d,1H,J=8.1Hz),7.61(s,1H,Ar–H),7.83(d,1H,J=8.1Hz,Ar–H),7.96(d,2H,

J=8.7Hz,Ar–H),8.94(s,1H–N CH–).13_C_NMR₍₁₀₀_MHz,_CDCl

3):d164.93(CH N),163.51,149.84,134.97,134.49,132.24,127.84,

127.56,122.40,121.42,114.99foraromaticcarbons,68.39(Ar–O–CH2–),31.92(Ar–O–CH2–CH2–),29.65,29.63,29.58,29.55,29.35,29.11,

25.98,22.68,21.56formethylenecarbons[CH3(CH2)9–O],14.10(CH3).

[12] (a) D.Demus,L.Richter,TexturesofLiquidCrystals, VerlagChemie,NewYork,1978; (b)I.Dierking,TexturesofLiquidCrystals, Wiley-VCH,Weinheim,2003.

[13] Z.Q.Yu,C.Z.Zhu,Z.Zhang,J.H.Liu,J.W.Y.Lam,B.Z.Tang,Chin.Chem.Lett.22(2011)1355.

[14] S.Singh,D.A.Dunmur,LiquidCrystals:Fundamentals, WorldScientificPublishingCo.Pte.Ltd.,London,2002. [15] P.J.Collings,M.Hird,IntroductionofLiquidCrystals:ChemistryandPhysics, Taylor&FrancisLtd.,London,1998. [16] G.Y.Yeap,S.T.Ha,P.L.Lim,etal. Liq.Cryst.33(2006)205.

[17] P.Berdague,J.P.Bayle,M.S.Ho,B.M.Fung,Liq.Cryst.14(1993)667.
