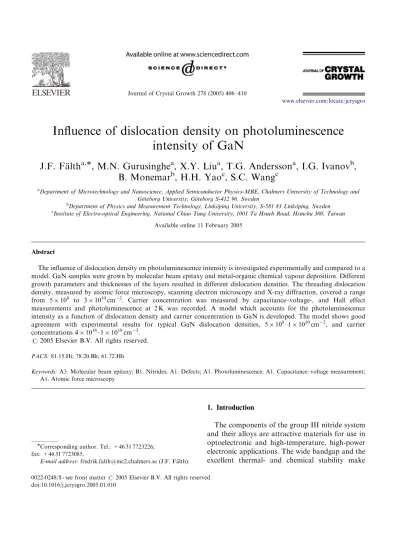

Inﬂuence of dislocation density on photoluminescence

intensity of GaN

J.F. Fa¨lth

a,

, M.N. Gurusinghe

a

, X.Y. Liu

a

, T.G. Andersson

a

, I.G. Ivanov

b

,

B. Monemar

b

, H.H. Yao

c

, S.C. Wang

c

a_{Department of Microtechnology and Nanoscience, Applied Semiconductor Physics-MBE, Chalmers University of Technology and} Go¨teborg University, Go¨teborg S-412 96, Sweden

b_{Department of Physics and Measurement Technology, Linko¨ping University, S-581 83 Linko¨ping, Sweden} c_{Institute of Electro-optical Engineering, National Chiao Tung University, 1001 Ta Hsueh Road, Hsinchu 300, Taiwan}

Available online 11 February 2005

Abstract

The inﬂuence of dislocation density on photoluminescence intensity is investigated experimentally and compared to a model. GaN samples were grown by molecular beam epitaxy and metal-organic chemical vapour deposition. Different growth parameters and thicknesses of the layers resulted in different dislocation densities. The threading dislocation density, measured by atomic force microscopy, scanning electron microscopy and X-ray diffraction, covered a range from 5 108 to 3 1010cm2. Carrier concentration was measured by capacitance–voltage-, and Hall effect measurements and photoluminescence at 2 K was recorded. A model which accounts for the photoluminescence intensity as a function of dislocation density and carrier concentration in GaN is developed. The model shows good agreement with experimental results for typical GaN dislocation densities, 5 108_{–1 10}10_cm2_{, and carrier}

PACS: 81.15.Hi; 78.20.Bh; 61.72.Hh

Keywords: A3. Molecular beam epitaxy; B1. Nitrides; A1. Defects; A1. Photoluminescence; A1. Capacitance–voltage measurement; A1. Atomic force microscopy

1. Introduction

The components of the group III nitride system and their alloys are attractive materials for use in optoelectronic and high-temperature, high-power electronic applications. The wide bandgap and the excellent thermal- and chemical stability make www.elsevier.com/locate/jcrysgro

Corresponding author. Tel.: +46 31 7723226; fax: +46 31 7723085.

(2)

them ideal candidates for devices. Existing nitride devices include visible- and ultraviolet (UV) light emitters, blue lasers and UV detectors. Most nitride device material is epitaxially grown. The main epitaxial techniques are metal-organic va-pour phase epitaxy (MOCVD), plasma-assisted molecular beam epitaxy (MBE), or direct growth by MBE in ammonia. Lacking an affordable, high-quality lattice-matched substrate, growth of GaN is usually done on a-phase Al2O3 (sapphire),

although SiC and Si substrates are also used [1]. The signiﬁcant, E15%, lattice mismatch between GaN and sapphire leads to a high density, 108–1010cm2, of threading dislocations through the crystal in the (0 0 0 1)-direction. Despite this, nitride-based optical devices have excellent proper-ties. Evidently, the high dislocation density in the nitrides has less detrimental effects than in other semiconductor systems.

Clear improvement on device material is ob-served when the dislocation density is reduced; see e.g. [2–4]. Despite this, relatively little work has been done on quantitative studies. A clear correlation between reduced photoluminescence (PL) intensity and mobility as a function of dislocation density has been shown[5–8]. Further, a few models have been developed to describe the detrimental effect of the dislocations. The reduc-tion in PL intensity from non-radiative electron–-hole recombinations in dislocations was calculated and compared to experimental values [9]. In another approach, the mobility was calculated due to scattering of electrons at ﬁlled traps along dislocation lines[10]. Further, a detailed numerical description of the free electron concentration and mobility due to charged dislocation lines has been made [11]. Due to the high efﬁciency of high dislocation nitride materials, further investigation is desired to increase our understanding. In this work, we have expanded the model of Gurusinghe et al. [11] to predict PL intensity of GaN and compared the model to experimental results.

2. Experimental procedure

Growth of MBE-materials was carried out in a Varian GEN II Modular MBE system on sapphire

substrates mounted indium free. Active nitrogen was provided by a liquid nitrogen cooled Oxford Applied Research CARS25, RF-plasma source. The nitrogen with a purity of 5.5 N was further purified to ppb levels by a commercial filter. The MBE-samples consisted of three 400–600 nm thick GaN layers, named B, C and D, grown on c-plane sapphire. After degreasing, the substrates were mounted and outgassed in the growth chamber. Before growing the GaN layer, the sapphire was exposed to nitrogen plasma for 30 min, where the power of the source was 200 W and the nitrogen flow 0.7 sccm. This nitridation process has been shown to simplify further GaN growth due to the formation of an AlOxN1x alloy layer at the

interface which bridges the gap in lattice constants between sapphire and AlN [12]. The GaN layers were grown with a growth rate of 0.2 mm/h at 700 1C substrate temperature. However, on two of the samples, B and C, an additional 5 nm AlN buffer layer is grown, at 700 1C, before GaN deposition.

A MOCVD System (EMCORE D-75) was employed for the growth of one sample, labelled A. Trimethylgallium (TMGa) and ammonia (NH3) were used as Ga source and N source,

respectively. A thermal cleaning process was carried out at 1080 1C for 10 min in a stream of hydrogen ambient before the growth of nitride layers. After deposition of a 30-nm-thick GaN nucleation layer at 530 1C, the substrate was heated up to 1045 1C and a 3-mm-thick GaN layer was grown. The ﬂow rate of TMGa was 89.5 mol/ min and the ﬂow rate of NH3was 3.6 L/min.

The photoluminescence spectra were recorded at 2 K, using a single monochromator (Jobin-Yvon, model HR460) equipped with a CCD camera and a frequency-doubled Ar-ion laser operating at 244.0 nm as an excitation source. The spectral resolution of the system was 0.4 meV. Carrier concentration was determined by capacitance–vol-tage- (CV) and Hall effect measurements in a Hewlett Packard 4061A Semiconductor Test System. A non-destructive mercury probe from Materials Development Corporation was used to form the CV Schottky contact. I–V measure-ments from the samples assured us of the quality of the Schottky contact and reliability of our

(3)

measurements. For Hall effect measurements, the samples were cleaved into 3 3 mm2 pieces and indium contacts were soldered in the corners.

To measure the dislocation density of the samples, we followed the method described by Huang et al.[13]. The GaN surface was etched in hot (70 1C) phosphoric acid (H3PO4). This etchant

only attacks the defect sites on the Ga-polar (0 0 0 1) GaN surface, and the resulting etch-pit density is comparable to the dislocation density determined by other methods. The etch pit density was calculated from atomic force microscopy (AFM) pictures, recorded in tapping mode in a Digital Instruments Dimension 3000 Scanning Probe Microscope. X-ray diffraction (XRD) mea-surements were made with a Philips Materials Research Diffractometer, equipped with a Bartels Ge(2 2 0) four-crystal monochromator and a slit in front of the detector. Scanning electron micro-scopy (SEM) pictures were taken using a JEOL JSM-6301F scanning electron microscope.

To describe the PL emission we use a model by Gurusinghe et al.[11], where dislocation lines are treated as negatively charged, due to acceptor-like states along their length. A positive space-charge region, with radius R, will be formed around each dislocation to compensate for the negative charge, where R depends strongly on the bulk carrier concentration. Knowing R and the dislocation density, Ndis, we can calculate the fraction of the

crystal, F, that is free from depletion regions around the dislocations, F ¼ 1 NdispR2: Since

signiﬁcant electron–hole recombination is only possible outside of the depletion region, we assume that the PL intensity is directly proportional to F. This way, we have a simple, yet effective, method to quantitatively predict the PL intensity, once the dislocation density and bulk carrier concentration is known.

3. Results

The samples in this study were used because of their variation in defect density. The dislocation density was estimated from AFM pictures of the etch pit density of the different samples. InFig. 1 can be seen such AFM images. The large image

shows sample A, and the inset, one of the MBE-grown ﬁlms, C. The different surface features originate in the growth method. Higher tempera-tures during MOCVD growth lead to smoother surfaces, whereas MBE has a more island-like growth mode. The etching only affects dislocations and, thus, the features are preserved after etching. Interestingly, by counting surface pit features in SEM images of un-etched MBE-grown GaN, a similar value of the dislocation density is obtained, see inset in Fig. 2. However, the surface of as-grown MOCVD-GaN is smooth and dislocation density cannot be estimated from SEM images. Further, a clear correlation is seen between the dislocation density and the full-width at half-maximum (FWHM) of XRD curves, where the density is proportional to the FWHM2of symme-trical (0 0 0 2) o-rocking curves. The result of the dislocation density measurements is shown in Fig. 2. As seen, regardless of characterization method, a similar value is determined for each individual ﬁlm, while it differs greatly from sample to sample. The PL from each sample was recorded. The shape and intensity of the curves were

Fig. 1. AFM image of etched GaN surfaces. The arrows point at etch-pits, which are counted to give a value for the dislocation density. Sample A is grown by MOCVD and sample C by MBE.

(4)

reproducible over a large area of each wafer, but differed clearly from ﬁlm to ﬁlm. The curves are included in the inset of Fig. 3. To compare the luminescence intensity with the theoretical model, the PL curves were integrated and normalized.

In Fig. 3, the PL intensity is calculated for different carrier concentrations and plotted against dislocation density. We have also included measured data from our samples, as well as published results [8]. The carrier concentrations, used in the calculations, were chosen to be those of the samples in this study. Samples A–C show excellent agreement with calculated results. The previously published data correspond reasonably well with the model. The calculated PL is very sensitive to small changes in the carrier concentra-tion and deviaconcentra-tions from the model could be explained by differences between the samples. Also, no information was given of how the intensity was measured, whether it was peak intensities or, as we did it, integrated intensities. Different peak shapes may give different results when integrated over a wide wavelength range. However, the model does not accurately predict the PL intensity from sample D. At these carrier concentrations and dislocation densities, the

pre-dicted intensity is still unity, and the model fails. This sample is grown by MBE without an AlN buffer layer and such GaN ﬁlms are known to grow with N-polarity [14] as opposed to the favourable Ga-polarity of the other samples in this study. However, the theory makes no distinc-tion between different polarity materials. Although different growth modes of N- and Ga-polarity GaN give rise to material differences[15], it is more likely that we have reached the limit of the model validity. From the calculations it’s clear that n-type background doping is favourable for increased PL intensity. Higher carrier concentra-tion means smaller depleconcentra-tion regions and more free carriers. Thus, intentional n-type doping can lead to increased PL efﬁciency.

4. Conclusion

We have shown that we can quantitatively predict the relative PL intensity from GaN samples using the dislocation density and carrier concen-tration as parameters. By calculating the depletion

Fig. 2. Summary of dislocation density measurements, includ-ing error bars, on samples A–D. AFM measurements were done on etched GaN surfaces and SEM on un-etched. The inset shows a SEM image of sample B, where the pits correspond to dislocations. The XRD results were calculated from FWHM of the GaN (0 0 0 2) reﬂection, where the dislocation density is proportional to FWHM2_.

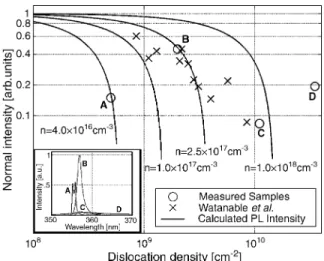

Fig. 3. Calculated and measured PL intensity plotted against dislocation density. The measured carrier concentration of samples A–D were 4 1016, 2.5 1017, 1.0 1018 and 2 1020cm3, respectively. Published samples had a carrier concentration of 1 1017cm3. The carrier concentration for the calculations is given in the ﬁgure. The inset shows the PL curves of samples A–D, measured at 2 K.

(5)

region around the dislocations we get the fraction of the crystal volume where electron–hole recom-bination is prevented. The assumption that the emitted intensity is inversely proportional to this fraction is shown to be valid for common dislocation densities and carrier concentrations found in typical GaN ﬁlms. GaN samples of varying crystal quality were thoroughly investi-gated and compared to the theory.

Acknowledgements

This work was supported ﬁnancially by SAAB Microtech AB, the Swedish Foundation for Strategic Research and the Swedish National Science Research Council.
