Origin of three-stage transformation in a severely cold-rolled and annealed Ti51Ni40Cu9 shape memory alloy

(1)

Journal of Alloys and Compounds 461 (2008) 117–120

Origin of three-stage transformation in a severely cold-rolled

and annealed Ti

51

Ni

40

Cu

9

shape memory alloy

K.N. Lin

a

, S.K. Wu

a,b,∗

a_{Department of Materials Science and Engineering, National Taiwan University, Taipei 106, Taiwan} b_{Department of Mechanical Engineering, National Taiwan University, Taipei 106, Taiwan}

Received 29 May 2007; received in revised form 4 July 2007; accepted 4 July 2007 Available online 10 July 2007

Abstract

Severely cold-rolled Ti51Ni40Cu9shape memory alloy annealed at 500◦C× 72 h and 650◦C× 1 h exhibits three-stage martensitic transformation

owing to the grain-size effect, i.e., the specimen has small grains near the rolling surfaces and large grains in the central region. The different grain-size distribution is attributed to the inhomogeneous cold-rolling effect. The three-stage transformation has three pairs of transformation peaks which are associated with B21↔ B191 transformation of large grains, B22↔ B192 transformation of small grains and (B191+ B192)↔ B19

Keywords: Metals and alloys; Shape memory; Phase transformation; Thermal analysis

1. Introduction

TiNi-based shape memory alloys (SMAs) have great poten-tial for mechanical, biomedical and sports applications because of their excellent properties on shape memory effect (SME), pseudoelasticity (PE) and damping capacity[1]. The substitu-tion of Cu for Ni in TiNi SMAs has been known to reduce or prevent the following events: (1) the composition sensitiv-ity of the starting temperature for martensitic transformation, Ms [2], (2) the hysteresis of pseudoelasticity [3], and (3) the

flow stress level in the martensitic state [3,4]. Ti50Ni50−xCux

SMAs, with x < 30 at.%, have been investigated extensively from various aspects. Transformation sequences of Ti50Ni50_−xCux

SMAs are B2↔ B19, B2↔ B19 ↔ B19 and B2↔ B19 for

x < 5, 5 < x <20 and x > 20 at.%, respectively[5–7]. Here B2 is parent austenite, B19 and B19are orthorhombic and monoclinic martensite, respectively.

Multi-stage martensitic transformation is usually found in aged Ni-rich TiNi SMAs[8–13]. All the complex multi-stage martensitic transformations appeared in Ni-rich TiNi alloys are

∗_{Corresponding author at: Department of Materials Science and Engineering,}

National Taiwan University, Taipei 106, Taiwan. Tel.: +886 2 2363 7846; fax: +886 2 2363 4562.

E-mail address:[email protected](S.K. Wu).

associated with the heterogeneous stress field caused by Ti3Ni4

precipitates and the inhomogeneous distribution of Ti3Ni4

pre-cipitates. We have recently reported the occurrence of the multi-stage martensitic transformations owing to different grain-size distribution in cold-rolled and annealed bulk Ti50Ni50

SMA [14] and in annealed melt-spun Ti51Ni49 SMA ribbons [15]. In the present study, a three-stage martensitic transfor-mation is found in a cold-rolled and annealed Ti51Ni40Cu9

SMA. The transformation characteristics of this three-stage martensitic transformation are systematically investigated by differential scanning calorimetry (DSC), dynamic mechanical analyzer (DMA) and optical microscope (OM). The cause of this three-stage martensitic transformation is also discussed.

2. Experimental procedure

Ti51Ni40Cu9 ingot was prepared by conventional vacuum arc-remelting

(VAR) method in which high-purity Ti (99.8 wt.%), Ni (99.9 wt.%) and Cu (99.99 wt.%) were remelted six times in a high-purity Ar atmosphere. The as-melted ingot was hot-rolled at 900◦C to a plate of about 2.0 mm thickness by STANAT TA-515-5-5X8 rolling machine at a constant rolling speed of 10 m/min, then solution-treated at 900◦C for 1 h and subsequently quenched in water. The oxidation layer of the plate was chemically etched by a solution composed of HF:HNO3:H2O = 1:5:20 (v/v/v) and then polished by #150 sandpapers. After

removing the oxidation layer, the plate became about 1.8 mm in thickness, and was cut into 75 mm× 20 mm strips with the longitude along the hot-rolling direction. Thereafter, the strips were cold-rolled to 1 mm in thickness at room

(2)

118 K.N. Lin, S.K. Wu / Journal of Alloys and Compounds 461 (2008) 117–120

Fig. 1. DSC result of as hot-rolled Ti51Ni40Cu9specimen.

temperature along the hot-rolling direction by the same rolling machine with about 2% thickness reduction for each pass. The total reduction in thickness was about 44%. After cold-rolling, the strips were cut into 35 mm× 4.5 mm × 1 mm specimens for DMA test and about 30 mg specimens for DSC test, sealed in evacuated quartz tubes and then annealed in 500◦C and 650◦C salt baths for different time intervals.

Transformation temperature and enthalpy of cold-rolled and annealed Ti51Ni40Cu9 specimens were determined by TA Q10 DSC equipment at

10◦C/min cooling/heating rate. Their internal friction (tanδ) values were deter-mined by TA 2980 DMA equipment at 3◦C/min cooling rate under 1 Hz frequency and 5␮m amplitude. The testing temperature ranged from +150◦C to −120◦C in both DSC and DMA tests. The cross-sectional microstruc-ture of cold-rolled and annealed Ti51Ni40Cu9 specimens was observed by

Nikon FX-35DX optical microscope (OM). The electro-polish was done under 5 V at room temperature. The electro-polishing solution was composed of CH3COOH:HClO4= 5:95 (v/v). From the OM images, the average grain size

of cold-rolled and annealed specimens was estimated by the linear intercept method[16].

3. Results and discussion

3.1. DSC and DMA results of as hot-rolled Ti51Ni40Cu9

specimen

Figs. 1 and 2show DSC and DMA results of as hot-rolled Ti51Ni40Cu9specimen, respectively. InFigs. 1 and 2, as

hot-rolled Ti51Ni40Cu9specimen shows a two-stage transformation

corresponding to two exothermal peaks, two tanδ peaks and

Fig. 2. DMA result of as hot-rolled Ti51Ni40Cu9specimen.

two storage modulus minima during cooling. According to our previous study[17], the first transformation is B2→ B19, cor-responds to a sharp exothermal peak, a sharp tanδ peak and a significant storage modulus drop; while the second transforma-tion is B19→ B19, corresponds to a broad exothermal peak, a broad tanδ peak and a minute storage modulus drop. Thus the transformation sequence of Ti51Ni40Cu9specimen is the same as

that of Ti50Ni50_−xCux(5≤ x ≤ 20 at.%), i.e., B2 ↔ B19 ↔ B19

two-stage transformation[5–7]. However, both B2↔ B19 and B19↔ B19transformation peak temperatures of Ti51Ni40Cu9

specimen are higher than those of Ti50Ni40Cu10specimen[17]

because the former has Ti-rich chemical composition. Moreover, there is a small temperature shift between the results of DSC and DMA tests which is attributed to the different cooling/heating rates and specimen sizes used in these two tests.

3.2. Cross-sectional microstructure of cold-rolled and annealed Ti51Ni40Cu9specimen

Fig. 3(a)–(c) show the OM micrographs of cross-sectional microstructure of cold-rolled Ti51Ni40Cu9 specimen annealed

at 650◦C× 1 h.Fig. 3(a) reveals that the microstructure in the central region is quite different from that near the specimen’s rolling surfaces. The grains in the central region are elongated along the rolling direction (RD) and the average grain size is about 23␮m, as calculated fromFig. 3(b) and (c) shows that the

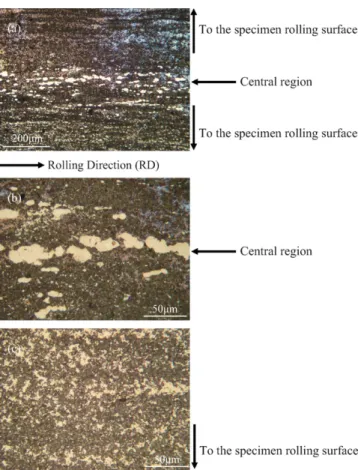

Fig. 3. OM micrographs of cross-sectional microstructure of cold-rolled Ti51Ni40Cu9 specimen annealed at 650◦C× 1 h. (a) The full scope, (b) the

(3)

K.N. Lin, S.K. Wu / Journal of Alloys and Compounds 461 (2008) 117–120 119

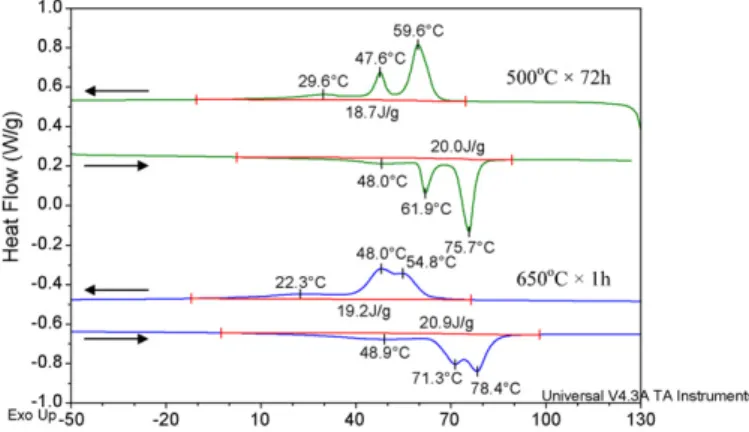

Fig. 4. DSC results of cold-rolled Ti51Ni40Cu9 specimens annealed at

500◦C× 72 h and 650◦C× 1 h.

grains near the rolling surfaces are much finer than those in the central region and the grain size is about 3␮m. This is because the specimen’s surfaces are in direct contact with the rollers and suffer more plastic deformation than the central region. The inhomogeneous microstructure shown inFig. 3is quite similar to that seen in our previous study for the 35% cold-rolled Ti50Ni50

SMA annealed at 500◦C× 3 h[14].

3.3. DSC results of cold-rolled and annealed Ti51Ni40Cu9

specimen

Fig. 4shows DSC results of cold-rolled Ti51Ni40Cu9

spec-imens annealed at 500◦C× 72 h and 650◦C× 1 h. As can be seen, there are three transformation peaks in both cooling and heating curves. In order to identify these transformation peaks, the cooling process is interrupted at each transformation peak and immediately heats up to obtain the corresponding partial-cycle DSC curve. The partial-partial-cycle results of the specimens annealed at 500◦C× 72 h are shown inFig. 5. InFig. 5, the solid line represents the full-cycle DSC curve, and the long-dash line represents the partial-cycle DSC curve which is interrupted at the first transformation peak, say 59.6◦C, and a reverse trans-formation peak appears at 75.7◦C during heating. Since the first pair of transformation peaks is quite sharp, we conclude that it is B21↔ B191transformation associated with the central region

Fig. 5. The overlapped partial-cycle DSC results for cold-rolled Ti51Ni40Cu9

specimen annealed at 500◦C× 72 h.

of the specimen which will be discussed in greater detail in the next section. In the same way, the short-dash line inFig. 5

represents the partial-cycle DSC curve interrupted at the second transformation peak (47.6◦C), and a reverse transformation peak appears at 61.9◦C during heating. Since the second pair of trans-formation peaks is also quite sharp, we conclude that it is also B22↔ B192 transformation associated with the near-surface

region of the specimen. Finally, the partial-cycle DSC test is interrupted at the third peak (29.6◦_{C and shown as the}

dash-dot line in Fig. 5), and a reverse transformation peak appears at 48.0◦C during heating. The last pair of transformation peaks is quite broad, and we conclude that it is (B191+ B192)↔B19

transformation. All the transformations associated with these three pairs of transformation peaks are highlighted inFig. 5.

The transformation sequence of cold-rolled Ti51Ni40Cu9

specimen annealed at 650◦C× 1 h, as shown in Fig. 4, is the same as that of annealed at 500◦C× 72 h, i.e., the first, sec-ond and third pair of transformation peaks are associated with B21↔ B191, B22↔ B192and (B191+ B192)↔ B19

transfor-mations, respectively. However, the first and second pair of transformation peaks overlap partially.

3.4. Origin of three-stage martensitic transformation in cold-rolled and annealed Ti51Ni40Cu9specimen

In order to clarify the grain-size effect on three-stage marten-sitic transformation shown inFig. 4, the cold-rolled and annealed Ti51Ni40Cu9specimens are ground from both rolling surfaces to

remove the grains that are smaller than those in the central region. The thickness of the specimen annealed at 650◦C× 1 h is first reduced from 1 mm to 0.6 mm and then further reduced from 0.6 mm to 0.4 mm.Fig. 6(a) and (b) show the evolution of DSC curves corresponding to the specimen thickness. InFig. 6, the second pair of B22↔ B192peaks of the 0.6 mm-thick specimen

becomes smaller than that of the 1.0 mm one. Moreover, for the 0.4 mm-thick specimen, B22↔ B192 peaks almost disappear.

Also shown inFig. 6, the transformation peak temperatures shift slightly to higher temperatures when the specimen’s thickness is reduced. This is because the grinding process can eliminate the suppression effect of the abundant grain boundaries on the transformation temperature.

The specimen thickness of the Ti51Ni40Cu9 specimen

annealed at 500◦C× 72 h is also reduced from 1.0 mm to 0.4 mm. Fig. 7 shows the evolution of DMA cooling curves corresponding to the specimen thickness. For the DMA curve of the 0.4 mm-thick specimen, the B22→ B192 peak almost

disappears too.

The aforementioned DSC and DMA results of ground specimens suggest that the three-stage martensitic transforma-tion shown in Fig. 4 comes from the grain-size effect. Here, B21↔ B191is associated with B2↔ B19 transformation owing

to the large grains in the central region, and B22↔ B192is also

associated with B2↔ B19 transformation, but attributed to the small grains near the rolling surfaces. The inhomogeneous cold-rolling deformation distributed in the specimen implies that the degree of plastic deformation in the central region is less than that near the rolling surfaces. As a result, the grains in the central

(4)

120 K.N. Lin, S.K. Wu / Journal of Alloys and Compounds 461 (2008) 117–120

Fig. 6. DSC curves for cold-rolled Ti51Ni40Cu9 specimen annealed at

650◦C× 1 h. (a) DSC cooling curves and (b) DSC heating curves.

Fig. 7. DMA curves for cold-rolled Ti51Ni40Cu9 specimen annealed at

500◦C× 72 h.

region are larger than those near the rolling surfaces after recrys-tallization and grain growth. It is well known that the defects such as grain boundaries can suppress martensitic transformation to a lower temperature[14]. Therefore, B22↔ B192

transforma-tion corresponding to the smaller grains near the rolling surfaces takes place at lower temperature than B21↔ B191

transforma-tion corresponding to the large grains in the central region. Compared with B2↔ B19 transformation, B19 ↔ B19 transformation shown in Fig. 4 does not separate into two B191↔ B191and B192↔ B192transformations which

corre-spond to the large and small grains, respectively. This is because B19↔ B19 transformation requires much smaller transfor-mation strain (∼2%) than B2 ↔ B19 transfortransfor-mation (∼8%)

[18]. Therefore, the effect of grain size can be neglected in B19↔ B19transformation.

4. Conclusions

The three-stage martensitic transformation occurring in severely cold-rolled Ti51Ni40Cu9 SMA annealed at

500◦C× 72 h and 650◦C× 1 h is investigated by DSC, DMA and OM. Experimental results show that three-stage martensitic transformation is attributed to the different grain-size distribu-tion, i.e., the small grains near the rolling surfaces and the large grains in the central region. Such distribution is attributed to the inhomogeneous cold-rolled effect in which the specimen’s surfaces are in direct contact with the rollers and suffer more plastic deformation than the central region. The three-stage martensitic transformation has three pairs of transformation peaks which are associated with B21↔ B191 transformation

of the large grains in the central region, B22↔ B192

trans-formation of the small grains near the rolling surfaces and (B191+ B192)↔ B19 transformation of both large and small

grains.

Acknowledgement

The authors gratefully acknowledge the financial support from the National Science Council (NSC), Taiwan, Republic of China, under the Grant NSC95-2221-E002-164.
