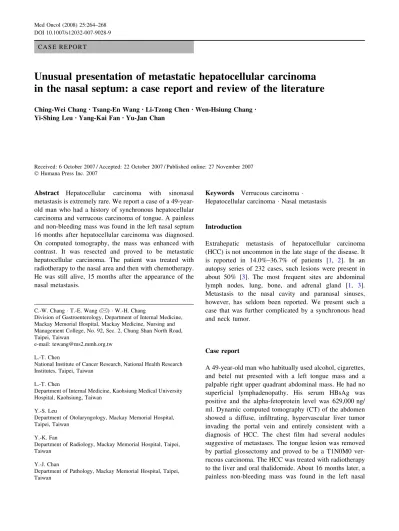

Unusual presentation of metastatic hepatocellular carcinoma in the nasal septum: a case report and review of the literature

C A S E R E P O R T

Unusual presentation of metastatic hepatocellular carcinoma

in the nasal septum: a case report and review of the literature

Yi-Shing LeuÆ Yang-Kai Fan Æ Yu-Jan Chan

Received: 6 October 2007 / Accepted: 22 October 2007 / Published online: 27 November 2007

Ó Humana Press Inc. 2007

Abstract Hepatocellular carcinoma with sinonasal metastasis is extremely rare. We report a case of a 49-year-old man who had a history of synchronous hepatocellular carcinoma and verrucous carcinoma of tongue. A painless and non-bleeding mass was found in the left nasal septum 16 months after hepatocellular carcinoma was diagnosed. On computed tomography, the mass was enhanced with contrast. It was resected and proved to be metastatic hepatocellular carcinoma. The patient was treated with radiotherapy to the nasal area and then with chemotherapy. He was still alive, 15 months after the appearance of the nasal metastasis.

Keywords Verrucous carcinoma

Hepatocellular carcinoma
Nasal metastasis

Introduction

Extrahepatic metastasis of hepatocellular carcinoma (HCC) is not uncommon in the late stage of the disease. It is reported in 14.0%–36.7% of patients [1, 2]. In an autopsy series of 232 cases, such lesions were present in about 50% [3]. The most frequent sites are abdominal lymph nodes, lung, bone, and adrenal gland [1, 3]. Metastasis to the nasal cavity and paranasal sinuses, however, has seldom been reported. We present such a case that was further complicated by a synchronous head and neck tumor.

Case report

A 49-year-old man who habitually used alcohol, cigarettes, and betel nut presented with a left tongue mass and a palpable right upper quadrant abdominal mass. He had no superficial lymphadenopathy. His serum HBsAg was positive and the alpha-fetoprotein level was 629,000 ng/ ml. Dynamic computed tomography (CT) of the abdomen showed a diffuse, infiltrating, hypervascular liver tumor invading the portal vein and entirely consistent with a diagnosis of HCC. The chest film had several nodules suggestive of metastases. The tongue lesion was removed by partial glossectomy and proved to be a T1N0M0 ver-rucous carcinoma. The HCC was treated with radiotherapy to the liver and oral thalidomide. About 16 months later, a painless non-bleeding mass was found in the left nasal

C.-W. Chang
T.-E. Wang (&)
W.-H. Chang

Division of Gastroenterology, Department of Internal Medicine, Mackay Memorial Hospital, Mackay Medicine, Nursing and Management College, No. 92, Sec. 2, Chung Shan North Road, Taipei, Taiwan

e-mail: tewang@ms2.mmh.org.tw L.-T. Chen

National Institute of Cancer Research, National Health Research Institutes, Taipei, Taiwan

L.-T. Chen

Department of Internal Medicine, Kaohsiung Medical University Hospital, Kaohsiung, Taiwan

Y.-S. Leu

Department of Otolaryngology, Mackay Memorial Hospital, Taipei, Taiwan

Y.-K. Fan

Department of Radiology, Mackay Memorial Hospital, Taipei, Taiwan

Y.-J. Chan

Department of Pathology, Mackay Memorial Hospital, Taipei, Taiwan

septum (Fig.1). The pulmonary metastases were larger than before and the alpha-fetoprotein level, which had dropped with initial treatment, had again increased.

Paranasal sinus CT showed an enhancing tumor in the nasal septum (Fig.2a and b). Histologic examination of the subsequently resected mass revealed neoplastic, polygonal cells arranged in a thick trabecular pattern, consistent with metastatic HCC (Fig.3). The patient was treated with adjuvant radiotherapy to the nose and was begun on sys-temic chemotherapy with oxaliplatin, fluorouracil, and leucovorin, resulting in partial remission of the pulmonary metastases. He was alive at 15 months after diagnosis of the nasal metastasis.

Discussion

Reports of HCC metastasis to the head and neck, including the jaw, orbital cavity, and skull are not unusual [4]. However, paranasal and nasal metastases from HCC are exceedingly rare. We were able to find only 17 such reports in the literature in the past 20 years (Table1). All the patients were men, with ages ranging from 40 to 82 years old (mean 55.5). Although the etiology was not clear in all reports, seven patients had hepatitis B virus infection, one was hepatitis C infection, and two were alcohol abusers. The metastases were in both sinuses and nasal cavity in four cases, in the paranasal sinuses alone in eight, and in the nasal cavity alone in six.

Epistaxis was the most common symptom. Other less frequently reported symptoms included diplopia, gingival bleeding, nasal obstruction, proptosis, headache, and cheek pain according to the site of the tumor involved. However, these symptoms and signs are identical to those that may be produced by primary head and neck tumors, and there are

Fig. 1 Mass in the nasal septum (arrow)

Fig. 2 Transverse (a) and sagittal (b) contrast-enhanced computed tomography of paranasal sinuses showing a 1.6 9 1.8-cm enhancing lesion in the nasal septum (arrows)

Fig. 3 Histologic section of the nasal lesion revealing neoplastic polygonal cells arranged in a thick trabecular pattern, consistent with metastatic hepatocellular carcinoma (H&E stain; magnification 9100)

no distinctive clinical or radiologic features that can easily separate primary from metastatic lesions [18,19]. The only clue might be a history of a primary tumor elsewhere, for example, in a patient with a history of HCC. A confusing factor in our patient’s case, of course, was the history of two primary lesions, HCC and a verrucous carcinoma of the tongue.

Verrucous carcinoma is a well-differentiated squamous cell carcinoma that usually has a good prognosis. Com-plete resection is the treatment of choice, which was done in our patient. Distant metastasis of verrucous carcinoma is rare, but local recurrence following surgery is not uncommon [20, 21]. In addition, patients with one squa-mous cell carcinoma of the head and neck not infrequently develop a second primary malignancy in the upper aerodigestive tract [22]. In our patient, therefore, the nasal mass seemed most likely to be a recurrence of his verrucous carcinoma or a second primary head and neck tumor. It was only on biopsy that the true diagnosis was revealed.

As diagnosis and treatment of HCC have improved, patients are surviving longer, so it’s perhaps not surprising that they are living long enough for extrahepatic metastases to become apparent [23,24]. Thalidomide is effective in slowing progression of HCC in some cases [25], and this treatment may be what permitted our patient to survive long enough to develop this unusual metastasis. It’s also interesting to note that of the 17 published reports of HCC metastatic to sinonasal region, 10 have been published in the past 7 years (Table 1), and ours makes the 11th. The numbers are too small to draw accurate statistical conclu-sions, but one wonders if we will continue to see more such reports as these people survive longer.

In most reported series of HCC, the male-to-female ratio ranges from 2:1 to 8:1 [26,27]. The tumors in women tend to have less aggressive characteristics than in men, such as smaller mean tumor size, less advanced Okuda stage, and less frequent portal or hepatic vein invasion [27]. It is, therefore, intriguing to note that all reported cases of HCC metastatic to the sinonasal area have been in men. While

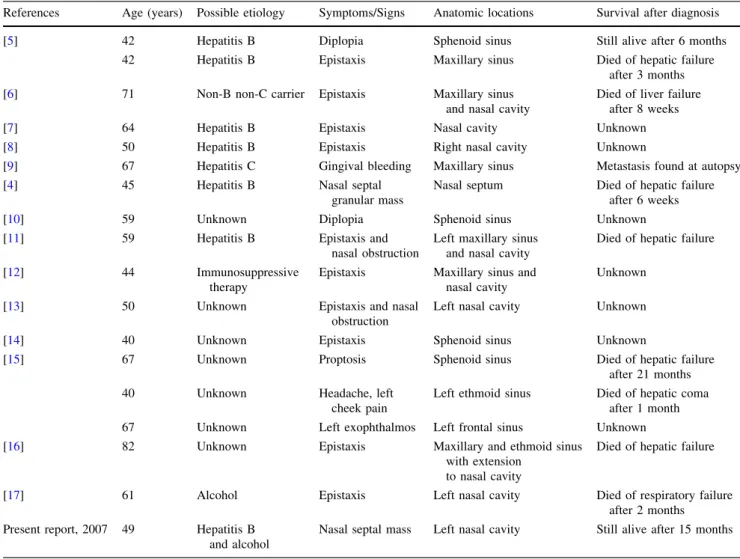

Table 1 Clinical features in 18 men with hepatocellular carcinoma metastatic to the sinonasal area

References Age (years) Possible etiology Symptoms/Signs Anatomic locations Survival after diagnosis [5] 42 Hepatitis B Diplopia Sphenoid sinus Still alive after 6 months

42 Hepatitis B Epistaxis Maxillary sinus Died of hepatic failure after 3 months [6] 71 Non-B non-C carrier Epistaxis Maxillary sinus

and nasal cavity

Died of liver failure after 8 weeks [7] 64 Hepatitis B Epistaxis Nasal cavity Unknown [8] 50 Hepatitis B Epistaxis Right nasal cavity Unknown

[9] 67 Hepatitis C Gingival bleeding Maxillary sinus Metastasis found at autopsy [4] 45 Hepatitis B Nasal septal

granular mass

Nasal septum Died of hepatic failure after 6 weeks [10] 59 Unknown Diplopia Sphenoid sinus Unknown [11] 59 Hepatitis B Epistaxis and

nasal obstruction

Left maxillary sinus and nasal cavity

Died of hepatic failure

[12] 44 Immunosuppressive therapy

Epistaxis Maxillary sinus and nasal cavity

Unknown

[13] 50 Unknown Epistaxis and nasal obstruction

Left nasal cavity Unknown

[14] 40 Unknown Epistaxis Sphenoid sinus Unknown

[15] 67 Unknown Proptosis Sphenoid sinus Died of hepatic failure after 21 months 40 Unknown Headache, left

cheek pain

Left ethmoid sinus Died of hepatic coma after 1 month 67 Unknown Left exophthalmos Left frontal sinus Unknown [16] 82 Unknown Epistaxis Maxillary and ethmoid sinus

with extension to nasal cavity

Died of hepatic failure

[17] 61 Alcohol Epistaxis Left nasal cavity Died of respiratory failure after 2 months Present report, 2007 49 Hepatitis B

and alcohol

the exact reasons for the unequal gender distribution is unclear, investigators have postulated that differences in DNA synthetic activity and sex hormones may contribute to it at least in part [28]. Studies from animal models suggest that the hormonal effect may be related to testos-terone’s ability to enhance transforming growth factor alpha-related hepatocarcinogenesis and hepatocyte prolif-eration [29]. In addition, men may have a higher incidence of HBV infection and cirrhosis and differences in lifestyle, such as heavy alcohol consumption and smoking, that contribute to their increased risk [30,31].

HCC metastasizes by either lymphogenous or hema-togenous spread [32]. The former would involve invasion via the hepatic lymph nodes into the thoracic duct. In such a case, hepatic, peripancreatic, celiac, and paraaortic lymph nodes would be expected to be invaded before the disease would spread into the head and neck [33]. This does not fit with the finding of an isolated metastatic nasal or paranasal metastasis. Several hematogenous routes have been sug-gested [18, 19, 32]. The most conventional proposal is spread from the caval venous system through the pul-monary circulation and then into arterial vessels feeding the head and neck. Another possibility is retrograde spread through the prevertebral and vertebral venous plexus [18]. Such routes could also explain renal, bronchogenic, breast, and urogenital cacinomas metastases in the paranasal sinuses [19]. In our patient, there was no neck lymphade-nopathy, but he did have lung metastases, so it seems more likely the nasal tumor arrived hematogenously. Lin [4] and Matsuda [6] also proposed this route for HCC metastatic to the nasal cavity.

Extrahepatic metastasis is a major independent predictor of a poor outcome in patients with HCC [34,35], partic-ularly with head and neck metastases [36]. In the published reports we reviewed, the survival (when stated) ranged from 6 weeks to 21 months after the appearance of sino-nasal metastasis. Various treatments for the metastatic lesions were reported, including resection, palliative radiotherapy, and transcatheter embolization to control nasal bleeding. With resection of the nasal mass, adjuvant radiotherapy to the nose, and systemic chemotherapy, our patient was still alive 15 months after the appearance of the nasal metastasis.

It is fortunate that this patient’s metastatic lesion was so easy to diagnose by biopsy, as it could not be differentiated clinically from a recurrent verrucous carcinoma or a second primary squamous cell carcinoma. This case is a good reminder that, while our differential diagnosis for a par-ticular patient is often based on probability, it is merely a guide to our diagnostic approach. We still need tissue to make a definitive diagnosis, one which occasionally sur-prises us.

Acknowledgment We thank Dr. M.J. Buttrey for revision of the English manuscript.

References

1. Katyal S, et al. Extrahepatic metastases of hepatocellular carci-noma. Radiology 2000;216:698–703.

2. Shuto T, et al. Treatment of adrenal metastases after hepatic resection of a hepatocellular carcinoma. Dig Surg 2001;18: 294–97.

3. Nakashima T, et al. Pathology of hepatocellular carcinoma in Japan. 232 consecutive cases autopsied in ten years. Cancer 1983;51:863–77.

4. Lin CD, Cheng KS, Tsai CH, Chen CL, Tsai MH. Metastatic hepatocellular carcinoma in the nasal septum: report of a case. J Formos Med Assoc 2002;101:715–8.

5. Huang HH, Chang PH, Fang TJ. Sinonasal metastatic hepato-cellular carcinoma. Am J Otolaryngol 2007;28:238–41. 6. Matsuda H, Tanigaki Y, Yoshida T, Matsuda R, Tsukuda M. A

case of metastatic hepatocellular carcinoma in the nasal cavity. Eur Arch Otorhinolaryngol 2006;263:305–7.

7. Komura T, et al. A case of nasal metastasis of hepatocellular carcinoma that was treated under transcatheter arterial emboli-zation for control nasal bleeding. Nippon Shokakibyo Gakkai Zasshi 2005;102:1055–61.

8. Yoo SJ, et al. Extrahepatic metastasis of hepatocellular carci-noma to the nasal cavity manifested as massive epistaxis: a case report. Korean J Hepatol 2004;10:228–32.

9. Okada H, et al. Metastatic hepatocellular carcinoma of the maxillary sinus: a rare autopsy case without lung metastasis and a review. Int J Oral Maxillofac Surg 2003;32:97–100.

10. Kleinjung T, Held P. Metastasis in the frontal skull base from hepatocellular carcinoma. HNO 2001;49:126–9.

11. Izquierdo J, Armengot M, Cors R, Perez A, Basterra J. Hepato-carcinoma: metastasis to the nose and paranasal sinuses. Otolaryngol Head Neck Surg 2000;122:932–3.

12. English JC 3rd, Meyer C, Lewey SM, Zinn CJ. Gingival lesions and nasal obstruction in an immunosuppressed patient post-liver transplantation. Cutis 2000;65:107–9.

13. Patankar T, Prasad S, Patni S, James P. Hypervascular nasal metastasis from hepatocellular carcinoma. Indian J Gastroenterol 1998;17:111–2.

14. Sim RS, Tan HK. A case of metastatic hepatocellular carcinoma of the sphenoid sinus. J Laryngol Otol 1994;108:503–4. 15. Mochimatsu I, Tsukuda M, Furukawa S, Sawaki S. Tumours

metastasizing to the head and neck—a report of seven cases. J Laryngol Otol 1993;107:1171–3.

16. Knobber D, Jahnke V. Metastasis to the ENT area. HNO 1991;39:263–5.

17. Frigy AF. Metastatic hepatocellular carcinoma of the nasal cav-ity. Arch Otolaryngol 1984;110:624–7.

18. Nahum AM, Bailey BJ. Malignant tumors metastatic to the par-anasal sinuses: case report and review of the literature. Laryngoscope 1963;73:942–53.

19. Bernstein JM, Montgomery WW, Balogh K Jr. Metastatic tumors to the maxilla, nose, and paranasal sinuses. Laryngoscope 1966;76:621–50.

20. Batsakis JG, Hybels R, Crissman JD, Rice DH. The pathology of head and neck tumors: verrucous carcinoma, Part 15. Head Neck Surg 1982;5:29–38.

21. Medina JE, Dichtel W, Luna MA. Verrucous–squamous carci-nomas of the oral cavity. A clinicopathologic study of 104 cases. Arch Otolaryngol 1984;110:437–40.

22. Jones AS, et al. Second primary tumors in patients with head and neck squamous cell carcinoma. Cancer 1995;75:1343–53. 23. Natsuizaka M, et al. Clinical features of hepatocellular carcinoma

with extrahepatic metastases. J Gastroenterol Hepatol 2005; 20:1781–7.

24. Blum HE. Hepatocellular carcinoma: therapy and prevention. World J Gastroenterol 2005;11:7391–400.

25. Wang TE, et al. Salvage therapy for hepatocellular carcinoma with thalidomide. World J Gastroenterol 2004;10:649–53. 26. Llovet JM, Burroughs A, Bruix J. Hepatocellular carcinoma.

Lancet 2003;362:1907–17.

27. Tangkijvanich P, Mahachai V, Suwangool P, Poovorawan Y. Gender difference in clinicopathologic features and survival of patients with hepatocellular carcinoma. World J Gastroenterol 2004;10:1547–50.

28. Tarao K, et al. The male preponderance in incidence of hepato-cellular carcinoma in cirrhotic patients may depend on the higher DNA synthetic activity of cirrhotic tissue in men. Cancer 1993;72:369–74.

29. Matsumoto T, Takagi H, Mori M. Androgen dependency of he-patocarcinogenesis in TGFalpha transgenic mice. Liver 2000; 20:228–33.

30. Cong WM, Wu MC, Zhang XH, Chen H, Yuan JY. Primary hepatocellular carcinoma in women of mainland China. A clinicopathologic analysis of 104 patients. Cancer 1993; 71:2941–5.

31. Lai CL, et al. Hepatocellular carcinoma in Chinese males and females. Possible causes for the male predominance. Cancer 1987;60:1107–10.

32. Yuki K, Hirohashi S, Sakamoto M, Kanai T, Shimosato Y. Growth and spread of hepatocellular carcinoma. A review of 240 consecutive autopsy cases. Cancer 1990;66:2174–9.

33. Kew MC. Virchow–Troisier’s lymph node in hepatocellular carcinoma. J Clin Gastroenterol 1991;13:217–9.

34. Ikai I, et al. Report of the 16th follow-up survey of primary liver cancer. Hepatol Res 2005;32:163–72.

35. Ikai I, et al. Reevaluation of prognostic factors for survival after liver resection in patients with hepatocellular carcinoma in a Japanese nationwide survey. Cancer 2004;101:796–802. 36. Yoshimura Y, Matsuda S, Naitoh S. Hepatocellular carcinoma

metastatic to the mandibular ramus and condyle: report of a case and review of the literature. J Oral Maxillofac Surg 1997;55: 297–306.
