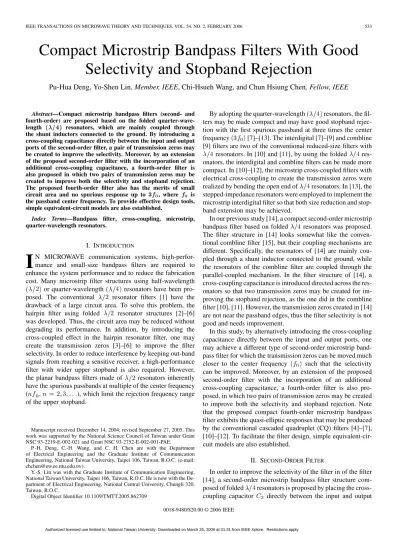

IEEE TRANSACTIONS ON MICROWAVE THEORY AND TECHNIQUES, VOL. 54, NO. 2, FEBRUARY 2006 533
Compact Microstrip Bandpass Filters With Good
Selectivity and Stopband Rejection
Pu-Hua Deng, Yo-Shen Lin, Member, IEEE, Chi-Hsueh Wang, and Chun Hsiung Chen, Fellow, IEEE
Abstract—Compact microstrip bandpass filters (second- and fourth-order) are proposed based on the folded quarter-wave-length ( 4) resonators, which are mainly coupled through the shunt inductors connected to the ground. By introducing a cross-coupling capacitance directly between the input and output ports of the second-order filter, a pair of transmission zeros may be created to improve the selectivity. Moreover, by an extension of the proposed second-order filter with the incorporation of an additional cross-coupling capacitance, a fourth-order filter is also proposed in which two pairs of transmission zeros may be created to improve both the selectivity and stopband rejection. The proposed fourth-order filter also has the merits of small circuit area and no spurious response up to 3 0, where 0 is the passband center frequency. To provide effective design tools, simple equivalent-circuit models are also established.
Index Terms—Bandpass filter, cross-coupling, microstrip, quarter-wavelength resonators.
I. INTRODUCTION
I
N MICROWAVE communication systems, high-perfor-mance and small-size bandpass filters are required to enhance the system performance and to reduce the fabrication cost. Many microstrip filter structures using half-wavelength or quarter-wavelength resonators have been pro-posed. The conventional resonator filters [1] have the drawback of a large circuit area. To solve this problem, the hairpin filter using folded resonator structures [2]–[6] was developed. Thus, the circuit area may be reduced without degrading its performance. In addition, by introducing the cross-coupled effect in the hairpin resonator filter, one may create the transmission zeros [3]–[6] to improve the filter selectivity. In order to reduce interference by keeping out-band signals from reaching a sensitive receiver, a high-performance filter with wider upper stopband is also required. However, the planar bandpass filters made of resonators inherently have the spurious passbands at multiple of the center frequency ( , ), which limit the rejection frequency range of the upper stopband.Manuscript received December 14, 2004; revised September 27, 2005. This work was supported by the National Science Council of Taiwan under Grant NSC 93-2219-E-002-021 and Grant NSC 93-2752-E-002-001-PAE.
P.-H. Deng, C.-H. Wang, and C. H. Chen are with the Department of Electrical Engineering and the Graduate Institute of Communication Engineering, National Taiwan University, Taipei 106, Taiwan, R.O.C. (e-mail: [email protected]).
Y.-S. Lin was with the Graduate Institute of Communication Engineering, National Taiwan University, Taipei 106, Taiwan, R.O.C. He is now with the De-partment of Electrical Engineering, National Central University, Chungli 320, Taiwan, R.O.C.
Digital Object Identifier 10.1109/TMTT.2005.862709
By adopting the quarter-wavelength resonators, the fil-ters may be made compact and may have good stopband rejec-tion with the first spurious passband at three times the center frequency [7]–[13]. The interdigital [7]–[9] and combline [9] filters are two of the conventional reduced-size filters with resonators. In [10] and [11], by using the folded res-onators, the interdigital and combline filters can be made more compact. In [10]–[12], the microstrip cross-coupled filters with electrical cross-coupling to create the transmission zeros were realized by bending the open end of resonators. In [13], the stepped-impedance resonators were employed to implement the microstrip interdigital filter so that both size reduction and stop-band extension may be achieved.
In our previous study [14], a compact second-order microstrip bandpass filter based on folded resonators was proposed. The filter structure in [14] looks somewhat like the conven-tional combline filter [15], but their coupling mechanisms are different. Specifically, the resonators of [14] are mainly cou-pled through a shunt inductor connected to the ground, while the resonators of the combline filter are coupled through the parallel-coupled mechanism. In the filter structure of [14], a cross-coupling capacitance is introduced directed across the res-onators so that two transmission zeros may be created for im-proving the stopband rejection, as the one did in the combline filter [10], [11]. However, the transmission zeros created in [14] are not near the passband edges, thus the filter selectivity is not good and needs improvement.
In this study, by alternatively introducing the cross-coupling capacitance directly between the input and output ports, one may achieve a different type of second-order microstrip band-pass filter for which the transmission zeros can be moved much closer to the center frequency such that the selectivity can be improved. Moreover, by an extension of the proposed second-order filter with the incorporation of an additional cross-coupling capacitance, a fourth-order filter is also pro-posed, in which two pairs of transmission zeros may be created to improve both the selectivity and stopband rejection. Note that the proposed compact fourth-order microstrip bandpass filter exhibits the quasi-elliptic responses that may be produced by the conventional cascaded quadruplet (CQ) filters [4]–[7], [10]–[12]. To facilitate the filter design, simple equivalent-cir-cuit models are also established.
II. SECOND-ORDERFILTER
In order to improve the selectivity of the filter in of the filter [14], a second-order microstrip bandpass filter structure com-posed of folded resonators is proposed by placing the cross-coupling capacitor directly between the input and output
Fig. 1. Proposed second-order microstrip bandpass filter. (a) Layout. (b) Circuit model.
ports, as shown in Fig. 1(a). The two resonators are mainly coupled through the shunt inductor , which is realized by a metal via to the ground. The circuit model for the proposed filter is shown in Fig. 1(b). The design procedures for the proposed filter [see Fig. 1(a)] are almost the same as the ones in [14], ex-cept for the placement of . Note that the folded resonators are utilized in the filter design for size reduction with the tradeoff of increasing the insertion loss in the passband.
For the filter structure shown in Fig. 1, the cross-coupling ca-pacitor is used to create a pair of transmission zeros for im-proving the filter selectivity. The physics for creating the trans-mission zeros may be illustrated in Fig. 2. Here, the shunt in-ductor provides the main signal path [path 1 in Fig. 2(a)] for the proposed filter circuit model [see Fig. 1(b)], while the capac-itor introduces a second cross-coupling path (Path 2) along which the signal would cancel the one traveling along Path 1 at certain frequencies. Simulated frequency responses for this filter circuit model along Paths 1 and 2 [see Fig. 2(a)] are shown in Fig. 2(b). The signals from these two paths have the same ampli-tude and are nearly 180 out-of-phase at two frequencies such that they would cancel out each other at these two frequencies. Therefore, the overall filter response, also shown in Fig. 2(b), has two transmission zeros.
Typical simulated responses of the filter circuit model [see Fig. 1(b)] are shown in Fig. 3(a). This filter exhibits lower
Fig. 2. (a) Two signal paths for the filter circuit model shown in Fig. 1(b). (b) Circuit-model simulated frequency responses of the two signal paths.
and upper stopband transmission zeros, as expected. As increases, the transmission zeros move closer to at the expense of degrading the insertion loss in the stopband.
The transmission zeros of the proposed filter [see Fig. 1(a)] can also be discussed by the even- and odd-mode analyses of the circuit model in Fig. 1(b). Assuming that the proposed structure is symmetric, then the transfer function may be related to the even- and odd-mode input impedances and as
(1) where
DENG et al.: COMPACT MICROSTRIP BANDPASS FILTERS WITH GOOD SELECTIVITY AND STOPBAND REJECTION 535
Fig. 3. (a) Simulated responses of the filter circuit model [see Fig. 1(b)] for various values ofC . (b) Curves to relate the transmission-zero frequencies to the values ofC . (f = 2:4 GHz, Z = Z = 50 , = 79:4 , = 10 , C = 0:23 pF, L = 0:092 nH).
and
(3) Here, and are the characteristic impedance and electrical length of the transmission line ( for the main signal path, for the cross-coupling path) and is the angular frequency. The transmission zeros are created when the transfer function in (1) becomes zero , which implies
(4) By using (4), one may obtain two solutions for , which cor-respond to the two transmission zeros at the upper and lower stopbands.
From (4), one can relate the frequencies of two transmission zeros to the values of the capacitance . The specific curves for the cases center frequency GHz, , , nH, – pF are shown in Fig. 3(b). As the value of increases, the two transmission zeros will move
toward the center frequency . Shown in Fig. 3(a) are the cir-cuit-model simulated responses for various values of (0.02, 0.05, 0.1 pF) to demonstrate the influence of the transmission zeros on the insertion loss. When the value of increases, the upper and lower stopband transmission zeros will be close to the passband edges with the passband insertion loss essentially not degraded.
The proposed second-order bandpass filter structure (Fig. 1) is implemented using the microstrip configuration. In this study, all the circuits are fabricated on the Rogers RO4003C substrate
( , , and thickness mm).
Shown in Fig. 1(a) is the layout of the proposed second-order microstrip bandpass filter based on the circuit model in Fig. 1(b). The implemented filter is very compact and has a dimension
of ( mm, mm), where is
the guided wavelength of the microstrip structure at the center frequency. This filter is designed according to the second-order maximally flat response with a center frequency of 2.4 GHz, a 3-dB bandwidth of 5.4%, and a reference impedance of 50 . The required electrical length, capacitance , and inductance can be obtained based on the proposed equivalent-circuit model and the filter synthesis formulas [1]. Here, the shunt inductor is realized by a metal-coated via to the ground. The diameter of the via and the length of pad are determined by the required inductance value. The capacitors and in Fig. 1(a) are implemented by the interdigital and gap structures, respectively. The value of is suitably chosen according to (4) to produce the desired locations of transmission zeros. The corresponding geometrical parameters are fine tuned in the full-wave simulator Ansoft Ensemble 8.0.
The measured and simulated results of the proposed filter [see Fig. 1(a)] are shown in Fig. 4. The measured center frequency is at 2.42 GHz, the minimum insertion loss is 1.82 dB at 2.42 GHz, and the 3-dB bandwidth is 5.5%. Good agreement between mea-sured and simulated results is observed, except for a slight fre-quency shift of less than 1%. Two transmission zeros are found at 2.14 and 2.64 GHz. Note that, as expected, no repeated pass-band at is observed.
The locations of the upper and lower stopband transmission zeros for the filter in Fig. 1(a) may simply be adjusted by con-trolling the gap-coupled capacitance through varying the gap spacing . Shown in Fig. 5 are the measured results of the filter in Fig. 1(a) for various values of . As increases by de-creasing , the two transmission zeros move toward the center frequency at the expense of degrading the stopband rejection. An even larger may be obtained by employing the interdig-ital capacitor to give the upper and the lower stopband trans-mission zeros closer to . Note that the passband frequency re-sponses remain almost unchanged as the value of is varied. This justifies the proposed design procedures and equivalent-circuit models in which the cross-coupling capacitance be-tween the input and output ports is neglected first in the initial design stage and is then added back for creating the transmis-sion zeros. Depending on the required falloff rate at passband edge and the level of stopband rejection, one may determine the required value and the locations of transmission zeros.
Fig. 4. Measured and simulated results of the proposed second-order microstrip filter in Fig. 1(a). (a) Narrow- and (b) wide-band frequency responses (1 = 9:9 mm, 1 = 15:65 mm).
Fig. 5. Measured frequency responses of the second-order microstrip filter in Fig. 1(a) for various values of gapwidthd.
III. FOURTH-ORDERFILTER
By extending the cross-coupling mechanism in the second-order filter structure, a fourth-second-order bandpass filter with good selectivity, as well as improved stopband rejection may be built. The layout of the proposed fourth-order microstrip bandpass filter is shown in Fig. 6(a). Here, the capacitors and are implemented by the interdigital structures, and the capacitor is constructed by the gap configuration. Note that there is a very small coupling capacitance between the input and output ports, which may generate the transmission zeros far away from the passband.
Fig. 6. Proposed fourth-order microstrip bandpass filter. (a) Layout. (b) Circuit model.
Shown in Fig. 6(b) is the equivalent-circuit model of the pro-posed fourth-order microstrip filter [see Fig. 6(a)], which has four folded resonators. The capacitor and two capaci-tors along with proper lengths of transmission lines at their ends may be equivalent to three -inverters. The two induc-tors may be served as two -inverters. Therefore, by ne-glecting the cross-coupling capacitances in the cir-cuit model [see Fig. 6(b)], the proposed filter is equivalent to a fourth-order bandpass filter. Based on the equivalent-circuit model, the design formulas for the proposed fourth-order mi-crostrip filter may simply be obtained.
Note that the circuit model in Fig. 6(b) without the cross-coupling capacitance included is inadequate in predicting the response of the filter structure in Fig. 6(a). Specifically, with only being included in Fig. 6(b) ( not included), the filter circuit model in Fig. 6(b) could only generate two transmission zeros near the passband edge. It is the combination of the cross-coupling mechanisms through both and that creates four transmission zeros, two of them near the passband edges and the other two far from the passband.
Basically, the cross-coupling capacitances are introduced in the fourth-order filter to create a pair of transmission zeros near the passband edges for improving the selectivity as the
DENG et al.: COMPACT MICROSTRIP BANDPASS FILTERS WITH GOOD SELECTIVITY AND STOPBAND REJECTION 537
Fig. 7. (a) Simulated responses of the filter circuit model [see Fig. 6(b)] for various values ofC . (b) Curves to relate the transmission-zero frequencies to the values ofC (f = 2:4 GHz, Z = 50 , = 75:4 , = 86:9 , L = 0:11 nH, C = 0:316 pF, C = 0:0279 pF, C = 0:001 pF).
second-order filter did. In order to further improve the stop-band rejection, another cross-coupling capacitance directly between the input and output ports is introduced to generate an additional pair of transmission zeros far from the passband. The value of this cross-coupling capacitance is very small.
The simulated responses of the filter circuit model [see Fig. 6(b)] are shown in Figs. 7 and 8. Fig. 7(a) shows the corresponding circuit-model simulated responses for various values of , and Fig. 7(b) relates the four transmission-zero frequencies to the values of . As increases, the inner pair of transmission zeros (with respect to the passband center frequency ) will move toward the passband edges, while the outer pair of transmission zeros will move away from the passband, as demonstrated in Fig. 7(b).
To illustrate the effect of , the simulated responses of the filter circuit model [see Fig. 6(b)] for various values of are shown in Fig. 8(a). Fig. 8(b) shows the curves to relate the trans-mission-zero frequencies to the values of . As increases, the outer pair of transmission zeros will move toward the pass-band edges with the inner pair of transmission zeros essentially unchanged.
Note that an adjustment of the cross-coupling capacitance may alter both the locations of the inner and outer pairs of transmission zeros, as illustrated in Fig. 7(b), while an ad-justment of the cross-coupling capacitance may only control the locations of the outer pair of transmission zeros, as demon-strated in Fig. 8(b). Therefore, a design guideline may be
estab-Fig. 8. (a) Simulated responses of the filter circuit model [see Fig. 6(b)] for various values ofC . (b) Curves to relate the transmission-zero frequencies to the values ofC (f = 2:4 GHz, Z = 50 , = 75:4 , = 86:9 , L = 0:11 nH, C = 0:316 pF, C = 0:0279 pF, C = 0:0125 pF).
lished. Specifically, the cross-coupling capacitance is first selected to fulfill the selectivity requirement and the capacitance is then chosen to improve the stopband rejection. Since the cross-coupling capacitance essentially has no influence on the locations of the inner pair of the transmission zeros around the passband edge, this cross-coupling capacitance may thus be determined in the last step.
The design procedure for fourth-order filter may similarly be extended to the general th filter , again with the cross-coupling capacitance between input and output ports de-cided in the last step.
To demonstrate the adjustment of the locations of the upper and lower stopband transmission zeros, a full-wave simulation of the filter structure in Fig. 6(a) is conducted. Depicted in Fig. 9 are the corresponding simulated frequency responses, which show that the outer pair of transmission zeros can really be adjusted by varying the thickness [the gray portion of the metal in Fig. 6(a)] to change the value of .
The proposed filter is designed according to the fourth-order maximally flat response with a center frequency of 2.39 GHz, a 3-dB bandwidth of 5.4%, and a reference impedance of 50 . The required electrical length, capacitances , , and induc-tance can be obtained based on the proposed equivalent-cir-cuit model and filter synthesis formulas [1]. The corresponding geometrical parameters are also fine tuned in the full-wave sim-ulator Ansoft Ensemble 8.0. The implemented filter is compact
and has a dimension of ( mm,
Fig. 9. Full-wave simulated frequency responses of the fourth-order microstrip filter in Fig. 6(a) for various values ofd .
Fig. 10. Measured and simulated results of the proposed fourth-order microstrip filter in Fig. 6(a). (a) Narrow- and (b) wide-band frequency responses (1 = 17:3 mm, 1 = 27:3 mm, d = 0 mm).
The measured and simulated results for the implemented fourth-order microstrip filter [see Fig. 6(a)] are shown in Fig. 10. The measured center frequency is at 2.372 GHz, the minimum insertion loss is 2.95 dB at 2.372 GHz, and the 3-dB bandwidth is 5.2%. Good agreement between measured and simulated results is observed, except for a slight frequency shift of less than 1%. The two transmission zeros mainly decided by are located at 2.18 and 2.47 GHz and those by are located at 1.56 and 3.49 GHz. Note that no repeated passband at is observed, as expected, and the stopband rejection is better than 45 dB below 2.2 GHz and from 2.86 6.01 GHz. By a simple extension of the proposed fourth-order filter,
bandpass filters with higher order can also be implemented for better performance.
IV. CONCLUSIONS
In this study, compact second- and fourth-order microstrip bandpass filters have been proposed and carefully examined. By suitably introducing two capacitive cross-coupling paths in the fourth-order filter, two pairs of transmission zeros have been created. As a result, good selectivity and improved stopband rejection can be achieved simultaneously. The proposed filter structures also have the advantage of no repeated passband at twice the center frequency. Based on the proposed equivalent-circuit models, the design of the proposed filters is simple and may follow the conventional filter synthesis techniques. The lo-cations of transmission zeros may easily be adjusted by varying the capacitances on the cross-coupling paths. In addition, the size of the proposed filters is much less than that of the conven-tional filters composed of resonators. The proposed filters are useful for application in the communication system designs when both good selectivity and stopband rejection are required.
REFERENCES
[1] G. L. Mattaei, L. Young, and E. M. T. Jones, Microwave Filters,
Impedance-Matching Networks, and Coupling Structures. Norwood, MA: Artech House, 1980.
[2] E. G. Crystal and S. Frankel, “Hairpin-line and hybrid hairpin-line/half-wave parallel-coupled-line filters,” IEEE Trans. Microw. Theory Tech., vol. MTT-20, no. 11, pp. 719–728, Nov. 1972.
[3] M. Sagawa, K. Takahashi, and M. Makimoto, “Miniaturized hairpin res-onator filters and their application to receiver front-end MIC’s,” IEEE
Trans. Microw. Theory Tech., vol. 37, no. 12, pp. 1991–1997, Dec. 1989.
[4] J. S. Hong and M. J. Lancaster, “Cross-coupled microstrip hairpin-res-onator filters,” IEEE Trans. Microw. Theory Tech., vol. 46, no. 1, pp. 118–122, Jan. 1998.
[5] J. T. Kuo, M. J. Maa, and P. H. Lu, “A microstrip elliptic function filter with compact miniaturized hairpin resonators,” IEEE Microw. Guided
Wave Lett., vol. 10, no. 3, pp. 94–95, Mar. 2000.
[6] C. M. Tsai, S. Y. Lee, and C. C. Tsai, “Performance of a planar filter using a 0 feed structure,” IEEE Trans. Microw. Theory Tech., vol. 50, no. 10, pp. 2362–2367, Oct. 2002.
[7] G. L. Matthaei, “Interdigital bandpass filters,” IEEE Trans. Microw.
Theory Tech., vol. MTT-10, no. 11, pp. 479–491, Nov. 1962.
[8] M. Dishal, “A simple design procedure for small percentage bandwidth round-rod interdigital filters,” IEEE Trans. Microw. Theory Tech., vol. MTT-13, no. 11, pp. 696–698, Nov. 1965.
[9] E. G. Cristal, “Tapped-line coupled transmission lines with applications to interdigital and combline filters,” IEEE Trans. Microw. Theory Tech., vol. MTT-23, no. 12, pp. 1007–1012, Dec. 1975.
[10] C. Y. Chang, C. C. Chen, and H. J. Huang, “Folded quarter-wave res-onator filters with Chebyshev, flat group delay, or quasi-elliptical func-tion response,” in IEEE MTT-S Int. Microw. Symp. Dig., Seattle, WA, Jun. 2002, pp. 1609–1612.
[11] C. Y. Chang and C. C. Chen, “A novel coupling structure suitable for cross-coupled filters with folded quarter-wave resonators,” IEEE
Mi-crow. Wireless Compon. Lett., vol. 13, no. 12, pp. 517–519, Dec. 2003.
[12] C. C. Chen, Y. R. Chen, and C. Y. Chang, “Miniaturized microstrip cross-coupled filters using quarter-wave or quasi-quarter-wave resonators,”
IEEE Trans. Microw. Theory Tech., vol. 51, no. 1, pp. 120–131, Jan.
2003.
[13] H. K. Pang, K. M. Ho, K. W. Tam, and R. P. Martins, “A compact mi-crostrip=4-SIR interdigital bandpass filter with extended stopband,” in IEEE MTT-S Int. Microw. Symp. Dig., Fort Worth, TX, Jun. 2004, pp. 1621–1624.
[14] P. H. Deng, C. H. Wang, Y. S. Lin, and C. H. Chen, “A novel com-pact microstrip bandpass filter with two transmission zeros,” in Proc.
34th Microw. Eur. Conf., Amsterdam, The Netherlands, Oct. 2004, pp.
633–636.
[15] R. Levy and J. D. Rhodes, “A comb-line elliptic filter,” IEEE Trans.
