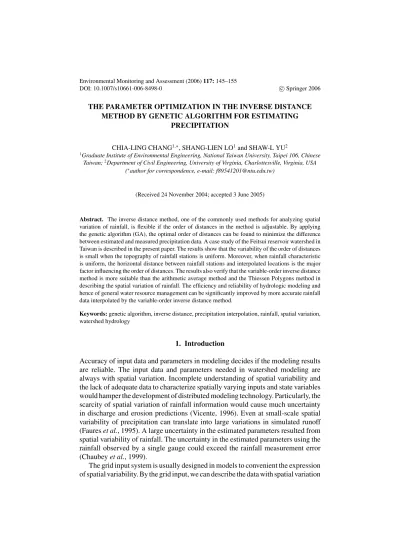

The Parameter Optimization in the Inverse Distance Method by Genetic Algorithm for Estimating Precipitation

(1)

Abstract. The inverse distance method, one of the commonly used methods for analyzing spatial

variation of rainfall, is flexible if the order of distances in the method is adjustable. By applying the genetic algorithm (GA), the optimal order of distances can be found to minimize the difference between estimated and measured precipitation data. A case study of the Feitsui reservoir watershed in Taiwan is described in the present paper. The results show that the variability of the order of distances is small when the topography of rainfall stations is uniform. Moreover, when rainfall characteristic is uniform, the horizontal distance between rainfall stations and interpolated locations is the major factor influencing the order of distances. The results also verify that the variable-order inverse distance method is more suitable than the arithmetic average method and the Thiessen Polygons method in describing the spatial variation of rainfall. The efficiency and reliability of hydrologic modeling and hence of general water resource management can be significantly improved by more accurate rainfall data interpolated by the variable-order inverse distance method.

Keywords: genetic algorithm, inverse distance, precipitation interpolation, rainfall, spatial variation,

watershed hydrology

1. Introduction

Accuracy of input data and parameters in modeling decides if the modeling results are reliable. The input data and parameters needed in watershed modeling are always with spatial variation. Incomplete understanding of spatial variability and the lack of adequate data to characterize spatially varying inputs and state variables would hamper the development of distributed modeling technology. Particularly, the scarcity of spatial variation of rainfall information would cause much uncertainty in discharge and erosion predictions (Vicente, 1996). Even at small-scale spatial variability of precipitation can translate into large variations in simulated runoff (Faures et al., 1995). A large uncertainty in the estimated parameters resulted from spatial variability of rainfall. The uncertainty in the estimated parameters using the rainfall observed by a single gauge could exceed the rainfall measurement error (Chaubey et al., 1999).

The grid input system is usually designed in models to convenient the expression of spatial variability. By the grid input, we can describe the data with spatial variation

(2)

in a watershed. However, although the modeling with grid input design is a profitable way to represent spatial variation in a watershed, spatial information is not enough everywhere. The monitor stations such as rainfall stations and flow stations are not all over each grid. Therefore, using the limited monitoring data to interpolate the unknown information is important to adequately describe the spatial variability of parameters.

There is not any interpolation method suitable for every circumstance (Nalder and Wein, 1998). The results of spatially distributed models would be highly in-fluenced by the interpolation errors (Donald and Danny, 1996). Several methods, including the optimal interpolation method, the Kriging method and the weighted mean method, etc., have been applied to analyze spatial variation of rainfall for many years. The optimal interpolation method (Tabios, 1985) is complicated, and completely monitored data are required. The complication of required information would increase the difficulty of analyses, particularly when the data are not enough. In the Kriging method, statistical hypotheses are made in evaluating and identify-ing the multidimensional spatial structure of the hydrological process of interest (Todini and Ferraresi, 1996; Dirks et al., 1998a, b). If rainfall stations are not sufficient, the statistical data will be limited, and the Kriging method will not be suitable for estimating precipitation. Moreover, the weighted mean method (Trout-man, 1983) is a popular interpolation method. The unknown precipitation or average precipitation can be calculated after deciding the weighting factors for each sur-rounding rainfall station. The arithmetic average method, the Thiessen Polygons method, the K-nearest method and the inverse distance method all belong to the weighted mean method. The only difference between these methods is how to allot weighting factors for the neighboring rainfall gauges.

The order of distances is used in the inverse distance method to vary the allotment of weighting factors for the vicinal rainfall stations. In other words, the relative influences of each surrounding rainfall station on precipitation estimation will be different when changing the order of distances. Due to the flexibility of the order of distances, the estimation error for precipitation could be highly reduced by adjusting the order of distances to reach the optimal value. The optimal value of the order of distance can make the allotment of weighting factors for each neighboring rainfall gauge suitable for calculating unknown precipitation. The objective of this research was to find the most proper variable order of distances in different circumstances with varied rainfall characteristics and to minimize the difference between estimated and measured precipitation.

2. Methodology

2.1. CASE STUDY

The Feitsui reservoir watershed in northern Taiwan provided the setting for the case study reported herein. It is located on the southeast of the capital city of Taipei

(3)

Figure 1. Sub-watersheds and the distribution of rainfall stations in the Feitsui reservoir watershed.

and has a drainage area of 303 square kilometers. The topography of this area is mountainous. The main backbone is the Snow Mountains and its branches. The elevation is between 50 and 1200 meters. There are six rainfall stations in the Feitsui reservoir watershed, namely, Pinglin, Shisangu, Feitsui, Jiuqionggen, Bihu and Taiping. Figure 1 shows the sub-watersheds and the distribution of rainfall stations in the Feitsui reservoir watershed.

In the present study, rainfall data for the six stations from 1995 to 1999 were used to demonstrate the application of the variable-order inverse distance method. Assuming the precipitation at one of the rainfall stations is unknown and apply-ing the rainfall data from the other five rainfall stations to estimate the unknown precipitation is the major method convenient to compare the difference between estimated and measured precipitation. Rainfall characteristics and horizontal dis-tances between interpolated locations and all of the rainfall stations in a watershed are significant factors for the analyses of spatial variation of rainfall. This study considered these two factors and apply genetic algorithm (GA) to search the most suitable order of distances in the variable-order inverse distance method. The ad-equate weighting factors can be decided after the optimal order of distances is determined and unknown precipitation can be interpolated close to actual precipi-tation.

2.2. THE INVERSE DISTANCE METHOD

The inverse distance method is a commonly used method for watershed precipitation interpolation. The horizontal distances between the location without precipitation records and its surrounding rainfall stations, as Figure 2, and the order of distances decide the weights given to each rainfall station (Bartier and Keller, 1996). Hor-izontal distances between rainfall stations are constant, but the order of distances

(4)

Figure 2. Horizontal distances between the location without precipitation records and its surrounding rainfall stations.

is adjustable. When the order of distances is adjusted to reach an optimal value, the allotment of weighting factors for the surrounding rainfall gauges is suitable to present more actual relative influences of each rainfall station on precipitation estimation, and the accuracy of precipitation interpolation can be improved as well. Due to the alterability of the order of distances in the inverse distance method, this method is renamed as the variable-order inverse distance method. The weight for precipitation at rainfall station i in sub-watershed p, Wpi, is given by

Wpi = ₁ dm pi n i=1 1 dm pi (1)

where m is the order of distances; dpi is the distance between the center of

sub-watershed p and rainfall station i ; n is the total number of rainfall stations. After the weights are decided, unknown precipitation for each sub-watershed could be estimated. The precipitation of sub-watershed p, Pp, is defined as formula (2), in

which Pi is the precipitation at rainfall station i .

Pp= n

i=1

(Wpi∗ Pi) (2)

The arithmetic average method and the Thiessen Polygons method are special cases of the variable-order inverse distance method. When the value of “m” is zero, the variable-order inverse distance method is the same as the arithmetic average method for precipitation interpolation. The weighting factors for precipitation at each rainfall station for the sub-watershed are the same. On the other hand, when

(5)

Figure 3. The correlation between the weights for precipitation at each rainfall station and horizontal distances to the location with no rainfall records. (Note: w is a weighting value. m1= 0; m4> m3> m2> m1).

the value of “m” is close to infinite, the variable-order inverse distance method is similar to the Thiessen Polygons method. As shown in Figure 3, “m1” is zero, so

the weights for precipitation at each rainfall station with any horizontal distance are the same. Moreover, m1< m2< m3< m4, when the value of “m” increases, the

estimated precipitation is more influenced by the closer rainfall stations.

2.3. APPLYING GENETIC ALGORITHM

GA is inspired by Darwin’s theory about evolution. The algorithm is started with a set of solutions called population. Gene encoding is the first step to apply GA. The object is a genome. After a population of genomes is created, crossover and mutation occur persistently. This process is significant to select the individuals in the population and generate new individuals. The objective function discriminates how good each individual is. The flow chart of GA is shown in Figure 4.

GA has been verified to have more advantages than the classical optimization methods (Goldberg, 1989). In recent years, it has been a popular technique for solving hydrology and water resources problems (Wang, 1991; Cheng et al., 2002). In this work, GA was applied to adjust the value of the order of distances in the inverse distance method to suitably describe spatial variation of rainfall. Due to the evolution of genes, the worse individual can be eliminated, and the optimal individual fit the objective function can be selected automatically. Hence, using the GA can significantly reduce the difficulty of adjusting the order. Moreover, adjusting the order of distances in the inverse distance method can lessen the limitation on analyzing the spatial variation of rainfall.

(6)

Figure 4. The flow chart of genetic algorithm.

The criterion applied herein is accumulated absolute error (AABSE), which is the sum of the difference between measured and estimated daily precipitation for the five-year period. The major objective in the process of parameter optimiza-tion was to minimize the difference between measured precipitaoptimiza-tion and estimated precipitation. The objective function is shown as follows:

Min AABSE= k j=1 |(Oj − Pj)| (3) TABLE I

The optimal value of “m” and the sort of the optimal value of “m”

Pinglin Shisangu Feitsui Jiuqionggen Bihu Taiping

The optimal m in 1995 4.0 2.6 4.7 1.6 4.9 9.2 Sort 3 2 4 1 5 6 † The optimal m in 1996 5.7 2.3 3.7 1.4 19.3 9.9 Sort 4 2 3 1 6 5 The optimal m in 1997 20.0 1.7 3.4 0.8 4.3 6.0 Sort 6 2 3 1 4 5 The optimal m in 1998 2.1 1.6 2.9 2.3 19.7 19.9 Sort 3 1 4 2 6 5 The optimal m in 1999 3.1 1.8 3.4 1.6 4.6 9.3 Sort 3 2 4 1 5 6 †

Note. The same sort of the optimal value of “m” is noted by the mark “†”. Sort→The least value of the optimal “m” is given by one.

(7)

in Table I. The results show that the value of variable “m” is close to 2 for Shisangu rainfall station, between 3 and 5 for Feitsui rainfall station and between 1 and 2 for

TABLE II

Rainfall characteristics of six rainfall stations in the Feitsui reservoir watershed Rainfall stations

Years

Rainfall

characteristics Pinglin Shisangu Feitsui Jiuqionggen Bihu Taiping 1995 Mean daily precipitation 5.74 5.10 5.88 5.94 6.43 10.56

Standard deviation of daily precipitation

11.42 10.12 11.61 11.45 15.22 20.43 1996 Mean daily precipitation 9.28 7.67 7.99 9.05 11.06 16.90

16.94 14.96 15.85 11.17 16.14 24.00 Unit: mm

Note: The standard deviation of daily precipitation, “S”, is defined by

S=

k

i=1(Pi− ¯Pi)2

k− 1

where k is the number of rainfall records; Piis the ith rainfall record (daily estimates);

¯

(8)

Jiuqionggen rainfall station. The locations of Shisangu, Feitsui and Jiuqionggen rainfall stations are near the towns of Xindian and Shiding. As shown in Figure 1, the variability and roughness of topography in this area is less than those in the area of Pinglin, Bihu and Taiping rainfall stations. Hence, the values of the variable “m” are more uniform and not extreme.

The main effects on the order of distances in the inverse distance method, the variable “m” in formula (1), are rainfall characteristics and horizontal distances

Figure 5. Accumulated absolute errors (AABSE) of precipitation interpolation for different “m” values at the rainfall stations in the Feitsui reservoir watershed.

(9)

Figure 6. Comparison of between the method combining the inverse distance methods and other traditional methods for estimating precipitation.

(10)

occur, like bigger than 50 mm. In these situations, not only horizontal distances between interpolated locations and rainfall stations, but also other factors would influence the value of variable “m”. Consequently, there is no regularity on the sort of the optimal orders of distances among these rainfall stations.

Figure 5 shows the relationships between the AABSE and the value of “m”. Although the optimal value of “m” is different, theoretically it should be between zero and infinite. The results from the present analysis show that the optimal value of “m” is neither zero nor infinite, and that most of the optimal “m” values found in the present study take on values greater than zero and less than five. Also, the trends representing the relation between AABSE and the variable “m” are the same. The value of “m” larger than 20 is considered an extreme situation. It means there would be some other factors influencing on the variable “m” and the estimation error for precipitation would be noticeable if we do not consider these effects. Figure 6 shows that the arithmetic average method on precipitation interpolation usually causes larger AABSE than any other methods, and the Thiessen Polygons method is usually not the optimal method to truly describe rainfall spatial variation. Meanwhile, the results also verify the variable-order inverse distance method is more suitable than the arithmetic average method and the Thiessen Polygons method to describe the spatial variation of rainfall.

4. Conclusions

This research selected the Feitsui reservoir watershed for case study. Combin-ing the variable-order inverse distance method and GA is a way to find the optimal analysis on spatial variation of rainfall. The results are concluded as follows:

• The variability of the order of distances is small as the topography of rainfall stations is uniform.

• When the standard deviation of precipitation is small and rainfall characteristic is uniform, the horizontal distance between rainfall stations and interpolated locations is the major factor influencing the order of distances.

• The variable-order inverse distance method is more suitable than the arithmetic average method and the Thiessen Polygons method for describing the spatial variation of rainfall.

References

Bartier, P. M. and Keller, C. P.: 1996, ‘Multivariate interpolation to incorporate thematic surface data using inverse distance weighting (IDW)’, Comput. Geosci. 22(7), 795–799.

Chaubey, I., Haan, C. T., Grunwald, S. and Salisbury, J. M.: 1999, ‘Uncertainty in the model parameters due to spatial variability of rainfall’, J. Hydrol. 220, 48–61.

(11)

of precipitation’, Water Resour. Res. 21, 365–380.

Todini, E. and Ferraresi, M.: 1996, ‘Influence of parameter estimation uncertainty in Kriging’, J. Hydrol. 175, 555–566.

Troutman, B. M.: 1983, ‘Runoff prediction errors and bias in parameter estimation induced by spatial variability of precipitation’, Water Resour. Res. 19(3), 791–810.

Vicente, L. L.: 1996, ‘On the effect of uncertainty in spatial distribution of rainfall on catchment modeling’, Catena 28, 107–119.

Wang, Q. J.: 1991, ‘The genetic algorithm and its application to calibrating conceptual rainfall-runoff models’, Water Resour. Res. 27(9), 2467–2471.
