頂尖的全域佈局演算法採用不同的邏輯閘擴散演算法來處理邏輯閘密度。在這項研 究裡，我們發現頂尖的全域佈局演算法對於大型障礙物周圍以及穿越大型障礙物處理 擺放行_{為的不同。透過我們的研究結果，佈局演算法在大型障礙物周圍的擺放行為對} 於可繞線性有顯著的影響，而這項觀察無法由傳統的評價指標去做分析。在解二次方 程的佈_{局演算法中，SimPL [}1] _{和 Kraftwerk2 [}2]所_{採用的方法代表了兩種不同的邏輯} 閘擴散演算法類別。我們重新實作兩種演算法類別並實際運用在邏輯閘擺放實驗，我 們解釋了這兩種邏輯閘擺放演算法對於在全域與局部兩種規模的控制性有著明顯的不 同。我們進一步觀察這兩種演算法對於可繞線性的影響。 為了同時處理全域與局部兩種規模的擺放行為，我們提出了一個兩階段的全域佈局 演算法。第一階段的目的是藉由移動邏輯閘跨過大型障礙物以取得精準的可用空間分 布_{。第二階段的目的是藉由邏輯閘在大型障礙物周圍的移動以取得邏輯閘之間正確的} 相對關係。我們提出的全域佈局演與 ComPLx [3]有著相_{同品質的實驗結果表現，而且} 基於在大型障礙物周圍的擺放行為使得可繞線性的程度提高了。

Quadratic Placement Algorithm Using Gaussian

Blurring and Fixed Point Technique

Student: Chuan-Chia Huang Advisor: Dr. Hung-Ming Chen

Department of Electronics Engineering Institute of Electronics

National Chiao Tung University

ABSTRACT

State of the art global placers adopt different cell spreading algorithms to handle density of placement. In this work, we found there exist different placement behavior when placing cells across and around fixed macros among state of the art global placers. Our findings also suggest that placement behavior around fixed macros has significant impact toward routability of the design that cannot be observed through conventional evaluation metrics. For quadratic placers, the methodologies adopted in SimPL [1] and Kraftwerk2 [2] represent two distinct class of cell spreading algorithms. Based on our implementations of the two frameworks, we answer to the question on whether if there exist different level of controllability in terms of global view and local view among different cell spreading algorithms. We further investigate the impact of placement behavior on routability of the design. To address both global view and local view of the placement, we propose a two stage global placement framework. The first stage aims to assign large portion of cells with precise amount of white space by moving cells across fixed macros. The second stage aims to determine accurate relative order of cells and move cells around fixed macros. Our proposed placement framework achieves equivalent placement quality compared to ComPLx [3] with placement behavior around fixed macros that is inherently desirable to routability.

Acknowledgements

首先，感謝我的指導老師 陳宏明教授，從大學時期開始便指導著我專題的研究， 引出我在電子設計自動化領域上的興趣。而在進入研究所後，讓我有機會進入這個 充滿歡樂與知性學習氛圍的實驗室，VDA Lab。在更深入探討並開始實作研究的過程 中，碰到困難時也總是適時地給予協助。另外在生活上的關心與照顧也是令我相當感 動。 接下來我要感謝的是，兩年以來不吝指導我的博士班學長姊們，Benbean、Jerry、 Sean、俊凱、雄哥和敬雨。在各位學長姊身上學到了許多東西，無論是學術上或非學 術_{的所有技能，讓我在研究所短短兩年內的學習十分地有趣且精實！其中我要特別感} 謝_{一路帶我完成碩士論文的學長，Sean。每每在我窮途末路的時候，你總是能點出如} 何改善現況並且立即給了我新的方向！若沒有學長的協助，肯定是無法如此順利的完 成碩士論文！在此特別感謝他！而Benbean，在實驗室主機管理、網頁編寫還有一些生 活上的問題都給予許多很關鍵的協助，也透過這些協助讓我添加了許多學習機會。另 外國哥、姚明、冠廷和建志學長們，在我進入實驗室第一年陪伴我修課、運動和日常 生活的休閒，讓我在研究之餘也過得十分地充實！然後是天龍、孟伶、以恩和新鈞各 位同屆的同學，許多實驗室的大小事都是我們一同分工完成的，在研究所最後的求學 階段能和你們一起完成學業，真的很幸運！最後是學弟妹，家麒、韋辰和柔君，感謝 你們在實驗室的陪伴和協助，是你們讓實驗室更有朝氣和活力。 感謝_{大學時期的同學和室友，到了研究所還是互相地關心和交流。總是在我最需要} 協助時，跳出來替我分擔。而且也時常一起吃飯聊天，讓我更確定未來的方向。 接下來要感謝我的父母親的栽培和照顧，感謝你們給我這麼好的機會到這個頂尖的 學院進修。從來都是給予支持和鼓勵，在各個方面的引導讓我有能力成為一個獨立自 主的人。感謝你們的支持，讓我在這個領域完成了碩士學位！ 最後要感謝我的女朋友，在我最忙碌的這段時間裡，給我最大的鼓勵和協助！讓我 能安心地順利完成學業，若只有我自己一個人是無法如此順利的。 謝謝_{大家的幫忙和協助，這份榮耀是屬於你們每一個人的！}

Contents

Abstract (Chinese) i Abstract ii Acknowledgements iii List of Tables v List of Figures vi 1 Introduction 1

1.1 Prior arts based on quadratic wirelength model . . . 2

1.2 Overview of the Placement Framework . . . 4

2 Force Directed System for Quadratic Placers 7 3 White Space Allocation At Global Scale 10 4 Cell Spreading Algorithm 12 4.1 Bin Size Adjustment . . . 14

4.2 Weight Adjustment . . . 15

4.3 Determining Initial Step Size. . . 16

5 Experimental Results 18 5.1 Evaluation on ISPD2005 Benchmarks . . . 19

5.2 Evaluation on ICCAD2012 Benchmarks . . . 19

5.3 Analysis on Distance to Optimal Region . . . 19

5.4 Evaluation on Routability . . . 20

5.5 Discussion and Future Improvements . . . 20

List of Tables

5.1 Comparison of HPWL with Our proposed framework, Partition based (P-Based) and Gradient based (G-(P-Based) on ISPD2005 benchmarks for SimPL [1], Kraftwerk2 [2], ComPLx [3], MAPLE [4], BonnPlace2 [5], NTUPlace3 [6] and mPL6 [7]. (G.M. stands for geometric mean) . . . 22

5.2 Comparison of runtime in minutes with Our proposed framework, Partition based (P-Based) and Gradient based (G-Based) on ISPD2005 benchmarks for mPL6 [7] and NTUPlace [6]. Runtime is normalized to the known optimal placement solution. (G.M. stands for geometric mean) . . . 23

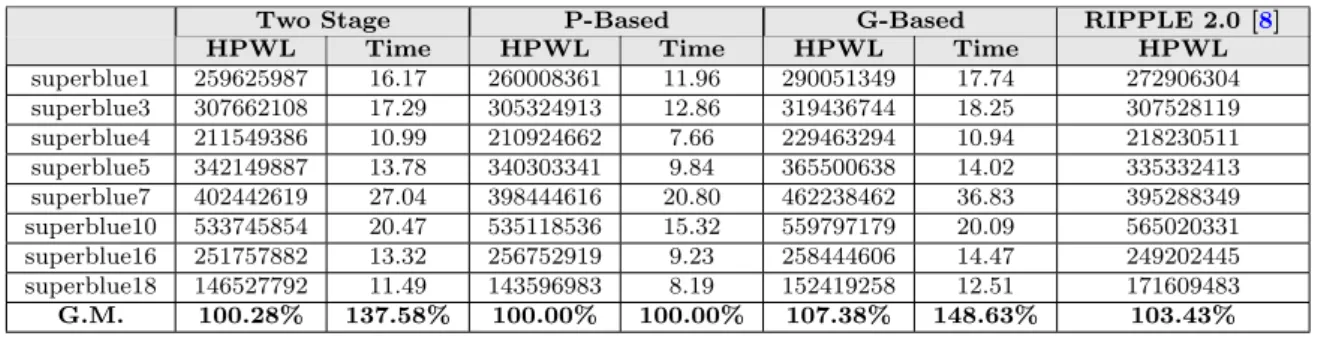

5.3 Comparison of HPWL and runtime in minutes with Our proposed frame-work, Partition based (P-Based) and Gradient based (G-Based) on IC-CAD2012 benchmarks for RIPPLE 2.0 [8]. (G.M. stands for geometric mean) . . . 23

5.4 Comparison of result on distance from each cell to its optimal region with Our proposed framework, Partition based (P-Based) and Gradient based (G-Based) on ISPD2005 benchmarks. Unit is defined by one half of the row height. (In O.R. stands for in optimal region) . . . 24

5.5 Comparison of result on distance from each cell to its optimal region with Our proposed framework, Partition based (P-Based) and Gradient based (G-Based) on ICCAD2012 benchmarks. Unit is defined by one half of the row height. (In O.R. stands for in optimal region) . . . 25

5.6 Comparison of total overflow, max overflow and scaled wirelength with our proposed two stage global placement framework, our implementation based partition based cell spreading algorithm (P-Based) [1] and our implemen-tation based on gradient based cell spreading algorithm [2] on ICCAD 2012 benchmarks [9]. (G.M. stands for geometric mean). . . 26

List of Figures

1.1 Illustration on placement solution of partition based cell spreading algo-rithm and gradient based cell spreading algoalgo-rithm. (a) Placement solution based on partition based framework after global placement. (b) Placement solution based on partition based framework after detail placement. (c) Placement solution based on gradient based framework after global place-ment. (d) Placement solution based on gradient based framework after detail placement. . . 3

1.2 Illustration on behavior of partition based cell spreading algorithm and gradient based cell spreading algorithm when dealing with fixed macro block. (a) and (b) illustrate the ability to move cells around macro. (c) and (d) illustrate the ability to look beyond macro. . . 4

1.3 The flow chart of the proposed placement algorithm. . . 6

4.1 Illustration of the bin size adjustment scheme between rough legalization and gradient based cell spreading. (a) Cell distribution in early stage. (f) Cell distribution in latter stage. (b) Lower cluster number. (c) Larger expansion region for each cluster. (g) Higher cluster number. (h) Smaller expansion region for each cluster. (d) Lager dimension of Gaussian matrix (e) Cell spreading in larger step size. (i) Smaller dimension of Gaussian matrix (j) Cell spreading in smaller step size. . . 13

Chapter 1

Introduction

As design becomes increasingly complex, it becomes more apparent that using HPWL as the only evaluation metric is inadequate to meet the practical demands. To bridge the gap between academic effort and design experience, several works suggest that routabil-ity [8, 10, 11] is a more direct evaluation metric to reflect placement quality. The work done in [3] have suggested that global placers exhibit different controllability at global view of placement. However, the vague concept on global view or local view of placement is rarely discussed in prior arts.

In quadratic placement, using partition based cell spreading algorithm [1] combined with fixed-point technique [12] has become an increasingly popular approach [1, 3, 4] due to its precise density control and high efficiency to produce high quality placement in terms of half-perimeter wirelength (HPWL). On the contrary, although gradient based cell spreading algorithm in quadratic placement [2] may not deliver as precise density control compared to partition based approach, its unique placement behavior around fixed macro blocks is desirable when routability is taken into consideration. In this work, we refer the cell spreading technique adopted in SimPL [1] as partition based cell algorithm and cell spreading technique adopted in Kraftwerk2 [2] as gradient based cell algorithm.

Fig. 1.1 illustrates placement solutions using two distinct cell spreading algorithms. The color of the cells represents each individual design hierarchy. We have implemented two placers using partition based cell spreading algorithm and gradient based cell spread-ing algorithm, one is based on SimPL framework and the other is based on Kraftwerk2 framework. Fig.1.1(a) and Fig.1.1(b) are the placement solutions based on SimPL frame-work after global placement and detailed placement. Fig. 1.1(c) and Fig. 1.1(d) are the

placement solutions based on Kraftwerk2 framework after global placement and detailed placement.

In Fig. 1.1, the distinct placement behavior between the two placement frameworks can be observed. The placement solution in Fig. 1.1(b) has 4% less HPWL compared to Fig. 1.1(d), but Fig. 1.1(d) has a much more sparse cell distribution. In addition, an apparent contour around macro blocks can be observed in gradient based cell spreading algorithm. From Fig. 1.1, we observe a distinct placement behavior across and around fixed macro blocks between partition based and gradient based cell spreading algorithms. Fig.1.2 illustrates two scenarios which demonstrates strength and weakness of parti-tion based and gradient based cell spreading algorithm. Fig. 1.2(a) and Fig. 1.2(b) illus-trate how both cell spreading algorithms move cells around fixed macros. In Fig. 1.2(a), since partition based cell spreading algorithm only calculates precise amount of white space without the knowledge on the location of fixed macros, cells are likely to place around a macro block. In Fig.1.2(b), gradient based cell spreading algorithm knows the location of fixed macros based on density function, cells are repelled away from macro blocks. Wirelength values are the same in the examples illustrated in Fig. 1.2(a) and Fig.1.2(b) but with different placement behavior.

Fig. 1.2(c) and Fig. 1.2(d) illustrate how both cell spreading algorithms move cell across fixed macros. For gradient based cell spreading algorithm in Fig. 1.2(d), local gradient information is likely to trap cells within a local valley between two large fixed macros. In Fig. 1.2(c), partition based cell spreading algorithm does not rely on density function to allocate cells, it progressively expands its search region until required amount of white space is found.

1.1

Prior arts based on quadratic wirelength model

For quadratic placers, two of the most promising approach to reduce the cell over-laps are gradient based approach [2] and partition based approach [1, 3–5, 13]. In Kraftwerk2 [2], each unit area is modeled as a unit charge. Full chip electrical poten-tial can be obtained by solving Poisson equation and electric field can be derived by taking the derivative of electrical potential. Move force of each movable cell is calculated based on electric field that drives cell to move towards area with less electrical potential.

Chapter 1. Introduction 3

(a) (b)

(c) (d)

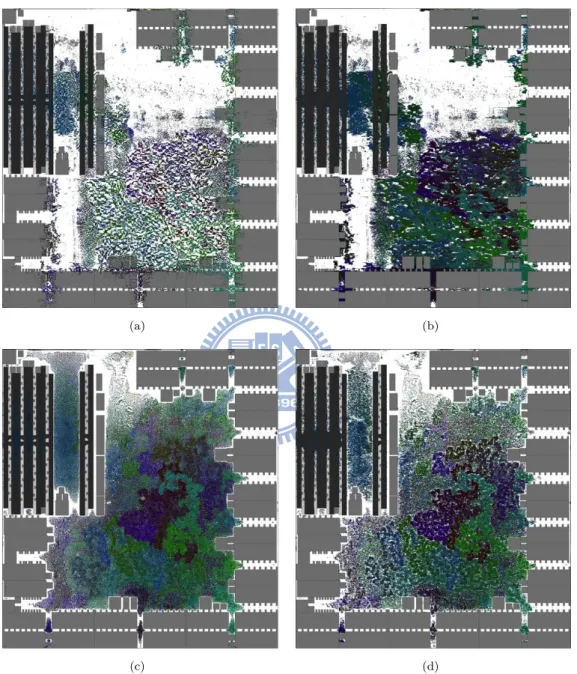

Figure 1.1: Illustration on placement solution of partition based cell spreading algo-rithm and gradient based cell spreading algoalgo-rithm. (a) Placement solution based on partition based framework after global placement. (b) Placement solution based on partition based framework after detail placement. (c) Placement solution based on gra-dient based framework after global placement. (d) Placement solution based on gragra-dient

based framework after detail placement.

In SimPL [1], placement solution is obtained using partition based cell spreading algorithm and fixed point technique within a upper bound and lower bound framework. The location of fixed points is obtained through rough legalization which is a partition algorithm that recursively divides cells and then allocate precise portion of white space to each partitioned cells. Objective function is solved again with additional pseudo nets

3 2 1 4 5 6 7 8 9 11 12 4 9 2 1 12 11 5 6 7 8 10 HPWL = 17*1 + 2*5 = 27 3 10 HPWL = 12*1 + 6*2 + 1*3 = 27 1 1 1 1 1 1 1 1 1 1 MACRO MACRO

Ability to move cells around macro

3 2 1 4 5 6 7 8 9 11 12 10 3 2 1 4 5 6 7 8 9 11 12 10

Ability to look beyond macro

Cells are prone to trap in local valley Cells are prone to

surround macro M A C R O M A C R O Cells tend to group in clusters Accurate control in allocating white space (a) (b) (c) (d)

Partition Based

Gradient Based

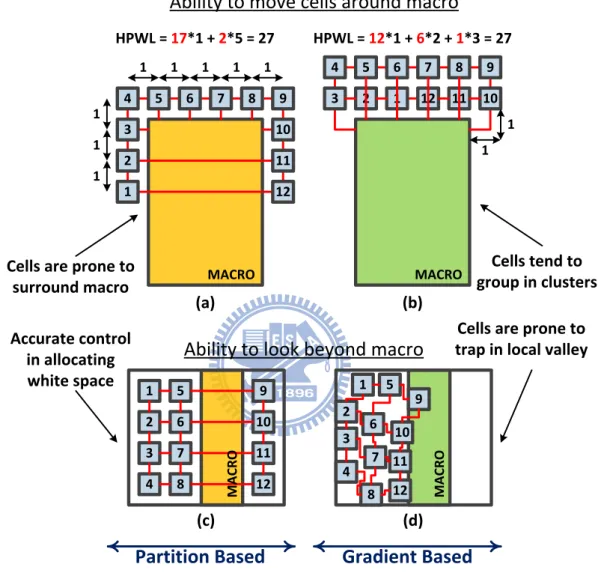

Figure 1.2: Illustration on behavior of partition based cell spreading algorithm and gradient based cell spreading algorithm when dealing with fixed macro block. (a) and (b) illustrate the ability to move cells around macro. (c) and (d) illustrate the ability

to look beyond macro.

using iterative method. The net weight of pseudo anchors accumulates on each iteration to avoid placement collapsing to previous state.

1.2

Overview of the Placement Framework

In this work, we implement two quadratic placers using partition based and gradient based cell spreading algorithms. Both are implemented to a comparable quality compared to original works [1,2]. By analyzing our implementation based on the two cell spreading algorithms, we found cell spreading algorithms have their strength and weakness in terms of moving cells across and around fixed macros. The ability on dealing with macro blocks

Chapter 1. Introduction 5 significantly affects placer’s global view and local view of the placement. Based on the analysis, we generalize the key elements of the two frameworks and propose a new two stage global placement framework by combining the strengths of the two cell spreading algorithms. To obtain smooth transition between the two stages, our second stage global placer is capable of handling incremental placement.

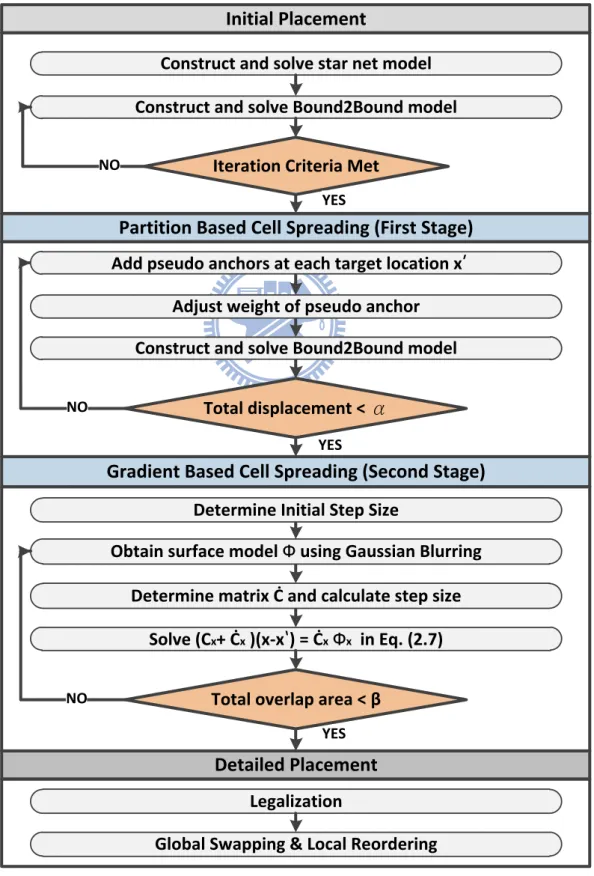

Fig. 1.3 is the flow chart of the proposed placement framework. The framework begins by obtaining an initial placement that focuses on better relative order of cells and fewer modules overlaps. The first stage of global placement applies partition based cell spreading algorithm, which focuses on white space allocation by moving cells across macro blocks. The second stage of global placement applies gradient based cell spreading algorithm, which focuses on relative order of cells and move cells around fixed macro blocks. In brief, our contributions can be summarized as follows.

• A two stage global placement framework is proposed to address both global view and local view of the placement. The global view of the placement is addressed using partition based cell spreading algorithm that allocates large portion of cells. The local view of the placement is addressed using gradient based cell spreading algorithm that focus on determining accurate relative order of cells.

• A surface model using Gaussian Blurring is proposed for gradient based cell spread-ing algorithm. The dimension of Gaussian Blurrspread-ing can be easily adjusted to allow global placer to have global view and local view during placement iteration. To achieve faster run time for large Gaussian Matrix at finest grid, Gaussian Blurring is calculated in frequency domain through Fast Fourier Transform (FFT).

• A dynamic step size control methodology and weight adjustment scheme are pro-posed to handle incremental placement.

In the remainder of this thesis, Section II introduces the force directed system for quadratic placers. Section III describes the white space allocation at global scale us-ing partition based cell spreadus-ing algorithm. Section IV compares partition based cell spreading algorithm, gradient cell spreading algorithm and our proposed two stage global placement framework. Section V presents the experimental result. Finally, Section VI concludes this work.

YES

Construct and solve star net model Construct and solve Bound2Bound model

Iteration Criteria Met

Total displacement < α

Initial Placement

Partition Based Cell Spreading (First Stage)

Gradient Based Cell Spreading (Second Stage)

YES

NO

Add pseudo anchors at each target location x’ Adjust weight of pseudo anchor

Determine Initial Step Size

Total overlap area < β

Detailed Placement

Obtain surface model Φ using Gaussian Blurring

Construct and solve Bound2Bound model

Legalization

Global Swapping & Local Reordering

NO

Determine matrix Ċ and calculate step size

Solve (Cx+ Ċx )(x-x‵) = ĊxΦx in Eq. (2.7)

NO

YES

Chapter 2

Force Directed System for Quadratic

Placers

The main objective for wirelength driven placer is to minimize the total half perimeter wirelength (HPWL). Since HPWL is non-differentiable, quadratic wirelength model in Eq. (2.1) is proposed to optimize the HPWL.

Γ = Γx+ Γy = 1 2wi,j(xi− xj) 2₊1 2wi,j(yi− yj) 2 = 1 2x T_C x+ dTx + 1 2y T_C y + dTy (2.1)

Eq. (2.1) optimizes the quadratic wirelength rather than the linear wirelength, Kraftwerk2 proposed the bound to bound wirelength model (B2B) to linearize the quadratic wire-length objective. The B2B model neglects interconnect of inner pins and set the net weight wi,j to <sub>(P −1)`</sub>2 in which P stands for number of pins in a given net and ` is the

distance between pin i and pin j. The term 2/(P − 1) adjusts number of connections in a give net and ` linearize the quadratic objective.

Minimal wirelength can be obtained by minimizing Eq. (2.2) which can be solved efficiently using iterative method. Eq. (2.2) is generally referred as the net force. To remove the overlaps among cells, a surface model Φ can be obtained given with a density function. Target location x0 can be calculated by taking derivative of Φ. Eq. (2.3) defines how to obtain the target location x0 given with a surface model Φ.

x0_i= xi− ∂ ∂xΦ(x, y)     xi,yi = xi− Φx (2.3) Kraftwerk2: F_xmove = ˚Cx(x − x0) = ˚Cx· Φx (2.4) SimPL/ComPLx: F_xmove = ˚Cx(x − x0) (2.5) F_xhold = −(Cxx0 + dx) (2.6)

The magnitude of step size affects the quality of the placement and execution time. Thus, implementation of a competitive placer requires precise control of step size on each iteration. Eq. (2.4) or Fmove controls the cell spreading force by adjusting the matrix ˚Cx

which defines the weight of step size.

To maintain stability on each iteration, Fhold _{in Eq. 2.6 is introduced to neutralize}

Fnet to prevent placement collapsing to previous state. Thus, Fmove is the only force that spreads out cells in each iteration. Eq. (2.7) defines the force directed system of Kraftwerk2 in which all three forces Fnet, Fhold and Fmove are taken into account.

Kraftwerk2: F_xnet+ F_xhold+ F_xmove = 0

Chapter 2. Force Directed System for Quadratic Placers 9

SimPL/ComPLx: F_xnet+ F_xmove= 0

⇒ Cxx + dx+ ˚Cx(x − x0) = 0

⇒ (Cx+ ˚Cx)x = −(dx+C˚xx0) (2.8)

In SimPL, rather than relying on the gradient based method to obtain target location x0, SimPL obtains x0 using partition based method. In addition, SimPL removes hold force in Eq. (2.6) and entire system relies on the balance between Fnet_{and F}move_{. Eq. (2.8)}

defines the force directed system used in SimPL and ComPLx.

The matrix ˚Cx in SimPL defines the weight of target location x0 and is set uniformly

for every cell. Since hold force is removed from the equation, the magnitude ˚Cx needs to

be no less than the previous iteration in order to prevent placement collapsing to previous state. Note that the SimPL framework does NOT guarantee each cell has a corresponding target location x0, if a cell is not included during rough legalization, it will not have a target location. In ComPLx [3], an adjust scheme based on the concept total displacement is proposed to derive the matrix ˚Cx.

Regarding to Eq. (2.7) and Eq. (2.8), Kraftwerk2 and SimPL demonstrate the balance of the force directed system can be achieved using three and two forces. The stability of Kraftwerk2 relies on the balance between hold force, net force and move force. In SimPL, hold force is incorporated within the move force and stability of the system is achieved by overpowering the net weight of pseudo anchors on each iteration. The additional force in Kraftwerk2 offers better controllability of the placement structure. When move force is removed from Kraftwerk2, placement maintains its original position. However, when move force is removed in SimPL, placement collapse back to minimal wirelength solution.

Chapter 3

White Space Allocation At Global

Scale

One of the key concept for cell spreading algorithm in SimPL is that relative order of cells remains unchanged. This indicates that the relative order of cells obtained during initial placement affects every subsequent placement iterations. The work done in [5,

13] also suggests that choose an intermediate wirelength model between quadratic and linear produces better wirelength result than focusing on the linear HPWL as placement objective. This is because although linear wirelength model produces better wirelength, it also has higher cell overlaps. Thus, unlike SimPL that obtains a lower bound initial placement, our initial placement is obtained by applying star net model which has less module overlaps and better relative order of cells compared to B2B wirelength model.

The strength of partition based cell spreading algorithm lies in its precise allocation of white space. The ability to search for white space across large macros is relatively inefficient for placers using local gradient information. Gradient based placers rely on the balance between density function and wirelength function to control the quality of placement. Thus, when encountering large macro blocks, the weight on density function must outweighs the weight of wirelength function for placer to overlook the presence of macro blocks.

In this work, partition based cell spreading algorithm based on SimPL [1] is adopted to allocate white space at global scale. Compared to SimPL, our partition based cell spreading algorithm does not require to generate stripes to align cells. There is no evidence that generating stripes to align cells increases precision of cell spreading. The work done

Chapter 3. White Space Allocation At Global Scale 11 in [3] also have shown that precision during rough legalization does not undermine solution quality.

During early stage of global placement, the primary focus is on white space allocation. Thus, our placer begins by searching for regions with precise amount of white space to allocate congested cells. These regions are recursively partitioned based on cell area and white space of partitioned region. Partitioning of regions stops when the white space of partitioned region is less than 4 average node area.

Different from SimPL in which cells are constantly aligned to stripes at each iteration of recursive partition, cells are assigned to each partitioned region after recursive partition is complete. Our approach removes the redundancy of cell alignment in SimPL since only final position of cells matters.

Chapter 4

Cell Spreading Algorithm

After white space allocation at global scale is complete, the cell spreading algorithm switch from partition based to gradient based. At this stage, the target location x0 is obtained using gradient based method instead of using partition based method. Given with a density function of cell area h(x, y), each unit cell area is regarded as an impulse. Kraftwerk2 regard each impulse as unit charge and surface model Φ(x, y) is obtained by solving the Poisson equation. However, since the primary objective is not on the accuracy of electrical potential, any distribution function is suffice to meet the supply-demand constraint. g(x, y) = exp  − (x − xo) 2 2σ2 x + (x − xo) 2 2σ2 x  (4.1) − ∂ ∂xg(x, y) = x − xo σ2 x exp  − (x − xo) 2 2σ2 x +(y − yo) 2 2σ2 y  − ∂ ∂yg(x, y) = y − yo σ2 y exp  − (x − xo) 2 2σ2 x +(y − yo) 2 2σ2 y  (4.2)

In this work, the surface model is obtained using Gaussian Blurring. Each unit cell area has an amplitude of 1 unit Gaussian distribution. In terms of image processing, Gaussian blurring is equivalent to the convolution of a Gaussian function to a density function h(x, y). Eq. (4.1) is the Gaussian function for two dimensional space. The term

Chapter 4. Cell Spreading Algorithm 13

Partition Based Cell Spreading

Ea rl y St ag e

1 Cluster 1 Expansion Region

3 Clusters 3 Expansion Regions Larger Bin Size

Smaller Bin Size

M=14 M=16 1x1 Gaussian Matrix 3x3 Gaussian Matrix La tt er S ta ge

Gradient Based Cell Spreading Cell Distribution

Larger Bin Size

Smaller Bin Size

(a) (b) (c) (d) (e)

(f) (g) (h) (i) (j)

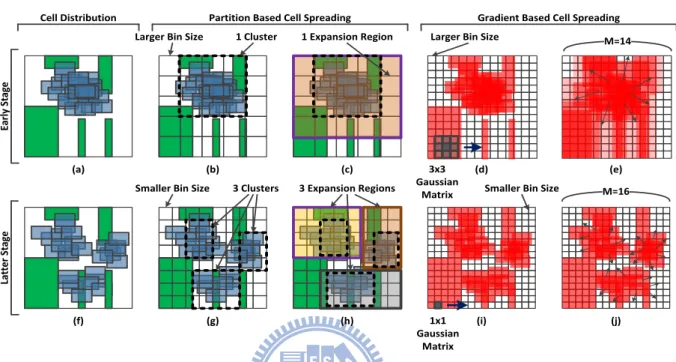

Figure 4.1: Illustration of the bin size adjustment scheme between rough legalization and gradient based cell spreading. (a) Cell distribution in early stage. (f) Cell distri-bution in latter stage. (b) Lower cluster number. (c) Larger expansion region for each cluster. (g) Higher cluster number. (h) Smaller expansion region for each cluster. (d) Lager dimension of Gaussian matrix (e) Cell spreading in larger step size. (i) Smaller

dimension of Gaussian matrix (j) Cell spreading in smaller step size.

σ defines the affected range for each unit cell area. Larger value σ translates to larger dimension of Gaussian matrix. Eq. (4.2) is the derivative or the gradient function of the surface model. The discrete surface model Φ[m, n] can be obtained by solving Eq. (4.3). In Eq. (4.3), g[m, n] and h[m, n] are the discrete representation to g(x, y) and h(x, y) respectively. According to convolution property: _∂x∂ (f ∗ g) = f ∗ _∂x∂ g the gradient of the surface model Φx and Φy can be obtained by solving Eq. (4.4).

Φ[m, n] = M −1 X i=0 M −1 X j=0 h[i, j]g[x − i, y − j] (4.3) Φx[m, n] = M −1 X i=0 M −1 X j=0 h[i, j] ∂ ∂xg[x − i, y − j] Φy[m, n] = M −1 X i=0 M −1 X j=0 h[i, j] ∂ ∂yg[x − i, y − j] (4.4)

4.1

Bin Size Adjustment

A given design is generally partitioned in to set of bins. The size of bin significantly af-fects the quality of placement. Fig.4.1 illustrates the bin size adjustment scheme between rough legalization and gradient based cell spreading adopted in this work. Fig. 4.1(a) represents a cell distribution that is highly congested which typically is at the early stage of placement iterations. Fig.4.1(f) represents a cell distribution that is more spread out which typically is at the latter stage of placement iterations.

During rough legalization in the SimPL framework, bin size is decreased by a factor of 0.97 on each iteration of rough legalization. Decrease in bin size has several implicit benefits. Larger bin size illustrated in Fig.4.1(b) and Fig.4.1(c) has lower cluster number and larger expansion region for each cluster. Vice versa for smaller bin size illustrated in Fig. 4.1(g) and Fig. 4.1(h) which produces higher cluster number and smaller expansion region for each cluster. Larger bin size at the beginning allows placer to have a global view of the placement, which can effectively allocate cells to regions with precise amount of white space. As bin size decreases, more local congestion spots can be identified and less perturbation of cells can be expected since size of expansion region decreases.

In this work, since dimension of Gaussian Blurring can be arbitrary adjusted, such characteristic can be achieved by using larger value of σ and larger bin size to capture global view of the placement at the beginning. In Fig. 4.1(d), larger bin size is used and larger dimension of Gaussian matrix is used to blur local white space region. Local congestion at the latter stage can be revealed by decreasing the value of σ and bin size as illustrated in Fig.4.1(i). Note that in both Fig. 4.1(d) and Fig.4.1(i), the summation on dimension of density matrix and Gaussian matrix is a constant in which M + N = 17.

The execution time of two dimensional convolution in spatial domain increases quadrat-ically with the dimension of Gaussian matrix and density matrix. Suppose a M × M Gaussian matrix is convolved with a N × N density matrix, the complexity in spatial domain is O(M2_N2_{). The complexity can be reduced to O(N}2_{logN ) by convolving two}

functions in frequency domain.

Since larger value of σ implies larger dimension of Gaussian matrix and larger bin size implies smaller dimension of density matrix, the summation on dimension of Gaussian matrix and dimension of density matrix can be set to equal to a constant. To fully exploit the efficiency of convolution at frequency domain, we use Eq. (4.5) to determine the dimension of a M × M Gaussian matrix and a N × N density matrix. Thus, if we set the

Chapter 4. Cell Spreading Algorithm 15 constant to 1025 and initialize the dimension of Gaussian matrix to a quarter of density matrix, then M equals to 205 and N equals to 820.

M + N = 2n+ 1 (4.5)

4.2

Weight Adjustment

In quadratic placement, the step size from x to x0controls the trade-off curve between quality of placement and convergence rate. Smaller step size leads to better quality placement at the expense of longer execution time. The magnitude of step size is controlled by the matrix ˚Cx = {˚w0, ˚w1, ..., ˚wM}, which is the matrix that defines the weight of move

force. Eq. (4.6) is the weight adjustment scheme in Kraftwerk2. In Kraftwerk2, a target step size µT is determined initially, and then weight of move force wi is adjusted such that

average step size µ can be approximated as close to µT as possible.

Eq. (4.7) is the weight adjustment scheme in SimPL and Eq. (4.8) is the weight adjustment scheme in ComPLx. In Eq. (4.8), Π is total displacement from cell location to its target location and h is a predefined constant. Since both Eq. (4.7) and Eq. (4.8) are based on accumulation of move force, weight of move force can only be increased throughout the iterations. In addition, step size in cell spreading process can only be indirectly affected and not be accurately controlled.

Kraftwerk2: w˚_ik+1 = ˚w_ik· (1 + tanh(ln(µT/µ))) (4.6)

SimPL: w˚k+1 = 0.01 · (1 + iterationNumber)

|x − x0_| (4.7)

Observing the three different weight adjustment schemes defined in Eq. (4.6) to Eq. (4.8), Kraftwerk2 has different weight ˚wi for each individual cell with precise

con-trol over the average step size. On the contrary, SimPL and ComPLx has same weight ˚

w for every cell and can only indirectly determine step size. This indicate gradient based cell spreading algorithm is more delicate when dealing with relative order of cells at local scale. To accelerate convergence rate and allowing cells to step across macro blocks at early stage of placement, we adopt a target step size adjustment scheme described in Eq. (4.9).

In Eq. (4.9), µHi

T is the upper bound of step size and µLoT is the lower bound of step

size. Larger step size in beginning motivates cells to move across macro blocks while smaller step size motivates cells to have more accurate relative order. This is because larger step size implies that ˚C has larger influence in term (C + ˚C)(x − x0) which means density function has more influence to the objective function. Vice versa for smaller step size that translates to smaller ˚C.

µk+1_T = µk_T − µ Hi T − µLoT x , k = 2, 3..., x − 1 (4.9) ˚ w_ik+1= ˚wk_i · (1 + tanh(ln((xµk−1 T − µ Hi T + µ Lo T )/xµ))) (4.10)

4.3

Determining Initial Step Size

One of the critical factor to handle incremental placement is to determine the initial step size based on the current state of placement (e.g. cell density, total overlapping area, current value of Γ). Eq. (4.11) defines the initial step size in Kraftwerk2 and Eq. (4.12) defines the initial step size in ComPLx. Eq. (4.11) is inadequate to handle incremental placement since its a constant value in which it neglects the current state of placement. Given with an almost legal placement solution where cell density is roughly flat, using Eq. (4.11) produces very large step size where forces at local gradient are exaggerated.

On the contrary, although Eq. (4.12) in ComPLx considers the current value of objec-tive function and total displacement, the absence of hold force in the ComPLx framework

Chapter 4. Cell Spreading Algorithm 17 creates certain degree of instability. Since move force are accumulated in ComPLx frame-work, its very difficult to determine an appropriate step size such the placement will not collapse to its previous state without the information from previous iteration.

Kraftwerk2: w˚1 = Amod,i Aavg · 1 M (4.11) ComPLx: w˚1 = Γ 100Π (4.12) In this work, to deal with placement at different level of cell density and different amount of overlapping area, the initial weight ˚w1 _{is set inversely proportional to the}

average bounded length of each net. Eq. (4.13) is the initial step size used in this work for gradient based cell spreading. In Eq. (4.13), N denotes total number of nets and Γ is the value of the objective function in Eq. (2.1).

˚

w1 = Amod,i Aavg

·N

Chapter 5

Experimental Results

In this section, experimental results of our implementations are presented. All of our implementations are self contained and implemented using standard C++ language and performed on a Intel Xeon E5620 machine running at 2.4Ghz. To evaluate the HPWL quality of our placer, we compared our implementations with state of the art global placers including Kraftwerk2 [2], SimPL [1], ComPLx [3], MAPLE [4], BonnPlace [5], NTUplace3 [6], mPL6 [7] on ISPD2005 benchmarks [14]. We also compared our im-plementation with RIPPLE 2.0 [8] on ICCAD 2012 Placement Benchmarks [9]. Latest binaries from NTUplace3 (v12.06.05) and mPL6 are obtained from original authors and evaluate on same machine. We do not have the access to Kraftwerk2 [2], SimPL [1], ComPLx [3], MAPLE [4], RIPPLE2.0 [8] and BonnPlace [5], so execution time from these global placers are omitted. Result of our proposed framework is presented using default setting without specific tuning for each individual testcase.

For ISPD 2005 Placement Benchmarks, FastDP [15] is used as the detailed placer. FastDP is not compatible with ICCAD 2012 Placement Benchmarks. Since we do not have access to the source code of FastDP, we implement legalization algorithm based on Abacus [16], detailed placer based on FastDP [15] and used them on ICCAD 2012 Place-ment Benchmarks. NCTUgr 2.0 [17] is used as the global router to evaluate routability of the placement.

The discussion in this section is divided to three parts. The first part presents qual-ity of global placers using HWPL as evaluating metrics. The second part analyze our implementation on partition based cell spreading algorithm, gradient based cell spreading algorithm and our two stage global placement framework. Analysis is performed using

Chapter 5. Experimental Results 19 routability metric and evaluating distance from each cell to its optimal region after legal-ization and detailed placement. The third part of this section concludes our findings and discusses future improvement of proposed framework.

5.1

Evaluation on ISPD2005 Benchmarks

Table5.1compares the performance of HPWL on ISPD 2005 Placement benchmarks. Our implementation using partition based cell spreading algorithm (P-Based) achieves quality within 1.56% compared to SimPL. Our implementation using gradient based cell spreading algorithm (G-Based) achieves quality within 1.18% compared to Kraftwerk2. This demonstrate our implementation based on the two frameworks achieves comparable quality compared to the original work.

Our proposed two stage global placement framework achieves equivalent quality com-pared to ComPlx [3], outperforms Kraftwerk2 [2], mPL6 [7], NTUplace3 [6] and SimPL [1] by 6.15%, 3.50%, 6.97%, 0.40% respectively, and trail behind MAPLE [4] and Bon-nPlace [13] by 1.39% and 1.74% respectively.

5.2

Evaluation on ICCAD2012 Benchmarks

We compared our implementations with RIPPLE 2.0 [8] on ICCAD 2012 Placement Benchmarks [9] since only RIPPLE 2.0 released their wirelength driven result on this set of benchmarks. Results are presented in Table5.3. Our two-stage framework outperforms RIPPLE2.0 by 3.14% in HPWL. Our implementation on P-Based cell spreading algorithm leads by a marginal 0.28% and P-Based cell spreading algorithms trails behind by 7.38%.

5.3

Analysis on Distance to Optimal Region

To analyze placement behavior among different global placers, we analyze the distance from each cell to its optimal region. Our assumption is that if a given placement has more percentage of cells within optimal region, it implies that this placement has better local view. Vice versa for a given placement has more percentage of cells that are far apart from its optimal region, which implies worse global view.

Table 5.4 and Table5.5 presents the result on distance from each cell to its optimal region on ISPD 2005 benchmarks and ICCAD 2012 benchmarks respectively. Unit is defined by one half of the row height. In Table5.4 and Table 5.5, G-Based cell spreading algorithm has the highest percentage of cells within optimal region on 16 out 16 testcases while P-Based cell spreading algorithm has the least percentage of cells on 14 out 16 testcases. Our two stage placement framework has more percentage of cells within optimal region on 14 out 16 testcases compared to P-Based cell spreading algorithm.

When analyzing percentage of cells that are placed more than 10*0.5 row height away from its optimal region, G-Based cell spreading algorithm has the highest percentage on 11 out 16 benchmarks while our two-stage framework has the least percentage of cells on 15 out of 16 testcases.

5.4

Evaluation on Routability

Evaluation on routability of partition based, gradient based cell spreading algorithm and our two-stage framework is presented in Table5.6. While gradient based cell spreading algorithm has better local view, it also has the worst global view. Routability of gradient based cell spreading algorithm is significantly compromised due to its higher HPWL. This also shows that our implementation on gradient based cell spreading algorithm exhibit inherent difficulty in controlling density at global scale.

An interesting phenomenon can be observed by comparing partition based cell spread-ing algorithm and our two stage framework. Both placers achieves nearly equivalent qual-ity in terms of HPWL, but our two-stage framework has 43% less total overflow and 34% reduction in maximum overflow compared to partition based cell spreading algo-rithm. This shows that two placements with same HPWL can exhibit entirely different routability. Our explanation to this phenomenon lies in controllability of cell spreading algorithms at local view of placement. Improving local view of placement significantly improves routability.

5.5

Discussion and Future Improvements

Experimental results presented in Table 5.4, Table 5.5 and Table 5.6 supports our original hypothesis. Our findings are discussed as follows. (1) There exhibit different

Chapter 5. Experimental Results 21 controllability among different cell spreading algorithms at global view and local view of placement. (2) Gradient based cell spreading algorithm exhibit better controllability at local view and worse controllability at global view. (3) A two stage global placement framework can have better controllability on both global and local view of placement. (4) Improving global view of placement have more obvious improvement on HPWL while improving local view of placement have more obvious improvement on routability.

T able 5.1: Comparison of HPWL with Our prop osed framew ork, P artition based (P-Based) and Gradi e n t based (G-Based) on ISPD2005 b enc hmarks for SimPL [ 1 ], Kraft w erk2 [ 2 ], ComPLx [ 3 ], MAPLE [ 4 ], BonnPlace2 [ 5 ], NTUPlace3 [ 6 ] and mPL6 [ 7 ]. (G.M. stands for geometric mean) # Tw o Stage SimPL [ 1 ] P-Based Kraft.2 [ 2 ] G-Based ComPLx [ 3 ] MAPLE [ 4 ] BonnPlace [ 5 ] NTUP3 [ 6 ] mPL6 [ 7 ] AD1 76.90 77.42 80.27 82.43 82.15 77.75 76.36 76.87 80.29 77.93 AD2 88.74 91.01 89.40 92.85 95.36 88.76 86.95 86.36 90.18 92.04 AD3 209.95 203.84 208.34 227.22 223.50 206.57 209.78 202.00 233.77 214.16 AD4 183.29 184.70 193.92 199.43 195.82 184.07 179.91 181.53 215.02 193.89 BB1 95.97 94.66 98.31 97.67 99.87 95.30 93.74 94.85 98.65 96.80 BB2 146.25 145.87 142.77 154.74 158.64 145.87 144.55 144.21 158.27 152.34 BB3 323.24 351.55 334.02 343.32 364.31 330.74 323.05 317.71 346.33 344.10 BB4 798.82 790.28 818.12 852.40 846.69 789.45 775.71 781.79 829.09 829.44 G.M. 100.00% 100.40% 101.96% 106.15% 107.33% 100.01% 98.61% 98.26% 106.97% 103.50%

Chapter 5. Experimental Results 23

Table 5.2: Comparison of runtime in minutes with Our proposed framework, Partition based (P-Based) and Gradient based (G-Based) on ISPD2005 benchmarks for mPL6 [7] and NTUPlace [6]. Runtime is normalized to the known optimal placement solution.

(G.M. stands for geometric mean)

# Two Stage P-Based G-Based NTUPlace3 [6] mPL6 [7]

AD1 6.51 4.27 8.96 7.82 24.22 AD2 7.81 6.34 11.73 8.87 26.57 AD3 15.20 11.72 19.04 19.93 76.02 AD4 13.31 12.64 17.66 25.40 71.34 BB1 8.51 6.67 10.31 14.45 31.60 BB2 12.39 9.28 18.14 35.13 81.01 BB3 27.85 26.52 50.98 38.88 110.68 BB4 53.53 49.35 76.61 111.38 253.58 G.M. 122.25% 100.00% 172.80% 198.15% 544.48%

Table 5.3: Comparison of HPWL and runtime in minutes with Our proposed frame-work, Partition based (P-Based) and Gradient based (G-Based) on ICCAD2012

bench-marks for RIPPLE 2.0 [8]. (G.M. stands for geometric mean)

Two Stage P-Based G-Based RIPPLE 2.0 [8]

HPWL Time HPWL Time HPWL Time HPWL

superblue1 259625987 16.17 260008361 11.96 290051349 17.74 272906304 superblue3 307662108 17.29 305324913 12.86 319436744 18.25 307528119 superblue4 211549386 10.99 210924662 7.66 229463294 10.94 218230511 superblue5 342149887 13.78 340303341 9.84 365500638 14.02 335332413 superblue7 402442619 27.04 398444616 20.80 462238462 36.83 395288349 superblue10 533745854 20.47 535118536 15.32 559797179 20.09 565020331 superblue16 251757882 13.32 256752919 9.23 258444606 14.47 249202445 superblue18 146527792 11.49 143596983 8.19 152419258 12.51 171609483 G.M. 100.28% 137.58% 100.00% 100.00% 107.38% 148.63% 103.43%

T able 5.4: Comparison of result on distance from eac h cell to its op timal region with Our prop osed framew ork, P artition based (P-Based) and Gradien t based (G-Based) on ISPD2005 b enc hmarks. Unit is defined b y one half of the ro w heigh t. (In O.R. stands for in optimal region) # Distance to Optimal Region Metho d In O.R. 1 2 3 4 5 6 7 8 9 10 > 10 adaptec1 Tw o Stag e 21.35% 4.20% 16.60% 19.57% 14.25% 8.46% 4.83% 2.77% 1.69% 1.09% 0.73% 4.45% P-Based 21.22% 4.07% 16.20% 19.05% 14.12% 8.61% 5.03% 2.98% 1.83% 1.18% 0.85% 4.86% G-Based 22.06% 4.04% 15.71% 18.81% 13.78% 8.53% 5.07% 2.90% 1.83% 1.25% 0.88% 5.13% adaptec2 Tw o Stag e 26.11% 9.17% 19.29% 17.36% 10.39% 5.52% 3.03% 1.86% 1.23% 0.81% 0.62% 4.61% P-Based 26.23% 9.08% 19.05% 17.05% 10.19% 5.51% 3.11% 1.90% 1.26% 0.93% 0.66% 5.03% G-Based 26.87% 8.18% 17.69% 16.20% 10.22% 5.62% 3.28% 2.09% 1.46% 1.06% 0.79% 6.53% adaptec3 Tw o Stag e 25.91% 7.16% 16.69% 17.11% 10.64% 6.47% 3.83% 2.37% 1.58% 1.09% 0.80% 6.35% P-Based 26.07% 7.18% 16.70% 16.90% 10.53% 6.43% 3.91% 2.44% 1.65% 1.15% 0.86% 6.18% G-Based 27.05% 7.11% 16.54% 16.65% 10.20% 6.32% 3.74% 2.34% 1.55% 1.11% 0.81% 6.57% adaptec4 Tw o Stag e 27.20% 8.58% 18.89% 16.49% 10.10% 6.07% 3.47% 2.10% 1.29% 0.87% 0.63% 4.32% P-Based 27.14% 8.51% 18.73% 16.20% 9.79% 5.99% 3.45% 2.11% 1.40% 0.94% 0.71% 5.02 % G-Based 28.31% 8.48% 18.66% 16.05% 9.63% 5.85% 3.35% 2.03% 1.32% 0.92% 0.65% 4.75% bigblue1 Tw o Stag e 23.01% 4.98% 19.29% 20.41% 13.00% 7.21% 3.77% 2.11% 1.26% 0.86% 0.59% 3.52% P-Based 22.98% 4.92% 18.86% 19.88% 12.98% 7.11% 3.86% 2.22% 1.44% 0.95% 0.69% 4.11% G-Based 24.47% 5.04% 18.67% 19.55% 12.39% 6.88% 3.68% 2.08% 1.34% 0.93% 0.66% 4.33% bigblue2 Tw o Stag e 22.95% 8.35% 19.10% 17.61% 11.35% 6.99% 4.06% 2.35% 1.56% 1.04% 0.74% 3.89% P-Based 22.47% 8.41% 18.89% 17.12% 11.42% 6.96% 4.08% 2.53% 1.64% 1.17% 0.83% 4.47% G-Based 23.95% 8.36% 18.62% 16.99% 11.05% 6.79% 3.92% 2.34% 1.59% 1.06% 0.76% 4.57% bigblue3 Tw o Stag e 21.83% 14.76% 24.70% 17.23% 8.73% 4.58% 2.28% 1.26% 0.79% 0.53% 0.37% 2.95% P-Based 21.55% 15.36% 24.32% 16.42% 8.53% 4.54% 2.39% 1.41% 0.91% 0.63% 0.45% 3.49% G-Based 22.23% 14.44% 23.97% 16.40% 8.56% 4.69% 2.39% 1.41% 0.90% 0.63% 0.45% 3.94% bigblue4 Tw o Stag e 20.26% 13.23% 25.35% 17.18% 9.87% 5.30% 2.64% 1.49% 0.92% 0.61% 0.43% 2.71% P-Based 19.96% 13.78% 24.81% 16.25% 9.43% 5.14% 2.79% 1.67% 1.11% 0.79% 0.58% 3.70% G-Based 20.79% 13.20% 24.79% 16.74% 9.58% 5.19% 2.69% 1.58% 1.02% 0.70% 0.51% 3.21%

Chapter 5. Experimental Results 25 T able 5.5: Comparison of result on distance from eac h cell to its op timal region with Our prop osed framew ork, P artition based (P-Based) and Gradien t based (G-Based) on ICC AD2012 b enc hmarks. Unit is defined b y one hal f of the ro w heigh t. (In O.R. stands for in optimal region) # Distance to Optimal Region Metho d In O.R. 1 2 3 4 5 6 7 8 9 10 > 10 sup erblue1 Tw o Stage 14.34% 7.55% 17.67% 17.52% 13.27% 9.97% 6.01% 3.83% 2.27% 1.49% 0.97% 5.12% P-Based 13.36% 6.40% 15.89% 16.53% 12.84% 10.22% 6.54% 4.43% 2.88% 2.00% 1.37% 7.52% G-Based 15.48% 6.19% 15.30% 15.11% 11.68% 9.05% 5.75% 4.03% 2.68% 1.95% 1.40% 11.37% sup erblue3 Tw o Sta ge 15.74% 6.63% 16.82% 18.14% 13.62% 9.11% 5.90% 3.40% 2.10% 1.30% 0.90% 6.34% P-Based 14.65% 5.83% 15.72% 17.03% 13.28% 9.20% 6.17% 3.89% 2.58% 1.74% 1.24% 8.67% G-Based 17.18% 5.85% 15.40% 16.58% 12.75% 8.62% 5.83% 3.61% 2.41% 1.65% 1.18% 8.93% sup erblue4 Tw o Sta ge 23.17% 6.14% 14.16% 14.88% 10.69% 8.52% 5.29% 3.58% 2.33% 1.68% 1.17% 8.38% P-Based 21.57% 5.43% 13.06% 13.76% 10.37% 8.58% 5.54% 4.00% 2.69% 2.03% 1.46% 11.52% G-Based 24.46% 5.90% 13.54% 13.83% 9.85% 7.96% 5.01% 3.39% 2.28% 1.69% 1.22% 10.87% sup erblue5 Tw o Sta ge 17.43% 5.42% 12.41% 14.73% 12.00% 9.91% 6.55% 4.43% 2.81% 1.97% 1.32% 11.02% P-Based 16.24% 4.57% 11.00% 13.49% 11.42% 9.77% 6.83% 4.94% 3.36% 2.48% 1.74% 14.15% G-Based 19.48% 4.86% 11.33% 13.50% 11.15% 9.54% 6.41% 4.60% 3.14% 2.32% 1.67% 12.01% sup erblue7 Tw o Sta ge 13.90% 5.55% 13.34% 16.47% 14.07% 10.50% 7.22% 4.60% 2.98% 1.96% 1.36% 8.05% P-Based 12.95% 4.74% 11.87% 14.98% 13.24% 10.19% 7.38% 5.06% 3.54% 2.52% 1.87% 11.65% G-Based 14.54% 4.27% 10.72% 13.20% 11.74% 9.21% 6.88% 4.94% 3.62% 2.72% 2.13% 16.03% sup erblue10 Tw o Sta ge 16.99% 7.29% 15.92% 16.55% 12.27% 9.73% 6.00% 3.82% 2.36% 1.57% 1.06% 6.44% P-Based 15.59% 5.82% 13.48% 14.72% 11.55% 9.73% 6.51% 4.60% 3.10% 2.28% 1.63% 10.99% G-Based 17.28% 5.41% 12.44% 13.62% 10.76% 9.19% 6.41% 4.73% 3.30% 2.50% 1.89% 12.47% sup erblue16 Tw o Sta ge 19.67% 6.33% 14.96% 15.93% 12.26% 9.39% 6.18% 4.01% 2.53% 1.66% 1.12% 5.96% P-Based 17.90% 5.01% 12.32% 13.85% 11.58% 9.56% 6.84% 4.88% 3.41% 2.50% 1.81% 10.34% G-Based 20.92% 5.83% 13.87% 14.75% 11.64% 8.93% 6.11% 4.16% 2.79% 1.96% 1.40% 7.64% sup erblue18 Tw o Sta ge 14.19% 5.21% 11.92% 13.75% 13.20% 10.62% 8.12% 5.40% 3.84% 2.57% 2.00% 9.18% P-Based 13.55% 4.67% 11.22% 13.40% 13.37% 10.73% 8.20% 5.57% 3.98% 2.77% 2.14% 10.38% G-Based 15.24% 4.10% 9.78% 11.39% 11.31% 9.33% 7.52% 5.33% 4.11% 3.05% 2.54% 16.30%

T able 5.6: Comparison of total o v erflo w, max o v erflo w and scaled w irele n gth with our prop osed tw o stage global placemen t frame-w ork, our implemen tation based parti tion based cell spreading algorith m (P-Based) [ 1 ] and our implemen tation based on gradien t based cell spreading algorithm [ 2 ] on ICCAD 2012 b enc h marks [ 9 ]. (G.M. stan ds for geometric m ean) # T otal Ov erflo w Max Ov erflo w Scaled Wirelength Tw o Stage P-Based G-Based Tw o Stage P-Based G-Based Tw o Stage P-Based G-Based sup erblue1 814160 1008500 1600318 40 68 212 640485109 707363368 940180310 sup erblue3 1182478 1646296 2026156 70 72 104 635630014 701229372 1025784456 sup erblue4 321944 452100 1012890 44 80 70 450960373 555543686 735745688 sup erblue5 1161770 1280734 775058 88 160 68 756611579 839204971 755856202 sup erblue7 551202 950280 2294126 36 48 72 672576461 771577691 1069387797 sup erblue10 2873914 3553926 2889218 128 148 192 1836829999 2062457141 1852100146 sup erblue16 416620 1085342 556812 32 40 26 372002748 467132401 418233295 sup erblue18 1649578 1972954 1906914 64 56 54 474572539 511244329 480174593 G.M. 100.00% 143.25% 161.25% 100.00% 132.93% 145.34% 100.00% 114.24% 127.63%

Chapter 6

Conclusion

In this work, we implement two state of the art placement frameworks based on SimPL and Kraftwerk2. Our observations indicate there exist a distinct difference in controllability at global view and local view of placement between the two frameworks. Partition based cell spreading algorithm adopted in the SimPL framework has better knowledge at how much macro blocks during placement, and gradient based cell spreading algorithm adopted in the Kraftwerk2 framework has better knowledge at where are the macro blocks during placement. Based on our implementation experience, this leads to better controllability at global view for SimPL framework and better controllability at local view for the Kraftwerk2 framework. The SimPL framework resolves relative order at local view by aligning cells to stripes. The Kraftwerk2 framework allocates white space at global view by imposing a demand supply constraint. While both placement frameworks can cover both global and local view of the placement, we propose a two stage global placement framework by combining the strength of partition based and gradient based cell spreading algorithm.

Bibliography

[1] M.-C. Kim, D.-J. Lee, and I. L. Markov, “SimPL: an algorithm for placing VLSI circuits,” Communication of the ACM, vol. 56, pp. 105–113, June 2013.

[2] P. Spindler, U. Schlichtmann, and F. M. Johannes, “Kraftwerk2 - A Fast Force-Directed Quadratic Placement Approach Using an Accurate Net Model,” IEEE Transactions on Computer-Aided Design of Integrated Circuits and Systems, vol. 27, pp. 1398–1411, Aug. 2008.

[3] M.-C. Kim and I. L. Markov, “ComPLx: A Competitive Primal-Dual Lagrange Opti-mization for Global Placement,” in Proceedings of the Design Automation Conference, pp. 747–752, 2012.

[4] M.-C. Kim, N. Viswanathan, C. J. Alpert, I. L. Markov, and S. Ramji, “MAPLE: Multilevel Adaptive Placement for Mixed-Size Designs,” in Proceedings of the Inter-national Symposium on Physical Design, pp. 193–200, 2012.

[5] M. Struzyna, “Sub-quadratic objectives in quadratic placement,” in Design, Automa-tion Test in Europe Conference ExhibiAutoma-tion, pp. 1867–1872, 2013.

[6] T.-C. Chen, Z.-W. Jiang, T.-C. Hsu, H.-C. Chen, and Y.-W. Chang, “NTUplace3: An Analytical Placer for Large-Scale Mixed-Size Designs With Preplaced Blocks and Density Constraints,” IEEE Transaction on Computer-Aided Design of Integrated Circuits and Systems, vol. 27, pp. 1228–1240, July 2008.

[7] T. F. Chan, J. Cong, J. R. Shinnerl, K. Sze, and M. Xie, “mPL6: Enhanced Multilevel Mixed-Size Placement,” in Proceedings of the International Symposium on Physical Design, pp. 212–214, 2006.

[8] X. He, T. Huang, W.-K. Chow, J. Kuang, K.-C. Lam, W. Cai, and E. F. Y. Young, “Ripple 2.0: high quality routability-driven placement via global router integration,” in Proceedings of the Design Automation Conference, pp. 1521–1526, 2013.

Bibliography 29 [9] “Design Hierarchy Aware Routability-Driven Placement Contest.” http://cad_

contest.cs.nctu.edu.tw/CAD-contest-at-ICCAD2012/problems/p2/p2.html. [Online; accessed 19-Nov.-2012].

[10] J. A. Roy, S. N. Adya, D. A. Papa, and I. L. Markov, “Min-Cut Floorplacement,” IEEE Transactions on Computer-Aided Design of Integrated Circuits and Systems, vol. 25, pp. 1313–1326, July 2006.

[11] M.-C. Kim, J. Hu, D.-J. Lee, and I. L. Markov, “A SimPLR method for routability-driven placement,” in Proceedings of the International Conference on Computer-Aided Design, pp. 67–73, 2011.

[12] B. Hu, Y. Zeng, and M. Marek-Sadowska, “mFAR: Fixed-Points-Addition-Based VLSI Placement Algorithm,” in Proceedings of the International Symposium on Phys-ical Design, pp. 239–241, 2005.

[13] U. Brenner, M. Struzyna, and J. Vygen, “BonnPlace: Placement of Leading-Edge Chips by Advanced Combinatorial Algorithms,” IEEE Transactions on Computer-Aided Design of Integrated Circuits and Systems, vol. 27, no. 9, pp. 1607–1620, 2008. [14] G.-J. Nam, “ISPD 2005 Placement Benchmarks.” http://archive.sigda.org/

ispd2005/contest.htm.

[15] M. Pan, N. Viswanathan, and C. Chu, “An Efficient and Effective Detailed Place-ment Algorithm,” in Proceedings of the International Conference on Computer-Aided Design, pp. 48–55, Nov. 2005.

[16] P. Spindler, U. Schlichtmann, and F. M. Johannes, “Abacus: fast legalization of standard cell circuits with minimal movement,” in Proceedings of the International Symposium on Physical Design, pp. 47–53, 2008.

[17] W.-H. Liu, W.-C. Kao, Y.-L. Li, and K.-Y. Chao, “Multi-threaded collision-aware global routing with bounded-length maze routing,” in Proceedings of the Design Au-tomation Conference, pp. 200–205, 2010.
