REVERSIBLE JPEG-BASED HIDING METHOD WITH HIGH HIDING-RATIO

(1)

LEE SHU-TENG CHEN*_{, SIAN-JHENG LIN and JA-CHEN LIN} Department of Computer Science and Information Engineering

National Chiao Tung University, 1001 Ta Hsueh Rd. Hsinchu, Taiwan, 300, R.O.C.

*_{stlee@cs.nctu.edu.tw}

The stego-images generated by many existing hiding techniques are not economic in size, and hence need compression. Unfortunately, compression usually destroys the secret content hidden inside. To solve this dilemma, some hiding methods based on compression code (rather than the image itself) are reported. This paper proposes a high-capacity and high-hiding-ratio \ reversible" steganography method based on JPEG-compression code. In the proposed method, the JPEG compression code of an image is used as the cover media. An 88 hiding-capacity table is ¯rstly evaluated, which is then utilized to modify the quantization table attached to the given JPEG code. The two quantization tables (modi¯ed and original) together can map the DCT coe±cients of each block to some larger DCT coe±cients, with secret data hidden inside these larger DCT coe±cients. In the decoding process, after lossless extraction of the hidden secret data, the proposed method can also recover the original JPEG-compression code. Experimental results show that our method outperforms other JPEG-based hiding methods (reversible or not) regarding both hiding-ratio and stego-image's quality.

Keywords: Reversible data hiding; JPEG; stego code; hiding ratio.

1. Introduction

Transmission of digital media to the Internet is very popular nowadays; however, since the Internet is a public channel, problems such as data security or copyright also arise. Data hiding is a technique to conceal secret data in digital media. It embeds the secret data into the cover image, and the generated stego-image looks like the cover image so that the unauthorized users will not be aware of the existence of the secret data. Data hiding schemes can be divided into two categories: spatial domain 1,5,9,20,23,24,26,27 _{and frequency domain.}3,4,6,10,12,13,17,21,22,25 _{Spatial domain} schemes embed the secret data into the pixel values of the cover image to obtain stego-images. However, due to the limited bandwidth of networks, digital media (including stego-images) are usually compressed before transmission. Although the smaller size o®ered by compression can save transmission time, compression using *_{Author for correspondence}

and Artiﬁcial Intelligence Vol. 24, No. 3 (2010) 433456

#

.

c World Scienti¯c Publishing Company DOI:10.1142/S0218001410007968

433

Int. J. Patt. Recogn. Artif. Intell. 2010.24:433-456. Downloaded from www.worldscientific.com

(2)

higher compression rate (lossy compression) often destroys or damages the hidden content of a stego media in which the secret data are embedded. Therefore, some hiding methods 3,4,6,10,12,13,17,21,22,25 _{that belong to the frequency domain had been} proposed to hide the secret directly in the Joint Photographic Experts Group (JPEG) compression code.

In Jsteg,22_{the secret data were embedded in the Least Signi¯cant Bit (LSB) of the} quantized Discrete Cosine Transform (DCT) coe±cients whose values are not in f1; 0; 1g. Because the quantized-coe±cients are almost all zero after the DCT transformation and quantization steps of JPEG, the hiding capacity in Jsteg is quite limited. As a result, Chang et al.3_{modi¯ed the JPEG default quantization table and} successfully embedded the secret data into the 26 quantized-coe±cients located in the middle-frequency part. Since the quantizers in the middle-frequency part of their quantization table were set to one, the quantized-coe±cients in the middle-frequency part were usually nonzero. In order to ¯nd a balance between the hiding capacity and the stego-image quality, Tseng and Chang21 _{further proposed an adaptive data} hiding method by using their capacity table derived from the JPEG default quan-tization table and the Human Visual System (HVS) to determine the embedded length of secret. Iwata et al. also modi¯ed in Ref.10the boundaries between zero and nonzero quantized-coe±cients to hide the secret.

Among the reported hiding techniques, some are reversible.1,4,6 _{A reversible} hiding technique can loss-freely recover not only the hidden data but also the compression-code of the cover media (or original cover media if no compression is used). In the spatial domain, Barton1_{losslessly compressed the bits to be overlaid,} and the compressed data were embedded together with the secret data into the cover image. In the frequency domain, the authentication method of Fridrich et al.6 obtained a secret watermark by hashing the quantized-coe±cients. The secret watermark was then embedded in the least signi¯cant bits of a further compressed result of the quantized DCT coe±cients. Chang et al.4_{also used the successive} zero-quantized-coe±cients in the middle frequency part to embed the secret. In addition, the quantized table was modi¯ed to improve the quality of their stego-images. The methods3,10,12,13,17,21,22,25 _{also successfully embedded the secret into JPEG} com-pression codes, but these methods are not reversible.

The current paper intends to propose a high hiding-ratio and reversible method based on JPEG compression code. Hence, the method can recover the original JPEG compression code after extracting the secret which can be big in size. The remainder of this paper is organized as follows. Section 2reviews the related works. Section3

presents the proposed method. Section4provides the experimental results, including comparisons with other methods. Section 5gives the summary.

Symbols:

Q : The original block-independent 88 quantization table used by JPEG ~

Q: Our block-independent 88 modi¯ed quantization table [see Eq. (14)]

(3)

F : An original 88 quantized-block of JPEG ~

F : Our 88 stego quantized-block after hiding secret in F

HC : Our block-independent 88 hiding-capacity table [see Eq. (11)]

level : A user-speci¯ed integer between 1 and 3 to control the hiding-capacity table num : A user-speci¯ed integer between 1 and 32 to control how many coe±cients

are used per block for hiding (apply the same num value to all blocks).

2. A Review of JPEG Hiding Methods

In this section, a basic but introductory technique called Jsteg22_{is reviewed. After} that, a sequence of Chang's graceful methods3,4,21_{are reviewed, respectively, to let} the readers have the detailed background knowledge about this topic.

Jsteg22 _{is a very simple yet introductory hiding tool that embeds the secret} into JPEG code. Its preprocessing before embedding is just like ordinary JPEG-compression: (1) the given image is divided into nonoverlapping blocks of 88 pixels each. Then for each block, apply DCT to transform the 88 pixels into the 88 DCT coe±cients. (2) Next, the 88 DCT coe±cients of each block are quantized using the JPEG default quantization table shown in Fig. 1(a). After the preprocessing, the secret data are then embedded in the LSB of each quantized-coe±cient whose values are not 1, 0, or1. Finally, each embedded quantized-block is compressed further by the JPEG entropy coding. The JPEG stego-code is thus generated when all blocks are done.

In Chang et al.'s hiding method,3 each 88 block is also transformed into 88 DCT coe±cients using DCT. However, the 88 DCT coe±cients are then quantized using a modi¯ed quantization table shown in Fig. 1(b). Now, the secret data are sequentially embedded into the two-least-signi¯cation bits of each of the 26 quan-tized-coe±cients whose corresponding quantization-resolutions in the modi¯ed quantization table [Fig.1(b)] are one. Finally, the JPEG entropy coding is applied to encode the whole 88 embedded quantized-block. By processing all blocks in order, the modi¯ed quantization table [Fig.1(b)] is put in the header of the JPEG ¯le, and the JPEG stego-code is generated.

In Tseng and Chang's hiding method,21 _{suppose that a given image is already} divided into nonoverlapping blocks of 88 pixels each and compressed using JPEG. After the JPEG code for this image has been generated, use the JPEG entropy-decoding process to reconstruct back all quantized-blocks fFg. For each 88 quantized-block F, let F(i, j ) denote its element at i th row and j th column. Then, for each quantized-block F, calculate its intensity measure

GF ¼ ffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi X7 i¼0 X7 j¼0 F2_{ði; jÞ} ! F2_{ð0; 0Þ} v u u t _: _ð1Þ

Now, ifG_F < T for a prede¯ned threshold value T, then the current block F is called a uniform block. Otherwise, F is a nonuniform block. Then, for each quantized-block

(4)

16 11 10 16 24 40 51 61 12 12 14 19 26 58 60 55 14 13 16 24 40 57 69 56 14 17 22 29 51 87 80 62 18 22 37 56 68 109 103 77 24 35 55 64 81 104 113 92 49 64 78 87 103 121 120 101 72 92 95 98 112 100 103 99 (a) 16 11 10 16 1 1 1 1 12 12 14 1 1 1 1 55 14 13 1 1 1 1 69 56 14 1 1 1 1 87 80 62 1 1 1 1 68 109 103 77 1 1 1 64 81 104 113 92 1 1 78 87 103 121 120 101 1 92 95 98 112 100 103 99 (b) 16 11 10 16 24 40 51 61 12 12 14 19 26 58 60 55 14 13 16 24 40 57 69 56 14 17 22 29 51 87 80 62 18 22 37 56 68 109 103 77 24 35 55 64 81 104 113 92 49 64 78 87 103 121 120 101 72 92 95 98 112 100 103 1 (c) 16 11 10 16 24 40 51 61 12 12 14 19 26 58 60 55 14 13 16 17 28 40 48 56 14 17 22 20 36 61 56 43 18 22 26 39 48 76 72 54 24 25 39 45 57 73 79 64 49 64 55 61 72 85 84 71 72 92 95 69 78 70 72 70 (d) 9

R

7

R

5

R

3

R

8

R

6

R

4

R

2

R

1 (e)

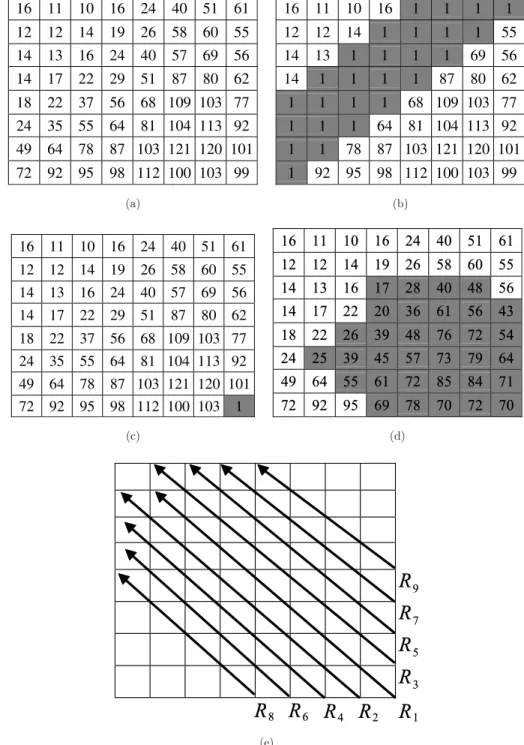

Fig. 1. (a) The quantization table used in Jsteg.22(b) The modi¯ed quantization table used in Chang et al.'s method.3Note that the 26 quantized-coe±cients, which use the shaded area here in quantization process, are the 26 coe±cients to hide data. (c) The modi¯ed quantization table MQ used in Tseng and Chang's method.21(d) The modi¯ed quantization table MQ used in Chang et al.'s reversible method.4 (e) The nine setsfRi: 1i 9g of coe±cients are used to embed the secret in Ref.4.

(5)

F, by using a user-de¯ned capacity factor and the modi¯ed quantization table MQ in Fig.1(c); people can evaluate the capacity tableC ¼ C_F corresponding to that block F, which in turn enables people to hide secret data in the elements of block F. (So the capacity table C_F is block-dependent.) To determine the table C_F for a quantized-block F, if (i, j ) is neither (0,0) nor (7,7),C_F (i, j ) is de¯ned as

CFði; jÞ ¼ minfblog2ðc MQði; jÞÞc; blog2jFði; jÞjcg ð2Þ where 0i, j < 8 and c depends on block type (c is 1 if this block F is a uniform block; c is greater than 1 otherwise). TheC_F(0,0) is specially de¯ned in Ref.21as

C_Fð0; 0Þ ¼ min log2 c MQð0; 0Þ 2 log2ð100 QFÞ ; logb 2jFði; jÞjc ð3Þ

where QF (quality factor) is a JPEG-parameter speci¯ed by users to control image quality. For the ¯rst 63 quantized-coe±cients of the current 88 quantized-block F, i.e. for each ði; jÞ 6¼ ð7; 7Þ, after determining the capacity value C_F(i, j ) of the quantized-coe±cient F(i, j ), a sector of secret data with lengthC_F(i, j ) is embedded into the quantized-coe±cient F(i, j ). (No embedding ifjFði; jÞj 1. These coe±cients F(i, j ) are bypassed.) As for the ¯nal element (i, j)¼ (7, 7) of the block, a °ag bit is embedded in F(7, 7) (0 means \uniform block", and 1 means \nonuniform block"). Finally, apply JPEG entropy-encoding to the current (embedded) quantized-block.

In Chang et al.'s reversible hiding method,4_{DCT is applied to transform each 88} block of image into the 88 DCT coe±cients. Next, for each block, the 88 DCT coe±cients are quantized using a modi¯ed quantization table shown in Fig.1(d). After the 88 quantized DCT coe±cients have been obtained, the secret data are embedded into the successive zero sequence of each setR_i(1i 9) shown in Fig.1(e). (Notably, among the 88 quantized DCT coe±cients of a typical image block, many quantized DCT coe±cients in the lower right portion of Fig.1(e)are zeros. That is why people can try to ¯nd successive zero sequence of each setR_i.) Now, to embed secret data in the successive zero sequence of each set R_i, the value of count_i that denotes the length of the successive zero sequence from the lower right to the upper left in each setR_ihas to be calculated ¯rst. In general, if the value ofcount_iis larger than 1, one secret bit is embedded in the setR_i; otherwise, no embedding inR_i. Now, for eachcount_iwhose value is greater than 1, ¯nd the componentr_i;k_ithat is located in the upper left of the successive zero sequence of the setR_i. Then, the to-be-hidden secret bits_iis embedded in lower right neighbor componentr_i;k_i1ofri;ki, by the embedding

formula ri;ki1¼ 0; if s_i is 0; 1 or 1; if s_i is 1; ð4Þ where 1 or1 is randomly selected. Finally, the JPEG entropy coding is applied to encode the current (embedded) quantized-block. After sequentially processing all quantized-blocks, the JPEG stego-code is generated.

(6)

3. The Proposed Method

Section 3.1 gives the basic de¯nitions; Sec. 3.2 is for hiding; Sec.3.3 is for secret extraction and JPEG-code reversibility.

3.1. Idea (mapping quantized-coe±cients to stego quantized-coe±cients) Assume that the JPEG (compression) code of an image is given, and we plan to embed secret data in it. Recall that in the quantization process of JPEG, each DCT coe±cient D(i, j ) is divided (i.e. quantized) by its corresponding quantizer Q(i, j ) which is grabbed from a quantization table and then rounded to the nearest integer F (i, j ). This integer F(i, j ) is called the quantized-coe±cient for DCT. Hence,

Fði; jÞ ¼ RoundðDði; jÞ=Qði; jÞÞ ð5Þ

where 0i, j < 8. In order to hide data in each quantized-coe±cient F(i, j), we introduce below a mapping that maps F(i, j ) to a stego quantized-coe±cient ~F ði; jÞ. As shown in Fig.2, consider a line segmentab in real axis containing the integer point F(i, j ) and its two nearby half-unit-away noninteger points a ¼ Fði; jÞ0.5 and b ¼ Fði; jÞ þ 0:5. By changing the scaling factor from the value Q(i, j) to another value called ~Qði; jÞ (the value of ~Qði; jÞ is evaluated by the Eqs. (11) and (14) mentioned later), i.e. by mapping each real number t to an integer

hðtÞ ¼ bt Qði; jÞ= ~Qði; jÞc; ð6Þ we get a non-decreasing mapping h that maps [a,b) into [A,B). Here, the two \noninteger" end points a ¼ Fði; jÞ 0:5 and b ¼ Fði; jÞ þ 0:5 are required to be mapped, respectively, to the \integers" A ¼ Aði; jÞ ¼ hðaÞ ¼ hðFði; jÞ 0:5Þ and B ¼ Bði; jÞ ¼ hðbÞ ¼ hðFði; jÞ þ 0:5Þ.

3.1.1. About ~Qði; jÞ appearing in the mapping h

For the purpose of perfect recovery of the JPEG quantized-coe±cient F(i, j ), we wish that \all" integers in the range [A(i, j ), B(i, j )) can later be traced back to the \unique" integer F(i, j ) by the formula Round(P ~Q(i, j)/Q(i, j)). In other words, for any integer P in the range A(i, j )P < B(i, j), we require that the identity Round(P ~Q(i, j)/Q(i, j)) ¼ F(i, j) always holds.

From the ~Qði; jÞ chosen by our formula (14), we can use Eqs. (7) and (8) below to prove that Round(P ~Q(i, j)/Q(i, j)) ¼ F(i, j) really holds for each integer P in

Fig. 2. By rescaling from Q(i, j) to ~Qði; jÞ, we can get a rescaling mapping h de¯ned by Eq. (6) that maps, respectively, the two noninteger points F(i, j) 0.5 and F(i, j ) þ 0.5 to two \integer" points A(i, j) and B(i, j).

(7)

the range A(i, j) P < B(i, j). (The proof is that: P ~Q(i, j)/Q(i, j) A(i, j) ~

Q(i, j)/Q(i,j) fðFði; jÞ 0:5Þ Qði; jÞ= ~Qði; jÞg ~Q(i, j)/Qði; jÞ ¼ Fði; jÞ 0:5 by Eq. (7). Similarly, Eq. (8) impliesP ~Qði; jÞ=Qði; jÞ < Bði; jÞ ~Q(i, j)/Q(i, j) fðFði; jÞ þ 0:5ÞQði; jÞ= ~Qði; jÞg ~Qði; jÞ=Qði; jÞ ¼ Fði; jÞ þ 0:5. So, F(i, j)0:5 P ~Qði; jÞ/Q(i, j) < (F(i, j) þ 0.5), which ensures Round(P ~Qði; jÞ/Q(i, j))¼ F(i, j) because Eq. (5) means that F(i, j) is an integer.)

3.1.2. Candidates and ¯nal winner for the stego quantized-coe±cient ~F ði; jÞ Since we wish that all integer points in [A(i, j), B(i, j)) can later be traced back to the unique integer F(i, j), we may say that all integer points in the half-open interval [A(i, j), B(i, j)) are candidates for the stego quantization-coe±cient value ~F ði; jÞ. To determine which of these candidate points should be picked as the ¯nal value of

~

F ði; jÞ, we just inspect the secret data to be hidden. More speci¯cally, each integer fA; A þ 1; A þ 2; . . . ; B2; B1g in the half-open interval [A, B) ¼ [A(i, j), B(i, j)) corresponds to a hidden value; for example, ~F ði; jÞ ¼ A means that the hidden secret is 000, ~F ði; jÞ ¼ A þ 1 means that the hidden secret is 001, ~F ði; jÞ ¼ A þ 2 means that the hidden secret is 010, ~F ði; jÞ ¼ A þ 3 means that the hidden secret is 011, etc. From the mapping hðtÞ ¼ bt Qði; jÞ= ~Qði; jÞc de¯ned in Eq. (6), where 0 i, j < 8, the points a ¼ Fði; jÞ0.5 and b ¼ Fði; jÞ þ 0:5 are mapped, respectively, to Aði; jÞ ¼ bðFði; jÞ 0:5Þ Qði; jÞ= ~Qði; jÞc; ð7Þ Bði; jÞ ¼ bðFði; jÞ þ 0:5Þ Qði; jÞ= ~Qði; jÞc: ð8Þ Notably, according to JPEG standard, the values of Q(i, j) and ~Qði; jÞ must be integers between 1 and 255. Also, if we intend to use the ¯nal value of the stego quantization-coe±cient ~F ði; jÞ to indicate one of the 2npossible readings of an n-bit hidden secret, then ~F ði; jÞ must have at least 2n possible candidate values. Hence, the half-open interval [A(i, j), B(i, j)) in Fig.2must contain at least 2n integers.

In the decoding part, after the secret data have been extracted, in order to recover the original JPEG code, we need to recover the original quantized-coe±cient F(i, j ) from the stego quantized-coe±cient ~F ði; jÞ. This can be done by applying the

~

Qði; jÞ-to-Q(i, j) inverse-scaling to reverse ~F ði; jÞ back to a real value ~F ði; jÞ ~

Qði; jÞ/Q(i, j). This real number is near F(i, j). In fact, according to the design shown earlier in Fig.2, the real number will be in the interval [F(i, j) 0.5, F(i, j) þ 0.5), and it can be rounded to the nearest integer as the original F(i, j). In short, F(i, j) can be recovered by

Fði; jÞ ¼ Roundð ~F ði; jÞ ~Qði; jÞ=Qði; jÞÞ ð9Þ for each 0i, j <8. Finally, to extract the secret data hidden in position (i, j), the value F(i, j)− 0.5 can be used to ¯nd the value A(i, j) by Eq. (7). Then the decimal value

~

Xði; jÞ equivalent to the binary hidden secret bits is extracted by ~

Xði; jÞ ¼ ~F ði; jÞ Aði; jÞ: ð10Þ

(8)

3.2. Our embedding process Main algorithm for embedding:

Input: The data to be hidden; the JPEG compression code of a cover image; two user-de¯ned integer parameters level2 f1; 2; 3g and num 2 f1; 2; . . . ; 32g. Pre-processing: Apply JPEG entropy decoding to the given JPEG code and get all

quantized-blocks fFg (of size 88 each), and the 88 quantiza-tion table Q.

Main phases:

Phase 1: Plug the level value in Eq. (11) to construct an 88 \hiding-capacity table" called HC from elements of table Q. (HC is calculated only once; i.e. just like level and num, HC is also universal for all blocks of the given image.) Now, use Q and HC to create the 88 modi¯ed quantization table

~

Q by Eq. (14).

Phase 2: For each quantized-block F, sequentially grab and embed the not-hidden-yet data bits in the ¯rst num quantized-coe±cients of F. This transforms F to ~F . Then, encode each stego-block ~F by JPEG entropy coding. Output: Output the JPEG stego-code, i.e. the header ~Q and the sequence of the

stego-blocks ~F . (Also include parameter num and original table Q for

secret-extraction purpose.) END

Below we discuss the details about the Tables-Construction phase (Phase 1) and Data-Embedding phase (Phase 2).

Details about Phase 1. (Construction of 88 hiding-capacity table HC and 88 modi¯ed quantization table ~Q)

For 0i, j < 8, let HC(i, j), ~Qði; jÞ, and Q(i, j) denote, respectively, the element at ith row and jth column of the 88 hiding-capacity table HC, our modi¯ed quantization table ~Q, and the original JPEG quantization table Q. All these three tables are universal, i.e. the same tables are used for all blocks of the image. Notably, the block-independency of HC is quite di®erent from the block-dependency of the hiding tableC ¼ C_Fused in Ref.21, as mentioned in the fourth paragraph in Sec.2. Let HC(i, j) be the number of secret bits to be embedded in JPEG quantized-coe±cient F(i, j) to get our stego quantized-quantized-coe±cient ~F ði; jÞ. The value of each integer HC(i, j) is randomly chosen from the range

minflevel; blog2Qði; jÞcg HCði; jÞ blog2Qði; jÞc ð11Þ Below we explain why HC(i, j ) should depend on the original JPEG quantization table Q and the user-de¯ned integer parameter level.

As proved later in the Range Property, Eqs. (7) and (8) imply thatbQði; jÞ= ~

Qði; jÞc Bði; jÞ Aði; jÞ dQði; jÞ= ~Qði; jÞe. Therefore, in the half-open interval [A(i, j ), B(i, j )), there are at mostbQði; jÞ= ~Qði; jÞc integer points. As mentioned in

(9)

Sec.3.1, we will only use integer points as candidates for ~F ði; jÞ. To embed HC(i, j) binary-bits in F(i, j) to get ~F ði; jÞ, there are 2HCði;jÞ possible combinations of the input secret bits, i.e. 00 000; 00 001; 00 010; etc. The embedding of each combination corresponds to one of the integer points located in the half-open interval [A(i, j), B(i, j)). Therefore,

2HCði;jÞ bQði; jÞ= ~Qði; jÞc ð12Þ

is required for each 0i, j < 8. Now, because both the values of ~Qði; jÞ and Q(i, j) are integers between 1 and 255, we havebQði; jÞ= ~Qði; jÞc bQði; jÞc Qði; jÞ, and therefore

2HCði;jÞQði; jÞ: ð13Þ

This explains why Q(i, j) appears in Eq. (11) to evaluate HC(i, j). As for the integer parameter level, it also appears in Eq. (11) because if we directly let HC(i; jÞ ¼ blog2Qði; jÞc; then by Eq. (14), the corresponding ~Qði; jÞ in the modi¯ed quantiza-tion table ~Q will be bQði; jÞ=2HCði; jÞc ¼ bQði; jÞ=2blog2Qði; jÞcc ¼ 1. Then the ¯rst num

elements in the modi¯ed quantization table ~Q are all 1, and attackers may feel suspicious. On the other hand, letting HC(i; jÞ blog2Qði; jÞc will give us more choices; and, by giving HC(i, j) a lower bound involving level, we can control the hiding rate, as will be shown later in Tables13.

Finally, to determine the 88 modi¯ed quantization table ~Q, Eq. (12) implies 2HCði;jÞ bQði; jÞ= ~Qði; jÞc Qði; jÞ= ~Qði; jÞ, and because both Q(i, j) and ~Qði; jÞ are positive integers, we have ~Qði; jÞ Qði; jÞ=2HCði;jÞ. Therefore, the ~Qði; jÞ of our modi¯ed quantization table ~Q is simply de¯ned as

~

Qði; jÞ ¼ bQði; jÞ=2HCði;jÞ_c; _ð14Þ where 0i, j < 8. Equation (14) also implies that

HCði; jÞ ¼ blog2ðQði; jÞ= ~Qði; jÞÞc: ð15Þ Range Property:bQði; jÞ= ~Qði; jÞc Bði; jÞ Aði; jÞ dQði; jÞ= ~Qði; jÞe Proof. (i) Proof of the upper bound:

Bði; jÞ Aði; jÞ ¼ bðFði; jÞ þ 0:5Þ Qði; jÞ= ~Qði; jÞc bðFði; jÞ 0:5Þ Qði; jÞ= ~Qði; jÞc ¼ bðFði; jÞ 0:5 þ 1Þ Qði; jÞ= ~Qði; jÞc

bðFði; jÞ 0:5Þ Qði; jÞ= ~Qði; jÞc

¼ bðFði; jÞ 0:5Þ Qði; jÞ= ~Qði; jÞ þ Qði; jÞ= ~Qði; jÞc bðFði; jÞ 0:5Þ Qði; jÞ= ~Qði; jÞc

bðFði; jÞ 0:5Þ Qði; jÞ= ~Qði; jÞc þ dQði; jÞ= ~Qði; jÞe bðFði; jÞ 0:5Þ Qði; jÞ= ~Qði; jÞc

¼ dQði; jÞ= ~Qði; jÞe:

(10)

(ii) Proof of the lower bound:

Bði; jÞ Aði; jÞ ¼ bðFði; jÞ þ 0:5Þ Qði; jÞ= ~Qði; jÞc bðFði; jÞ 0:5Þ Qði; jÞ= ~Qði; jÞc ¼ bðFði; jÞ þ 0:5Þ Qði; jÞ= ~Qði; jÞc

bðFði; jÞ þ 0:5 1Þ Qði; jÞ= ~Qði; jÞc ¼ bðFði; jÞ þ 0:5Þ Qði; jÞ= ~Qði; jÞc

bðFði; jÞ þ 0:5Þ Qði; jÞ= ~Qði; jÞ Qði; jÞ= ~Qði; jÞc bðFði; jÞ þ 0:5Þ Qði; jÞ= ~Qði; jÞc

bðFði; jÞ þ 0:5Þ Qði; jÞ= ~Qði; jÞc þ bQði; jÞ= ~Qði; jÞc ¼ bQði; jÞ= ~Qði; jÞc:

Details about Phase 2. (Hiding secret data in quantized-blocks fFg to get f ~F g)

As stated earlier, the HC and ~Q motioned below are block-independent and will be used universally for all 88 blocks of the given image.

Input: (i) The JPEG compression code of a cover image. (ii) The values of two integer parameters level (1level 3) and num (1 num 32).

Step 1. Decode the JPEG compression code using JPEG entropy decoding to get (i) an 88 quantization table Q, and (ii) \all" quantized-blocksfFg formed of 64 quantized-coe±cients each.

Step 2. Use Eqs. (11) and (14) to compute the ¯rst num elements of the 88 hiding-capacity table HC and the 88 modi¯ed quantization table

~

Q. The values of other 64–num entries of HC are set to zeros, and the values of other 64–num entries of ~Q are copied from the corre-sponding 64–num entries of Q.

Step 3. Repeat Steps 3a–3b below in a block-by-block manner, until all quantized-blocksfFg are inspected.

Sub-step 3a. For the ¯rst num quantized-coe±cients fFði; jÞg of an 88 quan-tized-block F currently being inspected, use Eq. (7) to get A(i, j) from F(i, j). Then sequentially grab next HC(i, j) not-yet-embedded bits from the secret data, and let X(i, j) be its decimal-value equiv-alent. Compute the desired stego quantized-coe±cient ~F ði; jÞ by

~

F ði; jÞ ¼ Aði; jÞ þ Xði; jÞ: ð16Þ Then overwrite F(i, j) by ~F ði; jÞ because F(i, j) is no longer needed. Sub-step 3b. Apply JPEG entropy coding to the embedded quantized-block ~F .

Step 4. Use the modi¯ed quantization table ~Q as the JPEG ¯le header. This completes the generation of the JPEG stego-code. – END –

(11)

After the JPEG stego-code has been generated using the preceding procedure, the original quantization table Q and user-de¯ned parameter num should also be transmitted together with the produced JPEG stego-code to the receiver. By doing this, the receiver can know both Q and its modi¯ed table ~Q, which are essential for decoding.

3.3. Decoding (Extraction of hidden data and lossless recovery of JPEG compression code)

When a user receives our JPEG stego-code (consisting of a modi¯ed quantization table ~Q and the entropy-coding results of a sequence of stego quantized-blocks f ~F gÞ, if he also knows the original JPEG quantization table Q and the value of integer parameter num, then he can extract the secret data, followed by reconstructing the original JPEG-compression code. Details are as follows:

Secret Extraction and JPEG-Compression-Code Reversibility Algorithm: Input: (i) Our JPEG stego-code (consisting of a header, which is an 88 modi-¯ed quantization table ~Q, and the entropy-coding-result of a sequence of stego quantized-blocksf ~F g). (ii) Original 88 JPEG quantization table Q. (iii) The value of the integer parameter num (1 num 32). Step 1. Get the 88 modi¯ed quantization table ~Q. Then apply JPEG entropy

decoding to JPEG stego-code, and thus get all stego quantized-blocks f ~F g.

Step 2. Recover the ¯rst num entries of the 88 hiding-capacity table HC by Eq. (15).

Step 3. Repeat Steps 3a–3b below in a block-by-block manner until all stego quantized-blocksf ~F g are inspected.

Step 3a. For the ¯rst num stego quantized-coe±cientsf ~F ði; jÞg of the 88 stego quantized-blocks ~F currently being inspected, inverse transform each

~

F ði; jÞ back to F(i, j) by Eq. (9). Then transform F(i, j)− 0.5 to A(i, j) by Eq. (7). Extract the decimal equivalent ~Xði; jÞ of the secret bits by Eq. (10), i.e. ~Xði; jÞ ¼ ~F ði; jÞ Aði; jÞ. Then overwrite ~F ði; jÞ by F(i, j). So we obtain not only the secret data ~Xði; jÞ hidden in ~F ði; jÞ, but also the original JPEG quantized-coe±cient F(i, j) at current block position. Step 3b. Other than the original JPEG quantized-coe±cients (at current block

position) which can be used to reconstruct JPEG image immediately, if JPEG code is also wanted for recycling-use or economic-storage reason, then encode the current (secret-already-extracted) quantized-block F using JPEG entropy coding.

Step 4. Put the original quantization table Q in the header of the JPEG ¯le. This completes the reconstruction of the original JPEG compression code, without any loss.

(12)

4. Experimental Results, Comparisons, and Discussions 4.1. Experimental results and comparisons

Firstly, six 512512 gray-level images, Lena, Jet, Boat, Peppers, Baboon, and Zelda, are tested in our experiments. As a preprocessing, they are all compressed using the JPEG source code provided by the fourth public release of the Independent JPEG Group's free JPEG software. The quality factor QF (between 0 and 100) in that JPEG software is used to adjust the quality of the decompressed image. As known by every user, the higher the QF, the larger the created JPEG ¯le (and the better quality of the decompressed image). The to-be-hidden secret data are a random bit stream. The peak-signal-to-noise ratio

PSNR¼ 10 log10 2552

MSE ð17Þ

is used to measure the stego-image quality where MSE denotes the mean square error between the pixel values of the original image (without compression) and the decoded stego-image.

Figures3(a)and3(d)show, respectively, the decompressed JPEG images of Lena and Jet when no hiding method is used. Figures3(b)and3(e)show, respectively, our decompressed JPEG stego-images after the 248 K bits of the secret data are embedded

(a) (b) (c)

(d) (e) (f)

Fig. 3. Images decompressed from JPEG codes. (a) The 41.75 dB JPEG image Lena decompressed from the JPEG code without any hidden secret. (b) The 39.12 dB Lena decompressed from our JPEG stego code after hiding a secret of size 253,952 bits. (c) The decrypted−decompressed Lena (identical to (a)) derived from our JPEG stego code. (d)(f) Same as (a)(c) except that the image Lena is replaced by Jet, and the PSNRs of (d) to (f) are 41.15 dB, 38.75 dB, and 41.15 dB, respectively.

(13)

into the JPEG codes of Lena (or 248 K bits into Jet) when our parameters arelevel ¼ 2 andnum ¼ 32. Figures3(c)and3(f)show our \decrypteddecompressed" images from Figs.3(b)and3(e), respectively. The quality factorQF ¼ 85 is adopted for all ¯gures in Fig.3.

Table 1(for image Lena) and Table 2(for image Jet) give a comparison of our reversible JPEG-based method with nonreversible JPEG-based methods3,21,22_when the input is a JPEG-QF85 code (created when a gray-value image is compressed using JPEG with JPEG's quality factorQF ¼ 85). For simplicity, in the 88 hiding capacity table HC, set each entry value HC(i, j) to the left-hand-side value of Eq. (11). The comparisons in Table1include hiding capacity (size of hidden secret), hiding ratio (size of hidden secret over size of JPEG stego-code), and the PSNR value of the stego-image. It is observed that our method provides higher hiding capacity, better hiding ratio, while maintaining acceptable quality of stego-images. For ex-ample, Table1shows that we get PSNR¼ 39.12 when hiding capacity is 253,952 bits with hiding ratio 35.23%; while Ref.3 gets PSNR ¼ 29.64 (<39.12) when hiding capacity is 212,992 bits (<253,952 bits) with hiding ratio being 30.0% (<35.23%). Similarly, we can get PSNR¼ 41.11 when hiding capacity is 122,880 bits and hiding ratio is 23.16%; while Ref.22gets PSNR¼ 40.70 (<41.11) when hiding capacity was 31,933 bits (<122,880 bits) with hiding ratio being 8.85% (<23.16%). Similarly, Ref.21gets PSNR¼ 38.10 (<41.11) when hiding capacity is 54,652 bits (<122,880 bits) with hiding ratio being 14.0% (<23.16%). Most of all, after the secret data have

Table 1. A comparison of our reversible method with some nonreversible JPEG-based methods3,21,22 when the gray-value image Lena is compressed using JPEG with the quality factorQF ¼ 85. All numerical data (except ours) are quoted from Ref.21directly. Notably, our \decrypteddecompressed" JPEG image is 100% identical to the decompressed JPEG image because of our reversibility.

User-De¯ned User-De¯ned Capacity Hiding Hiding Stego

Parameter Parameter Factor Capacity Ratio PSNR

(num) (level) () (bits) (%) (dB)

JPEG 41.75

Jsteg22 31,933 8.85% 40.70

Chang et al.3 212,992 30.0% 29.64

Tseng and Chang21 0.18 33,790 8.68% 40.21

0.36 51,161 13.2% 38.91 0.5 54,652 14.0% 38.10 0.75 62,612 16.1% 36.87 1.0 63,083 16.2% 36.56 Ours 16 1 65,536 14.78% 40.99 24 1 98,304 19.74% 40.10 32 1 131,072 23.33% 38.22 16 2 122,880 23.16% 41.11 24 2 188,416 30.01% 40.53 32 2 253,952 35.23% 39.12 16 3 126,976 23.60% 41.13 24 3 208,896 31.76% 40.49

(14)

been extracted, our method can reconstruct the original JPEG-QF85 code, but Refs.3, 21and22cannot.

Having compared our method with nonreversible methods,3,21,22 _{we compare} below with other reversible methods. Both Refs.4and6are reversible. However, the original purpose in Ref.6was to authenticate the JPEG compression code (the hidden secret is a much smaller authentication watermark [about 4 K bits], rather than our larger-size secret [can be as large as 248 K bits]), and hence not in the same application group as ours or Refs.3,4,21and22. Therefore, we omit the comparison with Ref.6. Figure4compares two reversible methods: ours and in Ref.4. Figures4(a)4(c), respectively, compare stego-image quality, hiding capacities (size of the secret hidden in the JPEG stego-code), and hiding ratios (size of the secret over size of the JPEG stego-code) for the gray-image Lena. Figure 4(d) compares the average size of the stego-codes created by Ref.4and by ours (the average is calculated among six images Lena, Jet, Boat, Peppers, Baboon and Zelda). The two parameters used in our method arelevel ¼ 2 and num ¼ 16. As shown in Figs. 4(a)4(c), our stego-image quality, hiding capacity, and hiding ratio are all better than those in Ref.4. Although we win in Figs.4(a)4(c), our code size would be less attractive than that in Ref.4. This is shown in Fig.4(d). The explanation is as follows. In general, larger level value is suitable only if we have a very big-size secret (such as those in Fig.4(b)) because level ¼ 2 gives us higher hiding-capacity and higher hiding-ratio at the price of longer output code. (This trade-o® is still worthy and more e±cient because hiding ratio is high. It is just like paying more money (1.2 to 1.6 times more in Fig.4(d)) to get much more goods (could be three times more, see Fig.4(b)).

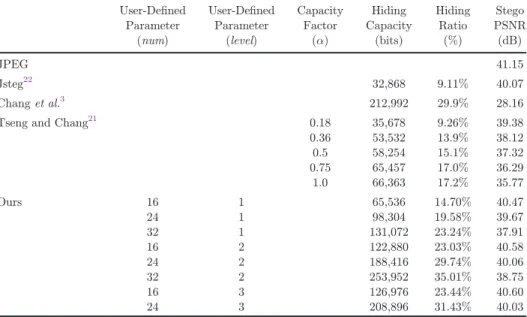

Table 2. Similar to Table1, except that the image Lena is replaced by the image Jet. User-De¯ned User-De¯ned Capacity Hiding Hiding Stego

Parameter Parameter Factor Capacity Ratio PSNR

(num) (level) (Þ (bits) (%) (dB)

JPEG 41.15

Jsteg22 32,868 9.11% 40.07

Chang et al.3 212,992 29.9% 28.16

Tseng and Chang21 0.18 35,678 9.26% 39.38

0.36 53,532 13.9% 38.12 0.5 58,254 15.1% 37.32 0.75 65,457 17.0% 36.29 1.0 66,363 17.2% 35.77 Ours 16 1 65,536 14.70% 40.47 24 1 98,304 19.58% 39.67 32 1 131,072 23.24% 37.91 16 2 122,880 23.03% 40.58 24 2 188,416 29.74% 40.06 32 2 253,952 35.01% 38.75 16 3 126,976 23.44% 40.60 24 3 208,896 31.43% 40.03

(15)

(a)

(b)

(c)

(d)

Fig. 4. Comparing two reversible methods: Ref.4and ours (when our parameters arelevel ¼ 2 and num ¼ 16). The comparisons are (a) stego-images' quality, (b) hiding capacities, (c) hiding ratio, and (d) average size of the obtained JPEG stego-codes. (a)(c) are for the gray-value image Lena; while the average in (d) is taken among six gray-value imagesfLena, Jet, Boat, Peppers, Baboon, and Zeldag.

(16)

If a user wants to reduce the output code size, he may reduce the not-small gains in hiding capacity and hiding ratio by using lower level value (i.e. letlevel ¼ 1) and lower num value. One such example is given in Fig.5where the two parameters used by our method are level ¼ 1 and num ¼ 10. It is observed that our three curves in Figs.5(a)5(c)are still a little bit more competitive than those in Ref.4while our code-size curve in Fig.5(d)gets a tie with those in Ref.4. In all experiments above, when we count our stego-code size, we already include the space for the parameter num and two quantization tables Q and ~Q.

4.2. Parameters setting and security analysis

From the discussion in the ¯nal two paragraphs of Sec.4.1, we have the following rules to determine the two parameter values. As a key rule,level ¼ 1 is for secrets of mod-erate size,level ¼ 2 or 3 is for secrets of very large size. After the level value has been

(a)

(b)

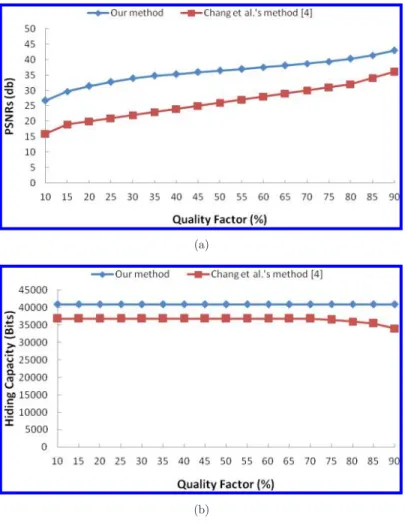

Fig. 5. Same as Fig.4(but the two parameters are nowlevel ¼ 1 and num ¼ 10).

(17)

determined, then adjust value of num. For a ¯xed level value, larger num value means more hiding capacity and also means more e±cient hiding ratio, but the code size will increase and the PSNR value of the stego-image will slightly go down. Therefore, when the num value is adjusted, start from a moderate num value such asnum ¼ 16. If the secret is too large to be hidden in, then increase num value, else decrease num slightly to reduce the size of the output JPEG stego-code as long as the secret can still be hidden in after the cut of num value.

In the proposed method, under the same num value, using a higher level to force the use of higher HC(i, j) values [see Eq. (11)] can yield higher hiding-capacity (than using lower level and lower HC(i, j) values) because HC(i, j) means the hiding capacity (number of hidden bits can be embedded) in a quantized-coe±cient. Higher HC(i, j) values naturally increase the hiding capacity of the whole image. Also note that a little improvement (but not as obvious as the bene¯ts in hiding capacity) of the stego-image quality might be obtained by using higher level value, especially when we compare the PSNR value oflevel ¼ 2 with that of using level ¼ 1.

(c)

(d) Fig. 5. (Continued )

(18)

We may conduct another experiment to observe this phenomenon. Let the gray-value image Lena be compressed by JPEG usingQF ¼ 75. Then, the obtained JPEG code is utilized to hide the secret using various settings of level and num values. For simplicity, the value of each entry HC(i, j) in the 88 hiding capacity table HC is set to be the left-hand side value of Eq. (11). From this assignment rule, using higher level value really gives higher hiding capacity, as shown in Table 3, from which we also see that the capacity and PSNR bene¯ts are less obvious when level value jumps from 3 to 4. The reason is that the ¯rst 32 values of blog2Qði; jÞc are all in the range f1; 2; 3; 4g when QF ¼ 75 or 85, and according to the assignment rule, the chosen values of HC(i, j) are almost identical no matterlevel ¼ 3 or 4. (They all get HC(i, j)¼ blog2Qði; jÞc if blog2Qði; jÞc is 1 or 2 or 3. The only di®erence occurs when blog2Qði; jÞc ¼ 4. In that case, level ¼ 4 implies HC(i, j)¼ blog2Qði; jÞc ¼ 4 while level ¼ 3 allows HC(i, j) can be 3 or 4 by Eq. (11). In summary, HC(i, j) values are almost identical between the two caseslevel ¼ 3 and level ¼ 4.) But HC(i, j) values can be very di®erent between the two caseslevel ¼ 1 and level ¼ 2, as can be seen from Eq. (11). Since using level ¼ 4 does not get much more hiding capacity than using level ¼ 3 does, using level 4 is not recommended for security concern. As a summary, we recommend level values 2 and 3. (Skip the use of level ¼ 1 if very large hiding capacity is required.) Also, for security concern again, if level value 3 is used, we recommend that the num value had better be at most 24 because num ¼ 32 will abnormally enlarge the size of JPEG stego-code. (The stego-code will be 98,933 bytes for Lena if (level, num)¼ (3, 32), and hence does not stay in ordinary plain JPEG code's length range 8,11994,581 bytes.)

Because our method is a steganography scheme, and, as suggested by one of the reviewers, for a steganography scheme, the security of secret data should be tested. Therefore, we run Provos's Stegdetect steganography test program17and Guillermito's

Table 3. The hiding capacity, hiding ratio, and stego-image quality of the proposed method with di®erent level and num values. The gray-value image is the Lena compressed by JPEG with the quality factorQF ¼ 75.

(level, num) Hiding Capacity (bits) Hiding Ratio (%) Stego PSNR (dB)

(1, 16) 65,536 18.91% 38.56 (2, 16) 131,072 28.56% 38.87 (3, 16) 163,840 32.38% 38.94 (4, 16) 167,936 32.81% 38.96 (1, 24) 98,304 24.15% 37.09 (2, 24) 196,608 35.76% 37.78 (3, 24) 262,144 41.07% 37.91 (4, 24) 278,528 41.96% 37.96 (1, 32) 131,072 27.60% 34.48 (2, 32) 262,144 40.59% 35.59 (3, 32) 360,448 46.74% 35.95 (4, 32) 405,504 47.40% 35.81

(19)

Chi-Square test program8_{to test the security of our generated JPEG stego-codes. The} Stegdetect attack is mentioned in Ref.18 and used in Refs. 7, 11,14 and 19. Our method can resist these attacks. (Both Chi-square and Stegdetect are tools that can be used by unauthorized users to detect whether or not a stego-image or a JPEG code contains some secret.)

For the Chi-square attack, Guillermito's Chi-square steganography test program8 is used to perform statistical analysis. Figure 6(a) shows the 512512 gray-level image Lena without hiding any secret. Figure6(b) shows the stego-image obtained by embedding some secret into Fig. 6(a) using 1-LSB substitution method. Figure6(c)shows our decompressed JPEG stego-image Lena (the secret is still in it and not yet extracted), when two parameters are level ¼ 2 and num ¼ 32. Figures6(d)6(f) show, respectively, the results when performing the Chi-square steganography test program in Figs.6(a)6(c). The cross curve checks the prob-ability that pairs of values follow a random distribution, and the circular one rep-resents the average value of all LSBs in one block of pixels. According to the examples in Sec. 3.5 in Ref.8, each circular curve in Figs.6(d)6(f) will not cause unauthorized users' attention because each circular curve in Figs. 6(d)6(f) is around 0:5 ¼ ð0 þ 1Þ=2.

However, the cross curve in Fig.6(e)is close to one. This gives unauthorized users some information: very likely that some secret data were embedded in the corre-sponding stego-image (Fig. 6(b), the stego-image for 1-LSB method). To the con-trary, both cross curves in Figs. 6(d) and 6(f) are close to zero. This gives unauthorized users the probabilities that some secret data in the original image [Fig.6(a)] or in our stego-image [Fig.6(c)] are both close to zero (hence, very low). As for the Stegdetect attack, the 512512 24-bit color image Lena is compressed by JPEG withQF ¼ 85 and then used as the input JPEG code to embed the secret for several JPEG hiding methods (Refs. 13, 17, 22, 25 and ours). Then, Provos's Stegdetect steganography test program17_{is applied to detect whether the generated} JPEG steg-codes (for Refs.13,17,22and25and ours) contain the secret or not.

Figure7(a)is the decompressed color image Lena which does not hide any secret in the input JPEG code called \OriginalLena.jpg". When people use the hiding methods F5,25 _JPHide,13 _Jsteg,22 _{and OutGuess}17 _{to hide data in \OriginalLena.} jpg", let the created JPEG stego-codes be \Stego-of-F5.jpg", \Stego-of-JPHIDE. jpg", \Stego-of-JSTEG.jpg", and \Stego-of-OUTGUESSOLD.jpg", respectively. Figures7(b)7(e)show the four JPEG stego-images decompressed from these four JPEG stego-codes. Figures7(f)7(m) show our JPEG stego-images decompressed from our eight JPEG stego-codes (the secret is still in it and not yet extracted) when two parameters (level, num) are (1, 16), (1, 24), (1, 32), (2, 16), (2, 24), (2, 32), (3, 16), (3, 24), correspondingly. Here, our method uses only the quantized DCT coef-¯cients of the brightness component Y of the input JPEG code \OriginalLena.jpg" to embed the secret. The color components Cb and Cr are not used in hiding to minimize the color distortion in the embedded image (as suggested by, or used in, Refs.2,4and10).

(20)

When we use the Stegdetect detection tool (introduced in Ref.18 and used in Ref. 7, 11,14 and19) to analyze whether a secret is hidden in a JPEG code, four stego-codes \Stego-of-F5.jpg", \Stego-of-JPHIDE.jpg", \Stego-of-JSTEG.jpg", and \Stego-of-OUTGUESSOLD.jpg" yield strongest response (the highest score _in terms of the measure is provided by Ref.18) indicating these JPEG stego-codes must contain some hidden data. (The same phenomenon exists when the role of the image Lena is replaced by Jet or other images.) However, when the JPEG stego-codes created by ours are tested by Stegdetect tool, all of our JPEG stego-codes can pass the Stegdetect test (all the responses are \negative", rather than _or _or _{), no} matter the image is Lena, Jet, Boat, Peppers, Baboon, or Zelda. In other words, the

(a) (b) (c)

(d)

(e)

(f)

Fig. 6. An example of the statistical attack using Chi-square analysis. (a) Gray-level image Lena without hiding any secret; (b) the stego-image Lena when embedding secret using 1-bit LSB substitution method; (c) image decompressed from our JPEG stego-code Lena (the secret is still inside and not-yet extracted); (d) Chi-square result of the original image [Fig. 6(a)]; (e) Chi-square result of the 1-LSB stego-image [Fig.6(b)]; (f) Chi-square result of our JPEG stego-image [Fig.6(c)].

(21)

unauthorized user will let our JPEG stego-codes pass if he uses Stegdetect tool to detect our codes.

Finally, we discuss the size of our product. The size of the JPEG code (without hiding any secret) for the gray-level image Lena with the quality factors from 10 to 95

(a) (b) (c) (d)

(e) (f) (g) (h)

(i) (j) (k) (l)

(m) (n)

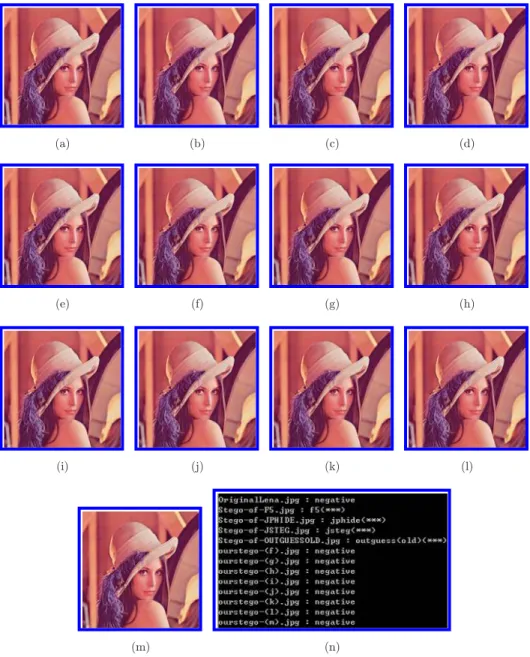

Fig. 7. Results of Stegdetect analysis: (a) the image decompressed from the JPEG-Q85 code without any hidden secret; (b)(e) the stego-images decompressed from the JPEG stego-codes for F5,25_JPHide,13 Jsteg,22OutGuess,17respectively. (f)(m) the images decompressed from our eight JPEG stego-codes, respectively; (n) the results of Stegdetect analysis of the thirteen JPEG stego-codes, the decompressed images of which are in (a)(m).

(22)

is between 8,119 and 94,581 bytes. The size of our JPEG stego-codes listed in Table1

are 55,432; 62,236; 70,237; 66,307; 78,484; 90,114; 67,257; and 82,207 bytes when the two parameters (level, num) are (1, 16); (1, 24); (1, 32); (2, 16); (2, 24); (2, 32); (3, 16); and (3, 24); respectively. Therefore, people will not feel strange about the sizes of our JPEG stego-codes because they fall in the reasonable range from 8,119 to 94,581 bytes. Similar observation exists when the image Lena is replaced by Jet or others.

5. Summary

This paper proposes a JPEG-based hiding method with high capacity, high hiding-ratio, and reversibility to recover JPEG-compression code. The JPEG compression code of an image is used as the input cover media. Equation (11) creates an 88 hiding-capacity table HC according to the original 88 JPEG quantization table Q. Then Eq. (14) uses the table HC to create an 88 modi¯ed quantization table ~Q. The obtained tables HC and ~Q are used universally for all blocks of the image. After that, according to the 88 tables Q and ~Q, the secret data are embedded in JPEG quantized-blocksfFg to get our stego quantized-blocks f ~F g, which are then encoded using JPEG entropy coding. The hiding capacity and hiding ratio are adjustable by changing values of two integer parameters level and num. The proposed method can also resist the Chi-square and Stegdetect attacks so that the unauthorized users will not notice the existence of the hidden secret data.

In decoding, after lossless extraction of the secret data, the original JPEG com-pression code can also be reconstructed. Experimental results show that our method provides high hiding-capacity and high hiding-ratio, while maintaining good quality of stego-images. As shown in Tables 12 and Figs.45, our method can compete with other JPEG-based hiding methods.3,4,21,22_{The proposed method is useful for} images stored and transmitted in JPEG format. The reversibility allows the recov-ered JPEG code to be used again and again, without any degrading even after in¯nitely many times of rehiding.

Acknowledgments

This work is supported by National Science Council, Taiwan, R.O.C., under Grant NSC 96-2221-E-009-039. The authors also thank the three reviewers for valuable suggestions.

References

1. J. M. Barton, Method and apparatus for embedding authentication information within digital data, U.S. Patent 5646997 (1997).

2. J. J. Chae and B. S. Manjunath, Data hiding in video, Proc. 6th IEEE Int. Conf. Imag. Process. 1(1) (1999) 311315.

(23)

3. C. C. Chang, T. S. Chen and L. Z. Chung, A steganographic method based upon JPEG and quantization table modi¯cation, Inform. Sci. 141(1) (2002) 123138.

4. C. C. Chang, C. C. Lin, C. S. Tseng and W. L. Tai, Reversible hiding in DCT-based compressed images, Inform. Sci. 177(14) (2007) 27682786.

5. C. C. Chang, M. H. Lin and Y. C. Hu, A fast and secure image hiding scheme based on LSB substitution, Int. J. Patt. Recogn. Artif. Intell. 16(4) (2001) 399416.

6. J. Fridrich, M. Goljan and R. Du, Invertible authentication watermark for JPEG images, in Proc. ITCC, Las Vegas, Nevada (2001), pp. 223227.

7. F. Goel, M. Garuba, C. Liu and T. Nguyen, The security threat posed by steganographic content on the Internet, Proc. 4th IEEE Int. Conf. Information Technology (2007), pp. 794798.

8. Guillermito, Chi-square Steganography Test Program, http://www.guillermito2.net/ stegano/tools/index.html.

9. Y. C. Hu and M. H. Lin, Secure image hiding scheme based upon vector quantization, Int. J. Patt. Recogn. Artif. Intell. 18(6) (2004) 11111130.

10. M. Iwata, K. Miyake and A. Shiozaki, Digital steganography utilizing features of JPEG images, IEICE Trans. Fund. E87-A(4) (2004) 929936.

11. G. C. Kessler, An overview of steganography for the computer forensics examiner, For-ensic Sci. Commun. 6(13) (2004) 4548.

12. H. Kobayashi, Y. Noguchi and H. Kiya, A method of embedding binary data into JPEG bitstreams, IEICE Trans. Inform. Syst. 2(6) (2000) 14691476.

13. A. Latham and J. P. Hide, http://linux01.gwdg.de/alatham/stego.html.

14. H. Malik, R. Chandramouli and K. P. Subbalakshmi, Steganalysis: Trends and Chal-lenges, in Multimedia Forensics and Security, ed. C. T. Li (Idea Group Publishing, 2008), p. 257.

15. W. B. Pennebaker and J. L. Mitchell, JPEG Still Image Data Compression Standard, (Van Nostrand Reinhold, New York, 1993).

16. OpenJPEG, http://www.openjpeg.org.

17. N. Provos, OutGuess and Stegdetect Steganography Test Program, http://www.out-guess.org/download.php.

18. N. Provos and P. Honeyman, Detecting steganographic content on the Internet, Center for Information Technology Integration Technical Report (2001) 111.

19. N. Provos and P. Honeyman, Hide and seek: An introduction to steganography, IEEE Security and Privacy 1(3) (2003) 3244.

20. C. C. Thien and J. C. Lin, A simple and high-hiding capacity method for hiding digit-by-digit data in images based on modulus function, Patt. Recogn. 36(13) (2003) 28752881. 21. H. W. Tseng and C. C. Chang, High capacity data hiding in JPEG-compressed images,

Informatica 15(1) (2004) 127142.

22. D. Upham, Jsteg, http://packetstormsecurity.org/crypt/stego/DOS/jsteg.zip.

23. R. Z. Wang and Y. D. Tsai, An image-hiding method with high hiding capacity based on best-block matching and k-means clustering, Patt. Recogn. 40(2) (2007) 398409. 24. S. J. Wang, Steganography of capacity required using modulo operator for embedding

secret image, Appl. Math. Comput. 164 (2005), pp. 99116.

25. A. Westfeld, F5, http://wwwrn.inf.tu-dresden.de/%7Ewestfeld/f5.html.

26. D. C. Wu and W. H. Tsai, A steganographic method for images by pixel-value di®er-encing, Patt. Recogn. Lett. 24 (2003) 16131626.

27. H. C. Wu, N. I. Wu, C. S. Tsai and M. S. Hwang, Image steganographic scheme based on pixel-value di®erencing and LSB replacement methods, IEE Proc. Vis. Imag. Sign. Process. 152(5) (2005) 611615.

(24)

Lee Shu-Teng Chen received his B.S. in com-puter and information science from National Chiao Tung University (NCTU), Taiwan, in 1999, and M.S. in com-puter science and infor-mation engineering from National Taiwan Univer-sity, Taiwan, in 2001. He is a Ph.D. candidate in the Department of Computer Science and Information Engineering at NCTU. His current research interests include data hiding and image sharing.

Sian-Jheng Lin received his B.S. and M.S. in com-puter and information sci-ence from NCTU, Taiwan, in 2004 and 2006, respect-ively. He is a Ph.D. candi-date in the Department of Computer Science and In-formation Engineering at NCTU.

His current research interests include image sharing and image processing.

Ja-Chen Lin received his B.S. and M.S. from NCTU, Taiwan. In 1988 he received his Ph.D. in mathematics from Purdue University, West Lafay-ette, Indiana. He joined the Department of Com-puter Science and Infor-mation Engineering at NCTU, where he became a professor.

His research interests include pattern recog-nition and image processing. He is a member of the Phi-Tau-Phi Scholastic Honor Society.

(25)

1. Che-Wei Lee, Wen-Hsiang Tsai. 2013. A data hiding method based on information sharing via PNG images for applications of color image authentication and metadata embedding. Signal Processing . [CrossRef]
