Crystal Structure of [Ni3(dpa)4(NO3)2]: Axial Replacement of Metal String Complexes

全文

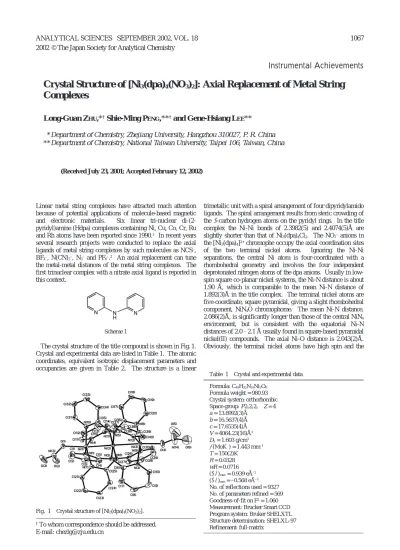

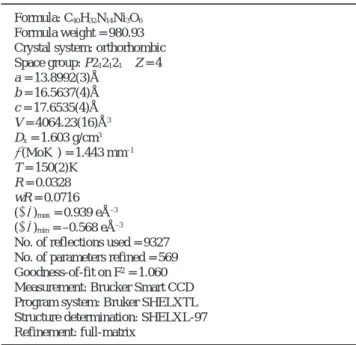

(1)ANALYTICAL SCIENCES SEPTEMBER 2002, VOL. 18 2002 © The Japan Society for Analytical Chemistry. 1067. Instrumental Achievements. Crystal Structure of [Ni3(dpa)4(NO3)2]: Axial Replacement of Metal String Complexes Long-Guan ZHU,*† Shie-Ming PENG,**† and Gene-Hsiang LEE** *Department of Chemistry, Zhejiang University, Hangzhou 310027, P. R. China **Department of Chemistry, National Taiwan University, Taipei 106, Taiwan, China. (Received July 23, 2001; Accepted February 12, 2002). Linear metal string complexes have attracted much attention because of potential applications of molecule-based magnetic and electronic materials. Six linear tri-nuclear di-(2pyridyl)amine (Hdpa) complexes containing Ni, Cu, Co, Cr, Ru and Rh atoms have been reported since 1990.1 In recent years several research projects were conducted to replace the axial ligands of metal string complexes by such molecules as NCS–, BF4–, N(CN)2–, N3– and PF6–.2 An axial replacement can tune the metal-metal distances of the metal string complexes. The first trinuclear complex with a nitrate axial ligand is reported in this context.. Scheme 1. The crystal structure of the title compound is shown in Fig. 1. Crystal and experimental data are listed in Table 1. The atomic coordinates, equivalent isotropic displacement parameters and occupancies are given in Table 2. The structure is a linear. trimetallic unit with a spiral arrangement of four dipyridylamido ligands. The spiral arrangement results from steric crowding of the β-carbon hydrogen atoms on the pyridyl rings. In the title complex the Ni–Ni bonds of 2.3982(5) and 2.4074(5)Å are slightly shorter than that of Ni3(dpa)4Cl2. The NO3– anions in the [Ni3(dpa)4]2+ chromophe occupy the axial coordination sites of the two terminal nickel atoms. Ignoring the Ni–Ni separations, the central Ni atom is four-coordinated with a rhombohedral geometry and involves the four independent deprotonated nitrogen atoms of the dpa anions. Usually in lowspin square co-planar nickel systems, the Ni–N distance is about 1.90 Å, which is comparable to the mean Ni–N distance of 1.892(3)Å in the title complex. The terminal nickel atoms are five-coordinate, square pyramidal, giving a slight rhombohedral component, NiN4O chromophome. The mean Ni–N distance, 2.086(2)Å, is significantly longer than those of the central NiN4 environment, but is consistent with the equatorial Ni–N distances of 2.0 – 2.1 Å usually found in square-based pyramidal nickel(II) compounds. The axial Ni–O distance is 2.043(2)Å. Obviously, the terminal nickel atoms have high spin and the. Table 1. Fig. 1. Crystal structure of [Ni3(dpa)4(NO3)2].. † To whom correspondence should be addressed. E-mail: [email protected]. Crystal and experimental data. Formula: C40H32N14Ni3O6 Formula weight = 980.93 Crystal system: orthorhombic Space group: P212121 Z = 4 a = 13.8992(3)Å b = 16.5637(4)Å c = 17.6535(4)Å V = 4064.23(16)Å3 Dx = 1.603 g/cm3 µ (MoKα) = 1.443 mm–1 T = 150(2)K R = 0.0328 wR = 0.0716 (∆ρ )max = 0.939 eÅ–3 (∆ρ )min = –0.568 eÅ–3 No. of reflections used = 9327 No. of parameters refined = 569 Goodness-of-fit on F2 = 1.060 Measurement: Brucker Smart CCD Program system: Bruker SHELXTL Structure determination: SHELXL-97 Refinement: full-matrix.

(2) 1068. ANALYTICAL SCIENCES SEPTEMBER 2002, VOL. 18. Table 2 Atomic coordinates displacement parameters (Å2) Atom. x. y. and z. equivalent Ueq. isotropic. Table 3. Selected bond distances (Å) and angles (˚). occ. central nickel atom has low spin, which is consistent with other nickel string complexes.3. Acknowledgements The authors would like to express their thanks to the National Science Council of Taiwan for a Scholarship and financial support.. References 1. R. Clerac, F. A. Cotton, K. R. Dunbar, C. A. Murillo, I. Pascual, and X. P. Wang, Inorg. Chem., 1999, 38, 2655. 2. H. C. Chang, J. T. Li, C. C. Wang, T. W. Lin, H. C. Lee, G. H. Lee, and S.-M. Peng, Eur. J. Inorg. Chem., 1999, 1243. 3. S. M. Peng, C. C. Wang, Y. L. Jang, Y. H. Chen, F. Y. Li, C. Y. Mou, and M. K. Leung, J. Mag. Mag. Mater., 2000, 209(1 – 3), 80..
