Dynamic video playout smoothing method for multimedia applications

(1)

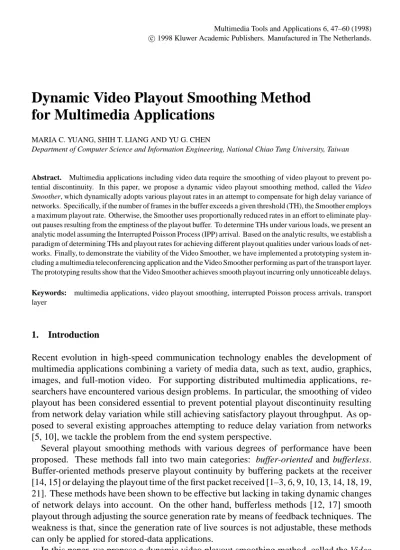

Dynamic Video Playout Smoothing Method

for Multimedia Applications

MARIA C. YUANG, SHIH T. LIANG AND YU G. CHEN

Department of Computer Science and Information Engineering, National Chiao Tung University, Taiwan

Abstract. Multimedia applications including video data require the smoothing of video playout to prevent po-tential discontinuity. In this paper, we propose a dynamic video playout smoothing method, called the Video

Smoother, which dynamically adopts various playout rates in an attempt to compensate for high delay variance of

networks. Specifically, if the number of frames in the buffer exceeds a given threshold (TH), the Smoother employs a maximum playout rate. Otherwise, the Smoother uses proportionally reduced rates in an effort to eliminate play-out pauses resulting from the emptiness of the playplay-out buffer. To determine THs under various loads, we present an analytic model assuming the Interrupted Poisson Process (IPP) arrival. Based on the analytic results, we establish a paradigm of determining THs and playout rates for achieving different playout qualities under various loads of net-works. Finally, to demonstrate the viability of the Video Smoother, we have implemented a prototyping system in-cluding a multimedia teleconferencing application and the Video Smoother performing as part of the transport layer. The prototyping results show that the Video Smoother achieves smooth playout incurring only unnoticeable delays. Keywords: multimedia applications, video playout smoothing, interrupted Poisson process arrivals, transport layer

1. Introduction

Recent evolution in high-speed communication technology enables the development of multimedia applications combining a variety of media data, such as text, audio, graphics, images, and full-motion video. For supporting distributed multimedia applications, re-searchers have encountered various design problems. In particular, the smoothing of video playout has been considered essential to prevent potential playout discontinuity resulting from network delay variation while still achieving satisfactory playout throughput. As op-posed to several existing approaches attempting to reduce delay variation from networks [5, 10], we tackle the problem from the end system perspective.

Several playout smoothing methods with various degrees of performance have been proposed. These methods fall into two main categories: buffer-oriented and bufferless. Buffer-oriented methods preserve playout continuity by buffering packets at the receiver [14, 15] or delaying the playout time of the first packet received [1–3, 6, 9, 10, 13, 14, 18, 19, 21]. These methods have been shown to be effective but lacking in taking dynamic changes of network delays into account. On the other hand, bufferless methods [12, 17] smooth playout through adjusting the source generation rate by means of feedback techniques. The weakness is that, since the generation rate of live sources is not adjustable, these methods can only be applied for stored-data applications.

In this paper, we propose a dynamic video playout smoothing method, called the Video

Smoother. Generally, unlike existing methods described above, the Video Smoother

(2)

P1: VTL/SRK P2: EHE/PCY QC: EHE

Multimedia Tools and Applications KL509-02-Yuang October 3, 1997 9:52

48 YUANG, LIANG AND CHEN

buffer in an attempt to compensate for high delay variance of networks. In particular, if the number of frames in the buffer exceeds a given threshold (TH), the Smoother employs a maximum playout rate. Otherwise, the Smoother uses proportionally reduced rates in an effort to eliminate playout pauses resulting from the emptiness of the playout buffer. To determine THs under various loads, we present an analytic model assuming Poisson and Interrupted Poisson Process (IPP) arrivals correspondent with networks with and without traffic shaper, respectively. Based on the analytic results, we establish a paradigm of de-termining THs and playout rates under various arrivals and loads of networks. Finally, to demonstrate the viability of the Video Smoother, we have implemented a prototyping system including the Video Smoother performing as part of the transport layer, and a multi-media teleconferencing application. The prototyping results show that the Video Smoother achieves smooth video playout at the expense of only unnoticeable delays.

The remainder of this paper is organized as follows. Section 2 presents our playout smoothing method, including the analytic model and results. The prototyping system and experimental results are then demonstrated in Section 3. Finally, conclusion remarks are given in Section 4.

2. Video Smoother

Generally, the Video Smoother dynamically adopts various playout rates according to the number of frames in the playout buffer in an attempt to compensate for high delay variance of networks. In this section, we first present a queueing model and analysis. The analytic data in turn establish the paradigm on which the playout rates under various network loads are based.

It is worth noting that the Video Smoother has been designed as a general synchronization solution for any generic video encoder/decoder system. It can be implemented in hardware physically co-located with the decoder, or in software functioning as the frontend of the decoder. In the case of supporting a primitive compression-less decoder card, the Smoother indispensably furnishes intra-media synchronization by directly treating captured fixed-size frames as packets. The Smoother can also support sophisticated synchronization-equipped video decoder systems, such as Moving Pictures Expert Group (MPEG) [6, 8, 16, 19]. In this case, video frames are encoded, packetized, and multiplexed [19] as fixed-size packets. These fixed-size packets are eventually received and saved in the decoder buffer from which frames are resumed, synchronized, and displayed. Essentially, owing to the buffer size constraint recommended by the standard organization, the decoder system has to deal with the decoder buffer overflow and underflow problems [8]. The overflow problem results in frame losses and inferior playout quality. On the other hand, the underflow problem, which arises when packets in the buffer are less sufficient for the playout of a picture, yields playout discontinuity. The Video Smoother thus suitably facilitates as a traffic smoother preventing these two problems.

2.1. Model and analysis

The model for the Video Smoother, as shown in figure 1, is composed of an arrival stream of video frames, a finite playout buffer with size N, an output stream of video frames to

(3)

Figure 1. Model of Video Smoother.

be played out, and a playout rate controller responsible for adjusting the playout rate. The playout rate is generally dependent on the current number of video frames in the buffer and the threshold (TH). When the number of frames in the buffer exceeds TH, the Video Smoother employs a maximum playout rate denoted asµ; otherwise, the smoother uses proportionally reduced rates to eliminate playout pauses resulting from the emptiness of the playout buffer.

It is worth noting that the determination of TH can profoundly affect the system per-formance. If TH is overestimated, the playout rate tends to be reduced which results in serious degradation of playout performance. On the other hand, if TH is underestimated, the probability of having an empty buffer increases which results in playout discontinuity. To determine an optimal TH, we propose a novel queueing analysis where the service rate is state-dependent. In general, we first derive the steady-state queue occupancy distribution as a function of TH. This, in turn, allows us to compute the probability of having an empty buffer and the mean playout rate. The optimal TH can then be selected by trading off rising the probability of having an empty buffer against the increase of the playout rate. In what follows, the analytic model is given in detail.

Let pi_{, j} denote the transition probability of the queue occupancy altered from i to j frames, as seen by departure frames. Thus, the queue occupancies at frame departing epoches form an embedded Markov chain, as shown in figure 2, with the state transition probability matrix (P) given as

P = [pi, j]=       p0,0 p0,1 p0,2 · · · p0,N p1,0 p1,1 p1,2 · · · p1,N p2,0 p2,1 p2,2 · · · p2,N · · · pN,0 pN,1 pN,2 · · · pN,N      . (1)

To derive the steady-state buffer size distribution, one has to first determine pi, j, which is dependent on both the current state (i ) and the frame arrival process. The arrival is modelled by the IPP [7], which has been widely accepted as a tractable model for the traffic which is bursty in nature. As shown in figure 3, an IPP changes from state ON to state OFF and state OFF to state ON with probabilityα and β, respectively. In addition, cells arrive in a rate ofλONin state ON and no cell arrives in state OFF (i.e.,λOFF = 0). Accordingly, the

(4)

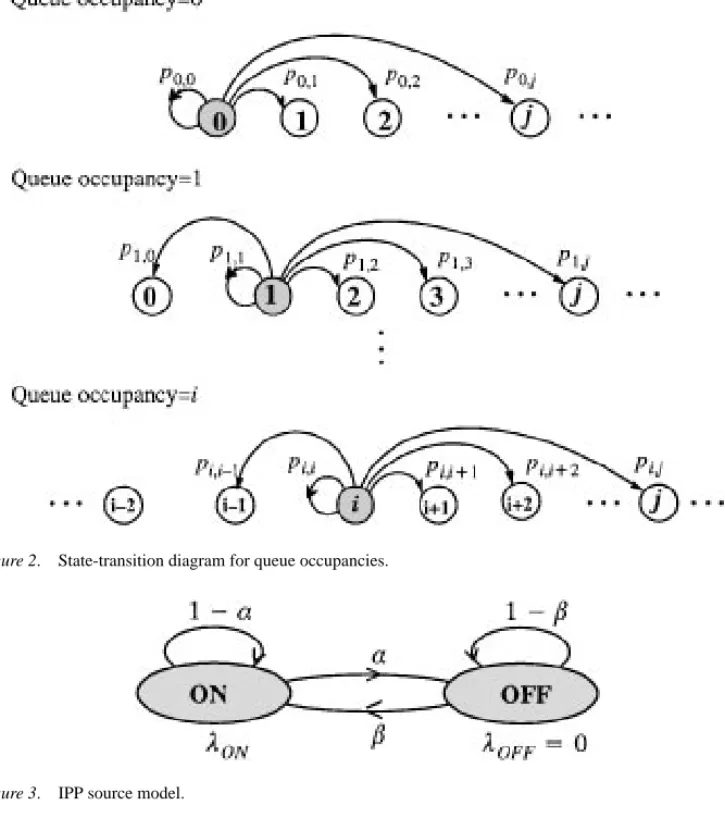

Figure 2. State-transition diagram for queue occupancies.

Figure 3. IPP source model.

transition probability matrix (Q) of an IPP can be expressed as

Q=

·

qON,ON qON,OFF

qOFF,ON qOFF,OFF

¸ = · 1− α α β 1− β ¸ . (2)

The steady-state probability distribution, denoted as5(≡[5ON5OFF]), can be derived by

solving the stationary equation5Q = 5, as

5 = · _β α + β α α + β ¸ . (3) Let at

r_,s(k) denote the probability that k frames arriving during [t0, t0+ t − 1] within which the process progresses from state r at time slot t0 to state s at time slot t0+ t. It

(5)

follows immediately that a_r1_,s(k) =    0, if r 6= s or k > 1, 1− λr, if r = s and k = 0, λr, if r = s and k = 1. (4)

In addition, by applying the Kolmogorov’s Backward Equations [20], we have the following recurrent relation: a_rt_,s(k) = X h∈{ON,OFF} ¡ a_rt_,h−1(k − 1) · λh+ art−1,h (k) · (1 − λh) ¢ · qh,s, t > 1. (5) We hereinafter analyze the system of the video smoother by means of a discrete-time (in

frame) model. Let service time mibe the number of frame times (e.g., a frame time= 1/30 second for non-interlaced scanning) spent serving a frame given that i customers have been in the buffer. Considering the same smoothing strategy as that given for Poisson arrivals, service time mican then be expressed as a function ofµ, TH and i, as

mi =          » TH max{i, 1} · µ ¼ , i < TH; » 1 µ ¼ , i ≥ TH. (6)

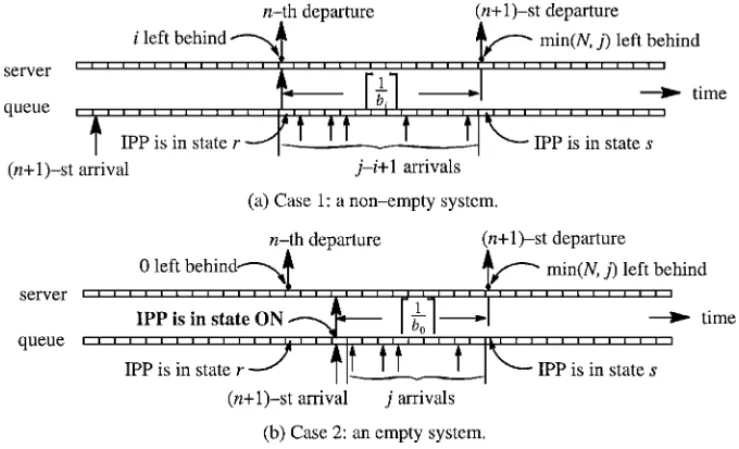

As for pi, j’s, our goal of deriving, we now consider two cases. The first case, as shown in figure 4(a), corresponds to the condition in which a non-empty queue with i frames is left behind by the nth frame departure. As shown in the figure, after the nth frame departs,

(6)

the (n+ 1)th frame is immediately served and consumes mi slots of service time before departing from the system (i.e., playout completes). During this period, frames continue to arrive and enter the playout buffer if the occupancy does not exceed the maximum capacity (N ) of the buffer. Otherwise, frames are discarded. Thus, we have

pi, j =          X r∈{ON,OFF} 5r· X s∈{ON,OFF} ami r,s( j − i + 1), if i> 0 and j < N; ∞ X k=1 X r∈{ON.OFF} 5r· X s∈{ON,OFF} ami r,s( j − i + k), if i > 0 and j = N. (7)

The second case, as shown in figure 4(b), corresponds to the condition in which an empty queue is left behind by the nth frame departure. In this case, the number of frames left behind by the departure of the (n+ 1)th frame is merely the same as the number of arrivals during its service time. Notice that the (n+ 1)th frame can arrive only when the IPP is in state ON. Moreover, at the time slot next to the (n+ 1)th arrival, the IPP progresses to state

l with probability qON_,l(see Eq. (2)). Consequently, from Eq. (5), we have

pi, j =          X l_∈{ON,OFF} qON,l· X s_∈{ON,OFF} ami−1 l,s ( j), if i= 0 and j < N; mXi−1 k=N X l∈{ON,OFF} qON,l· X s∈{ON,OFF} ami−1 l,s (k), if i = 0 and j = N. (8)

With pi_{, j}’s given in Eqs. (7) and (8), we can now derive the limiting distribution of the queue occupancies. Letπs, jdenotes the stationary probability that the IPP is in state s and the system possesses a queue occupancy of j at a frame departing epoch. The stochastic equilibrium distribution,5 ≡ [π0, π1, . . . , πN], can thus be directly obtained by solving the stationary equation,5 = 5P. The frame loss probability can be respectively considered under the first case (a non-empty system with h frames in the buffer) and the second cases (an empty system) as follows:

           case 1: lh= mh X k=N−h+2 X r∈{ON,OFF} 5r· X s∈{ON,OFF} amh r,s(k); case 2: l0= mXh−1 k_=N+1 X l_∈{ON,OFF} qON,l· X s_∈{ON,OFF} amh−1 l,s (k). (9)

Releasing the condition on two cases, we get the frame loss probability ( pL) as

pL= N

X

h=0

(πh· lh). (10)

Furthermore, the mean playout rate ( ¯B) can be formulated as

¯B =XN

i=0

πi·

min{TH, max{i, 1}}

(7)

Figure 5. Effect of TH onπ0under various mean IPP arrival rates. 2.2. Analytic results

We have so far obtained the steady-state buffer size distribution as a function of TH. To optimize TH, we consider three variables: the probability of having an empty buffer (π0),

the frame loss probability ( pL), and the mean playout rate ( ¯B). To analyze how TH,π0,

pL, and ¯B are related, we experimented on a system of buffer size= 100 frames, frame

size= 15 Kbytes, network access rate = 7.2 Mbps (implying a slot time of 16.67 ms), and the maximal playout rate (µ) = 0.33 frames/slot-time, i.e., 2.4 Mbps (20 frames/sec

× 15 Kbytes/frame × 8 bits/byte).

In figure 5,π0decreases with TH, as was expected. This is because, the greater the TH

is, the faster the playout rate reduces, thus the smaller the probability of having an empty buffer. Notice that the mean arrival rate (λ) is equal to λON·β

α+β , whereλONis the mean arrival

rate in state ON of the IPP. We also observe that, for any given TH,π0increases as the mean

arrival rate declines. Figure 6 unsurprisingly illustrates that pLincreases with the TH and figure 7 demonstrates that the mean playout rate decreases with TH. This is again because the larger TH, the faster the playout rate reduces. In addition, the figures also show that both the frame loss probability and the mean playout rate increase with the mean arrival rate.

On the whole, a larger TH which results in a smallerπ0, implies pausedless playout;

whereas a smaller TH implies better playout quality. In what follows, we present a paradigm of the determination of appropriate THs under various arrivals.

2.3. Formal description of algorithm

(8)

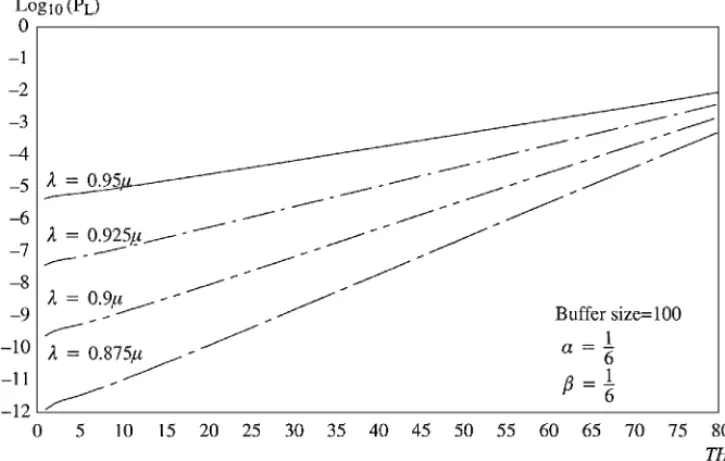

Figure 6. Effect of TH on loss probability under various mean IPP arrival rates.

(9)

Table 1. Recommended TH’s.

Maximumπ0 10−2 10−4 10−6 10−8

Maximum PL 10−8 10−8 10−8 10−8

Maximum ¯B 0.954µ 0.939µ 0.930µ 0.928µ

Recommended TH 3 6 9 11

[Video Playout Smoothing Algorithm]

(1) Determine a suitable TH. Based on the analytic results obtained from the previous subsection, a paradigm of TH determination can be constructed for each case of arrivals. Table 1 shows the paradigm for the Video Smoothers achieving four different playout qualities under a given traffic characteristic (λ = 0.9, α =1₆, andβ = 1₆).

(2) Determine the playout rate.

while (a frame to be played out) do

if (the number of frames in the buffer≥TH ) playout rate= maximum playout rate; else

playout rate= Dynamic reduced rate(TH, i);

where the dynamic reduced rate can be selected according to Eq. (6).

[End of Algorithm] 3. Prototyping system and results

The prototyping system (see figure 8) was developed in Intel 80486 personal comp-uters under the MS-Windows environment. The prototyping system is composed of a

(10)

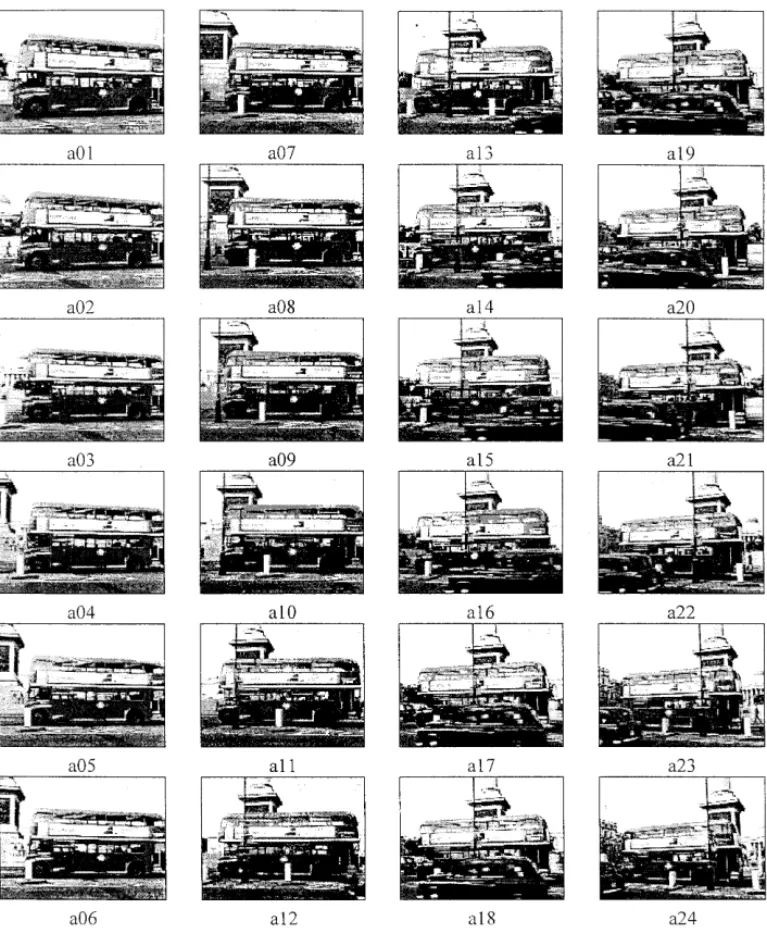

Figure 9a. Prototyping results—playout of a video segment without the Video Smoother.

teleconferencing multimedia application using Intel Smart Video Recorder, WinKing [11] and a bursty simulator. The WinKing package is an implementation of TCP/IP including the API, called Winsock, developed by Institute for Information Industry (III), Taiwan. In particular, the Video Smoother was implemented as a part of WinKing. The frame arrivals in the system are simulated by the bursty simulator as IPP with the following characteristics:

λ = 0.9, α = 1

6, andβ = 1

(11)

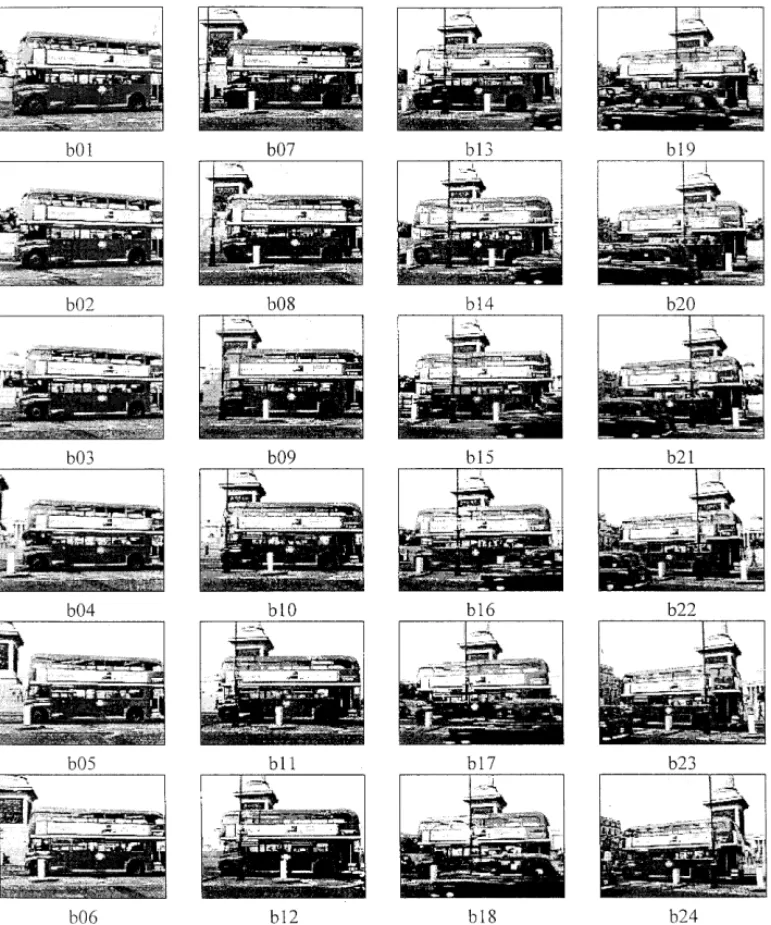

Figure 9b. Prototyping results—playout of a video segment through the Video Smoother.

employed an optimal TH of 9 for the Video Smoothers to achieve the playout quality of

π0< 10−6, pL < 10−8, and ¯B≈ 0.930.

A video segment (see figure 9) from Microsoft Video For Windows, was adopted as the demonstration film. In order to demonstrate the viability of the Video Smoother, the film was captured every 100 ms with and without the Video Smoother. Figures 9(b) and (a) show a series of scenes taken from the film with and without the Video Smoother applied,

(12)

respectively. Without the Video Smoother, as shown in part (a) of the figure, we observe the playout discontinuity problem. In particular, we reveal playout pauses through a05 to a06 and a17 to a19. By contrast, with the Video Smoother, as shown in the part (b), the movements of the bus in figure 9(b) are much smoother than the ones in figure 9(a), at the expense of unnoticeable delays.

4. Conclusions

The paper proposed a dynamic video playout smoothing method, called the Video Smoother, to prevent potential discontinuity. In contrast with existing methods, the Video Smoother dynamically adopts various playout rates according to a threshold (TH) and the current number of frames in the playout buffer. To precisely determine THs under various traf-fic conditions, we established an analytic model assuming the Interrupted Poisson arrival. Based on the analytic results, we then proposed a paradigm of determining THs and playout rates achieving different playout qualities under various loads of networks. To demonstrate the viability of the Video Smoother, we developed a prototyping system, including a mul-timedia teleconferencing application and the Video Smoother as a part of TCP/IP. The prototyping results showed that the Smoother achieves smooth playout at the expense of only unnoticeable delays.
