313 Towards Global Inter-operability: Health Level Seven

as the Enabling Technology

Stephen Chu

Department of Management Science and Information Systems, University of Auckland, New Zealand.

H

TI

J

Correspondence and reprint requests: Dr Stephen Chu, PhD FACS, Associate Professor of Health

Informatics, Department of Management Science and Information Systems, University of Auckland, Private Bag 92-019, Auckland, New Zealand. E-mail: [email protected].

© The Journal on Information Technology in Healthcare 2003; 1(5): 313–319

INTRODUCTION

Episodic healthcare delivery has characterised healthcare service models of the past. This model was effective and suitable for dealing with acute illnesses and accidents, but over the last two decades an increasingly elderly population and advances in medical treatment have changed the focus of healthcare delivery to provision of services for the chronically ill. Today up to seventy percent of patients presenting to healthcare agencies have chronic illnesses1,2_{. The acute care model is}

not ideally suited or effective for dealing with these patients. Optimal medical management for patients with chronic illnesses requires an integrated or coordi-nated care model. This entails multi-disciplinary care with sharing of patient information and knowledge by individual carers. One possible means of achiev-ing this is through the longitudinal electronic healthcare record (EHR).

The EHR is regarded as the ultimate health information documentation and communication tool. It will in its complete form contain all the patient’s relevant medical history from birth to death irrespective of where, when and by whom they have been treated. The record will be accessible to authorised healthcare professionals anywhere in the world. This geographical independence of the record is important in view of global trends in population movement. For example, in Australia and New Zealand population censuses have demonstrated that intra-nation population movements occur at the rate of 15–20% per year3_{. Inter-nation}

migration also happens very regularly, although at varying rates for different countries. These population movements, increasing globalisation and interna-tional travel will mean that to be successful an EHR system will have to adopt a distributed architecture. A major obstacle to its current implementation is the heterogeneity that characterises the existing distributed architecture and disparate health IT systems. Effective exchange of information and knowledge cannot at present easily or readily take place between different health providers.

(6)

Chu

314

The Journal on Information Technology in Healthcare 2003; 1(5): 313–319 HEALTH LEVEL SEVEN: THE INTER-OPERABILITY SOLUTION

To achieve effective data exchange between different systems it is necessary to have common standards. In the mid-1980s, Health Level Seven (HL7)4_{was established}

to develop healthcare data messaging standards. Its goal is to improve inter-operability among heterogeneous medical information systems. Two levels of inter-operability need to be addressed:

• Syntactic inter-operability • Semantic inter-operability

Syntactic inter-operability refers to the ability to transfer data in a systematic orderly manner, for example, the grammatical arrangement of words in sentences. For inter-healthcare system inter-operability, this also means standardisation of the data and message structure. A high degree of success in accomplishing this has been achieved with HL7 Version 2. This was first released in 1988 and has been modified over the years to the present Version 2.5. Its global applicability to healthcare messaging standards is reflected in the fact that it is used in 24 different countries and by 90% of US healthcare facilities.

Semantic inter-operability refers to the uniformity of the medical content and definitions of the healthcare concepts used in the records. Achieving agreed stand-ards for this is a more complex problem. This is due to the fact that medicine has a large vocabulary and lacks a universally standardised terminology or accepted classification of diseases. For example, a patient with lung disease may be labelled as suffering from chronic bronchitis by one physician, chronic obstructive airways disease by another and chronic obstructive pulmonary disease by a third. Each of these definitions may have slightly different meanings to different physicians which in turn may influence management. Uniformity in terminology is impor-tant when data is being shared between different carers. It is also essential if data is to be subject to data mining or collation for research. This could, for example, be used to determine the aetiology or most effective treatment for a disease.

Creating a universally accepted terminology and persuading healthcare profes-sionals to use it is a major challenge. Examples of systems proposed include:

• The Unified Medical Language System (UMLS) • International Classification of Disease (ICD)

• Systematized Nomenclature of Medicine (SNOMED) • Logical Observation Identifier & Codes (LOINC)

HL7 Version 2.5 and Version 3 have a mechanism for users to specify standard-ised codes for clinical concepts and the coding systems used in the healthcare data exchanged. A Reference Information Model (RIM) has also been created to sup-port development of Version 3 messaging. Key data elements described in the RIM are linked to vocabulary tables. By supporting the use of structured, codified clinical concepts in the standard message protocols, HL7 provides an environ-ment for achieving semantic inter-operability in HL7 messages5_.

(7)

Towards Global Inter-operability

The Journal on Information Technology in Healthcare 2003; 1(5): 313–319

315

Another challenging area is finding an effective way to represent contextual relationships between interrelated clinical concepts. The use of ‘Act-Relationship’ object class and ‘Context-Lock-Indicator’ object in HL7 Version 3 addresses the ‘context relations’ representation gaps that exist in Version 2.5. For example, a patient diagnosed as being HIV positive may not wish his family to know the diagnosis. The ‘Act-Relationship’ can be used to link the confidentiality consent status of the diagnosis data to the person who imposes the confidentiality con-straint on the data. The ‘Context-Lock-Indicator’ can be used to link a set of interrelated laboratory tests together or to link observation/complication findings to certain medication/treatment. The following example shows the use of ‘Con-text-Lock-Indicator’ and ‘Act-Relationship’ to bind a set of laboratory tests together indicating that they should be read together.

<context_lock_ind V=“T”/>

<!-- means you shouldn’t interpret the nested observations without the outer observation.

the value (V) of which is set to “CBC” (complete blood count).. --> <act_relationship V=“COMP”>

<context_control_cd V=“C”/>

<!-- means that the acts in this act relationship “conduct” the context of the outer observation, including name of patient, and when required

other participations e.g. who performs the tests, etc... --> <observation V=“HGB”> <value V=“14.3”/> </observation> <observation V=“PLT”> <value V=“117”/> </observation> <pertinentInformation typeCode=“MFST”> <act_procedure V=“Blood Transfusion”>

<! -- liver function test items and results --> </observation>

In the above example, ‘context_lock_ind” is used to bind a set of interrelated tests (CBC – Complete Blood Count) together. This means that all test items (e.g., HGB – haemoglobin and PLT – platelet count) performed on this patient should

(8)

Chu

316

The Journal on Information Technology in Healthcare 2003; 1(5): 313–319 be read together. The ‘act_relationship’ indicates that all data bound within the <act_relationship> and <act_relationship/> tags is to be treated as a composite (COMP) data set and that the observations (blood test) CBC results were shown as a “manifestation” (MSFT) of the procedure of three units of blood transfusion given to the patient. Another test (observation) result with values equal to “LFT” (liver function tests) was also performed on this same patient. The test data lies outside the ‘context_lock_ind’, hence, the data ("LFT") are to be treated as inde-pendent from other test data ("CBC") shown in this example.

Likewise, a set of diagnostic tests and/or procedures can be linked in a similar way to one or more clinical problems or diagnosis. This will give the context (or reasons) under which the diagnostic tests or procedures are performed.

Recently the HL7 and openEHR6_{communities began much closer}

collabora-tion in an attempt to more effectively address the context relacollabora-tionship representation problems. Archetype is defined as “a computable expression of a

domain-level concept in the form of structured (with business rule) constraint state-ments, based on some reference information model ”7_{. It is a formal definition of a}

specific clinical concept for potential inclusion in an EHR. Essentially an arche-type is presented as a ‘template’ for clinicians to define the clinical concepts and organising relationships between the concepts. For example, an ‘Asthma’ arche-type allows related observations and management to be linked together contextually (Figure 1). The openEHR archetype and HL7 clinical templates have

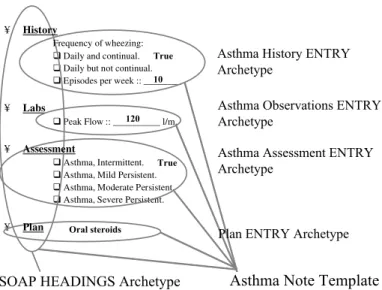

Figure 1. Example of an asthma archetype

The archetype is structured under Simple Object Access Protocol (SOAP) headings. For each head-ing the inputs can be defined by check boxes or numerical values. For numerical values an upper and lower range of values are set to help prevent accidental entry of wrong/inappropriate values e.g. a set of range (maximum and minimum) values for a peak flow rate appropriate to a patient’s sex, age and size.

¥

of wheezing: Daily and continual. Daily but not continual. Episodes per week :: ________

¥ Labs

Peak Flow :: __________ l/m.

¥ nt

Asthma, Intermittent. Asthma, Mild Persistent. Asthma, Moderate Persistent. Asthma, Severe Persistent.

¥

Asthma History ENTRY Archetype

Asthma Assessment ENTRY Archetype

Asthma Observations ENTRY Archetype

SOAP HEADINGS Archetype

Plan ENTRY Archetype

True 10

120

True

Oral steroids

Asthma Note Template

Hist

Frequency

Assessme

Plan ory

(9)

317

been proposed as the technical solution to provide the semantic inter-operability. The archetype, in particular, has been proposed as the effective structure for easily building and maintaining clinical data contextual relationships. Archetypes repre-senting clinical concepts and their relationship can be included in HL7 messages for transmission from one system to another. Since each archetype conforms to the agreed standard, syntactic and semantic inter-operability at machine and human levels is ensured.

The ‘Clinical Context Object Workgroup’ (CCOW) Technical Workgroup is a technical group (within the HL7 community) that is set up to build a standard (used by a context manager) for establishing and maintaining common context between different or heterogeneous applications that present information about the same patient to users on their desktops8_{. CCOW is a technology and standard}

that complements HL7’s traditional emphasis on data interchange and enterprise workflow. Using a technique known as context management, the clinical user’s experience is one of interacting with a single system, when in fact he or she may be using multiple, independent applications from many different systems, each via its native user interface. By synchronising and coordinating applications so that they automatically follow the user’s context, the CCOW standard serves as the basis for ensuring secure and consistent access to patient information from heterogeneous sources. The benefits include applications that are easier to use, increased utilisation of electronically available information, and an increase in patient safety.

Clinical guideline representation and decision support are two other technical workgroups within HL7 that seek to align their work with HL7. These groups, which include the Guideline Element Model group9_{(from Yale University), the}

UK Clinical Practice Guideline Architecture group10_{, the Arden Syntax}4_{, and the}

SAGE project11_{groups realise the importance of standards for data}

communica-tions between decision support and clinical information management applicacommunica-tions. Mappings of data structure from the various guideline representation works and the Arden Syntax to the HL7 RIM had identified a number of issues. The technical groups have started to investigate the use of the HL7 Development Framework as requirement analysis methodology and for identifying harmonisation require-ments with the RIM classes.

This issue of the journal is based on papers presented at the 2nd Asia-Pacific

and Cross-Strait HL7 Conference on Healthcare Information Standards that was

held in Taipei, Taiwan earlier this year. Papers presented at the conference demon-strated the variety of ways in which the development of HL7 standards is enabling healthcare organisations to achieve effective information transfer, and improve the healthcare process.

The keynote lecture was given by Professor Hammond, a past Chairman of the HL7 organisation. He elaborated on the role of health informatics in improving health and healthcare through the construction of electronic health records. He

(10)

Chu

318

The Journal on Information Technology in Healthcare 2003; 1(5): 313–319 pointed out that these could be used for a wide range of purposes including improving patient safety, treatment effectiveness, research and disease surveil-lance. As a consequence EHRs have the potential to improve care not only for individual patients but also for whole populations. He finished his lecture by emphasising the need for standards to create EHRs and highlighted the role of the HL7 organisation in providing these.

From the many excellent research papers presented at the meeting, three have been selected to illustrate how HL7 standards are being used to overcome the problem of data transfer between heterogeneous information systems and deliver some of the perceived benefits referred to by Professor Hammond in his paper.

The first research paper by Chengand colleagues provides insight into the use of the HL7-Interface Engine (HL7-IE)/Gateway to facilitate successful informa-tion interchange between hospital informainforma-tion systems and laboratory/diagnostic (and imaging) systems. This enabled effective online ordering and results report-ing. The success of the project was highlighted by the ability of the programming team to use different hardware platforms and application development environ-ments such as COBOL, Visual Basic, JAVA, JSP, etc. to build the HL7-IE /Gateway solution and still make the various components work together well. The authors have provided a useful flow diagram to help personnel at other hospitals evaluate whether they need to implement an HL7 system to enable information transfer between their laboratory instruments and information systems.

The next paper by Long and colleagues also deals with the use of HL7 stand-ards for laboratory systems. A major barrier identified to the implementation of HL7 in Taiwanese hospitals is the complexity of the HL7 interface and the expense of implementing it. The authors describe the use of intelligent HL7 agents to map data from a laboratory information system database schema to HL7 message format. This enables the easy generation of HL7-based laboratory messages for hospital information systems. As the authors point out, the use of the intelligent agent simplifies implementation, minimises customisation and saves both time and costs.

The third paper reports on the use of HL7 messages to facilitate automatic data transmission and reporting of infectious diseases from healthcare agencies to the Centre for Disease Control in Taiwan. Use of such a system facilitates more effective disease surveillance. The use of intelligent agents to autonomously and continuously monitor and report new cases of infectious diseases is described. The project again demonstrates the successful use of the HL7 messaging schema and the conceptual model for intelligent agent-based data monitoring and workflow management.

The research papers presented and ideas discussed at the conference con-firmed that the healthcare industry considers the development of standards to be a critical success factor for machine and human inter-operability. A wealth of HL7 standards, development knowledge and experience exists within the international

(11)

319 H

T

I

J

HL7 community. It will be useful if extensive networking facilities can be estab-lished to enable cross-fertilisation of ideas and to assist the less experienced to overcome knowledge deficits and technical hurdles.

The successful development and implementation of HL7 standards in the Asian-Pacific countries affirms that HL7 is the international currency for health information interchange. HL7 represents an important and highly useful solution for achieving syntactic and semantic inter-operability that will enable the creation of EHRs, and the potential benefits associated with them.

REFERENCES

1 Fries J, Friday GA, Gira C et al. Health project consortium: reducing healthcare costs by reducing the need and demand for medical services, New England Journal of Medicine, 1993; 329: 5–9.

2 Lorig K. Cost-effective self-management for chronic disease, Strategic Medicine, 1998; 2: 37–40.

3 New Zealand 2001 National Census, New Zealand Bureau of Statistics, Wellington, 2001. 4 http://www.hl7.org.

5 Schulten C. The mission of HL7: messaging standards are cornerstone for a national health information infrastructure, Healthcare Informatics, 2003; 20: 68.

6 http://www.openehr.org/.

7 http://www.openehr.org/downloads/archetypes/templates_and_archetypes.pdf.

8 Seliger R. Context management (“CCOW”) specification technology- and subject-inde-pendent component architecture document. http://www.hl7.org.

9 http://ycmi.med.yale.edu/GEM/. 10 http://www.schin.ncl.ac.uk/cpga/. 11 http://www.sageproject.net/.
