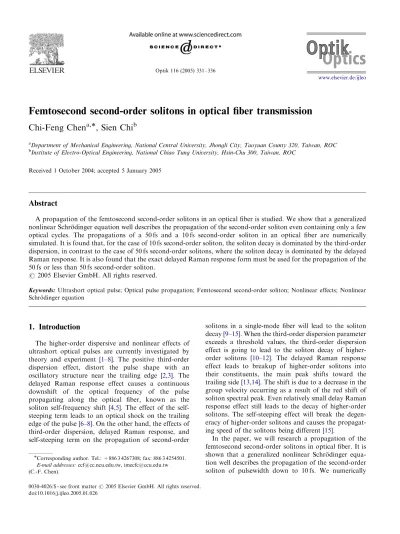

Optik 116 (2005) 331–336Femtosecond second-order solitons in optical fiber transmission
Chi-Feng Chen
a,, Sien Chi
baDepartment of Mechanical Engineering, National Central University, Jhongli City, Taoyuan County 320, Taiwan, ROC b
Institute of Electro-Optical Engineering, National Chiao Tung University, Hsin-Chu 300, Taiwan, ROC
Received 1 October 2004; accepted 5 January 2005
Abstract
A propagation of the femtosecond second-order solitons in an optical fiber is studied. We show that a generalized nonlinear Schro¨dinger equation well describes the propagation of the second-order soliton even containing only a few optical cycles. The propagations of a 50 fs and a 10 fs second-order soliton in an optical fiber are numerically simulated. It is found that, for the case of 10 fs second-order soliton, the soliton decay is dominated by the third-order dispersion, in contrast to the case of 50 fs second-order solitons, where the soliton decay is dominated by the delayed Raman response. It is also found that the exact delayed Raman response form must be used for the propagation of the 50 fs or less than 50 fs second-order soliton.
r2005 Elsevier GmbH. All rights reserved.
Keywords: Ultrashort optical pulse; Optical pulse propagation; Femtosecond second-order soliton; Nonlinear effects; Nonlinear Schro¨dinger equation
1. Introduction
The higher-order dispersive and nonlinear effects of ultrashort optical pulses are currently investigated by theory and experiment [1–8]. The positive third-order dispersion effect, distort the pulse shape with an oscillatory structure near the trailing edge [2,3]. The delayed Raman response effect causes a continuous downshift of the optical frequency of the pulse propagating along the optical fiber, known as the soliton self-frequency shift [4,5]. The effect of the self-steeping term leads to an optical shock on the trailing edge of the pulse[6–8]. On the other hand, the effects of third-order dispersion, delayed Raman response, and self-steeping term on the propagation of second-order
solitons in a single-mode fiber will lead to the soliton decay[9–15]. When the third-order dispersion parameter exceeds a threshold values, the third-order dispersion effect is going to lead to the soliton decay of higher-order solitons [10–12]. The delayed Raman response effect leads to breakup of higher-order solitons into their constituents, the main peak shifts toward the trailing side[13,14]. The shift is due to a decrease in the group velocity occurring as a result of the red shift of soliton spectral peak. Even relatively small delay Raman response effect still leads to the decay of higher-order solitons. The self-steeping effect will break the degen-eracy of higher-order solitons and causes the propagat-ing speed of the solitons bepropagat-ing different[15].
In the paper, we will research a propagation of the femtosecond second-order solitons in optical fiber. It is shown that a generalized nonlinear Schro¨dinger equa-tion well describes the propagaequa-tion of the second-order soliton of pulsewidth down to 10 fs. We numerically
www.elsevier.de/ijleo
0030-4026/$ - see front matter r 2005 Elsevier GmbH. All rights reserved. doi:10.1016/j.ijleo.2005.01.026
Corresponding author. Tel.: +886 3 4267308; fax: 886 3 4254501. E-mail addresses: [email protected], [email protected] (C.-F. Chen).
investigate that the 50 and 10 fs second-order solitons of propagation in an optical fiber. We find that, for the case of 10 fs second-order soliton, the soliton decay is dominated by the third dispersion and the delayed Raman response has the least effect, in contrast to the case of 50 fs second-order soliton, where the soliton decay is dominated by the delayed Raman response. We also find that the approximation which assumes the Raman gain is linear in frequency is no longer suitable for the propagation of a 50 fs or less than 50 fs second-order soliton pulses. The method overestimates the soliton decay. Therefore, it is necessary to use the exact delayed Raman response form when the propagation of a 50 fs or less than 50 fs second-order soliton pulse is considered.
2. Theory model
We now consider the influence of third-order disper-sion, delayed Raman response, and self-steeping on the propagation of the second-order soliton in a single-mode fiber. An accurate wave equation is used to describe the propagation[16]:
qA qz ¼ b1 qA qt ib2 2 q2A qt2 þ b3 6 q3A qt3 þ ib4 24 q4A qt4 þig NA þ ia1 q qtNA ig a2 q2NA qt2 ig b2A b0 ð1 aÞ qAðz; tÞ qt 2 " þa Z t 1 dt0f ðt t0ÞqAðz; t 0Þ qt 2# ig b2 b0 qN qt qA qt i 2b0g 2N2A, ð1Þ
where Aðz; tÞ is the field envelope, g ¼ n2o0=cAeff; n2 is the Kerr coefficient, Aeffis effective fiber cross section,
a1 ¼ 2=o0b1=b0 1=o0; a2 ¼ 1=o202b1=b0o0þ
b21=b20b2=2b0 b2=2b0; o0 is the angular frequency
of the carrier wave, b0 is the propagation constant b at o0; and b1is the reciprocal group velocity. b2; b3; and b4
are the second-, third-, and fourth-order dispersions, respectively.
The delayed response Nðz; tÞ is described by Chen et al.[17] Nðz; tÞ ¼ ð1 aÞ Aðz; tÞ 2þa Z t 1 dt0f ðt t0ÞAðz; t0Þ2. (2) On the right-hand side of Eq. (2), the first term represents Kerr nonresonant virtual electronic transi-tions in the order of about 1 fs or less[18], the second term represents delayed Raman response, f ðtÞ is the
delayed response function, and a ¼ 0:18 parameterizes the relative strengths of Kerr and Raman interactions. In this paper, f ðtÞ is obtained by modeling the Raman gain by 27 Lorentzian lines, centered on the different optical phonon frequencies and
f ðtÞ ¼X 27 t2 1iþt22i t1it22i expðt=t2iÞsinðt=t1iÞ, (3)
where the parameters are determined by fitting the imaginary parts of its spectrum to actual Raman gain of fused silica. The fitted Raman gain spectrum is plotted in Fig. 1.
In dimensionless soliton units, Eq. (1) can be rewritten to q qxu ¼ i 2 q2u qt2þb q3u qt3þ ib4 24 b 2T2 0 q4u qt4 þiNu 1 o0T0 q qtNu ib2 b0T20 1 2 q2Nu qt2 þ ð1 aÞ qu qt 2 " ( þa Z t 1 dt0f ðt t0Þqu qt 2# þqN qt qu qtþ 1 2N 2 u ) , ð4Þ where x ¼ z=LD; t ¼ t b1z=T0; u ¼ NPA= ffiffiffiffiffiffiP0 p ; b b3 6 b 2T0; LD¼T20= b2
is dispersion length, and N ¼ N2
PN=P0: The parameter NP ¼ ½gP0T02=jb2j 1=2; NP ¼1
for the fundamental soliton, T0¼Tw=1:763; Tw is the
pulse full-width at the half-maximum, and P0 is peak
power of the incident pulse.
When these higher nonlinear terms are negligible, Eq. (4) reduces to q qxu ¼ i 2 q2u qt2þb q3u qt3 þ ib4 24 b2 T2 0 q4u qt4þiNu 1 o0T0 q qtNu. ð5Þ

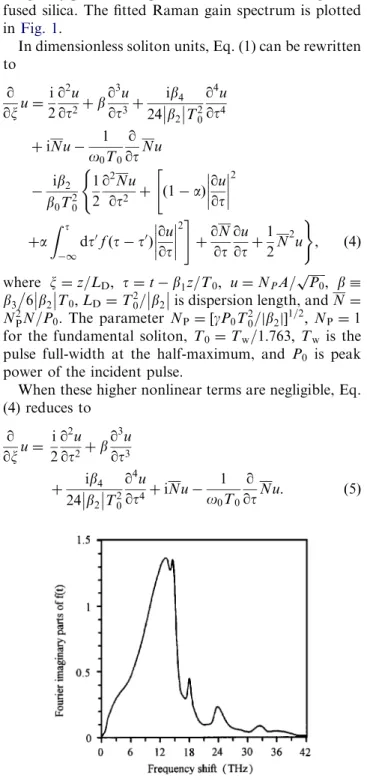

Fig. 1. The imaginary part of the spectrum of delayed Raman response function fitted by 27 Lorentzian lines.
It is known as the generalized nonlinear Schro¨dinger equation.
3. Numerical results
To solve Eqs. (4) and (5), we use the split-step Fourier method and take the typical fiber parameters to be: soliton wavelength l ¼ 1:55 mm; b2¼ 20 fs2=mm; b3¼ 100 fs3=mm; b4¼0 fs4=mm; n2¼2:3 1020m2=W;
and Aeff¼50 mm2:
First, we numerically show the pulse shapes of the 10 fs second-order soliton in Fig. 2. Here z0 is soliton
period. As the numerical result is obtained without these higher-order nonlinear terms, it is found that the difference between with and without the four higher nonlinear terms is only less than 0.1%. Therefore, for propagation of the second-order soliton of pulsewidth down to 10 fs, these higher nonlinear terms are negligible by the numerical result, i.e., the generalized nonlinear Schro¨dinger equation well describes the propagation of the second-order soliton of pulsewidth down to 10 fs.
3.1. The propagation of the 50fs second-order
soliton
Fig. 3 shows the power evolution of pulse shapes when only the third-order dispersion effect is consid-ered. It is seen that the soliton decay occurs within two soliton periods. InFig. 4, we show the power evolution of pulse shapes when only the delayed Raman response effect is considered. The soliton delay occurs within two soliton periods, the main peak shifts toward the trailing side at a rapid rate with a further increase in the distance and the lower-intensity soliton moves on the leading side. With only the self-steeping effect, the power evolution of pulse shapes are shown in Fig. 5. Up to five soliton periods, the pulse shapes have not obvious separation. This means that the self-steeping effect is very small compared to the effect of the delayed Raman response. When the three higher-order effects are considered together, the power evolution of pulse shapes is shown inFig. 6. It is seen that the delay of the main
peak is about 72 fs after propagating the distance of five soliton periods. Comparing Fig. 6 with Fig. 4, we can see that they are similar except that the pulse shape of main peak broadens and the delay of the main peak becomes smaller for the case where all three effects are considered. The broadening leads to the delay of the reduction of the main peak. Among the three effects, it is seen from Figs. 3–6 that the soliton decay is dominated by the delayed Raman response and the self-steeping has the least effect. When the delayed Raman response is approximated by assuming that the Raman gain is linear in frequency, in dimensionless soliton units, Eq. (4) reduces to
q qxu ¼ i 2 q2u qt2þb q3u qt3þ ib4 24 b2 T2 0 q4u qt4 þi uj j2u iTRu T0 q uj j2 qt 1 o0T0 q qtðj ju 2uÞ, ð6Þ
where TR is the slope of the Raman gain profile at
the carrier frequency. Here we consider TR¼3 fs [19].
Fig. 7 shows the same pulse propagation as in Fig. 6
Fig. 2. Power evolution of pulse shapes over five soliton periods along the fiber when all the three effects are considered. The initial pulsewidth is 10 fs.
Fig. 3. Power evolution of pulse shapes over five soliton periods along the fiber when only the third-order dispersion effect is considered. The initial pulsewidth is 50 fs.
Fig. 4. Power evolution of pulse shapes over five soliton periods along the fiber when only the delayed Raman response effect is considered. The initial pulsewidth is 50 fs.
when Eq. (6) is used for numerical simulation. The main peak is delayed about 148 fs after propagating the distance of five soliton periods, the delay is much larger than that calculated by Eq. (5). InFig. 8, we show the averaged frequency shifts obtained by Eqs. (5) and (6). After propagating the distance of five soliton periods, the averaged frequency shift obtained by Eq. (6) is about 37 THz and that obtained by Eq. (5) is only about 22 THz. Therefore, Eq. (6) is not suitable for describing the propagation of a second-order solitons whose pulsewidth is equal to 50 fs.
3.2. The propagation of the 10fs second-order
soliton
In Fig. 9, we show the power evolution of pulse shapes only with the third-order dispersion effect. One can be seen that the third-order dispersion effect not only leads to breakup of initial solitons into their constituents but stimulates a radiation within a distance of one soliton periods. The radiation is excited at and around the resonant frequency after the first constric-tion. Then the radiation pulse leaves the main peak in the trailing direction and gradually vanishes[10,11]. The similar behavior occurs in Fig. 3, where the effect is small and can hardly be observed. Fig. 10 shows the
power evolution of pulse shapes when only the delayed Raman response effect is considered. It is seen that only small delay occurs after propagation a distance of five soliton periods. The effect of delayed Raman response is no longer important when the pulse width is short enough. It is because that the spectral width of the input pulse is much larger than the Raman gain spectral width which is about 13.2 THz. The red spectral components of the pulse can only be amplified by small parts of the blue spectral components, and the effect of delayed Raman response becomes unimportant. In Fig. 11, we show the power evolution of pulse shapes when only the self-steeping effect is considered. The two solitons gradually separate from each other at a distance of two soliton periods and are delayed together. One can see that, unlike the case of the 50 fs second-order solitons, the self-steeping effect is now larger than the delayed Raman response effect. When all the three higher-order effects are included, the power evolution of pulse shapes is shown inFig. 2. The pulse shape of main peak broadens and the delay of the main peak become smaller. By comparing Figs. 2, 9, 10 and 11, it is seen that the third-order dispersion effect plays the most
Fig. 5. Power evolution of pulse shapes over five soliton periods along the fiber when only the self-steeping effect is considered. The initial pulsewidth is 50 fs.
Fig. 6. Power evolution of pulse shapes over five soliton periods along the fiber when all the three effects are considered. The initial pulsewidth is 50 fs.
Fig. 7. Same as in Fig. 6, when delayed Raman response is approximated by assuming the Raman gain is linear in frequency.
Fig. 8. Averaged frequency shift versus distance for the 50 fs second-order soliton propagation obtained fromFig. 6(solid curves) andFig. 7(dashed curves).
important role, the next is the self-steeping effect, and the least is the delayed Raman response effect.
4. Conclusions
In conclusion, the propagation of the femtosecond second-order solitons in optical fiber is studied. It is shown that the higher-order nonlinear terms in the accurate equation are negligible for a second-order soliton of pulsewidth down to 10 fs, which means that
the equation obtained previously is valid in those ranges. A 50 fs and a 10 fs second-order solitons of propagation in an optical fiber are numerically calculated. It is found that, for the case of 10 fs second-order soliton, the soliton decay is dominated by the third dispersion and the delayed Raman response has the least effect, in contrast to the case of 50 fs second-order soliton, where the soliton decay is dominated by the delayed Raman response. For the propagation of the 50 fs or less than 50 fs second-order soliton, we have shown that the exact delayed Raman response form must be used.
Acknowledgment
This work is partially supported by National Science Council, Republic of China, under Contract NSC 92-2215-E-194-001.
References
[1] G.P. Agrawal, Nonlinear Fiber Optics, Academic, San Diego, 2001.
[2] M. Miyagi, S. Nishida, Pulse spreading in a single-mode fiber due to third-order dispersion, Appl. Opt. 18 (1979) 678–682.
[3] D.M. Bloom, L.F. Mollenaure, C. Lin, D.W. Taylor, A.M. DeGaudio, Direct demonstration of distortionless picosecond-pulse propagation in kilometer-length optical fibers, Opt. Lett. 4(1979) 297–299.
[4] E.M. Dianov, A. Ya. Karasik, P.V. Mamyshev, A.M. Prokhorov, V.N. Serkin, M.F. Stel’makh, A.A. Fomi-chev, Decay of optical solitons, JETP Lett. 41 (1985) 294. [5] F.M. Mitschke, Discovery of the soliton self-frequency
shift, Opt. Lett. 11 (1986) 659–661.
[6] J.P. Gordon, Theory of the soliton self-frequency shift, Opt. Lett. 11 (1986) 662–664.
[7] N. Tzoar, M. Jain, Self-phase modulation in long-geometry optical waveguides, Phys. Rev. A 23 (1981) 1266–1270. [8] D. Anderson, M. Lisak, Nonlinear asymmetric self-phase
modulation and self-steepening of pulses in long optical waveguides, Phys. Rev. A 27 (1983) 1393–1398.
[9] G. Yang, Y.R. Shen, Spectral broadening of ultrashort pulses in a nonlinear medium, Opt. Lett. 9 (1984) 510–512. [10] E.A. Golovchenko, E.M. Menyuk, A.M. Prokhorov, V.N. Serkin, Decay of optical solitons, JETP Lett. 42 (1985) 87–91. [11] P.K.A. Wai, C.R. Menyuk, Y.C. Lee, H.H. Chen, Nonlinear pulse propagation in the neighborhood of the zero-dispersion wavelength of monomode optical fibers, Opt. Lett. 11 (1986) 464.
[12] P.K.A. Wai, H.H. Chen, Y.C. Lee, Radiations by solitons at the zero group-dispersion wavelength of single-mode optical fibers, Phys. Rev. A 41 (1990) 426–439.
[13] J.R. Taylor (Ed.), Optical solitons—theory and experi-ment, Cambridge University Press, Cambridge, UK, 1992 Chapter 9.
[14] W. Hodel, H.P. Weber, Decay of femtosecond higher-order solitons in an optical fiber induced by Raman self-pumping, Opt. Lett. 12 (1987) 924–926.
Fig. 9. Power evolution of pulse shapes over five soliton periods along the fiber when only the third-order dispersion effect is considered. The initial pulsewidth is 10 fs.
Fig. 10. Power evolution of pulse shapes over five soliton periods along the fiber when only the delayed Raman response effect is considered. The initial pulsewidth is 10 fs.
Fig. 11. Power evolution of pulse shapes over five soliton periods along the fiber when only the self-steeping effect is considered. The initial pulsewidth is 10 fs.
[15] K. Tai, A. Hasegawa, N. Bekki, Fission of optical solitons induced by stimulated Raman effect, Opt. Lett. 13 (1988) 392–394.
[16] K. Ohkuma, Y.H. Ichikawa, Y. Abe, Soliton propagation along optical fibers, Opt. Lett. 12 (1987) 516–518. [17] C.F. Chen, S. Chi, B. Luo, Femtosecond soliton
propagation in an optical fiber, Optik 113 (2002) 267–271.
[18] R.H. Stolen, W.J. Tomlinson, Raman response function of silica-core fibers, J. Opt. Am. B 6 (1989) 1159–1166.
[19] P.M. Goorjian, A. Taflove, R.M. Joseph, S.C. Hagness, Computational modeling of femtosecond optical solitons from Maxwell’s equations, IEEE J. Quantum Electron. 28 (1992) 2416–2422.
