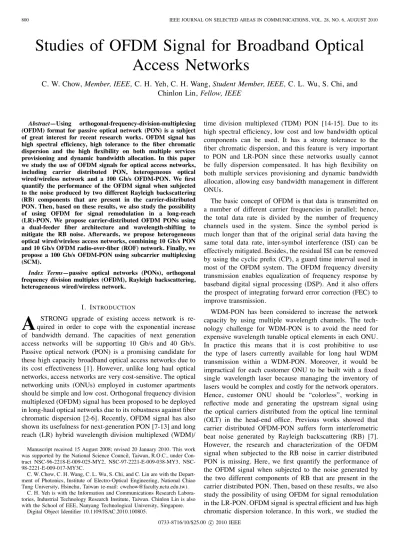

Chinlon Lin, Fellow, IEEE
Abstract—Using orthogonal-frequency-division-multiplexing (OFDM) format for passive optical network (PON) is a subject of great interest for recent research works. OFDM signal has high spectral efficiency, high tolerance to the fiber chromatic dispersion and the high flexibility on both multiple services provisioning and dynamic bandwidth allocation. In this paper we study the use of OFDM signals for optical access networks, including carrier distributed PON, heterogeneous optical wired/wireless network and a 100 Gb/s OFDM-PON. We first quantify the performance of the OFDM signal when subjected to the noise produced by two different Rayleigh backscattering (RB) components that are present in the carrier-distributed PON. Then, based on these results, we also study the possibility of using OFDM for signal remodulation in a long-reach (LR)-PON. We propose carrier-distributed OFDM PONs using a dual-feeder fiber architecture and wavelength-shifting to mitigate the RB noise. Afterwards, we propose heterogeneous optical wired/wireless access networks, combining 10 Gb/s PON and 10 Gb/s OFDM radio-over-fiber (ROF) network. Finally, we propose a 100 Gb/s OFDM-PON using subcarrier multiplexing (SCM).
Index Terms—passive optical networks (PONs), orthogonal frequency division multiplex (OFDM), Rayleigh backscattering, heterogeneous wired/wireless network.
I. INTRODUCTION
A
STRONG upgrade of existing access network is re-quired in order to cope with the exponential increase of bandwidth demand. The capacities of next generation access networks will be supporting 10 Gb/s and 40 Gb/s. Passive optical network (PON) is a promising candidate for these high capacity broadband optical access networks due to its cost effectiveness [1]. However, unlike long haul optical networks, access networks are very cost-sensitive. The optical networking units (ONUs) employed in customer apartments should be simple and low cost. Orthogonal frequency division multiplexed (OFDM) signal has been proposed to be deployed in long-haul optical networks due to its robustness against fiber chromatic dispersion [2-6]. Recently, OFDM signal has also shown its usefulness for next-generation PON [7-13] and long reach (LR) hybrid wavelength division multiplexed (WDM)/ Manuscript received 15 August 2008; revised 20 January 2010. This work was supported by the National Science Council, Taiwan, R.O.C., under Con-tract 96-2218-E-009-025-MY2, 97-2221-E-009-038-MY3, NSC-98-2221-E-009-017-MY3C.C. W. Chow, C. H. Wang, C. L. Wu, S. Chi, and C. Lin are with the Depart-ment of Photonics, Institute of Electro-Optical Engineering, National Chiao Tung University, Hsinchu, Taiwan (e-mail: [email protected]).
C. H. Yeh is with the Information and Communications Research Labora-tories, Industrial Technology Research Institute, Taiwan. Chinlon Lin is also with the School of EEE, Nanyang Technological University, Singapore.
Digital Object Identifier 10.1109/JSAC.2010.100805.
time division multiplexed (TDM) PON [14-15]. Due to its high spectral efficiency, low cost and low bandwidth optical components can be used. It has a strong tolerance to the fiber chromatic dispersion, and this feature is very important to PON and LR-PON since these networks usually cannot be fully dispersion compensated. It has high flexibility on both multiple services provisioning and dynamic bandwidth allocation, allowing easy bandwidth management in different ONUs.
The basic concept of OFDM is that data is transmitted on a number of different carrier frequencies in parallel; hence, the total data rate is divided by the number of frequency channels used in the system. Since the symbol period is much longer than that of the original serial data having the same total data rate, inter-symbol interference (ISI) can be effectively mitigated. Besides, the residual ISI can be removed by using the cyclic prefix (CP), a guard time interval used in most of the OFDM system. The OFDM frequency diversity transmission enables equalization of frequency response by baseband digital signal processing (DSP). And it also offers the prospect of integrating forward error correction (FEC) to improve transmission.
WDM-PON has been considered to increase the network capacity by using multiple wavelength channels. The tech-nology challenge for WDM-PON is to avoid the need for expensive wavelength tunable optical elements in each ONU. In practice this means that it is cost prohibitive to use the type of lasers currently available for long haul WDM transmission within a WDM-PON. Moreover, it would be impractical for each customer ONU to be built with a fixed single wavelength laser because managing the inventory of lasers would be complex and costly for the network operators. Hence, customer ONU should be “colorless”, working in reflective mode and generating the upstream signal using the optical carriers distributed from the optical line terminal (OLT) in the head-end office. Previous works showed that carrier distributed OFDM-PON suffers form interferometric beat noise generated by Rayleigh backscattering (RB) [7]. However, the research and characterization of the OFDM signal when subjected to the RB noise in carrier distributed PON is missing. Here, we first quantify the performance of the OFDM signal when subjected to the noise generated by the two different components of RB that are present in the carrier distributed PON. Then, based on these results, we also study the possibility of using OFDM for signal remodulation in the LR-PON. OFDM signal is spectral efficient and has high chromatic dispersion tolerance. In this work, we studied the 0733-8716/10/$25.00 c 2010 IEEE
Fig. 1. Schematic of carrier distributed PON. AWG: arrayed waveguide grating, OC: optical circulator. Insets: schematic optical spectra at different locations.
possibility of using OFDM signal in several different optical network architectures. We propose carrier distributed OFDM PONs using dual-feeder fiber and using wavelength-shifting to mitigate RB noise.
After this, we will propose heterogeneous optical wired/wireless access networks, combining 10 Gb/s PON and 10 Gb/s OFDM radio-over-fiber (ROF) network. Heteroge-neous wired/wireless access network has been proposed to integrate the advantages of optical wired and wireless access networks, providing high capacity and flexible broadband connections for both fixed and mobile users [16]. Finally, we will propose a 100 Gb/s OFDM-PON using subcarrier multiplexing (SCM), without the need of using polarization multiplexing [4], WDM [17] nor optical comb generator [18]. The paper is organized as follows: In Section II, we will analyze the RB of OFDM signal in a carrier distributed PON. In Section III, we will demonstrate a carrier distributed OFDM LR-PON using dual-feeder fiber architecture to mitigate RB noise. A RB mitigation scheme using wavelength-shifting will also be proposed. In Section IV, we will propose the hetero-geneous wired/wireless access networks. Then in Section V, we will propose and demonstrated using numerical simulation a 100 Gb/s OFDM-PON using SCM. A conclusion will be given in Section VI.
II. RAYLEIGH BACKSCATTERING ANALYSIS OF OFDM SIGNAL
Carrier distributed WDM-PONs provide many attractive fea-tures, however, when a single drop fiber is employed to reach the customer, the carrier distributed from the OLT and the upstream signal must share the same path, giving rise to interferometric beat noise caused by the RB. RB is generated by the distributed reflections caused by the random index fluctuation along the silica optical fiber. The RB noise is partially polarized in nature, with a colored power spectral density (PSD) proportional to the PSD of the input signal to the optical fiber. We identified two main contributions to the RB noise, as shown in Fig.1 in the carrier distributed PONs. They interfere with the upstream signal at the receiver (Rx). The first contribution, Carrier-RB, is generated by the
attenuator, EAM: electro-absorption modulator.
backscatter of the continuous wave (CW) carrier delivered to the reflective ONU (RONU). The second contribution, Signal-RB, is generated by the upstream data signal at the output of the RONU. Backscattered light from this upstream signal re-enters the RONU, and it is modulated at a second time (hence, having a broader spectrum) and transmitted towards the Rx.
As mentioned before, the RB noise is partially polarized in nature, with a colored PSD proportional to the PSD of the input signal. As a result, the spectra of Carrier-RB and the CW carrier are nearly the same, while the Signal-RB is modulated twice by the RONU and has a much broader spectrum. The relative impact of the two components depends on the exact network configuration and hence, for a full understanding, separate analysis of each effect is needed. Insets of Fig. 1 indicate the schematic optical spectra at different locations of a carrier distributed PON. Higher optical spectral overlapping will produce higher electrical beat noise at the same frequency band when detected by a photodetector. A more accurate approach is to use the PSD of each signal, and the modeling has been described in detail in [19].
A theoretical derivation of the RB properties of a signal has been successfully achieved recently [19]. Here, we experimen-tal characterize the optical crossexperimen-talk to signal ratio (OCSR) performance of the upstream signal subjected to Carrier-RB and Signal-RB, as shown in Fig. 2. The OCSR is defined as the power ratio of RB crosstalk noise to the data signal measured just prior the Rx. For the two cases, the signals were modulated at different points in the setup of Fig. 2 to reproduce the modulation characteristics of a carrier distributed PON and to allow separate analysis of the two RB components. For the Carrier-RB analysis, the transmitter (Tx) in Fig. 2 was a CW signal (1548 nm, output power 6 dBm). It was split by a 3-dB fiber coupler between two output paths. The upper path was used to generate CW Carrier-RB and hence EAM1 was not used. The Carrier-RB produced by a 25 km single mode fiber (SMF), terminated with an angled connector, was extracted via an optical circulator (OC). In the lower path, the remainder of the CW was modulated by EAM2 to produce the data signal for analysis. A variable optical attenuator (VOA) was used to adjust the data signal power to generate different OCSRs. The Carrier-RB and the data signal were then co-polarized (the highest beat noise case) by using the polarization controllers (PCs). They were combined by the fiber coupler, and then launched into an optically pre-amplified Rx (formed by an erbium doped fiber amplifier (EDFA), an optical filter (Gaussian shaped, 3-dB bandwidth of 50 GHz) and a PIN photodiode) for bit-error rate (BER) measurements.

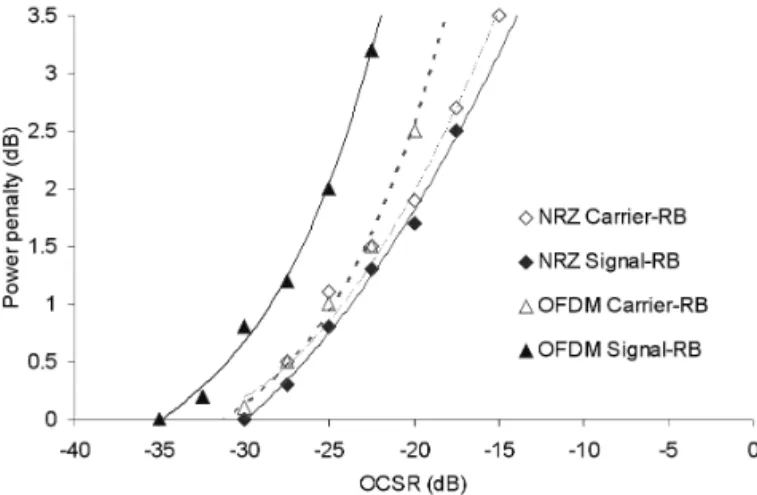

Fig. 3. RB noise performance of OFDM signal when compared with conventional NRZ formats.
In the Signal-RB analysis, the Tx consisted of a CW laser and an EAM to produce the data signal. In the upper path, the backscattered data signal by the 25 km SMF was modulated again by EAM1after the OC to generate the Signal-RB. In the lower path, EAM2 was unused. The Signal-RB and the data signal were then combined before being launched into the Rx. The OFDM signal was generated by a digital-to-analog converter (DAC), which is an arbitrary waveform generator with 4 GHz sampling rate, as described in [15]. The data was packed into 16 subcarriers, each subcarrier symbol was a 16-quadrature amplitude modulation (QAM) format. The OFDM signal occupied a bandwidth of 1 GHz (62.5 MHz to 1.125 GHz), and the total data rate of the OFDM signal was 4 Gb/s. By using inverse fast Fourier transform (IFFT), these subcarrier symbols were converted to a time-domain OFDM symbol. They were applied to the EAMs in Fig. 2 with proper bias. The OFDM signal was directly detected by the Rx. An analog-to-digital converter (ADC), which is a real-time oscilloscope, connected to the Rx converted the OFDM signal to digital format. Synchronization of extracted carrier phase and fast Fourier transform (FFT) for time to frequency-domain translation was performed using off-line computer software. Then the QAM decoder analyzed the symbol on each subcarrier. The BER was calculated from the measured error vector magnitude (EVM). For comparison, the Carrier-RB and Signal-Carrier-RB of 4 Gb/s non-return to zero (NRZ) signals were also evaluated using the similar setup shown in Fig. 2.
The RB performance of a signal depends on the inter-ferometric beat noise falling within the Rx bandwidth. The interferometric beat noise depends on the spectral overlap between the data signal and the interferers. Fig. 3 shows the measured RB performances by comparing the power penalties at BER of 10−9, as a function of OCSRs. For conventional
NRZ signal, the OCSR is about -25 dB [20]. This means that when the RB noise power is 25 dB less than the data signal power, the power penalty is ~1 dB. The measurement result shows that the Carrier-RB performance of OFDM-QAM is better than its Signal-RB performance. This is due to the fact that Carrier-RB beat noise is low frequency in nature, and the OFDM signal is slightly up-converted (62.5 MHz to 1.125 GHz), hence, the Carrier-RB noise mainly falls within the frequency gap between the center carrier and the OFDM
Fig. 4. Schematic of a carrier distributed PON using dual-feeder fiber architecture.
signal. The Signal-RB has a wider spectrum than the OFDM signal since it has been modulated twice. And the noise spectrum of the Signal-RB will occupy the whole frequency band of the OFDM signal, producing much higher beat noise due to the complete spectral overlap. As a result, we can observe from Fig. 3 that the Signal-RB OCSR of the OFDM signal is -30 dB at 1-dB power penalty window. The RB performance of NRZ signal was also included. Results indicate that OFDM signal has similar Carrier-RB performance to NRZ signal, but poorer Signal-RB performance than NRZ signal.
III. OFDMSIGNAL REMODULATION LR-PON Signal remodulation could be one of the promising candidates for next generation PONs [11-12, 21-23]. Expensive Tx inside the ONU with distinct and specific wavelength has hindered the PON deployment. Network architectures with signal re-modulation on the downstream channel for the upstream channel can reduce the cost of wavelength referencing, control and stabilization at the cost-sensitive ONU. Only a single wavelength is needed for both downstream and upstream signals, since wavelength is reused.
According to the OCSR analysis described in Section II, the RB noise can degrade the performance of a carrier distributed PON using OFDM signal. And the noise generated by the Signal-RB is worse than that of NRZ signal. Here, we study the possibility of using OFDM format for signal remodulation LR-PON. We also propose and demonstrate using dual-feeder fiber architecture to mitigate the RB noise in the OFDM signal remodulation LR-PON. Colorless RONU based on reflective semiconductor optical amplifier (RSOA) and Fabry-Perot laser diode (FP-LD) are evaluated and compared.
If we consider a carrier-distributed PON with two stages of splitters such as the one shown in Fig. 4, where for clarity the arrayed waveguide grating (AWGs) are not shown, we can see clearly that most of the Carrier-RB power is generated by the optical carrier in the fiber (feeder fiber) before the first optical splitter. This is due to the loss introduced by the first optical splitter and also because the feeder fiber usually have most of the fiber length. The Carrier-RB generated before the first splitter cannot reach the Rx and thus it cannot interfere with the upstream signal. Although the Carrier-RB generated in the distribution and drop sections, and the Signal-RB still propagates to the Rx, the overall RB power is significantly reduced compared with a system using a single feeder fiber.
Fig. 5. Experimental setup of signal remodulation LR-PON. EAM: electro-absorption modulator, SMF: single mode fiber.
Besides, The circulator used to launch the carrier in single-feeder scheme is not needed in the dual-single-feeder architecture, since the optical splitter used to combine the two feeder fibers performs this function. Detail analysis of using dual-feeder fiber architecture can be found in [24]. This scheme also maintains the benefit of a single drop and distribution fiber to each ONU, which could reduce the cost of fiber and fiber connections in the network [24].
Fig. 5 shows the experimental setup of a signal remodula-tion LR-PON. The downstream electrical OFDM signal (as de-scribed in Section II) was applied to the EAM. The signal was then transmitted via 90 km feeder and 10 km distribution/drop fibers before being launched into the RONU. At the RONU, 10% of downstream power was tapped out and detected by an optically pre-amplified Rx. 90% of the downstream signal was then launched into the colorless modulator at the ONU. Two different kinds of colorless modulators: RSOA and FP-LD are used. In each case, a 2.5 Gb/s NRZ data, pseudo random binary sequence (PRBS) pattern length of 231− 1, was used to directly modulate the colorless modulator.
We have studied that when the extinction ratio (ER) of the downstream OFDM signal was ~4 dB, the RONU can effectively suppress the ER of the downstream OFDM signal by using the gain-saturation property of the RSOA [25] or the injection locking property of the FP-LD [26]. Fig. 6 shows the BER measurements of each signal at back-to-back (b2b) and after the 100 km LR transmission. Insets show the constellation diagrams of OFDM signal at ER ~4 dB, output remodulated NRZ eye diagrams of FP-LD and RSOA when downstream OFDM at ER ~4 dB. We can observe clear open eyes after 100 km SMF transmission without dispersion compensation in each case. Error-free BER operation can be achieved for the proposed remodulation LR system. We also studied the nonlinear transmission characteristics of the RSOA- and FP-LD-based colorless RONUs. Different CW optical powers were launched into them at different biases, and we measured their output optical powers using power meter. For the injection locked FP-LD-based RONU, when the FP-LD was biased below the threshold current (10 mA), the transfer characteristic was quite linear. When the biased current was much above threshold (35 mA), the nonlinear transfer function was much steeper than that of the RSOA-based RONU; and there was an abrupt output power change
Fig. 6. BER measurements of different signals. Insets: constellation diagrams of OFDM signal at ER ~4 dB at (a) b2b, (b) 100km, output remodulated NRZ eye diagrams of FP-LD at (c) b2b, (d) 100km; and RSOA at (e) b2b, (f) 100km, when downstream OFDM at ER ~4 dB.
Fig. 7. Schematic of carrier distributed OFDM-PON using wavelength-shifting. OC: optical circulator, PS: phase shifter, MZM: dual-arm Mach-Zehnder Modulator, EAM: electro-absorption modulator.
owing to the injection locking. Hence, the downstream OFDM signal can be highly suppressed by the injection locking of the FP-LD-based RONU, producing a better upstream NRZ signal. We can observe in Fig. 6 that the BER performance of FP-LD remodulation is better than the RSOA remodulation. The disadvantage of using FP-LD is that it is sensitive to the input polarization, and polarization tracking is necessary. It is possible to use NRZ signals for both upstream and downstream. It is worth to note that although one wavelength was demonstrated, WDM is also supported.
We also proposed and demonstrated by simulation (VPI Transmission Maker V7.5) another RB mitigation scheme in the carrier distributed OFDM-PON without using the dual-feeder architecture. Fig. 7 shows the schematic of the carrier distributed OFDM-PON, where wavelength-shifting was used to mitigate RB. The CW carrier (f0) was launched towards the colorless ONU. A dual-arm MZM inside the ONU was driven in-phase and quadrature-phase by an electrical sinusoidal sig-nal at frequency of 10 GHz (fs) to produce the single-sideband carrier suppressed (SSB-CS) or a wavelength-shifted (f0−fs) signal. The signal was then encoded by the OFDM signal (the generation method was described in previous paragraph) and then sent back towards the Rx at OLT.
Fig. 8. Simulated optical spectra of the CW carrier and upstream signal. Insets: Simulated constellation diagrams of upstream signal at BER of 10−9 when (a) without wavelength-shifting and OCSR = -25dB, (b) with
wavelength-shifting and OCSR = -15 dB.
Fig. 9. Experimental setup of the heterogeneous 10Gb/s PON and 10Gb/s OFDM ROF network. DFB-LD: distributed-feedback laser diode, R/B filter: red/blue filter, SMF: single mode fiber.
Fig. 8 shows the simulated optical spectra of the distributed CW carrier (f0) and the wavelength-shifted OFDM signal (f0− fs). The power ratios between the upper sideband to
the lower sideband and the center wavelength are >16 dB. Since the RB tolerance depends on the interferometric beat noise falling within the Rx bandwidth, the RB tolerance of the wavelength-shifted signal can be improved due to the reduced spectral overlap with the carrier wavelength. Inset of Fig. 8(a) and (b) show the simulated constellation diagrams of upstream 16-QAM OFDM signal at the same BER of10−9at the 1-dB power penalty window (Fig. 3) without wavelength-shifting (OCSR = 25dB) and with wavelengthshifting (OCSR = -15 dB) respectively. Result show that wavelength-shifting can significantly mitigate RB generated by the CW carrier by withstanding a much higher RB noise (OCSR improved by 10 dB).
IV. HETEROGENEOUS OPTICAL WIRED/WIRELESS NETWORK
Here we demonstrate a fully passive (without optical amplifier in the transmission link) heterogeneous optical wired/wireless access network, combining 10 Gb/s PON and 10 Gb/s OFDM ROF network. OFDM cannot only be applied as baseband signal in PON, but also be used in the present radio-frequency (RF) communications. OFDM is used here since it is com-monly used in the present wireless communication. Fig. 9 shows the experimental setup of the proposed heterogeneous 10 Gb/s PON and 10 Gb/s OFDM ROF network. At the OLT,
Fig. 10. BER measurements of (a) 10 Gb/s NRZ and (b) 10 Gb/s OFDM signals at back-to-back (b2b) and after 25 km SMF transmission. Insets: corresponding NRZ eye diagrams and OFDM constellation diagrams.
the 10 Gb/s NRZ data was used to broadcast the downstream information for wired applications and it was operated at 1550 nm. The 10 Gb/s, 231− 1 PRBS NRZ optical signal was encoded by using a Mach-Zehnder modulator (MZM).
For the ROF part, the total 10 Gb/s OFDM-QAM signal was generated using similar method as described in Section II. Here, the arbitrary waveform generator has the 50 GHz sampling rate. The incoming bit streams were packed into 128 subcarrier symbols, each subcarrier symbol was in 16-QAM format. In this experiment, the OFDM signal was directly modulated at a distributed feedback laser diode (DFB-LD) module of wavelength at 1312 nm with an average optical output power of 5 dBm. Using OFDM at wavelength 1312 nm was due to the available of a directly modulation (modulation bandwidth> 3 GHz) DFB-LD at laboratory. Due to the highly spectral efficiency of the QAM used in the OFDM signal, the total 10 Gb/s OFDM data signal only occupied the bandwidth of 2.5 GHz. The OFDM signal was up-converted to a center frequency of 1.35 GHz.
Then, the red/blue filter (R/B filter) was used to combine the 1312 nm and 1550 nm signals together. The signal was then launched into a 25 km standard SMF without dispersion compensation. In the ONU, an optically pre-amplified Rx was used to detect the 10 Gb/s NRZ signal. It consisted of an
Fig. 11. Schematic of the heterogeneous network. MZM: Mach-Zehnder Modulator, EAM: electro-absorption modulator, BRF: band-rejection filter, BPF: bandpass filter, PD: photodiode, LPF: low pass filter.
EDFA with saturated output power of 12 dBm and noise figure of 5 dB, and an optical bandpass filter with 3-dB bandwidth of 50 GHz to remove the out-of-band amplified spontaneous emission (ASE) noise, and a PIN photodiode. Due to the unavailable of the 1310 nm optical amplifier in the laboratory, only a PIN photodiode (without optical pre-amplifier) was used for the detection of OFDM signal.
In order to confirm the transmission performance of the proposed heterogeneous network, BER measurements were performed. Fig. 10(a) shows the BER measurements of the proposed 10 Gb/s NRZ signal at b2b and transmission of 25 km SMF without dispersion compensation. We observed about 0.2 dB power penalty at BER of 10−9 in the transmission. Fig. 10(b) shows the BER measurements of 10 Gb/s OFDM 16-QAM signals. About 1 dB power penalty was observed. Higher power penalty observed in the OFDM case was due to direct modulation of DFB-LD used. The requirement of relative larger received power than the NRZ signal is due to the unavailable of 1310 nm optical pre-amplifier. The corresponding NRZ eye diagrams and the OFDM constellation diagrams are shown in insets of Fig. 8.
We also proposed and demonstrated by simulation (VPI Transmission Maker V7.5) an integrated heterogeneous wired/wireless network as shown in Fig. 11. At the OLT, a CW signal was divided into two paths. An optical double-sideband carrier suppressed (DSB-CS) signal (separation between the two sidebands = 60 GHz (= 2fs) was produced by the MZM,
which was electrical driven at 30 GHz (fs) in the upper path. It was then encoded by 10 Gb/s 16-QAM OFDM signal by the EAM. In the lower path, the CW was encoded by 10 Gb/s NRZ signal by another EAM. The two signals were then combined at the output of the OLT producing the wired/wireless signal. At the ONU, the signal was divided into two parts by a 3-dB fiber splitter. At the upper path of the ONU, an optical band rejection filter (BRF) with the rejection bandwidth of 20 GHz was used to remove the NRZ signal at the center frequency (f0) for the wireless signal detection. By the coherent beating of the two sidebands of the DSB-CS OFDM signal at the photodiode (PD), an up-converted electrical OFDM signal at 60 GHz carrier frequency was generated. Finally, the wireless signal was down-converted to baseband at the mobile station
(MS) by using a RF mixer, a 60 GHz sinusoidal signal (2fs)
and a low pass filter (LPF) with bandwidth of 3 GHz. At the lower path, an optical bandpass filter (BPF) (Gaussian shaped, 20 GHz bandwidth) was used to remove the wireless signal for the NRZ detection. We can observe that error-free transmissions can be achieved for both wired and wireless signals as shown in Fig. 12.
V. 100 GOFDM-PON USING SCM
Finally in this Section, we will propose a 100 Gb/s OFDM-PON using SCM technique. Due to the unavailable of the high frequency RF mixers in the laboratory, the SCM channels were demonstrated by means of numerical simulation (using VPI Transmission Maker V7.5). Fig. 13 shows the schematic setup of the proposed 100 Gb/s OFDM-PON. Ten channels (Ch 1 to Ch 10) of OFDM signals were generated using the built-in modules in VPI. The bit streams were packed into 128 subcarrier symbols, and each subcarrier symbol was in 16-QAM format. Hence, each channel has a total data rate of 10 Gb/s, occupying a bandwidth of 2.5 GHz. Ch 2 to Ch 10 were up-converted by using RF mixers and RF clock sources, with frequency separation of 3 GHz. In order to improve the spectral efficiency, we added a electrical BPF (Bessel 3rd order, bandwidth of 3 GHz) after the mixer for each channel to remove one of the sideband of the RF up-converted signal, hence producing a single sideband (SSB) signal. Hence, the frequency separation between each SCM channel can be 3 GHz. They were then power combined and applied to a MZM with proper biases to encode the CW light source (1548 nm) with the 100 Gb/s OFDM signal. The signal was then launched into a Rx via 25 km of standard SMF and 4 km of dispersion compensating fiber (DCF) (dispersion parameter = -100 ps/nm/km). The detected electrical signal was then power divided by using a wideband RF power splitter, and each SCM channel was demodulated and analyzed.
Fig. 14 shows the simulated BER curves of different individual SCM OFDM channels after the transmission. This means that there is only one active SCM channel in each simulation. We can observe that the power penalties for Ch 2 to Ch 10 are similar with variation of ~1 dB. Ch 1 performs better since this baseband channel has not been filtered by the BPF.
Fig. 12. BER measurements of 10 Gb/s NRZ and down-converted 10 Gb/s OFDM signals at the Rx. Insets: corresponding NRZ eye diagrams and OFDM constellation diagrams.
Fig. 13. Schematic setup of the 100 Gb/s OFDM-PON using SCM. CW: continuous-wave light source, MZM: Mach-Zehnder modulator, LPF: low pass filter, BPF, bandpass filter, SMF: single mode fiber and DCF: dispersion compensating fiber.
Then we activated all the SCM channels, as shown in Fig. 15, error free performance can still be observed in all SCM channels with higher power penalties when compared with Fig. 14. This is because by using SCM, the modulation index of each channel should be lowered to above clipping of the overall signal. We also observed that the power penalty increases with the channel number.
VI. CONCLUSION
Using OFDM signal for PON is a subject of many research works recently. Previous researches show that carrier dis-tributed OFDM-PON suffers form interferometric beat noise generated by RB. We first quantified the performance of OFDM signal when subjected to the noise generated by the Carrier-RB and Signal-RB that are present in the car-rier distributed PON. The result shows that the Carcar-rier-RB performance of OFDM-QAM is better than its Signal-RB performance. The Carrier-RB performance of OFDM-QAM signal is similar to that of NRZ signal, while the Signal-RB performance of the OFDM-QAM is worse than that of NRZ signal. Base on these results, we proposed and demonstrated an OFDM signal remodulation LR-PON using dual-feeder
Fig. 14. BER curves of different individual SCM OFDM channels after transmission.
Fig. 15. BER curves of the 100 Gb/s OFDM SCM signal after transmission.
fiber architecture. The architecture can significantly mitigate most of the RB noises, while maintaining the merits of using single distribution and drop fiber to reach the customer ONUs. Two different colorless RONU architectures: RSOA-based and FP-LD-based RONU, were tested and compared, showing that despite the polarization controlling issue, FP-LD can provide a greater downstream OFDM signal suppression and produce a better upstream data. Besides, a carrier distributed OFDM-PON using wavelength-shifting has also been proposed to mit-igate RB. In the heterogeneous optical wired/wireless access network based on WDM approach, negligible power penalty was observed in the 10 Gb/s NRZ signal and 1 dB power penalty was observed in the 10 Gb/s OFDM ROF signal. Besides, we also propose an integrated wired/wireless network using 10 Gb/s NRZ signal and 10 Gb/s OFDM on 60 GHz carrier ROF signal. In the 100 Gb/s OFDM-PON, numerical simulations were performed.
