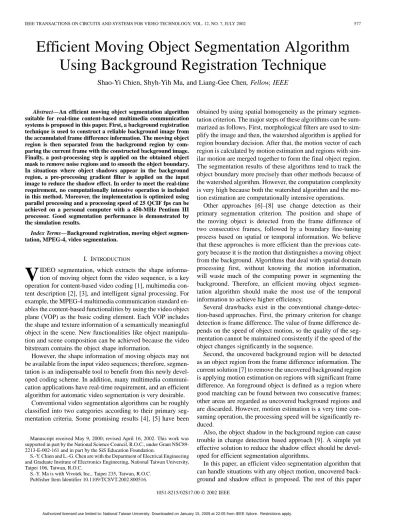

Efficient Moving Object Segmentation Algorithm
Using Background Registration Technique
Shao-Yi Chien, Shyh-Yih Ma, and Liang-Gee Chen, Fellow, IEEE
Abstract—An efficient moving object segmentation algorithm suitable for real-time content-based multimedia communication systems is proposed in this paper. First, a background registration technique is used to construct a reliable background image from the accumulated frame difference information. The moving object region is then separated from the background region by com-paring the current frame with the constructed background image. Finally, a post-processing step is applied on the obtained object mask to remove noise regions and to smooth the object boundary. In situations where object shadows appear in the background region, a pre-processing gradient filter is applied on the input image to reduce the shadow effect. In order to meet the real-time requirement, no computationally intensive operation is included in this method. Moreover, the implementation is optimized using parallel processing and a processing speed of 25 QCIF fps can be achieved on a personal computer with a 450-MHz Pentium III processor. Good segmentation performance is demonstrated by the simulation results.
Index Terms—Background registration, moving object segmen-tation, MPEG-4, video segmentation.
I. INTRODUCTION
V
IDEO segmentation, which extracts the shape informa-tion of moving object form the video sequence, is a key operation for content-based video coding [1], multimedia con-tent description [2], [3], and intelligent signal processing. For example, the MPEG-4 multimedia communication standard en-ables the content-based functionalities by using the video object plane (VOP) as the basic coding element. Each VOP includes the shape and texture information of a semantically meaningful object in the scene. New functionalities like object manipula-tion and scene composimanipula-tion can be achieved because the video bitstream contains the object shape information.However, the shape information of moving objects may not be available from the input video sequences; therefore, segmen-tation is an indispensable tool to benefit from this newly devel-oped coding scheme. In addition, many multimedia communi-cation applicommuni-cations have real-time requirement, and an efficient algorithm for automatic video segmentation is very desirable.
Conventional video segmentation algorithms can be roughly classified into two categories according to their primary seg-mentation criteria. Some promising results [4], [5] have been
Manuscript received May 9, 2000; revised April 16, 2002. This work was supported in part by the National Science Council, R.O.C., under Grant NSC89-2213-E-002-161 and in part by the SiS Education Foundation.
S.-Y. Chien and L.-G. Chen are with the Department of Electrical Engineering and Graduate Institute of Electronics Engineering, National Taiwan University, Taipei 106, Taiwan, R.O.C.
S.-Y. Ma is with Vivotek Inc., Taipei 235, Taiwan, R.O.C. Publisher Item Identifier 10.1109/TCSVT.2002.800516.
obtained by using spatial homogeneity as the primary segmen-tation criterion. The major steps of these algorithms can be sum-marized as follows. First, morphological filters are used to sim-plify the image and then, the watershed algorithm is applied for region boundary decision. After that, the motion vector of each region is calculated by motion estimation and regions with sim-ilar motion are merged together to form the final object region. The segmentation results of these algorithms tend to track the object boundary more precisely than other methods because of the watershed algorithm. However, the computation complexity is very high because both the watershed algorithm and the mo-tion estimamo-tion are computamo-tionally intensive operamo-tions.
Other approaches [6]–[8] use change detection as their primary segmentation criterion. The position and shape of the moving object is detected from the frame difference of two consecutive frames, followed by a boundary fine-tuning process based on spatial or temporal information. We believe that these approaches is more efficient than the previous cate-gory because it is the motion that distinguishes a moving object from the background. Algorithms that deal with spatial domain processing first, without knowing the motion information, will waste much of the computing power in segmenting the background. Therefore, an efficient moving object segmen-tation algorithm should make the most use of the temporal information to achieve higher efficiency.
Several drawbacks exist in the conventional change-detec-tion-based approaches. First, the primary criterion for change detection is frame difference. The value of frame difference de-pends on the speed of object motion, so the quality of the seg-mentation cannot be maintained consistently if the speed of the object changes significantly in the sequence.
Second, the uncovered background region will be detected as an object region from the frame difference information. The current solution [7] to remove the uncovered background region is applying motion estimation on regions with significant frame difference. An foreground object is defined as a region where good matching can be found between two consecutive frames; other areas are regarded as uncovered background regions and are discarded. However, motion estimation is a very time con-suming operation, the processing speed will be significantly re-duced.
Also, the object shadow in the background region can cause trouble in change detection based approach [9]. A simple yet effective solution to reduce the shadow effect should be devel-oped for efficient segmentation algorithms.
In this paper, an efficient video segmentation algorithm that can handle situations with any object motion, uncovered back-ground and shadow effect is proposed. The rest of this paper
is organized as follows. In the next section, the proposed algo-rithm is described in detail. Section III discusses the effect of object shadow and how to reduce it. Section IV describes an ef-ficient implementation of the proposed algorithm and then, the experimental results are shown in Section V. Finally, Section VI concludes this paper.
II. SEGMENTATIONALGORITHM
The basic idea of our segmentation algorithm is change detection. The moving object region is separated from other part of the scene by motion information. However, unlike other change-detection-based approaches [6]–[8], our judge criterion for motion does not come directly from the frame difference of two consecutive frames. Instead, we construct and maintain an up-to-date background information [10] from the video sequence and compare each frame with the background. Any pixel that is significantly different from the background is assumed to be in object region.
In other words, we are not trying to get the object shape in-formation from the changing region of the scene because the characteristics of the changing part is very unpredictable. It de-pends on object motion, texture, and contrast information which cannot be obtained in advance. Our focus is on the stationary part. This information is more reliable, not very sensitive to ob-ject characteristics, and easier to obtain.
An obvious assumption of this approach is stationary back-ground. Since, in many video conferencing and remote surveil-lance applications, the camera is fixed, we will focus our algo-rithm on these situations. Some researchers [7], [11], [12] have shown that the background change due to camera motion can be compensated by global motion estimation and compensation. Therefore, we assumed that our input sequence has been prop-erly compensated and the background region is stationary.
The proposed algorithm is divided into five major steps as shown in Fig. 1. The first step is to calculate the frame difference mask by thresholding the difference between two consecutive input frames.
Then, according to the frame difference mask of past several frames, pixels which are not moving for a long time are con-sidered as reliable background in the background registration step. This step maintains an up-to-date background buffer as well as a background registration mask indicating whether the background information of a pixel is available or not.
By the third step, the background difference mask is gener-ated by comparing the current input image and the background image stored in the background buffer. This background differ-ence mask is our primary information for object shape genera-tion.
In the fourth step, an initial object mask is constructed from the background difference mask and the frame difference mask. If the background registration mask indicates that the background information of an pixel is available, the background difference mask is used as the initial object mask. Otherwise, the value in the frame difference mask is copied to the object mask.
The initial object mask generated in the fourth step has some noise regions because of irregular object motion and camera
Fig. 1. Block diagram of proposed video segmentation algorithm.
noise. Also, the boundary region may not be very smooth. In the last step, these noise regions are removed and the initial object mask is filtered to obtain the final object mask.
The details of each step will be discussed in the following subsections.
A. Frame Difference
Thresholding the difference between two consecutive input frames is the basic concept of change detection based segmen-tation. However, since the behavior and characteristics of the moving objects differ significantly, the quality of segmentation result depends strongly on background noise, object motion, and the contrast between the object and the background. Reliable and consistent object information is very difficult to obtain.
Traditionally, a boundary relaxation [6] technique or higher order statistics [8] are used for thresholding to obtain more re-liable object shape information by considering the boundary property of the object and the statistic characteristics of the changing part. However, only the motion information between two consecutive frames is used in these approaches, and there-fore, object shape information may be lost in regions where the motion stops temporarily. Also, the assumption for the changing part characteristics may not be suitable for all situations.
We use a completely different approach. Instead of trying to get more information from the changing part of the scene, we focus on the stationary background where the characteristics is well known and more reliable. Also, we use the long-term be-havior of the object motion accumulated from several frames in-stead of relying on frame difference of two consecutive frames only.
(a) (b)
(c) (d)

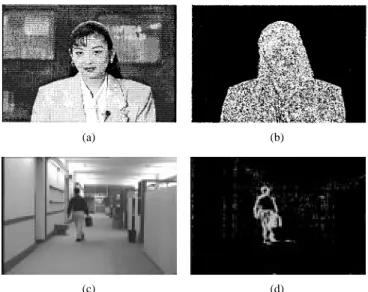

Fig. 2. Frame difference mask example. (a) and (c) The original image. (b) and (d) Frame difference mask.
The frame difference mask is generated simply by thresh-olding the frame difference. This information is sent to the back-ground registration step where the reliable backback-ground is con-structed from the accumulated information of several frame dif-ference masks.
A significance test technique [6] is use to obtain the threshold value. Since accumulated frame difference masks are used in the final decision for a reliable background, no filtering or boundary relaxation is applied on the frame difference. The test statistic is the absolute value of frame difference. Under the assumption that there is no change in the current pixel, the frame difference obeys a zero-mean Gaussian distribution and its probability den-sity function is shown in the following equation:
FD H FD (1)
where FD is the frame difference and is the variance of the frame difference and is equal to twice the camera noise variance . H denotes the null hypothesis, i.e., the hypothesis that there is no change at the current pixel.
The threshold value is decided by required significance level. Their relation is shown as follows:
Prob FD TH H (2)
where is the significance level and TH is the threshold value. Fig. 2 shows two examples of the frame difference mask. If the camera noise is small, it is easy to segment the foreground object from the background and we can set a higher significance level , as shown in Fig. 2(a) and (b). The frame difference mask in Fig. 2(b) is almost ready to be a final object mask. On the other hand, if the camera noise is large, it is hard to segment the foreground object and the significance level should be lower. As shown in Fig. 2(c) and (d), although the changing part in the frame difference mask can only present a rough shape of the moving object, the accumulated information in the stationary part can give very reliable background information.
B. Background Registration
The goal of background registration step is to construct a reli-able background information from the video sequence. Several approaches [13]–[15] have been proposed to construct and up-date the background information from the sequence. These ap-proaches are developed for enhancing the coding efficiency in the uncovered background region, so the background informa-tion should be constructed as soon as possible. Therefore, com-plex operations are use to generate the background image.
In our application, we need a reliable background information for change detection. An approximated background information is not helpful for object detection, and even worse, it will cause error in the later segmentation result until the background in-formation is corrected. Therefore, for inin-formation that we are not very sure to be background, we tend to reject and leave the corresponding area in the background buffer empty. Also, the operations used in background registration step should be very simple for higher processing speed.
In the background registration step, the history of frame dif-ference mask is considered in constructing and updating the background buffer. A stationary map is maintained for this pur-pose. If a pixel is marked as changing in the frame difference mask, the corresponding value in the stationary map is cleared to zero, otherwise, if the pixel is stationary, the corresponding value is incremented by one. The values in the stationary map indicate that the corresponding pixel has been not changing for how many consecutive frames.
Our idea is that if a pixel is stationary for the past several frames, then the probability is high that it belongs to the back-ground region. Therefore, if the value in the stationary map ex-ceeds a predefined value, denoted by , then the pixel value in the current frame is copied to the corresponding pixel in the background buffer.
A background registration mask is also changed in this process. The value in the background registration mask indicates that whether the background information of the corresponding pixel exists or not. If a new pixel value is added into the background buffer, the corresponding value in the background registration mask is changed from nonexisting to existing.
Fig. 3 shows the background registration results for the Weather sequence. The black area means that the background information in that area is not yet available. As shown in Fig. 3(b), background information can be correctly obtained except for the region covered by the reporter. After the reporter moves away from her original position, more background information can be constructed, as shown in Fig. 3(d).
C. Background Difference
This step generates a background difference mask by thresh-olding the difference between the current frame and the back-ground information stored in the backback-ground buffer. This step is very similar to the generation of frame difference mask. The threshold value is also determined by the required significance level according to (2).
(a) (b)
(c) (d)
Fig. 3. Construction and updating of the background buffer. (a) Weather sequence frame #50. (b) Constructed background at frame #50. (c) Original image of frame #100. (d) Constructed background at frame #100.
TABLE I OBJECTREGIONDECISION
D. Object Detection
The object detection step generates the initial object mask from the frame difference mask and the background difference mask. The background registration mask, frame difference mask, and background difference mask of each pixel are required information.
Table I lists the criteria for object detection, where BD means the absolute value of difference between the current frame and the background information stored in the background buffer, FD is the absolute value of frame difference, and the OM field indicates that whether or not the pixel is included in the object mask. TH and TH are the threshold values for generating the background difference mask and frame difference mask, respectively.
For the first two cases listed in Table I, the background infor-mation is not yet available, so the frame difference inforinfor-mation is used as the criterion for separating object from background. Although only change detection is used in these situations, the background registration keeps accumulating the background in-formation so the number of pixels without background informa-tion reduce rapidly.
For cases 3 to 6 in the decision table, the criteria is back-ground difference because the backback-ground information exists. If both the frame difference and the background difference are significant, the pixel is part of a moving object. On the other
hand, if both the frame difference and the background differ-ence are insignificant, the pixel should not be included in the object mask. Therefore, for the third and fourth cases in Table I, our result is the same as the result of using only the frame dif-ference for change detection.
Cases 5 and 6 are situations that frame difference based change detection cannot handle properly, but our approach works. One of the problems that confuse the conventional change detector is that the object may stop moving temporarily or move very slowly. In these cases, the motion information disappears if we check the frame difference only. However, if we have background difference information, we can see very clearly that these pixels belong to the object region and should be included in the object mask.
The uncovered background (case 6) is another region where the proposed algorithm outperform the traditional change de-tection algorithms. Since both the uncovered background re-gion and the moving object rere-gion have significant luminance change, distinguishing the uncovered background from the ob-ject is not very easy if only the frame difference is available.
Motion estimation has been proposed [7] to solve this problem. If both ends of a motion vector are inside the frame difference mask, then the corresponding area is part of the object. Otherwise, that area is assumed to be background. This approach has several drawbacks. First, the motion estimation is not very accurate near the object boundary where highest accuracy is required. Second, motion estimation can deal with the translation type of motion only; if other forms of movement are involved, motion vectors may fail to track the object motion. Also, motion estimation is a computationally intensive operation; this process will dramatically increase the complexity of the segmentation system.
In our algorithm, the uncovered background region is han-dled correctly because we recognize that this region matches the background information even though frame difference suggests significant motion. As shown in the sixth case of Table I, pixels in the uncovered background will not be included in the object mask. By eliminating the use of motion estimation in the un-covered background removal process, the computation for ob-ject detection can be greatly reduced.
Note that this operation is applied on each pixel indepen-dently; that is, pixels in a frame may belong to several differ-ence cases and will be manipulated in differdiffer-ence way as shown in Table I.
E. Post Processing
After the object detection step, an initial object mask is gen-erated. However, due to the camera noise and irregular object motion, there exist some noise regions in the initial object mask. Fig. 4(a) shows an example of initial object mask. We can see from the figure that some noise areas exist in both the back-ground and object region. Also, the object boundary is not very smooth. Therefore, a post-processing step to eliminate these noise regions and to filter out the ragged boundary is necessary. A traditional way to remove the noise regions is using the morphological operations to filter out smaller regions. The close operation is effective for eliminating the background noise and
(a) (b)
(c) (d)
(e) (f)
Fig. 4. Effect of noise region elimination. (a) Mask after small-region filtering. (b) Final object mask after close-open operation. (c) Initial object mask. (d) Final object mask after the noise region elimination step. (e) Original image. (f) Segmented object.
the open operation is effective for removing noise within the object region. However, noise regions whose areas are larger than the structuring element cannot be removed by the close or open operations. In order to remove noise regions with large area, larger structuring element should be used. This will not only increase the computation complexity, but also degrade the precision of the object boundary.
Our approach to eliminate the noise region relies on an ob-servation that the area of noise regions tend to be smaller than the area of the object. First, the classic connected components algorithm [16] is applied on the initial object mask to mark each isolated region. Then, the area of each region is calculated. Re-gions with area smaller than a threshold value are removed from the object mask. In this way, the object shape information is pre-served while smaller noise regions are removed.
Since there are two kinds of noise, noise in the background region and noise in the foreground region, two passes are in-cluded in this step. The first pass removes small black regions (background regions), which are noise regions in foreground or holes in the change detection mask. The second pass removes small white regions (foreground regions), which are noise re-gions in background or false alarm rere-gions in change detection mask. After small region filtering, the initial mask in Fig. 2(b) is refined as shown in Fig. 4(a).
After removing noise regions, a close and an open operations with a 3 3 structuring element are applied on the object mask. The small structuring element is chosen to smooth the object boundary without affecting the details of the shape information.
Fig. 5. Block diagram for shadow effect reduction.
After close–open operation, the final object mask is shown in Fig. 4(b).
Another example of this noise region elimination step is also shown in Fig. 4. Fig. 4(c) is the initial object mask and Fig. 4(d) shows the result of this noise region elimination step. The noise in the background region and within the object region are re-moved. Also, the boundary is smoothed while preserving the shape details.
Fig. 4(e) is the original image and Fig. 4(f) shows the seg-mented moving object, it can be seen that the object shape is obtained correctly in spite of the presence of noise. The shape boundary tracks the moving object quite well, except in the shadow region, which will be discussed in more details in the next section.
III. SHADOWEFFECTS
In many real applications, moving cast shadows may ap-pear in the background region of the scene. Since the shadow changes when the object moves, it is very difficult to distin-guish moving object from the shadow region. In our algorithm, the shadow region will be detected as significantly different form the background and marked as object region. Therefore, we need more processing to deal with scenes where shadows are involved.
Stauder et al. [9] has done an extensive analysis on the be-havior of shadows and has proposed an approach to avoid the moving shadows to affect the segmentation result. However, their approach is very complex and many computational inten-sive operations are used to achieve good results. For a real-time multimedia communication system, simpler solution is needed. We propose a simple method to reduce the shadow effects. The block diagram is shown in Fig. 5. The input images are filtered by a gradient filter and then feed into our segmentation algorithm described in the previous section. We use the morpho-logical gradient operation in the gradient filter for its simplicity. The operation is described in the following equations:
(a) (b)
(c) (d)
Fig. 6. Effect of gradient filter. (a) Original image. (b) Segmentation result of the original image. (c) Gradient image after applying the morphological gradient operation. (d) Segmentation result of the gradient image.
where is the input image, is the gradient image, and is a 3 3 structuring element of morphological operation.
The reason for using the gradient filter is based on an ob-servation that in normal conditions, shadow area tends to have a gradual change in luminance value. Therefore, after taking the gradient, the values in the shadow region tend to be very small while the edges have large gradient value. The effect of the shadow can be reduced significantly. Another benefit of the gra-dient filter is that if the illumination or the camera gain change within the sequence, the effect is small in the gradient domain. We can still get very good segmentation results even though the luminance values have changed significantly.
Note that an erosion operation is applied on the output object mask because the dilation operation in (3) will expand the ob-ject boundary. This effect can be compensated by applying the erosion operation on the final object mask.
Fig. 6 demonstrates the effect of gradient filter on segmenta-tion results. Fig. 6(a) is the original image—note that shadows appear at the background region due to indoor illumination. Fig. 6(b) shows the segmentation result for the original image, the shadow area is included in the object region. After applying the morphological gradient operation on the original image, the gradient image is shown in Fig. 6(c). We can see from this figure that the shadow area has a low gradient value, while the gradient is large at the object boundary. Fig. 6(d) shows the segmentation result for the gradient image. The shadow region has been suc-cessfully removed.
Some limitations exist in this approach. First, the elimination of of shadow effect relies on smooth change in the shadow re-gion. If a shadow appears in regions with strong texture, the ben-efit of gradient filter will reduce. Also, since the gradient filter removes some image information from the original image, the segmentation result may degrade if the object has a weak edge and low texture. Therefore, this gradient filter is optional in our algorithm and is only turned on when shadows are involved in the input sequence.
TABLE II RUNTIMEANALYSIS
IV. IMPLEMENTATION
Our goal is to construct an efficient moving object segmen-tation system. In order to achieve this goal, we avoid the use of computation intensive operations in our algorithm. Also, we have tried to optimize the implementation to achieve faster pro-cessing time without compromising the quality of segmentation results.
Table II shows a run-time analysis of our algorithm. Our test platform is a personal computer with a 450-MHz Pentium III processor. The listed numbers are the run time of each func-tion for one QCIF (176 144) image frame in units of mil-liseconds. The column labeled “Original” shows the run time of a straightforward implementation of our algorithm. The pro-cessing time for each frame of the original implementation is 101.5 ms, which corresponds to 9.8 fps.
A basic idea for faster implementation is to compute in par-allel, therefore, we tried to exploit parallelism as much as we could. For image processing, most data is 8-bits long and cannot fully utilize the 32-bit or 64-bit datapath of the processor. Many processors have provided multimedia instructions to segment their datapath to perform several 8-bit processing in parallel.
In our algorithm, the absolute difference operations for frame difference step and background registration step use only 8-bit data, and therefore can be calculated in parallel. The Intel MMX instructions [17] are utilized for these functions and the pro-cessing speed is three times faster than the original implemen-tations including the overheads. However, the overall perfor-mance is improved for only 4% because these operations are not the most time-consuming part of our algorithm.
As shown in Table II, 84% of the run time is spent on the post-processing step so this step is our main focus for optimiza-tion. An important property of post-processing operations is that they operate on binary images. Since most microprocessors have 32- or 64-bit datapaths, it is not efficient to store and process a pixel value in bytes or word. Therefore, we use a 32-bit word to represent the binary values of 32 pixels so the morphological operations for these 32 pixels are computed in parallel [18]. The pseudo code of such an implementation is shown in Table III. This bit-parallel is very effective in reducing the computation time and the optimized morphological operations run 5.5 times faster than the original implementation.
Table II shows that our implementation for binary morpho-logical operations is very efficient. However, the connected component algorithm used to remove noise regions now
TABLE III
EFFICIENTIMPLEMENTATION FORBINARYMORPHOLOGICALOPERATION
becomes the speed bottleneck because it is a sequential process and does not benefit from parallelism.
There are two passes of the connected component algo-rithm in the noise region elimination step, one for removing the noise in the background region and the other for removing the noise in the object region. We observed that the area of noise regions in the background region tend to be small but the area of noise region within the object may be large. Therefore, we replace the connected component algorithm for background noise region elimination with a morphological open operation. In this way, the performance is almost the same but the pro-cessing time can be significantly reduced, as shown in Table II. After these optimization steps, the processing time for a QCIF frame now becomes 39 ms, which is 2.6 times faster than the original implementation. Therefore, we can achieve a processing speed of 25 fps for QCIF format. Compared with the processing speed of other change detection based approach, e.g., 5–10 s per QCIF frame on a 200-MHz Sun Ultra workstation [7] or a watershed based approach, or 2.5 s per CIF frame on a Sun workstation [4], our algorithm runs much faster.
V. EXPERIMENTALRESULTS
Simulation have been carried out on the standard MPEG-4 test sequences as well as video sequences captured in our labo-ratory. Both the objective and subjective quality evaluations are applied on our algorithm.
A. Objective Evaluation
The error rate of the object mask is adopted to present the effectiveness of our algorithm. The error rate is defined as the following equation:
Error Rate Error Pixel Count
Frame Size (4)
Fig. 7. Error rate in each frame of the Weather sequence (CIF).
where the error pixel count is the number of pixels from which the obtained object mask is different from the reference alpha plane.
Fig. 7 shows the error rate of the Weather sequence. The format of the test sequence is 360 243 at 30 fps. The error rate is lower than 0.8% most of the time, with an exception that a sudden rise of error rate start at frame #180. This behavior corresponds to a large motion of the object with a large area of newly uncovered background. After the background informa-tion is stored in the background region, the error rate drops to its normal value.
B. Subjective Evaluation
Fig. 8 shows the segmentation results for several benchmark sequences. The sequences are Akiyo, Weather, Hall Monitor, and Silent Voice in CIF format at 10 fps. Segmentation results at frame #25, #50, and #75 of each sequence are shown in the figure. The Akiyo and Weather sequences do not have back-ground noise so their segmentation results tend to be better than that of other sequences. Background noise does exist in the Hall Monitor sequence; also, shadows cause by indoor illumina-tion appear in the background region. Therefore, gradient filter is used in segmenting this sequence. Our segmentation results track the object shape quite well and are subjectively better than previous results [7], [8],[10].
The Silent Voice is a more difficult sequence to be segmented because of the fast moving shadows on a textured background. A gradient filter is applied on this sequence, but not all of the shadow region can be eliminated. However, the motion of the object can still be tracked and a rough object shape informa-tion can be obtained. Note that some background regions are included in the segmentation result of frame #25, since the back-ground information is not ready in those regions.
Fig. 9 shows the segmentation results for the Frank and Shaoyi sequences captured in our laboratory. Shadows are involved in both sequences, but after applying the gradient filter, very good object shape information can be obtained.
Some effects of the region size threshold value described in Section II-D are shown in Fig. 10. The segmentation results of Hall Monitor frame #36 and frame #47 are shown in Fig. 10(a) and (b). The suitcase is not included in Fig. 10(b), since the

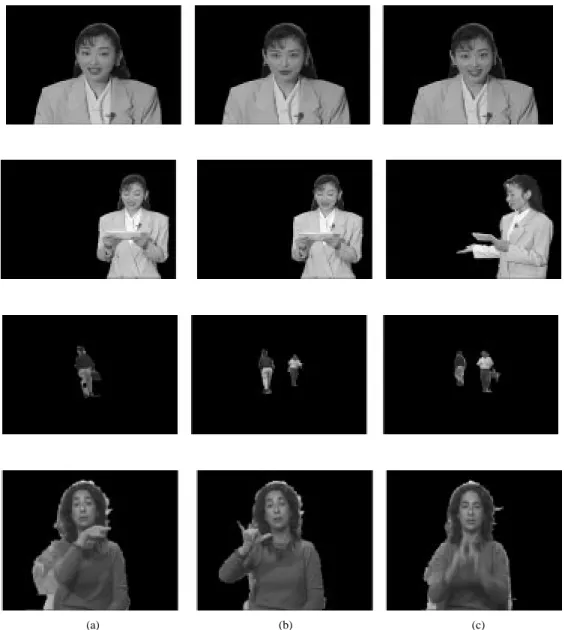

(a) (b) (c) Fig. 8. Segmentation results for four benchmark sequences: Akiyo, Weather, Hall Monitor, and Silent Voice.
(a) (b) (c)
(d) (e) (f)
Fig. 9. Segmentation result for Frank and Shaoyi sequences.
size is smaller than the preset threshold value and regarded as a noise region. This threshold can be set to different values for
different applications: if only large objects are important, the threshold value should be higher; otherwise, if small objects are
(a) (b)
(c) (d)
Fig. 10. (a) Hall Monitor #36 and (b) Hall Monitor #47 show the suitcase is not included in the segmentation results because of its small size. (c), (d) Shaoyi # 100 with different region size threshold values.
also important, the threshold value should be lower and some noise regions may not be eliminated in this situation. The seg-mentation results for Shaoyi frame #100 with different region size threshold values are shown in Fig. 10(c) and (d).
VI. CONCLUSIONS
In this paper, we proposed an efficient moving segmentation algorithm. A background registration technique is used to construct reliable background information from the video sequence. Then, each incoming frame is compared with the background image. If the luminance value of a pixel differ significantly from the background image, the pixel is marked as moving object; otherwise, the pixel is regarded as background. Finally, a post-processing step is used to remove noise regions and produce a more smooth shape boundary. In this way, many situations which may cause trouble in conventional approaches can be handled properly without using complicated operations. Shadow effect is a problem in many change detection based segmentation algorithms. In the proposed algorithm, a mor-phological gradient operation is used to filter out the shadow area while preserving the object shape. In order to achieve the real-time requirement for many multimedia communication systems, our algorithm avoids the use of computation intensive operations. In addition, we optimize the implementation of the algorithm to achieve a even faster processing time. When running on a personal computer with a 450-MHz Pentium III processor, our program can process 25 QCIF (176 144) fps. The experimental results demonstrate that good segmentation quality can be obtained efficiently; therefore, this algorithm is very suitable for the real-time VOP generation in MPEG-4 multimedia communication systems.
