Asian Journal of Oral and Maxillofacial Surgery 23 (2011) 35–37
Contents lists available atScienceDirect
Asian Journal of Oral and Maxillofacial Surgery
j o u r n a l h o m e p a g e :w w w . e l s e v i e r . c o m / l o c a t e / a j o m s

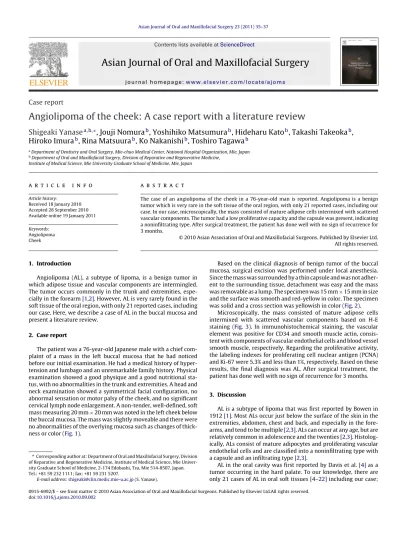

Angiolipoma of the cheek: A case report with a literature review
, Jouji Nomurab
, Yoshihiko Matsumurab
, Hideharu Katob
, Takashi Takeokab
, Hiroko Imurab
, Rina Matsuurab
, Ko Nakanishib
, Toshiro Tagawab
aDepartment of Dentistry and Oral Surgery, Mie-chuo Medical Center, National Hospital Organization, Mie, Japan
bDepartment of Oral and Maxillofacial Surgery, Division of Reparative and Regenerative Medicine, Institute of Medical Science, Mie University Graduate School of Medicine, Mie, Japan
a r t i c l e i n f o
Received 18 January 2010 Accepted 28 September 2010 Available online 19 January 2011
a b s t r a c t
The case of an angiolipoma of the cheek in a 76-year-old man is reported. Angiolipoma is a benign tumor which is very rare in the soft tissue of the oral region, with only 21 reported cases, including our case. In our case, microscopically, the mass consisted of mature adipose cells intermixed with scattered vascular components. The tumor had a low proliferative capacity and the capsule was present, indicating a noninﬁltrating type. After surgical treatment, the patient has done well with no sign of recurrence for 3 months.
© 2010 Asian Association of Oral and Maxillofacial Surgeons. Published by Elsevier Ltd.
All rights reserved.
Angiolipoma (AL), a subtype of lipoma, is a benign tumor in which adipose tissue and vascular components are intermingled.
The tumor occurs commonly in the trunk and extremities, espe- cially in the forearm[1,2]. However, AL is very rarely found in the soft tissue of the oral region, with only 21 reported cases, including our case. Here, we describe a case of AL in the buccal mucosa and present a literature review.
2. Case report
The patient was a 76-year-old Japanese male with a chief com- plaint of a mass in the left buccal mucosa that he had noticed before our initial examination. He had a medical history of hyper- tension and lumbago and an unremarkable family history. Physical examination showed a good physique and a good nutritional sta- tus, with no abnormalities in the trunk and extremities. A head and neck examination showed a symmetrical facial conﬁguration, no abnormal sensation or motor palsy of the cheek, and no signiﬁcant cervical lymph node enlargement. A non-tender, well-deﬁned, soft mass measuring 20 mm× 20 mm was noted in the left cheek below the buccal mucosa. The mass was slightly moveable and there were no abnormalities of the overlying mucosa such as changes of thick- ness or color (Fig. 1).
∗ Corresponding author at: Department of Oral and Maxillofacial Surgery, Division of Reparative and Regenerative Medicine, Institute of Medical Science, Mie Univer- sity Graduate School of Medicine, 2-174 Edobashi, Tsu, Mie 514-8507, Japan.
Tel.: +81 59 232 1111; fax: +81 59 231 5207.
E-mail address:email@example.com(S. Yanase).
Based on the clinical diagnosis of benign tumor of the buccal mucosa, surgical excision was performed under local anesthesia.
Since the mass was surrounded by a thin capsule and was not adher- ent to the surrounding tissue, detachment was easy and the mass was removable as a lump. The specimen was 15 mm× 15 mm in size and the surface was smooth and red-yellow in color. The specimen was solid and a cross section was yellowish in color (Fig. 2).
Microscopically, the mass consisted of mature adipose cells intermixed with scattered vascular components based on H-E staining (Fig. 3). In immunohistochemical staining, the vascular element was positive for CD34 and smooth muscle actin, consis- tent with components of vascular endothelial cells and blood vessel smooth muscle, respectively. Regarding the proliferative activity, the labeling indexes for proliferating cell nuclear antigen (PCNA) and Ki-67 were 5.3% and less than 1%, respectively. Based on these results, the ﬁnal diagnosis was AL. After surgical treatment, the patient has done well with no sign of recurrence for 3 months.
AL is a subtype of lipoma that was ﬁrst reported by Bowen in 1912. Most ALs occur just below the surface of the skin in the extremities, abdomen, chest and back, and especially in the fore- arms, and tend to be multiple[2,3]. ALs can occur at any age, but are relatively common in adolescence and the twenties[2,3]. Histolog- ically, ALs consist of mature adipocytes and proliferating vascular endothelial cells and are classiﬁed into a noninﬁltrating type with a capsule and an inﬁltrating type[2,3].
AL in the oral cavity was ﬁrst reported by Davis et al.as a tumor occurring in the hard palate. To our knowledge, there are only 21 cases of AL in oral soft tissues[4–22]including our case;
0915-6992/$ – see front matter © 2010 Asian Association of Oral and Maxillofacial Surgeons. Published by Elsevier Ltd.All rights reserved.
36 S. Yanase et al. / Asian Journal of Oral and Maxillofacial Surgery 23 (2011) 35–37
Fig. 1. The oral cavity at the ﬁrst examination. A mass measuring 20 mm× 20 mm with normal overlying mucosa was present in the left buccal mucosa.
Fig. 2. The resected specimen. The specimen was 15 mm× 15 mm in size and sur- rounded by a thin capsule. The inside of the specimen was solid.
therefore, such cases are extremely rare. The 21 patients comprised 11 males and 10 females; i.e., the incidence in males is slightly higher. The age at the ﬁrst consultation ranged from 1 to 81 years old and the mean age was 32.1 years old. The mean disease period was about 3 years and 2 months, and consequently the mean onset age was assumed to be about 29 years old (Table 1). This onset age does not differ signiﬁcantly from that of 21 to 24 years old found in cases of systemic AL[2,3]. Compared with other common lipomas in the oral cavity, which have a mean onset age of 51.9–60.2 years old [23–25]. ALs in oral soft tissues appear to occur in younger patients.
This may be because vascular components grow more rapidly than lipoma tissues.
Fig. 3. Histopathologic ﬁndings. The mature adipose cells intermixed with scattered proliferation of vascular components were noted (haematoxylin and eosin, 40×).
Cases of angiolipoma in the soft tissue of oral region (21 cases; 1976–2010).
Mean sideration age 32.1 (1–81) Sex predilection 11:10 (male:female)
Chief complaint Mass or swelling (tenderness, changes of overlying mucosa or skin)
Family history (–)
Mean disease period About 3.2 years
(few days to about 20 years)
Region Cheek: 13 cases (61.9%)
Tongue: 3 cases (14.3%) Palate: 2 cases (9.5%) Lip: 2 cases (9.5%) Chin: 1 case (4.8%) Mean major diameter 3.0 cm (0.5–8.0 cm)
Multiple tumors (–)
Treatment Excision: 11 cases (52.4%)
Excision with surrounding tissue: 10 cases (47.6%)
Inﬁltrating type Noninﬁtrating: 12 cases (57.1%) Inﬁtrating: 7 cases (33.3%) Unknown: 2 cases (9.5%)
The chief complaints were a mass and swelling in all 21 patients and associated tenderness in 6 cases. Changes in the overlying skin or mucosa such as a yellow and pink coloring were observed in 7 patients and pain occurred in 4 of these cases (Table 1). In contrast, pain and discomfort are found in more than a half of patients with systemic AL, whereas abnormal ﬁndings in the overlying skin are rare[2,3]. AL in the oral cavity was not associated with family his- tory or multiple onset (Table 1), whereas systemic AL occurred as multiple tumors in 197 of 248 patients and 11 of these patients had a family history of a subcutaneous mass[2,3]. These differ- ences in pathosis suggest that AL in the oral region differs from systemic AL. Further evidence in more cases is required to evaluate this possibility.
The onset regions were the cheek in 13 patients, the tongue in 3, the palate in 2, the lip in 2 and the chin in one. The mean major diameter of the tumor was 3.0 cm (range: 0.5–8 cm). Most other lipomas in the oral cavity are reported to occur in the buccal mucosa [23–25], with an incidence of 36.4–45.7% and a mean major tumor diameter of 0.8–2.2 cm. Similarly, most of the 21 reported ALs in the oral region occurred in the cheek, but the tumor size was larger.
The histological type was noninﬁltrating in 12 cases, inﬁltrating in 7, and unknown in 2 (Table 1). In a comparison of tumor types, most ALs in the oral region were noninﬁltrating. Seven inﬁltrating cases have been described, with the cheek[17,19,22]in 3, the lip [16,21]in 2 and one each with the tongueand chin(Table 1).
Seven of the 23 patients with systemic inﬁltrating AL had pain, and there was a similar tendency in patients with inﬁltrating AL in the oral region, with tenderness in 3 of the 7 cases. Three of the 12 patients with noninﬁltrating AL also had tenderness, which is lower than for systemic AL, in which more than half of cases. However, tenderness may be characteristic of AL in the oral region because other common lipomas are painless.
Howard and Helwigproposed a pathogenic mechanism in which lipoma caused by adolescent hormones is subsequently stimulated by trauma, resulting in angioproliferation in the lipoma.
However, AL occurs several years after birth in some cases and the true cause remains unknown. History of trauma was found only in one patient with AL in the oral region, but it cannot be ruled out that continuous slight stimulation is involved in the onset of AL in the oral region, particularly since stimulation by food in the mouth can occur easily.
Most ALs are originally diagnosed as lipoma, but case reports since 1990 have used MRI, CT, sonography and aspiration biopsy to distinguish between hemangioma, lipoma and AL[11–22]. How- ever, the accuracy of these methods remains low for these tumors
S. Yanase et al. / Asian Journal of Oral and Maxillofacial Surgery 23 (2011) 35–37 37
and a deﬁnite diagnosis in most literature cases has been made by histopathology. Differences in the percentages of adipose and vas- cular components among individuals make deﬁnite diagnosis of ALs difﬁcult. In our patient, the clinical diagnosis was lipoma, but AL was diagnosed histopathologically.
PCNA and Ki-67 immunohistochemical staining can be per- formed to evaluate the proliferative capacity of a tumor. Fregnani et al.found mean labeling indexes of 13.2% and 2.8% for PCNA and Ki-67, respectively, for all lipomas, with the highest indexes of 17.3% and 4.8%, respectively, found for ﬁbrolipomas in the oral cavity. In our case, PCNA and Ki-67 immunohistochemical staining gave labeling indexes of 5.3% and less than 1%, which suggests that the proliferative capacity of the tumor was relatively low, although a simple comparison of the results is difﬁcult.
The appropriate treatment for noninﬁltrating ALs is surgical excision, with excision including the surrounding tissues recom- mended for an inﬁltrating AL in which the capsule is absent or partially associated with the tumor. There has been no report of malignant transformation and recurrence of AL in the oral region [average follow-up duration: 17.5 months (range: 3–36 months)]
(Table 1), but the recurrence rate of inﬁltrating AL is high, ranging from 35% to 50%. The AL in our patient had a low proliferative capacity and the capsule was present, indicating a noninﬁltrating type, but the patient requires continuous follow up. To prevent recurrence of AL, it is important to remove the tumor and surround- ing tissues in cases when the capsule is difﬁcult to separate from these tissues during surgery, since diagnosis of the inﬁltrating type of the tumor is difﬁcult preoperatively.
 Bowen JT. Multiple subcutaneous hemangiomas, together with multiple lipo- mas, occurring in enormous numbers in an otherwise healthy, muscular subject. Am J Med Sci 1912;144:189–92.
 Howard WR, Helwig EB. Angiolipoma. Arch Dermatol 1960;82:924–31.
 Lin JJ, Lin F. Two entities in angiolipoma. A study of 459 cases of lipoma with review of literature on inﬁltrating angiolipoma. Cancer 1974;34:720–7.
 Davis GB, Stoelinga PJ, Tideman H, Bronkhorst F. Angiolipoma of the hard palate: a case report and review of the literature. J Maxillofac Surg 1976;4:242–4.
 Weitzner S, Moynihan PC. Angiolipoma of the cheek in a child. Oral Surg Oral Med Oral Pathol 1978;45:95–7.
 Campos GM, Grandini SA, Lopes RA. Angiolipoma of the cheek. Int J Oral Surg 1980;9:486–90.
 Brahney CP, Aria AA, Koval MH, Najjar TA. Angiolipoma of the tongue: report of case and review of literature. J Oral Surg 1981;39:451–3.
 Flaggert 3rd JJ, Heldt LV, Keaton WM. Angiolipoma of the palate. Report of a case. Oral Surg Oral Med Oral Pathol 1986;61:333–6.
 Puig L, Moreno A, de Moragas JM. Inﬁltrating angiolipoma: report of two cases and review of the literature. J Dermatol Surg Oncol 1986;12:617–9.
 Lin SC, Wang TY, Hahn LJ. Angiolipoma of the tongue: report of a case. Ann Dent 1989;48:37–8.
 Sánchez Aniceto G, Salván Saez R, García Pe ˜nin A. Angiolipoma of the cheek:
report of a case. J Oral Maxillofac Surg 1990;48:512–5.
 Koizumi K, Shirasuna K, Okura M, Yoshioka H, Matsuya T. Angiolipoma of the cheek. Jpn J Oral Maxillofac Surg 1992;38:1224–5 [article in Japanese].
 Alvi A, Garner C, Thomas W. Angiolipoma of the head and neck. J Otolaryngol 1998;27:100–3.
 Ali MH, el-Zuebi F. Angiolipoma of the cheek: report of a case. J Oral Maxillofac Surg 1996;54:213–5.
 Takahashi M, Kurokawa H, Ando T, Sato Y, Noguchi I. A case of angiolipoma of the tongue in a child. Jpn J Oral Maxillofac Surg 1998;44:817–9 [article in Japanese].
 Sugiura J, Fujiwara K, Kurahashi I, Kimura Y. Inﬁltrating angiolipoma of the mucolabial fold: a case report and review of the literature. J Oral Maxillofac Surg 1999;57:446–8.
 Hamakawa H, Hino H, Sumida T, Tanioka H. Inﬁltrating angiolipoma of the cheek: a case report and a review of the literature. J Oral Maxillofac Surg 2000;58:674–7.
 Mochida C, Sumitani K, Nemoto T, Maeda Y, Tachikawa T, Nagumo M. Acase of angiolipoma of the cheek. Jpn J Oral Maxillofac Surg 2005;51:360–3 [article in Japanese].
 Ida-Yonemochi H, Swelam W, Saito C, Saku T. Angiolipoma of the buccal mucosa: a possible role of mast cell-derived VEGF in its enhanced vascularity.
J Oral Pathol Med 2005;34:59–61.
 Altug HA, Sahin S, Sencimen M, Dogan N, Erdogan O. Non-inﬁltrating angi- olipoma of the cheek: a case report and review of the literature. J Oral Sci 2009;51:137–9.
 Dalambiras S, Tilaveridis I, Iordanidis S, Zaraboukas T, Epivatianos A. Inﬁltrating angiolipoma of the oral cavity: report of a case and literature review. J Oral Maxillofac Surg 2010;68:681–3.
 Arenaz Búa J, Luáces R, Lorenzo Franco F, García-Rozado A, Crespo Escudero JL, Fonseca Capdevila E, et al. Angiolipoma in head and neck: report of two cases and review of the literature. Int J Oral Maxillofac Surg 2010;39:610–5.
 Epivatianos A, Markopoulos AK, Papanayotou P. Benign tumors of adipose tis- sue of the oral cavity: a clinicopathologic study of 13 cases. J Oral Maxillofac Surg 2000;58:1113–7.
 Fregnani ER, Pires FR, Falzoni R, Lopes MA, Vargas PA. Lipomas of the oral cavity:
clinical ﬁndings, histological classiﬁcation and proliferative activity of 46 cases.
Int J Oral Maxillofac Surg 2003;32:49–53.
 Furlong MA, Fanburg-Smith JC, Childers EL. Lipoma of the oral and maxillofacial region: site and subclassiﬁcation of 125 cases. Oral Surg Oral Med Oral Pathol Oral Radiol Endo 2004;98:441–50.
