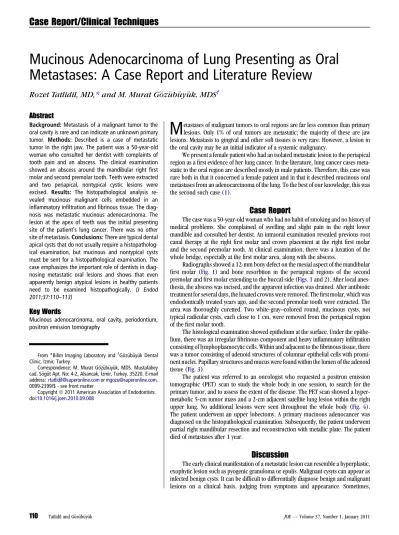

Mucinous Adenocarcinoma of Lung Presenting as Oral Metastases: A Case Report and Literature Review
Rozet Tatlidil, MD,* and M. Murat G€ oz€ ub€ uy€ uk, MDS
†Abstract
Background: Metastasis of a malignant tumor to the oral cavity is rare and can indicate an unknown primary tumor. Methods: Described is a case of metastatic tumor in the right jaw. The patient was a 50-year-old woman who consulted her dentist with complaints of tooth pain and an abscess. The clinical examination showed an abscess around the mandibular right first molar and second premolar tooth. Teeth were extracted and two periapical, nontypical cystic lesions were excised. Results: The histopathological analysis re- vealed mucinous malignant cells embedded in an inflammatory infiltration and fibrinous tissue. The diag- nosis was metastatic mucinous adenocarcinoma. The lesion at the apex of teeth was the initial presenting site of the patient’s lung cancer. There was no other site of metastasis. Conclusions: There are typical dental apical cysts that do not usually require a histopatholog- ical examination, but mucinous and nontypical cysts must be sent for a histopathological examination. The case emphasizes the important role of dentists in diag- nosing metastatic oral lesions and shows that even apparently benign atypical lesions in healthy patients need to be examined histopathogically. (J Endod 2011;37:110–113)
Key Words
Mucinous adenocarcinoma, oral cavity, periodontium, positron emission tomography
M
etastases of malignant tumors to oral regions are far less common than primary lesions. Only 1% of oral tumors are metastatic; the majority of these are jaw lesions. Metastasis to gingival and other soft tissues is very rare. However, a lesion in the oral cavity may be an initial indicator of a systemic malignancy.We present a female patient who had an isolated metastatic lesion to the periapical region as a first evidence of her lung cancer. In the literature, lung cancer cases meta- static to the oral region are described mostly in male patients. Therefore, this case was rare both in that it concerned a female patient and in that it described mucinous oral metastases from an adenocarcinoma of the lung. To the best of our knowledge, this was the second such case(1).
Case Report
The case was a 50-year-old woman who had no habit of smoking and no history of medical problems. She complained of swelling and slight pain in the right lower mandible and consulted her dentist. An intraoral examination revealed previous root canal therapy at the right first molar and crown placement at the right first molar and the second premolar tooth. At clinical examination, there was a luxation of the whole bridge, especially at the first molar area, along with the abscess.
Radiographs showed a 12-mm bony defect on the mesial aspect of the mandibular first molar (Fig. 1) and bone resorbtion in the periapical regions of the second premolar and first molar extending to the buccal side (Figs. 1and2). After local anes- thesia, the abscess was incised, and the apparent infection was drained. After antibiotic treatment for several days, the luxated crowns were removed. The first molar, which was endodontically treated years ago, and the second premolar tooth were extracted. The area was thoroughly curetted. Two white-gray–colored round, mucinous cysts, not typical radicular cysts, each close to 1 cm, were removed from the periapical region of the first molar tooth.
The histological examination showed epithelium at the surface. Under the epithe- lium, there was an irregular fibrinous component and heavy inflammatory infiltration consisting of lymphoplasmocytic cells. Within and adjacent to the fibrinous tissue, there was a tumor consisting of adenoid structures of columnar epithelial cells with promi- nent nuclei. Papillary structures and mucus were found within the lumen of the adenoid tissue (Fig. 3).
The patient was referred to an oncologist who requested a positron emission tomographic (PET) scan to study the whole body in one session, to search for the primary tumor, and to assess the extent of the disease. The PET scan showed a hyper- metabolic 5-cm tumor mass and a 2-cm adjacent satellite lung lesion within the right upper lung. No additional lesions were seen throughout the whole body (Fig. 4).
The patient underwent an upper lobectomy. A primary mucinous adenocancer was diagnosed on the histopathological examination. Subsequently, the patient underwent partial right mandibular resection and reconstruction with metallic plate. The patient died of metastases after 1 year.
Discussion
The early clinical manifestation of a metastatic lesion can resemble a hyperplastic, exophytic lesion such as pyogenic granuloma or epulis. Malignant cysyts can appear as infected benign cysts. It can be difficult to differentially diagnose benign and malignant lesions on a clinical basis, judging from symptoms and appearance. Sometimes,
From *Bilim Imaging Laboratory and†G€oz€ub€uy€uk Dental Clinic, _Izmir, Turkey.
Correspondence: M. Murat G€oz€ub€uy€uk, MDS. Mustafabey cad. S€og€ut Apt. No: 4-2, Alsancak, _Izmir, Turkey. 35220. E-mail address:rtatlidil@superonline.comormgozu@superonline.com.
0099-2399/$ - see front matter
Copyrightª 2011 American Association of Endodontists.
doi:10.1016/j.joen.2010.09.008
Case Report/Clinical Techniques
110 Tatlidil and G€oz€ub€uy€uk JOE— Volume 37, Number 1, January 2011
aggressive and malignant tumors (carcinomas and sarcomas) are hidden beneath lesions that seem benign. Given this, a routine histo- pathologic examination of all tissues is important.
Our case is unusual in a number of aspects. First, the patient con- sulted her dentist for jaw pain and did not complain of other medical or pulmonary symptoms. Second, there was swelling on the right lower jaw, with a smooth surface resembling an abscess on the initial consul- tation. There was pus following the small incision of the gingival surface Figure 1. A radiograph revealing the endodontically treated right lower first molar tooth. A 12-mm bone defect on the mesial aspect of the first molar (arrow) and bone resorbtion were noted (small arrow).
Figure 2. After the curettage, an X-ray view shows the appearance of the mandible. Bone resorbtion extended to the buccal side.
Figure 3. A photomicrograph of the lesion shows a tumor consisting of adenoid structures with columnar epithelial cells with prominent nuclei (arrow). Within the lumen of adenoid tissue, mucus was present (hematoxylin-eosin stain, original magnification300).
Case Report/Clinical Techniques
JOE— Volume 37, Number 1, January 2011 Mucinous Adenocarcinoma of Lung Presenting as Oral Metastases 111
indicating periodontal infection. After antibiotic treatment, pain and swelling reduced minimally. Luxated crowns were then removed.
Unusual but benign-looking mucinous cysts were curetted and proven to harbor metastasis. Third, in the cases discussed in the literature, there were multiple metastatic sites throughout the body in addition to oral cavity metastases and primary tumor. In our case, the metastasis to the tooth root was the only metastatic site. Fourth, most of the previous cases described as metastases to the oral region from a lung carcinoma consisted of male patients.
Metastasis around dental implants has been reported before(2).
Local factors have an influence on the growth of metastasis; trauma has been observed to facilitate the growth of blood-borne metastasis. Teeth with chronic inflammation or prior surgeries could be a factor associ- ated with the spread of tumors(3, 4).
After a thorough literature search, we encountered one case previously reported with a mucinous adenocarcinoma metastatic to the oral cavity. The patient was a 75-year-old man who had a history of smoking. Metastases to gingiva followed the diagnosis of the primary cancer(1).
A review of literature included cases reported between 1926 and 1992(4). Of 55 patients, the most common primary tumor sites were the lung, breast, and colon. Breast cancer in females and lung cancer in males are the most common malignant tumors metastasizing to the oral mucosa. Other sites, which rarely metastasize to the oral cavity, include primary female genitals, bone, skin, esophagus, eye, thyroid, liver, kidney, prostate, bladder, testes, and stomach (4–9). Metastatic lesion was the first sign of the systemic malignant disease in 35% of patients. In 65% of cases, the metastasis was diagnosed in the presence of a known cancer. Most patients complained of swelling and pain, and some complained of lower-lip numbness. Radiographic
findings were evident in most cases. In 91% of cases, the tumors were epithelial; the remaining 9% were mesenchymal in origin. Case reports and reviews on metastatic lesions in the oral cavity have been reported since 1993(10–35).
In the majority of cases in the literature, metastases to the oral cavity occurred after the patients’ diagnosis with primary cancer. On the contrary, our patient initially presented with tooth pain and was diagnosed with an isolated metastatic mucinous adenocarcinoma in the periapical region. She had no known primary cancer and was asymptomatic at the time of presentation. The PET scan showed primary lung cancer and no additional metastasis(36–40). Subsequently, the patient had surgery followed by systemic chemotherapy and died a year later. The prognosis of patients with malignant metastatic tumors in the oral cavity is poor, with the mean time from diagnosis to death being short.
Conclusions
Benign-looking cysts can be an indication of metastases from other parts of the body.
In our case, the primary lung cancer would have been missed in this otherwise asymptomatic patient if the dentist had not submitted the tissues to a histopathologic examination. This clinical case shows us the importance of the dentist and his/her investigation. After the examina- tion, dentists usually perform the scratch, and, subsequently, all infected tissues and cysts are usually thrown away. However, if some atypical changes in the oral cavity are present, it is important to do further tests and examinations.
Acknowledgment
We thank Ali Kupelioglu, MD (G€unes Pathology Laboratory), Izmir, Turkey and Murat Tunc¸ (Sifa Hospital), _Izmir, Turkey for preparingFigures 3and4.
References
1. Barr CE, Dym H, Weingarten LA. Metastatic mucous-producing adenocarcinoma of the gingiva. J Am Dent Assoc 1980;101:53–4.
2. Dib LL, Soares AL, Sandoval RL, et al. Breast metastasis around dental implants:
a case report. Clin _Implant Dent Relat Res 2007;9:112–5.
3. Tseng LN, Berends FJ, Wittich P, et al. Port-site metastases. Impact of local tissue trauma and gas leakage. Surg Endosc 1998;12:1377–80.
4. Hirshberg A, Leibovich P, Horowitz I, et al. Metastatic tumors to post extraction sites.
J Oral Maxillofac Surg 1993;51:1334–7.
5. Snyder MB, Cawson RA. Jaw and pulpal metastasis of an adrenal neuroblastoma.
Oral Surg Oral Med Oral Pathol 1975;40:775–84.
6. Milobsky SA, Milobsky L, Epstein LI. Metastatic renal adenocarcinoma presenting as periapical pathosis in the maxilla. Oral Surg Oral Med Oral Pathol 1975;39:
30–3.
7. Pliskin ME, Mastrangelo MJ, Brown AM, et al. Metastatic melanoma of the maxilla presenting as a gingival swelling. Oral Surg Oral Med Oral Pathol 1976;41:101–4.
8. Pastremoli A. Gingival metastasis, the first clinical sign of a silent kidney carcinoma.
A case report [in Italian]. Minerva Stomatol 1991;40:825–8.
9. Rass T, Prein J. Differential diagnosis of epulis-type changes in the mouth. Swiss Dent 1992;13:21–7.
10. Peris K, Cerroni L, Paoloni M, et al. Gingival metastasis as first sign of an undiffer- entiated carcinoma of the lung. J Dermatol Surg Oncol 1994;20:407–9.
11. Alandez J, Llanes F, Herrera JI, et al. Metastatic lung carcinoma involving the perio- dontium. Report of a case. J Periodontol 1995;66:896–8.
12. Miyatake K, Ueoka H, Tabata M, et al. Gingival metastasis of large-cell lung cancer that produced G-CSF [in Japanese]. Nihon Kyobu Shikkan Gakkai Zasshi 1995;33:
1283–7.
13. Llanes F, Sanz-Ortega J, Suarez B, et al. Hepatocellular carcinomas diagnosed following metastasis to the oral cavity. Report of 2 cases. J Periodontol 1996;67:
717–9.
14. Santamaria J, Garcia AM, Gil J, et al. Metastasis of a malignant melanoma to the region of an impacted mandibular third molar. A case report. J Oral Maxillofac Surg 1997;55:1003–6.
Figure 4. A whole body FDG-PET scan (Siemens Ecat-Exact HR, Siemens USA, Washington DC) shows a markedly hypermetabolic, 5-cm tumor mass and an adjacent 3-cm satellite tumor mass in the right upper lung parenchyma, which was confirmed to be a primary lung cancer after lobectomy (arrows).
Case Report/Clinical Techniques
112 Tatlidil and G€oz€ub€uy€uk JOE— Volume 37, Number 1, January 2011
15. Srinivasan SV, Pal KM, Dayal PK, et al. Metastatic malignant melanoma of maxillary gingiva. A case report. Indian J Dent Res 1997;8:119–22.
16. Rajesh KS, Varma BR, Bhat KM. Metastasis to maxillary gingiva from carcinoma of breast. A case report. Indian J Dent Res 1998;9:23–7.
17. Chin A, Liang TS, Borislow AJ. Initial presentation of hepatocellular carcinoma as a mandibular mass: case report and review of the literature. Oral Surg Oral Med Oral Pathol Oral Radiol Endod 1998;86:457–60.
18. Piattelli A, Fioroni M, Rubini C. Gingival metastasis from a prostate adenocarcinoma:
report of a case. J Periodontol 1999;70:441–4.
19. Piattelli A, Fioroni M, Rubini C. Gingival metastasis from a medullary thyroid carci- noma: case report. J Periodontol 2000;71:112–6.
20. Maiorano E, Piattelli A, Favia G. Hepatocellular carcinoma metastatic to the oral mucosa:
report of a case with multiple gingival localizations. J Periodontol 2000;71:641–5.
21. Watanabe M, Yasuda K, Tomita K, et al. Lung cancer metastasis to the gingiva [in Japanese]. Nihon Kokyuki Gakkai Zasshi 2001;39:50–4.
22. de Courten A, Irle C, Samson J, et al. Metastatic transitional cell carcinoma of the urinary bladder presenting as a mandibular gingival swelling. J Periodontol 2001;
72:688–90.
23. Scipio JE, Murti PR, Al-Bayaty HF, et al. Metastasis of breast carcinoma to mandib- ular gingiva. Oral Oncol 2001;37:393–6.
24. Ahmad S, Roberts GJ, Lucas VS, et al. Metastatic infiltration of the dental pulp by medulloblastoma. J Oral Pathol Med 2002;31:244–5.
25. Yoshii T, Muraoka S, Sano N, et al. Large cell carcinoma of the lung metastatic to the mandibular gingiva. J Periodontol 2002;73:571–4.
26. Tanaka M, Hiraki A, Ueoka H, et al. Gingival metastasis in lung cancer. Oncol Rep 2002;9:571–4.
27. Ramon Ramirez J, Seoane J, Montero J, et al. Isolated gingival metastasis from hepa- tocellular carcinoma mimicking a pyogenic granuloma. J Clin Periodontol 2003;30:
926–9.
28. Aoe K, Hiraki A, Kohara H, et al. Gingival metastasis as initial presentation of small cell carcinoma of the lung. Anticancer Res 2003;23:4187–9.
29. Elkhoury J, Cacchillo DA, Tatakis DN, et al. Undifferentiated malignant neoplasm involving the interdental gingiva: a case report. J Periodontol 2004;75:1295–9.
30. Scipio JE, Murti PR, AlBayaty HF, et al. Metastasis of breast carcinoma to mandibular gingiva. Oral Oncol 2001;37:393–6.
31. Kao SY, Tu HF, Chang KW, et al. Epithelioid sarcoma metastasis to the gingivae:
a case report. Int J Oral Maxillofac Surg 2004;33:205–8.
32. Stefani M, Angiero F. Dental pulp metastasis from oral squamous cell carcinoma:
a case report and a review of the literature [in Italian]. Pathologica 2006;98:48–52.
33. Suarez Roa Mde L, Ruiz Godoy Rivera LM, et al. Breast malignant phyllodes tumour metastasising to soft tissues of oral cavity. Clin Transl Oncol 2007;9:258–61.
34. Curien R, Moizan H, Gerard E. Gingival metastasis of a bronchogenic adenocarci- noma: report of a case. Oral Surg Oral Med Oral Pathol Oral Radiol Endod 2007;104:e25–8.
35. Pozzi EC, Altermatt HJ, Rees TD, et al. Exophytic mass of the gingiva as the first manifestation of metastatic pulmonary adenocarcinoma. J Periodontol 2008;79:
187–91.
36. Gambhir SS, Czernin J, Schwimmer J, et al. A tabulated summary of the FDG PET literature. J Nucl Med 2001;42(suppl):1S–93.
37. Lonneux M, Reffad A. Metastases from unknown primary tumor: PET-FDG as initial diagnostic procedure? Clin Positron Imaging 2000;3:137–41.
38. Bohuslavizki KH, Klutmann S, Kroger S, et al. FDG PET detection of unknown primary tumors. J Nucl Med 2000;41:816–22.
39. Kole AC, Nieweg OE, Pruim J, et al. Detection of unknown occult primary tumors using positron emission tomography. Cancer 1998;82:1160–6.
40. Rades D, Kuhnel G, Wildfang I, et al. Localized disease in cancer of unknown primary (CUP): the value of positron emission tomography (PET) for individual therapeutic management. Ann Oncol 2001;12:1605–9.
Case Report/Clinical Techniques
JOE— Volume 37, Number 1, January 2011 Mucinous Adenocarcinoma of Lung Presenting as Oral Metastases 113
