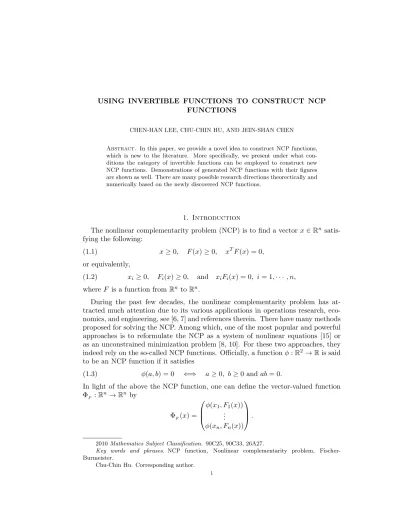

FUNCTIONS

CHEN-HAN LEE, CHU-CHIN HU, AND JEIN-SHAN CHEN

Abstract. In this paper, we provide a novel idea to construct NCP functions, which is new to the literature. More specifically, we present under what con- ditions the category of invertible functions can be employed to construct new NCP functions. Demonstrations of generated NCP functions with their figures are shown as well. There are many possible research directions theorectically and numerically based on the newly discovered NCP functions.

1. Introduction

The nonlinear complementarity problem (NCP) is to find a vector x ∈ R^{n} satis-
fying the following:

(1.1) x ≥ 0, F (x) ≥ 0, x^{T}F (x) = 0,
or equivalently,

(1.2) x_{i} ≥ 0, F_{i}(x) ≥ 0, and x_{i}F_{i}(x) = 0, i = 1, · · · , n,
where F is a function from R^{n} to R^{n}.

During the past few decades, the nonlinear complementarity problem has at-
tracted much attention due to its various applications in operations research, eco-
nomics, and engineering, see [6, 7] and references therein. There have many methods
proposed for solving the NCP. Among which, one of the most popular and powerful
approaches is to reformulate the NCP as a system of nonlinear equations [15] or
as an unconstrained minimization problem [8, 10]. For these two approaches, they
indeed rely on the so-called NCP functions. Officially, a function φ : R^{2}→ R is said
to be an NCP function if it satisfies

(1.3) φ(a, b) = 0 ⇐⇒ a ≥ 0, b ≥ 0 and ab = 0.

In light of the above the NCP function, one can define the vector-valued function
Φ_{F} : R^{n}→ R^{n} by

Φ_{F}(x) =

φ(x_{1}, F_{1}(x))
...
φ(x_{n}, F_{n}(x))

.

2010 Mathematics Subject Classification. 90C25, 90C33, 26A27.

Key words and phrases. NCP function, Nonlinear complementarity problem, Fischer- Burmeister.

Chu-Chin Hu. Corresponding author.

1

Then, it is clear to see that original NCP (1.1) is equivalent to the problem of solving
Φ_{F}(x) = 0. Equivalently, one can also transform the problem to finding the global
minima solutions of its merit function, that is,

x∈Rmin^{n}Ψ_{F}(x) := 1

2kΦ_{F}(x)k^{2}.

In the literature, there have many NCP functions which were discovered grad-
ually. One of them is the well-known Fischer-Burmeister function φ_{FB}(a, b) =

√

a^{2}+ b^{2} − a − b. An advantage of this function is that it is convex and is twice
differentiable at every point except at the origin. A natural extension of φ_{FB} is the
generalized Fischer-Burmeister function given by

φp(a, b) = k(a, b)kp− a − b, p > 1

which is also an NCP function, where k(a, b)kp = (|a|^{p}+ |b|^{p})^{1/p}. The function φp

can be viewed as a natural “continuous extension” of φ_{FB}, and its geometric view
is depicted in [16]. Another different type of popular NCP function is the natural
residual function φ_{NR} : R^{2}→ R given by

φ_{NR}(a, b) = a − (a − b)+= min{a, b}.

Albeit the function φ_{NR} is not differentiable on the line a = b, Chen, Ko, and Wu
[4] figured out a way, which is called “discrete generalization”, to smoothize this
function. To achieve it, they generalize it by adding a p-power to each term, that
is, by defining

φ^{p}_{NR}(a, b) = a^{p}− (a − b)^{p}_{+},

where p > 1 is an odd integer. Note that p being positive odd integer is very crucial, more details can be found in [4].

In fact, there exist some systematic ways to construct NCP functions. The first general way was given by Magasarian in [15]. Some subsequent ways were proposed by Luo and Tseng [13]; and by Kanzow, Yamashita, and Fukushima [11]. Recently, more rigorous discussions and further study on how to construct NCP functions were investigated by Galantai in [9], and by Alcantara and Chen, et al. in [1, 2].

In particular, in contrast to “discrete generalization” in [4], Alcantara and Chen
proposed a novel “continuous extension” of φ_{NR} in [1]. More specifically, a family
of NCP functions is constructed, which is defined by

φ˜^{p}

NR = sgn(a)|a|^{p}− [(a − b)_{+}]^{p},

where p ∈ (0, ∞). The main idea behind is that if φ = φ1− φ_{2} is an NCP function
and a given function f is one to one, then ˜φ = f (φ1)−f (φ2) is also an NCP function.

Indeed, it can be verified that
φ˜^{p}

NR = f (a) − f ((a − b)_{+}),

where f (t) = sgn(t)|t|^{p} is an one to one function. By this construction, the value
p (positive odd integer) is extended to any positive real number. Moreover, ˜φ^{p}_{NR}
reduces to φ^{p}_{NR} when p is an odd integer and p > 1.

In this paper, we provide another novel idea to construct NCP functions, which is new to the literature. More specifically, we present under what conditions the

category of invertible functions can be employed to construct new NCP functions.

The motivation comes from discovering three specific NCP functions and observing their structures. Demonstrations of generated NCP functions with their figures are shown as well. There definitely have many possible research directions theorectically and numerically based on the newly discovered NCP functions in this paper.

2. Three specific new NCP functions

As mentioned in Section 1, the motivation of our study comes from three specific new NCP functions. First, we show out the three new NCP functions as below:

φ_{ln −max}(a, b) = ln(e^{|a|}+ e^{|b|}− 1) − max(a, b);

(2.1)

φ_{ln −sum}(a, b) = ln(e^{|a|}+ e^{|b|}− 1) − (a + b);

(2.2)

φ_{abs−exp}(a, b) = |a| + |b| − e^{a}b − e^{b}a.

(2.3)

The first two functions φ_{ln −max} and φ_{ln −sum} are composed of the functions, exp(·)
and ln(·), with an additional term to keep the function value zero on the nonnegative
sides of the axes. These three new NCP functions are discovered from observing the
construction ways in [1, 2]. Note that these three NCP functions are not differen-
tiable since they involve the absolute value terms. Therefore, we need to compute
their subdifferentials [5] due to subsequent analysis. To this end, we will use sign
function

sgn(t) :=

1 if t > 0, 0 if t = 0,

−1 if t < 0.

and the definition of convex hull of all limits points of Jacobian sequence.

Proposition 2.1. Let φ_{ln −max} : R^{2} → R be defined in (2.1), that is,

φ_{ln −max}(a, b) = ln(e^{|a|}+ e^{|b|}− 1) − max(a, b).

Then, the following hold.

(a): The function φ_{ln −max} is an NCP function.

(b): The subdifferential of φ_{ln −max} is described by

∂φ_{ln −max}(a, b) =

n

(_{e}a+e^{e}^{a}^{b}−1− 1, ^{e}^{b}

e^{a}+e^{b}−1)o

if (a, b) ∈ I_{1}= {(a, b)|a, b > 0 and a > b}.

n

(_{e}a+e^{e}^{a}^{b}−1,_{e}a+e^{e}^{b}^{b}−1− 1)o

if(a, b) ∈ I2 = {(a, b)|a, b > 0 and b > a}.

n

(_{e}−a^{−e}+e^{−a}^{b}−1,_{e}−a+e^{e}^{b}^{b}−1 − 1)o

if (a, b) ∈ I_{3}= {(a, b)|a < 0, b > 0}.

n

(_{e}−a^{−e}+e^{−a}^{−b}−1,_{e}−a^{−e}+e^{−b}^{−b}−1 − 1)o

if (a, b) ∈ I_{4}= {(a, b)|a, b < 0 and b > a}.

n

(_{e}−a^{−e}+e^{−a}^{−b}−1− 1, ^{−e}^{−b}

e^{−a}+e^{−b}−1)
o

if (a, b) ∈ I5= {(a, b)|a, b < 0, and a > b}

n

(_{e}_{a}_{+e}^{e}^{a}−b−1 − 1, ^{−e}^{−b}

e^{a}+e^{−b}−1)o

if (a, b) ∈ I_{6}= {(a, b)|a > 0, b < 0}

(0, ρ) |^{−1}_{e}a ≤ ρ ≤ _{e}^{1}_{a}

if (a, b) ∈ L_{1} = {(a, b)|a > 0, b = 0}

{(ρ, 0) | − 1 ≤ ρ ≤ 1} if (a, b) ∈ L3 = {(a, b)|a = 0, b > 0}

co

_{e}^{a}

2e^{a}−1 − 1

e^{a}
2e^{a}−1

,

_{e}^{a}

2e^{a}−1
e^{a}
2e^{a}−1 − 1

if (a, b) ∈ L2 = {(a, b)|a, b > 0, and a = b}.

{(−1, ρ − 1) | − e^{a}≤ ρ ≤ e^{a}} if (a, b) ∈ L4 = {(a, b)|a < 0, b = 0}.

(ρ − 1, −1) | − e^{b} ≤ ρ ≤ e^{b}

if (a, b) ∈ L6 = {(a, b)|a = 0, b < 0}.

co

( _{−e}−a

2e^{−a}−1

−e^{−a}
2e^{−a}−1− 1

! ,

−e^{−a}
2e^{−a}−1 − 1

−e^{−a}
2e^{−a}−1

!)

if (a, b) ∈ L_{5} = {(a, b)|a, b < 0, and a = b}.

co

(0, 1), (1, 0), (−1, −2), (−2, −1)

if (a, b) = (0, 0).

where co(S) denotes the convex hull of the set S.

Proof. (a) “⇒” Suppose φ_{ln −max}(a, b) = 0, we need to show a ≥ 0, b ≥ 0, ab = 0.

To proceed, we discuss two cases.

(i) If a ≥ b, then e^{|a|}+ e^{|b|} − 1 = e^{a}. The left-hand side of this equality is greater
than or equal to 1 since the absolute value is always nonnegative. Hence, e^{a} must
be greater than or equal to 1. This leads to a being greater than or equal to 0.

Thus, a ≥ 0 and e^{|b|}− 1 = 0, which says a ≥ 0 and b = 0.

(ii) If b ≥ a, by the symmetric form of the function φ_{ln −max}, we see that a = 0, b ≥ 0.

Therefore, a ≥ 0, b = 0 or a = 0, b ≥ 0. This is equivalent to a ≥ 0, b ≥ 0, ab = 0.

“⇐” Conversely, if a ≥ 0, b ≥ 0, ab = 0, then a ≥ 0, b = 0 or a = 0, b ≥ 0. For
a ≥ 0, b = 0, then φ_{ln −max}(a, b) = ln(e^{|a|}+ e^{|b|}− 1) − max(a, b) = |a| − a = 0. For
a = 0, b ≥ 0, then φ_{ln −max}(a, b) = ln(e^{|a|}+ e^{|b|}− 1) − max(a, b) = |b| − b = 0. Thus,
the proof is done.

(b) Note that φ_{ln −max} is differentiable at (a, b) ∈ I1 ∼ I_{6}, whereas it is not differen-
tiable in other cases. Hence, we need to calculate each case separately.

Case (1): (a, b) ∈ I_{1} = {(a, b) | a, b > 0 and a > b}.

∇φ_{ln −max}(a, b) = e^{|a|}a

(e^{|a|}+ e^{|b|}− 1)|a|− 1, e^{|b|}b
(e^{|a|}+ e^{|b|}− 1)|b|

!

=

e^{a}

e^{a}+ e^{b}− 1− 1, e^{b}
e^{a}+ e^{b}− 1

Case (2): (a, b) ∈ I2 = {(a, b) | a, b > 0 and b > a}.

∇φ_{ln −max}(a, b) = e^{|a|}a

(e^{|a|}+ e^{|b|}− 1)|a|, e^{|b|}b

(e^{|a|}+ e^{|b|}− 1)|b|− 1

!

=

e^{a}

e^{a}+ e^{b}− 1, e^{b}

e^{a}+ e^{b}− 1− 1

Case (3): (a, b) ∈ I_{3} = {(a, b) | a < 0, b > 0}.

∇φ_{ln −max}(a, b) = e^{|a|}a

(e^{|a|}+ e^{|b|}− 1)|a|, e^{|b|}b

(e^{|a|}+ e^{|b|}− 1)|b|− 1

!

=

−e^{−a}

e^{−a}+ e^{b}− 1, e^{b}

e^{−a}+ e^{b}− 1− 1

Case (4): (a, b) ∈ I4 = {(a, b) | a, b < 0, and b > a}.

∇φ_{ln −max}(a, b) = e^{|a|}a

(e^{|a|}+ e^{|b|}− 1)|a|, e^{|b|}b

(e^{|a|}+ e^{|b|}− 1)|b|− 1

!

=

−e^{−a}

e^{−a}+ e^{−b}− 1, −e^{−b}

e^{−a}+ e^{−b}− 1− 1

Case (5): (a, b) ∈ I_{5} = {(a, b) | a, b < 0, and a > b}.

∇φ_{ln −max}(a, b) = e^{|a|}a

(e^{|a|}+ e^{|b|}− 1)|a|− 1, e^{|b|}b
(e^{|a|}+ e^{|b|}− 1)|b|

!

=

−e^{−a}

e^{−a}+ e^{−b}− 1− 1, −e^{−b}
e^{−a}+ e^{−b}− 1

Case (6): (a, b) ∈ I6 = {(a, b) | a > 0, b < 0}.

∇φ_{ln −max}(a, b) = e^{|a|}a

(e^{|a|}+ e^{|b|}− 1)|a|− 1, e^{|b|}b
(e^{|a|}+ e^{|b|}− 1)|b|

!

=

e^{a}

e^{a}+ e^{−b}− 1− 1, −e^{−b}
e^{a}+ e^{−b}− 1

Case (7): (a, b) ∈ L1= {(a, b) | a > 0, b = 0}.

Since the point (a, 0) is adjacent to the region I1and I6, let {(a_{k}, b_{k})} be the sequence
such that lim_{k→∞}(a_{k}, b_{k}) = (a, 0).

If {(ak, bk)} ⊆ I1 = {(a, b)|a, b > 0 and a > b}, then

k→∞lim ∇φ_{ln −max}(a_{k}, b_{k}) = lim

k→∞

e^{a}^{k}

e^{a}^{k}+ e^{b}^{k}− 1− 1, e^{b}^{k}
e^{a}^{k} + e^{b}^{k}− 1

=

e^{a}

e^{a}+ e^{0}− 1− 1, e^{0}
e^{a}+ e^{0}− 1

=

0, 1

e^{a}

.
If {(a_{k}, b_{k})} ⊆ I_{6} = {(a, b)|a > 0, b < 0}, then

k→∞lim ∇φ_{ln −max}(a_{k}, b_{k}) = lim

k→∞( e^{a}^{k}

e^{a}^{k}+ e^{−b}^{k} − 1− 1, −e^{−b}^{k}
e^{a}^{k}+ e^{−b}^{k}− 1)

= ( e^{a}

e^{a}+ e^{0}− 1− 1, −e^{0}
e^{a}+ e^{0}− 1)

= (0, −1
e^{a})
Thus, by definition of subdifferential, we have

∂φ_{ln −max}(a, b) = co 0

1
e^{a}

, 0

−1
e^{a}

=

(0, ρ) |−1

e^{a} ≤ ρ ≤ 1
e^{a}

,

Case (8) ∼ (12): For the region L_{i}, i = 2, · · · , 6 and the origin point (0, 0), the way
to calculate the subdifferential is similar to L_{1}, so we omit them here. 2

The next proposition is about the second NCP function φ_{ln −sum}. In fact, comput-
ing the subdifferential of φ_{ln −max} is more complicated than φ_{ln −sum} since the term
max(a, b) together with the absolute value function partition the plane to more
pieces where it is differentiable. In addition, we can obtain the results regarding
φ_{ln −sum} by using some parts in Proposition 2.1. Before presenting the proof, we
point out two special observations regarding φ_{ln −sum}. Note that max(a, b) = a + b
when a ≥ 0, b ≥ 0, ab = 0, hence φ_{ln −max}(a, b) = φ_{ln −sum}(a, b) = 0 when a ≥ 0,
b ≥ 0, ab = 0. In view of these, we make a guess that φ_{ln −sum} is also an NCP
function. In order to verify that φ_{ln −sum} is indeed an NCP function, we need to
check the value of the the function φ_{ln −sum} on other regions.

Proposition 2.2. Let φ_{ln −sum} : R^{2}→ R be defined in (2.2), that is,
φ_{ln −sum}(a, b) = ln(e^{|a|}+ e^{|b|}− 1) − (a + b).

Then, the following hold.

(a): The function φ_{ln −sum} is an NCP function.

(b): The subdifferential of φ_{ln −sum} is described by

∂φ_{ln −sum}(a, b) =

n e^{|a|}a

(e^{|a|}+e^{|b|}−1)|a| − 1, ^{e}^{|b|}^{b}

(e^{|a|}+e^{|b|}−1)|b|− 1o

if a 6= 0 and b 6= 0.

n

(ρ − 1, 0) | ≤ _{e}^{−1}|b| ≤ ρ ≤ ^{1}

e^{|b|}

o

if a = 0, b > 0.

n

(ρ − 1, −2) |_{e}^{−1}|b| ≤ ρ ≤ ^{1}

e^{|b|}

o

if a = 0, b < 0.

n

(0, ρ − 1) |_{e}^{−1}|a| ≤ ρ ≤ ^{1}

e^{|a|}

o

if a > 0, b = 0.

n

(−2, ρ − 1) |_{e}^{−1}|a| ≤ ρ ≤ ^{1}

e^{|a|}

o

if a < 0, b = 0.

{(ξ, η) | − 2 ≤ ξ, η ≤ 0} if a = b = 0.

Proof. To prove (a), we need to show φ_{ln −sum} satisfies condition (1.3). From Propo-
sition 2.1, it is obvious that φ_{ln −sum}(a, b) is zero on the nonnegative sides of the
a, b-axes, and positive on the negative sides of the a, b-axes. Thus, we only have to
check the four quadrants of the ab-plane. Suppose φ_{ln −sum}(a, b) = 0. To proceed,
we consider four cases as below:

Case (i): If a > 0 and b > 0, then e^{a}+ e^{b}− 1 = e^{a}e^{b}. Then, we have
0 = e^{a}(e^{b}− 1) + (e^{b}− 1) = (e^{a}− 1)(e^{b}− 1).

Since a > 0 and b > 0, we should have (e^{a}− 1)(e^{b} − 1) > 0 which leads to a
contradiction. Thus, φ_{ln −sum}(a, b) 6= 0 in case (i).

Case (ii): If a < 0 and b > 0, then e^{−a}+ e^{b}− 1 = e^{a}e^{b} and hence _{e}^{1}a+ e^{b}− 1 = e^{a}e^{b},
which gives (e^{a})^{2}e^{b}− 1 − e^{a}e^{b}+ e^{a}= 0. It follows that

0 = e^{a}e^{b}(e^{a}− 1) + (e^{a}− 1) = (e^{a}e^{b}+ 1)(e^{a}− 1).

But, e^{a}e^{b}+ 1 > 0 and e^{a}− 1 < 0, it says (e^{a}e^{b}+ 1)(e^{a}− 1) < 0, which contradicts
the above equation. Thus, φ_{ln −sum}(a, b) 6= 0 in case (ii).

Case (iii): Suppose a < 0 and b < 0. Obviously, e^{|a|}+ e^{|b|}− 1 is greater than 1, and
e^{a}e^{b}= e^{a+b} is less than 1. Hence, φ_{ln −sum}(a, b) 6= 0 in case (iii).

Case (iv): If a > 0 and b < 0, then φ_{ln −sum} 6= 0 by noting the symmetry of
φ_{ln −sum}(a, b) and the arguments in case (ii).

To sum up, from all the above, we prove that φ_{ln −sum}(a, b) = 0 ⇐⇒ a ≥ 0, b = 0 or
a = 0, b ≥ 0 ⇐⇒ a ≥ 0, b ≥ 0, ab = 0.

(b) Again, by using the definition of subdifferential, we calculate each case sepa- rately.

Case (1): If a 6= 0 and b 6= 0, then φ_{ln −sum} is differentiable. Then, we have

∇φ_{ln −sum}(a, b) = e^{|a|}a

(e^{|a|}+ e^{|b|}− 1)|a|− 1, e^{|b|}b

(e^{|a|}+ e^{|b|}− 1)|b|− 1

! . (2.4)

Case (2): Suppose a = 0 and b > 0. we compute subdifferential by the definition
of convex hull of all limits points of Jacobian sequence. Let (a_{k}, b_{k}) → (0, b) as

k → ∞. Applying (2.4) yields

k→∞lim ∇φ_{ln −sum}(ak, bk) =
( 1

e^{b} − 1, 0

if {(ak, bk)} ⊆ {(a, b) | a > 0, b > 0}.

−1

e^{b} − 1, 0

if {(a_{k}, b_{k})} ⊆ {(a, b) | a < 0, b > 0}.

This concludes ∂φ_{ln −sum}(a, b) = {(ρ − 1, 0) | ρ ∈ [^{−1}_{e}b,_{e}^{1}b]}. The other cases exclude
the case a = b = 0, which are similar to the above cases. Therefore, it remains to
prove the case when a = b = 0.

For the case a = b = 0, let (a_{k}, b_{k}) → (0, 0). Compute the limit of (2.4) as
(a_{k}, b_{k}) → (0, 0), we have

lim

k→∞∇φ_{ln −sum}(a_{k}, b_{k}) =

(0, 0) if {(a_{k}, b_{k})} ⊆ {(a, b) | a > 0, b > 0}.

(−2, 0) if {(a_{k}, b_{k})} ⊆ {(a, b) | a < 0, b > 0}.

(−2, −2) if {(ak, bk)} ⊆ {(a, b) | a < 0, b < 0}.

(0, −2) if {(a_{k}, b_{k})} ⊆ {(a, b) | a > 0, b < 0}.

Hence ∂φ_{ln −sum}(0, 0) = co0
0

, 0

−2

,−2

0

,−2

−2

= {(ξ, η) | − 2 ≤ ξ, η ≤ 0}.

2

Proposition 2.3. Let φ_{abs−exp} : R^{2}→ R be defined as in (2.3), that is,
φ_{abs−exp}(a, b) = |a| + |b| − e^{a}b − e^{b}a.

Then, the following hold.

(a): The function φ_{abs−exp} is an NCP function.

(b): The subdifferential of φ_{abs−exp} is described as

∂φ_{abs−exp}(a, b) =

{(sgn(a) − e^{a}b − e^{b}, sgn(b) − e^{b}a − e^{a})} if a 6= 0, b 6= 0.

{(0, ρ − a − e^{a}) | − 1 ≤ ρ ≤ 1} if a > 0, b = 0.

{(ρ − b − e^{b}, 0) | − 1 ≤ ρ ≤ 1} if a = 0, b > 0.

{(−2, ρ − a − e^{a}) | − 1 ≤ ρ ≤ 1} if a < 0, b = 0.

{(ρ − b − e^{b}, −2) | − 1 ≤ ρ ≤ 1} if a = 0, b < 0.

{(ξ, η) | − 2 ≤ ξ, η ≤ 0} if a = b = 0.

Proof. (a) First, we rewrite the function φ_{abs−exp} as

φ_{abs−exp}(a, b) = a(sgn(a) − e^{b}) + b(sgn(b) − e^{a}),
which possesses the below piecewise expression:

φ_{abs−exp}(a, b) =

0 if a ≥ 0, b ≥ 0, and ab = 0.

a(1 − e^{b}) + b(1 − e^{a}) if a > 0, b > 0.

−a(1 + e^{b}) + b(1 − e^{a}) if a < 0, b ≥ 0.

−a(1 + e^{b}) − b(1 + e^{a}) if a < 0, b < 0.

It is noted that φ_{abs−exp}(a, b) is negative in the second case, and positive in the third
and last cases. In light of the symmetry of φ_{abs−exp}(a, b), we obtain that φ_{abs−exp}(a, b)
is also positive on a ≥ 0, b < 0. Therefore, φ_{abs−exp} is an NCP function.

(b) We discuss a few cases in order to calculate the subdifferential of φ_{abs−exp}.
Case (1): If a 6= 0 and b 6= 0, we have

∇φ_{abs−exp}(a, b) =

sgn(a) − e^{a}b − e^{b}, sgn(b) − e^{b}a − e^{a}

. (2.5)

Case (2): Suppose a > 0, b = 0 and (a_{k}, b_{k}) → (a, 0) as k → ∞. From expression
(2.5), we know

k→∞lim ∇φ_{abs−exp}(a_{k}, b_{k}) =

(0, 1 − a − e^{a}) if {(a_{k}, b_{k})} ⊆ {(a, b) | a > 0, b > 0}.

(0, −1 − a − e^{a}) if {(a_{k}, b_{k})} ⊆ {(a, b) | a > 0, b < 0}.

Then, it follows that ∂φ_{abs−exp}(a, b) = {(0, ρ − a − e^{a}) | − 1 ≤ ρ ≤ 1}.

For the other cases except for the case when a = b = 0, the calculation is similar to case (2), so we omit them here.

Case (3): Suppose a = b = 0 and (a_{k}, b_{k}) → (0, 0) as k → ∞. From expression
(2.5), we compute that

lim

k→∞

∇φ_{abs−exp}(a_{k}, b_{k}) =

(0, 0) if {(a_{k}, b_{k})} ⊆ {(a, b) | a > 0, b > 0}.

(−2, 0) if {(a_{k}, b_{k})} ⊆ {(a, b) | a < 0, b > 0}.

(−2, −2) if {(ak, bk)} ⊆ {(a, b) | a < 0, b < 0}.

(0, −2) if {(a_{k}, b_{k})} ⊆ {(a, b) | a > 0, b < 0}.

This concludes ∂φ_{abs−exp}(0, 0) = {(ξ, η) | − 2 ≤ ξ, η ≤ 0}. 2

To close this section, we point out that the function φ_{abs−exp} is discovered in a
different way from the previous two NCP functions. The main difference lies on the
fact that the term |a| + |b| can be viewed by the 1-norm of (a, b), and the term e^{a}, e^{b}
are the monotone cofactors added to b and a.

3. NCP functions generated by invertible functions

By looking into the structures of those three newly discovered NCP functions in
Section 2, we figure out a way for further generating NCP functions by employing in-
vertible functions. From the first two NCP functions, φ_{ln −max}(a, b) and φ_{ln −sum}(a, b),
it is clear to see the presence of a common term ln(e^{|a|}+ e^{|b|} − 1), which involves
invertible functions. Therefore, we generalize the common term to

f (f^{−1}(|a|) + f^{−1}(|b|) − f^{−1}(0)),

where f is a real valued function defined on some domain and satisfies some as- sumptions. Accordingly, their natural extended formats become

φ(a, b) = f (f^{−1}(|a|) + f^{−1}(|b|) − 1) − max(a, b);

(3.1)

φ(a, b) = f (f^{−1}(|a|) + f^{−1}(|b|) − 1) − (a + b);

(3.2)

φ(a, b) = f (f^{−1}(|a|) + f^{−1}(|b|) − 1) − g(a)b − g(b)a.

(3.3)

Clearly, if f (t) = ln t, then the functions (3.1) and (3.2) reduce to those functions
(2.1) and (2.2). If f^{−1}(t) = t + 1 and g(t) = e^{t}, then the function (3.3) reduces to
the function (2.3). In this Section, we provide a complete discussion on under what

conditions of f , (f^{−1})^{0}and g, the above functions defined as in (3.1), (3.2) and (3.3)
will be NCP functions.

Proposition 3.1. Suppose f is a real valued function defined on R with f (1) = 0 and f |I denotes the restricted function of f on I ⊆ R. If f |I satisfies one of the following conditions:

(a): f |_{I} : [1, ∞) → [0, ∞) is invertible, or
(b): f |I: (−∞, 1] → [0, ∞) is invertible,

then φ(a, b) = f (f^{−1}(|a|) + f^{−1}(|b|) − f^{−1}(0)) − max(a, b) is an NCP function.

Proof. (a) Without loss of ambiguity, we still use f instead of f |I in our analysis.

Since f : [1, ∞) → [0, ∞) is invertible and f (1) = 0, f is strictly monotone increasing
on [1, ∞). In addition, f^{−1} is also strictly monotone increasing. To verify that φ is
an NCP function, we need to show that φ satisfies condition (1.3).

“⇒” Suppose φ(a, b) = 0, we consider the two regions on the a, b-plane which are a ≥ b and b ≥ a.

Case (1): If a ≥ b, then f (f^{−1}(|a|) + f^{−1}(|b|) − f^{−1}(0)) = max(a, b) = a. Since
f^{−1}(|a|) + f^{−1}(|b|) − f^{−1}(0) ≥ 1 and f is strictly monotone increasing on [1, ∞),
so a = f (f^{−1}(|a|) + f^{−1}(|b|) − f^{−1}(0)) ≥ f (1) = 0. Then, f^{−1}(|b|) − 1 = f^{−1}(a) −
f^{−1}(|a|) = 0 since a is nonnegative. This says b = 0, a ≥ 0.

Case (2): If b ≥ a, by the symmetric form of the function, we obtain a = 0, b ≥ 0.

Therefore, a ≥ 0, b = 0 or b = 0, a ≥ 0. This is equivalent to a ≥ 0, b ≥ 0, ab = 0.

“⇐” Conversely, suppose that a ≥ 0, b ≥ 0, ab = 0. Then, we have a ≥ 0, b = 0 or b = 0, a ≥ 0. If a ≥ 0, b = 0, it is clear that φ(a, b) = |a| − a = 0. If b = 0, a ≥ 0, it is also clear that φ(a, b) = |b| − b = 0.

(b) Since f : (−∞, 1] → [0, ∞) is invertible and f (1) = 0, f is strictly monotone
decreasing. In addition, f^{−1} is also strictly monotone decreasing. Next, we show
that φ is an NCP function.

“⇒” Suppose φ(a, b) = 0, we consider the two regions on the a, b-plane which are a ≥ b and b ≥ a.

Case (1): If a ≥ b, then f (f^{−1}(|a|) + f^{−1}(|b|) − f^{−1}(0)) = a. Since f^{−1}(|a|) +
f^{−1}(|b|) − f^{−1}(0) ≤ 1 and f is strictly monotone decreasing on (−∞, 1], a =
f (f^{−1}(|a|)+f^{−1}(|b|)−f^{−1}(0)) ≥ f (1) = 0. Then, f^{−1}(|b|)−1 = f^{−1}(a)−f^{−1}(|a|) =
0 since a is nonnegative. Hence b = 0, a ≥ 0.

Case (2): If b ≥ a, by the symmetric form of the function, we obtain that a = 0, b ≥ 0. Therefore, a ≥ 0, b = 0 or b = 0, a ≥ 0. This is equivalent to a ≥ 0, b ≥ 0, ab = 0.

“⇐” Conversely, suppose that a ≥ 0, b ≥ 0, ab = 0. Then, we have a ≥ 0, b = 0 or b = 0, a ≥ 0. For a ≥ 0, b = 0, it is clear that φ(a, b) = |a| − a = 0. For b = 0, a ≥ 0, it is also trivial that φ(a, b) = |b| − b = 0. 2

Example 3.2. Here are examples of f satisfying condition in Proposition 3.1(a).

(1) f1(t) = (t − 1) [1,∞). (2) f2(t) = ln(t)

[1,∞).
(3) f_{3}(t) = (t − 1)^{1/2}

[1,∞).
(4) f_{4}(t) = (t − 1)^{1/5}

[1,∞).

Then, their corresponding NCP functions are as below.

(1) φ_{f1}(a, b) = |a| + |b| − max(a, b).

(2) φ_{f2}(a, b) = ln(e^{|a|}+ e^{|b|}− 1) − max(a, b).

(3) φ_{f3}(a, b) = k(a, b)k_{2}− max(a, b).

(4) φ_{f4}(a, b) = k(a, b)k_{5}− max(a, b).

0 -1

-0.5 1

1 0.5 0

2

0.5 0

-0.5 1 3

-1

(a) Graph of φ_{f1} in Example 3.2

-1 -1 0

-0.5 1

0.5 1

0 0.5 0 2

-0.5 1 -1 3

(b) Graph of φ_{f2} in Example 3.2

0 -1 0.5

-0.5 1 1

0.5 0

1.5

0 2

0.5 -0.5

2.5

1 -1

(c) Graph of φ_{f3} in Example 3.2

-0.5 -1 0 0.5

1 1

-0.5 1.5

0.5 2

0 2.5

0

0.5 -0.5

1 -1

(d) Graph of φ_{f4} in Example 3.2

Figure 1. Graphs of NCP functions shown in Example 3.2

For the case of Proposition 3.1(b), since every strictly monotone decreasing func- tion can be produced by adding a negative sign to the strictly monotone increasing function, the examples for Proposition 3.1(b) can be obtained immediately from Example 3.2.

Proposition 3.3. Suppose f is a continuously differentiable real valued function with f (1) = 0. If f satisfies the following conditions:

(i): f : [1, ∞) → [0, ∞) is invertible, and
(ii): (f^{−1})^{0} is strictly monotone on [0, ∞),

then φ(a, b) = f (f^{−1}(|a|) + f^{−1}(|b|) − f^{−1}(0)) − (a + b) is an NCP function.

Proof. To verify that φ is an NCP function, we need to show that φ is equal to
zero only on the nonnegative sides of the a, b-axes. To proceed, we have to check
the four quadrants on the a, b-plane. For the analysis of the second, third, and the
fourth quadrant, we only use the monotonicity of f^{−1}. We need the monotonicity
of (f^{−1})^{0} only when analyzing the first quadrant.

Case (1): Suppose a > 0 and b > 0. If (f^{−1})^{0} is strictly monotone increasing on
[0, ∞), then we have

f^{−1}(a + b) − f^{−1}(b) =
Z a+b

b

(f^{−1})^{0}(x)dx

>

Z a 0

(f^{−1})^{0}(x)dx

= f^{−1}(a) − f^{−1}(0)

= f^{−1}(a) − 1.

Thus, 1 < f^{−1}(a) + f^{−1}(b) − 1 < f^{−1}(a + b). Since f is strictly monotone increasing
on [1, ∞), so

f (f^{−1}(a) + f^{−1}(b) − 1) < f (f^{−1}(a + b)) = a + b.

Thus,

φ(a, b) = f (f^{−1}(a) + f^{−1}(b) − 1) − (a + b) < 0.

If (f^{−1})^{0} is strictly monotone decreasing on [0, ∞), then we have
f^{−1}(a + b) − f^{−1}(b) =

Z a+b b

(f^{−1})^{0}(x)dx

<

Z a 0

(f^{−1})^{0}(x)dx

= f^{−1}(a) − f^{−1}(0)

= f^{−1}(a) − 1.

Thus, 1 < f^{−1}(a + b) < f^{−1}(a) + f^{−1}(b) − 1. Since f is strictly monotone increasing
on [1, ∞), we see

f (f^{−1}(a) + f^{−1}(b) − 1) > f (f^{−1}(a + b)) = a + b.

Then, it is clear that

φ(a, b) = f (f^{−1}(a) + f^{−1}(b) − 1) − (a + b) > 0.

Case (2): Suppose a < 0 and b > 0. Under this case, if a+b > 0, since f^{−1}is strictly
monotone increasing on [0, ∞), so we have f^{−1}(|b|) − f^{−1}(0) > f^{−1}(a + b) − f^{−1}(|a|).

Thus,

f^{−1}(|a|) + f^{−1}(|b|) − 1 > f^{−1}(a + b) > 1.

Since f is strictly monotone increasing on [1, ∞), we have

f (f^{−1}(|a|) + f^{−1}(|b|) − 1) > f (f^{−1}(a + b)) = a + b.

If a + b ≤ 0, we still have f (f^{−1}(|a|) + f^{−1}(|b|) − 1) > a + b because f is positive on
(1, ∞) and f^{−1}(|a|) + f^{−1}(|b|) − 1 > 1. Thus, there holds

φ(a, b) = f (f^{−1}(|a|) + f^{−1}(|b|) − 1) − (a + b) > 0.

Case (3): Suppose a < 0 and b < 0. Since f^{−1}(|a|) + f^{−1}(|b|) − 1 > 1, f (1) = 0, and
f is strictly monotone increasing on [1, ∞), f (f^{−1}(|a|) + f^{−1}(|b|) − 1) > 0. Thus,
we have

φ(a, b) = f (f^{−1}(|a|) + f^{−1}(|b|) − 1) − (a + b) > 0.

Case (4): Suppose a > 0 and b < 0. This case is the symmetric case of a < 0, b > 0.

Thus, there holds

φ(a, b) = f (f^{−1}(|a|) + f^{−1}(|b|) − 1) − a + b > 0.

Case (5): Suppose a ≥ 0, b = 0 or a = 0, b ≥ 0. In this case, φ is zero.

Case (6): Suppose a < 0, b = 0 or a = 0, b < 0. In this case, φ is positive.

In summary, φ is zero only on the nonnegative sides of a, b-axes. 2

By similar arguments as in Proposition 3.3, we can conclude the results when f is strictly monotone decreasing.

Proposition 3.4. Suppose f is a continuously differentiable real valued function with f (1) = 0. If f satisfies the following conditions:

(i): f : (−∞, 1] → [0, ∞) is invertible, and
(ii): (f^{−1})^{0} is strictly monotone on [0, ∞),

then φ(a, b) = f (f^{−1}(|a|) + f^{−1}(|b|) − f^{−1}(0)) − (a + b) is an NCP function.

Example 3.5. Here are examples of f satisfying the conditions in Proposition 3.3.

(1) f1(t) = ln(t)
[1,∞).
(2) f_{2}(t) = (t − 1)^{1/2}

[1,∞).
(3) f_{3}(t) = (t − 1)^{1/5}

[1,∞).

Then, their corresponding NCP functions are as below.

(1) φ_{f1}(a, b) = ln(e^{|a|}+ e^{|b|}− 1) − (a + b).

(2) φ_{f2}(a, b) = k(a, b)k_{2}− (a + b).

(3) φ_{f3}(a, b) = k(a, b)k_{5}− (a + b).

-1 -1 0

-0.5 1

1

0 0.5 2

0 3

0.5 -0.5

4

1 -1

(a) Graph of φ_{f1} in Example 3.5

-1 -1 0

-0.5 1 1

0 0.5 2

0 3

0.5 -0.5

4

1 -1

(b) Graph of φ_{f2} in Example 3.5

-1 -1 0 1

-0.5

1 2

0 0.5

3

0.5 0 4

-0.5 1 -1

(c) Graph of φ_{f3} in Example 3.5

Figure 2. Graphs of NCP functions shown in Example 3.5

Proposition 3.3 provides the sufficient condition of f and (f^{−1})^{0} making φ to
be an NCP function. However, it is not the necessary condition. There are some
choices of f such that (f^{−1})^{0} is neither strictly monotone increasing nor decreasing.

Below are two counterexamples of f providing that φ is also an NCP function.

Example 3.6. Let f be a real valued function defined by f (t) =

−√

38 − 2t + 6, if 1 ≤ t ≤ 18.5.

√2t − 36 + 4, if 18.5 ≤ t ≤ 20.

t

2 − 4, if 20 ≤ t.

Then, we compute that

f^{−1}(t) =

−^{t}_{2}^{2} + 6t + 1, if 0 ≤ t ≤ 5.

t^{2}

2 − 4t + 26, if 5 ≤ t ≤ 6.

2t + 8, if 6 ≤ t.

and

(f^{−1})^{0}(t) =

−t + 6, if 0 ≤ t ≤ 5.

t − 4, if 5 ≤ t ≤ 6.

2, if 6 ≤ t.

Consider φ(a, b) = f (f^{−1}(|a|) + f^{−1}(|b|) − f^{−1}(0)) − (a + b), we see that φ is zero
on the nonnegative sides of the a, b-axes and positive on the negative sides of the
a, b-axes. In addition, by using the monotonicity of f^{−1}, φ is positive on the second,
third, and fourth quadrant due to Proposition 3.3. Thus, we only have to check

the value of φ on the first quadrant. From the expression of (f^{−1})^{0}, we can draw a
diagram of the function and easily find thatRa

0(f^{−1})^{0}(t)dt >Ra+b

b (f^{−1})^{0}(t)dt for all
a, b > 0. This implies

f^{−1}(a) − 1 > f^{−1}(a + b) − f^{−1}(b)

=⇒ f^{−1}(a) + f^{−1}(b) − 1 > f^{−1}(a + b) > 1

=⇒ f (f^{−1}(a) + f^{−1}(b) − 1) > f (f^{−1}(a + b)) = a + b

=⇒ f (f^{−1}(a) + f^{−1}(b) − 1) − (a + b) > 0,

which says φ(a, b) > 0 on the first quadrant. Hence, φ is an NCP function.

(a) Graph of f in Example 3.6 (b) Graph of f^{−1} in Example 3.6

(c) Graph of (f^{−1})^{0} in Example 3.6

Figure 3. Graph of f , f^{−1} and (f^{−1})^{0} in Example 3.6

Example 3.7. Let f be a real valued function defined by f (t) =

√2t − 1 − 1, if 1 ≤ t ≤ 18.5.

−√

−2t + 73 + 11, if 18.5 ≤ t ≤ 24.

√2t − 23 + 1, if 24 ≤ t.

Then, we compute that

f^{−1}(t) =

t^{2}

2 + t + 1, if 0 ≤ t ≤ 5.

−^{t}_{2}^{2} + 11t − 24, if 5 ≤ t ≤ 6.

t^{2}

2 − t + 12, if 6 ≤ t.

and

(f^{−1})^{0}(t) =

t + 1, if 0 ≤ t ≤ 5.

−t + 11, if 5 ≤ t ≤ 6.

t − 1, if 6 ≤ t.

Consider φ(a, b) = f (f^{−1}(|a|) + f^{−1}(|b|) − f^{−1}(0)) − (a + b), we see that φ is zero
on the nonnegative sides of the a, b-axes and positive on the negative sides of the

a, b-axes. In addition, by using the monotonicity of f^{−1}, φ is positive on the second,
third, and fourth quadrant due to Proposition 3.3. Thus, we only have to check
the value of φ on the first quadrant. From the expression of (f^{−1})^{0}, we can draw
a diagram of the function and easily find that Ra

0(f^{−1})^{0}(x)dx < Ra+b

b (f^{−1})^{0}(x)dx

∀a, b > 0. This implies

f^{−1}(a) − 1 < f^{−1}(a + b) − f^{−1}(b)

=⇒ 1 < f^{−1}(a) + f^{−1}(b) − 1 < f^{−1}(a + b)

=⇒ f (f^{−1}(a) + f^{−1}(b) − 1) < f (f^{−1}(a + b)) = a + b

=⇒ f (f^{−1}(a) + f^{−1}(b) − 1) − (a + b) < 0,

which says φ(a, b) < 0 on the first quadrant. Hence, φ is an NCP function.

(a) Graph of f in Example 3.7 (b) Graph of f^{−1} in Example 3.7

(c) Graph of (f^{−1})^{0} in Example 3.7

Figure 4. Graphs of f , f^{−1} and (f^{−1})^{0} in Example 3.7

-2 -1 0

-0.5 2 4

0 1

6

0.5 0 0.5

1 -1 -0.5

(a) Graph of φ in Example 3.6

-1 -1 0 1

-0.5 2 3

1 0

4

0.5

0.5 0

1 -1 -0.5

(b) Graph of φ in Example 3.7

Figure 5. Graphs of two φ functions in Example 3.6 and Example 3.7 There is a possibility to further extend the NCP function of Proposition 3.3.

We find that we can add another functions satisfying some conditions in front of

the terms negative a and negative b, a class of totally new NCP functions will be formulated. We elaborate it in the next proposition.

Proposition 3.8. Suppose f is a continuously differentiable real valued function with f (1) = 0 and g is a real valued function with g(0) = 1. If f and g satisfy the following conditions:

(i): f : [1, ∞) → [0, ∞) is invertible;

(ii): (f^{−1})^{0} is strictly monotone increasing;

(iii): g(0) = 1, g(t) ≥ 1 ∀t > 0, and 1 ≥ g(t) > ^{−1}_{2} ∀t < 0.

Then, φ(a, b) = f (f^{−1}(|a|)+f^{−1}(|b|)−f^{−1}(0))−(g(b)a+g(a)b) is an NCP function.

Proof. To show that φ is an NCP function, we have to verify that φ is zero only on the nonnegative sides of the a, b-axes. To this end, we check all the regions of the a, b-plane.

Case (1): Suppose a > 0 and b > 0. By Proposition 3.3, we have
f (f^{−1}(|a|) + f^{−1}(|b|) − 1) < a + b ≤ g(b)a + g(a)b,
which yields

f (f^{−1}(|a|) + f^{−1}(|b|) − 1) − (g(b)a + g(a)b) < 0.

Case (2): Suppose a < 0 and b > 0. By Proposition 3.3, we have
f (f^{−1}(|a|) + f^{−1}(|b|) − 1) > a + b ≥ g(b)a + g(a)b,
which implies

f (f^{−1}(|a|) + f^{−1}(|b|) − 1) − (g(b)a + g(a)b) > 0.

Case (3): Suppose a < 0 and b < 0. Since f^{−1}and (f^{−1})^{0}are both strictly monotone
increasing on [0, ∞), we know that f^{−1} is strictly convex on [0, ∞). This indicates
that

f^{−1}(|a|) + f^{−1}(|b|) − 1 > 2f^{−1} |a| + |b|

2

− 1 > f^{−1} |a| + |b|

2

> 1.

In addition, using f being strictly monotone increasing on [1, ∞), it gives
f (f^{−1}(|a|)+f^{−1}(|b|)−1) > f

2f^{−1} |a| + |b|

2

− 1

> f (f^{−1} |a| + |b|

2 )

= |a| + |b|

2 .

Thus, we obtain

f (f^{−1}(|a|) + f^{−1}(|b|) − 1) − g(b)a − g(a)b

> |a| + |b|

2 − (g(b)a + g(a)b)

= a

2(sgn(a) − 2g(b)) +b

2(sgn(b) − 2g(a))

> 0.

Case (4): Suppose a > 0 and b < 0. This case is the symmetric case of a < 0, b > 0.

Due to

f (f^{−1}(|a|) + f^{−1}(|b|) − 1) > a + b ≥ g(b)a + g(a)b,

it is clear to see

f (f^{−1}(|a|) + f^{−1}(|b|) − 1) − (g(b)a + g(a)b) > 0.

Case (5): Suppose a ≥ 0, b = 0 or a = 0, b ≥ 0. In this case, φ is zero.

Case (6): Suppose a < 0, b = 0 or a = 0, b < 0. In this case, φ is positive.

From all the above, φ is zero only on the nonnegative sides of the a, b-axes. Hence, φ is an NCP function. 2

Example 3.9. Here are examples of f and g satisfying those conditions in Propo- sition 3.8.

(a): Three examples for function f :
(1) f_{1}(t) = ln(t)

[1,∞).
(2) f2(t) = (t − 1)^{1/2}

[1,∞).
(3) f3(t) = (t − 1)^{1/5}

[1,∞). (b): Three examples for function g:

(1) g_{1}(t) = e^{t}
(2) g_{2}(t) = _{1+2e}^{4−e}^{−t}−t

(3) g3(t) =

√t^{2}+4+t
2

Then, applying those f and g functions in Example 3.9, we can generate the following nine NCP functions.

φ_{1}(a, b) = ln(e^{|a|}+ e^{|b|}− 1) − e^{b}a − e^{a}b,
φ2(a, b) = ln(e^{|a|}+ e^{|b|}− 1) − 4 − e^{−b}

1 + 2e^{−b}a − 4 − e^{−a}
1 + 2e^{−a}b,
φ_{3}(a, b) = ln(e^{|a|}+ e^{|b|}− 1) −

√

b^{2}+ 4 + b

2 a −

√

a^{2}+ 4 + a

2 b,

φ4(a, b) = k(a, b)k_{2}− e^{b}a − e^{a}b,
φ_{5}(a, b) = k(a, b)k_{2}− 4 − e^{−b}

1 + 2e^{−b}a − 4 − e^{−a}
1 + 2e^{−a}b,
φ6(a, b) = k(a, b)k_{2}−

√

b^{2}+ 4 + b

2 a −

√

a^{2}+ 4 + a

2 b,

φ_{7}(a, b) = k(a, b)k_{5}− e^{b}a − e^{a}b,
φ_{8}(a, b) = k(a, b)k_{5}− 4 − e^{−b}

1 + 2e^{−b}a − 4 − e^{−a}
1 + 2e^{−a}b,
φ_{9}(a, b) = k(a, b)k_{5}−

√

b^{2}+ 4 + b

2 a −

√

a^{2}+ 4 + a

2 b.

Figure 6. Graph of g functions given in Example 3.9

-150 -1 -100

-0.5 1 -50

0.5 0

0 0

50

0.5 100

-0.5 1 -1

(a) Graph of φ1 from Example 3.9

-100 -1 -50

-0.5 0

1 50

0.5 0

100

0.5 -0.5 0

1 -1

(b) Graph of φ2 from Example 3.9

-100 -1 -50

-0.5 1 0

0.5 0

50

0 100

0.5 -0.5

1 -1

(c) Graph of φ3from Example 3.9

-150 -1 -100

-0.5 1 -50

0 0.5 0

0 50

0.5 -0.5

100

1 -1

(d) Graph of φ4 from Example 3.9

-100 -1 -50

-0.5 1

0

0 0.5

50

0.5 0 100

-0.5 1 -1

(e) Graph of φ5from Example 3.9

-100 -1 -50

-0.5 1 0

0.5 50

0 0

100

0.5 -0.5

1 -1

(f) Graph of φ6from Example 3.9

-150 -1 -100

1 -50

-0.5 0.5

0

0 50

0 0.5

100

-0.5 1 -1

(g) Graph of φ7 from Example 3.9

-100 -1 -50

-0.5 1

0.5 0

0 0

50

0.5 -0.5

100

1 -1

(h) Graph of φ8 from Example 3.9

-100 -1 1 -50

-0.5 0.5 0

0 0 50

0.5 -0.5 100

-1 1

(i) Graph of φ9 from Example 3.9

Figure 7. Graphs of generated NCP functions by Proposition 3.8

The next proposition is a counterpart to Proposition 3.4 whose arguments are
quite similar to those for Proposition 3.8 by using the monotonicity and concavity
of f^{−1} on [0, ∞). We omit the proof.

Proposition 3.10. Suppose f is a continuously differentiable real valued function with f (1) = 0 and g is a real valued function with g(0) = 1. If f and g satisfy the following conditions:

(i): f : (−∞, 1] → [0, ∞) is invertible;

(ii): (f^{−1})^{0} is strictly monotone decreasing;

(iii): g(0) = 1, g(t) ≥ 1 ∀t > 0, and 1 ≥ g(t) > ^{−1}_{2} ∀t < 0.

Then, φ(a, b) = f (f^{−1}(|a|)+f^{−1}(|b|)−f^{−1}(0))−(g(b)a+g(a)b) is an NCP function.

In Proposition 3.8, if we use f (t) = t−1, then we have f (f^{−1}(|a|)+f^{−1}(|b|)−1) =

|a| + |b|. In this case, (f^{−1})^{0} is not strictly monotone increasing. Nonetheless, we
find that if the function g satisfies the strict inequality condition rather than the
equality condition on (0, ∞), then φ will be an NCP function. Thus, we take it
as an extended case of Proposition 3.8. The following type of NCP functions was
discovered in [2], which is connected to Proposition 3.8 in this paper.

Remark 3.11. Suppose that φ(a, b) = |a| + |b| − (g(a)b + g(b)a), where g : R → R, g(0) = 1, g(t) > 1 ∀t > 0, and 1 ≥ g(t) > −1 ∀t < 0.

Then, φ is an NCP function. Note that the third condition 1 ≥ g(t) > −1, ∀t < 0
is a bit weaker than 1 ≥ g(t) > −^{1}_{2}, ∀t < 0, appeared in Proposition 3.8 and
Proposition 3.10. This is because that our analysis involve both f and g, whereas
the one in [2] only use g.

Example 3.12. For Remark 3.11, we point out that the same examples of g as in Example 3.9 also satisfy the conditions in Remark 3.11.

(1) g_{1}(t) = e^{t}.
(2) g_{2}(t) = _{1+2e}^{4−e}^{−t}−t.
(3) g_{3}(t) =

√
x^{2}+4+t

2 .

Then, their corresponding NCP functions are as below.

(1) φ_{g1}(a, b) = |a| + |b| − e^{b}a − e^{a}b.

(2) φ_{g2}(a, b) = |a| + |b| − _{1+2e}^{4−e}^{−b}−ba − _{1+2e}^{4−e}^{−a}−ab.

(3) φ_{g3}(a, b) = |a| + |b| −

√b^{2}+4+b

2 a −

√a^{2}+4+a
2 b.

-150 -1 -100

-0.5 1

-50

0.5 0

0 50

0.5 0 100

-0.5 1 -1

(a) Graph of φ_{g1} Example 3.12

-100 -1 -50

-0.5 1 0

0.5 50

0 0

100

0.5 -0.5

1 -1

(b) Graph of φ_{g2} Example 3.12

-100 -1 -50

1 -0.5

0

0.5 50

0 0

100

0.5 -0.5

1 -1

(c) Graph of φ_{g3} Example 3.12

Figure 8. Graphs of NCP functions generated in Example 3.12 4. Conclusion

In this paper, we present a novel idea to construct NCP functions by using certain invertible functions. This can produce a very large pool of new NCP functions. In general, the NCP functions we discover are neither convex nor differentiable on the whole domain. However, it will be interesting to study whether they are semismooth or not. Numerical side lies in clarifying what types of generated NCP functions can be employed to real algorithms. We leave them as our future research directions.

References

[1] J. H. Alcantara and J.-S. Chen, A novel generalization of the natural residual function and a neural network approach for the NCP, Neurocomputing 413 (2020), 368–382.

[2] J. H. Alcantara, C.-H. Lee, C. T. Nguyen, Y.-L. Chang, and J.-S. Chen, On construction of new NCP functions, Oper. Res. Lett. 48 (2020), 115–121.

[3] J.-S. Chen, On some NCP-functions based on the generalized Fischer-Burmeister function, Asia-Pac. J. Oper. Res. 24 (2007), 401–420.

[4] J.-S. Chen, C.-H. Ko, and X.-R. Wu, What is the generalization of natural residual function for NCP, Pac. J. Optim. 12 (2016), 19–27.

[5] F. H. Clarke, Optimization and Nonsmooth Analysis, Wiley, New York, 1983

[6] F. Facchinei and J.-S. Pang, Finite-dimensional variational inequality and complementarity problems, Springer-Verlag (New York), 1 (2003), 1–10.

[7] M. C. Ferris and J.-S. Pang, Engineering and economic applications of complementarity prob- lems, SIAM Review 39 (1997), 669–713.

[8] A. Fischer, A special Newton-type optimization methods, Optimization 24 (1992), 269–284.
