□ 表 3.1 SRC 短柱軸壓試驗之試體規劃表

(1)

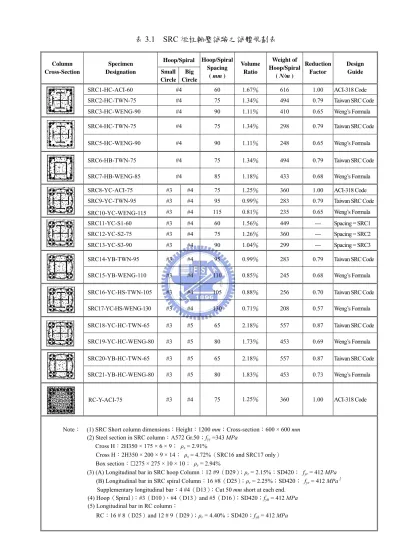

表3.1 SRC 短柱軸壓試驗之試體規劃表

Hoop/Spiral Column

Cross-Section

Specimen

Designation Small Circle

Big Circle

Hoop/Spiral Spacing

( mm )

Volume Ratio

Weight of Hoop/Spiral

( N/m )

Reduction Factor

Design Guide

SRC1-HC-ACI-60 #4 60 1.67％ 616 1.00 ACI-318 Code

SRC2-HC-TWN-75 #4 75 1.34％ 494 0.79 Taiwan SRC Code

SRC3-HC-WENG-90 #4 90 1.11％ 410 0.65 Weng’s Formula

SRC4-HC-TWN-75 #4 75 1.34％ 298 0.79 Taiwan SRC Code

SRC5-HC-WENG-90 #4 90 1.11％ 248 0.65 Weng’s Formula

SRC6-HB-TWN-75 #4 75 1.34％ 494 0.79 Taiwan SRC Code

SRC7-HB-WENG-85 #4 85 1.18％ 433 0.68 Weng’s Formula

SRC8-YC-ACI-75 #3 #4 75 1.25％ 360 1.00 ACI-318 Code SRC9-YC-TWN-95 #3 #4 95 0.99％ 283 0.79 Taiwan SRC Code SRC10-YC-WENG-115 #3 #4 115 0.81％ 235 0.65 Weng’s Formula SRC11-YC-S1-60 #3 #4 60 1.56％ 449 --- Spacing = SRC1 SRC12-YC-S2-75 #3 #4 75 1.26％ 360 --- Spacing = SRC2 SRC13-YC-S3-90 #3 #4 90 1.04％ 299 --- Spacing = SRC3 SRC14-YB-TWN-95 #3 #4 95 0.99％ 283 0.79 Taiwan SRC Code SRC15-YB-WENG-110 #3 #4 110 0.85％ 245 0.68 Weng’s Formula SRC16-YC-HS-TWN-105 #3 #4 105 0.88％ 256 0.70 Taiwan SRC Code SRC17-YC-HS-WENG-130 #3 #4 130 0.71％ 208 0.57 Weng’s Formula SRC18-YC-HC-TWN-65 #3 #5 65 2.18％ 557 0.87 Taiwan SRC Code SRC19-YC-HC-WENG-80 #3 #5 80 1.73％ 453 0.69 Weng’s Formula SRC20-YB-HC-TWN-65 #3 #5 65 2.18％ 557 0.87 Taiwan SRC Code SRC21-YB-HC-WENG-80 #3 #5 80 1.83％ 453 0.73 Weng’s Formula

RC-Y-ACI-75 #3 #4 75 1.25％ 360 1.00 ACI-318 Code

Note： (1) SRC Short column dimensions：Height：1200 mm；Cross-section：600 × 600 mm (2) Steel section in SRC column：A572 Gr.50；fys =343 MPa

Cross H：2H350 × 175 × 6 × 9； ρ_s = 2.91%

Cross H：2H350 × 200 × 9 × 14； ρs = 4.72%（SRC16 and SRC17 only）

Box section：

□

275 × 275 × 10 × 10； ρ_s = 2.94%

(3) (A) Longitudinal bar in SRC hoop Column：12 #9（D29）；ρr = 2.15%；SD420； fyr = 412 MPa (B) Longitudinal bar in SRC spiral Column：16 #8（D25）；ρ_r = 2.25%；SD420； f_yr = 412 MPa²

Supplementary longitudinal bar：4 #4（D13）；Cut 50 mm short at each end.

(4) Hoop（Spiral）：#3（D10）、#4（D13）and #5（D16）；SD420；fyh = 412 MPa (5) Longitudinal bar in RC column：

RC：16 # 8（D25）and 12 # 9（D29）；ρ_r = 4.40%；SD420；f_yh = 412 MPa

(2)

Steel

Plate Thickness (mm)

Reinforcement Concrete Material

Strength 6 9 10 14 #3 #4 #8 #9

Normal

⁽¹⁾

Strength Concrete

High

⁽²⁾

Strength Concrete f

y

(MPa) 437 454 419 429 494 472 451 439

f MPa_c′( ) f MPa_c′( )

f

u

(MPa) 546 574 524 549 737 750 698 687 41.9 75.5

註：(1)本研究之試體除了試體 SRC18、19、20、21 之外，均採用一般常重混凝土，其 28 天之平均抗壓強度為 41.9 MPa。

(2)本研究之試體 SRC18、19、20、21，採用高強度混凝土，其 28 天之平均抗壓強度為 75.5 MPa。

表 3.2 SRC 短柱試體之材料強度表

(3)

表3.3 本研究 SRC 與 RC 短柱試體之軸向抗壓強度比較

Column Cross-Section

Specimen Designation

( )

Pn ⁽¹⁾

(kN)

( )

^P_{u squash}⁽²⁾

(kN)

( )

^P_{u test}⁽³⁾

(kN)

( ) ( )

^{u test}n

P P

( ) ( )

_{u squash}^{u test}

P P

SRC1-HC-ACI-60 16765 16912 20856 1.24 1.23 ACI-318 Code SRC2-HC-TWN-75 16765 16912 19885 1.19 1.18 Taiwan SRC Code SRC3-HC-WENG-90 16765 16912 19110 1.14 1.13 Weng’s Formula SRC4-HC-TWN-75 16765 16912 18188 1.08 1.08 Taiwan SRC Code SRC5-HC-WENG-90 16765 16912 17952 1.07 1.06 Weng’s Formula SRC6-HB-TWN-75 16795 17040 18639 1.11 1.09 Taiwan SRC Code SRC7-HB-WENG-85 16795 17040 19522 1.16 1.15 Weng’s Formula SRC8-YC-ACI-75 16903 17148 20964 1.24 1.22 ACI-318 Code SRC9-YC-TWN-95 16903 17148 20199 1.19 1.18 Taiwan SRC Code SRC10-YC-WENG-115 16903 17148 20630 1.22 1.20 Weng’s Formula SRC11-YC-S1-60 16903 17148 23093 1.37 1.35 Spacing = SRC1 SRC12-YC-S2-75 16903 17148 21337 1.26 1.24 Spacing = SRC2 SRC13-YC-S3-90 16903 17148 20827 1.23 1.21 Spacing = SRC3 SRC14-YB-TWN-95 16932 17275 20209 1.19 1.17 Taiwan SRC Code SRC15-YB-WENG-110 16932 17275 19228 1.14 1.11 Weng’s Formula SRC16-YC-HS-TWN-105 18943 19846 21562 1.14 1.09 Taiwan SRC Code SRC17-YC-HS-WENG-130 18943 19846 19954 1.05 1.01 Weng’s Formula SRC18-YC-HC-TWN-65 26860 24711 29253 1.09 1.18 Taiwan SRC Code SRC19-YC-HC-WENG-80 26860 24711 24859 0.93 1.01 Weng’s Formula SRC20-YB-HC-TWN-65 26889 24839 30745 1.14 1.24 Taiwan SRC Code SRC21-YB-HC-WENG-80 26889 24839 28940 1.08 1.17 Weng’s Formula

RC-Y-ACI-75 16569 16324 18109 1.09 1.11 ACI-318 Code

NOTE：(1) Ultimate design compressive strength (Pn) = 0.85f ′ A_c c+AsFys+ArFyr

(2) Ultimate squash compressive strength (Pn) squash= 0.85(f )_c′ _testAcc+As(Fys)test+Ar(Fyr)test

(3) Test compressive strength

(4)

表3.4 未受圍束與受圍束之混凝土抗壓強度的比較

(1)

f ′

c

(MPa)

(2)

f ′

cc

(MPa)

′

(3) cc

′

c

f 0.85 f

Weight of Hoop/Spiral

( N/m )

SRC1-HC-ACI-60 41.9 50.4 1.42 616 ACI-318 Code SRC2-HC-TWN-75 41.9 46.7 1.31 494 Taiwan SRC Code SRC3-HC-WENG-90 41.9 43.8 1.23 410 Weng’s Formula SRC4-HC-TWN-75 41.9 40.4 1.13 298 Taiwan SRC Code

SRC5-HC-WENG-90 41.9 39.5 1.11 248 Weng’s Formula

SRC6-HB-TWN-75 41.9 41.6 1.17 494 Taiwan SRC Code SRC7-HB-WENG-85 41.9 44.9 1.26 433 Weng’s Formula SRC8-YC-ACI-75 41.9 50.0 1.41 360 ACI-318 Code SRC9-YC-TWN-95 41.9 47.1 1.32 283 Taiwan SRC Code

SRC10-YC-WENG-115 41.9 48.7 1.37 235 Weng’s Formula SRC11-YC-S1-60 41.9 58.0 1.63 449 Spacing = SRC1

SRC12-YC-S2-75 41.9 51.4 1.45 360 Spacing = SRC2 SRC13-YC-S3-90 41.9 49.5 1.39 299 Spacing = SRC3 SRC14-YB-TWN-95 41.9 46.7 1.31 283 Taiwan SRC Code SRC15-YB-WENG-110 41.9 43.0 1.21 245 Weng’s Formula SRC16-YC-HS-TWN-105 41.9 42.0 1.18 256 Taiwan SRC Code SRC17-YC-HS-WENG-130 41.9 36.0 1.01 208 Weng’s Formula SRC18-YC-HC-TWN-65 75.5 81.3 1.27 557 Taiwan SRC Code

SRC19-YC-HC-WENG-80 75.5 64.7 1.01 453 Weng’s Formula SRC20-YB-HC-TWN-65 75.5 86.5 1.35 557 Taiwan SRC Code

SRC21-YB-HC-WENG-80 75.5 79.6 1.24 453 Weng’s Formula

RC-Y-ACI-75 41.9 42.3 1.19 360 ACI-318 Code

Note： (1) Unconfined compressive strength of concrete from cylinder test at 28 days.

(5)

表3.5 本研究之 RC 與 SRC 短柱之韌性比較

(1) Pu

ε

_0.7 ⁽²⁾

Pu

ε

^0.7^u

u P P

ε

^Design^Guide

SRC1-HC-ACI-60 0.0094 0.0491 5.22 ACI-318 Code SRC2-HC-TWN-75 0.0090 0.0440 4.89 Taiwan SRC Code SRC3-HC-WENG-90 0.0079 0.0361 4.57 Weng’s Formula SRC4-HC-TWN-75 0.0078 0.0255 3.27 Taiwan SRC Code SRC5-HC-WENG-90 0.0088 0.0317 3.60 Weng’s Formula SRC6-HB-TWN-75 0.0073 0.0306 4.19 Taiwan SRC Code SRC7-HB-WENG-85 0.0067 0.0270 4.03 Weng’s Formula SRC8-YC-ACI-75 0.0117 0.0509 4.35 ACI-318 Code SRC9-YC-TWN-95 0.0115 0.0546 4.75 Taiwan SRC Code SRC10-YC-WENG-115 0.0099 0.0446 4.51 Weng’s Formula SRC11-YC-S1-60 0.0103 0.0496 4.82 Spacing = SRC1 SRC12-YC-S2-75 0.0115 0.0581 5.05 Spacing = SRC2 SRC13-YC-S3-90 0.0101 0.0433 4.29 Spacing = SRC3 SRC14-YB-TWN-95 0.0076 0.0266 3.50 Taiwan SRC Code SRC15-YB-WENG-110 0.0075 0.0234 3.12 Weng’s Formula SRC16-YC-HS-TWN-105 0.0125 0.0344 2.75 Taiwan SRC Code SRC17-YC-HS-WENG-130 0.0096 0.0417 4.34 Weng’s Formula SRC18-YC-HC-TWN-65 0.0087 0.0563 6.47 Taiwan SRC Code SRC19-YC-HC-WENG-80 0.0107 0.0615 5.75 Weng’s Formula SRC20-YB-HC-TWN-65 0.0096 0.0455 4.74 Taiwan SRC Code SRC21-YB-HC-WENG-80 0.0089 0.0232 2.61 Weng’s Formula

RC-Y-ACI-75 0.0099 0.0263 2.65 ACI-318 Code

Note：(1) Compressive strain of column at ultimate axial load.

(2) Compressive strain of column at 70％ ultimate axial load after reaching maximum capacity.

(3)

μ

is the ductility index of the column,

μ ε =

_0.7_P_u

/ ε

_P_u.

(6)

表3.6 本研究之 RC 與 SRC 短柱之強度、韌性及箍筋用量經濟效益分析

( ) ( )

_{n squash}^{u test}

P P

0.7u u

P P

ε

^Volumetric^Ratio

Weight of Hoop/Spiral

( N/m )

Reduction Factor

SRC1-HC-ACI-60 1.23 5.22 1.67％ 616 1.00 ACI-318 Code SRC2-HC-TWN-75 1.18 4.89 1.34％ 494 0.79 Taiwan SRC Code SRC3-HC-WENG-90 1.13 4.57 1.11％ 410 0.65 Weng’s Formula SRC4-HC-TWN-75 1.08 3.27 1.34％ 298 0.79 Taiwan SRC Code SRC5-HC-WENG-90 1.06 3.60 1.11％ 248 0.65 Weng’s Formula

SRC6-HB-TWN-75 1.09 4.19 1.34％ 494 0.79 Taiwan SRC Code SRC7-HB-WENG-85 1.15 4.03 1.18％ 433 0.68 Weng’s Formula SRC8-YC-ACI-75 1.22 4.35 1.25％ 360 1.00 ACI-318 Code SRC9-YC-TWN-95 1.18 4.75 0.99％ 283 0.79 Taiwan SRC Code SRC10-YC-WENG-115 1.20 4.51 0.81％ 235 0.65 Weng’s Formula SRC11-YC-S1-60 1.35 4.82 1.56％ 449 --- Spacing = SRC1 SRC12-YC-S2-75 1.24 5.05 1.26％ 360 --- Spacing = SRC2 SRC13-YC-S3-90 1.21 4.29 1.04％ 299 --- Spacing = SRC3 SRC14-YB-TWN-95 1.17 3.50 0.99％ 283 0.79 Taiwan SRC Code SRC15-YB-WENG-110 1.11 3.12 0.85％ 245 0.68 Weng’s Formula SRC16-YC-HS-TWN-105 1.09 2.75 0.88％ 256 0.70 Taiwan SRC Code SRC17-YC-HS-WENG-130 1.01 4.34 0.71％ 208 0.57 Weng’s Formula SRC18-YC-HC-TWN-65 1.18 6.47 2.18％ 557 0.87 Taiwan SRC Code SRC19-YC-HC-WENG-80 1.01 5.75 1.73％ 453 0.69 Weng’s Formula SRC20-YB-HC-TWN-65 1.24 4.74 2.18％ 557 0.87 Taiwan SRC Code SRC21-YB-HC-WENG-80 1.17 2.61 1.83％ 453 0.73 Weng’s Formula

RC-Y-ACI-75 1.11 2.65 1.25％ 360 1.00 ACI-318 Code

(7)

表4.1 SRC 柱反覆載重試驗：試體規劃表

Spiral Size Column

Cross-Section

Specimen

Designation Small Circle

Big Circle

Spiral Spacing

( mm )

Volume Ratio

Spiral Weight ( N/m )

Spiral Reduction

Factor

Design Guide

C-SRC1-TWN-95 #3 #4 95 0.99％ 283 0.79 Taiwan SRC Code

C-SRC2-WENG-115 #3 #4 115 0.81％ 235 0.65 Weng’s Formula

C-SRC3-TWN-95 #3 #4 95 0.99％ 283 0.79 Taiwan SRC Code

C-SRC4-WENG-110 #3 #4 110 0.85％ 245 0.68 Weng’s Formula

Note：(1) Total number of SRC column cyclic test specimens：4

(2) SRC column dimensions：Height：3550 mm； Cross-section：600 × 600 mm RC foundation size： 2500 × 1800 × 750 mm

Full height of the specimen including RC foundation：4300 mm

Top portion of SRC column is enlarged to 600× 600× 900 mm to connect the MTS actuator . (3) Steel section in SRC column：A572 Gr.50；fys = 343 MPa

Cross H in SRC1 and SRC2：2H350 × 175× 6 × 9； ρs = 2.91%

Box section in SRC3 and SRC4：

□

275 × 275 × 10× 10； ρs = 2.91%

(4) Longitudinal reinforcements in SRC column：16 #8 ( D25 )；ρr = 2.25%；SD420； fyr = 412 MPa Supplementary longitudinal reinforcements：4 #4 ( D13 ) as required in Taiwan SRC code.

(5) Spiral：#3 ( D10 )、#4 ( D13 )；SD420；fyh = 412 MPa (6) Normal weight concrete：fc' = 34.3 MPa

表4.2 SRC 柱反覆載重試驗之材料強度

Steel

Plate Thickness (mm) Reinforcement Concrete Material

Strength

6 9 10 #3 #4 #8 f ′

_c

(

^MPa

)

f

y

(MPa)

³⁶⁵ ⁴⁵⁷ ⁴²² ⁴¹⁴ ⁴⁴⁴ ⁴⁵³ f

u

(MPa)

⁴⁶⁸ ⁵⁵⁷ ⁵³⁸ ⁵⁴¹ ⁶⁵¹ ⁶⁴⁹

37.3 (C-SRC1、

C-SRC2)

40.0 (C-SRC3、

C-SRC4)

(8)

表4.3 試體反覆載重加載歷程 Drift Angle

( % rad.)

Displacement

(mm) Number of Cycle

0.25 8.1 2

0.5 16.3 2

0.75 24.4 2

1.0 32.5 2 1.5 48.8 2 2.0 65.0 2 3.0 97.5 2 4.0 130.0 2 5.0 162.5 2 6.0 195.0 2

表4.4 試體混凝土彈性模數折減係數β及 γ β

Drift Angle (rad.) Specimen

Designation

0.5% 0.75% 1.0%

γ

C-SRC1-TWN-95 0.48 0.41 0.37 0.35

C-SRC2-WENG-115 0.49 0.41 0.38 0.32

C-SRC3-TWN-95 0.43 0.36 0.32 0.31

C-SRC4-WENG-110 0.42 0.34 0.30 0.29

(9)

表4.5 五螺箍 SRC 柱之強度分析與比較

Column Cross-Section

Specimen Designation

P

a

(kN)

(1)

P

P_−Δ

(kN)

(2)

P

h

(kN)

(3)

(Ph)test

(kN)

(4)

(M

n

)

SRC

(kN-m)

(5)

(M

n

)

test

(kN-m)

(6)

( )

n test n SRC

M M

C-SRC1-TWN-95 1380 26 597 623 1414 1791 1.27

C-SRC2-WENG-115 1380 26 626 652 1414 1875 1.33

C-SRC3-TWN-95 1380 26 623 649 1483 1915 1.29

C-SRC4-WENG-110 1380 26 602 628 1483 1853 1.25

Note: (1) P

a

is the fixed axial load applied to the column, P

a = 0.1 Pn

, where P

n is the nominal axial

strength of the column calculated according to Taiwan SRC Code.

(2) P

_P_−Δ

is the lateral load caused by the P-Δ effect, as given in equation (24).

(3) P

h

is the recorded maximum lateral load applied to the column by the MTS actuator.

(4) (P

h

)

test

is the total lateral load applied to the column including the P-Δ effect; (4) = (2) + (3).

(5) (M

n

)

SRC

is the bending moment can be resisted by the column while subjected to the axial load P

a , calculated according to Taiwan SRC Code.

(6) (M

n

)

test

is the total bending moment applied to the column including the P-Δ effect. The value

of (M

n

)

test

is equal to the product of (P

h

)

test

and the distance between the loading point of the

lateral force and the center of the plastic hinge of SRC column.

(10)

圖1.1 配置傳統水平閉合箍筋之矩形 SRC 柱示意圖

(11)

圖2.1 包覆 H 型 SRC 柱中混凝土受圍束之情形

圖 2.2 包覆 H 型 SRC 柱中混凝土之應力-應變曲線

主筋圍束箍筋

高度圍束區(Highly Confined Area) (鋼骨翼板所圍束之區域)

普通圍束區(Ordinarily Confined Area) (箍筋所圍束之區域)

未受圍束之區域(Unconfined Area)

鋼骨

' 0

2 _c

c

f ε

=

E

' 0

2 _c

c

Kf ε

=

E 0.2 Kf

_c'

σ

ε

Ordinarily Confined Concrete

Unconfined Concrete High Confined Concrete

c'

f

c'

Kf

0.2 f

_c'

(12)

圖2.3 包覆十字型 SRC 柱中混凝土受圍束之情形

圖2.4 三角形圍束模式圖 2.5 矩形圍束模式

高度圍束區(Highly Confined Area) (鋼骨翼板所圍束之區域)

普通圍束區(Ordinarily Confined Area) (箍筋所圍束之區域)

未受圍束之區域(Unconfined Area)

主筋鋼骨圍束箍筋

b

fx

h

x

d

y

h

y

d

x

b

fy

高度圍束區普通圍束區未受圍束之區域 b

f

h

x

d

w

h

y

高度圍束區

普通圍束區

未受圍束之區域

(13)

70

600 70

70 70 70 600

70 90 (柱主筋，SD420) 90

#4 (閉合箍筋) (D1=540，SD420)

#3 (螺旋箍筋) (D2=150，SD420) 16-#8 (D25)

350 / 2

fc′ = kgf cm

(柱主筋，SD420) 12-#9 (D29)

(總鋼筋比：4.40%) 30

(每角落4支)

Unit：mm

70 600 325

70 600

(柱主筋，SD420) (鋼筋比：2.15%)

#4 (閉合箍筋) (SD420)

4-#4 (D13) (補助筋) 2H 350×175×6×9 (A572 Gr.50) (鋼骨比:2.91%) 12-#9 (D29)

350 / 2

fc′ = kgf cm

40

Unit：mm

(a) 五螺箍 RC 柱斷面 (b) 傳統橫箍包覆十字型 SRC 柱斷面（無角隅繫筋）

350 / 2

fc′ = kgf cm

350 / 2

fc′ = kgf cm

(c) 傳統橫箍包覆十字型 SRC 柱斷面 (d) 傳統橫箍包覆箱型 SRC 柱斷面

（有角隅繫筋）（有角隅繫筋）

70 70 160 70

600 160

70 600

30 30

(柱主筋，SD420) (鋼筋比：2.25%)

#4 (螺旋箍筋) (D1=540，SD420)

4-#4 (D13) (補助筋) 2H 350×175×6×9 (A572 Gr.50) (鋼骨比:2.91%)

#3 (螺旋箍筋) (D2=150，SD420) 16-#8 (D25)

350 / 2

fc′ = kgf cm

Unit：mm

(e) 五螺箍包覆箱型 SRC 柱斷面 (f) 五螺箍包覆十字型 SRC 柱斷面

圖3.1 本研究各系列短柱試體之斷面配置圖

70 70 160 70

600 160

70 600

(柱主筋，SD420) (鋼筋比：2.25%)

#4 (螺旋箍筋) (D1=540，SD420)

4-#4 (D13) (補助筋)

□275×275×10×10 (A572 Gr.50) (鋼骨比:2.94%)

#3 (螺旋箍筋) (D2=150，SD420) 16-#8 (D25)

30 30 350 / 2

fc′ = kgf cm

Unit：mm

c 34.3 f′ = MPa

c 34.3

f′ = MPa fc′ =34.3MPa

c 34.3

f′ = MPa fc′ =34.3MPa
