Two-Version Based Concurrency Control and Recovery in Real-Time Client/Server Databases

Two-Version Based Concurrency Control

and Recovery in Real-Time

Client/Server Databases

Tei-Wei Kuo, Senior Member, IEEE, Yuan-Ting Kao, and Chin-Fu Kuo

Abstract—While there has been a significant amount of research in real-time concurrency control, little work has been done in logging and recovery for real-time databases. This paper proposes a two-version approach which considers both real-time concurrency control and recovery. We propose a network-server-based architecture and algorithms which can not only reduce the blocking time of higher-priority transactions and improve the response time of client-side read-only transactions, but also provide a diskless runtime logging mechanism and an efficient and predictable recovery procedure. The performance of the algorithms was verified by a series of simulation experiments by comparing the algorithms with the well-known Priority Ceiling Protocol (PCP), the Read/Write PCP, the New PCP, and the 2-version two-phase locking protocol, for which we have very encouraging results. The schedulability of higher-priority transactions and the response time of client-side read-only transactions were all greatly improved.

Index Terms—Real-time database, concurrency control, recovery, read-only transactions, client/server databases, logging, write through procedure.

æ

1

I

R

research topic in the past decades. A number of researchers [3], [4], [5], [13], [14], [17], [18], [22], [20], [27], [28], [30], [33], [35] have proposed various effective mechanisms in the concurrency control of real-time data access. In particular, semantics-based concurrency control [4], [5], [14], [21], [27], [28], [30], [35] has been shown to improve the system schedulability significantly. Research-ers also explored issues in processing read-only transac-tions, such as those [20], [21] based on the idea of dynamic adjustment of serializability order [22].

As issues in real-time concurrency control are better understood, the demand for system reliability is increasing. Although a lot of research [6], [7], [9], [24] has been done in logging and recovery for traditional databases, little work explores logging and recovery for real-time databases [8], [31]. Rare research considers issues related to both real-time concurrency control and durability issues. In particular, Gupta et al. [11] proposed a new real-time commit protocol which allows transactions to “optimistically” borrow un-committed data in a controlled manner to minimize the number of deadline violations. Sivasankaran et al. [31] proposed a partitioned logging and recovery algorithm for real-time disk-resident databases. The log is partitioned according to data classes, such as critical and temporal ones,

to provide parallel logging and recovery. Nonvolatile RAM-based devices are used to reduce the unpredictability of real-time databases. Huang and Gruenwald [8] proposed a checkpointing technique for real-time main memory data-bases. A database is partitioned according to data types (persistent type versus temporal type) and update frequen-cies. The system checkpoints each partition independently based on its update frequency and its temporal valid interval.

While little work has been done in logging and recovery for time databases, the close relationship between real-time concurrency control and recovery (and logging) has been ignored in the past decade. Note that a schedule is recoverable only if no transaction  commits before any transaction from which  reads commits. A real-time concurrency control protocol should ensure that conflicting transactions commit in the order of their read-from relation-ship. This paper proposes an integrated mechanism for concurrency control and recovery in real-time databases. A two-version-based concurrency control protocol, called Two-Version Priority Ceiling Protocol (2VPCP), is proposed to reduce the blocking time of higher-priority transactions based on the idea of dynamic serializability adjustment [18], [21], [22] without relying on local data updates for transactions [18], [21], [22]. The 2VPCP protocol is, then, extended to a distributed environment to process read-only transactions at client-side systems locally. The resulting system can not only significantly boost the response time of read-only transactions issued at client-side systems, but also virtually eliminate the interference of conflicting data accesses between client-side read-only transactions and server-side transactions. The extended 2VPCP protocol not only associates each client-side system with a consistent database image for local processing of read-only transac-tions, but also provides an efficient recovery mechanism.

. T.-W. Kuo and C.-F. Kuo are with the Department of Computer Science and Information Engineering, National Taiwan University, Taipei, Taiwan 106, ROC. E-mail: {ktw, d89005}@csie.ntu.edu.tw.

. Y.-T. Kao is with the Department of Computer Science and Information Engineering, National Chung Cheng University, Chiayi, Taiwan 621, ROC.

Manuscript received 31 Aug. 1999; revised 25 May 2001; accepted 15 Apr. 2002.

For information on obtaining reprints of this article, please send e-mail to: [email protected], and reference IEEECS Log Number 110503.

The performance of the algorithms was verified by a series of simulation experiments for which we had very encoura-ging results. Comparisons of different recovery mechan-isms are also presented to demonstrate the capability of the two-version approach.

There are two major contributions in this paper: 1) The effectiveness of the two-version approach is shown in reducing the blocking time of higher-priority transactions and in improving the response time of client-side read-only transactions. Note that the results of this paper are orthogonal to any previous research in processing read-only transactions, [20], [21], which consider weaker correct-ness criteria or access patterns of transactions. All transac-tions in our system are serializable. 2) A two-version (network-server-based) architecture is proposed to not only support a diskless runtime logging mechanism and an effective write-through procedure, but also provide an efficient and predictable recovery mechanism. The logging mechanism and an effective write-through procedure have virtually no impact on the executions of transactions in the system.

The rest of this paper is organized as follows: Section 2 extends the Read/Write Priority Ceiling Protocol (RWPCP) [33] into a two-version-based protocol called the Two-Version Priority Ceiling Protocol (2VPCP). The properties of the 2VPCP protocol are then proven. Section 3 further extends the 2VPCP protocol to a distributed environment to locally and efficiently process read-only transactions at client-side systems. The correctness of the extended proto-col is proven. Section 4 proposes an efficient and pre-dictable recovery mechanism based on the extended 2VPCP protocol. Section 5 provides experimental results which demonstrate the performance of the algorithms. Section 6 is the conclusion.

2

T

2VPCP P

2.1 Overview

The Read/Write Priority Ceiling Protocol (RWPCP) [33] has shown the effectiveness of using read and write semantics in improving the performance of the Priority Ceiling Protocol (PCP) [29] in real-time concurrency control. While PCP only allows exclusive locks on data objects, RWPCP introduces a write priority ceiling W P Li and an absolute

priority ceiling AP Li for each data object Oi to emulate

share and exclusive locks, respectively. The write priority ceiling W P Li of data object Oi is equal to the highest

priority of transactions which may write Oi. The absolute

priority ceiling AP Liof data object Oiis equal to the highest

priority of transactions which may read or write Oi. When

data object Oiis read-locked, the read/write priority ceiling

RW P Li of Oi is equal to W P Li. When data object Oi is

write-locked, the read/write priority ceiling RW P Liof Oiis

equal to AP Li. A transaction instance may lock a data object

if its priority is higher than the highest read/write priority ceiling RW P Li of the data objects locked by other

transaction instances. When a data object Oiis write-locked,

the setting of RW P Li prevents any other transaction

instance from write-locking Oi because RW P Li is equal to

AP Li. When a data object Oi is read-locked, the setting of

RW P Li only allows a transaction instance with a

suffi-ciently high priority to read-lock Oiin order to constrain the

number of priority inversions for any transaction instance which may write-lock Oibecause RW P Liis equal to W P Li.

Lam and Hung [18] further sharpened the RWPCP by proposing the idea of dynamic adjustment of serializability order for hard real-time transactions, where Lin and Son [22] proposed the idea of dynamic adjustment of serial-izability order for optimistic real-time concurrency control. With a delayed write procedure, a higher-priority transac-tion instance may preempt a lower-priority transactransac-tion instance by using the Thomas Write rules when a write-write conflict exists, where a delayed write procedure requires every transaction instance to only update data objects in its local space and to delay the updating of the database until the commitment of the transaction instance. The read-write conflict between conflicting transaction instances is partially resolved by allowing a higher-priority transaction instance to read the database even though a lower-priority transaction instance has write-locked the data object. Note that the delayed write procedure requires every transaction instance to only update data objects in its local space and the above preemption in read-write conflict lets the higher-priority transaction instance precede the lower-priority transaction instance in the serializability order.

Although the new protocol introduced by Lam and Hung [18] significantly reduces the blocking time of higher-priority transaction instances under RWPCP, every transac-tion instance may need extra space to keep its own local copy for each of its updated data objects because of the delayed write procedure. On the other hand, only the response time of higher-priority transactions is improved, and the executions of read-only transaction instances tend to be serialized. Little work, including [18], [33], has been done in considering recovery when concurrency control protocols are proposed.

This paper proposes a two-version approach which considers both real-time concurrency control and recovery. We propose using the idea of two-version databases to replace a delayed write procedure to save the extra space needed by the procedure. The goal is to first propose a two-version variation of the RWPCP [33] to have the flexibility in the dynamic adjustment of transaction serializability order to favor higher-priority transactions and read-only transactions. We will then extend the protocol and the idea of two-version databases into distributed environments for efficient and local processing of read-only transactions and provide efficient and predictable failure recovery. Note that little work has been done for concurrency control in distributed real-time environments, e.g., [19], [16], [32]. Since there can be a large number of read-only transactions in many commercial database systems, how to improve the response time of read-only transactions is of paramount importance.

We assume that a transaction system consists of a fixed set of transactions. (This condition will be relaxed when local processing of read-only transactions is considered in Section 3.) Each data object has two versions: a consistent version and a working version, where the consistent version contains a data value updated by a committed transaction

instance and the working version contains a data value updated by an uncommitted transaction instance. There are three kinds of locks in the system: read, write, and certify. Before a transaction reads (or writes) a data object, it must first read-lock (or write-lock) the data object. A read operation on a data object always reads from the consistent version of the data object. A write operation on a data object always updates the working version of the data object. It is required that, before a transaction commits, the transaction must transform each of its write locks into a certify lock on the same data object. As soon as a transaction obtains a certify lock on a data object, it can copy its updated working version of the data object to the consistent version. There is no requirement on the order or timing of lock transforma-tions. The transformation of a write-lock into a certify-lock is considered as requesting a new certify lock. If the request of a certify-lock by a transaction instance is not granted, the transaction is blocked by the system until the request is granted. When a transaction terminates, it must release all of its locks. The compatibility matrix of locks is shown in Table 1. (The well-known Two-Version Two-Phase Locking scheme has the same compatibility matrix [1], [25]. Note that the Two-Version Two-Phase Locking scheme could not guarantee one priority inversion for real-time transactions and may suffer from the deadlock problem.) A certify lock is stronger than a write lock and a write lock is stronger than a read lock. All transactions follow the two-phase locking (2PL) scheme. The details will be shown in later sections. Compared to the Read/Write Priority Ceiling Protocol (RWPCP) [33], the two-version locking mechanism could provide higher-priority (and read-only) transactions better opportunities to preempt lower-priority transactions. However, it would be at the cost of extra certify locks and the copying of the updated working version of data objects to the consistent version. The number of certify locks which must be obtained by a committing transaction is the same as the number of write locks already obtained by the committing transaction. The cost in copying the updated working version of data objects to the consistent version is also proportional to the number of write locks already obtained by the committing transaction.

Now, we will state our notation. Notation:

. i;jdenotes the jth instance of transaction i. piand ci

are the period and worst-case computation time of transaction i, respectively. If transaction i is

aperiodic, piis the minimal separation time between

its consecutive requests. When there is no ambiguity, we use the terms “transaction” and “transaction instance” interchangeably.

. Ri;j denotes the jth request of transaction i. A

transaction instance i;j is initiated for each request

of transaction i. Once transaction instance i;j is

aborted, i;j may be restarted or terminated, as

required by the selected scheduling algorithm. . The kth critical section of a transaction instance i;jis

denoted as zi;j;k and corresponds to the code

segment between the kth locking operation and its corresponding unlocking operation. We assume in this paper that critical sections are properly nested. In other words, if the locking operation of a semaphore is no later than the locking operation of another semaphore within a transaction instance, the corresponding unlocking operation of the former semaphore is no earlier than the corresponding unlocking operation of the later semaphore. Note that it is one of the assumptions of PCP in handling the priority inversion problem.

. WðOiÞ and CðOiÞ denote the working version and

consistent version of data object Oi, respectively.

2.2 The Basic 2VPCP Protocol

The Two-Version Priority Ceiling Protocol (2VPCP) is a two-version variation of the Read/Write Priority Ceiling Protocol [33]. The rationale behind the design of the 2VPCP protocol is to have flexibility in the adjustment of tion serializability order to favor higher-priority transac-tions and read-only transactransac-tions. In later sectransac-tions, we shall then extend the 2VPCP protocol into distributed environ-ments for local processing of read-only transactions and efficient failure recovery.

In this section, we are interested in the context of uniprocessor priority-driven preemptive scheduling, and every transaction has a fixed priority. (This condition will be relaxed when local processing of read-only transactions is considered in Section 3.) The real-time database can be either memory-resident or disk-resident. As defined in [33], the write priority ceiling W P Li of data object Oiis equal to

the highest priority of transactions which may write Oi. The

absolute priority ceiling AP Li of data object Oi is equal to

the highest priority of transactions which may read or write Oi. Since 2VPCP adopts a two-data-version approach and

introduces a new lock called certify lock, the setting of the read/write priority ceiling RW P Liof each data object Oiis

modified as follows: The read/write priority ceiling RW P Li of each data object Oi is set dynamically. When a

transaction read-locks or write-locks Oi, RW P Liis equal to

W P Li. When a transaction certify-locks Oi, RW P Liis equal

to AP Li. Note that any read operation on a data object

always reads from the consistent version of the data object and any write operation on a data object always writes into the working version of the data object. It is required that, before a transaction commits, the transactions must trans-form each of its write locks into a certify lock on the same data object. A certify lock on a data object secures the copying of the data value from its working version into the consistent version. No lock transformation is required for a read lock.

The rationale behind the setting of priority ceilings is as follows: When data object Oiis write-locked, RW P Liis set

as W P Lito prevent any subsequent transaction from

write-TABLE 1

locking Oibecause W P Li is equal to the highest priority of

transactions which may write Oi. Note that there is only one

working version for each data object. When data object Oiis

certify-locked, RW P Li is set as AP Li so that no other

subsequent transactions can lock Oiin any mode. This is to

secure the copying of the data value from the working version of Oiinto its consistent version. When data object Oi

is read-locked, RW P Li is set as W P Li so that only

transactions which have a priority higher than W P Li can

read-lock Oi afterward. This constraint is to prevent any

transaction which might later write-lock Oi from being

blocked by more than one lower-priority transaction which read-locks Oi.

We now present the definition of 2VPCP:

1. A transaction instance, which has the highest priority among all ready transaction instances, is assigned the processor. If a transaction instance does not attempt to lock any data object, the transaction instance can preempt the execution of any transac-tion instance with a lower priority, whether or not the priorities are assigned or inherited. (Priority inheritance will be defined later.)

2. When a transaction instance i;j attempts to

read-lock, write-read-lock, or certify-lock a data object Ok, the

priority of i;j must be higher than the read/write

priority ceilings of all data objects currently locked by transaction instances other than i;j; otherwise,

the lock request is blocked. If the priority of i;j is

higher than the read/write priority ceilings of all data objects currently locked by transaction in-stances other than i;j, there are three cases to

consider:

a. If i;j requests a read lock on Ok, then i;j

read-locks Ok, and the read/write priority ceiling

RW P Lk of data object Okis set as W P Lk.

b. If i;jrequests a write lock on Ok, then i;j

write-locks Ok and the read/write priority ceiling

RW P Lk of data object Okis set as W P Lk.

c. If i;jrequests a certify lock on Ok, then i;j

certify-locks Ok and the read/write priority ceiling

RW P Lk of data object Ok is set as AP Lk. Note

that i;j must have write-locked Ok before it

requests a certify lock on Okand both AP Lkand

W P Lkare no less than the priority of i;j.

If the priority of i;jis no higher than the read/write

priority ceilings of all data objects currently locked by transaction instances other than i;j, then the lock

request is blocked. Let O_{be the data object with the}

highest read/write priority ceiling of all data objects currently locked by transaction instances other than i;j. If i;j is blocked because of O, i;j is said to be

blocked by the transaction instance that locked O. 3. A transaction instance i;j uses its assigned priority,

unless it locks some data objects and blocks higher priority transaction instances. If a transaction in-stance blocks a higher priority transaction inin-stance, it inherits the highest priority of the transaction instances blocked by i;j. When a transaction instance

unlocks a data object, it resumes the priority it had at

the point of obtaining the lock on the data object. When a transaction instance is aborted, all transaction instances which inherit its priority must reset their priorities according to the definition of priority inheritance. The priority inheritance is transitive. Note that the resetting of priority inheritance can be efficiently implemented by using a stack data struc-ture. We refer interested readers to [29] for details. This is because there is no transitive blocking in transaction executions (please see Lemma 2).

4. All transaction instances follow a 2PL scheme. That is, no transaction instance is allowed to obtain any new lock after it releases any locks.

The lock compatibility matrix, as shown in Table 1, is implicitly verified through priority ceilings (please see Lemmas 3, 4, and 5). A transaction instance is before another transaction instance in the serializability order if any of the following conditions is satisfied: 1) The latter reads from the consistent version of any data object updated by the former. 2) The former and the latter update the same data object, and the former write-locks the data object first. Theorem 4 shows that all 2VPCP schedules are serializable. Theorem 5 also shows that the serializability order of transaction instances is the same as their begin unlock message order. The priority ceilings are used to control priority inversion in the system. A similar approach can be found in [33]. The aborting of a transaction may happen because of its deadline violation. However, transaction aborting incurs low overheads because executing transac-tions are updating only the working version of any data object. When a transaction commits, the transaction trans-forms each of its write locks into a certify lock on the same data object and copies its updated working version of the data object to the consistent version. The aborting of a transaction simply discards the working version and any subsequent transaction can simply overwrite the working version. Since all transactions read from the consistent version of data objects, no cascading aborting is possible. Furthermore, it is not possible for the cascaded resetting of any inherited priority for any transaction due to the occurrences of transaction abortings because there is no transitive blocking, as shown in Lemma 2 in the next section.

Example 1 A 2VPCP Schedule. We illustrate the 2VPCP protocol by an example, as shown in Fig. 1. Suppose that there are three transactions, 1, 2, and 3, in a

uniprocessor environment. Let the priorities of 1, 2,

and 3be 1, 2, and 3, respectively, where 1 is the highest

and 3 is the lowest. Suppose that 1and 2may read and

write data object S1, respectively, and 2and 3may read

and write data object S2, respectively. According to the

definitions of ceilings, the write priority ceiling W P L1

and the absolute priority ceiling AP L1of S1are 2 and 1,

respectively. The write priority ceiling W P L2 and the

absolute priority ceiling AP L2 of S2 are 3 and 2,

respectively.

At time 0, 3starts execution. At time 2, 3write-locks

S2 successfully, and RW P L2¼ W P L2¼ 3. At time 4, 2

arrives and preempts 3. At time 6, 2 write-locks S1

RW P L2(RW P L1¼ W P L1¼ 2). At time 8, 2read-locks

S2 successfully because the priority of 2 is higher than

RW P L2(RW P L2¼ W P L2¼ 3). Note that 3is behind 2

in the serializability order although 3 write-locks S2

before 2 read-locks S2. At time 11, 1 arrives and

preempts 2. At time 13, 1 read-locks S1 successfully

because the priority of 2 is higher than RW P L1 and

RW P L2. RW P L1 is equal to W P L1¼ 2. Note that 2 is

behind 1 in the serializability order although 2

write-locks S1 before 1 read-locks S1. 1 then unlocks S1

and commits at time 17 and 19, respectively. Right before time 21, 2 certify-locks S1 successfully and

copies the working version of S1 into the consistent version because the priority of 2 is higher than

RW P L2 (RW P L2¼ W P L2¼ 3). At time 21, 2 unlocks

S2. At time 23, 2unlocks S1. At time 25, 2commits, and

3resumes its execution. Right before time 28, 3

certify-locks S2 successfully and copies the working version of

S2into the consistent version. At time 30, 3 commits.

For comparison, let us schedule these transactions according to the Read/Write Priority Ceiling Protocol (RWPCP), where a single version per data object is considered. As shown in Fig. 2, the write-lock request of 2 on S1is rejected at time 6 because the priority of 2 is

no higher than RW P L2¼ AP L2¼ 2. The reason for the

rejection under the RWPCP protocol is because 2 may

later read S2, and the read will leave 2 behind 3 in the

serializability order. As a result, 2is blocked by 3. Note

that the 2VPCP protocol lets 2preempt 3and 2reads

from the consistent version of S2. As a result, 2 is not

blocked by 3 under the 2VPCP protocol. Fig. 2 also

shows the blocking of 1 at time 13 under the RWPCP

protocol.

This example demonstrates that one of the goals in designing the 2VPCP protocol is that a higher-priority transaction instance can utilize the consistent version of a data object without being blocked by a lower-priority transaction instance, due to read/write conflicts. The serializability order of transaction instances is no longer determined by the order of the conflicting lock requests and can be adjusted according to the priorities of the transaction instances.

2.3 Properties

Lemma 1. A (higher-priority) transaction instance H can be

blocked by another (lower-priority) transaction instance L

only if Lis executing in a critical section which later blocks

H (when H is initiated).

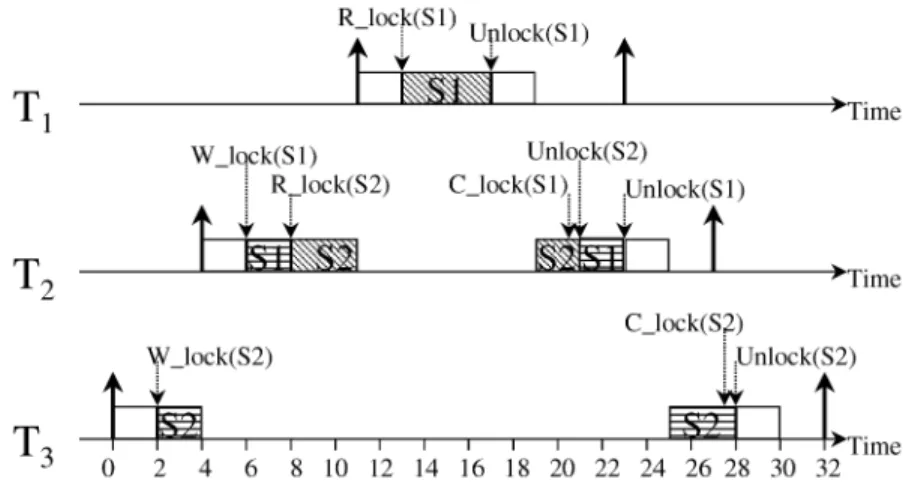

Fig. 1. A 2VPCP schedule.

Proof.According to the definitions of the 2VPCP protocol, Lcan block H only if Ldirectly blocks Hbecause of a

lock request or L inherits a priority higher than the

priority of H. In either case, L must be in a critical

section to block H. Furthermore, if Lis not executing in

a critical section when H is initiated, then H can

preempt Lbecause its priority must be no more than the

priority of H. tu

Definition 1 [29].Transitive blocking is said to occur if a (higher priority) transaction instance is directly blocked by another (lower priority) transaction instance which, in turn, is directly blocked by the other (further lower priority) transaction instance.

Lemma 2.No transitive blocking is possible.

Proof.This lemma can be proven by contradiction. Suppose that a transitive blocking happens among three distinct transaction instances, 1, 2, and 3. Let 1 directly block

2and 2directly block 3. According to Lemma 1, 1and

2must be executing in critical sections to block 2and 3,

respectively. Let 1and 2be executing in critical sections

z1;i and z2;j, respectively, when the transitive blocking

occurs. Since 1blocks 2, 1must enter critical section z1;i

before 2 is initiated; otherwise, 2 will not be directly

blocked by 1. By the definitions of the 2VPCP protocol,

the read/write priority ceiling RW P Lkof the data object

Ok locked by 1 when 1 enters z1;i should be no lower

than the priority of 2. However, when 2requests a lock

to enter critical section z2;j (which blocks 3 later), its

priority should still be no larger than the read/write priority ceiling RW P Lk of the data object Ok. In other

words, 2will not be allowed to enter critical section z2;j

until 1leaves z1;i, and the transitive blocking should not

occur. tu

Theorem 1.2VPCP is deadlock-free.

Proof. Since there is no transitive blocking (please see Lemma 2), a deadlock can only happen between two transaction instances. Let two distinct transaction in-stances, 1 and 2, form a deadlock and 1 enter critical

section z1;i, which blocks 2 before 2 enters critical

section z2;j, which blocks 1. Because critical section z1;i

blocks 2, the read/write priority ceiling RW P Lk of the

data object Oklocked by 1when 1enters z1;i should be

no lower than the priority of 2. In other words, the lock

request of 2 to enter critical section z2;j should not

succeed until 1 leaves z1;i, and no deadlock should

occur. tu

Theorem 2. The maximum number of priority inversion per transaction instance is one.

Proof. Let a transaction instance H be blocked by two

distinct lower-priority transaction instances L and L0.

Since there is no transitive blocking (please see Lemma 2), L and L0 must be executing in critical sections zL;i and

zL0_;jto directly block _H, respectively. Let _Lenter critical

section zL;i before L0 enters critical section zL0_;j. Since

critical section zL;i blocks H, critical section zL;i should

also block 0

Lbecause the priority of His higher than the

priority of L0. In other words, L0 should not enter critical

section zL0_;j to directly block _H until _L leaves z_L;i and

the maximum number of priority inversions per transac-tion instance should not be more than one. tu Note that, when transactions do abort, Theorems 1 and 2 remain correct, provided that aborted transactions must unlock their data objects. This is because aborted transac-tions will not be in a deadlock cycle or introduce any further priority inversion.

We shall first prove Lemmas 3, 4, and 5 to show that all of the 2VPCP schedules comply with the compatibility matrix shown in Table 1:

Lemma 3.When data object Ok is read-locked by a transaction

instance , no transaction instance can certify-lock Ok under

the 2VPCP protocol.

Proof. The lemma can be proven by contradiction. Let a distinct transaction instance 0 receive a certify lock on Ok when Ok is read-locked by a transaction instance

under the 2VPCP protocol. By the definitions of the 2VPCP protocol, the priority of 0 _{must be higher than}

RW P Lk(i.e., W P Lk), where RW P Lkis no less than the

original priority of 0_{. In other words,}0_{must inherit the}

priority of some transaction instance which is higher than RW P Lk to certify-lock Ok. Let z0i be the earliest

critical section which 0 _{enters and which later blocks}

some higher-priority transaction instance 00 _whose

priority is higher than RW P Lk. Based on Lemmas 1

and 2, 0_{must be executing in critical section z}0

i before 00

is initiated.

There are two cases for discussions on when 0enters critical section z0

i: Suppose that data object Ok is

read-locked by transaction instance  before 0 _{enters critical}

section z0

i. Since the 2VPCP protocol should not allow 0

to enter critical section z0i because the priority of 0is no

higher than RW P Lk, a contradiction exists. (We assume

that 0_{enters a critical section which blocks a transaction}

instance with a priority higher than RW P Lkin the past

paragraph.)

Let data object Ok be read-locked by transaction

instance  after 0enters critical section z0i. The priority of

 must be higher than the priority of 00_{; otherwise, data}

object Ok cannot be read-locked by transaction instance

. If the priority of  is really higher than the priority of 00, then 0_{has no chance to regain the CPU and issues a}

certify lock on Ok unless  is blocked (when 0issues a

certify lock on Ok). Since there is no deadlock and no

transitive blocking (please see Lemma 2 and Theorem 1),  must be blocked by 0_{. Since}0 _{blocks ,}0 _{must be}

executing in a critical section which later blocks  before  is initiated (please see Lemma 1). It contradicts the assumption that data object Ok is read-locked by

because  has no way to read-lock Ok. tu

Lemma 4.When data object Okis write-locked by a transaction

instance , no transaction instance can write-lock or certify-lock Okunder the 2VPCP protocol.

Proof.Since both read and write locks set RW P Lkas W P Lk

and the sets of transactions which may issue write or certify locks are the same, this lemma can be proven in a way similar to the proof of Lemma 3. tu

Lemma 5.When data object Okis certify-locked by a transaction

instance , no transaction instance can lock Ok in any way

under the 2VPCP protocol.

Proof. This lemma can be proven in a way similar to the proof of Lemma 3 (by replacing every occurrence of “read-lock by ,” “RW P Lk,” and “certify-lock by 0”

with “certify-lock by ,”AP Lk,” and “lock by 0,”

respectively). tu

Theorem 3. All 2VPCP schedules satisfy the compatibility matrix shown in Table 1.

Proof.The correctness of this theorem directly follows from

Lemmas 3, 4, and 5. tu

Theorem 4.All 2VPCP schedules are serializable.

Proof. Since schedules generated by the 2-version 2PL protocol are (one-copy) serializable (1SR) [1], [25] and the set of schedules generated by the 2VPCP protocol is a subset of that generated by the 2-version 2PL protocol (please see Theorem 3), all 2VPCP schedules are serializable. Note that all schedules which satisfy the 2PL scheme and the compatibility matrix in Table 1 are 2-Version 2PL schedules [1], [25]. Since all 2VPCP schedules satisfy the 2PL scheme and the compatibility matrix in Table 1, all 2VPCP schedules are 2-Version 2PL schedules. tu

3

R

-O

T

P

3.1 Overview

The purpose of this section is to extend the 2VPCP protocol into local processing of read-only transactions, as shown in Fig. 3. For the purpose of this paper, we assume that all updating transactions are submitted to the server-side system for execution. The main idea in this 2VPCP extension is to “duplicate” a consistent version of the database image at each client-side system to service read-only transactions locally at client-side systems. There are two major advantages of this approach: 1) A potentially large number of queries, i.e., read-only transactions, can be screened out of the normal operation of a real-time database system (at the server side). 2) Real-only transactions can be processed much faster and more efficiently at client-side systems without going through a potentially jammed network.

As astute readers may notice, higher-priority read-only transactions at the server system are already favored by the 2VPCP protocol because higher-priority read-only transac-tions can read-lock and access any data objects unless the

consistent versions of the data objects are under modifica-tions (i.e., locked in a certify mode). We surmise that, in normal operation, the interval of a certify lock should not be long for server-side transactions because, usually, only a committing transaction tries to obtain a certify lock. The real question here is how to improve the response time of lower-priority (and even higher-lower-priority) read-only transactions issued by users at client-side systems. The main idea is to maintain a consistent database image at each client-side system to improve the response time of users’ local lower-priority and higher-lower-priority read-only transactions and, at the same time, without sacrificing the serializability correctness of the entire system. In order to achieve this goal, we must build a serializability order of all transactions executing at client-side and server-side systems.

The technical question here is how to efficiently maintain a consistent database image at each client-side system which satisfies the above condition. Our approach is to let each of the client-side systems autonomously fabricate the consistent version of the server-side two-version database at the client side such that all executions of read-only transactions at the client side can be properly inserted into the serializability order of transaction executions at the server side. In order to maintain a consistent database image at each client-side system, each transaction (or the system) must send client systems a message similar to a redo log ði; object name; old value; new valueÞ for each of

its write operations (to the working version of the server-side database). Each of the client-server-side systems then maintains its consistent database image by observing these messages. Note that the client-side consistent database images will be used for efficient failure recovery in Section 4 and no processing of redo logs is needed again during failure recovery. old value in each redo-log message can be removed because it will not be used in any way.

For the rest of this paper, we assume that all messages sent in the network arrive at the destination in their sending order. 3.2 The Serializability-Order Rebuilding Mechanism Because of the existence of a two-version database and the “preemptions” of conflicting transactions (which result in the effects of dynamic adjustment of serializability order) at the server-side system, the serializability order of transac-tion executransac-tions at the server side cannot be simply observed by the timestamps of successful conflicting locking requests issued by the server-side transactions. We propose obser-ving the serializability order of server-side transactions based on the order of the beginning of the shrinking phase of the server-side transaction instances. The beginning of the shrinking phase of any server-side transaction instance can be easily observed by the appearance of the first unlock request of the transaction instance. The information is purely syntactic and can be easily observed by the system with very low overheads because all server-side transaction instances issue lock and unlock requests to the system, regardless of whether the system tries to observe the beginning of their shrinking phase.

Let begin_unlock denote the first unlocking operation of a transaction instance. We shall prove in the following theorem that the begin_unlock order of transaction in-stances at the server side complies with the serializability

order of the transaction instances executing at the server side. This observation provides a simple and efficient mechanism (which we will show you in the next section) to determine the serializability order of server-side transactions.

Theorem 5.The begin_unlock order of transaction instances (at the server side) complies with the serializability order of the transaction instances (at the server side).

Proof.This theorem can be proven by considering all of the combinations of conflicting r/w operations. To determine the serializability order of conflicting trans-action instances, four cases must be considered, as shown in Fig. 4, where W LiðxÞ, RLiðxÞ, CerLiðxÞ, and

Begin Unlock denote the write lock, read lock, certify lock, and begin_unlock message of transaction i. Note

that the 2VPCP protocol satisfies the 2PL scheme and the compatibility matrix shown in Table 1 (please see Theorem 3 and the definitions of the 2VPCP protocol).

1. If there is a write/write conflict between two conflicting transaction instances, e.g., 1and 2 in

Fig. 4a, then the begin_unlock order of transaction instances must comply with the serializability order of the transaction instances. This is because write and certify locks are incompatible with each

another. Every write lock of a transaction instance must precede its begin_unlock.

2. If there is a write/read conflict between two conflicting transaction instances and the read lock of a transaction instance is granted after the write lock and certify lock of another transaction instance, e.g., 1 and 2 in Fig. 4b, then the

begin_unlock order of transaction instances must comply with the serializability order of the transaction instances. This is because read and certify locks are incompatible. The unlocking of the certify lock must be earlier than the granting of the read lock.

3. If there is a write/read conflict between two conflicting transaction instances and the read lock of a transaction instance is granted before the certify lock, but after the write lock of another transaction instance, e.g., 1and 2in Fig. 4c, then

the begin_unlock order of transaction instances must comply with the serializability order of the transaction instances. This is because read and certify locks are incompatible. The certify lock cannot be granted until the unlocking of the read lock. Obviously, the fact that 2 may have

accessed the consistent version lets 2 be before

1in the serializability order.

Fig. 4. Serializability order of conflicting transactions. (a) W/W conflict. (b) W/R conflict: W proceeds R. (c) W/R conflict: R proceeds W. (d) R/W conflict.

4. Suppose that there is a read/write conflict between two conflicting transaction instances, and the read lock of a transaction instance precede the write lock of another transaction instance, e.g., 1 and 2 in Fig. 4d. Regardless of

what the order of the begin_unlock of 1and the

write lock W L2ðxÞ of 2is, the begin_unlock order

of transaction instances 1 and 2 must comply

with the serializability order of the transaction instances. This is because the transformation of the write lock into the certify lock must be blocked by the read lock if the read lock is not released. Note that 1 may release a lock after 2

obtains a conflicting write lock when the begin_unlock of 1is after the write lock W L2ðxÞ

of 2. tu

Note that if the server-side system allows conflicting transaction instances to commit in an order different from their serializability order, then each client-side system must apply the redo logs of the committing transaction instance on the consistent database version of the system in order of their begin_unlock messages, instead of their commit order. Theorem 5 provides the general relationship between the serializability order of server-side transaction instances and their order of begin_unlock messages, regardless of whether the server-side system may or may not crash. However, we must emphasize that if the server-side system indeed allows conflicting transaction instances to commit in an order different from their serializability order and the server may crash at any time, then some schedules of server-side transactions are not recoverable according to the definition of recoverable schedules [25]. In the next section, we shall address this recovery issue for the extended 2VPCP protocol at the server side.

3.3 The Extended 2VPCP Protocol

We now present the mechanism in extending the 2VPCP protocol for local processing of read-only transaction instances at client sides. We assume that messages sent in a network arrive at destination systems in the order of their sending times and the network is reliable. We are interested in a close environment, where the network is close and under reasonable control. A network protocol such as TCP/IP, which supports reliable message transmissions, is adopted. If the network fails, then the extended 2VPCP protocol, similar to many other distributed concurrency control protocols, will not work in a distributed environment.

3.3.1 Server-Side Transactions

Each server-side transaction instance i (scheduled by the

2VPCP protocol) is required to broadcast a message to all client-side systems under the following three circum-stances: Note that the server system can broadcast the messages on behalf of the server-side transaction instances. 1. Before i writes on the working version of a

data object Oj, i (or the server-side system)

must broadcast a message similar to a redo log ði; Oj; old value; new valueÞ to all client-side systems.

2. Before i commits, i(or the system) must broadcast

a message similar to a commit log ði; commitÞ to all

client-side systems.

3. When i first unlocks any data object, i (or the

server-side system) must broadcast a message ði; begin unlockÞ to all client-side systems to signal

the beginning of the shrinking period of i.

Note that if the server system allows conflicting transaction instances to commit in an order different from their serializability order and the server may crash at any time, then some schedules of server-side transactions are not recoverable according to the definition of recoverable schedules [25]. In order to maintain the recoverability of the system, the server system must delay the commitment of a transaction instance (i.e., the actual releasing of certify locks and the sending of commit log to client-side systems) until all preceding transaction instances in the serializability order (i.e., their order of begin_unlock messages) commit. However, if the server system may never crash, the above delaying requirement of commitment is not necessary. In other words, the above delaying requirement is not necessary before Section 4, which is for failure recovery. 3.3.2 Client-Side System

Let each client-side system and the server-side system share the same consistent version of the database initially. A transaction instance is said to have committed at a client-side system if all of the redo logs of the transaction instance have been applied on the consistent database version of the client-side system. Note that the write through procedure of each committing transaction instance at the server-side computer cannot be completed until all redo logs and commit log are delivered to all client-side systems. When a reliable broadcasting network is adopted, the server-side system may simply return from any sending operations and assume that all client-side systems will receive the messages sent by these operations eventually. The details regarding logging and commitment of server-side transaction in-stances will be discussed in Section 4.2.

During the system operation, each client-side system keeps all redo-log messages of server-side transaction instances which have not committed at the client-side system. When a client-side system receives a commit message, the system applies the redo logs of the committing transaction instance on the consistent database version of the system atomically in order of their begin_unlock messages. Note that the client-side systems may be busy doing something else, so there could be a difference between copies on the client sides and on the server side. However, sooner or later, the client-side systems will catch up when the local workloads drop. Such a phenomenon will not cause any problem because all 2VPCP schedules with local read-only transaction processing are serializable, even though some clients might actually apply the logs later (please see Theorem 6).

Each client-side system has a unique updating transac-tion, Upd, which is responsible for atomically updating the

consistent database image based on redo-log messages of committing transaction instances. Before transaction Upd

the entire database image. Transaction Updmay be periodic

or aperiodic. The higher the priority of Upd, the faster Upd

can update the consistent database image by processing the redo logs to reflect the database image updated by committed server-side transactions. The assignment of a high priority to Updcan also help in reducing the recovery

time because the recovery mechanism must reflect the consistent database image updated by all of the committed server-side transactions and the mechanism depends on Updto process the redo logs. However, the high priority of

Upd may interfere with the executions of read-only

transactions at the client side. Simulation experiments regarding the priority of Updwill be included in Section 5.

3.3.3 Autonomous Read-Only Transaction Processing at Client-Side Systems

Each client-side system should schedule all of its transac-tion instances including Upd in a preemptive

priority-driven fashion. Before a read-only transaction instance reads any data object, it must read-lock the entire database image. Note that the entire database can be locked or unlocked by simply locking or unlocking a global flag. (Simulation experiments will be done to justify the setting of the priority of Upd.)

Note that the consistent database image at the server-side system may not be the same as the consistent database image at some client-side systems. It is even possible that the Upd

transactions of different client-side systems process the redo logs of committed transaction instances at different speeds due to different workloads at different client-side systems. However, as shown in Theorem 6, all 2VPCP schedules with local read-only transaction processing are serializable. Read-only transactions at different client-side systems may have consistent, but different views of the database.

Lemma 6. All client-side systems have the same consistent database image if they receive the same set of messages sent from the server-side system and apply them to the database image.

Proof.The correctness of this lemma follows directly from the assumption that the network delivers messages in a first-come-first-serve fashion. tu Lemma 7.The database image maintained at client-side systems always satisfies the serializability order of server-side transac-tion instances.

Proof. The correctness of this proof follows directly from Theorem 5 and the definitions of the database image

maintenance mechanism. tu

Theorem 6.All 2VPCP schedules with local read-only transac-tion processing are serializable.

Proof. Theorem 4 shows that all transactions at the server side are serializable. The problem is whether all client-side read-only transactions and all server-client-side transac-tions together are still serializable. Lemma 6 shows that all client-side systems have the same consistent database image if they receive the same set of messages sent from the server-side system and apply them to the database image. That is, there is no inconsistent view of the database among client-side transactions running on

different client sides. Furthermore, Lemma 7 shows that the database image maintained at client-side systems always satisfies the serializability order of server-side transactions. A client-side read-only transaction is considered to occur exactly after the server-side transac-tions, which commit at the corresponding client-side system before the read-only transaction read-lock and read the consistent database image. We conclude that client-side read-only transactions and all server-side transactions together are serializable. tu

4

F

R

4.1 Motivation

The purpose of this section is to further extend the 2VPCP protocol to the failure recovery of the server-side system, as shown in Fig. 5. As astute readers may notice, the 2VPCP protocol can be applied in both memory or disk resident databases. For the rest of this section, we will focus our discussions on memory-resident databases. We shall also require that the 2VPCP protocol only allow conflicting server-side transactions to commit in their serializability order. The enforcement of commit order can be done easily by delaying the commitment of transactions. However, the delaying of the commitment of server-side transactions may increase the maximum number of priority inversions for a server-side transaction by one. It can be explained by the following example:

Let a higher-priority transaction instance H be blocked

by a lower-priority transaction instance Lunder the 2VPCP

protocol at the server side. The begin unlock message of L

will be before that of H because of the adoption of the 2PL

scheme. Since Hhas a higher priority than Ldoes, Hmay

preempt L (after L unlocks the data object which blocks

H) and try to commit before L commits. In order to let

conflicting transaction instances commit according to their serializability order, i.e., the begin unlock message order, H

will be delayed to wait for Lto commit to keep the system

recoverable. Because there is no transitive blocking and the maximum of priority inversions for the 2VPCP protocol is one, the extra number of priority inversions, due to the delaying of commitment, for H is one.

The client computers adopted for local processing of read-only transactions (in Section 3) are used as recovery servers in this section when the server-side system crashes. Since each client-side system maintains a consistent database image, the recovery procedure of the server-side system can be simply done by copying a client-side consistent database image to the server-side system. Note

that there is no need for this recovery procedure to process any logs and the time required to copy a large amount of data over a dedicated network, e.g., Fast Ethernet or ATM network, is not much more than the time to read the same amount of data from disks.

There are two major advantages to this approach: 1) The recovery procedure can be done very efficiently and predictably due to no processing of logs and no disk access. 2) The write-through procedure of a committing transaction instance at the server-side system can be done very efficiently and predictably because an unpredictable me-chanical storage device, such as a disk, is replaced with an electronic transmission device (to transmit committing-related logs to client-side systems over network).

We must emphasize that the validity of the recovery mechanism proposed in this section relies on the assump-tion that all of the client computers and the server computer will not fail at the same time. Although the chance can be almost neglected when the number of client computers is reasonably large, the durability of transactions cannot be maintained if all of the client computers and the server computer, indeed, fail at the same time. One alternative is to let at least one of the client computers write the consistent database image into stable storage. When all of the client computers and the server computer fail simultaneously, the consistent database image is restored from the stable storage. However, we must point out that the performance results described in the following sections will be signifi-cantly affected, at least on the client computer which is responsible for writing the consistent database image into stable storage, and the recovery time of the entire system will be increased by the amount of time in reading the consistent database image from the stable storage if all of the client computers and the server computer fail at the same time.

4.2 Logging and Recovery Mechanisms—A Server-Based Approach

Each server-side transaction instance i must broadcast a

redo log ði; Oj; old value; new valueÞ message to all

client-side systems over a network, as required by the extended 2VPCP protocol in local processing of read-only transac-tions. The write through procedure of each committing transaction instance at the server-side computer cannot be completed until all redo logs and commit log are delivered to the client-side network. When a reliable broadcasting network is adopted, the server-side system may simply return from any sending operations and assume that all client-side systems will receive the messages sent by these operations eventually. Note that the seek time and latency delay of a disk operation do, in general, average around 8:5ms and 4ms, respectively, while the time in sending a 100Bmessage over a Fast Ethernet network is only around 8us. There is no collision problem in this architecture because all network traffics are either from the server side (during normal operation) or from the client side (during failure recovery).

When the server-side system crashes, any client-side consistent database image can be used to restart the server-side system. When network delay is conserver-sidered, the consistent database image of the client-side system closest

to the server-side system is selected for data copying because the client-side system must receive all of the messages sent from the server-side system within a reason-able network delay, which should be very small and predictable in a dedicated local-area network. Note that the recovery procedure of the server-side system will need to borrow the database image of any of the client-side systems for recovery. As a result, an additional workload will occur at the client-side system. Such copying of the database image will also increase the workload of the client-side system which lends the database image to the failed server-side system. Depending on how fast we want to recover the failed server-side system, the miss ratio of transactions running on the client-side system will be affected in a different degree. However, in this case, other client-side systems can still operate independently. When a client-side system fails, the server-side system and other client-side systems will not be affected because the failed client-side system operates independently from others. However, the recovery procedure of the failed client-side system will need to borrow the database image from another client-side system or the server-side system to rebuild its database image. Such copying of the database image will also increase the workload of the system which lends the database image to the failed client-side system. Depending on how fast we want to recover the failed system, the miss ratio of transactions will be affected in a different degree.

4.3 System Overheads

The redo and commit logs sent by the server-side system (for local processing of client-side read-only transactions) are processed autonomously at each client-side system to produce a consistent database image without consuming any computation power from the server-side system. There is also no need to run any time-consuming checkpoint procedure at the server-side system. Furthermore, the logging procedure and the write-through procedure in the proposed approach can be done very efficiently and predictably by message sending. Note that memory-resident databases are very vulnerable to system failure. When compared to the (mechanical) disk operations for logging and write-through procedures, the time spent in sending redo and commit log messages is significantly smaller.

Table 2 provides some performance comparisons among disk-based, RAM-disk-based, and network-server-based recovery mechanisms. The size of a log is assumed to be 100B. Fast Ethernet is used for transmitting messages between two computers. Intel Value-Series-100 flash mem-ory cards, which offer high-performance disk emulation, are used to estimate the performance of RAM-disks, where 32 bytes per word is assumed and every word write and byte read costs 10us and 100ns, respectively [10]. NEC 16-Megabit Rambus DRAM, which is an extremely high-speed CMOS DRAM, is used to estimate the memory access time, where 40ns is needed for the first byte read; 2ns per byte thereafter [26]. IBM Ultrastar 2XP high-performance disk drives with SCSI-3 Wide are used to estimate the seek time and rotational latency of an access, the average sustained data rate is 9:2MB per second [12]. Let each word consist of 64 bits and let memory-remapping be used

for copying parameters between the layers of the operating system. Suppose that the time to write 100B to a disk consists of the time for one disk I/O and the time for the memory copying of 100B log data (because of the memory copy for a system call). The time to write 100B to a RAM-disk consists of the time for writing 100B on the flash memory cards and the time for the memory copying of 100B log data (because of the memory copy for a system call). The time to transmit a 100B-log message to a remote server consists of the time for transmitting 100B over the network, the time for the memory copying of 100B log data at the server (for making a send system call), and the time for the memory copying of 100B log data at the client (for receiving the message from the buffer).

Table 3 shows that the recovery times for disk-based, RAM-disk-based, and network-server-based recovery me-chanisms are estimated as follows: Let a real-time database consist of 100MB data. The recovery time for the network-server-based recovery mechanism consists of the time for transmitting 100MB over the network, the time for the memory copying of 100MB data at the server, and the time for the memory copying of 100MB data at the client (for sending the image). The recovery time for the disk-based recovery mechanism consists of the time for reading 100MB from the disks, the time for the memory copying of 100MB data (from the buffers or controller), and the time for processing logs. The recovery time for the RAM-based recovery mechanism consists of the time for reading 100MB from the flash memory cards, the time for the memory copying of 100MB data (from the buffers or “controller”), and the time for processing logs.

Fig. 6 shows the data access time plus memory-copying time for databases of various sizes. The network-server-based recovery mechanism consumes less time for data access and memory-copying than the other approaches do. We should also point out that, if a high-bandwidth ATM network is used, the recovery time for the network-server-based recovery mechanism on a 100MB database may drop to 1:6sec. The log processing time for disk and RAM-disk approaches, which involves more reads from disks or RAM-disks, may further degrade their performance. Because of the saving in run-time checkpointing and recovery-time log-processing, we surmise that the proposed network-server-based approach should have outstanding perfor-mance compared to other approaches. The major drawback of this approach is the hardware cost. However, we should

emphasize that such cost is for both processing of read-only transactions and failure recovery and much runtime performance can be obtained.

5

P

E

5.1 Data Sets and Measurement

The experiments described in this section are meant to assess the capability of the 2VPCP protocol in transaction processing, especially when a large number of read-only transactions execute at client sides. Our simulation experi-ments compare the performance of the Two-Version Priority Ceiling Protocol (2VPCP), Priority Ceiling Protocol (PCP) [29], the Read/Write Priority Ceiling Protocol (RWPCP) [33], the new Priority Ceiling Protocol (NPCP) [18], and the two-version two-phase locking protocol (2V2PL) [1], [25] in both single and multiple processor environments.

The primary performance metric used is the miss ratio of a transaction, referred to as Miss Ratio. The Miss Ratio of each transaction i is the percentage of requests of

transaction i that miss their deadlines. Let numi and

missi be the total number of transaction requests and

deadline violations during an experiment, respectively. Miss Ratio is calculated asmissi

numi.

The test data sets were generated by a random number generator. The number of transactions per transaction set was randomly chosen between 10 and 30, where a transaction set is a set of transactions. The experiments

TABLE 2

The Comparisons among Disk-Based, RAM-Disk-Based, and Network-Server-Based Recovery Mechanisms

TABLE 3

The Comparisons among the Recovery Times for Disk-Based, RAM-Disk-Based, and Network-Server-Based Mechanisms

Fig. 6. Data access time plus memory-copying time for databases of various sizes: No log processing time is included.

started with transaction sets of an utilization factor equal to 60 percent and increased by 5 percent at a time until the utilization factor was equal to 95 percent, where the utilization factor of a transaction set is equal to the sum of the ratio of the computation requirements and the period of every transaction in the set. Each transaction set was simulated from time 0 to time 1; 000; 000. Over 100 transaction sets per utilization factor were tested in the uniprocessor environment and their results were averaged. Twenty-five transaction sets per utilization factor were tested in the two-processor, four-two-processor, six-two-processor, and 11-processor environments and their results were averaged. The period of a transaction was randomly chosen in the range ð10; 10000Þ. The priority assignment of transactions follows the rate monotonic priority assignment [23]. The utilization factor of each transaction was no larger than 30 percent of the total utilization factor of the transaction set. The numbers of data objects read and written by an (update) transaction were both between 1 and 5. The number of data objects read by a read-only transaction was between 1 and 10. The critical sections of a transaction in locking data objects were evenly distributed and properly nested for the duration of the transaction. (This paper aims at critical real-time systems, such as the avionics example or satellite control systems, which have less than hundreds of data objects in the system and the number of data

objects which are read and written is, in general, not large.) The parameters are summarized in Table 4.

When a single processor environment was simulated, ordinary transaction sets (without read-only transactions) were simulated. When a multiple processor environment was simulated, one processor ran a transaction set consist-ing of update transactions and the other processors ran transaction sets consisting of read-only transactions. The utilization factor on each processor was the same. The purpose of the multiprocessor simulations is the they are meant to access the capability of the 2VPCP protocol in processing client-side transactions.

5.2 Experimental Results 5.2.1 Uniprocessor Environments

Figs. 7, 8, and 9 show the miss ratio of the entire transaction sets scheduled by the Priority Ceiling Protocol (PCP) [29], Read/Write Priority Ceiling Protocol (RWPCP) [33], new Priority Ceiling Protocol (NPCP) [18], the version two-phase locking protocol (2V2PL) [1], [25], and Two-Version Priority Ceiling Protocol (2VPCP) when the number of data objects in the system ranged from 15 to 200. NPCP out-performed 2VPCP and other protocols in uniprocessor environments. PCP, which did not consider read and write semantics, had the worst miss ratio among the others. The reason why NPCP outperformed others was because each transaction scheduled by NPCP adopted its own local copy for write operations. In other words, multiple versions of a data object might coexist in an NPCP-scheduled system. On the other hand, 2VPCP only had two versions for each data object and was a compromise between NPCP and RWPCP, where there was only one version for each data object in RWPCP-scheduled systems. Here, 2VPCP outperformed 2V2PL because of better priority inversion control. The experiments revealed the impacts of data versions on the miss ratio of different concurrency control protocols. We refer interested readers to Figs. 10, 12, and 13 to compare the performance of different algorithms in multiprocessor environments and in meeting the deadlines of the top

TABLE 4

Parameters of Simulation Experiments where ROT Stands for Read-Only Transactions

one-fourth highest-priority transactions. Also, as shown in Figs. 7, 8, and 9, the larger the database size was, the lower

the miss ratio was and the impacts of the number of data versions decreased. During the experiments, the maximum

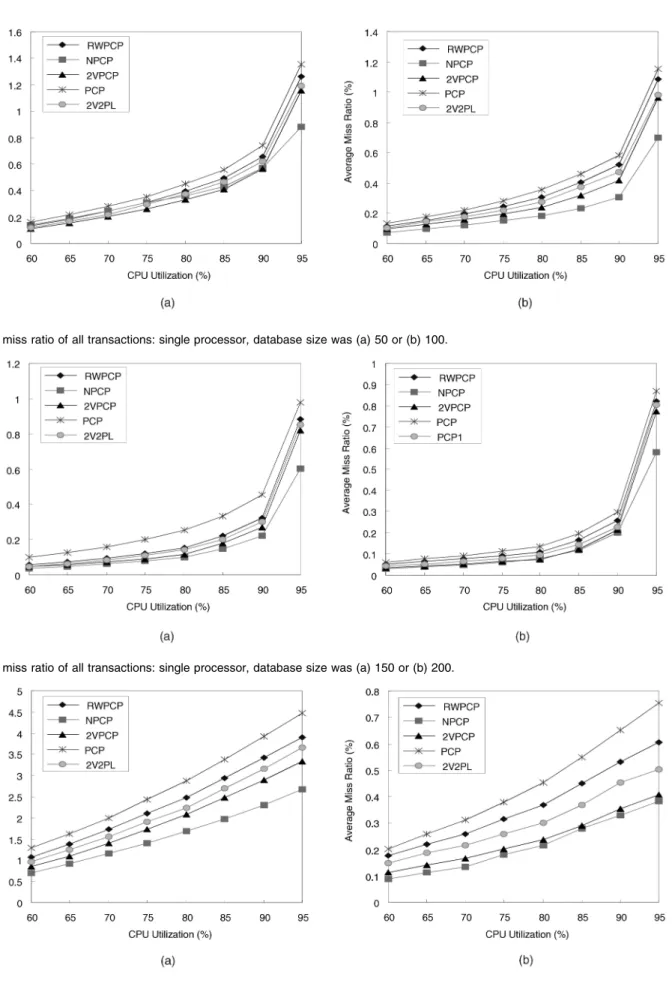

Fig. 8. The miss ratio of all transactions: single processor, database size was (a) 50 or (b) 100.

Fig. 9. The miss ratio of all transactions: single processor, database size was (a) 150 or (b) 200.

Fig. 11. The miss ratio of all transactions scheduled by optimistic concurrency control protocol, PCP, RWPCP, NPCP, 2V2PL, and 2VPCP when the database size was 50.

Fig. 12. The miss ratio of server-side transactions: one server, five clients, database size was (a) 50 or (b 100.

numbers of versions for a data object were 5:73, 4:91, 3:66, 3:18, 2:79, and 2:73 on average for a NPCP-scheduled

system when the database size were 15, 25, 50, 100, 150, and 200, respectively.

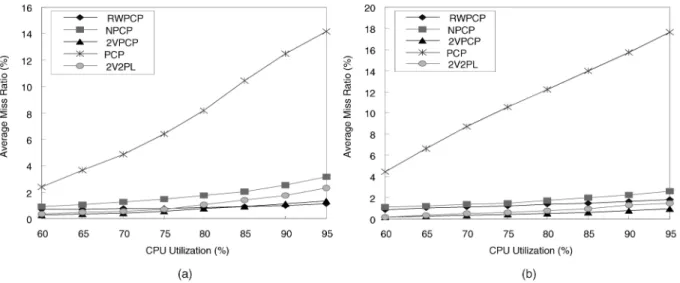

Fig. 14. The miss ratio of the top one fourth highest-priority server-side transactions: one server, five clients, database size was (a) 50 or (b) 100.

Fig. 15. The miss ratios of (a) server-side transactions and (b) client-side (read-only) transactions: one server, 10 clients, database size was 50.

Fig. 10 shows the miss ratio of the top 1=4 highest-priority transactions scheduled by PCP, RWPCP, NPCP, 2V2PL, and 2VPCP when the number of data objects in the system was either 15 or 200. The miss ratio of the top one-fourth highest-priority transactions for a system with a database size between 15 and 200 was between their counterparts in Fig. 10. We should point out that, when the number of data objects increased, the miss ratio of the top one-fourth highest-priority transactions scheduled by NPCP and 2VPCP almost collapsed. In other words, the schedulability of high-priority transactions scheduled by 2VPCP was greatly improved although there were only two versions per data object.

Fig. 11 shows that PCP, RWPCP, NPCP, 2V2PL, and 2VPCP outperformed the optimistic concurrency control protocol [22] because the optimistic concurrency control protocol restarted and aborted too many lower-priority transactions. On the other hand, the miss ratio of the top one-fourth highest-priority transactions scheduled by the optimistic concurrency control protocol was zero when the utilization factor of the system was no more than 100

percent and the optimistic concurrency control protocol outperformed PCP, RWPCP, NPCP, 2V2PL, and 2VPCP in terms of the schedulability of high priority transactions. 5.2.2 Multiprocessor Environments

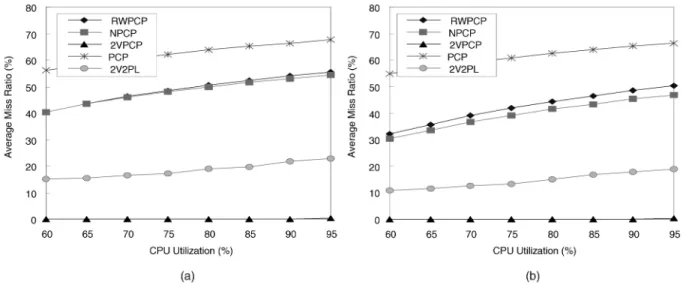

Figs. 12, 13, and 14 show the miss ratios of server-side transactions, client-side (read-only) transactions, and the top one-fourth highest-priority server-side transactions scheduled by PCP, RWPCP, NPCP, 2V2PL, and 2VPCP when there are five client systems and one server system. The database size is either 50 or 100. Obviously, 2VPCP greatly outperformed other protocols. The miss ratios of transactions scheduled by 2VPCP stayed very low because of the separation of concurrency control of server and client systems. The miss ratios of the top one-fourth highest-priority server-side transactions scheduled by 2VPCP was also substantially improved for the same reason. Compared to uniprocessor environments, 2V2PL outperformed NPCP in multiprocessor environments because the two-version data concept greatly reduced the probability of access conflict.

Fig. 17. The miss ratios of (a) server-side transactions and (b) client-sde (read-only) transactions: one server, one client, database size was 50.

Fig. 18. The miss ratio of the top one fourth highest-priority client-side transactions: one server, five clients, database size is (a) 50 or (b) 100, the updating transaction Updhad the highest, top one fourth, middle, or lowest priority in the system.
