EFFECT OF FLUORINE INCORPORATION ON THE THERMAL-STABILITY OF PTSI/SI STRUCTURE

(1)

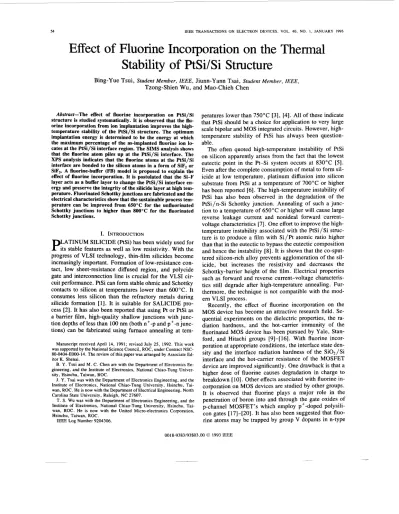

54 IEEE TRANSACTIONS ON ELECTRON DEVICES. VOL. 40, NO. I , JANUARY 1993

Effect

of Fluorine Incorporation

on

the Thermal

Stability of PtSi/Si Structure

Bing-Yue Tsui, Student Member, IEEE, Jiunn-Y ann Tsai, Student Member, IEEE, Tzong-Shien W u , and Mao-Chieh Chen

Abstract-The effect of fluorine incorporation on PtSi/Si structure is studied systematically. It is observed that the flu- orine incorporation from ion implantation improves the high- temperature stability of the PtSi/Si structure. The optimum implantation energy is determined to be the energy at which the maximum percentage of the as-implanted fluorine ion lo- cates at the PtSi/Si interface region. The SIMS analysis shows that the fluorine atom piles up at the PtSi/Si interface. The XPS analysis indicates that the fluorine atoms at the PtSi/Si interface are bonded to the silicon atoms in a form of SiF2 or SiF3. A fluorine-buffer (FB) model is proposed to explain the effect of fluorine incorporation. It is postulated that the Si-F layer acts as a buffer layer to change the PtSi/Si interface en- ergy and preserve the integrity of the silicide layer at high tem- perature. Fluorinated Schottky junctions are fabricated and the electrical characteristics show that the sustainable process tem- perature can be improved from 650°C for the unfluorinated Schottky junctions to higher than 800°C for the fluorinated Schottky junctions.

I. INTRODUCTION

ATINUM SILICIDE (PtSi) has been widely used for progress of VLSI technology, thin-film silicides become increasingly important. Formation of low-resistance contact, low sheet-resistance diffused region, and polycide gate and interconnection line is crucial for the VLSI circuit performance. PtSi can form stable ohmic and Schottky contacts to silicon at temperatures lower than 600°C. It consumes less silicon than the refractory metals during silicide formation [I]. It is suitable for SALICIDE process [2]. It has also been reported that using Pt or PtSi as a barrier film, high-quality shallow junctions with junc- tion depths of less than 100 nm (both n+-p and p f - n junc- tions) can be fabricated using furnace annealing at tem-

p"

its stable features as well as low resistivity. With the

Manuscript received April 14, 1991; revised July 2 5 , 1992. This work was supported by the National Science Council, ROC, under Contract NSC- 80-0404-E000-14. The review of this paper was arranged by Associate Ed- itor K. Shenai.

peratures lower than 750°C [3],

[4].

All of these indicate that PtSi should be a choice for application to very large scale bipolar and MOS integrated circuits. However, high- temperature stability of PtSi has always been question- able.

The often quoted high-temperature instability of PtSi on silicon apparently arises from the fact that the lowest eutectic point in the Pt-Si system occurs at 830°C [ 5 ] . Even after the complete consumption of metal to form silicide at low temperature, platinum diffusion into silicon substrate from PtSi at a temperature of 700°C or higher has been reported [6]. The high-temperature instability of PtSi has also been observed in the degradation of the PtSi/n-Si Schottky junction. Annealing of such a junction to a temperature of 650°C or higher will cause large reverse leakage current and nonideal forward current- voltage characteristics [7]. One effort to improve the high- temperature instability associated with the PtSi /Si structure is to produce a film with Si/Pt atomic ratio higher than that in the eutectic to bypass the eutectic composition and hence the instability [8]. It is shown that the co-sputtered silicon-rich alloy prevents agglomeration of the silicide, but increases the resistivity and decreases the Schottky-barrier height of the film. Electrical properties such as forward and reverse current-voltage characteristics still degrade after high-temperature annealing. Fur- thermore, the technique is not compatible with the mod- e m VLSI process.

Recently, the effect of fluorine incorporation on the MOS device has become an attractive research field. Se- quential experiments on the dielectric properties, the radiation hardness, and the hot-carrier immunity of the fluorinated MOS device has been pursued by Yale, Stan- ford, and Hitachi groups [9]-[ 161. With fluorine incorporation at appropriate conditions, the interface state density and the interface radiation hardness of the S i 0 2 / S i interface and the hot-carrier resistance of the MOSFET B. Y. Tsui and M. C. Chen are with the Department of Electronics En-

gineering, and the Institute of Electronics, National Chiao-Tung Univer- sity, Hsinchu, Taiwan, ROC.

J. Y. Tsai was with the Department of Electronics Engineering, and the Institute Of Electronics, National Chiao-Tung University, Hsinchu, Tai- wan, ROC. He is now with the Department of Electrical Engineering, North Carolina State University, Raleigh, NC 27607.

T. S. Wu was with the Department of Electronics Engineering, and the InstitUte Of Electronics, National Chiao-Tung University, Hsinchu, Tai- wan, ROC. He is now with the United Micro-electronics Corporation, Hsinchu, Taiwan, ROC.

device are improved significantly. One drawback is that a higher dose of fluorine causes degradation in charge to breakdown [lo]. Other effects associated with fluorine incorporation on MOS devices are studied by other groups. It is observed that fluorine plays a major role in the penetration of boron into and through the gate oxides of p-channel MOSFET's which employ p*-doped polysilicon gates [17]-[20]. It has also been suggested that fluorine atoms may be trapped by group V dopants in n-type

IEEE Log Number 9204306.

(2)

TSUI et 01.: FLUORINE INCORPORATION FOR THERMAL STABILITY OF PtSi /Si STRUCTURE TABLE I

EXPERIMENTAL CONDITIONS USED TO DETERMINE THE OPTIMUM IMPLANTATION CONDITION FOR T H E

HIGH-TEMPERATURE STABILITY IMPROVEMENT OF THE PtSi/Si STRUCTURE BY BF:-IoN IMPLANTATION

Sample Structure p t ~ i ( 3 0 0 A)/si

BF: energy (keV) 38 75 100 125

Ff effective energy (keV) 15 30 40 50

BF; dose ( 1 /cm2) 5 x 1013 2 x ioi4 5 x ioi4 1 x 1015 2 x 1015

Annealing temperature ("C) 400 700 750 800 830 850

Annealing time 60 min

silicon due to high electronegativity of fluorine atoms. Fluorine atoms prevent the As+-Si- and P+-Si- pairs forming, the formation and dissociation of which cause diffusion enhancement and extended defects. However, the formation of As+-F- and P+-F- pairs reduces the dopant activation [2 11.

In the authors' previous work, it was observed that implanting fluorine-contained ions (such as F+ or BF:) through the Pt/Si (Implantation Through Metal, ITM) or PtSi /Si (Implantation Through Silicide, ITS) structure al- lows the PtSi/Si structure to withstand a higher process temperature, up to 800"C, without degradation [22]. This high-temperature stability was confirmed by sheet resistance measurement, scanning electron microscopic (SEM) inspection, and Auger electron spectroscopy (AES) and Rutherford backscattering spectroscopy (RBS) analyses. Secondary ion mass spectroscopy (SIMS) analysis indicates that the implanted fluorine atoms pile up at the PtSi/Si interface. The high-temperature stability should be correlated to the fluorine pileup. In this work, the effect of fluorine incorporation on the PtSi/Si structure is studied systematically. The optimum condition of fluorine implantation is determined. A fluorine-buffer (FB) model is proposed to explain the improvement of high-temperature stability. Fluorinated Schottky junctions were fabricated and compared to unfluorinated Schottky junctions.

Both ITM and ITS samples were processed. Because the results of the ITS scheme are similar to those of the ITM scheme, only the ITM scheme is reported and dis- cussed in detail. Nonetheless, some results different for the ITS and ITM schemes will be stated in the text.

11. EXPERIMENTS AND RESULTS

A . BF: Implantation

In [22], the authors have clarified the effect of ion im- plantation on the high-temperature stability of PtSi film by implanting different species of BF:, F + , and B+ sep- arately at equivalent energies and doses into the PtSi/Si samples. It was concluded that the improvement of the high-temperature stability is attributed to the fluorine ions with the boron ions playing no role. Similar results could be obtained by implanting F f or BF: ions if the fluorine ions had the same effective energy. Because the beam current of BF: ions is at least one order of magnitude higher than that of the F + ions when BF3 gas is used as the ion

source, BF: were employed to introduce fluorine at first to determine the optimum implantation condition.

The starting material was n-type (100) oriented 0.8- 2 . 7 4

-

cm phosphorus-doped silicon wafer. The wafers were first cleaned by the sta9dard RCA cleaning process. Platinum film of about 300A thickness was deposited in an electron-beam evaporation system with a base prezsure of less than 5 X lop6 torr and a deposition rate of 1 A /s.

Before loading into the deposition chamber, wafers were immersed in dilute HF solution (HF : H 2 0 = 1 : 50) for 1

to 2 min to remove the surface oxide grown during clean- ing, and the silicon surface was passivated by hydrogen and/or fluorine at the same time which can prohibit oxi- dation in air [23]. After Pt deposition, BF: ions were im- planted into the wafers at different energies from 38 to

125 keV to different doses from 1 x loi4 to 5 X l O I 5 cm-2. The corresponding fluorine energy was determined by multiplying the BF: energy with the ion mass ratio of F f / B F $ = 19/49 to be from 15 to 50 keV. Wafers were first annealed in N2 ambient at 400°C for 60 min to form PtSi and the unreacted Pt was selectively etched by boiling in dilute aqua regia. Wafers were then cut into six pieces and five of them were further annealed in N2 ambient for 60 min at 700, 750, 800, 830, and 850"C, respectively. Table I summarizes the key experimental conditions.

The sheet resistance (R,) of each sample was measured by a four-point probe. For each sample before degradation, the deviation of R, over five measurements is within

1-2

Q / U .

Figs. 1 and 2 show the &-annealing temper- ature relation of the samples implanted with BF: ion at

38 and 75 keV (effective F + energy of 15 and 30 keV), respectively; the &-temperature data of the unimplanted samples are also included for comparison. For the unimplanted samples, the

R,

value starts to increase at 750°C. For the samples implanted with BF: ion at 38 keV, the R, value remains stable up to 800°C but increases dras- tically at higher temperatures independent of the implanted dose. For the samples implanted with BF: ion at

75 keV, a different tendency was observed. For the two lower dose sample sets, &-temperature relation is similar to that of the 38-keV implanted samples. As the implanted dose becomes higher than 1 x 1015 cmP2, the R, value becomes clearly more stable. Fig. 3 shows the R,-tem- perature relation of the samples implanted with BF: ion

(3)

56 IEEE TRANSACTIONS ON ELECTRON DEVICES, VOL. 40, NO. 1, JANUARY 1993

ANNEALING TEMPERATURE ( % I

Fig. 1 . R,-temperature relation of the Pt(300 A ) / S i samples implanted with BF: ions at 38 keV to various doses.

200 BFf (75 KeV I

-

P t ( 3 0 0 A l / S i

1

B F i DOSE (cm-21: 0 5 4 0 ' 3 5 ~ 1 0 ' ~ o 2.10'~ 0 1 A 2.10'~ A NO IMPLANTION 700 750 800 850 ANNEALING TEMPERATURE ('C )

Fig. 2. &temperature relation of the Pt(300 A ) / S i samples implanted with BF: ions at 75 keV to various doses.

B F ~ ~ 5 ~ 1 0 ' 5 c m ~ z l - P t ~ 3 0 0 ~ l / S i B F j ENERGY : ( EFFECTIVE F' ENERGY)

0 38 KeV ( 15KeVl 0 75 KeV ( 30 KeV ) D 100KeV (40 KeVl 0 125KeV ( 50 KeVl A NO IMPLANTATION ANNEALING TEMPERATURE ( " C )

Fig. 3 . R,-temperature relation of the Pt(300 A ) / S i samples implanted with BF: ions at 38, 75, 100, and 125 keV, respectively, to a dose of 5 x 1015 cm-2.

TABLE I1

TRIM SIMULATION

FLUORINE ION DISTRIBUTION (%) FOR THE Pt(300 STRUCTURE BY

Energy (keV) 15 30 40 5 0

Backscattered 28.54 24.67 23.65 21.83

Within Pt film 67.43 42.46 29.39 19.22

300-600 A 4 . 0 2 23.57 22.52 19.22

>600 A 0.01 9 . 3 0 24.44 39.73

to a dose of 5 X lOI5 cm-* at energies of 38, 75, 100, and 125 keV (effective Ff energy of 15, 30, 40, and 50

keV), respectively. It is observed that the 75- and 100- keV implantations give rise to the highest stability. As the implantation energy is increased to 125 keV, the high- temperature stability deteriorates.

The as-implanted fluorine distribution is simulated by the TRIM Frogram [24]. The Pt-film thickness is assumed to be 300 A . Table I1 lists the percentage fluorine distribution with the fluorine ion implanted at 15, 30, 40, and

50 keV, respectively. The target is divided into three re- gions: the Pt film, the Si surface regionowhich will be consumed during silicidation (300-600 A ) , and the Si ybstrate underneath the final PtSi/Si interface (

>

600 A). The thickness of the second region is calculated by multiplying the Pt-film thickness by the reacted volume ratio of Pt /Si = 1

/

1.32 [ 11. Because the oxygen contamination is not well controlled in the film's deposition system, the Pt film cannot be converted into PtSi completely. In this work, the final PtSi elm thickness of the Pt(300 A ) / S i sample is about 450 A measured by ellipsometry [25] and TEM tross sections. The consumed silicon is thus about 300 A thick. With fluorine energy at 15 keV, most of the fluorine ions are confined in the Pt film. Dur- ing silicide formation, this fluorine might diffuse out of the sample to the ambient and play no role on the high temperature stability. As the fluorine energy increases from 30 to 50 keV, the amount of fluorine ions that pen- etrate into the Si substrate increases. However, the maximum stable temperature of the 50-keV (F) implanted samples is lower than that of the 30- and 40-keV (F) implanted samples. It is thus assumed that only the fluorine ions located near the Pt/Si interface, especially those located within the second region, will influence the high- temperature behavior of the PtSi/Si structure. This is quite reasonable since during the silicide formation, the fluorine atoms will be pushed ahead by the PtSi phase front to pile up at the interface.

To verify whether the optimum implantation energy is the energy at which the largest amount of fluorine ions is placed within the Si surface region to be consuyed, the high-temperature stability of samples with 170 A of Pt was examined. Table I11 lists the TRIM simulated percentage fluorine Gistribution of the fluorine ion implanted into the Pt(170 A ) / S i structure at 15, 20, and 25 keV, respettively. In this case, the silicon consumption is about 170 A thick. It is observed that 20-keV implantation places the largest amount of fluorine within the region consumed by silicidation. Thus 20 keV should be the op-

(4)

TSUI et a l . : FLUORINE INCORPORATION FOR THERMAL STABILITY OF PtSi/Si STRUCTURE

-

₀ e 150 Y W U z \

2 ;

100- W LT I- W v)

y

5 0 - EFi (5.10'5cm-~)-Pt(170~)/Si

- E F i ENERGY. ( EFFECTIVE F' ENERGY)

- 0 38 KeV (15KeV)

H 50 KeV (20 KeV 1 A 65 KeV ( 2 5 KrV 1

TABLE 111

FLUORINE ION DISTRIBUTION (%) FOR THE Pt(170 A)/,% STRUCTURE BY

TRIM SIMULATION Energy (keV) 15 20 25 Backscattered 27.79 26.37 24.36 Within Pt plm 40.20 26.88 18.18 170-34q A 22.21 22.74 20.77 > 3 4 0 A 9.80 24.09 36.69 "V F' - F ' 60 - 40 - (40KeV)-Pt(300A)/Si DOSE ( cm-2 1 : 0 1 . 1 0 ~ ~ 1 .1015 2.10'~ 0 5.10" A 5 ~ 1 0 ' ~ A NO IMPLANTATION a

b l

I I I I 700 750 800 850 ANNEALING TEMPERATURE ("C 1

Fig. 5. &-temperature relation of the Pt(300 A ) / S i samples with fluorine implantation at 40 keV to various doses.

timum energy for the Pt(170 A ) / S i structure. r i g .

4

shows the &-temperature relation of the Pt(170 A ) / S i samples implanted with BF: ion at 38, 50, and 65 keV (effective F + energy of 15, 20, and 25 keV), respectively. This confirms the criteria of the optimum implantation energy. A similar experimental procedure was also followed for the ITS scheTe. The optimum energy of fluorine ion for the PtSi(600 A ) / S i structure was determined to be 50 keV

.

B. F+ Implantation

Fluorine ions alone were implanted into the Pt(300 A ) / % structure at the optimum energy (40 keV) to further examine the high-temperature characteastics of the fluorinated PtSi/Si structure. The Pt(300 A ) / S i structure was prepared using the same process as that employed in the BF: implantation experiment. Fluorine ions were then implanted into wafers at 40 keV to various doses ranging from 1 x loL4 to 5 x 1015 cmP2. Following the F + implantation, all wafers were cut into smaller pieces and were annealed in N2 furnace for 60 min at 400, 700, 750, 800, 830, and 850"C, respectively. The unreacted

Pt

was selectively etched by aqua regia.

Fig. 5 shows the R,-temperature relation of the fluo- rine-implanted samples; the R,-temperature data of the unimplanted samples are also included for comparison.

Since the unimplanted samples and the fluorine implanted _ _ _ _.._ ~~ ~ .~

samples were not prepared at the same time and a deviation of the Pt film thickness of about

k

10% exists in our laboratory, sheet resistances of the unimplanted and fluorine-implanted samples at low temperature are slightly different. For the unimplanted samples, the R, value increases at temperatures higher than 700°C. As the implanted fluorine dose increases from 1 x 1014 to 5 x 1015 cmP2, the high-temperature stability of the R, value of the PtSi film is successively improved. It is seen that the R, value remains stable up to 800°C as the implanted dose exceeds 1 X 1015 cm-2 and up to 850°C as the implanted dose is 5 X 10'' cm-2. Such an improvement is stable

and reproducible over at least six different experimental lots.

SEM inspection was employed to further characterize the high-temperature stability of the PtSi film. Fig. 6 shows SEM micrographs of the PtSi surface and the cor- responding silicon surface after removal of the silicide film of 800°C annealed samples without fluorine implantation and with fluorine implantation to a dose of 1 x loL5 and 5 X 1015 cm-*, respectively. It is shown that severe agglomeration occurs for the unimplanted sample, and the PtSi film becomes discontinuous. For the sample with fluorine implantation to a dose of 1 x 1015 cmP2, the PtSi film is non-uniform and shows some agglomeration, and small pinholes were observed. As the implanted dose increases to 5 X l O I 5 cmL2, the PtSi film remains smooth after 800°C annealing as seen in the micrograph. The morphology of the silicon surface is consistent with that of the PtSi surface. As the film agglomerates, the PtSi spikes into the silicon substrate; thus the silicon surface becomes rather rough. Fig. 7 shows SEM micrographs of the PtSi surface and the silicon surface after removal of the silicide film of 850'C annealed samples without fluorine implantation and with fluorine implantation to a dose of 5 x 1015 cm-2. The PtSi film of the unimplanted sample has agglomerated to isolated islands which accounts

(5)

5 8 IEEE TRANSACTIONS ON ELECTRON DEVICES, VOL. 40. NO. 1 , JANUARY 1993

Fig. 6 . SEM micrographs of the PtSi surface (left) and the Si surface after removal of the PtSi film (right) of the 800°C annealed samples (a) without fluorine implantation, and with fluorine implantation to a dose of (b) 1 x 10” cm-* and (c) 5 x I O l 5 cm-2.

Fig. 7. SEM micrographs of the PtSi surface (left) and the Si surface after removal of the PtSi film (right) of the 850°C annealed samples (a) without fluorine implantation, and (b) with fluorine implantation to a dose of 5 x

10” cm-’

with fluorine implantation to a dose of 5 x lo’’ cm-*, the PtSi film becomes nonuniform but still remains con- tinuous.

Fig. 8 shows the AES depth profiles of the samples im- planted with F’ ions to a dose of 1 X 1014, 1 x lo”, and 5 X l O I 5 cm-*, respectively, followed by an 850°C annealing; also shown is the profile of an unimplanted sample annealed at 400°C. No platinum penetration into the silicon substrate is observed up to 850°C for the 5 X 10’’ cm-* implanted samples. As the implantation dose de- creases to l X 10” cm-* or less, the PtSi film agglomerates to discontinuous islands, platinum penetrates into the silicon substrate, and the Si substrate is exposed. The

RBS profile indicates similar results. These are consistent with the results of the sheet resistance measurement and the SEM inspection.

C . Schottky-Junction Characteristics

Because the Schottky-banier height is very sensitive to the properties of the silicide/silicon interface [7], [8], in-

”

0 2 4 6 8 1 0 1 2

SPUTTERING TIME ( min 1

Fig. 8. AES depth profiles of the samples annealed at 85d”C which are implanted with F t ions to a dose of 1 x

cm--, respectively, and the depth profile of an unimplanted sample annealed at 400°C 1 x IO”, and 5 X FLUORINATED 800°C UNFLUORINATED 8OVC AREA 1000Pm “1000Pm FORWARD BIAS ( V ) L

Fig. 9 . Comparison of the forward I-V characteristics of the Schottky junctions with fluorine implantation to a dose of 5 X IO” cm-’ and annealed at 800°C and the junctions without fluorine implantation and annealed at 400 and 800”C, respectively.

vestigation on Schottky junction is used to evaluate the applicability of the fluorine implantation technique to a typical integrated circuit process for the improvement of high-temperature stability of PtSi film. The junction area !as defined by etching a square window through a 4700-

A -thick thermally grown Si02 layer. The wafer backside was metallized by aluminum. Other processes are the same as those described in Section

11-B.

Fig. 9 compares the forward I-I/ characteristics of the PtSi/n-Si Schottky junction formed by annealing at 800°C with fluorine implantation to a dose of 5 x 10’’

cm-* and the unimplanted Schottky junction annealed at 400 and 800”C, respectively. Since the silicide/silicon interface becomes irregular at temperatures higher than 700°C, the 800°C annealed, unfluorinated Schottky junc-

(6)

TSUI et al.: FLUORINE INCORPORATION FOR THERMAL STABILITY OF PtSi/Si STRUCTURE

FORWARD BIAS ( V I

59

4

Fig. 10. Comparison of the forward I-V characteristics of the Schottky junctions with fluorine implantation to a dose of 5 X

lOI5 cm-' and annealed at different temperatures.

TABLE IV

THE MEASURED SCHOTTKY BARRIER ( $ b n ) , FORWARD IDEALITY FACTOR ( q ) , AND REVERSE CURRENT DENSITY AT -5

v

(JR) OF THE SCHOTTKY JUNCTIONS WITHOUT FLUORINE IMPLANTATION AND WITH

FLUORINE IMPLANTATION TO A DOSE OF 5 X l o t 5 Cm-2

(X: without fluorine implantation. F: with fluorine implantation.) Annealing Temperature ("C) 400 700 750 800 830 850 X 0.866 f 0 . 0 0 2 6 b n ( e v ) F 0.706 k 0 . 0 0 3 X 1.005 +0.003 B F 1.376 5 0 . 0 3 7 X 0.034 k0.007 k 4 . 5 JR(PA/Cm2) F 80.0 0.841 k0.008 0.677 +0.002 1.054 *0.002 1.691 5 0 . 0 6 3 0.572 *0.112 233.0 5 2 9 . 8 0.812 f 0 . 0 1 1 0.786 f 0 . 0 0 3 1.135 f 0 . 0 0 3 1.230 f 0 . 0 3 0 1.13 50.447 9.31 f 3 . 5 7 0.797 fO.011 0.864 *0.004 1.193 fO.004 1.054 5 0 . 0 0 9 1.97 5 0 . 8 1 4 2.56 f 0 . 5 3 0.801 *** 50.011 0.858 0.833 f 0 . 0 0 7 rt0.005 1.194 *** 50.004 1.066 1.146 k0.017 k0.014 9.41 46.2 f 7 . 2 9 f 2 3 . 8 4.88 202 f 1 . 7 6 5 1 4 0

tion has degraded severely. For the fluorinated Schottky junction, the interface remains stable up to 800°C. Thus no evident difference is observed between the forward characteristic of the 800°C annealed, fluorinated junction and that of the 400°C annealed, unfluorinated junction. Table IV lists the measured Schottky-bamer height (&,,),

the forward ideality factor

(v),

and the reverse current density at -5 V ( J R ) of the Schottky junctions without fluorine implantation and with fluorine implantation to a dose of 5 X l O I 5 cmP2. These values are obtained by av- eraging data from at least 10 arbitrarily chosen junctions. Also shown are their standard deviations. The

&,,,

and

v

values are extracted from the semi-log forward Z-V plot using a Richardson constant of 120 (A/cm2/k2). The

&,,

of the 800°C annealed, fluorine implanted junction is close to that of the 400°C annealed, unimplanted junction. This indicates that most of the implantation damages near the silicide/silicon interface has been recovered, and the Schottky bamer is restored to its normal feature. The

ideality factor (11) of fluorine-implanted junctions is lowest after 800°C annealing, but it is slightly higher than that of 400°C annealed, unimplanted junctions. Fig. 10

compares the forward I- V characteristics of the Schottky junctions with fluorine implantation to a dose of 5

x

10''

cm-2 and annealed at different temperatures. The degradation of the 830 and 850°C annealed junction is attributed to the local nonuniformity of the PtSi film.

It is observed in Table IV that the J R of the fluorine- implanted junction is higher than that of the 400°C annealed, unimplanted junction. Even if the fluorine-implanted junction had been annealed at 800°C and the J R decreased to the lowest value, the J R would still be two orders of magnitude higher than that of the 400°C annealed unimplanted junction. Fig. 11 shows a TEM cross- sectional view of the surface layer of a fluorine-implanted sample. It is observed that some dislocation loops and bubble-like defects reside in the silicon substrate. The high

JR

is thus attributed to these residual defects.

(7)

60 IEEE TRANSACTIONS ON ELECTRON DEVICES. VOL. 40, NO. I , J A N U A R Y 1993

Fig. 1 I . TEM cross-sectional view of the 800°C annealed sample with fluorine implantation to a dose of 5 X I O ” cm-’.

111. DISCUSSION

In a previous publication [22], the authors have dem- onstrated by SIMS analysis that the fluorine atoms seg- regate at the silicide /silicon interface after thermal treat- ment. In this work, we try to compare the fluorine segregation behavior with different implanting dose and annealing conditions. Before samples were SIMS ana- lyzed, the PtSi film was stripped by boiling in aqua regia to prevent the results from being interfered with by the PtSi film. Since residual Pt signal is still detected at the sample surface, the fluorine concentration is not quanti- fied. Fig. 12 shows the fluorine profiles of the samples with fluorine implantation to a dose of 1 x lo”, 2 x

lo”, and or 5 X 10” cm-2, followed by an 800°C an- neal. It is expected that both the total dose in the substrate and the interface concentration decrease as the implanting dose decreases. The higher the interface concentration, the better is the thermal stability, as shown by the sheet resistance data. From this observation, we find a direct relation of the thermal stability of fluorinated PtSi/Si structure and the fluorine concentration at the interface. Another interesting phenomenon ghown in the fluorine profiles is the kink at about 300 A below the interface. This could be attributed to the gettering by the residual damage [26] since heavy substrate damage was produced during the high energy implantation. A similar phenom- enon was also observed by other workers [27]. This dam- age gettering behavior can explain why the Schottky barrier and the forward and reverse characteristics of the fluorine-implanted Schottky diode can be recovered after annealing.

The chemical state of such a high-concentration fluorine was further analyzed by the X-ray photoelectron spectroscopy (XPS). The PtSi film was first etched by boiling in dilute aqua regia. A thin native Si02 layer was grown during the etching process and the subsequent DI water rinsing step. The oxide layer was not removed using the fluorine-containing solution to avoid the interference of residual fluorine contamination from the solution. In- stead, the sample was loaded into the chamber, and argon sputtering was employed until the Auger electron signal of oxygen decreased to the background noise level. The XPS analysis was then performed within the sputtered window. A value of 8 4 . 0 eV for the Au(4f,12) peak was used as reference of calibration for the XPS binding en- ergy. The F,, peak at 686.2 eV corresponds to the SiF2 or SiF3 type species [28], [29]. No atomic or molecular flu- orine was detected.

The polycrystalline silicide allocated between two other

IO6 F * ( 4 0 K e V l - - P ~ ( ~ O O A I / S I 800°C N2 ANNEALING

-

5~1O‘~cm-’ 300 600 900 1200 I ! DEPTH

( A )

30

Fig. 12. Comparison of the fluorine profiles of the 800°C annealed samples with fluorine implantation to a dose of 1 X IO’’, 2 X IO”, and 5 X

1015 cm-2, respectively.

phases, i.e., the silicon substrate and the ambient, is a structure which is not thermodynamically stable. The driving force for this silicide agglomeration is the reduction of total energy of the system, including that of the silicide grain boundary, the silicide /silicon interface, and the silicide-free surface [30]. The agglomeration process will continue until all the grain boundaries disappear, that is, the islanding of the silicide film, once the thermal en- ergy can be sufficiently applied. As for the fluorine addi- tion to the PtSi/Si system, we can expect that there will be a certain reduction of the total system energy. We are not able to distinguish whether it is a result of the lowered grain boundary energy or the interface energy. Chen et

al. [31], [32] argued that the improved thermal stability of Nisiz system is attributed to the retardation of the growth of Nisi2 grain by the presence of boron andlor fluorine atoms at the grain boundaries. We observed in our experiment that, once the implanting energy is not sufficient to have the fluorine ion reaching the silicide/silicon interface, very little effect on the thermal stability can be obtained. It is evident that the fluorine segregation at the interface, and not at the grain boundaries, plays a dominant role in the stabilization. It was also found that BF: implantation when the whole dose is confined to the silicide layer degrades the thermal stability of CoSi2/Si system [33], which further confirms our conclu- sion.

Because it is very difficult to explain unambiguously the stabilizing influence from the thermodynamic point of view, kinetic factors determining the transport of material, which causes the agglomeration, should also be considered. Van der hove [30] proposed a silicide disso- ciation model, which is associated with the solid-phase- epitaxy process [34], to explain the agglomeration phe- nomenon of the silicide thin film. He suggested that the agglomeration occurs through the dissociation of the silicide at the intersection of the grain boundaries and the

(8)

TSUI et ai.: F L U O R I N E I N C O R P O R A T I O N FOR T H E R M A L S T A B I L I T Y O F P t S i / S i S T R U C T U R E 61 interface. The dissociated silicon atoms grow epitaxially

on the silicon substrate, while the metal atoms migrate through the silicide grains and react with the substrate forming new silicide at the bottom of the silicide globule. There are two kinetic limitation processes we can find in this mechanism: one is the silicon epitaxy process, the other is the metal silicide formation process. Both of them require a lot of silicon dangling bonds to which either the silicon or metal atoms can easily bond to. We found in our SIMS measurement and XPS analysis that a lot of fluorine atoms were bonded to the dangling silicon atoms at the PtSi/Si interface because of the strong binding energy of Si-F bond of about 5.73 eV. This means that the sili- con dangling bonds

,

which the agglomeration process de- mands, are no longer sufficiently supplied. The whole system will necessitate even more thermal energy to break the Si-F bonds making the silicon dangling bonds avail- able for the silicide film to agglomerate. This is the proposed fluorine-buffer effect and it is the fluorine-buffer model (FB model) that explains why the fluorine incorporation at the silicide /silicon interface improves the thermal stability of the system.

In fact, work has been done by other authors dealing with the thermal stability of other silicides, especially TiSi, [35], [36]. Those results suggest several methods to prevent agglomeration. This includes lowering the process temperature and time, limiting diffusion and grain growth, or using thicker films. Other possibilities include using epitaxial single-crystal films and adding contaminants to the film which inhibit grain growth. Shenai has proposed that the thermal stability of TiSi2 at elevated temperatures is diffusion-controlled. Diffusion of titanium, silicon, dopants, defects, and film contaminants play a critical role. Thus the TiSi2 film formed on single- crystal silicon is thermally stable at much higher post-silicide processing temperatures compared to that formed on polycrystalline silicon under similar conditions. It is be- lieved that the proposed FB model can be applied to other silicide /silicon systems since the high-concentration fluorine can reduce the dissociation of PtSi at grain boundaries and it can also suppress the diffusion of metal and silicon atoms.

It is necessary to clarify that the fluorine addition to the silicide /silicon system can improve the thermal stability, but cannot totally inhibit the silicide film agglomeration because this system is basically not thermodynamically stable. Once a sufficient thermal energy is supplied to the system, i.e., annealing the system at higher temperature and/or for a longer period, the polycrystalline silicide film will eventually degrade. It is worth notice that the outdif- fusion of fluorine from silicon substrate, the bonding of fluorine atoms to the dangling bonds of interfacial layer, the gettering of fluorine at the damage sites of the substrate, the breaking of the Si-F bonds, the dissociation of the silicide at the intersections of grain boundaries and the interface, the epitaxial growth of dissociated silicon atoms, and silicide formation at the bottom of the silicide

globule are all thermally activated processes. There will be different thermal balance conditions for different thermal treatments. Fortunately, it seems that the fluorine addition to the PtSi /Si system favors the practical thermal ranges for the integrated circuit process. To make the system thermodynamically stable, epitaxial silicide may be a very promising solution [37], [381.

The FB model can also be applied to the observation of sheet resistance of the fluorinated samples as shown in Figs. 1-5. To retard the agglomeration of the silicide film, the fluorine concentration must be increased to a certain level. As the implantation dose decreases, the FB effect decreases, and the high temperature stability degrades. Besides the implantation dose, the implantation energy also plays an important role on the FB effect. The results of low energy implantation are similar to those of low dose implantation because of insufficient fluorine incorporation into the silicon substrate. Higher implantation energy introduces more fluorine atoms into the silicon substrate; however, the fluorine projected range may be too large to be far away from the silicide/silicon interface. During annealing, the formation of an efficient FB layer competes with the degradation of the silicide film. If the amount of the fluorine atoms located near the interface is not large enough, the silicide film degrades before the embedded fluorine can pile up at the interface to form the FB layer. This is consistent with the optimum implantation condition proposed in Section 11-A.

IV. CONCLUSION

In this work we studied the effect of fluorine incorporation on the thermal stability of the PtSi/Si structure. Fluorine-containing species (F' and BF:) were implanted into the Pt/Si and the PtSi/Si structures followed by an- nealing in N2 ambient from 400 to 850°C. During the annealing, the fluorine atoms in the Si substrate move toward the PtSi/Si interface and pile up there. The fluorine atoms bond to silicon atoms to form SiF2- or SiF,-type compound. Such a highly fluorinated layer acts as a fluorine-buffer layer to change the PtSi/Si interface energy (and/or the silicide grain boundary energy) which in turn improves the high-temperature stability of the PtSi /Si structure. In the experimental conditions of this work, the higher the implanted fluorine dose, the better the high temperature stability. The implantation energy also plays an important role. The optimum implantation energy is the energy at which the maximum fraction of the implanted fluorine ions is placed near the PtSi/Si interface in the Si substrate. Higher energy introduces more fluorine into the Si substrate but their distribution may be too far away from the PtSi/Si interface so that when the PtSi/Si structure is annealed the PtSi film may have degraded before the fluorine-buffer layer is formed. The optimum implantation energy for different Pt or PtSi thickness may be predicted by the TRIM simulation. Fluorine- implanted Schottky junction was fabricated to examine the applicability of the fluorinated scheme to the integrated

(9)

62 IEEE TRANSACTIONS ON ELECTRON DEVICES, VOL. 40, NO. I , JANUARY 1993

circuit process. The Schottky-barrier height and the for- ward ideality factor of the fluorinated junctions remain comparable to those of the typical PtSi/Si Schottky junc- tion, but the fluorine-implanted Schottky junction is able to sustain a process temperature as high as 800°C. Al- though the residual defect will increase the reverse current of the fluorine-implanted Schottky junction, it will not af- fect the PtSi contacted n+-p or p f - n junction if the resid-

ual defect is confined within the heavily doped region. The FB model can also be employed to explain the su- perior high-temperature performance of the CoSi2 and TiSi2 film grown on the BFl-implanted Si substrate as compared to those grown on the unimplanted Si substrate [39],

[40].

The fluorine implantation scheme will be a valuable technique in the future for the improvement of the integrated circuit reliability.

ACKNOWLEDGMENT

The authors wish to thank L. F . Wu for XPS analysis at the National Tsing-Hua University. The authors also appreciate S. Y . Wu’s assistance in the implanter opera- tion.

REFERENCES

[l] M. A. Nicolet and S. S. Lau, in VLSI Electronics: Microstructure

Science, vol. 6 , N. G. Einspruch and G. B. Larrabee, Eds. New York: Academic Press, 1983, p. 329.

121 T. Shibata, K. Hieda, M. Konaka, R. L. M. Dang, and H. Iizuka, “An optimally designed process for submicron MOSFETs,” in IEDM

Tech. Dig., 1981, p. 647.

[3] B. Y. Tsui and M. C. Chen, “Formation and characterization of a PtSi contacted n + p shallow junction,” J. Appl. Phys., vol. 68, p. 2265, 1990.

[4] B. Y. Tsui, J. Y. Tsai, and M. C . Chen, “Formation of PtSi contacted pf-n shallow junctions by BF: implantation and low temperature fumace annealing,” J. Appl. Phys., vol. 69, p. 4354, 1991. [SI S . P. Murarka, in Silicide f o r VLSI Applications. New York: Aca-

demic Press, 1983, p. 7.

[6] A. Prabhakar, T. C. McGill, and M. A. Nicolet, “Platinum diffusion into silicon from PtSi,” Appl. Phys. Lett., vol. 43, p. 11 18, 1983. [7] E. Calleja, J. Ganido, J. Piqueras, and A. Martiney, “Thermal de-

generation of MO and Pt silicon Schottky diodes,” Solid-State Elec-

tron, vol. 23, p. 591, 1980.

[81 S. P. Murarka, E. Kinsbron, D. B. Fraser, J. M. Andrews, and E. J. Lloyd, “High temperature stability of PtSi formed by reaction of metal with silicon or by cosputtering,” J . Appl. Phys., vol. 54, p. 6943, 1983.

[9] E. F. da Silva, Jr., Y. Nishioka, and T. P. Ma, “Radiation response of MOS capacitors containing fluorinated oxides,” IEEE Trans. Nucl.

Sci., vol. NS-34, p. 1190, 1987.

[lo] P. J. Wright, N. Kasai, S . Inoue, and K. C. Saraswat, “Improvement in SiOz gate dielectrics with fluorine incorporation,” in Proc. Symp.

on VLSI Technology, 1989, p. 51.

[ l l ] Y. Nishioka, K. Ohyu, Y. Ohji, N. Natsuaki, K. Mukai, and T. P. Ma, “The effect of fluorine implantation on the interface radiation hardness of Si-gate metal-oxide-semiconductor transistors,” J. Appl.

Phys., vol. 66, p. 3909, 1989.

[ 121 “Hot-electron hardened Si-gate MOSFET utilizing F implantation,”

IEEE Electron Devices Lett., vol. 10, p. 141, 1989.

[13] P. J. Wright, N. Kasai, S. Inoue, and K. C. Saraswat, “Hot-electron immunity of SiOz dielectrics with fluorine incorporation,” IEEE

Electron Devices Lett., vol. 10, p. 347, 1989.

[14] P. J. Wright and K. C. Saraswat, “The effect of fluorine in silicon dioxide gate dielectrics,” IEEE Trans. Electron Devices, vol. 36, p. 879, 1989.

[15] N. Kasai, P. J. Wright, and K. C. Saraswat, “Hot-carrier-degrada-

tion characteristics for fluorine-incorporated n MOSFET’s,” IEEE

Trans. Electron Devices, vol. 37, p. 1426, 1990.

Y. Ohji, Y. Nishioka, K. Yokogawa, K. Mukai, Q. Qiu, E. Arai, and T. Sugano, “Effects of minute impurities (H, OH, F) on SiOz/Si interfaces as investigated by nuclear resonant reaction and electron spin resonance,” IEEE Trans. Electron Devices, vol. 37, p. 1635, 1990.

F. K. Baker, J. R. Pfiester, T. C. Mele, H. H. Tseng, P. J. Tobin, J. D. Hayden, C. D. Gunderson, and L. C. Pamllo, “The influence of fluorine on threshold voltage instabilities in p f polysilicon gated p-channel MOSFET’s,” in IEDM Tech. Dig., 1989, p. 443. J. M. Sung, C. Y. Lu, M. L. Chen, S . J. Hillenius, W. S. Linden- berger, L. Manchanda, T. E. Smith, and S. J. Wang, “Fluorine effect on boron diffusion of p + gate devices,” in IEDM Tech. Dig., 1989, J . R. Pfiester, F. K. Baker, T. C. Mele, H. H. Tseng, P. J. Tobin, J. D. Hayden, J. W. Miller, C. D. Gunderson, and L. C. Panillo, “The effect of boron penetration on p + polysilicon gated PMOS de- vices,” IEEE Trans. Electron Devices, vol. 37, p. 1842, 1990. J . J. Sung and C. Y. Lu, “Polysilicon-gate MOSFET’s instability with fluorine incorporation,” IEEE Trans. Electron Devices, vol. 37, p. 2312, 1990.

J . Kato, “The effect of fluorine atoms in high-dose arsenic or phosphorus ion implanted silicon,’’ J. Electrochem. Soc., vol. 137, p.

1918, 1990.

J. Y. Tsai, B. Y. Tsui, and M. C. Chen, “High-temperature stability of platinum silicide associated with fluorine implantation,” J. Appl.

Phys., vol. 67, p. 3530, 1990.

D. Graf, M. Grundner, R. Schulz, and L. Miihlhoff, “Oxidation of HF-treated Si wafer surfaces in air,”J. Appl. Phys., vol. 6 8 , p. 5155, 1990.

J. F. Ziegler, J. P. Biersack, and U. Littmark, in The Stopping and

Range of Ions in Solid.

B. Y. Tsui and M. C. Chen, “Low temperature reaction of thin film platinum ( 5 300 A ) with (100) silicon,” J. Appl. Phys., vol. 68, p. 6246, 1990.

M. Y. Tsai, D. S. Day, and B. G. Streetman, “Recrystallization of

implanted amorphous silicon layers. 11. Migration of fluorine in BF: implanted silicon,” J. Appl. Phys., vol. 50, p. 188, 1979. Q. F. Wang, J. Y. Tsai, C. M. Osbum, R. Chapman, and G. E. McGuire, “Improved stability of thin CoSi, and TiSi, films using BF; implantation,” submitted to Appl. Phys. Lett.

T . J. Chuang, “Electron spectroscopy study of silicon surfaces exposed to XeF, and the chemisorption of SiF, on silicon,” J. Appl.

Phys., vol. 51, p. 2614, 1980.

C. D. Stinespring and A. Freedman, “Studies of atomic and molec- ular fluorine reactions on silicon surfaces,’’ Appl. Phys. Lett., vol. 48, p. 718, 1986.

L. Van den hove, “Advanced interconnection and contact schemes based on TiSi, and CoSi,: Relevant issues and technological imple- mentation,” Ph.D. dissertation, Katholieke Universiteit Leuven, Leuven, Belgium, June 1988.

W. J. Chen and L. J. Chen, “Interfacial reaction of nickel thin films on BF: implanted (001) Si,” J. Appl. Phys., vol. 70, p. 2628, 1991.

- , “Thermal stability of Nisi, on high dose ion-implanted (001) Si,” J. Appl. Phys., vol. 71, p. 653, 1992.

J. Y. Tsai, private communication.

S . S. Lau, Z. L. Liau, and M. A. Nicolet, “Solid state epitaxy in silicide forming systems,’’ Thin Solid Films, vol. 47, p. 313, 1977. T. P. Nolan, R. Sinclair, and R. Beyers, “Modeling of agglomeration in polycrystalline thin films: Application to TiSi, on a silicon substrate,” J . Appl. Phys., vol. 71, p. 720, 1992.

K. Shenai, “Thermal stability of TiSi, films on single crystal and polycrystalline silicon,” J . Mater. Res., vol. 6 , p. 1502, 1991.

H. Ishiwara, K. Hikosaka, and S. Furukawa, “Channeling and backscattering studies of the crystalline perfection and the thermal stability of epitaxial PtSi films on Si,” J . Appl. Phys., vol. 50, p. 5302,

1979.

S . L. Hsia, T . Y. Ten, P. Smith, and G. E. McGuire, “Formation of epitaxial CoSi, films on (001) silicon using Ti-Co alloy and bimetal source materials,” J. Appl. Phys., vol. 70, p. 7579, 1991. W. Lur and L. J. Chen, “Interfacial reactions of cobalt thin films on BF: ion-implanted (001) silicon,” J . Appl. Phys., vol. 64, p. 3505,

1988.

W. Lur and L. J . Chen, “Interfacial reactions of titanium thin films on BF:-implanted (001) Si,” J. Appl. Phys., vol. 66, p. 3604, 1989. p. 447.

(10)

TSUI P I al.: FLUORINE INCORPORATION FOR THERMAL STABILITY OF PtSi/Si STRUCTURE 63

Bing-Yue Tsui (S’87) was born in Chiayi, Tai- Tzung-Shien W u was born in Taipei, Taiwan. on wan. in 1963. He received the B.S.. M.S.. and April 26, 1966. He received the B.S.E.E. degree Ph.D. degrees from the National Chiao-Tung from Tatung Institute of Technology, Taipei. Tai- University. Hsinchu. Taiwan. in 1985, 1987 and wan, in 1988. and the M.S.E.E. degree from Na- 1992, respectively. all in electrical engineering. tional Chiao-Tung University, Hsinchu. Taiwan.

During his graduate study, he has been inter- in 1990.

ested in the study of metal silicides relevant to I n 1990, he joined the United Microelectronics V I 2 3 application and electron devices physics,

’/

Corporation, Process Development Division, characterization. and reliability study. He will join Hsinchu, Taiwan, as n process integration engi- ERSO. ITRl in Hsinchu. Taiwan in October. 1992 * neer. Since then he has heen engaged in research to work on submicrometer process integration.

Dr. Tsui is a member of Phi Tau Phi. nology .

working toward the Ph application.

Jiunn-Yann Tsai (S’89) was born in Taichung, Taiwan, in 1965. He received the B.S. and M.S. degrees from National Chiao-Tung University, Hsinchu, Taiwan, in 1987 and 1989, respectively, both in electronic engineering.

From 1986 to 1987, he worked on the radiation damage of e-beam metallization system to the MOS devices; from 1987 to 1989, his work was focused on the platinum silicide and shallow junction formation. He is presently a graduate student at North Carolina State University, Raleigh, .D. degree on metal silicide study relevant to VLSI

and development of submicrometer SRAM tech-

Mao-Chieh Chen was born in Tainan Hsien, Tai- wan, in 1939. He received the B.S.(EE) degree from the National Taiwan University, Taipei, Taiwan, in 1961, the M.S.(EE) degree from the National Chiao-Tung University, Hsinchu, Tai- wan, in 1963, and the Ph.D.(EE) degree from Carnegie-Mellon University, Pittsburgh, PA, in

1969.

In 1969, he joined the General Motors Research Labs, Warren, MI, where his work was concerned with research and development of semiconductor devices. In 1973, he was appointed professor at the Department of Material Science and Engineering, National Tsing Hua University, Hsinchu, Tai- wan. In 1974, he joined the faculty of the National Chiao-Tung University as a professor in the Department of Electronics Engineering. He is presently interested in studies of CVD tungsten and CVD copper as well as metal silicides relevant to VLSI application. In addition, he has served as a Visiting Scientist to IBM T. J . Watson Research Center, Yorktown Heights, NY, (1977-1978). and the Microelectronic Center of North Car- olina, Research Triangle Park (1985-1986).
