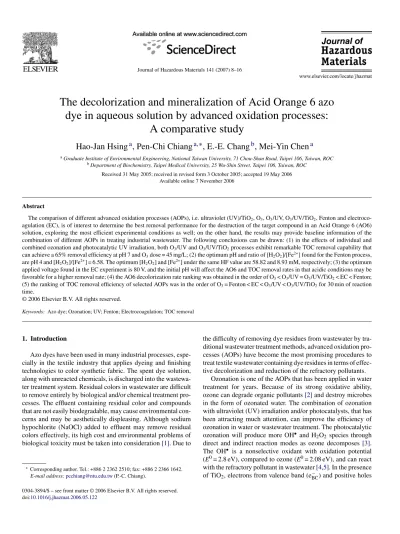

The decolorization and mineralization of Acid Orange 6 azo
dye in aqueous solution by advanced oxidation processes:
A comparative study
Hao-Jan Hsing
a, Pen-Chi Chiang
a,∗, E.-E. Chang
b, Mei-Yin Chen
a aGraduate Institute of Environmental Engineering, National Taiwan University, 71 Chou-Shan Road, Taipei 106, Taiwan, ROCbDepartment of Biochemistry, Taipei Medical University, 25 Wu-Shin Street, Taipei 106, Taiwan, ROC Received 31 May 2005; received in revised form 3 October 2005; accepted 19 May 2006
Available online 7 November 2006
Abstract
The comparison of different advanced oxidation processes (AOPs), i.e. ultraviolet (UV)/TiO2, O3, O3/UV, O3/UV/TiO2, Fenton and electroco-agulation (EC), is of interest to determine the best removal performance for the destruction of the target compound in an Acid Orange 6 (AO6) solution, exploring the most efficient experimental conditions as well; on the other hand, the results may provide baseline information of the combination of different AOPs in treating industrial wastewater. The following conclusions can be drawn: (1) in the effects of individual and combined ozonation and photocatalytic UV irradiation, both O3/UV and O3/UV/TiO2processes exhibit remarkable TOC removal capability that can achieve a 65% removal efficiency at pH 7 and O3dose = 45 mg/L; (2) the optimum pH and ratio of [H2O2]/[Fe2+] found for the Fenton process, are pH 4 and [H2O2]/[Fe2+] = 6.58. The optimum [H2O2] and [Fe2+] under the same HF value are 58.82 and 8.93 mM, respectively; (3) the optimum applied voltage found in the EC experiment is 80 V, and the initial pH will affect the AO6 and TOC removal rates in that acidic conditions may be favorable for a higher removal rate; (4) the AO6 decolorization rate ranking was obtained in the order of O3< O3/UV = O3/UV/TiO2< EC < Fenton; (5) the ranking of TOC removal efficiency of selected AOPs was in the order of O3= Fenton < EC < O3/UV < O3/UV/TiO2for 30 min of reaction time.
© 2006 Elsevier B.V. All rights reserved.
Keywords: Azo dye; Ozonation; UV; Fenton; Electrocoagulation; TOC removal
1. Introduction
Azo dyes have been used in many industrial processes, espe-cially in the textile industry that applies dyeing and finishing technologies to color synthetic fabric. The spent dye solution, along with unreacted chemicals, is discharged into the wastewa-ter treatment system. Residual colors in wastewawastewa-ter are difficult to remove entirely by biological and/or chemical treatment pro-cesses. The effluent containing residual color and compounds that are not easily biodegradable, may cause environmental con-cerns and may be aesthetically displeasing. Although sodium hypochlorite (NaOCl) added to effluent may remove residual colors effectively, its high cost and environmental problems of biological toxicity must be taken into consideration[1]. Due to
∗Corresponding author. Tel.: +886 2 2362 2510; fax: +886 2 2366 1642.
E-mail address:pcchiang@ntu.edu.tw(P.-C. Chiang).
the difficulty of removing dye residues from wastewater by tra-ditional wastewater treatment methods, advanced oxidation pro-cesses (AOPs) have become the most promising procedures to treat textile wastewater containing dye residues in terms of effec-tive decolorization and reduction of the refractory pollutants.
Ozonation is one of the AOPs that has been applied in water treatment for years. Because of its strong oxidative ability, ozone can degrade organic pollutants[2]and destroy microbes in the form of ozonated water. The combination of ozonation with ultraviolet (UV) irradiation and/or photocatalysts, that has been attracting much attention, can improve the efficiency of ozonation in water or wastewater treatment. The photocatalytic ozonation will produce more OH• and H2O2species through
direct and indirect reaction modes as ozone decomposes[3]. The OH• is a nonselective oxidant with oxidation potential (E0= 2.8 eV), compared to ozone (E0= 2.08 eV), and can react
with the refractory pollutant in wastewater[4,5]. In the presence of TiO2, electrons from valence band (e−BC) and positive holes 0304-3894/$ – see front matter © 2006 Elsevier B.V. All rights reserved.
(h+BC) are produced simultaneously under the stimulation of UV irradiation and the following reactions are proposed to occur[6]:
TiO2+ hν → hBV++ eBC− (1)
O3+ eBC−→ O3•− (2)
O3+ O2•−→ O3•−+ O2 (3)
O3•−+ H+→ HO3•−→ O2+ OH• (4)
The Fenton reaction is one popular AOP method in decol-orization that combines Fe2+and H2O2with production of OH•,
and is also one of the more practical industrial applications demonstrated in recent years[7]. The Fenton reaction is based on the formation of OH•, a nonspecific oxidant with a high E0value that can degrade pollutants efficiently. A typical OH•formation is shown below:
H2O2+ Fe2+→ Fe3++ OH−+ OH• (5)
Decolorization occurs mainly through the reaction of OH• with dyestuff[8]. The Fenton processes can remove the residual color and 85% of chemical oxygen demand (COD) from textile wastewater within 20–40 min of reaction time[1].
Electrocoagulation (EC) has been developed in recent years and employs the electrochemical reaction to produce metal ions at the anode, causing the metal ions to immediately undergo fur-ther spontaneous reactions to produce corresponding hydroxides and/or polyhydroxides at the cathode[9]. It also generates hydro-gen gas as metal anode dissolution. Gas bubbles formed in the cathode, capture suspended solids, and thus removes pollutants by sedimentation or floatation. EC has been studied in textile wastewater treatment and showed almost 100% decolorization and 70–90% of COD removal in a previous report[10].
The objective of this study was to evaluate the performance of six AOPs, i.e. UV/TiO2, O3, O3/UV, O3/UV/TiO2, Fenton
and EC, in terms of decolorization and mineralization properties when treating an azo dye, Acid Orange 6 (AO6), and to explore the most efficient experimental conditions as well. The results may serve as a reference for further discussion of economic comparison amongst those AOPs.
2. Materials and methods
2.1. Material
The chemical structure of AO6 is shown inFig. 1and was used without further purification, with a molecular weight and purity of 316 g/mol and 65%, respectively. The AO6 stock solu-tion was prepared and the concentrasolu-tion (CA0) was 0.2 g/L, the
Fig. 1. Molecular structure of Acid Orange 6 (AO6). Molecular formula, C12H9O5N2SNa; molecular weight, 316 g/mol; color index, 14,270.
initial values of pH, COD (COD0) and TOC (TOC0) were about
6.8, 169 mg/L and 54 mg/L, respectively. The chemicals for TiO2
(anatase, 99.9+% pure) immobilization, pH adjustment and TOC analysis in this study were purchased from Aldrich.
2.2. The ozone reactor
All ozonation experiments were performed in an airtight reac-tor with an effective volume of 5.5 L, that was equipped with a water jacket to maintain a constant solution temperature. The operational volume in this study was 4.0 L. Ozone was generated from pure oxygen in an ozone generator (Model SG-01A, Sumit-omo, Tokyo, Japan) at a feed rate of 120 L/h through a cylindrical gas distributor that was located at the bottom of the reactor, the maximum ozone production is 104 g/N m3. The light source used was a low pressure mercury vapor UV lamp (AquaPro, USA) and housed with a quartz glass tube. The UV lamp emitted its maximum radiation at 254 nm, and the irradiation intensity was measured by a digital radiometer (UVX, USA). The TiO2
immo-bilization was done according to the method reported previously [11]and was coated on the inner surface of a glass tube that was vertically cut in half, and was attached on the inner wall of the reactor. Before starting the semi-batch experiment, ozone con-taining gas was directed to an ozone monitor (Model 1008-HC, Dasibi, CA, USA), which was previously calibrated with the KI solution and the concentration measured. Excessive ozone gas was destroyed before venting into the air.
2.3. Fenton
The Fenton process serves both oxidation and coagulation functions in this study. H2O2(Aldrich, 30%) and Fe2+were the
major reactants in the oxidation step, and were added to the AO6 solution. The solution was mixed rapidly for 60 min. The pH for all solution used in this experiment was adjusted by adding HCl and NaOH, controlling it at desired levels.
2.4. Electrocoagulation
The reactor for the EC experiments was designed and the flow diagram is illustrated inFig. 2. The EC reactor was composed of parallel and horizontal iron plates with an operational volume of 1.0 L. Solution was fed from one side of the case, so that the solution could pass between all spaces between the plates. The regulated direct current (dc) power supplier (Yang Tong, Taiwan) was connected to the top and bottom iron plates that served as cathode and anode. Such a design has been considered an effective EC reactor in treating high concentration of wastewater [9]. The applied voltage used in this study ranges between 0 and 170 V, and the maximum current intensity is 5 A.
2.5. Experimental procedure 2.5.1. Ozonation
The AO6 stock solution was prepared prior to all ozona-tion experiments, and the pH of the AO6 soluozona-tion was adjusted to the desired value by adding phosphorous buffering
solu-Fig. 2. Flow diagram of EC reactor with short horizontal parallel plate elec-trodes. Components: (1) solution inlet, (2) electrode, (3) treated solution outlet and (4) dc power supplier.
tion (Aldrich). The experimental conditions were divided into three systems: O3only, O3/UV and O3/UV/TiO2at 25◦C. The
inlet ozone gas concentrations (CB0) were set at 36, 45, 60 and
80 mg/L for O3alone, 0, 45 and 60 mg/L for O3/UV experiments
and 45 mg/L for O3/UV/TiO2experiments. For the experiments
of O3/UV and O3/UV/TiO2, mercury lamps emitted 98% of
its total irradiation at 254 nm, UV light intensity used in this experiment was measured as 30 W/m2. For the TiO2
photocat-alytic experiment, TiO2 was pre-coated on the vertically cut
glass tubes that were inserted into the reactor before conducting the experiments.
Liquid samples were withdrawn from the reactor at desired time intervals in the course of the experiments to analyze their properties. The residual dissolved ozone in the samples was removed by stripping with nitrogen. According to the test results, the residual dissolved ozone with the initial value of 5 mg/L could be stripped by nitrogen with more than 98% (below 0.1 mg/L) within 30 s and complete removal within 60 s from the solution, as determined by the indigo method[12]with a detec-tion limit of 0.01 mg/L. The sample volume and nitrogen flow rate were 20 mL and 0.0167 L/s, respectively. For the ozonation regime with negligible residual dissolved ozone, the sampling time interval did not affect the measurements of absorbance and the TOC of solution. For the ozonation regime with significant residual dissolved ozone, the sampling time interval had to be longer, say 10 min, in order to reduce the lag effect of nitrogen stripping. For the sampling time interval of 10 min, the lag effect of quenching the ozonation reaction on the experimental results is less than 5% (estimated by noting that 30 s/10 min is about 5%) and may be tolerable.
2.5.2. Fenton
The Fenton experiments were carried out in a stirred batch reactor and the temperature was controlled at 25◦C. The stock
solution was adjusted to the desired pH value by adding HCl and NaOH. [H2O2] and [Fe2+] solutions were prepared from H2O2
and FeSO4that were added to stock solution at desired molar
ratios. Due to the fast reaction, sampling interval was 1 min per sample taken at the first 10 min. After that, a sampling time interval of 10 min was set.
2.5.3. Electrocoagulation
The stock solution was adjusted to the desired pH (4.5, 7 and 10) by adding HCl and NaOH and pumped upward through the serpentine channel between the iron plates at a feed rate of 0.9 L/min, and the effluent was flowed to the storage of stock solution (capacity = 4.0 L). The current density and conductivity were set as 86.6 A/m2and 200S/cm, respectively. The samples were collected at 5 and 10 min intervals from storage.
2.6. Analytical measurements
A UV–vis detector (Model Cintra 20, GBC Scientific Equip-ment, Australia) was used to examine visible wavelength from 400 to 700 nm. The integrated absorbance unit (IAU) was then used to determine the sample color[13]. The TOC concentration was measured by a TOC analyzer (Model 1010, O.I. Corporate, USA) that utilized the UV-persulfate technique to convert the organic carbon for the subsequent analysis by an infrared car-bon dioxide analyzer calibrated with the potassium hydrogen phthalate standard.
3. Results and discussion
3.1. Ozonation of AO6 solution
The results of conventional parameters of ozonated AO6 solution are shown inTable 1. The pH decreased during ozona-tion from 6.8 to about 4.0 whereas the conductivity increased from 211 to 278S/cm due to the formation of inorganic acid anions, that could be monitored by the accumulation of nitrate and sulfate in solution. By measuring the characteristic wave-length at 490 nm, AO6 was removed entirely within 40 min under CB0= 45 mg/L. The results of absorbance of the ozonated
AO6 solution at the wavelength of 254 nm were recorded and appeared to decrease as ozonation time increased, suggesting that the aromatic structure and/or double bonds were dimin-ished. Measuring the reduction ratios of COD (COD/COD0)
and TOC (TOC/TOC0) under the same reaction time of
ozona-tion, 45 and 35% of COD and TOC reduction were obtained. It indicated that the oxidation ability of ozone was not adequate to oxidize all organic carbons into carbon dioxide. Therefore, the smaller organic compounds might be produced along with the oxidation of the target compound in the solution, and these were more resistant to ozonation. The TOC/TOC0ratios might well
represent the status of organic carbon in the solution, but that could not represent the total TOC concentration due to some volatile organic vapors (i.e. formaldehyde and acetaldehyde) generated and emitted with off-gas that were not measured in this study. An existing initial sulfate concentration was noted that was caused by the chemical used to synthesize the AO6 azo
Table 1
Conventional parameters during the ozonation of the AO6 solution
Time (min) pH Conductivity (S/cm) A/A0(%) UV/UV0(%) COD/COD0(%) TOC/TOC0(%) Sulfate (mg/L) Nitrate (mg/L)
0 6.81 211 100.00 100.00 100.00 100.00 13.85 0 10 6.70 223 29.09 76.93 82.45 90.83 14.62 0.39 20 6.27 232 9.52 51.74 73.12 88.59 26.98 1.22 30 5.83 239 5.95 35.00 66.11 82.18 34.87 1.16 40 4.82 245 0.81 25.04 59.98 82.03 42.51 1.90 50 4.26 258 0 16.94 55.59 80.78 47.28 2.29 60 3.98 278 0 12.64 55.30 74.72 50.68 2.62
Experiment condition: CA0= 0.2 g/L, CB0= 45 mg/L, operational volume = 4 L and 25◦C.
dye. The net production amount after 60 min of ozonation was 50.7 mg/L. Oxidation and cleavage of the sulfonic acid groups of AO6 resulted in the increment of sulfate. The theoretical sul-fate concentration should have been 53.3 mg/L based on the prescription of CA0= 0.2 g/L and 65% of purity, indicating that
a small difference exist between the theoretical and the experi-mental result. It might suggest that some sulfate was not totally released from the ozonated by-products. With regard to nitrate production, an increment in the concentration appeared slowly as ozonation time increased, from none to 2.62 mg/L. Bearing the chemical structure in mind, the nitrate came from the cleav-age of azo and derivative amino groups those might contribute to the formation of nitrate as well as nitrite and gaseous nitrogen compounds[14].
3.2. The effect of ozone concentration, UV irradiation and TiO2photocatalyst on the degradation of AO6 and TOC
removal
The effects of CB0on AO6 reduction was significant and
fol-lowed a pseudo-first order reaction, as shown inFig. 3, indicating that the degradation was promoted as the magnitude of CB0
increased. As for the conditions of CB0= 60 and 80 mg/L, the
required time for total AO6 decolorization was shortened, com-pared with that of CB0= 36 mg/L, that was about 25 and 50% less
of the required time needed for the conditions of CB0= 36 mg/L.
Fig. 3. Effects of different ozone concentrations on the AO6 decolorization and TOC removal. Symbols for AO6 and TOC removal: ( and 䊉) 36 mg/L; ( and) 45 mg/L; ( and ) 60 mg/L; ( and ) 80 mg/L.
The TOC reduction was not as quick as that of AO6, its reduc-tion rate (in terms of mg/L min) increasing as CB0increased, as
seen inFig. 3, but the rate of TOC reduction gradually declined, suggesting that intermediate compounds were produced and that they were hard to mineralize.
Fig. 4shows the effect of CB0on the degradation of AO6 and
TOC reduction in the O3/UV processes that is similar to O3. Both
AO6 and TOC reduction were measured and it was found that almost no reduction efficiencies occurred in the process of UV irradiation alone. It suggested that the chemical structure of AO6 could resist the UV irradiation for 60 min. Thus, the process of UV irradiation alone would not be considered in the following discussion. The AO6 reductions were almost completed within 30 min under O3/UV processes, as seen inFig. 4. For the TOC
reduction, it revealed that the reduction efficiency was promoted by the combination of ozonation with UV irradiation, as seen in Fig. 4, and the TOC would be totally removed under the prolonged O3/UV process time[15]. That result clearly
indi-cated that the contribution of UV irradiation on catalyzing O3
to produce free radicals was remarkable in removing ozonation by-products.
Fig. 5shows the comparisons between UV, UV/TiO2, O3/UV,
O3/UV/TiO2 and O3 in AO6 and TOC reduction under the
following experimental conditions: O3= 45 mg/L and UV
inten-sity = 30 W/m2. The processes of UV and UV/TiO2could neither
reduce AO6 nor TOC effectively within the experimental time due to the inadequate oxidation ability of both processes. The
Fig. 4. Effects of ozone concentrations on the AO6 decolorization and TOC removal by O3/UV processes. Symbols for AO6 and TOC removal: ( and 䊉) 0 mg/L; ( and ) 30 mg/L; ( and ) 45 mg/L; ( and ) 60 mg/L.
Fig. 5. Effects of photocatalytic ozonation on the AO6 decolorization and TOC removal by UV ( and 䊉); UV/TiO2( and ); O3/UV ( and ); O3/UV/TiO2 ( and ); O3(♦ and ).
O3/UV/TiO2performed the quickest AO6 reduction rate
con-stant, 0.236 min−1, and the rate constants for O3 and O3/UV
were 0.137 and 0.218 min−1, respectively. The rate constants are summarized inTable 2. For TOC removal, a similar perfor-mance was observed and the TOC reduction rate constant for O3/UV/TiO2was 0.034 min−1, which is 1.7 times of that of the
rate constant of O3 and 1.2 times that of O3/UV process. As
seen inTable 2, it can be noted that the rate constants ratios for O3/UV/TiO2((rate constant of O3/UV/TiO2)/(rate constant
of O3)) and O3/UV ((rate constant of O3/UV)/(rate constant
of O3)) of AO6 decolorization are similar to TOC reduction,
suggesting that the presence of UV irradiation and/or photo-catalyst can significantly promote the oxidation reaction, and the contribution to AO6 decolorization and TOC removal are remarkable. It can thus be concluded clearly from Fig. 5that the AO6 and TOC reduction efficiencies were in the order of UV < UV/TiO2< O3< O3/UV < O3/UV/TiO2.
3.3. The Fenton process 3.3.1. Effect of pH
The Fenton experiments in this study can be divided into two stages, one is to find the optimum pH for maximum degrada-tion; the other is to apply the optimum pH and explore the effects of different ratios of Fe2+to [H2O2] on AO6 degradation. It is
known that the Fenton reaction includes the interactions among various inorganic species, i.e. OH•, HO2•, O2−, H2O2, Fe2+
and Fe3+, as suggested in a previous study[17], suggesting the
pH value would affect the amount of OH•generation, and the preferable condition for OH•generation was under acidic
con-Table 2
The AO6 decolorization and TOC removal rate constants of O3, O3/UV and O3/UV/TiO2
O3 O3/UV O3/UV/TiO2
AO6 0.137 0.218 0.236
TOC 0.020 0.028 0.034
Unit: min−1.
Fig. 6. Effects of pH on the AO6 decolorization () and TOC removal (䊉) dur-ing Fenton treatment. Reaction time = 10 min, CA0= 0.2 g/L, [H2O2] = 29.4 mM H2O2, [Fe2+] = 4.5 mM Fe(II).
ditions. Thus, an optimum pH for maximum degradation of the aqueous AO6 dye solutions was studied and reactions were car-ried out at different pH values in the range of 2–7 by adding H2SO4or NaOH to adjust the pH value.Fig. 6represents the
ratios of AO6 decolorization (denoted as 1− (A/A0)) and TOC
removal (denoted as 1− (TOC/TOC0)) at different pH values
of 2, 2.5, 3, 4 and 7, i.e. under acidic and neutral conditions. The results show that the ratios of AO6 decolorization and TOC removal decreased as pH value increased, and the optimum pH for AO6 was found to be pH 3, a result found to be similar to others found in literature[8,17]. Increasing the pH from 3 to 7, the AO6 decolorization ratio decreases from 0.97 to 0.9 and TOC removal ratio decreases from 0.45 to 0.29 sharply. As pH decreases from 3 to 2, the AO6 decolorization ratio decreases slightly, from 0.97 to 0.94, and TOC removal ratio decreases from 0.45 to 0.34. Furthermore, Fe3+complex precipitation was formed that can explain the low activity as pH value increases [18,19]. In these pH tests, the decrease in AO6 decolorization and TOC removal is due to the reaction of Fe2+and OH•that forms Fe3+[16]. Because of the scavenging effect of H+at low pH conditions, the removal rates were limited so that H+would react with OH•and formed H2O[20].
3.3.2. The effect of H2O2and ferrous ion dosages
Effect of the different ratios of [H2O2] to [Fe2+] on AO6
degradation and TOC removal were evaluated and performed under pH 3 conditions, as shown inFig. 7a and b. The results obtained for AO6 and TOC reduction as a function of the ini-tial molar concentration ratio of H2O2/Fe2+(mM/mM, denoted
as HF) are presented. Under [Fe2+] = 8.93 mM, the results show that the maximum AO6 and TOC reduction could teach 0.97 and 0.45 by applying six hydrogen peroxide concentrations, of which HFs = 0.82, 1.65, 3.29, 4.95, 6.58, 8.25, to the dye solution. The optimum HF was 6.58 that represented the [H2O2] to [Fe2+]
molar ratio as 58.82 mM (H2O2) to 8.93 mM (Fe2+), suggesting
that HF = 6.58 might serve as the optimum molar ratio in treating AO6 solution. Some studies related to the optimum molar ratio for the Fenton system had been proposed in treating chlorinated
Fig. 7. Effects of H2O2 to Fe2+ratios (HF) on: (a) AO6 decolorization and (b) TOC removal. Symbols: () HF = 0.82; () HF = 1.65; () HF = 3.29; () HF = 4.95; (♦) HF = 6.58; (+) HF = 8.25.
aliphatic organic pollutants[21]and cork-processing wastew-ater[22]which were 5–11 and 10, respectively. As expected, the applied H2O2 dosage was the controlling factor of AO6
decolorization and TOC removal, which were consumed in the early stage of the reaction. The H2O2 dosage was increased
from 14.7 to 58.82 mM, the AO6 decolorization ratio increased from 0.73 to 0.96 at 5 min of reaction time, indicating that the increase of AO6 decolorization ratio was due to the increase
Fig. 8. Effects of initial molar concentration ratio of H2O2:Fe2+(mM:mM) under HF = 6.58 on the (a) AO6 decolorization and (b) TOC removal. Sym-bols: () H2O2:Fe2+= 2.94:0.45; () H2O2:Fe2+= 14.7:2.23; () H2O2:Fe2+= 29.41:4.46; () H2O2:Fe2+= 44.11:6.70; (♦) H2O2:Fe2+= 58.82:8.93; (+) H2O2:Fe2+= 73.53:11.16; ( ) H2O2:Fe2+= 88.24:13.39.
in OH•concentration through the addition of H2O2, as seen in
Fig. 8. Further addition of H2O2> 73.53 mM would inhibit the
AO6 decolorization and TOC removal, that ratios are listed in Table 3. The inhibition under H2O2higher dosage in the
decol-orization may due to the OH•scavenging effect of H2O2[23]
and recombination of hydroxyl radicals[24].
Table 3
The AO6 and TOC reduction ratio under various HFs at 60 min
[H2O2] (mM) [Fe2+] (mM) HF (mM/mM) AO6 reduction (A/A0) TOC reduction (TOC/TOC0)
14.70 17.85 0.82 0.265 0.857 14.70 8.93 1.65 0.140 0.830 29.41 8.93 3.29 0.050 0.636 44.12 8.93 4.95 0.040 0.606 58.82 8.93 6.58 0.037 0.579 73.53 8.93 8.25 0.037 0.628 2.94 0.45 6.58 0.852 0.950 14.7 2.23 6.58 0.074 0.764 29.41 4.46 6.58 0.032 0.652 44.11 6.70 6.58 0.033 0.586 58.82 8.93 6.58 0.037 0.579 73.53 11.16 6.58 0.058 0.598 88.24 13.39 6.58 0.059 0.598
Under the same HF, the increase of [H2O2] from 2.94
to 29.41 mM decreased the C/C0 value from 0.852 to 0.032
and 0.95 to 0.652 for TOC/TOC0. Further addition of [H2O2]
from 29.41 to 88.24 mM and [Fe2+] from 4.46 to 13.39 mM, did not improve the AO6 decolorization ratios; the TOC removal ratios were slightly enhanced from 0.35 to 0.42 as [H2O2]/[Fe2+] = 58.82/8.93 (mM/mM), and then, the removal
ratio did not improve as both [H2O2] and [Fe2+] increased with
the same HF. Thus, the optimum initial molar concentration of [H2O2] and [Fe2+] in treating AO6 solution (CA0= 0.2 g/L) can
be concluded as [H2O2] = 58.82 mM and [Fe2+] = 8.93 mM.
3.4. Electrocoagulation process
The experiments using the EC process in this study were intended to explore the effects of applied voltages and pH on AO6 decolorization and TOC removal. The EC process includes three reactions: electrolytic reactions, coagulant formation, and removal of the coagulation of the pollutant with coagulant by floatation or sedimentation[25].
The effect of pH was investigated and carried out at pH 4.5, 7 and 10 with CA0= 0.2 g/L. The current density and conductivity
were maintained at 86.6 A/m2and 200S/cm, respectively. The pH of the effluent was affected by the applied voltages, and a pH increase occurred when the solution pH was low, but the pH would decrease if the solution pH was above 9 with 5 min of reaction time, indicating that the EC and flotation process can act as a pH neutralizer during the oxidation reaction (Fig. 9). From Fig. 9, the pH of effluents reached a steady state in the range of 9–10, at applied voltage larger than 80 V, suggesting that applied voltage might serve as criteria in neutralizing the AO6 solution.
Fig. 10 demonstrates the AO6 decolorization and TOC removal as a function of the solution pH, suggesting that better AO6 decolorization and TOC removal can be achieved under acidic influent conditions within 5 min of reaction time. The decolorization rate of AO6 decreased from 0.97 to 0.42 and TOC decreased from 0.23 to 0.13 as initial pH increased from 4.5 to 10, but the pH of effluents were not so significant in
Fig. 9. The effect of applied voltage on the effluent pH. Symbols: () pH 4.5; () pH 7; () pH 10.
Fig. 10. The effect of initial pH on the (a) AO6 decolorization and (b) TOC removal. Symbols for AO6 and TOC removal: ( and 䊉) pH = 4.5; ( and ) pH = 7; ( and ) pH = 10.
the range of 9–10. This indicates that dye solution under low initial pH conditions might be favorable for target compound and TOC removal. Furthermore, the applied voltage also acts as an important factor in the EC process, in that the AO6
decol-Fig. 11. Effect of various methods on: (a) AO6 decolorization and (b) TOC removal by O3(), O3/UV (), O3/UV/TiO2(), EC () and Fenton (♦). Experimental condition: O3= 45 mg/L; UV intensity = 30 W/m2; TiO2coated plates; pH 7 for O3, O3/UV and O3/UV/TiO2, pH 3 for Fenton process, pH 3 for EC process; [H2O2] = 58.82 mM and [Fe2+] = 8.93 mM; applied voltage = 80 V;
orization and TOC removal are enhanced as applied voltage is increased.
3.5. The AOPs performance on the removing of AO6 and TOC
The AO6 decolorization and TOC removal efficiency results of selected AOP methods are illustrated in Fig. 11a and b. It was noted that the EC and Fenton processes were more effective in AO6 decolorization, in that both could remove AO6 within 10 min, compared to photocatalytic ozonation processes. The AO6 decolorization rate was in the order of O3< O3/UV = O3/UV/TiO2< EC < Fenton, as seen inFig. 11a.
The rank of TOC removal rate for 30 min of reaction time was in the order of O3= Fenton < EC < O3/UV < O3/UV/TiO2,
indicating that photocatalytic ozonation processes performed better in mineralization, as inFig. 11b. As seen inFig. 11b, the TOC removal for EC and Fenton processes was not sig-nificant after 10 min of reaction time. A longer reaction time, say 30 min, might not improve mineralization efficiency. It suggested that the EC and Fenton processes were suitable for the decolorization of industrial wastewater rather than for mineralization.
4. Conclusions
The comparison of different AOPs is, on the one hand, of interest to determine the best removal performance and the most efficient experimental conditions for the destruction of target compound in dye solution, and, on the other hand, to provide useful information for the baseline of the combination of dif-ferent AOPs in treating industrial wastewater. The following conclusions can be drawn from the experimental work: • Photocatalytic ozonation exhibits remarkable TOC removal
efficiency, in that both O3/UV and O3/UV/TiO2processes can
achieve 65% of removal efficiency at pH 7 and CB0= 45 mg/L.
The removal efficiencies are enhanced with an increase in O3
dose.
• The optimum pH and the ratio of [H2O2]/[Fe2+] found for
the Fenton process, were pH 4 and [H2O2]/[Fe2+] = 6.58. The
optimum [H2O2] and [Fe2+] under the same HF value, were
58.82 and 8.93 mM, respectively.
• The optimum applied voltage for the EC experiment is 80 V. The initial pH will affect the rates of AO6 decolorization and TOC removal, in that acidic conditions may be favorable for higher removal rate.
• Among the investigated AOPs in this study, the quickest AO6 decolorization rate was obtained by Fenton process. The ranking was in the order of UV = UV/TiO2< O3< O3/UV =
O3/UV/TiO2< EC < Fenton. Further, the performance
of selected AOPs on TOC removal was in the order of UV < UV/TiO2< O3= Fenton < EC < O3/UV < O3/UV/TiO2.
Since the O3 treatment is not merely based on the OH•
concentration due to a smaller E0 value (=2.08 V), TOC removal rate for ozonation only is lower than other AOPs after 30 min of reaction time.
Acknowledgement
The support of this project by the National Science Council (Project No. NSC 91-2211-E-002-024) of Executive Yuan, ROC, is gratefully acknowledged.
References
[1] S.F. Kang, H.M. Chang, Coagulation of textile secondary effluents with Fenton’s reagent, Wat. Sci. Technol. 36 (1997) 215–222.
[2] P.C. Chiang, Y.W. Ko, C.H. Liang, E.E. Chang, Modeling an ozone bub-ble column for predicting its disinfection efficiency and control of DBP formation, Chemosphere 39 (1999) 55–70.
[3] G.R. Peyton, W.H. Glaze, Destruction of pollutants in water with ozone in combination with ultraviolet radiation. 3. Photolysis of aqueous ozone, Env. Sci. Technol. 22 (1988) 761–767.
[4] L. Li, W. Zhu, P. Zhang, Z. Chen, W. Han, Photocatalytic oxidation and ozonation of catechol over carbon-black-modified nano-TiO2 thin films supported on Al sheet, Wat. Res. 37 (2003) 3646–3651.
[5] C. Tang, V. Chen, The photocatalytic degradation of Reactive Black 5 using TiO2/UV in an annular photoreactor, Wat. Res. 38 (2004) 2775– 2781.
[6] P. Pichat, L. Cermenati, A. Albini, D. Mas, H. Delprat, C. Guillard, Degra-dation processes of organic compounds over UV-irradiated TiO2•effect of ozone, Res. Chem. Intermed. 26 (2000) 161–170.
[7] S. Meric¸, N. Kaptan, T. ¨Olmez, Color and COD removal from wastewater containing Reactive Black 5 using Fenton’s oxidation process, Chemo-sphere 54 (2004) 435–441.
[8] S.-F. Kang, C.-H. Liaob, M.-C. Chen, Pre-oxidation and coagulation of textile wastewater by the Fenton process, Chemosphere 46 (2002) 923– 928.
[9] M.Y.A. Mollah, P. Morkovsky, J.A.G. Gomes, M. Kesmez, J. Parga, D.L. Cockec, Fundamentals, present and future perspectives of electrocoagula-tion, J. Hazard. Mater. B114 (2004) 199–210.
[10] G. Ciardelli, N. Ranieri, The treatment and reuse of wastewater in the textile industry by means of ozonation and electroflocculation, Wat. Res. 35 (2001) 567–572.
[11] K. Tanaka, K. Abe, T. Hisanaga, Photocatalytic water treatment on immo-bilized TiO2with ozonation, J. Photchem. Photobiol. A 101 (1996) 85– 87.
[12] APHA, Standard Methods for The Examination of Water and Wastewater, 19th ed., American Public Health Association, Washington, DC, 1995. [13] J. Wu, T. Wang, Ozonation of aqueous azo dye in a semi-batch reactor,
Wat. Res. 35 (2001) 1093–1099.
[14] L. Oliviero, J. Barbier, D. Duprez, Wet air oxidation of nitrogen-containing organic compounds and ammonia in aqueous media, Appl. Catal. B 40 (2003) 163–184.
[15] Y.H. Chen, C.Y. Chang, S.F. Huang, C.Y. Chiu, D. Ji, N.C. Shang, Y.H. Yu, P.C. Chiang, Y. Ku, J.N. Chen, Decomposition of 2-naphthalenesulfonate in aqueous solution by ozonation with UV radiation, Wat. Res. 36 (2002) 4144–4154.
[16] M. Neamtu, A. Yediler, I. Siminiceanu, A. Kettrup, Oxidation of commer-cial reactive azo dye aqueous solutions by the photo-Fenton and Fenton-like processes, J. Photchem. Photobiol. A 161 (2003) 87–93.
[17] X.-R. Xu, H.-B. Li, W.-H. Wang, J.-D. Gu, Degradation of dyes in aqueous solutions by the Fenton process, Chemosphere 57 (2004) 595–600. [18] -M.J. Lee, M.-S. Kim, B. Hwang, W. Bae, B.-W. Kim, Photodegradation
of Acid Red 114 dissolved using a photo-Fenton process with TiO2, Dyes Pigments 56 (2003) 59–67.
[19] M. P´erez, F. Torrades, X. Dom`enech, J. Peral, Fenton and photo-Fenton oxidation of textile effluents, Wat. Res. 36 (2002) 2703–2710.
[20] J.W.T. Spinks, R.J. Woods, An Introduction to Radiation Chemistry, third ed., John Wiley & Sons, New York, NY, 1990.
[21] W.Z. Tang, C.P. Huang, Stoichiometry of Fenton’s reagent in the oxidation of chlorinated aliphatic organic pollutants, Env. Technol. 18 (1997) 13– 23.
[22] J. Heredia, J.R. Dom´ınguez, R. L´opez, Advanced oxidation of cork-processing wastewater using Fenton’s reagent: kinetics and stoichiometry, J. Chem. Technol. Biotechnol. 79 (2004) 407–412.
[23] M. Muruganandham, M. Swaminathan, Decolourisation of Reactive Orange 4 by Fenton and photo-Fenton oxidation technology, Dyes Pig-ments 63 (2004) 315–321.
[24] C.H. Welling, Fenton’s reagent revisited, Acc. Chem. Res. 8 (1975) 125–131.
[25] O.T. Can, M. Bayramoglu, M. Kobya, Decolorization of Reactive dye solu-tions by electrocoagulation using aluminum electrodes, Ind. Eng. Chem. Res. 42 (2003) 3391–3396.
