E-BEB: Enhanced Binary Exponential Backoff Algorithm for Multi-hop Wireless Ad-hoc Networks

DOI 10.1007/s11277-014-1685-3

E-BEB: Enhanced Binary Exponential Backoff

Algorithm for Multi-hop Wireless Ad-hoc Networks

Published online: 27 March 2014

© Springer Science+Business Media New York 2014

Abstract Binary exponential backoff algorithm is the de-facto medium access control pro-tocol for wireless local area networks, and it has been employed as the standard contention resolution algorithm in multi-hop wireless ad-hoc networks. However, this algorithm does not function well in multi-hop wireless environments due to its several performance issues and technical limitations. In this paper, we propose a simple, efficient, priority provision, and well performed contention resolution algorithm called enhanced binary exponential backoff (E-BEB) algorithm for impartial channel access in multi-hop wireless ad-hoc networks. We also provide a simple and accurate analytical model to study the system saturation throughput of the proposed scheme. Simulations are conducted to evaluate the performance of E-BEB algorithm. The results show that the E-BEB algorithm can alleviate the fairness problem and support multimedia transmission in multi-hop wireless environments.

Keywords MAC· Ad-hoc networks · Fairness problem · BEB · Multi-hop

1 Introduction

Recently, multi-hop wireless ad-hoc network is an emerging field due to its dynamic topol-ogy, better targeting, and convenient usage. For the majority of multi-hop wireless networks, binary exponential backoff (BEB) [1] algorithm has been widely accepted and employed as

H.-H. Chin· C.-C. Lin

Department of Industrial Engineering and Management, National Chiao Tung University, Hsin-chu, Taiwan

e-mail: [email protected] C.-C. Lin

e-mail: [email protected] D.-J. Deng (

B

Department of Computer Science and Information Engineering, National Changhua University of Education, Changhua, Taiwan

Fig. 1 Multi-hop wireless ad-hoc networks

the mandatory medium access control (MAC) protocol to share the wireless channel. How-ever, BEB algorithm is not designed for multi-hop wireless environments and poses several performance issues and technical limitations, such as intensive packet collision probability, unfair channel access, and lack of priority mechanism.

To begin with, BEB algorithm could incur high collision probability in congested environ-ments and this might seriously degrade the overall system performance since BEB algorithm always selects a small initial contention window size due to a naive assumption of light load environments.

Besides, the BEB algorithm might lead to an unfair channel access in multi-hop wireless environments because BEB algorithm always favors the last successfully transmitted node and this could cause starvation problem since some nodes could “grab” the channel. For example, considering the network topology shown in Fig.1, two connections established from node A to node B and from node C to node D respectively. Compare with Node C, Node A will get less chance to access the channel since Node C will “grab” the channel by using a smaller contention window size.

In order to observe the effect of fairness problem in BEB algorithm, we use our custom event-driven C++ simulator to run an experiment in traditional 802.11 multi-hop wireless ad-hoc networks. The result has presented in Fig.2and random topology we used is provided in Fig.3. As pervious works [2–5] has shown, we can find the number of packets blocked is quite unbalanced. This result verified due to the spatial factor and employing BEB algorithm, the IEEE 802.11 MAC protocol may face severe fairness problem which result in the degradation of system throughput. Finally, BEB algorithm does not support priority and there is no other mechanism to guarantee a lower access delay bound for real-time nodes. Hence, multimedia traffic like voice and live video transmission may suffer with this protocol.

Since the wireless network performance is greatly dependent on the adopted MAC proto-col, there have been adequate discussions on the issue on variant BEB algorithms and their performance analysis [6–8].

In Song et al. [9] proposed exponential increase exponential decrease (EIED) algorithm for channel access in wireless local area networks (WLANs). This protocol provides better

Fig. 2 Simulation result

Fig. 3 Topology used in simulation

performance than BEB in dense environments since it double its contention window size after a collision but only halve its contention window size after a successful transmission.

Another approach, linear increase linear decrease (LILD) algorithm which proposed by Bharghavan et al. [10], adopts an even retarded contention window control mechanism than EIED since the size of contention window increases linearly after collision and also decreases linearly after a successful transmission. Hence, LILD can provide a slightly better perfor-mance than EIED in extremely congested but stable wireless environments.

Except EIED and LILD algorithms, in the literatures there also has been a great deal of excellent efforts on enhancing the performance of BEB algorithms [11–13]. In [14] and [15], the authors pointed out that the fairness problem is caused due to unequally channel access among nodes. Hidden or exposed terminal problems are two special cases of fairness problem.

All of the aforementioned schemes did not address the fairness problem and they did not provide any priority mechanisms to support multimedia traffic either. Accordingly, the IEEE 802.11 working group proposed a new MAC protocol to support multimedia traffic in WLANs. They proposed EDCA (enhanced distributed channel access) to enhance the original 802.11 to support applications with QoS requirements. However, EDCA did not take into account the fairness problem.

In [16], the authors also proposed a so called enhanced BEB algorithm to improve the quality-of-service (QoS) on wireless ad-hoc networks. However, our proposed algorithm focuses on the improvement of overall network performance.

Based on the above observations, we proposed a pragmatic backoff algorithm, called enhanced binary exponential backoff (E-BEB) algorithm, to improve the system throughput and impartial channel access in multi-hop wireless ad-hoc networks. E-BEB can mitigate intensive collision among nodes and effectively increase the overall network throughput in congested environments and it can also alleviate the fairness problem in partially connected network topology. Besides, E-BEB includes multi-level priority schemes so that multimedia communication can be supported. Compare with the BEB and other backoff algorithms, E-BEB can provide better system performance over a wider range of channel condition.

An analytical analysis is carried out to study the system saturation throughput of the proposed scheme. In addition, we have carried out comprehensive simulations implemented by a customized simulation program to evaluate the proposed E-BEB algorithm. The results confirm that the E-BEB algorithm not only alleviate the fairness problem in multi-hop wireless environments but also mitigate the intensive packet collision rate in congested scenario.

The remainder of this paper is organized as follows. In Sect.2we describe the proposed B-BEB algorithm and its numerical analysis. Section3provides simulation results. Finally, in Sect.4we conclude this paper.

2 E-BEB Algorithm and its Numerical Analysis

In this section, we describe proposed scheme in detail as an effort to improve the previous schemes. Besides, we also provide the system saturation throughput analysis.

2.1 Proposed Scheme

E-BEB algorithm is similar to the BEB algorithm except we add a variable, persistent proba-bility, to decide whether one should double its contention window size or not after a successful transmission.

At first, E-BEB chooses the value of persistent probability. After the value is determined, corresponding to the start-up phase, the contention window increase exponential after a transmission failure to quickly tune its size according to the current channel status, just like the traditional BEB algorithm. Nevertheless, after a successful transmission, E-BEB algorithm will use the persistent probability to decide whether this node should double its contention window size or not. By using the persistent probability, we can let successful transmitted node releases channel resources and keeps few number of nodes having relatively smaller contention window to reduce collision rate.

Compare with the BEB algorithm, E-BEB provides better performance in terms of lower packet collision probability, shorter average channel access delay, and fair channel access. Please note that the performance of the E-BEB algorithm strongly depends on the parameter of persistent probability. In other words, the value of persistent probability should be

dynam-Algorithm 1 Function E-BEB contention window handler

1: Initialization

2: Contention window size := W0

3: Priority classes Sx:={x1, x2, . . . , xn} 4: Persistent probability :=x 5: Persistent Number := X 6: 7: Repeat 8: x:= ResolvePriority( DateType , Sx) 9: X:=100 · x

10: if ACK frame received then

11: // successful transmission

12: /* RND is a random number between 1 and 100*/ 13: RND:= rand() mod 100 +1

14: if RND< X then

15: /* enlarge contention window after successful transmission */ 16: Contention window size

17: := Contention window size∗2 18: else

19: Contention window size:=W0

20: else

21: // failed transmission

22: if Current backoff window size< Wmthen

23: Contention window size 24: :=Contention window size∗2 25: else

26: Contention window size=Wm

27: until no more frame to transmit 28: end

ically adjusted according the channel status, and a proper choice of the value of persistent probability based on current environment has a great influence on overall system perfor-mance. Based on above reasoning, the proposed scheme also can extend to support priority transmission by setting different persistent probability. The high priority nodes should be given lower value of persistent probability to increase the choice of selecting a small backoff number and vice versa.

The discrete-time Markov chain with two-dimensional parameters of E-BEB is showing in Fig.4and the following pseudo-code describes how the E-BEB enable node to decide its contention window. Besides, the following pseudo-code is a handler performed how E-BEB scheme count down and decide accurate backoff number.

2.2 Saturation Throughput Analysis

In this section, we present an analytical model that accurately evaluates the saturation through-put of proposed scheme. Before we start to present our analysis, important notations and variables are define in Table1, and they will be used throughout this paper.

Assume s(t) and b(t) be the stochastic processes representing the backoff stage and the backoff time counter respectively for a given station at time slot. The bidirectional process

{s(t), b(t)} can be modeled by a Markov chain as shown in Fig.4.

Let bi,k = limt→∞p{s(t) = i, b(t) = k} be the stationary distribution of the Markov

chain for i ∈ [0, n − 1] and k ∈ [0, Wi − 1]. Now we try to calculate the average

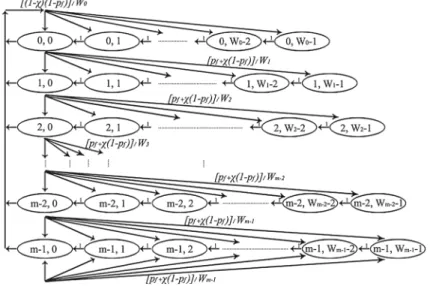

Fig. 4 Markov Chain model for the proposed backoff algorithm

Table 1 Variables used in

analytical analysis Variables Meaning and explanation

β Channel bandwidth

¯

W Average contention window size

x Persistent probability

m Maximum number of backoff stages

n Number of nodes

pf Probability of transmission failure

p Transmission probability

Ldata Data packet size

Lack ACK packet size

Ps Probability of a successful transmission

PI Probability of idle channel

Pc Probability of a collided transmission

Perr Probability of a transmission errors

Ts Duration of a success transmission time

TI Duration of idle channel time

Tc Duration of a collided transmission time

Terr Duration of a transmission error time

Tf r ame Length of time frame

B E R Cannel bit error rate

σ Duration of time slot

Algorithm 2 Function E-BEB Backoff handler

1: Initialization

2: /* W0is set by Function E-BEB handle contention window size */

3: Node’s contention window size :=W0

4: Current backoff number := bf

5: An array with increasing number {0, 1, 2,· · · , W0-1} :=s[W0]

6:

7: if Select new backoff number then

8: // Here need to choose a contention window size 9: // from the set {0, 1, 2, 3,· · · , W0-1}

10: // Let the device count down contention window 11: // PIVOT is a random number between 0 and W0-1

12: PIVOT := rand mod W0

13: bf := s[PIVOT]

14: else if Continue countdown process then 15: Repeat

16: if bf> 0 then 17: //continue countdown 18: bf:=bf-1

19: else

20: break and Send Packet 21: until end of backoff 22: end

contention window size. Thus, we have:

˜ W = x(1 − pf)2W + xpf(1 − pf)22W+ x p2f(1 − pf)23W + · · · + x pm f(1 − pf)2m+1W+ (1 − x)(1 − pf)W + (1 − x)pf(1 − pf)2W +(1 − x)p2 f(1 − pf)22W+ · · · + (1 − x)pmf(1 − pf)2mW (1)

By solving the above equation, we get

¯

W = W˜

1− pm_f+1 (2)

Substituting ˜W express in Eq. (1) into Eq. (2), we obtain:

¯ W = [2x+(1 − x)] · (1 − pf) ·  1−(2pf)m+1 1−2pf  W 1− pm_f+1 = (1 + x)(1 − pf)  1− (2pf)m+1   1− pm_f+1  (1 − 2pf) W (3) Since, in the beginning, a node starts to transmit a frame with probability p, and defers the transmission with probability 1− p. According to probability theory, we get:

P(X = x) = (1 − p)x−1p, 1 ≤ x ≤ ∞ (4)

Hence, the average contention window size, ¯W , is completely identified by the value of p, and thus we have

¯ W+ 1 2 = ∞  x=1 x p(1 − p)x−1= p 1− p ∞  x=1 x(1 − p)x−1= 1 p (5)

By solving the above equation, we get:

p= 2 ¯

W+ 1 (6)

Then, substituting ¯W in (2) into (6), we obtain:

¯

W (7)

However, the value of probability pf is still unknown. Since the probability of transmission

failure is defined as the probability that a transmitted frame collided or received with error, we have pf = 1 − (1 − p)n−1∗  1− p_edata  ∗1− pack_e  (8) Here Pdata

e and Peack stand for the probability of data frame received with error and the

probability of ACK frame received with error. Thus, we have:

P_edata = 1 − (1 − B E R)Ldata ₍₉₎

P_eack = 1 − (1 − B E R)Lack ₍₁₀₎

Since the saturation throughput is defined as a relation of successfully transmitted payload size over a randomly chosen time slot in the active stage, the system saturation throughput can be defined as follows:

S=  Ps∗ LD AT A PD AT A e + PeAC K+ Pc+ Ps  ∗ T + PI∗ σ (11) Where T = TD I F S+ TS I F S+ LD AT A_β+LAC K + 2δ. According to the equation above, the

successful transmission probability, Ps, is defined as the system transmitted a data frame

without collision or bit error. Hence, we can express Psas

Ps= np(1 − p)n−1(1 − pe) (12)

Let PI denote the probability that there is no node try to send packet in a randomly chosen

time slot, and Pcdenote the probability that a collision occurs in a randomly chosen time

slot. Hence, they can be express as:

PI = (1 − p)n (13)

Pc= 1 − (1 − p)n− np(1 − p)n−1 (14)

2.3 How to Find an Optimal X

We attempt to find out the optimal persistent probability x. However, we discover that our persistent probability x is depended on the throughput so that we need find out the maximum throughput first. From above evaluation, it is clear that in Eq. (11), the system throughput depends on the contention window size via p. Therefore, taking derivative of Eq. (12) with respect to p, and imposing it to zero, we can calculate an optimal contention window size that effects whole system maximum throughput by solving the equation as below:

∂ S

Under the condition that p 1, we have

(1 − p)n ∼_{= 1 − np (16)}

Therefore, we can get approximate solution, O ptp, from the following equation.

p= Optp=

T n+ 2T − σ + T n2_{+ 2T (T − σ )n − 2T}2_{− 2T σ + σ}2

4(T − σ + 1)n (17)

In the following, we try to find an optimal contention window size. From Eq. (6), we substi-tuting p by O ptp, and thus we have

O ptp=

2

¯

W+ 1 (18)

Since pf m, 0 ≤ pf ≤ 1,and m  1, we can simplify the Eq. (18). By substituting ¯W in

(18), finally, we have X= 1 +  pm_f+1− pm_f  2m+ (1 − pf)  · Optp· W + 4 · pf  pm_f+1− pm_f  2m+1_{− (1 − pf)· Optp· W} (19)

3 Simulations and Performance Evaluation

In this section we evaluate the performance of proposed scheme and provide comprehensive comparison with other well known backoff algorithms.

3.1 Simulation Environment

Our simulation model is built using the custom event-driven C++ program, and each sim-ulation runs at least for 1,000 simsim-ulation seconds. We assume all nodes are in a saturated network condition, and use static routing and random topology so as to focus on MAC layer performance analysis issues. All the simulations are conducted on Ubuntu 10.04 on an Intel Core i5 1.3 GHz Notebook with 4 GB memory.

Table 2 Default attribute values used in the simulation with explanation

Attribute Meaning and Explanation Value

LM AC−H E AN DE R Length of MAC header 160 bits

Lphy PHY header 192 bits

LP AY L O A D MAC layer payload size 1,000 bytes

LAC K MAC layer ACK size 112 bits

C Wmi n Initial Contention window 32

C Wmax Maximum Contention window 1024

m Maximum backoff state 5

β Channel bit rate 1 Mbps

Tslot Duration of time slot 20μs

TD I F S DIFS time interval 50μs

TS I F S SIFS time interval 10μs

The evaluation was made with respect to the system saturation throughput, collision rate, fairness index and average end-to-end delay under different value of persistent probability X or number of nodes. The default parameters used in the simulation are list in Table2. These values are chosen carefully to make simulation reasonable and feasible and reflect a realistic wireless environment.

3.2 Simulations Result

Figure5compares the system throughput with other backoff algorithm. The value of persistent probability is set to be 0.9. As shown in figure, the proposed scheme obtains much higher performance in both high and low density networks.

Figure6 depicts the packet collision rate versus the number of nodes. Compare with other backoff algorithms, the proposed scheme achieves a lower collision ratio in congested environments.

Fig. 5 Throughput versus number of nodes

Fig. 7 Fairness Index versus number of nodes

Fig. 8 Optimal value of probability X versus number of nodes

Since fairness problem is an important metric when we evaluate the performance of wireless MAC protocol, in Fig.7we calculate the fairness index defined by Jain [17] to evaluate how fair the proposed scheme is. The fairness index is defined as

Fair ness I ndex= n

i=1Ti

2

n∗n_i=1T_i2

Where n is the number of connections, and Ti is the throughput of node i. We can see the

proposed scheme can achieve approximate 0.99, and this result shows that our scheme can achieve both efficiency and fairness.

Figure8shows the optimal value of persistent probability X . As mentioned in Sect.2, we can get an optimal value of X by solving Eq. (18). As shown in Fig.8, the optimal value of

X approximates 1 when the network becomes congested. This is reasonable because a high

Fig. 9 Probability X versus number of nodes

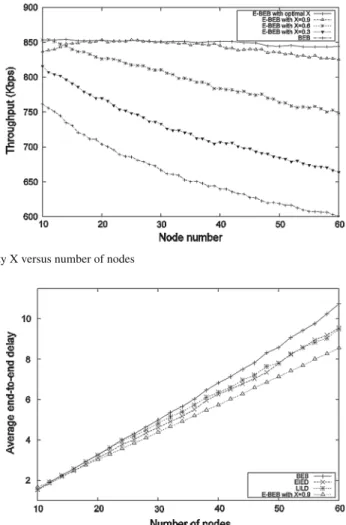

Fig. 10 Average end-to-end delay versus number of nodes

Figure9shows the value of persistent probability X in our proposed scheme is optimal. As shown in the figure, an optimal X can always achieve higher system throughout in both high load and low load environments.

In Fig.10, we evaluate the average end-to-end delay of the proposed scheme and other backoff algorithms. As shown in figure, the proposed scheme can always keep lower delay, especially in congested scenario.

Figure11depicts the end-to-end delay of different priority traffic. The simulation result shows that the proposed scheme can easily support the prioritized channel access.

4 Conclusions

In this paper, we introduce an E-BEB algorithm for multi-hop wireless ad-hoc networks which employs a distributed contention window control mechanism to alleviate intensive collisions, mitigate the fairness problem, and to support multimedia traffic. Our method

Fig. 11 Average end-to-end delay versus number of nodes for different priority traffic

is simple and efficient. An accurate system saturated analytical model is also present in this paper to study the system throughput. Furthermore, the given results also show that the optimal value of persistent probability X has a significant impact on the system performance. Through extensive simulations, we have demonstrated quantitatively the effectiveness of the proposed E-BEB algorithm. As perspective to this work, we will calculate the optimal persistent probability for E-BEB algorithm based on the analytical model provided in this paper.
