Effects of zinc additions on the microstructure and melting temperatures of Al–Si–Cu filler metals

(1)

Effects of zinc additions on the microstructure and melting

temperatures of Al–Si–Cu filler metals

L.C. Tsao, M.J. Chiang, W.H. Lin, M.D. Cheng, T.H. Chuang*

Institute of Materials Science and Engineering, National Taiwan University, 1 Roosevelt Road,

Sec. 4, Taipei 106, Taiwan, ROC Received 2 July 2002; accepted 4 July 2002

Abstract

For the development of a low-melting-point filler metal for brazing aluminum alloys, a series of Al – Si – Cu – Zn alloys has been studied. Through differential thermal analysis (DTA) analysis, the melting temperatures of such Al – Si – Cu – Zn filler metals were determined. The results show that the addition of 10 – 30 wt.% copper into the traditional Al – 12 wt.% Si filler metal causes its solidus temperature to decrease by about 60C. An addition of 10 – 30 wt.% zinc into such Al – Si – Cu ternary alloys will cause their solidus temperatures to drop further to a value lower than 500C. Metallographic observations indicate that the addition of zinc into the Al – Si – Cu alloys inhibits the formation of the Al – Si, Al – Cu and Al – Si – Cu eutectic phases. The remaining phases are a CuAl2

Keywords: Al – 12Si alloy; Al – Si – Cu filler; DTA analysis

1. Introduction

Among a variety of bonding technologies, brazing has been widely adopted as a reliable method for joining aluminum components[1], wherein the Al – 12 wt.% Si alloy is recognized as the most popular filler metal [2,3]. Although a sound joint can be achieved for certain aluminum alloys using this traditional filler metal, its brazing temperature is high in relation to the melting points of these aluminum alloys. As a result, aluminum workpieces during brazing may be partially molten due to the uneven distribution of the temperature within the industrial

furnace. The higher brazing temperature can also cause the degradation of the mechanical properties of aluminum alloys. Even in the more extreme cases of many important engineering aluminum alloys such as 2024, 5083 and 7075 Al alloys, brazing with the traditional Al – 12Si filler metal is impractical due to the fact that the solidus temperatures of these alumi-num alloys are lower than the eutectic point of the Al – 12Si alloy.

In order to solve this problem, many efforts have been made to develop low-melting-point filler metals with a satisfactory bonding strength for brazing most of the aluminum engineering alloys. Kayamoto et al.

[4]developed a series of Al – Ge – Si – Mg filler met-als with quite low melting points and sufficient joint strengths for brazing the 6061 aluminum alloy. How-ever, germanium is approximately 400 times the price of aluminum, making such filler metals excessively

* Corresponding author. Tel.: +886-2236-3031; fax: +886-2236-34562.

E-mail address: [email protected] (T.H. Chuang).

(2)

expensive for most applications. Humpston et al.[5]

and Jacobson et al.[6]further reported an Al – 5Si – 20Cu – 2Ni filler metal with a melting temperature range between 518 and 538C. When this filler metal was applied to brazing a 3003 aluminum alloy, a shear strength over 75 MPa was obtained. Earlier, Suzuki et al.[7]had also studied a series of ternary eutectic Al – Si – Zn filler metals. They found that by increasing the zinc addition to the Al – 12Si filler metal from 0 to 50 wt.%, the eutectic points of such ternary Al – Si – Zn alloys decreased linearly from 577 to 525C. In a previous study by the present authors

[8], an Al – 7Si – 20Cu – 2Sn – 1Mg filler metal with a melting temperature range of 501 – 522 C was developed. When this filler metal was used to braze a 6061-T6 aluminum alloy, an optimized bonding strength of 196 MPa was achieved. In the present study, a series of low-cost Al – Si – Cu – Zn filler metals with solidus temperatures lower than 500C has been further developed. Their microstructures in correspondence with the thermal properties have been studied.

2. Experimental

A series of Al – Si – Cu – Zn filler metals with various compositions, as shown in Table 1, was prepared for the study. For this purpose, an Al – 12 wt.% Si alloy was melted first at 700C in an air furnace, and then the temperature was raised to 1000

C when various amounts of copper (99.9 wt.%, 2 mm diameter slug) were added into the molten Al – 12Si alloy. After the mixture was stirred for 30 min for homogenization, various amounts of zinc were added into the Al – Si – Cu alloys. They were then cast in a stainless steel mold. The solidus and liquidus temperatures of these Al – Si – Cu – Zn filler metals were measured through differential thermal analysis (DTA). The specimens were heated from room tem-perature to 600 C at a heating rate of 10 C/min under an argon atmosphere. The microstructure was observed by means of optical microscopy after metal-lographic preparation and etching in 10 vol.% H3PO4

at 50C for 60 s.

3. Results and discussion

The DTA curve and the corresponding micro-structure of a traditional Al – 12Si filler metal are shown in Fig. 1a and 1b respectively. During the heating process of the DTA analysis, the Al – 12Si filler metal shows a nonequilibrium microstructure with a lamellar Al – Si eutectic phase and an a-Al

Table 1

Chemical compositions and thermal properties of Al – Si – Cu – Zn filler metals in this study

Samples Chemical compositions (wt.%) TSa (C) TLa (C) DTa (C) Si Cu Zn Al 1 12.0 0 0 Bal. 579 593 14 2 10.8 10 0 Bal. 518 565 47 3 9.6 10 10 Bal. 495 546 51 4 8.4 10 20 Bal. 468 535 67 5 7.2 10 30 Bal. 446 519 73 6 10.2 15 0 Bal. 523 548 25 7 7.0 15 15 Bal. 473 526 53 8 9.6 20 0 Bal. 524 543 19 9 8.4 20 10 Bal. 486 524 38 10 7.2 20 20 Bal. 456 496 40 11 6.0 20 30 Bal. 429 482 53 12 8.4 30 0 Bal. 523 534 11 13 7.2 30 10 Bal. 477 532 55 14 6.0 30 20 Bal. 434 520 86 a _T

S indicates the solidus temperatures of the filler

metals. TLindicates the liquidus temperatures of the filler

metals. DT = TL TS.

Fig. 1. DTA curve and microstructure of the traditional Al – 12Si filler metal.

(3)

dendrite solid solution. Figs. 2 – 4 show the DTA curves of various Al – Si – Cu – Zn filler metals. The solidi (TS) and liquidi (TL) of these filler metals

obtained from the DTA analyses are summarized in

Table 1. It can be seen that the solidus and liquidus temperatures of the traditional Al – 12Si filler metal decrease drastically from 579 to 518 C and from 593 to 565 C, respectively, when 10% copper is added into the alloy. Further addition of zinc into

such an Al – Si – 10Cu filler metal causes its solidus and liquidus to plunge further as shown in Fig. 2. From Table 1, it can be estimated that the addition of about 10% zinc into the Al – Si – 10Cu filler metal results in a decrease of solidus and liquidus temper-atures of about 25 and 15 C, respectively. The declining of solidi and liquidi for the Al – Si – Cu filler metals due to the addition of zinc can be attributed to the low melting point of the zinc element (420 C), which dissolved with a high solubility in the Al – Si – Cu alloys.

When the copper content of the Al – Si – Cu filler metals is increased from 10% to 20%,Figs. 3 and 4

show that the solidus temperatures have remained almost constant in the range between 518 and 524C. However, the liquidus temperatures still drop sharply to 543C when copper is added up to 20%. Here, the declining phenomenon of solidus and liquidus due to the addition of zinc to the Al – Si – 20Cu filler metal is much more conspicuous than the case of the Al – Si – 10Cu filler metal. In this situation, the addition of about 10% zinc into the Al – Si – 20Cu filler metal has caused the declination of solidus and liquidus by about 35 and 20C, respectively.

As the copper content of the Al – Si – Cu filler metal is further increased from 20% to 30%,Fig. 5

shows that the solidus temperature has remained constant and the liquidus temperature decreased slightly. An increase in the zinc content of the Al –

Fig. 2. Effects of Zn addition on the decrease of solidus and liquidus temperatures for the Al – Si – 10Cu filler metal.

(4)

Si – 30Cu filler metal results in an obvious declination of the solidus temperature, and, a slight decrease of the liquidus temperature. In this case, the temperature difference between the liquidus and solidus (DT) is wider, which is unfavorable for the brazing process. The microstructure of the Al – 10.8Si – 10Cu filler metal (Fig. 6a) consists of an Al – Cu – Si ternary

eutectic phase, a dendrite a-Al solid solution, the CuAl2 (q) intermetallic compound and some silicon

particles with an Al – Si eutectic phase surrounding them. Since zinc is highly soluble in aluminum, the addition of zinc to this Al – Si – 10Cu filler metal has not changed of its microstructure much (Fig. 6b). However, it is still noticeable that the amounts of the CuAl2(q) intermetallic compound and the Al – Cu – Si

ternary eutectic phase have decreased in the Al – Si – 10Cu – Zn alloys. The microstructures of the Al – Si – 15Cu and Al – Si – 15Cu – Zn filler metals as shown in

Fig. 7a and b, respectively, are similar to those found in the Al – Si – 10Cu and Al – Si – 10Cu – 10Zn alloys.

Fig. 8a shows that the Al – Si eutectic phase and the dendrite a-Al solid solution decrease considerably along with the increasing of the copper content in the Al – Si – Cu filler metal up to 20%. When 10% zinc is added into the Al – Si – 20Cu filler metal, the Al – Si eutectic phase disappears.Fig. 8bshows that the Al – Cu eutectic structure, the Al – Cu – Si ternary eutectic structure and the CuAl2intermetallic compound have

stayed in the Al – Si – 20Cu – 10Zn alloy. As the zinc content is increased up to 20%, all of the eutectic phases (Al – Si, Al – Cu and Al – Cu – Si) are replaced by a mixture of the CuAl2intermetallic compound, an

a-Al solid solution and silicon particles as shown in

Fig. 8c. Fig. 8also indicates that the size of silicon particles has expanded with the increasing of zinc

Fig. 6. Microstructures of (a) Al – 10.8Si – 10Cu and (b) Al – 8.4Si – 10Cu – 20Zn filler metals.

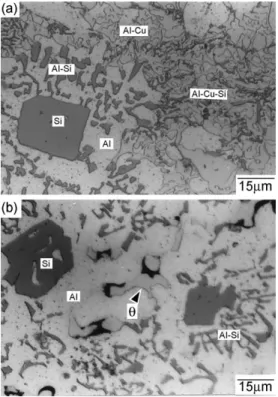

Fig. 7. Microstructures of (a) Al – 10.8Si – 15Cu and (b) Al – 8.4Si – 15Cu – 25Zn filler metals.

(5)

content in the Al – Si – 20Cu – Zn alloy. The observa-tions of microstructures in these Al – Si – Cu – Zn filler metals are consistent with the results of the DTA analysis. On the DTA curves of Al – Si – 10Cu – Zn

(Fig. 2) and Al – Si – 15Cu – Zn (Fig. 3), two endo-thermic peaks are observed, as they approach each other for the Al – Si – 20Cu – Zn alloys(Fig. 4). As for the microstructure of the Al – 8.4Si – 30Cu filler metal shown inFig. 9a, the Al – Si eutectic phases disap-pears and is replaced by the Al – Cu eutectic phase, the Al – Cu – Si ternary eutectic phase and the CuAl2

intermetallic compound as in the case of the Al – Si – 20Cu – 10Zn filler metal (Fig. 8b). However, the addition of 20% zinc to such an Al – Si – 30Cu alloy

causes the reappearance of the Al – Si eutectic phase

(Fig. 9c). The reappearance of the Al – Si eutectic phase due to the addition of 20% zinc to Al – Si – 30Cu is also consistent with the results of the DTA analysis. It can be seen in Fig. 5 that the single endothermic peak on the DTA curve of the Al – 8.4Si – 30Cu alloy is split into two endothermic peaks on the DTA curve of the Al – 6Si 30Cu – 20Zn alloys. To summarize the results of the thermal analysis and microstructure observations, an Al – 7.2Si – 20Cu – 20Zn filler metal is suggested, which pos-sesses a melting temperature range between 456 and 496C.

4. Conclusions

Al – Si – Cu filler metals with a Cu content between 10 and 30 wt.% will have solidus temper-atures near 520 C, but these temperatures can be further decreased to a value lower than 500 C through the addition of zinc from 10 to 30 wt.%. By adding 20 – 30 wt.% zinc into the Al – Si – 20Cu filler metals, their liquidus temperatures can be lowered to below 500 C. The microstructures of the Al – Si – Cu filler metals contain eutectic phases (Al – Si, Al – Cu and Al – Si – Cu), a CuAl2

interme-Fig. 8. Microstructures of (a) Al – 9.6Si – 15Cu, (b) Al – 7Si – 20Cu – 10Zn, and (c) Al – 7.2Si – 20Cu – 20Zn filler metals.

Fig. 9. Microstructures of (a) Al – 8.4Si – 30Cu and (b) Al – 6Si – 30Cu – 20Zn filler metals.

(6)

tallic compound, ana-Al solid solution and silicon particles. With the increase of zinc content in the Al – Si – Cu filler metals, the formation of eutectic phases (Al – Si, Al – Cu and Al – Si – Cu) will be restrained.

References

[1] Sugiyama Y. Brazing of aluminum alloys. Welding Int 1989;3(10):700 – 10.

[2] Kawas H, Takemoto T, Asano M, Kawakatsu I, Liu K. Study of a method for evaluating the brazeability of aluminum sheet. Welding J 1989;68(10):396s – 403s. [3] Hattori T, Sakai S, Sakamoto A, Fujiwara C. Brazeability

of aluminum in vacuum—nitrogen partial-pressure at-mosphere brazing. Welding J 1994;73(10):233s – 40s. [4] Kayamoto T, Kim J-H, Saito S, Onzawa T. Brazing of

Al – Mg alloy and Al – Mg – Si alloy with Al – Ge based f i l l e r m e t a l s . P r o c Wo r ks h o p J We l di n g S o c 1994;12(10):495 – 501.

[5] Humpston G, Sangha S-P-S, Jacobson D-M. New filler metals and process for fluxless brazing of aluminium engineering alloys. Mater Sci Technol 1995; 11(10):1161 – 7.

[6] Jacobson D-M, Humpston G, Sangha S-P-S. A new low-melting-point aluminum braze. Welding J 1996; 75(8):243s – 50s.

[7] Suzuki K, Kagayama M, Takeuchi Y. Eutectic phase equilibrium of Al – Si – Zn system and its applicability for lower temperature brazing. J Jpn Inst Light Met 1993;43(10):533 – 8.

[8] Yeh M-S, Tsao L-C, Tsai T-C, Wu C-S, Chuang T-H. Development of a low-melting-point filler metal for brazing aluminum alloys. Metal Mater Trans 2000; 31A(10):2239 – 45.
