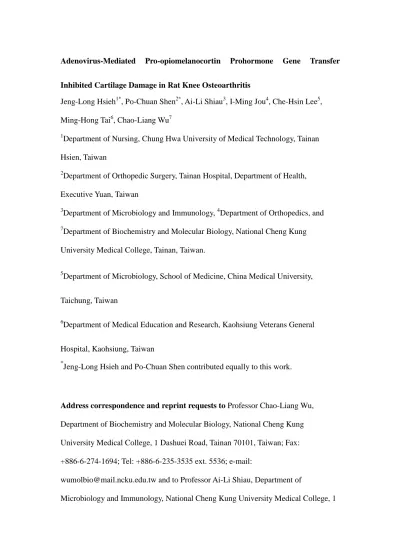

Inhibited Cartilage Damage in Rat Knee Osteoarthritis
Jeng-Long Hsieh1*, Po-Chuan Shen2*, Ai-Li Shiau3, I-Ming Jou4, Che-Hsin Lee5, Ming-Hong Tai6, Chao-Liang Wu7
1
Department of Nursing, Chung Hwa University of Medical Technology, Tainan Hsien, Taiwan
2
Department of Orthopedic Surgery, Tainan Hospital, Department of Health, Executive Yuan, Taiwan
3
Department of Microbiology and Immunology,4Department of Orthopedics, and
7
Department of Biochemistry and Molecular Biology, National Cheng Kung University Medical College, Tainan, Taiwan.
5
Department of Microbiology, School of Medicine, China Medical University,
Taichung, Taiwan
6
Department of Medical Education and Research, Kaohsiung Veterans General
Hospital, Kaohsiung, Taiwan *
Jeng-Long Hsieh and Po-Chuan Shen contributed equally to this work.
Address correspondence and reprint requests to Professor Chao-Liang Wu,
Department of Biochemistry and Molecular Biology, National Cheng Kung University Medical College, 1 Dashuei Road, Tainan 70101, Taiwan; Fax: +886-6-274-1694; Tel: +886-6-235-3535 ext. 5536; e-mail:
[email protected] and to Professor Ai-Li Shiau, Department of
Background: Pro-opiomelanocortin (POMC) is a precursor of various neuropeptides.
The POMC-derived neuropeptides are potent inflammation inhibitors and
immunosuppressant. The objective of this study was to assess whether intraarticular administration of POMC ameliorate experimentally induced osteoarthritis (OA) in a rat model.
Methods: OA was induced in Wistar rats by ACLT () in the knee of one hindlimb.
Adenoviral vector encoding human POMC (AdPOMC) was injected intraarticularly into the knee joints after ACLT. The transgene expression and the inflammatory responses were determined by immunoblot analysis, immunohistochemistry, and enzyme-linked immunosorbent assay (ELISA). The treated joints were assessed morphologically, radiographically, and histologically for disease manifestations.
Results: The expression of human POMC after intraarticular injection was identified in
the chondrocytes and synovial membrane. POMC gene transfer reduced the NF-κB activity and the levels of interleukin-1β (IL-1β) in a human chondrocyte cell line and it also reduced microvessel density in synovium. Examination of gross morphology revealed that rats treated with AdPOMC had reduced severity of OA compared with the rats treated with either empty adenoviral vector (AdNull) or normal saline.
Conclusion: Local administration of adenoviral vectors encoding POMC significantly
suppressed OA progression, accompanied by reduction of inflammatory response and angiogenesis.
Clinical Relevance: More evidences are accumulated to suggest that OA is an
inflammatory disease. As an inflammatory inhibitor, POMC gene delivery may provide a therapeutic alternative for the treatment of OA.
Running Title: PRO-OPIOMELANOCORTIN PROHORMONE INHIBITED JOINT
Introduction
Pro-opiomelanocortin (POMC) is a 31-kDa prohormone expressed predominantly in the central nerve system and pituitary gland. Several neuropeptides, including adrenocorticotrophin (ACTH), melanotropins [α-, β-, γ-melanocyte-stimulating hormone (MSH)], lipotropins, and β–endorphin (β-EP) are generated through post-translational process of POMC1, 2. ACTH and α-MSH peptides bind to melanocortin receptors, whereas β–EP binds to opioid receptors. Five melanocortin receptors (MC-1 to MC-5) had been cloned3. Although POMC and its derivatives were originally thought to be expressed in the hypothalamus and pituitary gland, it is now known that extraneural peptides also express POMC and POMC-derived peptides. These peptides possess multiple functions including pigmentation, inflammation, immunomodulation, energy homeostasis, and memory2, 4-6. In addition, POMC has been demonstrated to have anti-angiogenic effect and be able to suppress the tumor growth7, 8.
Two of the POMC neuropeptides, such as α-MSH and β-EP are potent inhibitors of inflammation. Both of which can inhibit the production of pro-inflammatory and inflammatory cytokines4, 9. α-MSH can also modulate the immune response by impairing the function of antigen-presenting cells and T cells10. It has been reported to exert immunosuppressive function in various inflammation-related diseases including arthritis2, 11. Higher concentration of α-MSH observed in synovial fluid or the arthritis was correlated with the lower level of inflammation. The α-MSH could exert its anti-arthritis effect by inhibiting tumor necrosis factor-α(TNF-α)-induced matrix metalloproteinase 13 (MMP-13) expression through the inhibition of p38 kinase phosphorylation and the downstream activation of NF-κB12. Accumulating evidences suggest that Osteoarthritis (OA) is an inflammatory disease. During disease progression, the recruited T cells in knees secreted various chemokines and cytokines. The chemotaxis macrophages then infiltrated into synovium and
resulted in local inflammation. Angiogenesis, the formation of new blood vessels is closely interacted with inflammation. They mutually affect each other in the osteoarthritic joint and contribute to cartilage loss, osteophyte formation and synovial inflammation, and result in the articular cartilage changes13. Proteolytic degradation of the articular cartilage matrix is the other major hallmark of OA. Increased production of MMPs due to the stimulation by proinflammatory cytokines is responsible for further destruction of cartilage14, 15.
Previous studies showed that POMC gene delivery in muscle or bladder using gene gun generated β–EP locally, indicating that POMC could be processed in the peripheral tissues16,
17
. Recently, the expression of melanocortin receptor in articular chondrocytes in vitro and in articular cartilage in situ was reported18. This makes human articular chondrocytes a good target for POMC delivery. Based on these findings, POMC may be a promising therapeutic agent for the treatment of inflammatory and degenerative disease, such as OA. In the current study, we evaluate the therapeutic effect of AdPOMC, an adenoviral vector carrying human POMC gene, in the anterior cruciate ligament-transection (ACLT) model of OA in rats through local injection. Our results show that intraarticular delivery of the POMC gene attenuates the development of OA in rat ACLT knees.
Materials and Methods
Adenoviral vectors, cell lines and animal models
To generate AdPOMC, the human POMC sense complementary DNA was constructed into an adenoviral plasmid as previously described8. An empty adenoviral vector, AdNull, was used as a negative control19. The HTB-94 human chondrosarcoma cell line The mouse Raw 264.7 cell line and human primary synovial fibroblast were cultured in Dulbecco’s modified Eagle’s medium supplemented with 10% fetal bovine serum, 1% glutamine, and 50 μg/ml gentamicin at 37℃. Male Wistar rats at the age of 7 weeks were obtained from the Laboratory Animal Center of the National Cheng Kung University. The experimental protocol adhered to the rules of the Animal Protection Act of Taiwan and was approved by the Laboratory Animal Care and Use Committee of the National Cheng Kung University. To induce experimental OA, each rat was anesthetized with Zoletil 50 (10 mg/kg, Virbac, Carros, France) and then subjected to a modified surgical procedure as described previously19, 20.
Immunoblotting
To test POMC expression, rats (n = 6) were intraarticularly injected with either
AdPOMC or AdNull (3 × 107TCID50) and then killed 72 hours after the virus injection. After
sacrifice, the tissue from the surface of femoral condyles and tibia as well as synovium was removed. All the tissues were dissected for further homogenization in phosphate-buffered saline (PBS) containing protease inhibitor cocktail (Pierce, Rockford, IL). Knee homogenates were subjected to immunoblot analysis using antibodies against human POMC antibody (1:10000, Sigma-aldrich). HTB-94 human chondrosarcoma cells were infected with
AdPOMC at an MOI of 10 and 100 and incubated for 24 hours. The cells were supplemented with fresh medium and incubated for additional 24 hours. The cell extract was then isolated and subjected to immunoblot analysis using antibodies against NF-κB antibody (1:1000, brand?). The expression of β-actin was used as the quantitative control.
Immunohistochemistry
Seventy-two hours after the virus injection, the cartilage and synovium were removed, fixed, and embedded in paraffin. Serial sections (5-m thick) were cut and incubated with POMC antibody (1:125; Sigma-aldrich, Saint Louis, MO) at 4℃ overnight. After they had been sequentially incubated with the appropriate secondary antibody (1:400; Jackson, city?) for 2 hours at room temperature and aminoethyl carbazole as the substrate chromogen (Invitrogen Zymed Laboratories, Camarillo, CA), the slides were counterstained with hematoxylin. To analyze the anti-angiogenic effects of POMC, on post-surgery day 14, the rats (n=6) were injected with virus (3 × 107TCID50) once per week for two consecutive
weeks and then killed four weeks after surgery. Serial sections from synovium were stained with factor VIII (von Willebrand’s factor; Dako, Carpinteria, CA). After sequential incubation with the appropriate secondary antibody and aminoethyl carbazole as substrate chromogen, the slides were counterstained with hematoxylin. To test MMP-13 expression, serial sections of cartilage were stained with MMP-13 antibody (1:100; Santa Cruz Biotechnology, Santa cruz, CA) at 4℃ overnight. After they had been sequentially incubated with the appropriate secondary antibody (1:400; Jackson) for 2 hours at room temperature and aminoethyl carbazole as the substrate chromogen (Invitrogen Zymed Laboratories), the slides were counterstained with hematoxylin.
NF-κB activity assay
The NF-κB activity in HTB-94 cells was investigated by luciferase activities assay. The cells grown in 24-well plates were infected with AdPOMC at an MOI of 100 for 24 hrs. After subsequent transfection the cells with NF-κB driven luciferase vector (Geneaid kit) using lipofectamine (Invitrogen, Carlsbad, CA) for 24 hrs, the cells were subcultured and incubated for additional 24 hrs. The TNF-α(10 ng/ml) were then added for 12 hrs. The NF-κB-driven luciferase activity in cells was determined using a Dual-Light kit (Promega, Madison, WI) in
a luminometer (brand?).
Enzyme-linked immunosorbent assay (ELISA)
The primary human synovial fibroblasts were infected with AdPOMC at an MOI of 10 and 100 and incubated for 48 hrs. The conditioned medium were harvested from fibroblasts and added to the Raw 264.7 cell at 80% confluence on 24-well (200 ul/well) in the presence or absence of TNF-α(10 ng/ml). After 12 hrs, the cell extract was isolated and the
concentration of IL-1βin the homogenates was determined by ELISA19.
Treatment of osteoarthritis with POMC gene
Two weeks after surgery, the animals (n = 24) were divided into 4 groups. Rats were injected intraarticularly in the ACLT knees with either POMC or AdNull (3 × 107TCID50)
once per week for 2 consecutive weeks. Rats in the normal saline (NS) group were injected with 100 ul of normal saline using the same schedule as described above. The sham-operated group received no treatment. Ninety days after ACLT, rats were sacrificed for histological examination.
Histologic assessments
The sections were stained with Safranin-O-fast green and the histopathologic change of cartilage was examined using the Mankin’s histologic grading as described previously21. The synovium from ACLT was stained with hemotoxylin and eosin. The histological change of synovial surface and subsynovial tissue was evaluated and scored as previously described22. Briefly, the grading system assigned separated score based on two categories: synovial lining layer containing three subcategories: hyperplasia of synovial lining cells (0-3 points),
hypertrophy of synovial lining layer (0-3 points), and infiltration of inflammatory cells (0-3 points); subsynovial tissue containing three subcategories: proliferation of granulation tissue (0-3 points), vascularization (0-3 points), and infiltration of inflammatory cells (0-3 points). Total scores in each category were calculated, with a maximum of 18 points.
Statistical analysis
Data are meansstandard deviation (SD). The statistical difference in Figure 2 was analyzed using Student’s t test. A value of P <0.05 was regarded as statistically significant. JMP 5.0 (SAS Institute Inc., Cary, NC) was used to analyze the statistical differences in Table 1. Statistical significance between groups was estimated using one-way analysis of variance (ANOVA). To evaluate the differences between groups, weused Tukey’sHonestly Significant Difference test set at 0.05. Statistical significance was set at P < 0.05.
Results
The expression of POMC in the knee joints after intraarticular injection
Immunoblotting assay revealed that substantial amount of human POMC
delivered by adenoviral vector could be detected in AdPOMC-treated rats, compared
to that from the control rats (Fig. 1A). The protein detected in NS-injected rats
represented the endogenous POMC in tissues. The location of adenovirus-mediated
POMC was expressed in most chondrocytes, including those adjacent to the
osteochondral junction and throughout the synovium as determined by
immunohistochemical staining (Figs. 1B, C).
Inhibition of inflammation by AdPOMC
Because NF-κB is an important regulator of proinflammatory signaling pathway,
the effect of POMC gene delivery on NF-κB activities was investigated in HTB-94
cells. The NF-κB levels were significantly reduced after POMC gene delivery,
especially at a higher virus titer (Fig. 2A). The NF-κB-driven luciferase activity in
AdPOMC-infected cells was reduced to 45.84% of the AdNull-infected cells (Fig. 2B).
(使用 TNF-apha 的用意要寫，不然 A 圖很突兀)The levels of IL-1β, induced in the
presence of TNF-α, were reduced after AdPOMC infection (Fig. 2C). The results
suggested that in addition to inhibiting the endogenous NF-κB, POMC gene delivery
factors in vitro.
Inhibition of angiogenesis by POMC gene delivery after ACLT
Fourteen days after ACLT, AdPOMC was intraarticularly injected into the knee
joints twice (days 14, 21), and the microvessel density within the synovium was
analyzed four weeks after surgery. There is an increase in the vessel density in the
synovium undergoing ACLT and AdNull-treated groups (Fig. 3). However, two
consecutive injections of AdPOMC could inhibit angiogenesis.
Histopathologic evaluation of AdPOMC-treated knee joints
Our previous studies showed the most obvious changes in cartilage were on the
medial femoral condyles23. Therefore, the medial side of femoral condyles was analyzed. Histopathologic analysis of the saline-treated joint tissue showed a
moderate fibrillation on the surface of cartilage (Fig. 4A). Joints from the
AdNull-treated groups showed a decrease in cartilage thickness as well as fewer
chondrocytes. Nevertheless, in the joints after AdPOMC treatment, the severity of
lesion was remarkably reduced, as minimal irregularity was seen on the superficial of
cartilage. In the sham-operated knee joints, the articular cartilage of the femur had a
smooth surface. Furthermore, synovia in the NS- and AdNull-treated groups showed
hyperplasia and hypertrophy of the lining cells and greater monocyte infiltration (Fig.
showed slightly more cell proliferation in the synovial lining than did sham-operated
rats. The osteoarthritic score in joints treated with AdPOMC was significantly lower
than in joints treated with AdNull and NS (P<0.05) (Table 1). The synovitis score in
joints treated with AdPOMC was significantly lower than those in NS- and
AdNull-treated joints (P < 0.05). Because MMP-13 is a key mediator of cartilage
degradation, we next examined MMP-13 expression in cartilage. Ninety days
post-surgery, in NS-and AdNull-treated cartilage, MMP-13 expression was abundant;
however, in AdPOMC-treated cartilage, it was almost totally inhibited (Fig. 5).
Collectively, these results indicated that the POMC gene modulated inflammation and
angiogenesis in the knee joints of rats after ACLT and that it attenuated the
Discussion
The present study demonstrates that POMC gene delivery inhibits the activity of
pro-inflammatory factor, NF-κB, and modulates the expression of IL-1βin vitro.
Intraarticular injection of POMC gene into the rats reduces the inflammation and
angiogenesis in the ACLT-induced OA. POMC could reduce the expression of
MMP-13, and attenuates the development of OA. Recent finding showed that human
articular chondrocyte could express POMC and its receptors, MC-1R, MC-2R and
MC-5R, thereby modulate the biologic functions of chondrocytes18. Our results further confirmed that POMC could serve as potential therapeutics for the treatment
of OA.
Our previous data showed that the acute immune response induced by surgery
will subside gradually in two weeks (data not shown). In the surgically induced
osteoarthritis model, vascular invasion is one of the earliest events. The highest level
of vascular invasion is detectable two weeks post-surgery and returns to control levels
six weeks post-surgery24. To avoid the acute immune response caused by surgery, and achieve better anti-angiogenic effect, rats were injected intraarticularly in the ACLT
knees with AdPOMC once per week for 2 consecutive weeks two weeks post-surgery.
Given the confined area where the virus is delivered, the vector-triggered
was observed at the injection site 14 days after virus treatment.
Since the expression of both POMC and α-MSH were detected in human
chondrocytes18, they may be responsible for the anti-inflammatory in cartilage. In addition to α-MSH, POMC encodes several neuropeptides and produced in both
central nervous system and extraneural tissues, the specific patterns of
posttranslational POMC processing dictate whether an individual cell releases certain
downstream effectors. In cartilage, the expressed profile of neuropeptides derived
from POMC remained unclear and required for further investigation.
Our results suggested that in addition to anti-inflammation, other mechanisms
may participate in OA suppression by POMC gene. Osteochondral angiogenesis could
cause cartilage loss, osteophyte formation, and synovial inflammation and facilitate
the progression of osteoarthritis25. POMC gene transfer may regulate the expression of an angiogenic factor, vascular endothelial growth factor, through the inhibition of
NF-κB activity. Other evidence indicates that the POMC gene delivery could inhibit
the migration and tube formation capability of endothelial cells7. Two neuropeptides, ACTH and β-EP had also been found to be responsible for the antiangiogenesis
effect26, 27. Furthermore, in a rat model of chronic arthritic pain, the expression of β-EP was reported to be decreased in a particular brain region, called the periaqueductal grey. The production of this opioid peptide in situ may exert its
antinociceptive effect and alleviate the pain induced by OA. However, the possibility
that interactions between multiple neuropeptides derived from POMC may also
benefit for the therapeutic effect.
Although local delivery of POMC gene was effective for the treatment of OA,
several concerns should be made before clinical application. The expression of POMC
may affect pigmentation, steroid synthesis, energy homeostasis, and memory. To
avoid possible adverse effects of POMC, particularly in the interference of
steroidogenesis and native immune functions, the optimal dose and regimen used
should be carefully evaluated and warranted for further studies. In summary, our
findings indicate that intraarticular POMC gene transfer inhibits cartilage destruction
in ACLT knee joints. By targeting to the inflammation and angiogenesis, POMC gene
References
1. Solomon S. POMC-derived peptides and their biological action. Ann N Y Acad Sci. 1999;885:22-40.
2. Catania A, Gatti S, Colombo G, Lipton JM.Targeting melanocortin receptors as a novel strategy to control inflammation. Pharmacol Rev. 2004;56:1-29.
3. Mountjoy KG, Robbins LS, Mortrud MT, Cone RDThe cloning of a family of genes that encode the melanocortin receptors. Science.1992;257:1248-51.
4. Luger TA, Scholzen TE, Brzoska T, Böhm M.New insights into the functions of alpha-MSH and related peptides in the immune system. Ann NY Acad Sci.
2003;994:133-40.
5.Raffin-Sanson ML, de Keyzer Y, Bertagna X.Proopiomelanocortin, a polypeptide precursor with multiple functions: from physiology to pathological conditions. Eur J Endocrinol. 2003;149:79-90.
6. Ellacott KL, Cone RD.The central melanocortin system and the integration of short- and long-term regulators of energy homeostasis. Recent Prog Horm Res. 2004;59:395-408.
7. Lam HC, Kuo SM, Chuang MJ, Keng HM, Lin PR, Liu GS, Hsu CM, Howng SL, Tai MH.Blockade of endothelin-1 release contributes to the anti-angiogenic effect by pro-opiomelanocortin overexpression in endothelial cells. Exp Biol Med.
2006;231:782-8.
8. Liu GS, Liu LF, Lin CJ, Tseng JC, Chuang MJ, Lam HC, Lee JK, Yang LC, Chan JH, Howng SL, Tai MH.Gene transfer of pro-opiomelanocortin prohormone
suppressed the growth and metastasis of melanoma: involvement of
alpha-melanocyte-stimulating hormone-mediated inhibition of the nuclear factor kappaB/cyclooxygenase-2 pathway. Mol Pharmacol. 2006;69:440-51.
9. Refojo D, Kovalovsky D, Young JI, Rubinstein M, Holsboer F, Reul JM, Low MJ, Arzt E.Increased splenocyte proliferative response and cytokine production in
beta-endorphin-deficient mice. J Neuroimmunol. 2002;131:126-34.
10. Luger TA, Scholzen T, Brzoska T, Becher E, Slominski A, Paus R. Cutaneous immunomodulation and coordination of skin stress responses by
alpha-melanocyte-stimulating hormone. Ann NY Acad Sci. 1998;840:381-94.
11. Catania A, Gerloni V, Procaccia S, Airaghi L, Manfredi MG, Lomater C, Grossi L, Lipton JM.The anticytokine neuropeptide alpha-melanocyte-stimulating hormone in synovial fluid of patients with rheumatic diseases: comparisons with other
anticytokine molecules. Neuroimmunomodulation. 1994;1:321-8.
12. Yoon SW, Chun JS, Sung MH, Kim JY, Poo H.alpha-MSH inhibits
TNF-alpha-induced matrix metalloproteinase-13 expression by modulating p38 kinase and nuclear factor kappaB signaling in human chondrosarcoma HTB-94 cells.
Osteoarthritis Cartilage. 2008;16:115-24.
13. Bonnet CS, Walsh DA. Osteoarthritis, angiogenesis and inflammation. Rheumatology (Oxford) 2005;44:7-16.
14. Okada, Y., Shinmei, M., Tanaka, O., Naka, K., Kimura, A., Nakanishi, I., Bayliss, M.T., Iwata, K., Nagase, H. Localization of matrix metalloproteinase 3 (stromelysin) in osteoarthritic cartilage and synovium. Lab. Invest. 1992;66:680-690.
15. Blanco, F.J., Ochs, R.L., Schwarz, H., Lotz, M. Chondrocyte apoptosis induced by nitric oxide. Am. J. Pathol.1995;146:75-85.
16. Lu CY, Chou AK, Wu CL, Yang CH, Chen JT, Wu PC, Lin SH, Muhammad R, Yang LC.Gene-gun particle with pro-opiomelanocortin cDNA produces analgesia against formalin-induced pain in rats. Gene Ther. 2002;9:1008-14.
17. Chuang YC, Chou AK, Wu PC, Chiang PH, Yu TJ, Yang LC, Yoshimura N, Chancellor MB.Gene therapy for bladder pain with gene gun particle encoding pro-opiomelanocortin cDNA. J Urol. 2003;170:2044-8.
18. Grässel S, Opolka A, Anders S, Straub RH, Grifka J, Luger TA, Böhm M.The melanocortin system in articular chondrocytes: melanocortin receptors,
pro-opiomelanocortin, precursor proteases, and a regulatory effect of alpha-melanocyte-stimulating hormone on proinflammatory cytokines and extracellular matrix components. Arthritis Rheum. 2009;60:3017-27.
19. Hsieh JL, Shen PC, Shiau AL, Jou IM, Lee CH, Teo ML, Wang CR, Chao J, Chao L, Wu CL. 2009. Adenovirus-mediated Kallistatin gene transfer ameliorates disease progression in a rat model of osteoarthritis induced by anterior cruciate ligament transection. Hum Gene Ther. 2009;20:147-58.
20. Jean YH, Wen ZH, Chang YC, Lee HS, Hsieh SP, Wu CT, Yeh CC, Wong CS. Hyaluronic acid attenuates osteoarthritis development in the anterior cruciate
ligament-transected knee: Association with excitatory amino acid release in the joint dialysate. J Orthop Res. 2006;24:1052-61.
21. Mankin HJ, Dorfman H, Lippiello L, Zarins A.Biochemical and metabolic abnormalities in articular cartilage from osteo-arthritic human hips. II. Correlation of morphology with biochemical and metabolic data. J Bone Joint Surg Am.
1971;53:523-37.
22. Yoshimi T, Kikuchi T, Obara T, Yamaguchi T, Sakakibara Y, Itoh H, Iwata H, Miura T.Effects of high-molecular-weight sodium hyaluronate on experimental osteoarthrosis induced by the resection of rabbit anterior cruciate ligament. Clin Orthop Relat Res. 1994;298:296-304.
23. Hsieh JL, Shen PC, Shiau AL, Jou IM, Lee CH, Wang CR, Teo ML, Wu CL.Intraarticular gene transfer of thrombospondin-1 suppresses the disease
24. Hayami T, Pickarski M, Zhuo Y, Wesolowski GA, Rodan GA, Duong le T. Characterization of articular cartilage and subchondral bone changes in the rat anterior cruciate ligament transection and meniscectomized models of osteoarthritis. Bone. 2006;38:234-43.
25.Walsh DA. Angiogenesis in osteoarthritis and spondylosis: successful repair with undesirable outcomes. Curr Opin Rheumatol. 2004;16:609-15.
26. Huber P, Mallet C, Faure E, Rampon C, Prandini MH, Féraud O, Bouillot S, Vilgrain I. ACTH depletion represses vascular endothelial-cadherin transcription in mouse adrenal endothelium in vivo. J Mol Endocrinol. 2005;34:127-37.
27. Pasi A, Qu BX, Steiner R, Senn HJ, Bär W, Messiha FS.Angiogenesis: modulation with opioids. Gen Pharmacol. 1991;22:1077-9.
FIGURE LENGENDS
Fig. 1. Expression of POMC in the knee joints of rats. (A) Immunoblot analysis
showed that human POMC was detected in the joint extracts from AdPOMC-treated
rats but not in those from AdNull-treated rats. The expression of β-actin served as
the quantitative control. The expression of POMC was located in most chondrocytes
(B) and synovium (C). Some endogenous POMC were also detected in the knees of
the controls. (× 200 magnification).
Fig. 2. Inhibition of inflammation by AdPOMC in vitro. (A) Immunoblot analysis
showed that NF-κB expression was decreased in HTB-94 cells after AdPOMC
infection. (B) The NFκB-driven luciferase activities was inhibited in the presence of
TNF-α(10 ng/ml) in HTB-94 cells after AdPOMC (MOI=100) infection. (C) Levels
of IL-1βwere reduced in the presence of TNF-α(10 ng/ml) in Raw-264.7 cells after
AdPOMC infection. *P < 0.05, ***, P < 0.001.
Fig. 3. Inhibition of angiogenesis by AdPOMC delivery. More blood vessels were
distributed in the subsynovial tissues in AdNull-treated and ACLT rats than in
AdPOMC-treated rats (× 200 magnification).
Fig. 4. Evaluation of histological changes in the knee joints treated with AdTSP-1.
saline-treated group showed fibrillation and a decrease in cartilage thickness on the
surface of cartilage. In the AdNull-treated group, chondrocyte loss and the notch
formation occurred till the radial zone of cartilage were noted (Safranin-O/fast green
stain, × 200 magnification). In the AdPOMC treatment group, the irregularity of the
superficial layer of cartilage was observed. In the sham-operated group, the surface of
cartilage layer was smooth, with no significant change. (B) In the saline- and
AdNull-treated groups, the synovial membrane showed hyperplasia and hypertrophy of
synovial lining cells (H&E stain, × 400 magnification). In the AdPOMC treatment
group, mild proliferation of synovial lining cells was observed. A mild mononuclear
cell infiltration was also seen. Synovial membrane from the sham-operated group
showed no abnormal change in the tissues. (Scale bar = 2 mm).
Fig. 5. Immunohistochemical staining revealed that the expression of MMP-13 in the
medial femoral condyle was decreased from Ad POMC-treated animals as compared
