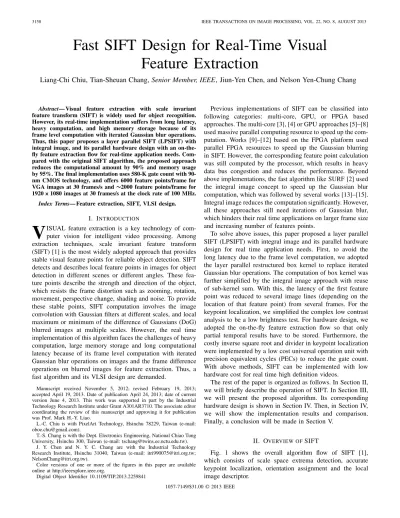

Fast SIFT Design for Real-Time Visual
Feature Extraction
Liang-Chi Chiu, Tian-Sheuan Chang, Senior Member, IEEE, Jiun-Yen Chen, and Nelson Yen-Chung Chang
Abstract— Visual feature extraction with scale invariant
feature transform (SIFT) is widely used for object recognition. However, its real-time implementation suffers from long latency, heavy computation, and high memory storage because of its frame level computation with iterated Gaussian blur operations. Thus, this paper proposes a layer parallel SIFT (LPSIFT) with integral image, and its parallel hardware design with an on-the-fly feature extraction flow for real-time application needs. Com-pared with the original SIFT algorithm, the proposed approach reduces the computational amount by 90% and memory usage by 95%. The final implementation uses 580-K gate count with 90-nm CMOS technology, and offers 6000 feature points/frame for VGA images at 30 frames/s and∼2000 feature points/frame for 1920× 1080 images at 30 frames/s at the clock rate of 100 MHz.
Index Terms— Feature extraction, SIFT, VLSI design.
I. INTRODUCTION
V
ISUAL feature extraction is a key technology of com-puter vision for intelligent video processing. Among extraction techniques, scale invariant feature transform (SIFT) [1] is the most widely adopted approach that provides stable visual feature points for reliable object detection. SIFT detects and describes local feature points in images for object detection in different scenes or different angles. These fea-ture points describe the strength and direction of the object, which resists the frame distortion such as zooming, rotation, movement, perspective change, shading and noise. To provide these stable points, SIFT computation involves the image convolution with Gaussian filters at different scales, and local maximum or minimum of the difference of Gaussians (DoG) blurred images at multiple scales. However, the real time implementation of this algorithm faces the challenges of heavy computation, large memory storage and long computational latency because of its frame level computation with iterated Gaussian blur operations on images and the frame difference operations on blurred images for feature extraction. Thus, a fast algorithm and its VLSI design are demanded.Manuscript received November 5, 2012; revised February 19, 2013; accepted April 19, 2013. Date of publication April 24, 2013; date of current version June 4, 2013. This work was supported in part by the Industrial Technology Research Institute under Grant A301AR3710. The associate editor coordinating the review of this manuscript and approving it for publication was Prof. Mark H.-Y. Liao.
L.-C. Chiu is with PixelArt Technology, Hsinchu 78229, Taiwan (e-mail: [email protected]).
T.-S. Chang is with the Dept. Electronics Engineering, National Chiao Tung University, Hsinchu 300, Taiwan (e-mail: [email protected]).
J. Y. Chen and N. Y. C. Chang are with the Industrial Technology Research Institute, Hsinchu 31040, Taiwan (e-mail: [email protected]; [email protected]).
Color versions of one or more of the figures in this paper are available online at http://ieeexplore.ieee.org.
Digital Object Identifier 10.1109/TIP.2013.2259841
Previous implementations of SIFT can be classified into following categories: multi-core, GPU, or FPGA based approaches. The multi-core [3], [4] or GPU approaches [5]–[8] used massive parallel computing resource to speed up the com-putation. Works [9]–[12] based on the FPGA platform used parallel FPGA resources to speed up the Gaussian blurring in SIFT. However, the corresponding feature point calculation was still computed by the processor, which results in heavy data bus congestion and reduces the performance. Beyond above implementations, the fast algorithm like SURF [2] used the integral image concept to speed up the Gaussian blur computation, which was followed by several works [13]–[15]. Integral image reduces the computation significantly. However, all these approaches still need iterations of Gaussian blur, which hinders their real time applications on larger frame size and increasing number of features points.
To solve above issues, this paper proposed a layer parallel SIFT (LPSIFT) with integral image and its parallel hardware design for real time application needs. First, to avoid the long latency due to the frame level computation, we adopted the layer parallel restructured box kernel to replace iterated Gaussian blur operations. The computation of box kernel was further simplified by the integral image approach with reuse of sub-kernel sum. With this, the latency of the first feature point was reduced to several image lines (depending on the location of that feature point) from several frames. For the keypoint localization, we simplified the complex low contrast analysis to be a low brightness test. For hardware design, we adopted the on-the-fly feature extraction flow so that only partial temporal results have to be stored. Furthermore, the costly inverse square root and divider in keypoint localization were implemented by a low cost universal operation unit with precision equivalent cycles (PECs) to reduce the gate count. With above methods, SIFT can be implemented with low hardware cost for real time high definition videos.
The rest of the paper is organized as follows. In Section II, we will briefly describe the operation of SIFT. In Section III, we will present the proposed algorithm. Its corresponding hardware design is shown in Section IV. Then, in Section IV, we will show the implementation results and comparison. Finally, a conclusion will be made in Section V.
II. OVERVIEW OFSIFT
Fig. 1 shows the overall algorithm flow of SIFT [1], which consists of scale space extrema detection, accurate keypoint localization, orientation assignment and the local image descriptor.
Fig. 1. SIFT algorithm: (1) scale-space extrema detection, (2) accurate keypoint localization, (3) orientation assignment, and (4) the local image descriptor.
The first step, scale space extrema detection, identifies keypoint candidates. It first convolves the image Sk with Gaussian filters G F(x, y, kσ) at different scale kσ to build a pyramid of Gaussian blurred images. In which,
Sk = S(x, y, kσ) = G F(x, y, kσ) ∗ Sk−1 (1) where for k = 1, Sk−1 = S0= I (x, y) is the input image, and
G F(x, y, kσ) = 1 2π(kσ) 2 e− (x 2+y2) 2(kσ)2 . (2)
The convolved images are grouped by octave (an octave corresponds to doubling the value ofσ), and the value of k is selected for a fixed number of convolved images per octave. The frame at the highest scale per octave is downsampled by four as the input frame for next octave, as depicted in Fig. 1. In this paper, we denote the frame in a pyramid of Gaussian blurred images by its octave and scale, G[Octave, Scale]. With this, the Gaussian pyramid can be defined as follows:
G [0, 0] = I (x, y) : the original frame (3)
G [0, 1] = G F (x, y, σ) ∗ G [0, 0] (4)
G [m, k] = G F (x, y, kσ) ∗ G [m, k − 1] for m, k ≥ 0 (5)
where G [m, 0] is obtained by downsampling G[m − 1,
maxi mum k in a octave] by four.
Then, we can compute the DoG blurred images by DoG [m, k] = G [m, k + 1] − G [m, k] (6) with DoG, we can find the local maximum or minimum in a 3× 3 window as the keypoint candidates by comparing the pixels at neighboring scales.
Among the candidates, stable keypoints are localized by rejecting some bad keypoints in the keypoint localization step
with a low contrast and edge detection test. The low contrast test rejects the unstable extrema location, defined by
ˆx = − ∂2DoG−1 ∂x2 ∂DoG ∂x (7) with a low contrast threshold derived from the Taylor expan-sion of DoG [m, k] DoGˆx= DoG + 1 2 ∂DoGT ∂x ˆx. (8)
Edge detection is decided by Tr(H )2 Det(H ) <
(r + 1)2
r (9)
where r is a coefficient to adapt the sharpness of object edge, and Tr(H ) and Det (H ) are the trace and determinant of 2×2 Hessian matrix H =DoGx x DoGx y DoGx y DoGyy (10) Tr(H ) = DoGx x+ DoGyy = α + β (11) Det(H ) = DoGx xDoGyy− DoGx y2= αβ. (12) Based on above test, if the candidate is verified to be a feature point, SIFT begins to calculate its orientation assignment.
In the orientation assignment step, each keypoint is assigned one or more orientations based on local image gradient directions to achieve invariance to rotation. In which, SIFT selects the largest vector, S-vector, to represent the orientation assignment. These steps ensure invariance to image location, scale and rotation. Finally, in the local image detector step, a descriptor vector for each keypoint is computed such that it is highly distinctive and partially invariant to other variations.
III. SIFT ANALYSIS ANDPROPOSEDLPSIFT DESIGN A. Design Analysis of SIFT
Table I shows the design analysis of SIFT for parameters [octave,scale]= [2, 4]. In this table, A is the number of pixels in a frame and its first level down sampled frame defined as
A= W H + 1
4W H = 1 1
4W H, (13)
where W and H are width and height of the original frame.
B represents the number of feature points.
From this table, we can find that the scale-space extrema detection and the keypoint localization contribute to most of overall computation, and require a lot of memory to save inter-mediate data frames. In addition, the keypoint localization, orientation assignment, and the local frame descriptor calcu-lation use a lot of dividers to compute Taylor expansion and normalization. This causes hardware implementation difficult. Thus, how to solve these problems is an important issue for SIFT hardware design.
Another problem for SIFT hardware is its highly data depen-dent computational structure. In the data flow of SIFT, a new scale image has to wait for the completion of the previous scale image in the Gaussian pyramid. Thus, different scale images are computed sequentially. This results in long latency and prohibits the following DoG computation in parallel that needs
Fig. 2. Algorithm flow of the proposed LPSIFT.
at least three scale images at the same time to calculate the candidates of features points. Thus, these intermediate scale images have to be stored until completing DoG computations, which results in large memory storage.
B. Proposed LPSIFT Algorithm
Fig. 2 shows the proposed LPSIFT algorithm, which is based on SIFT with three major modifications: fast scale space extreme detection with layer parallel Gaussian pyramid and integral image, and simplified keypoint localization with a brightness threshold.
In this flow, we propose a layer parallel algorithm to solve the data dependency problem, which not only calculate Gaussian pyramid and DoG pyramid at the same time but also calculate keypoint candidates simultaneously. This par-allel computation reduces storage and latency from multiple whole images to several image rows. To assist this parallel computation while reduce the computational complexity, we use the integral image approach to create a box kernel with the response similar to that of the Gaussian filter so as to keep the feature matching performance as close as that of SIFT but without complex Gaussian filters. By adopting the integral image approach for multiple box kernels in each scale, we reduce computational complexity significantly and enable parallel computation for all scales.
Another problem is the high complexity of Taylor expan-sion. We propose a low brightness method instead of the low contrast method to reduce complexity.
1) Fast Scale Space Extreme Detection With Layer Parallel Gaussian Pyramid and Integral Image: Fig. 3 shows the
concept of the layer parallel Gaussian pyramid. In the original Gaussian pyramid, each new pyramid level depends on its
Fig. 3. Concept of the layer parallel Gaussian pyramid.
previous level. To eliminate such dependency, we can fully expand the pyramid level and merge the multiple kernels into one
G [m, k] = G F (x, y, kσ) ∗ G [m, k − 1]
= (G F(x, y, kσ) ∗ G F(x, y, (k − 1)σ) · · · ∗G F(x, y, σ)) ∗ G [m, 0]
= G F(x, y, k) ∗ G[m, 0]
for positive integer m, and k. (14) With this independent Gaussian filtering, we can compute all scale layers in parallel and generate the DoG images on demand.
However, the merged kernel will become larger with more kernels merged as shown in Fig. 3, which will demand high computational complexity and storage. To solve this, we use the integral image concept that can compute this large kernel with constant time. By using integral image, no matter what the kernel size is, we need only four points of information and three additions, and reduce a lot of computation. With this simple computation, we can compute all scale layers in parallel without worry about the heavy complexity and storage due to layer parallel computation.
The integral image works best for the box kernel, but the box kernel results in inferior matching performance. Thus, we use restructured box kernels to approach the performance by the Gaussian filter. Take the first scale 5× 5 box kernel in Fig. 4(c) as an example. We modify this simple kernel to be the kernel in Fig. 4(d) to approach the performance of Gaussian filter. Its computation with integral image can be very simple as shown in Fig. 4(b). In this paper, we select the size of box kernels as 5× 5, 7 × 7, and 3 × 3 to construct the filters for different scales with appropriate modifications as the example illustrated in Fig. 4.
2) Simplified Keypoint Localization With a Brightness Threshold: SIFT uses Taylor expansion to exclude the low
contrast candidates, but Taylor expansion needs complex com-putation. In practical, the low contrast candidates almost have low brightness, too. Therefore, low brightness candidates can be excluded according to this threshold
thresholdnew= (2precision of DoG− 1) ∗ coefficientbright. In which, Coefficientbrightis a ratio of the gray level luminance in the DoG image with the default value 0.04. This simplifi-cation has similar performance as that by Taylor expansion according to our simulation, but this method saves a lot of calculation and is more suitable for hardware computation.
TABLE I
COMPUTATIONALCOMPLEXITY ANDMEMORYSTORAGEANALYSIS OFSIFT
Memory (byte) Multiplication Division Addition
Smoothing A 81 A 0 80 A
Scale-space extrema 4 A 2916 A 0 2933 A
Keypoint localization 3 A 59 A 50 A 132 B
Orientation assignment 0 450 B 225 B 673 B
The local frame descriptor 0 450 B 225 B 705 B
Total 8 A 3056 A+ 900 B 50 A+ 450 B 3013 A+ 1510 B
Fig. 4. Mask for 5× 5 box kernel, its integral image representation of (a) original one (b) and modified one, and the corresponding pixel domain of (c) original one, (d) and modified one.
Table II shows the complexity analysis of our proposed algorithm for parameters [octave,scale] = [2, 4], with the comparison of VGA and full HD images in Table III. In Table II, C is the number of frame width in a group of down sample twice (C = W + (1/4)W = 1(1/4)W), and W is the width of the original frame. In the first three steps, computation with integral image only uses additions to eliminate all mul-tiplications and data dependent computation. In the keypoint localization, divisions to compute Taylor expansion are also eliminated. Beyond above computation reduction, we only need a few rows of the integral image for the box kernel based computation instead the whole integral image. In summary, the proposed algorithm can reduce a lot of computation and memory usage, which are useful for the following hardware implementation.
IV. PROPOSEDARCHITECTURE
Fig. 5 shows the proposed architecture that consists of two stages: scale-space extrema detection and keypoint localization in the stage one, and orientation assignment and the local frame descriptor in the stage two. In the stage one, we adopt the proposed LPSIFT with integral image to reduce the com-putation significantly, and further reduce the required integral
Fig. 5. Proposed architecture diagram.
Fig. 6. Scheduling for a VGA image.
image buffer by the on-the-fly computation scheduling. In the stage two, we adopt the proposed brightness threshold to simplify computation and implement the normalization in keypoint localization with a low cost universal operation unit with precision equivalent cycles (PEC).
Fig. 6 shows the proposed scheduling for a VGA image, operated row by row. Our proposed design specification is [octave, scale] = [2, 4], and supports more than 1000 feature points in one VGA frame with 30 frames per second at 100MHz. Each row spends 19 cycles to calculate the initial information in the beginning. After that we find the feature point candidates of the stage one. If a candidate is a feature point, the stage two starts to compute the required information of that feature point. When the former step completes, oper-ation is back to the stage one. In summary, the computoper-ation time of the stage one is not fixed until a feature point is found, while the stage 2 takes 520 cycles.
TABLE II
COMPUTATIONCOMPLEXITY OFPROPOSEDALGORITHM
Memory (byte) Multiplication Division Addition
Smoothing 7 C 0 0 58A
Integral image 80 C 0 0 3 A
Scale-space extrema 893 0 0 383 A
Keypoint localization 27 27 A 0 12 A
Orientation assignment 256 450 B 225 B 673 B
The local frame descriptor 0 450 B 225 B 705 B
Total 87 C+ 1176 27 A+ 900 B 450 B 456 A+ 1378 B
TABLE III
COMPARISON OFPROPOSED ANDSIFT ALGORITHM
VGA Size Full HD Size
Mem. (byte) Mul. Div. Add. Mem. (byte) Mul. Div. Add.
SIFT 3.07 E+06 1.17 E+09 1.97 E+07 1.16 E+09 2.07 E+07 7.92 E+09 1.30 E+08 7.81 E+09 Proposed 7.08 E+04 1.13 E+07 4.50 E+05 1.76 E+08 2.10 E+05 7.09 E+07 4.50 E+05 1.18 E+09
Saving (%) 97.7 99.0 97.7 84.8 99.0 99.1 99.7 84.9
Fig. 7. Architecture of the stage one.
A. Stage One With On-the-Fly Computation Scheduling
Fig. 7 shows the architecture of the stage one, which applies the noise smoothing to the input image and builds the integral image for following filtering operations. With enough rows of integral image, we begin to compute scale images and corresponding DoG images to find feature point candidates at the same time as shown in Fig. 8, called on-the-fly computation. In which, when we calculate the last frame in the first layer (G[0, 3]), we will downsample this frame to the first frame of next layer (G[1, 0]) simultaneously. Therefore, we not only compute different scales in an octave at the same time but also compute different octaves at the same time. With this on-the-fly computation, we need only a few rows of buffer cost instead of multiple frames due to the Gaussian pyramid and DoG pyramid.
B. Architecture of the Stage Two
Fig. 9 shows the design of the keypoint localization after obtaining the DoG. We can compute the feature point can-didate by examining conditions such as the local maximum and minimum value, low brightness and edge detection. Since all these conditions are independent to each other, we can compute each condition simultaneously with a flag bit to denote if it matches the feature point criteria. If all flag bits are zeros, that indicates the candidate is approved to be a new feature point.
Fig. 8. Parallel computation of the Gaussian pyramid, and DoG pyramid to find feature points.
Fig. 9. Hardware architecture of the keypoint localization.
Fig. 10 shows the design of the orientation assignment. In this design, 19× 19 pixels of integral image will be fetched again to re-compute 15× 15 information of scale 1 since no scale image is stored. In this recomputation step, we will
Fig. 10. Hardware architecture of the orientation assignment.
Fig. 11. Flow chart of the universal operation with precision equivalent cycle.
compute one row at a time, and store the results at the buffer. With three rows of data, we can compute the gradient magni-tude and orientation. However, these computations involve the square root, inverse trigonometric and inverse square root.
To avoid high cost of single cycle design, we design a shared multi-cycle component for the inverse square root and division, and implement the inverse trigonometric function with a look-up table and the multi-cycle component.
Fig. 11 shows the flow chart to implement the inverse square root, Y = 1/√x with one cycle per quotient bit, and n is
the precision of Y . The operation is as follows. First, above equation can be rewritten as X2Y = 1, where X is a known
input and Y is the desired answer. Assume Y is the maximum value at its accuracy now. If X2Y > 1, it implies that Y is too large. Thus, we change the current bit of Y with 0, and compute it again. If X2Y < 1, it implies that Y is too
small. Thus, we will add one to this bit and compute it again. Repeat above steps to reach the lowest bit of Y , and finish the calculation. For division, we need to replace X with X2. Similar derivation can be applied to the square root opera-tion. The total cycle number is equal to the precision of Y . This feature meets the precision limited hardware design because the fixed cycle latency eases the overall scheduling and controller design.
V. SIMULATION ANDIMPLEMENTATIONRESULTS A. Simulation Results
Fig. 12 and Fig. 13 show the training patterns for threshold decision and test patterns used in this paper. The first part is mainly monotonous indoor frames with few objects, which
(a) (b)
(c) (d)
(e) (f)
Fig. 12. The training patterns, (a) desktop, (b) photocopier, (c) iron cabinet, (d) meeting room, (e) books, (f) FPGA board.
TABLE IV
TESTCONDITIONSUSED IN THESIMULATION
Unit Best Case Normal Case Worst Case Light (Mean, variance) (10, 10) (10, 30) (10, 50) Focus σ 1 1 3 Rotation Angle 3 10 40 Stretch Ratio 0.98 0.8 0.6
Movement (x-axis, y-axis) (−10,
−5) (−30)−30, (−60)−60,
is difficult to find feature points. The second part selects the monotonous, regular, short personal distance, indoor, outdoor and crowd images for test.
The simulation emphasizes on the following conditions: movement toward random directions, the change of lights in scenes light, focus, rotation in different angles and stretch. Table IV shows the test conditions and their parameters. The best case will be like images taken by the burst mode shooting. The normal case will be like images taken by two persons on the same scene but with some relative motion. The worst case will be like images taken casually by two persons, which is rarely occurred in feature extraction applications. Fig. 14 shows the matching results and images for different cases.
The performance is measured by the accuracy defined as Accuracy=Number of Correct Match Points
(a) (b)
(c) (d)
(e) (f)
Fig. 13. The test patterns, (a) Dandelion, (b) shoes, (c) person, (d) cafe, (e) road row, (f) temple.
(a)
(b)
(c)
(d)
Fig. 14. (a) Matching point for normal case. Test images at (b) the best case, (c) the normal case, (d) the worst case.
where match points means that feature points in two different frames have the same local image descriptors, and correct match points mean that two feature points with the identical information have the same coordinates after the transformation of the golden pattern. If their coordinates are different, the match point is incorrect.
TABLE V
RESULTS OF THENORMALCASE FORTRAININGPATTERNS
Pattern Feature Points on Orig-inal Frame Feature Points on Conver-sion Frame Match Point Correct Match Point Accuracy (%) Desktop 956 1447 66 55 83.33 Photocopier 936 1525 43 33 76.74 Cabinet 254 839 36 31 86.11 Whiteboard 455 1159 51 43 84.31 Books 708 1245 33 25 75.76 FPGA board 476 543 39 33 84.62 TABLE VI
ACCURACYCOMPARISONWITHSIFTFORTRAININGPATTERNS
Best Case Normal Case Worst Case
Pattern SIFT Ours SIFT Ours SIFT Ours
Desktop 97.41 90.00 89.80 83.33 100.00 71.93 Photocopier 96.32 88.65 95.30 76.74 97.96 70.91 Cabinet 98.23 96.70 97.85 86.11 100.00 74.19 Whiteboard 93.94 84.78 96.00 84.31 91.67 81.82 Books 98.98 96.88 93.33 75.76 97.22 70.97 FPGA board 98.80 96.09 96.08 84.62 97.30 54.55 Average 97.28 92.18 94.73 81.81 97.36 70.73 TABLE VII
ACCURACYCOMPARISONWITHSIFTFORTESTPATTERNS
Best Case Normal Case Worst Case
Pattern SIFT Ours SIFT Ours SIFT Ours
Dandelion 99.02 92.62 94.48 87.23 97.37 64.10 Shoes 96.75 91.73 91.39 83.33 92.47 64.71 Person 99.07 95.24 99.44 89.47 100.00 68.75 Café 96.25 81.58 92.31 88.89 80.95 88.89 Road row 99.35 97.22 98.33 88.89 97.58 50.00 Temple 98.48 88.41 98.95 100.00 98.72 64.29 Average 98.15 91.13 95.82 89.64 94.52 66.79
The simulation result shows that the average accuracy for training pattern is 71%, 82%, and 92% for worst, normal and best cases respectively, 63%, 92% and 98% for test patterns at worst, normal and best cases respectively. Table V shows the detailed results of the normal case for training patterns. Tables VI and VII shows the accuracy comparisons with SIFT. The SIFT accuracy is more than 90 % but also much complex. In contrast, our proposed algorithm has much lower complexity and approaches to the accuracy of original SIFT at the best case and normal case. The lower performance of the worst case is because our design cannot handle images with dramatic change of focus and stretch very well. The reason for that is that the proposed approach adopts integer instead of floating point format and only two octaves instead of more octaves. Fig. 15 shows the matching result of the image cafe for different cases.
(a)
(b)
(c)
Fig. 15. Matching result for (a) best case (b) normal case (c) worst case.
B. Implementation Results
Table VIII shows the comparison of FPGA implementations. Our design supports about 6000 feature points per frame at VGA 30 frames/sec and about 2000 feature points per frame
Fig. 16. Prototype of the FPGA-based real-time feature extraction system.

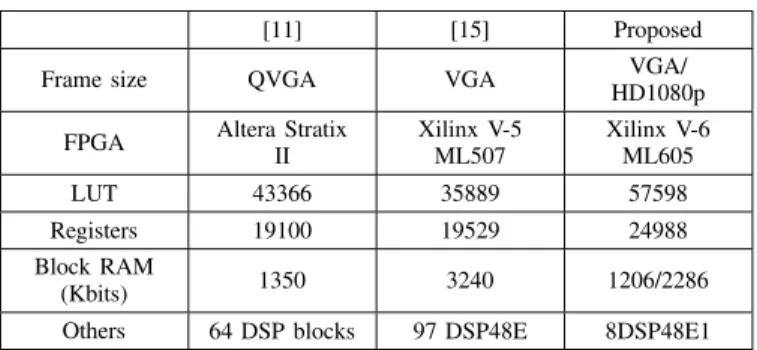

TABLE VIII
COMPARISON OFFPGA IMPLEMENTATIONS
[11] [15] Proposed
Frame size QVGA VGA VGA/
HD1080p
FPGA Altera Stratix II Xilinx V-5 ML507 Xilinx V-6 ML605 LUT 43366 35889 57598 Registers 19100 19529 24988 Block RAM (Kbits) 1350 3240 1206/2286
Others 64 DSP blocks 97 DSP48E 8DSP48E1
at HD1080p 30 frames/sec, which is due to the proposed layer parallel scheme. Although we spend more LUTs and registers to compute LPSIFT with integral image, our design only uses 8 DSP48E1s and less Block RAM at the same frame size.
Table IX shows the comparisons of ASIC implementations. Our design can easily support HD1080p30 with 2000 feature points at 100MHz and saves 56% gate count and 90.4% memory cost when compared to the previous design for the VGA image. This high throughput and lower cost is due to the layer parallel scheme and related hardware implementation techniques.
Fig. 16 illustrates the prototype of the realtime feature extraction system based on the FPGA implementation. The system captured VGA-sized live video from a Panasonic CCD camera, extracted features, and displayed the captured video and extracted features on a screen in realtime. The features were drawn as small red crosses on the screen. We have
TABLE IX
COMPARISON OFASIC IMPLEMENTATIONS
[17] Proposed Proposed
Technology 180 nm 90 nm 90 nm
Frequency 100 MHz 100 MHz 227 MHz
Frame size VGA30fps HD1080p30 HD1080p30
Feature point/frame 890 6000 (VGA) 2000 (HD1080) 11000 (HD1080) Gate count 1320 K 580 K 704 K
Memory 5.729 Mb 553 Kbit 553 Kbit
verified the features extracted from this prototype with the result of our feature extraction software. A video recording of the prototype system running feature extraction can be found on Youtube (http://youtu.be/NDDBkVQugp0).
VI. CONCLUSION
This paper presents a real time SIFT based feature extrac-tion engine that is capable to compute 2000 feature points for HD1080p30 at 100 MHz. The proposed design adopts the layer parallel restructured box kernel to replace iterated Gaussian blur operations for simple and parallel computation. This also reduces the latency to a few image lines instead of several frames. The final flow uses the on-the-fly feature extraction flow so that only partial intermediate results have to be stored. With these techniques, the presented design easily achieves the real time demand with significantly lower cost, which saves 56% gate count and 90.4% memory cost when compared to the previous design.
