Open Access
Research article
Genomic diversity of citrate fermentation in Klebsiella
pneumoniae
Ying-Tsong Chen
†1, Tsai-Lien Liao
†1, Keh-Ming Wu
†1,2, Tsai-
Ling Lauderdale
3, Jing-Jou Yan
4, I-Wen Huang
3, Min-Chi Lu
5, Yi-Chyi Lai
5,
Yen-Ming Liu
1, Hung-Yu Shu
6, Jin-Town Wang
7, Ih-Jen Su
3and Shih-
Feng Tsai*
1,2,8Address: 1Division of Molecular and Genomic Medicine, National Health Research Institutes, Miaoli, Taiwan, Republic of China, 2Genome Research Center and Institute of Biomedical Informatics, National Yang-Ming University, Taipei, Taiwan, Republic of China, 3Division of Infectious Diseases, National Health Research Institutes, Zhunan, Miaoli, Taiwan, Republic of China, 4Department of Pathology, National Cheng Kung University Hospital, Tainan, Taiwan, Republic of China, 5College of Medicine, Chung Shan Medical University, Taichung, Taiwan, Republic of China, 6Department of Bioscience Technology, Chang Jung Christian University, Tainan County, Taiwan, Republic of China, 7Department and Graduate Institute of Microbiology, National Taiwan University, Taipei, Taiwan, Republic of China and 8Department of Life Sciences and Institute of Genome Sciences, National Yang-Ming University, Taipei, Taiwan, Republic of China
Email: Ying-Tsong Chen - [email protected]; Tsai-Lien Liao - [email protected]; Keh-Ming Wu - [email protected]; Tsai- Ling Lauderdale - [email protected]; Jing-Jou Yan - [email protected]; I-Wen Huang - [email protected]; Min-
Chi Lu - [email protected]; Yi-Chyi Lai - [email protected]; Yen-Ming Liu - [email protected]; Hung-Yu Shu - [email protected];
Jin-Town Wang - [email protected]; Ih-Jen Su - [email protected]; Shih-Feng Tsai* - [email protected]
* Corresponding author †Equal contributors
Abstract
Background: It has long been recognized that Klebsiella pneumoniae can grow anaerobically on citrate.
Genes responsible for citrate fermentation of K. pneumoniae were known to be located in a 13-kb gene cluster on the chromosome. By whole genome comparison of the available K. pneumoniae sequences (MGH 78578, 342, and NTUH-K2044), however, we discovered that the fermentation gene cluster was present in MGH 78578 and 342, but absent in NTUH-K2044. In the present study, the previously unknown genome diversity of citrate fermentation among K. pneumoniae clinical isolates was investigated.
Results: Using a genomic microarray containing probe sequences from multiple K. pneumoniae strains, we investigated genetic diversity among K. pneumoniae clinical isolates and found that a genomic region containing the citrate fermentation genes was not universally present in all strains. We confirmed by PCR analysis that the gene cluster was detectable in about half of the strains tested. To demonstrate the metabolic function of the genomic region, anaerobic growth of K. pneumoniae in artificial urine medium (AUM) was examined for ten strains with different clinical histories and genomic backgrounds, and the citrate fermentation potential was found correlated with the genomic region. PCR detection of the genomic region yielded high positive rates among a variety of clinical isolates collected from urine, blood, wound infection, and pneumonia. Conserved genetic organizations in the vicinity of the citrate fermentation gene clusters among K. pneumoniae, Salmonella enterica, and Escherichia coli suggest that the13- kb genomic region were not independently acquired.
Published: 15 August 2009
BMC Microbiology 2009, 9:168 doi:10.1186/1471-2180-9-168
Received: 30 April 2009 Accepted: 15 August 2009
This article is available from: http://www.biomedcentral.com/1471-2180/9/168
© 2009 Chen et al; licensee BioMed Central Ltd.
This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
BMC Microbiology 2009, 9:168 http://www.biomedcentral.com/1471-2180/9/168
Conclusion: Not all, but nearly half of the K. pneumoniae clinical isolates carry the genes responsible for anaerobic growth on citrate. Genomic variation of citrate fermentation genes in K. pneumoniae may contribute to metabolic diversity and adaptation to variable nutrient conditions in different environments.
Background
Citrate, a ubiquitous natural compound that exists in all living cells, can be used by several enterobacterial species as a carbon and energy source. Klebsiella pneumoniae has been known to be able to grow anaerobically with citrate as the sole carbon source. During the past decade, the physiology, biochemistry, and regulation of this pathway have been extensively studied in K. pneumoniae [1-4]. The fermentation process involves uptake of citrate by a Na+ - dependent citrate carrier, cleavage into oxaloacetate and acetate by citrate lyase, and decarboxylation of oxaloace- tate to pyruvate by oxaloacetate decarboxylase. Finally, pyruvate can be converted to acetate, formate and carbon dioxide by means of anaerobic pyruvate catabolism.
Genes responsible for citrate fermentation of K. pneumo- niae can be identified in a 13-kb gene cluster on the chro- mosome [[2,5], and this study]. These genes are contained within two divergently transcribed operons, citC2D2E2F2G2 and citS-oadGAB-citAB [6]. The citC2D2E2F2G2 operon encodes the citrate lyase ligase, the γ-, β-, and α-subunits of citrate lyase, and triphos- phoribosyl-dephospho-coenzyme A synthase. The citS- oadGAB(dcoCAB)-citAB operon encodes the citrate carrier CitS, the γ-, α-, and β-subunits of oxaloacetate decarboxy- lase, and the citrate-sensing CitA-CitB two component system [5]. Transcription at the promoters in front of the two operons is activated by phospho-CitB and Crp-cAMP [2]. Additionally, citX, which is required for synthesis of the citrate lyase prosthetic group, has been identified in a second genomic location along with citW, a putative cit- rate transporter gene, and citYZ that encodes a two com- ponent system homologous to CitA-CitB [7]. The citWX genes and the divergent citYZ are adjacent but placed in opposite directions.
Coliform organisms, especially E. coli and K. pneumoniae, are the most common causes of urinary tract infection.
Uropathogenic pathogens have been studied extensively for virulence factors such as the fimbriae and adhesins [8,9]. These virulence factors facilitate the anchorage of the pathogens to the extracellular matrix of the bladder and urinary tract, and thus prevent them from being washed out by the urine. Type I pili, which is produced by all members of the Enterobacteriaceae family, has long been implicated as an important virulence factor in medi- ating K. pneumoniae urinary infection [10,11]. Alterna- tively, the ability to grow in urine may be important for
the persistence of pathogens in the urinary tract. Except for trace of amino acids, citrate is the only carbon source available in normal human urine.
In K. pneumoniae, little has been reported about the genomic basis for nutrient growth. We recently completed the whole-genome sequence of NTUH-K2044 (GenBank accession no. AP006725) [12], a K. pneumoniae strain iso- lated from the blood of a previously healthy individual who was diagnosed with a community-acquired primary liver abscess and metastatic meningitis [13]. By compari- son with the available genome sequences of the other K.
pneumoniae strains, MGH 78578 (GenBank: CP000647), and 342 (GenBank: CP000964) [14], we discovered that the entire 13-kb chromosomal region carrying the afore- mentioned citrate fermentation genes in MGH 78578 and 342 was missing in NTUH-K2044. We postulated that the 13-kb genomic region containing genes for citrate fermen- tation might facilitate the use of urine citrate in oxygen- limited or anaerobic conditions, and thus, permit the growth of K. pneumoniae in the urinary tract. To test this hypothesis, an artificial urine medium (AUM) designed to provide controlled composition of the human urine [15]
was used in this study to ensure reproducibility. The cor- relation between presence/absence of the citrate fermenta- tion genes and anaerobic growth in this system was investigated. The distribution of the citrate fermentation genes among different K. pneumoniae clinical isolates was also analyzed.
Results and Discussion
The citrate fermentation genes in a 13-kb genomic region Located at 2791640906 bp in the genomic sequence of K.
pneumoniae strain MGH 78578, the 13-kb citrate fermen- tation gene locus contains 11 orfs, which constitute two divergently transcribed operons citC2D2E2F2G2 and citS- oadGAB(dcoCAB)-citAB (Figure 1). The organization of these genes is the same as in the recently published K.
pneumoniae 342 genome [14]. The dihydrodipicolinate reductase gene dapB and the hypothetical orfs located at the two ends of the 13-kb region in the MGH 78578 and 342 genomes are next to each other in the NTUH-K2044 genome. Missing in the corresponding location, the citrate genes are nowhere found in the NTUH-K2044 genome, and the region is replaced by a 155-bp non-coding sequence. Since many genomic or pathogenicity islands found in bacteria genomes were associated with tRNA genes, we also tried to look for tRNA genes at the edge of
this region. However, it appeared that the 13-kb genomic region carrying the citrate fermentation genes is not located within or near any tRNA gene, nor does it contain any direct repeat or known mobility sequence. This is in agreement with a recent study of bacterial genome flux, which indicated that, among twenty Escherichia coli genomes, many of the integration hotspots are not neces- sarily recombinogenic [16].
Another gene cluster containing the citWX and the diver- gent citYZ genes are conserved among K. pneumoniae genomes (Figure 1a). In NTUH-K2044, the citWX-citYZ gene cluster is located at 15,693-bp downstream of the dapB. The existence of this additional gene cluster, espe- cially the citX, is important for the function of citrate lyase in K. pneumoniae. Unlike the counterpart identified in Sal- monella enterica (Figure 1b), the 13-kb region in K. pneu- Comparative analysis of citrate fermentation gene locus
Figure 1
Comparative analysis of citrate fermentation gene locus. The 13-kb genomic region is present in K. pneumoniae MGH 78578 but absent in NTUH-K2044 (a). The location of the 13-kb genomic region for citrate fermentation, which includes two divergently transcribed operons, citS-oadGAB-citAB and citC2D2E2F2G2, are marked. The adjacent hypothetical orfs are shown in gray, among which the ltrA encodes a putative transcriptional regulator. The citYZ-citWX gene clusters downstream of the dapB in both MGH 78578 and NTUH-K2044 are also depicted. The G+C value for each orf in MGH 78578 is shown below each orf. The red bar indicates the corresponding location replaced by an apramycin resistant gene in the promoter knocked- out strain, NK8-Δcit, derived from the NK8 clinical strain. Corresponding citrate fermentation loci from S. enterica serovar Typhimurium LT2 and E. coli K12 are shown (b and c) with colours indicating homologous genes. Alternative gene names in parentheses on top of some orfs for better comparison were based on homology search. The locations of these regions in the genomes are marked below. In the LT2 genome, two clusters of citrate fermentation genes were found. The corresponding flanking genes for locus I, dcuC and rna, and locus II, rihC and dapB, are shown in black.
BMC Microbiology 2009, 9:168 http://www.biomedcentral.com/1471-2180/9/168
moniae does not contain citX for the biosynthesis of the prosthetic group of citrate lyase [7]. In MGH 78578, the deduced amino acid sequences of citY and citZ are 43%
and 41% identical to CitA and CitB, respectively.
Nearly half of the K. pneumoniae clinical isolates carry the 13-kb genomic island
The presence/absence of the 13-kb region was investigated in additional K. pneumoniae clinical isolates (NK3, NK5, NK6, NK8, NK9, NK25, NK29, NK245, CG43, CMKa01 through CMKa08, CMKa10). These isolates were collected from patients with pneumonia (3), bacteremia (4), liver abscess (7), UTI (2), meningitis (1), and endophthalmitis (1). We conducted comparative genomic hybridization (CGH) analysis on the test strains with custom-made DNA microarray (NimbleGen), in which a total of 389,266 probes were designed based on the CDSs of five sequenced K. pneumoniae genomes [12]. For the current report, we have analyzed the results of the predicted cod- ing sequences spanning the 13-kb region of MGH 78578.
As shown in Figure 2, each of the 19 strains (including MGH 78578 as a control) was compared against the NTUH-K2044 reference genome. The dots represent the DNA copy number log ratios between the reference and tested genomes for the 687 probes corresponding to the sequences spanning the 13-kb region. Since the NTUH- K2044 genome does not carry the cit genes, these results indicate that the 9 strains with dots plotted at the baseline in this region (NK5, NK6, NK9, CG43, CMKa01, CMKa02, CMKa04, CMKa08, and CMKa10) do not carry these genes in their genomes. The other ten strains shown in below, including MGH 78578, gave higher signals for the cit genes than that from the reference (Figure 2). By contrast, all strains have the same copy number of the flanking genes (rihC, hypothetical orfs, and dapB) as the NTUH-K2044.
The oad genes within the 13-kb region are missing in NTUH-K2044, but the strain possesses an additional copy of oad genes at the tartrate-fermentation gene cluster out- side this region. In contrast, according to the genomic sequence, MGH 78578 (GenBank: CP000647) carries three copies of the oad genes, including one in the 13-kb region. This is also confirmed by the CGH result, which indicated that four strains, MGH 78578, NK8, CMKa05, and CMKa07, carry more than one copy of the oad genes and showed higher signal in the oad-probed region. On the other hand, CMKa10, NK5 and CG43, do not have oad genes and were represented by CGH plots below the base- line. We conclude that the 13-kb citrate fermentation gene sequence is not a uniform feature of K. pneumoniae and that the oadGAB gene copy number is variable among the analyzed strains.
aerobically [17]. A stark contrast is the ability of K. pneu- moniae to grown on citrate anaerobically. While all K.
pneumoniae isolates can grow on citrate aerobically, our results suggested that only about half of them carry the 13- kb gene cluster for anaerobic citrate utilization.
The 13-kb genomic island permits anaerobic growth in artificial urine
As citrate is a major carbon source in human urine, we then asked whether the 13-kb genomic island could con- tribute to K. pneumoniae growth in the urinary tract.
Although human urine is a suitable culture medium, the urine constituents can vary considerably between individ- uals under different conditions. It has been reported that the dissolved oxygen (DO) in urine is about 4.2 ppm, which is also variable and mainly reflects the renal meta- bolic state [18]. In patients with urinary infections, the urine DO is significantly reduced as a result of oxygen consumption by the microbes [18]. Therefore, in this study an artificial urine medium (AUM) developed to pro- vide an experimental condition similar to that of the human urine [15] was used. To simulate growth condi- tions in the urinary tract, K. pneumoniae isolates were cul- tured in AUM at 37° under oxygen-deprived condition.
Notable difference in the growth curves was observed when K. pneumoniae clinical strains were cultured anaero- bically in AUM. After 27 hours incubation, five strains with the 13-kb genomic island (NK3, NK8, NK25, NK29, NK245), showed significant growth in AUM (OD600: 0.170.43). In contrast, little growth (OD600: 0.040.06) was detected for strains that do not have the 13-kb genomic island (NTUH-K2044, NK5, NK6, NK9, CG43).
The turbidities (OD600) of NK8 and NTUH-K2044 at dif- ferent time points during the 27-hour incubation in AUM were also measured. Note that little growth was detected in NTUH-K2044, a strain that lacks the citrate fermenta- tion gene cluster (Figure 3), while exponential logarithmic phase growth was observed from 15 to 19 h in the NK8 strain that carries the 13-kb genomic island (Figure 4).
To demonstrate that the citrate fermentation genes present in the 13-kb region have allowed alternative use of carbon and energy source, a fosmid, F06C06, which con- tains the entire 13-kb region from NK8, was transformed into NTUH-K2044. As shown in Figure 3, this fosmid ena- bled the bacteria (NTUH-K2044-F06C06) to grow anaer- obically in AUM. The logarithmic growth (from 11 to 15 h) of the fosmid-transformed clone was shifted to the left and the cells reached the stationary phase earlier than that of the NK8. This may be a result of gene copy number dis- crepancies between the fosmid transformants and NK8, or a result of other genetic factors specific to the NTUH- K2044 genome. Similarly, the F06C06 fosmid sequence
Genomic variation at the citrate fermentation gene locus Figure 2
Genomic variation at the citrate fermentation gene locus. Divergence of the 13-kb genomic region in 19 K. pneumo- niae strains was detected by CGH analysis using the NimbleGen chips. Hybridization signals of each probes placed in the order of the MGH 78578 genome were compared with those of the reference strain, NTUH-K2044. The probes covering the cit genes and the oad genes of the 13-kb region were shown together with that of the adjacent orfs. The normalized CGH signals for each probe are plotted as black dots. The dot position above or under the baseline represents higher or lower copy of spe- cific genomic sequence in comparison to the reference. The scores in vertical axis are log2 values of test/reference signal inten- sity obtained from image scanning of hybridization results. The detection of elevated scores in the cit genes (citA-B, citS~citG2) in the last 10 strains (from NK3 to MGH 78278) is marked by solid triangles. Variations in the oad region are marked by open triangles.
BMC Microbiology 2009, 9:168 http://www.biomedcentral.com/1471-2180/9/168
not shown). As a control, the K. pneumoniae strains NTUH-K2044, NK8, NTUH-K2044-F06C06, and NK8- Δcit were cultured anaerobically in AUM medium pre- pared without citrate, all four strains showed no sign of growth in 27 hours.
To demonstrate that an intact citrate gene cluster is neces- sary for anaerobic growth, we created by homologous
recombination a genetic mutant in which the entire citS and the nearby citC2 promoter was replaced with an apramycin resistance gene. The citS-citC2 intergenic region contains binding sites for the response regulator CitB and cyclic AMP receptor protein (CRP), which medi- ates catabolic repression of citrate fermentation genes under anaerobic conditions [4]. The gene disruption was confirmed by PCR and sequencing of the region. The cor- responding location of the altered sequence in the citrate fermentation island is indicated in Figure 1a. As consist- ent with the fact that the citC2 and citS promoters control the expression of the citC2D2E2F2G2 and citS-oadGAB- citAB operons, disruption of this regulatory region in the resultant strain, NK8-Δcit, crippled its ability to grow anaerobically in AUM (OD600 = 0.042 after 27-h incuba- tion) (Figure 4). Taken together, our data support that the citrate fermentation island permits and is necessary for anaerobic growth of K. pneumoniae in AUM using citrate as the sole carbon source.
Citrate fermentation gene cluster in K. pneumoniae clinical isolates
From the genetic studies on the citrate fermentation in AUM, it seems plausible that the ability of K. pneumoniae to grow in urine may provide the organism an added advantage in urinary tract infections (UTI), thus a higher percentage of citrate fermentation genomic island-posi- tive K. pneumoniae strains would be expected in urine iso- lates than in non-urine isolates. To test this hypothesis, a total of 187 K. pneumoniae clinical isolates collected from urine and non-urine specimens including blood, respira- tory tract, wound, bile, ear, eye, and IV catheters, were analyzed for the presence of the 13-kb island by using 5 PCR primer pairs designed across the region (Table 1). As shown in Table 2, 55 out of the 93 (59%) urine isolates carried the genomic island, while 53/94 (56.3%) of non- urine were test positive for the gene cluster. Thus, we did not find apparent correlation between the possession of the 13-kb genomic region and urinary tract infection in this case collection.
In uropathogenetic E. coli strains, adhesins enable the anchorage to urinary tract to overcome the hydrodynam- ics of micturition, even though E. coli cannot live solely on citrate in anaerobic condition [2]. Other factors in the K.
pneumoniae genome likely also contribute to urinary infec- tion. To investigate the host-microbial interaction in UTI and to overcome the complex clinical situations, animal models will be necessary for determining the role of this 13-kb genomic island in K. pneumoniae in colonizing the urinary tract.
Genomic diversity on citrate fermentation
The genes associated with citrate fermentation are differ- Citrate gene cluster permits fermentation growth in AUM
for the NTUH-K2044 strain Figure 3
Citrate gene cluster permits fermentation growth in AUM for the NTUH-K2044 strain. NTUH-K2044, a strain that lacks the 13-kb genomic region; NTUH-K2044- F06C06, NTUH-K2044 transformed by a fosmid (F06C06) carrying the 13-kb genomic region responsible for citrate fer- mentation from NK8.
Citrate gene cluster is necessary for fermentation growth in AUM for the NK8 strain
Figure 4
Citrate gene cluster is necessary for fermentation growth in AUM for the NK8 strain. NK8 is a clinical strain carrying the same citrate fermentation genes as the sequenced reference strain, MGH 78578; NK8-Δcit, NK8 with the 13-kb genomic region disrupted at the promoter region. The initial OD600 of the inoculated AUM culture is
Typhimurium LT2 (GenBank: AE006468), which is capa- ble of citrate fermentation using the same pathway, two gene clusters similar to the 13-kb region are present in the genome (Figure 1b). One of them (locus I) showing sim- ilar gene arrangement (citAB, and divergent citCDEFXGT) was identified between the rna RNase I gene (Locus_tag:
STM0617, location: 679989680795) and the dcuC C4- dicarboxylate transporter gene (Locus_tag: STM0627, location: 690391691776) in the LT2 genome. The other (locus II) (citS-oadGAB-citAB, and divergent citC2D2E2F2X2G2) was found between rihC putative nucleotide hydrolase gene (Locus_tag: STM0051, loca- tion: 6016461084) and dapB (Locus_tag: STM0064, loca- tion: 7401774838). Both loci in LT2 carry the citX gene in respect to that of the 13-kb island of K. pneumoniae. Based on the composition of the gene clusters and the genes at the vicinity, it appears that the second copy (locus II) from LT2 is more related (closer) to the 13-kb island of K. pneu- moniae, albeit three hypothetical orfs (Figure 1a) next to the citB in K. pneumoniae are missing in LT2. The first copy of the gene cluster from LT2, as shown in Figure 1b, is sim- ilar in gene organization to the citrate fermentation gene cluster in E. coli K12 (GenBank: U00096), which contains a citAB and a divergent citCDEFXGT positioned next to the rna RNase I gene (Locus_tag: b0611, location:
643420644226) (Figure 1c). The citT encodes a citrate- succinate antiporter for citrate uptake in E. coli [19]. While the citrate fermentation genes corresponding to locus I is
missing in K. pneumoniae, homologs of the rna and dcuC identified at the two ends of this gene cluster were juxta- posed to each other in the K. pneumoniae NTUH-K2044 (KP1607 and KP1608, location: 15511491553412), MGH 78578 (location: 742196744459) and 342 (loca- tion: 29622033964466). On the other hand, homologs of the rihC and dapB, the genes flanking the two ends of the 13-kb genomic island from K. pneumoniae, were found adjacent to each other in the E. coli K12 genome (Locus_tag: b0030 and b0031, location: 2729329295).
In the MGH 78578, three oad gene clusters were found, one located in the 13-kb citrate fermentation gene cluster, another located at the downstream of the galETKM genes for galactose metabolism, and the third located near the ttdA and ttdB genes for tartrate fermentation [20]. In K.
pneumoniae 342 (GenBank: CP000964), the oad gene downstream of galETKM is missing while the other two copies were kept. In NTUH-K2044, the oad(dco) genes associated with the 13-kb region as well as the other copy proximal to the galactose metabolism genes were missing;
only the copy near the tartrate dehydratase genes was found in the genome. As demonstrated in S. enterica, oxaloacetate decarboxylase is involved in the fermenta- tion of tartrate, presumably following the reaction of tar- trate dehydratase, in which tartrate is converted to oxaloacetate [2,20]. It is conceivable that the oad genes were recruited to the vicinity of these genes and evolved
Table 1: Primer pairs used for detecting citrate fermentation genes.
Primer sequences Genes covered Product size (bp)
1. 5'-CCGGGCCTGAATATTAAACA-3' citA, citB 952
5'-CAACAGCAGTCGGAAAGTCA-3'
2. 5'-GGATCTTCCGCTCCTTATCC-3' oadA, oadB 890
5'-GGAAGCCATGAAGATGGAGA-3'
3. 5'-GCCCATCAGGATAGTTGGAA-3' citS, citC2 970
5'-CAGCTCATAGGCCAGTGTCA-3'
4. 5'-CGATGTGATGGTCAGGATTG-3' citD2, citE2 770
5'-CGGGCGTAGAACAGTTCAGT-3'
5. 5'-CATCGATGTGATTCGTCAGG-3' citF2, citG2 873
5'-GCAATCAGCTCATCGTCAAA-3'

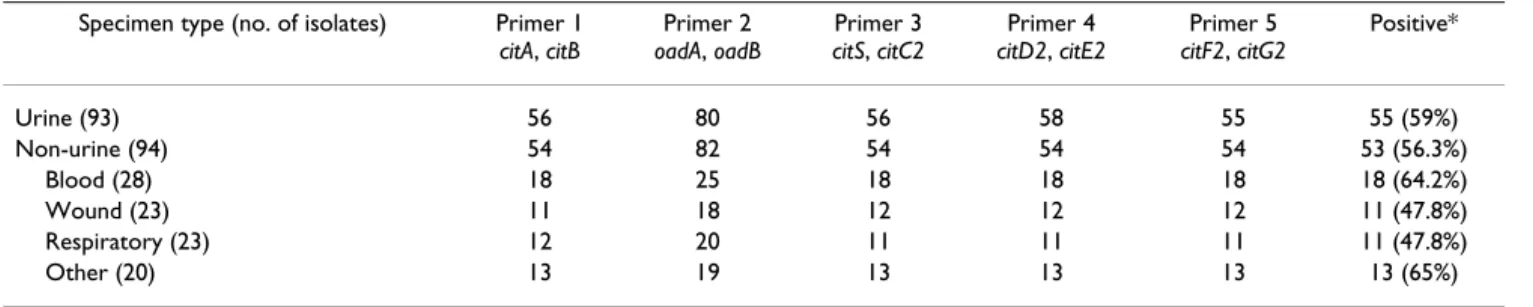

Table 2: Detection of the 13-kb genomic region in 187 K. pneumoniae isolates.
Specimen type (no. of isolates) Primer 1 citA, citB
Primer 2 oadA, oadB
Primer 3 citS, citC2
Primer 4 citD2, citE2
Primer 5 citF2, citG2
Positive*
Urine (93) 56 80 56 58 55 55 (59%)
Non-urine (94) 54 82 54 54 54 53 (56.3%)
Blood (28) 18 25 18 18 18 18 (64.2%)
Wound (23) 11 18 12 12 12 11 (47.8%)
Respiratory (23) 12 20 11 11 11 11 (47.8%)
Other (20) 13 19 13 13 13 13 (65%)
* Note: Strains with positive results using all 5 primer sets are regarded as positive for the 13-kb region.
BMC Microbiology 2009, 9:168 http://www.biomedcentral.com/1471-2180/9/168
into operons dedicated to different metabolic functions.
Incorporation of the oadGAB(dcoCAB) genes in the 13-kb region is likely a result of a secondary insertion event after the acquisition of the cit genes in the ancestral microor- ganism. This is supported by the data that the G+C con- tents of the oad(dco) genes are apparently higher than the neighbouring orfs (Figure 1).
Conclusion
This is the first report distinguishing citrate fermentation biotypes of K. pneumoniae. It appears that the genomic var- iation of citrate fermentation genes among these strains might be more extensive than previously thought since only half of the K. pneumoniae clinical isolates we tested carry the 13-kb genomic island for citrate fermentation.
The possession of these genes contributes to their adapta- tion to different nutrient conditions.
Methods
Klebsiella pneumoniae strains
Eight K. pneumoniae NK strains (NK3, NK5, NK6, NK8, NK9, NK25, NK29, and NK245) were collected from the Department of Pathology, National Cheng Kung Univer- sity (NCKU) Hospital, Tainan, Taiwan [21,22]. Nine CMK strains (CMKa01 through 08, and CMKa10) were col- lected from Chung Shan Medical University Hospital, Tai- chung, Taiwan. The K. pneumoniae strain CG43 was isolated from Chang Gung Hospital, Taoyuan, Taiwan [23]. Strain NTUH-K2044 was isolated from National Tai- wan University Hospital, Taipei, Taiwan [12]. The 188 K.
pneumoniae strains used to test the association between the citrate fermentation genes and the sites of infection were randomly selected from a nationwide surveillance of antimicrobial resistance collection (Taiwan Surveillance of Antimicrobial Resistance, TSAR) [24]. These clinical strains were not epidemiologically linked. Species identi- fication of the isolates was confirmed by the conventional biochemical reactions [25] in addition to using Vitek Gram Negative Plus Identification card (bioMeìrieux Vitek, Inc. Hazelwood, MO, USA).
Culture of bacteria
Artificial urine medium (AUM) used in this study was pre- pared as previously described [15]. Anaerobic cultivations of the bacteria in AUM were performed at 37°C using GasPak™ EZ Gas Generating Pouch Systems (BD, Franklin Lakes, NJ, USA). GasPak™ Dry Anaerobic Indicator Strips were used to assure anaerobic condition (BD, Franklin Lakes, NJ, USA). Overnight liquid culture of the bacterial strains was harvested and washed by AUM using mini cen- trifuge, then serial-diluted to an initial optical density at 600 nm (OD600) of approximately 0.0005 (10,000~20,000× dilution) in AUM. Turbidity of the cul- tured bacteria was monitored spectrophotometrically at
Gene disruption of the 13-kb genomic cluster
Disruption of the citS together with the nearby regulatory region between the two divergently positioned operons in NK8 genome was done by a method facilitated by λ Red recombinase carried on pKD20 [26]. Two PCR primers (cits-HF: 5'-TTAAATCATC ATGCCGAACA CGATGCTGGC GATGACCAGA TTCCGGGGAT CCGTCGACC-3', citc-HR:
5'-TTTTTTAGCG CTTCGTCATT TCAAAACGAA CTG- TATTTCT GTAGGCTGGA GCTGCTTC-3') were used to amplify an aac(3)IV (ApraR) apramycin resistance gene from pIJ773 [27] while creating the flanking homologous sequence for recombination. As a result, 39-bp from the left end of the citS to the beginning of the citC2 (corre- sponding to location 3460436125 of the MGH 78578) were disrupted by the apramycin resistant gene in NK8.
The gene disruption was confirmed by PCR and DNA sequencing of the corresponding genomic region.
Detection of citrate fermentation genes
Comparative genomic hybridization (CGH) array (Nim- bleGen Systems, WI, USA) with probes designed accord- ing to the predicted coding sequences spanning the 13-kb genomic region of the K. pneumoniae strain NK8 (with 99% sequence identity in average compared to syntenic region of MGH 78578) was used to detect differences of this genomic region among the K. pneumoniae clinical iso- lates. A total of 687 probes were designed isothermally (Tm-balanced) with NimbleGen algorithms across these concatenated CDSs sequences in length of 50-mer with 33-nucleotide overlap between adjacent probe sequences.
An intact ribosomal RNA gene cluster (containing 16S- 23S-5S rRNAs) was included as a positive control. DNA labelling and hybridization methods of genomic DNA, and signal scanning procedure were performed according to manufacturer's instructions. PCR detections of citrate fermentation genes among other clinical isolates were per- formed using specific primers listed in Table 1 following standard protocols.
DNA sequence
The complete genomic sequence of K. pneumoniae strain NTUH-K2044 has been deposited to the GenBank (acces- sion no. AP006725)[12]. A fosmid clone, KPA-F06C06, containing the 13-kb citrate fermentation gene region, was selected from a fosmid library of K. pneumoniae strain NK8.
Authors' contributions
YTC, TLL3, and SFT drafted the manuscript. YTC, and TLL designed and carried out the functional analyses. KMW, TLL1, YML, and HYS performed closure/finishing of the genome sequence. TLL3, IWH, JJY, MCL, YCL and JTW col- lected and classified the bacterial strains. YTC, TLL1, KMW, TLL3, and SFT analyzed the data. TLL3, JJY, MCL,
Publish with BioMed Central and every scientist can read your work free of charge
"BioMed Central will be the most significant development for disseminating the results of biomedical researc h in our lifetime."
Sir Paul Nurse, Cancer Research UK
Your research papers will be:
available free of charge to the entire biomedical community peer reviewed and published immediately upon acceptance cited in PubMed and archived on PubMed Central yours — you keep the copyright
Submit your manuscript here:
http://www.biomedcentral.com/info/publishing_adv.asp
BioMedcentral analysis tools and participated in design and coordination
of the study. YTC, KMW, HYS, and SFT performed anno- tation. All authors have read and approved the final man- uscript.
Acknowledgements
The project was funded by a grant from the National Science Council (NSC 96-3112-B-400-006) and an intramural grant from the National Health Research Institutes (MG-096-PP09).
