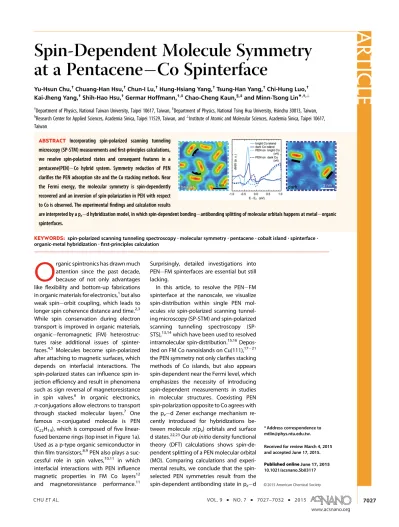

Spin-Dependent Molecule Symmetry at a PentaceneCo Spinterface
Yu-Hsun Chu,†Chuang-Han Hsu,†Chun-I Lu,†Hung-Hsiang Yang,†Tsung-Han Yang,†Chi-Hung Luo,† Kai-Jheng Yang,†Shih-Hao Hsu,†Germar Hoffmann,†,‡Chao-Cheng Kaun,§,‡and Minn-Tsong Lin*,†,^
†Department of Physics, National Taiwan University, Taipei 10617, Taiwan,‡Department of Physics, National Tsing Hua University, Hsinchu 30013, Taiwan,
§Research Center for Applied Sciences, Academia Sinica, Taipei 11529, Taiwan, and^Institute of Atomic and Molecular Sciences, Academia Sinica, Taipei 10617, Taiwan
O
rganic spintronics has drawn much attention since the past decade, because of not only advantages like flexibility and bottom-up fabrications in organic materials for electronics,1but also weak spinorbit coupling, which leads to longer spin coherence distance and time.2,3 While spin conservation during electron transport is improved in organic materials, organicferromagnetic (FM) heterostruc- tures raise additional issues of spinter- faces.4,5 Molecules become spin-polarized after attaching to magnetic surfaces, which depends on interfacial interactions. The spin-polarized states can influence spin in- jection efficiency and result in phenomena such as sign reversal of magnetoresistance in spin valves.6 In organic electronics, π-conjugations allow electrons to transport through stacked molecular layers.7 One famous π-conjugated molecule is PEN (C22H14), which is composed of five linear- fused benzene rings (top inset in Figure 1a).Used as a p-type organic semiconductor in thin film transistors,8,9PEN also plays a suc- cessful role in spin valves,10,11 in which interfacial interactions with PEN influence magnetic properties in FM Co layers12 and magnetoresistance performance.11
Surprisingly, detailed investigations into PENFM spinterfaces are essential but still lacking.
In this article, to resolve the PENFM spinterface at the nanoscale, we visualize spin-distribution within single PEN mol- ecules via spin-polarized scanning tunnel- ing microscopy (SP-STM) and spin-polarized scanning tunneling spectroscopy (SP- STS),13,14which have been used to resolved intramolecular spin-distribution.15,16Depos- ited on FM Co nanoislands on Cu(111),1721 the PEN symmetry not only clarifies stacking methods of Co islands, but also appears spin-dependent near the Fermi level, which emphasizes the necessity of introducing spin-dependent measurements in studies in molecular structures. Coexisting PEN spin-polarization opposite to Co agrees with the pzd Zener exchange mechanism re- cently introduced for hybridizations be- tween molecule π(pz) orbitals and surface d states.22,23Our ab initio density functional theory (DFT) calculations shows spin-de- pendent splitting of a PEN molecular orbital (MO). Comparing calculations and experi- mental results, we conclude that the spin- selected PEN symmetries result from the spin-dependent antibonding state in pzd
* Address correspondence to [email protected].
Received for review March 4, 2015 and accepted June 17, 2015.
Published online 10.1021/acsnano.5b03117 ABSTRACT Incorporating spin-polarized scanning tunneling
microscopy (SP-STM) measurements andfirst-principles calculations, we resolve spin-polarized states and consequent features in a pentacene(PEN)Co hybrid system. Symmetry reduction of PEN clarifies the PEN adsorption site and the Co stacking methods. Near the Fermi energy, the molecular symmetry is spin-dependently recovered and an inversion of spin-polarization in PEN with respect to Co is observed. The experimentalfindings and calculation results
are interpreted by a pzd hybridization model, in which spin-dependent bondingantibonding splitting of molecular orbitals happens at metalorganic spinterfaces.
KEYWORDS: spin-polarized scanning tunneling spectroscopy . molecular symmetry . pentacene . cobalt island . spinterface . organic-metal hybridization .first-principles calculation
ARTICLE
hybridizations, which also contributes to the measured PEN spin-polarization.
RESULTS AND DISCUSSION
For comparison, we first deposit PEN on pristine Cu(111) at submonolayer coverage. Isolated PEN mol- ecules exhibit three adsorption orientations as shown in Figure 1a with visible intramolecular protrusions.
The protrusion pattern is in consistence with a previous study of Lagoute et al. and corresponds to the lowest unoccupied molecular orbital (LUMO) of PEN.24 Lagoute et al. have also revealed that PEN aligns its long axis along Æ110æ on Cu(111) and adsorbs at the hcp hollow site, at which the central benzene ring is located. Although Cu atoms under PEN are asymmetric along the long axis, the C2vsymmetry of PEN remains apparent due to mild hybridizations with Cu.
Depositing PEN on Co nanoislands on Cu(111), we observe a depopulation of the bare Cu surface, and a gathering of PEN molecules on the islands. This indi- cates stronger hybridizations of PEN on Co than on Cu.
PEN molecules stay isolated from each other and follow the same adsorption orientations as on Cu(111), but the free molecule C2vsymmetry is reduced to Cv. Figure 1b,c shows PEN on a Co island with faulted and unfaulted stacking on Cu(111), respectively. (Stacking fault is determined in STS by the energy positions of the characteristic peak of the dz2state at about 0.3 V and by the ratio of island numbers pointing up vs islands pointing down. The ratio is around 1:2 and agrees with the ratio of the faulted to the unfaulted islands in literatures. The statistical result is from 322 islands.) On both islands, PEN molecules are bent, possessing only a mirror symmetry with respect to the PEN short axis. Top and bridge sites are excluded from possible adsorption sites because of the lack of rotational symmetries and the existence of the mirror symmetry (see Supporting Information). As a result, the most possible adsorption site with a high symmetry is
the hollow site. Compared to the PENCu adsorption, stronger hybridizations with Co reflect asymmetric arrangements of Co atoms underneath and distort the PEN geometry.
It is worth noting that two kinds of hollow sites exist:
hcp and fcc hollow sites, which are categorized by whether or not there is an atom in the bottom Co layer.
If both hollow sites were PEN adsorption sites, there would be six PEN geometries separated by a 60 degree rotation on all islands. However, without perturbations such as adsorbate attachment or island boundaries, the convex side of PEN molecules always aims at the island edges instead of the corners (Figure 1b,c). That is, on the faulted islands, only three PEN geometries separated by 120 can be found, whereas the other three exist on the unfaulted islands. The results sug- gest that, influenced by the bottom-layer Co, PEN is adsorbed at only one kind of hollow sites for each stacking method. In DFT calculations, we build four possible stacking methods of Co and the fcc hollow site always results in lower PEN adsorption energy, which supports the aforementioned speculation that only one kind of hollow site works as the PEN adsorption site on Co. Figure 2a is one optimized structure of the four calculated systems, in which the Co layers follow the unfaulted stacking and PEN locates at the fcc hollow site. (Although the metallic system is in a thin film structure in calculations, the characteristic surface states of Co are successfully reproduced. The same method has been used in literatures as ref 19.) The optimized PEN in Figure 2a is found asymmetrically distorted from the side view. Combining Tersoff
Hamann theory25 and DFT calculations, we simulate STM images (Figure 2b), in which the bending of the molecule is reproduced.
However, drawing four PEN adsorption situations in Figure 2cf, we find that it is impossible for all of them to be valid. While PEN convex sides point to the island edges in STM images, Figure 2e,f gives contrary results.
Figure 1. (a) STM image of PEN molecules adsorbed on the Cu(111) surface. Protrusions inside the molecules resemble the LUMO of PEN (in the zoom-in inset, 4 nm 4 nm, Vbias: 0.5 V). PEN chemical structure is shown in the top-right inset. (b and c) Contour maps of PEN molecules on a faulted Co island and on an unfaulted Co island on Cu(111), respectively (height interval:
8 pm), in which the bending of molecules is revealed as marked. Zoom-out images containing the whole islands are in the insets. (Inset in (b), 16 16 nm2,Vbias= 0.5 V; inset in (c), 20 20 nm2,Vbias= 0.5 V).
ARTICLE
Therefore, the correct stacking methods for the Co islands are acBA and caBA instead of the other two (lower-case and capital letters represent Co and Cu, respectively, in the order from top to bottom). In fact, despite of intense studies on the Co/Cu(111) system, concrete determination of the top-layer Co stacking is rare.26Molecular symmetry reduction leads to a new way to solve stacking ambiguity in systems like Co nanoislands.
To study magnetic properties of PEN adsorbed on Co, we utilize SP-STM to achieve direct spin-resolved measurements. Co nanoislands are FM nanostructures with out-of-plane magnetic anisotropy, and output different dI/dV signals with different magnetization orientations in SP-STS maps. In Figure 3a, contrast of
the Co islands appears at 0.3 eV due to opposite dz2 minority states, which also contributes to the charac- teristic peak at 0.3 eV in SP-STS curves (Figure 3b).
On PEN molecules, we find a new spin-polarized state at around 0.1 eV. Contrary to the Co dz2minority state, the new state has higher intensity on the dark island than on the bright island in Figure 3a, which indicates that it is a majority state. Therefore, spin polarization right below the Fermi level is locally reversed via PEN adsorption on Co.
PEN molecules also exhibit spin-dependent symme- tries at 0.1 eV in SP-STM images. On the bright island in Figure 3a, PEN molecules are bent and divided into three sections (Figure 3c), while they are more oval on the dark island (Figure 3d). We defined a bending Figure 2. (a) Optimized structure of a PEN molecule adsorbed on bilayer Co on bilayer Cu obtained from DFT calculations.
The stacking order is acBA, starting from the top Co to the bottom Cu layer, which are represented by lower-case and capital letters, respectively. PEN is asymmetric along the long axis in the side view. (b) Simulated STM image of the system in (a) at
0.1 eV with the PEN atomic structure. (Height for simulation: 4 Å.) (cf) Schematics of PEN adsorption on Co islands of 4 stacking models. Thick black lines indicate the bending directions of PEN molecules. It can be seen that only in (c) and (d) the PEN convex direction matches experimental results in Figure 1.
Figure 3. An SP-STS (a) map (Vbias:0.3 V) and (b) curves measured on the marked islands. Co islands exhibit strong contrast due to the minority dz2state at0.3 eV as in ref 31. Inset in (a): topography of the area in (a) taken at the same energy. (c and d) SP-STM images taken at 0.1 V, at which a new spin-polarized state occurs. On islands with opposite magnetization orientations, PEN exhibits different geometries. Black marks emphasize features in shape of the PEN molecules and the angle θ between line segments is measured for approach to symmetry determinations. (e) Minority and (f) majority integrated PDOS of PEN on Co from 0 to0.1 eV, in which molecule shapes are consistent with (c) and (d), respectively.
ARTICLE
angle θ, which is marked on Figure 3c,d, to represent the extent of PEN symmetry deviation from the original C2vone. The averaged angle θ between segments from the molecule center to both ends is 157.3 and 173.5
for PEN on the bright and the dark islands, respectively, while for a perfect C2vsymmetry, θ should be 180.
(Statistical distributions of θ of PEN on islands with opposite magnetization orientations are shown in Supporting Information.) The results indicate that near the Fermi level, the symmetry of PEN is spin-depen- dent, which almost recovers C2vsymmetry on the dark island.
On the dark island at 0.1 eV, the PEN majority states contribute more to SP-STM measurements than on the bright island; thus, the symmetry recovery of PEN should result from the majority states. We resolve the electron distribution in PEN spin-dependently by cal- culating integrated partial density of states (PDOS) of the new spin-polarized state in adsorbed PEN. In the [0.1, 0] eV energy interval, minority electrons have a curved distribution with high intensity at both ends and the center (Figure 3e), whereas majority electrons present a more oval shape (Figure 3f). In spite of the existence of geometric symmetry-reduction, mol- ecules can stay symmetric in STM images because of a symmetric electron distribution.27,28The DFT calcula- tions suggest that our SP-STM findings in Figure 3c,d originate from electron distributions with different spin orientations.
Figure 4a shows the calculated Co dz2PDOS without and with PEN adsorption. While most of the d states vary slightly (see Supporting Information), the dz2 states are broadened and shifted by PEN adsorption.
Solving the PDOS of PEN, we find that pz MOs are dominant in the energy range in Figure 4, whereas the in-plane p orbitals (px, py) contribute very little (see Supporting Information). Due to proximity in space, the out-of-plane orbitals are easy to overlap with each other; thus, hybridizatinos between C pzand Co dz2 states are as expected. Acting as an electron donor, Co transfers 2.16 e to PEN, which largely reduce amplitude of the Co dz2states near the Fermi level. In Figure 4b, perceptible hybridizations are found in the [0.8, 0.4] eV energy interval, in which C pzand Co dz2 majority states share similar PDOS distributions. In this energy range, the PEN molecule is majority-dominant and opposite to the pristine Co. This inversion of spin- polarization is exactly what we have experimentally confirmed in Figure 3b using SP-STM.
Examining the composition of PEN pz states by projecting the pz electron distribution to different PEN MOs, we find that the highest occupied MO (HOMO) contributes the most in the [0.1, 0] eV energy interval. The HOMO is broadened due to hybridization with Co; furthermore, the majority HOMO is divided into two energy regime, whereas minority HOMO re- mains as one (marked in Figure 4b). The spin-dependent
MO splitting agrees with the pzd Zener exchange mechanism recently introduced to organic-FM hy- bridizations.22,29,30 The model predicts that the pz majority MO splits into bonding and antibonding states hybridizing with the substrate d states, while the minority MO has weaker hybridization. To clarify the PEN HOMO bonding methods, we illustrate major- ity integrated PDOS in the [3, 2.6] and [0.4, 0] eV energy intervals. Shown in the insets of Figure 4b, the calculated integrated PDOS in the [0.4, 0] energy range has repulsion of electrons between Co and the PEN molecules, which indicates that the HOMO forms an antibonding state with the Co support. On the contrary, the PEN molecule and Co share the electrons in between and form a bonding state in the [3, 2.6]
eV energy range. Therefore, we conclude that the PEN HOMO hybridizes with the Co substrate based on the pzd Zener exchange mechanism. In addition, the more symmetric integrated PDOS in Figure 3f agrees with the antibonding feature since the electron dis- tribution in space is less perturbed by Co arrangement underneath. The result supports the experimentally observed spin-dependent molecule symmetry, which can only be observed via SP-STM capable of making spin-selective maps.
CONCLUSION
The symmetry reduction of PEN on Co nanoislands has been investigated from the origin to the deduc- tions based on it. On the basis of the bending of the Figure 4. (a) Calculated PDOS of surface Co with and with- out PEN above. The Co dz2states change the distribution after PEN adsorption. (b) PDOS of Co dz2states after PEN adsorption and PEN pzorbitals. Correspondence in majority PEN pzand Co dz2states exists near the Fermi level. The PEN HOMO projection is put on the plot as well. Green dashed lines indicate the distribution of the PEN HOMO. Insets:
integrated PDOS in the [3, 2.6] and [0.4, 0] eV energy intervals, in which bonding and antibonding features are shown, respectively.
ARTICLE
PEN geometry, we determine the PEN adsorption site (the fcc hollow site) and the stacking methods of the Co islands via combined experimental and theoretical works. Using SP-STM, we find not only spin-polarization locally reversed by PEN, but also spin-dependent molecule symmetries. From DFT calculations, we inter- pret the experimental results as a consequence of the pzd hybridization between PEN and Co. While the minority HOMO is only broadened, the majority HOMO is split into the bonding and the antibonding states.
The antibonding majority HOMO contributes to the reversed spin-polarization at around 0.1 eV, and
agrees with the spin-dependent PEN symmetries ob- served in the same energy range. Our observations of spin-dependent molecular symmetries introduce an important and intrinsic factor in determining molecular symmetries, namely, spin, which should be considered as well as geometric and electronic status. Antibonding states from pzd Zener exchange mechanism help molecules to recover symmetry spin-dependently re- gardless of structure distortion, and show a concise way to predict and manipulate molecular spin-distribution near the Fermi level through deposition of π-conjugated molecule on magnetic substrates.
METHOD
All experiments are performed in an Omicron multifunction chamber in ultrahigh vacuum with low-temperature STM. Ex- periments start from cleaning the Cu(111) substrate by 1 keV Arþsputtering and subsequent annealing at around 700 K.
Removal of impurities is confirmed by Auger electron spectros- copy, and a flat Cu(111) surface with monolayer-high terraces is observed in STM images. Triangular Co islands form on Cu(111) at room temperature after deposition of Co with the molecular beam epitaxy technique. PEN molecules are deposited using a homemade thermal evaporation gun at deposition temperature around 420 K. The samples are transferred into the low-temperature STM at 4.5 K immediately after above in situ preparations to suppress Cu intermixing. We use W tips and Co-coated Fe
MnC-alloy tips31for STM and SP-STM, respectively.
For DFT calculations, the Quantum ESPRESSO package is used,32with a plane-wave basis set, within generalized gradient approximation33for exchange-correlation interactions. The van der Waals interaction is also employed.3436Two layers of Co are designed to sit on two layers of Cu following the fcc (111) direction, and PEN is put on the Co layers with adsorption sites described in the Results and Discussion section. Convergence with respect to the number of Cu layers has been confirmed in a previous work of Mn-phthalocyanine on the Co islands,37in which three and two layers of Cu provide almost the same results in calculations. The spacing between two slabs is larger than 20.0 Å. The cut off kinetic energy and charge density are 25 and 250 Ry, respectively. The convergence conditions are that the force acting on each atom is smaller than 103Ry/Å and the self-consistent converged criterion is 105 eV. Combining TersoffHamann theory,25 simulated STM is performed at reasonable height of 4 Å, which, according to calculations, is enough to ignore tipsample hybridizations for W and C in experiments.38,39We use the Γ reciprocal point to sample the Brillouin zone. Charge transfer is calculated with Bader charge analysis.4042
Conflict of Interest: The authors declare no competing financial interest.
Acknowledgment. This work was supported by the National Science Council of Taiwan through Grant No. NSC 101-2112-M- 002-024-MY3 and the Ministry of Science and Technology of Taiwan through Grant No. MOST 103-2120-M-002-001.
Supporting Information Available: Schematics of PEN at different adsorption sites, statistical distributions of the bending angle θ, and ab initio calculation results of all d states of Co and p orbitals of pentacene. The Supporting Information is available free of charge on the ACS Publications website at DOI: 10.1021/
acsnano.5b03117.
