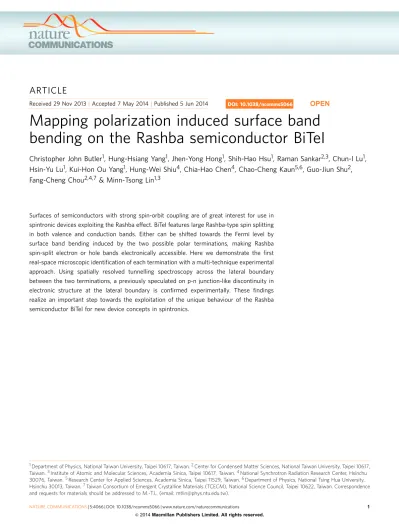

ARTICLE
Received 29 Nov 2013|Accepted 7 May 2014|Published 5 Jun 2014
Mapping polarization induced surface band bending on the Rashba semiconductor BiTeI
Christopher John Butler
1, Hung-Hsiang Yang
1, Jhen-Yong Hong
1, Shih-Hao Hsu
1, Raman Sankar
2,3, Chun-I Lu
1, Hsin-Yu Lu
1, Kui-Hon Ou Yang
1, Hung-Wei Shiu
4, Chia-Hao Chen
4, Chao-Cheng Kaun
5,6, Guo-Jiun Shu
2, Fang-Cheng Chou
2,4,7& Minn-Tsong Lin
1,3Surfaces of semiconductors with strong spin-orbit coupling are of great interest for use in spintronic devices exploiting the Rashba effect. BiTeI features large Rashba-type spin splitting in both valence and conduction bands. Either can be shifted towards the Fermi level by surface band bending induced by the two possible polar terminations, making Rashba spin-split electron or hole bands electronically accessible. Here we demonstrate the first real-space microscopic identification of each termination with a multi-technique experimental approach. Using spatially resolved tunnelling spectroscopy across the lateral boundary between the two terminations, a previously speculated on p-n junction-like discontinuity in electronic structure at the lateral boundary is confirmed experimentally. These findings realize an important step towards the exploitation of the unique behaviour of the Rashba semiconductor BiTeI for new device concepts in spintronics.
DOI: 10.1038/ncomms5066 OPEN
1Department of Physics, National Taiwan University, Taipei 10617, Taiwan.2Center for Condensed Matter Sciences, National Taiwan University, Taipei 10617, Taiwan.3Institute of Atomic and Molecular Sciences, Academia Sinica, Taipei 10617, Taiwan.4National Synchrotron Radiation Research Center, Hsinchu 30076, Taiwan.5Research Center for Applied Sciences, Academia Sinica, Taipei 11529, Taiwan.6Department of Physics, National Tsing Hua University, Hsinchu 30013, Taiwan.7Taiwan Consortium of Emergent Crystalline Materials (TCECM), National Science Council, Taipei 10622, Taiwan. Correspondence and requests for materials should be addressed to M.-T.L. (email: [email protected]).
NATURE COMMUNICATIONS| 5:4066 | DOI: 10.1038/ncomms5066 | www.nature.com/naturecommunications 1
&2014 Macmillan Publishers Limited. All rights reserved.
H
igh-Z materials have attracted great interest due to their strong spin-orbit interaction, which is the basis of several proposed spintronic devices featuring electric control of spin currents, a major goal of spintronics1–3. Such devices generally exploit the Rashba effect, first described in bulk systems by the Dresselhaus4 and Rashba5,6 models, and at surfaces and interfaces by the Rashba-Bychkov model7. The strong spin-orbit coupling of high-Z materials serves to enhance the Rashba spin splitting, which, in proposed devices such as spinFETs, is desirable to decrease the spin precession time to below the spin relaxation time8.A number of surfaces such as that of Bi, or those incorporating high-Z atoms by alloying Bi or Pb with noble metals, have been shown to exhibit a large Rashba effect9–13. However, such materials are based on metal substrates, which inhibit tuning of the spin splitting using an external electric field, and also carry spin-degenerate bulk currents, limiting their utility for spintronics. Hence, there is a need to investigate semiconductor materials that feature a large Rashba spin splitting, particularly in cases where splitting in both valence and conduction bands can provide versatility in tuning of spin transport properties.
BiTeI is a semiconductor that exhibits a giant Rashba spin splitting at the surface and also in the bulk, due to the lack of spatial inversion symmetry of the lattice14. Interestingly, for BiTeI it has been shown not only that both conduction and valence bands exhibit Rashba spin splitting, but also that either band,
depending on the surface termination, can be shifted so that it crosses the Fermi level near the surface15,16. Because of the layered polar nature of the BiTeI structure, the crystal can terminate with a layer of either positive or negative nominal charge. The polarization associated with a surface of positive (or negative) charge subjects near-surface electrons to a lowered (raised) Coulomb energy, inducing surface band bending causing all bands to shift sufficiently that the conduction (valence) band edge resides around the Fermi level. This effect, together with both valence and conduction bands’ Rashba spin splitting, allows a choice of spin-polarized bands at the Fermi level.
BiTeI crystals are composed of a sequence of Bi, Te and I layers, with a structure as shown in Fig. 1a. The Bi and Te bond covalently, forming a bilayer which itself bonds ionically to the I, forming a polar structure of (BiTe)þ and I layers17 as illustrated in Fig. 1b. These BiTeI trilayers are themselves bonded by the van der Waals force, with the weakly bonded plane between Te and I providing the cleavage planes of the crystal. On this view, cleavage is expected to reveal either a Te or I termination for a given surface.
Previous work by Crepaldi et al.16, using angle-resolved photoemission spectroscopy, has revealed the spin-dependent dispersion behaviour associated with such terminations. It was noted that patterning of BiTeI surface terminations would open new perspectives for the manipulation of spin-polarized bands. Real-space nano-scale microscopic studies of the spatial
Te
Te Bi
I
I 6.85 Å
7.2 Å 10
8
1.5
1.0
0.5
0 20 40 60 80 100 120
X (nm) 6
4 2 Apparent heightdl/dV intensity (Å)(a.u.) 0
1.8 Å
7.2 Å 1.8 Å
I– (BiTe)+
–
– +
– +
– +
+
Figure 1 | STM observation of two surface terminations on cleaved BiTeI surfaces. (a) Schematic representations of the BiTeI primitive cell.
(b) Illustration of the two expected surface termination structures of BiTeI, with layer-by-layer charges in the ionic limit labelled. (c) Large-scale STM topography map (Vbias¼ 0.7 V, Iset¼ 0.3 nA) for a typical vacuum-cleaved BiTeI surface. Scale bar, 100 nm. (d) Simultaneously acquired dI/dV map.
(e) Averaged topographic line profile taken along the dashed rectangle in c, and averaged dI/dV intensity taken along the dashed rectangle in d (scanning artifacts at step edges have been removed for clarity). The chemical identities assigned to the areas of different conductance are indicated, with identification derived from spectroscopic measurements (see Figs 2 and 3).f,g show zoom-in STM images and their 2D-FFT images, taken in regions that in conductance maps appear bright and dark, respectively. Scale bar, 2 nm.
distributions of these terminations and the boundaries between them will provide insights into the functional properties of patterned BiTeI surfaces, which may become available in the future.
In this work, we present a microscopic investigation of the spatial distribution of two different chemical terminations found on the vacuum-cleaved BiTeI surface. Scanning tunnelling microscopy (STM) measurements reveal a chemical contrast between two types of regions found, indicating two different surface terminations. The chemical identities of these termina- tions are assigned by using a combination of X-ray photoemission spectroscopy (XPS) and comparison of measured scanning tunnelling spectroscopy (STS) with the projected density of states (PDOS), calculated using density functional theory (DFT), at the termination layer. Finally, we observe the nano-scale evolution of electronic structure across the boundary between Te and I terminated surfaces using spatially resolved tunnelling spectro- scopy, revealing a clear contrast in the sign of the surface band bending at the boundary between the two terminations.
Results
STM and conductance imaging. STM topography images of the surface, as shown in Fig. 1c, reveal two types of large-scale topographic features characterized by their associated step heights. The larger of the two step types has a height of around 7.20 Å as seen in Fig. 1e. This corresponds closely to the c axis lattice parameter c ¼ 6.85 Å, with the additional height expected due to surface relaxations, and so indicates single unit-cell steps.
The lateral distances between these unit-cell steps can exceed 10 mm. The irregularly shaped mesa-like features on the areas between unit-cell steps have a smaller step height accompanied by a clear contrast in differential conductance maps (Fig. 1d) acquired simultaneously with topography maps. This indicates a change in surface termination from one to another of the con- stituent elements of the crystal. A collection of large-scale con- ductance maps amounting to a total surface area of 5 106nm2 were analysed with suitable image processing software18 to determine the ratio of the areas of the two terminations. The percentage of coverage for each termination was consistently seen to converge on a value of 50(±2)% for representative samples of total area 105nm2. Zoom-in images on each termination
(Fig. 1f,g) reveal the surface atomic features, displaying the triangular surface lattice and showing that the surface retains good crystallinity on both terminations after cleavage.
No discernible difference could be found between the cleaved surfaces of BiTeI crystals produced by the chemical vapour transport (CVT) and melt growth methods. Furthermore, aside from a somewhat increased roughness for surfaces formed by room temperature cleavage, there was no effect of the cleavage temperature, or of annealing to room temperature after low temperature cleavage, on the resulting surface morphology as described above.
XPS characterization. Though dI/dV maps indicate a clear chemical contrast between the two regions, STM lacks the ele- ment specificity to determine the chemical identity of the ter- minations. To this end, XPS measurements were performed, with the X-ray beam incident on both terminations, and yielding a total photoemission signal with a roughly even contribution from each (see methods section). XPS spectra, shown in Fig. 2, show relatively suppressed Bi peaks in relation to peaks for Te and I.
The Bi peak exhibits a splitting in energy of around 0.8 eV, as seen in Fig. 2b. A similar splitting in the Te 4d and I 4d peaks is also seen in XPS data measured by Crepaldi et al.16but not in the data presented in this work. A simple model (see Supplementary Fig. 1) that accounts for differences in experimental details shows that the use of a higher photon energy, resulting in greater sensitivity to sub-surface layers, and a lower spectral resolution account for the loss of these details in the data presented here.
The splitting in the Bi 5d peaks is attributed to the differing surface polarizations of the two terminations represented in the total signal. Photoelectrons from Bi in the Te terminated surface are expected to have a relatively increased binding energy, while those from Bi in the I terminated surface have a lowered binding energy. Because the signals from Bi in the two terminations have roughly equal intensities, it is concluded that Bi is the second layer down in both types of region. Thus, Te and I are thought to form the surface terminations. These candidates for the two terminations are consistent with those expected from the bulk crystal structure, where cleavage along the van der Waals bonded planes would leave Te or I as the terminating layer, and Bi buried beneath.
0
0 500
XPS intensity (a.u.)
1,000
50 45 40 35
Binding energy (eV)
30 25 20
32 Feature scale ~ 100 nm
Beam width ~ 200 nm e–
30 28
0.81 eV 0.80 eV Bi 5d5/2
Bi 5d3/2 Exp. data
Sum of fitting
Binding energy (eV)
26 24 22
1,000 2,000 3,000 4,000 5,000
I 4d
Te 4d
Bi 5d
Figure 2 | Photoemission spectra for a cleaved BiTeI surface. (a) An illustration of the XPS measurement using SPEM. (b) XPS spectrum showing peaks for the constituent elements of BiTeI. (c) Zoom-in on the Bi 5d peaks, showing the separation into two contributions with a splitting in binding energy of about 0.8 eV.
NATURE COMMUNICATIONS | DOI: 10.1038/ncomms5066
ARTICLE
NATURE COMMUNICATIONS| 5:4066 | DOI: 10.1038/ncomms5066 | www.nature.com/naturecommunications 3
&2014 Macmillan Publishers Limited. All rights reserved.
DFT calculations and tunnelling spectroscopy. With these expectations as to the surface terminations present, we explicitly connect the chemical identities of the terminating layers to the spatial distribution of the terminations observed using STM.
Tunnelling spectra taken from each termination were compared with the PDOS of the uppermost layer for each case. The choices for the uppermost layer in each calculation model were informed by the XPS result described above and by the expected termina- tions based on the bulk crystal structure and bonding.
The PDOS results for the Te and I terminations each exhibit a pronounced shifting of the band gap from the bulk position (see Supplementary Fig. 2), with a negative energy shift for the Te termination and a positive shift for the I termination. Comparing the direction of shift obtained by STS measurement (Fig. 3a) and by calculated PDOS (Fig. 3b), we conclude that the raised surface seen in STM topography maps is the Te terminated one and that the recessed surface is I terminated.
At this point, it is worth noting that since the PDOS has been calculated for each atomic layer including the uppermost Bi layers in both types of surface (see Methods section for details), the energy shift obtained using DFT calculations can be checked against the shift observed in the XPS spectra. As an energy marker in the PDOS which is common to Bi in both surfaces, we
choose the minimum level found in the conduction band, which is known to be dominated by the 6p states, and observe a shift of around 0.8 eV between states in the two surfaces (see Supplementary Fig. 3), in line with the shift of the Bi 5d states shown in the XPS spectrum of Fig. 2c.
Spatially resolved tunnelling spectroscopy. To directly visualize the nano-scale evolution of the local electronic structure across the boundary between areas of different terminations, spatially resolved STS measurements were performed, as shown in Fig. 4.
Tunnelling spectra were acquired along a path crossing the boundary and compared with the corresponding topography map (Fig. 4a). The shifting of the semiconductor band-gap is clearly observed, with a transition corresponding to the topographic step between the two regions.
Discussion
The spatially resolved tunnelling spectra reveal p-n junction-like electronic structure at the lateral boundary between surfaces of Te and I terminations. As confirmed by PDOS results, this boundary represents a type of lateral junction where the relative position of the Fermi level is shifted with respect to the band edges, due principally to the surface polarization, rather than by distribution of doping concentrations. The junction is sharp, with a transition from p-like to n-like electronic structure over a distance of B4.5 nm.
Far from the boundary, the positive surface potential at the Te termination (negative at the I termination) is screened by electrons (holes), forming an accumulation (depletion) layer.
The vertical extent of the depletion and accumulation layers are each seen in DFT calculations (Supplementary Fig. 2) to be 2B3 nm. At the boundary, we expect a mutual screening of each side’s surface potential by re-arrangement of each side’s carriers (a transfer of electrons from the Te terminated region to the I terminated one), analogous to the formation of the space charge region of a p-n junction. Because of the ionic nature of the interlayer bonding on each side, there is unlikely to be significant
dl/dV intensity (a.u.)
–1.0
10
I
Bi IBi
Te
Te
8 6 4 2 PDOS (eV–1)
0
–0.5 0.0
E –EF (eV)
E –EF (eV)
×5
0.5 1.0
a
b
Figure 3 | A comparison of measured tunnelling spectra with calculated PDOS for expected BiTeI terminations. (a) Spatially averaged STS curves taken in the rectangular areas bounded by dashed lines in the STM topography map (inset, with a scale bar of 20 nm). The black curve has been enhanced by a factor of five for ease of comparison. The discrepancy in curve intensities is thought to arise from the density-of-states contrast between the terminations resulting in different tip-to-sample distances determined by the tunnelling feedback set-point (Vbias¼ 0.7 V, Iset¼ 0.3 nA). (b) PDOS calculated for the uppermost atomic layer for the relaxed (solid curves) and unrelaxed (dashed curves) surfaces terminated by Te (black curves) and I (red curves). The atomic structure models for the two terminations are illustrated in the inset.
1.5 1.0 0.5 0 –0.5 –1.0 –1.5 0
X (nm)
100 4.5 nm
0 dl/dV intensity (a.u.) E–EF (eV)
Figure 4 | Spatially resolved tunnelling spectra. (a) STM topography showing the boundary between areas of I (left) and Te (right) terminated surface (Vbias¼ 0.7 V, Iset¼ 0.3 nA). Scale bar, 20 nm. (b) Spatially resolved STS measurements (averaged over the short axis of the topography image).
Though the starting set-point chosen here (Vbias¼ 1.5 V, Iset¼ 0.3 nA) yields curves less representative of the DOS than those shown in Fig. 3 (with a set-point at Vbias¼ 0.7 V, Iset¼ 0.3 nA), this set-point is chosen to attain approximate parity in signal intensity between curves taken from each termination, with an emphasis on resolving the lateral behaviour at the junction. Vertical dashed lines enclose the transition region between the characteristic electronic structures of the two terminations.
intermixing at the boundary, and the stacking fault is expected to be atomically sharp. In this case, the observed transition reflects the scale of the space charge region between the p-like and n-like terminations. Interestingly, a scale of 4.5 nm corresponds well with the summed length scales of the depletion and accumulation layers for the two surfaces (each 2B3 nm). This indicates comparable screening lengths in the ab plane and along the c axis, which is peculiar considering the expected anisotropy of the free carrier effective mass19.
Furthermore, as the valence band in the p-like region and conduction band in the n-like region are both shown to exhibit Rashba spin splitting (see Supplementary Figs 4 and 5), the observed nanostructure may represent a Rashba p-n junction, as previously speculated upon by Crepaldi et al.16, and could open the possibility for related device concepts.
Control of the spatial distribution of the terminations is key to application in devices. Previously, the spatial distribution of the I and Te terminated surfaces of BiTeI have been attributed to cleavage through stacking faults, which reverse the stacking sequence along the c axis, and hence determine which layer is the uppermost after cleavage along a van der Waals bonded plane.
Uniform terminations thought to arise in this way have been observed on a scale of around 100 mm by Crepaldi et al.16, using effective work function contrast in photoelectron emission microscopy. In this work, the terminations were instead observed to be mixed on the nano-scale. Their appearance on cleaved BiTeI surfaces was seen to be insensitive to variation in the cleavage temperature, ranging from 10 K to 300 K, and also to room temperature annealing after low temperature cleavage. A likely origin of this nano-scale reversal of stacking sequence is the presence of two mixed crystallites, fixed into the crystal during growth, whose lattices differ only by an inversion along the c axis.
This model is pictured in Supplementary Fig. 6 along with the possible vertical alignment between the layers on either side of the stacking faults between domains, which can be elucidated from STM line profiles across the boundary. It is noted that the origin of the apparent step height across the boundary is found to be mostly topographic, rather than spectroscopic, as demonstrated by voltage-dependent morphology measurements presented in Supplementary Fig. 7.
The inversions between domains of each stacking order may arise due to the similar atomic number and electronegativity of Te and I, leading to the ease of a reversal of stacking during growth.
The ab lattice orientation was seen to be uniform regardless of termination in both LEED and high-resolution STM measure- ments. The near 1:1 ratio of the two terminations, as found by analysing a large collection of STM conductance maps, is consistent with this picture, as the growth environment of the crystal does not force a breaking of spatial inversion symmetry and a resulting preference for one stacking sequence over the other.
In conclusion, we present the spectroscopic observation and microscopic mapping of termination dependent band bending at the surface of the Rashba semiconductor BiTeI. The two possible terminations, through their surface polarizations, induce energy shifts of electronic bands in the vicinity of the surface, with opposite shifts for positively charged Te terminated and negatively charged I terminated surfaces. This work provides microscopic identification of each of the two possible termina- tions of BiTeI, enabling detailed investigations into the surface defect chemistry for each termination. Furthermore, we have directly observed a Rashba p-n junction-like nanostructure, by monitoring the evolution of electronic structure across the lateral boundary between the two terminations utilizing spatially resolved tunnelling spectroscopy. This demonstrates a possible avenue for design of electronic properties in nano-scale Rashba
spin-split systems by selection of polar surface terminations and control of their spatial distributions.
Methods
Crystal growth.BiTeI single crystals were grown by the CVT and melt growth methods and characterized by X-ray diffraction. To avoid potential explosion due to the formation of high pressure iodine vapour, the iodine must be premixed homogeneously with an additional room temperature agglomeration procedure.
Melt growth involved the direct melting and solidification of a stoichiometric mixture of purified elements Bi, Te and I, which was sealed in an evacuated quartz ampoule, heated to 600 °C to soak for 24 h and slowly cooled to 400 °C at a rate of 1.5 °C h 1. The CVT growth was done through iodine vapour transport from the precursor with a molar ratio of Bi:Te:I ¼ 1:1:1.1, which was sealed in an evacuated quartz ampoule of 30 cm length and 1.8 cm inner diameter. Single crystals 0.5 0.5 0.1 cm3in size, with large mirror like (001) surfaces, were obtained through vapour transport from the hot zone at 550–525 °C to the cold zone at 500 °C within 10 cm.
Crystal cleavage.Cleavage of BiTeI crystals was performed in a preparation chamber with a base pressure lower than 5 10 11mbar. Crystals were cleaved at room temperature or on a cryostat that could be cooled using LN2or LHe, allowing cleavage temperatures of 70 K or 8 K, respectively. In the time between cleavage on the cryostat and measurement by low temperature STM, samples were transferred at room temperature. To preclude the possibility that any features observed were only the result of a thermally activated reconstruction on annealing to room temperature20, additional measurements were performed on crystals cleaved in situ on the the STM measurement stage, guaranteeing that the sample temperature remained below 10 K, from cleavage until STM measurement at 4.5 K. After cleavage, LEED patterns displaying a clear sixfold symmetry were obtainable over the entire sample surface, indicating a single homogeneous lattice orientation in the basal plane.
STM measurements.All STM measurements were performed at a temperature of 4.5 K in an Omicron Low-Temperature STM using a tungsten tip. dI/dV intensity was mapped simultaneously with constant current topography images, and dI/
dV(V) curves acquired simultaneously with I(V) curves, both using the lock-in technique with a bias modulation of 40 mV at a frequency of 5.9 kHz.
XPS measurements.XPS measurements were performed using a scanning pho- toemission microscope (SPEM) at beamline 09A1 of the Taiwan Light Source21–23. The photon energy was 380 eV, and the beam was focused using a Fresnel zone plate to a width ofB200 nm. Spectromicroscopy images taken at the C 1 s feature were used to search for areas of the sample surface free of contamination by ambient conditions, which may be caused by pre-existing fractures in the crystal, or by premature ex vacuo cleavage. Spectra were then obtained from well-cleaved surfaces by zooming in to regions with a near-zero C 1 s signal. The width of the beam attainable with SPEM was not sufficiently small to spatially resolve areas of uniform termination. Instead, the beam was incident on both terminations, resulting in an XPS signal with mixed contributions from each, though in general the two terminations would not be evenly represented under the beam. The XPS measurement was performed in five different positions on the sample. Assuming a beam diameter of 200 nm gives a total sampling area of 1.6 105nm2. As mentioned in the description of STM results, the ratio of coverage of the terminations has been found to approach unity for surface areas of this size. Hence it is expected that the averaged XPS signal over the five positions is representative of an even mixture of both terminations. A fitting curve, synthesized using the Voigt profile in the UNFIT simulation package, was used to separate the two terminations’ contributions as seen in Fig. 2c.
DFT calculations.First principle calculations of the surface PDOS for the two terminations were performed in accordance with DFT using the QUANTUM- ESPRESSO package24, with the Perdew-Burke-Ernzerhof exchange correlation functional. Relativistic effects including spin-orbit coupling were accounted for.
Slab models of thirteen BiTeI trilayers were constructed, and the band structures and PDOS of each layer of the slab were calculated. Finally, the uppermost two trilayers of each slab were allowed to relax, taking into account the van der Waals interaction, and the PDOS calculated again. After relaxation, the topmost interplanar spacing between first and second layers of both Te and I corresponded closely to the value obtained experimentally at the single-unit-cell step edge in STM topography maps, though the relevant features of the final calculated PDOS were found to be largely insensitive to such structural relaxation. Exclusion of the van der Waals interaction from the calculation resulted in a further expansion of the spacing between trilayers near the surface. For the I terminated structure, the spacing between the Te layer of the uppermost trilayer and the I layer of the trilayer beneath increased from dTe I¼ 3.33 Å with the van der Waals interaction to dTe I¼ 3.57 Å without it, representing an expansion of 7.2%. This resulted in a total spacing between the first and second I layers of 7.46 Å, which is significantly larger than the experimentally relevant value as shown in Fig. 1e.
NATURE COMMUNICATIONS | DOI: 10.1038/ncomms5066
ARTICLE
NATURE COMMUNICATIONS| 5:4066 | DOI: 10.1038/ncomms5066 | www.nature.com/naturecommunications 5
&2014 Macmillan Publishers Limited. All rights reserved.
References
1. Koga, T., Nitta, J. & Takayanagi, H. Spin-filter device based on the Rashba effect using a nonmagnetic resonant tunneling diode. Phys. Rev. Lett. 88, 126601 (2002).
2. Sinova, J. et al. Universal intrinsic spin Hall effect. Phys. Rev. Lett. 92, 126603 (2004).
3. Ohe, J.-I., Yamamoto, M., Ohtsuki, T. & Nitta, J. Mesoscopic Stern-Gerlach spin filter by nonuniform spin-orbit interaction. Phys. Rev. B 72, 041308 (2005).
4. Dresselhaus, G. Spin-orbit coupling effects in zinc blende structures. Phys. Rev.
100,580–586 (1955).
5. Rashba, E. I. Properties of semiconductors with an extremum loop. 1.
Cyclotron and combinational resonance in a magnetic field perpendicular to the plane of the loop. Sov. Phys. Solid State 2, 1109–1122 (1960).
6. Rashba, E. I. & Sheka, V. I. Simmetriya energeticheskikh zon v kristallakh tipa vyurtsita. II. Simmetriya zon s uchyotom spinovykh vzaimodeistvii, Fizika tverd. Tela 1, 162–176 (1959).
7. Bychkov, Y. A. & Rashba, E. I. Properties of a 2D electron gas with lifted spectral degeneracy. JETP Lett. 39, 78–81 (1984).
8. Datta, S. & Das, B. Electronic analog of the electro-optic modulator. Appl. Phys.
Lett. 56, 665–667 (1990).
9. Koroteev, Y. M. et al. Strong spin-orbit splitting on Bi surfaces. Phys. Rev. Lett.
93,046403 (2004).
10. Ast, C. R. et al. Giant spin splitting through surface alloying. Phys. Rev. Lett. 98, 186807 (2007).
11. Bihlmayer, G., Blu¨gel, S. & Chulkov, E. V. Enhanced Rashba spin-orbit splitting in Bi/Ag(111) and Pb/Ag(111) surface alloys from first principles. Phys. Rev. B 75,195414 (2007).
12. Ast, C. R. et al. Spin-orbit split two-dimensional electron gas with tunable Rashba and Fermi energy. Phys. Rev. B 77, 081407 (2008).
13. Mirhosseini, H. et al. Unconventional spin topology in surface alloys with Rashba-type spin splitting. Phys Rev. B 79, 245428 (2009).
14. Ishizaka, K. et al. Giant Rashba-type spin splitting in bulk BiTeI. Nat. Mater.
10,521–526 (2011).
15. Eremeev, S. V., Nechaev, I. A. & Chulkov, E. V. Giant Rashba-type spin splitting at polar surfaces of BiTeI. JETP Lett. 96, 484–491 (2012).
16. Crepaldi, A. et al. Giant ambipolar Rashba effect in the semiconductor BiTeI.
Phys. Rev. Lett. 109, 096803 (2012).
17. Shevelkov, A. V., Dikarev, E. V., Shpanchenko, R. V. & Popovkin, B. A. Crystal structures of Bismuth Tellurohalides BiTeX (X ¼ Cl, Br, I) from X-ray powder diffraction data. J. Solid State Chem. 114, 379–384 (1995).
18. Horcas, I. et al. WSXM: A software for scanning probe microscopy and a tool for nanotechnology. Rev. Sci. Instrum. 78, 013705 (2007).
19. Lee, J. S. et al. Optical response of relativistic electrons in the polar BiTeI semiconductor. Phys. Rev. Lett. 107, 117401 (2011).
20. He, X. et al. Surface termination of cleaved Bi2Se3investigated by low energy ion scattering. Phys. Rev. Lett. 110, 156101 (2013).
21. Chuang, C. H. et al. Enhanced chemical shift of carbon nanotube from laser assisted gas incorporation. Appl. Phys. Lett. 91, 183101 (2007).
22. Klauser, R. et al. Zone-plate-based scanning photoelectron microscopy at SRRC: performance and applications. Surf. Rev. Lett. 9, 213–222 (2002).
23. Hong, I. H. et al. Performance of the SRRC scanning photoelectron microscope.
Nucl. Instrum. Methods A 467, 905–908 (2001).
24. Giannozzi, P. et al. Quantum Espresso: A modular and open-source software project for quantum simulations of materials. J. Phys. Condens. Matter 21, 395502 (2009).
Acknowledgements
This work was supported in part by the National Science Council of Taiwan through grant Nos. NSC 101-2112-M-002-024-MY3, NSC 102-2120-M-002 -005, and NSC 101- 2119-M-002-007.
Author contributions
C.J.B and M.-T.L. designed and prepared the experiment. C.J.B. performed STM and STS measurements with assistance from H.-H.Y., and support in instrument maintenance from C.-I.L. XPS measurements using SPEM were performed by C.J.B., J.-Y.H. and K.-H.O.Y. at the TLS, National Synchrotron Radiation Research Center, with assistance from SPEM instrument scientist H.-W.S. and endstation spokesperson C.-H.C. XPS data analysis was performed by J.-Y.H. Crystal growth and characterization were performed by R.S. under the supervision of F.-C.C. DFT calculations were performed by S.-H.H., with additional surface band structure calculated by H.-Y.L., both under the supervision of C.-C.K. The manuscript was prepared by C.J.B. and M.-T.L., with input from G.-J.S.
and F.-C.C. The project was conceived and led by M.-T.L.
Additional information
Supplementary Informationaccompanies this paper at http://www.nature.com/
naturecommunications
Competing financial interests:The authors declare no competing financial interests.
Reprints and permissioninformation is available online at http://npg.nature.com/
reprintsandpermissions/
How to cite this article:Butler, C. J. et al. Mapping polarization induced surface band bending on the Rashba semiconductor BiTeI. Nat. Commun. 5:4066 doi: 10.1038/ncomms5066 (2014).
This work is licensed under a Creative Commons Attribution 3.0 Unported License. The images or other third party material in this article are included in the article’s Creative Commons license, unless indicated otherwise in the credit line; if the material is not included under the Creative Commons license, users will need to obtain permission from the license holder to reproduce the material.
To view a copy of this license, visit http://creativecommons.org/licenses/by/3.0/
I Te Bi
FWHM2=20v52eV
FWHM2=20v682eV
c
d
e
Intensity2Aarbv2unitsf
Kinetic2energy2AeVf2
286 288 290 292 294 296
Kinetic2energy2AeVf
Intensity2Aarbv2unitsfNormalized2intensity2Aarbv2unitsf
FWHM2=20v682eV Au24f
b
k0v6 k0v4 k0v2 0v0 0v2 0v4 0v6 0v0
0v2 0v4 0v6 0v8 1v0
Kinetic2energy2shift2from2bulk2value2AeVf Increasing
depth
a
Te
Bi I
Bi Te
I
0 2
k2 k2 0 2 k2 0 2
Supplementary Fig. 1. The effects of photoelectron inelastic mean free path (IMFP) and spectral resolution in different XPS measurements. (a) The variation of signal intensity with layer depth, controlled by the IMFP, and surface polarization induced energy shift plotted for each layer in the Te-termination (blue) and I-termination (red). Solid square points show the signal attenuation for a photon energy of 120 eV as used by Crepaldi et al.,[1] while open triangles show attenuation for a photon energy of 380 eV as used in this work. A suitable decay constant is chosen so that the energy shifts approach zero below 2 nm (about 3 unit cells). (b) The Au 4f spectrum showing the instrument spectral resolution of the SPEM at the time of this work. (c) Functions standing in for the idealized raw Bi 5d, Te 4d and I 4d doublets used in the model. (d) Modeled spectra considering photon energy of 120 eV and approximate spectral resolution of 0.5 eV, as estimated from the work by Crepaldi et al.[1] Curves shaded in red show those contributions originating from I-terminated regions, and curves shaded in blue show those from Te-terminated regions. (e) Modeled spectra in the case of the photon energy of 380 eV and spectral resolution of 0.68 eV, as attainable using the SPEM instrument.
1
-4 -3 -2 -1 0 1 2 3 4
PDOS (eV-1)
E - EF (eV)
-4 -3 -2 -1 0 1 2 3 4
E - EF (eV)
PDOS (eV-1)
Supplementary Fig. 2. Projected density of states (PDOS) for each layer in the (a) I terminated and (b) Te terminated surfaces. The uppermost curve corresponds to the termination layer, and the lowest curves represent the bulk. The grey stripe highlights the bending of the band-gap near the surface.
-4 -3 -2 -1 0 1 2 3 4
PDOSa(eV-1 )
Ea-aEFa(eV) 0.8aeV
Bia6p1/2aunderaTeatermination Bia6p3/2aunderaTeatermination Bia6p1/2aunderaIatermination Bia6p3/2aunderaIatermination
Supplementary Fig. 3. PDOS for the Bi 6p levels in the Bi layer closest to the surface (buried by the I or Te termination layer), showing a clear energy shift. Taking the conduction band minimum as a common marker, a shift of 0.8 eV is obtained, consistent with the shift seen for Bi 5d levels in photoemission spectra.
2
H
H A L
0 2
-2
A L
A
M K
-4 -2 0 2 4
E - EF (eV)E - EF (eV)
c
A H
L
M K
0 2
-2 E - EF (eV)
K M
b
d e
I Bi Te a
Supplementary Fig. 4. Bulk band structure. (a) The BiTeI unit cell and (b) first Brillouin Zone.
(c) Calculated band structure for bulk BiTeI, after relaxation of the bulk structure with van der Waals interaction taken into account. (Inclusion or exclusion of the van der Waals interaction in the calculation yielded no significant differences in the resulting bulk band structure.) (d) and (e) Zoom-in on the band structure around the Γ and A points respectively, showing giant Rashba spin splitting.
a b
Supplementary Fig. 5. Calculated band structures for the uppermost atomic layer at (a) the I terminated and (b) the Te terminated surfaces. Only points for which the projection amplitude summed over all relevant orbitals exceeds 0.1 are included.
3
1.8
Bi Te I
120
0 20 40 60 80x 100
0 2 4 6 8 10
B
A
Xx(nm)
Apparentxheightx(xxx)
7.2
Inversionxinxthexc-axis Cleave
C
C
c
1.8
7.2
Supplementary Fig. 6. A proposed scheme for the occurrence of domains of inverse stacking order in crystals of BiTeI used in our work. (a) Stacking faults arranged on irregular three-dimensional surfaces throughout the crystal bulk separate domains of inverse stacking order. (b) Topographic line profile shown in Fig. 1, showing two distinct topographic step heights and (c) a possible model for the corresponding arrangement of the stacked layers on either side of stacking faults which extend into the bulk. The dotted lines indicate the position of the stacking faults. The dashed line indicates another possible path for cleavage of the crystal between along the van der Waals gap between the Te and I layers.
0 20 40 60 80 100
0.0 0.5 1.0 1.5 2.0 2.5
Apparent height ( )
X (nm)
c Vbias = -0.2 V
Vbias = 0.7 V
a b
