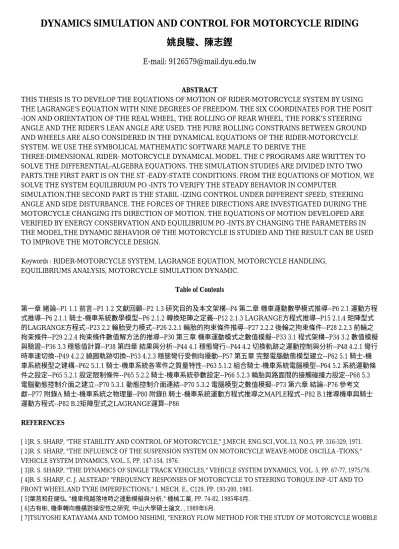

DYNAMICS SIMULATION AND CONTROL FOR MOTORCYCLE RIDING 姚良駿、陳志鏗
E-mail: [email protected]
ABSTRACT
THIS THESIS IS TO DEVELOP THE EQUATIONS OF MOTION OF RIDER-MOTORCYCLE SYSTEM BY USING THE LAGRANGE'S EQUATION WITH NINE DEGREES OF FREEDOM. THE SIX COORDINATES FOR THE POSIT -ION AND ORIENTATION OF THE REAL WHEEL, THE ROLLING OF REAR WHEEL, THE FORK'S STEERING ANGLE AND THE RIDER'S LEAN ANGLE ARE USED. THE PURE ROLLING CONSTRAINS BETWEEN GROUND AND WHEELS ARE ALSO CONSIDERED IN THE DYNAMICAL EQUATIONS OF THE RIDER-MOTORCYCLE SYSTEM. WE USE THE SYMBOLICAL MATHEMATIC SOFTWARE MAPLE TO DERIVE THE
THREE-DIMENSIONAL RIDER- MOTORCYCLE DYNAMICAL MODEL. THE C PROGRAMS ARE WRITTEN TO SOLVE THE DIFFERENTIAL-ALGEBRA EQUATIONS. THE SIMULATION STUDIES ARE DIVIDED INTO TWO PARTS.THE FIRST PART IS ON THE ST -EADY-STATE CONDITIONS. FROM THE EQUATIONS OF MOTION, WE SOLVE THE SYSTEM EQUILIBRIUM PO -INTS TO VERIFY THE STEADY BEHAVIOR IN COMPUTER
SIMULATION.THE SECOND PART IS THE STABIL -IZING CONTROL UNDER DIFFERENT SPEED, STEERING ANGLE AND SIDE DISTURBANCE. THE FORCES OF THREE DIRECTIONS ARE INVESTIGATED DURING THE MOTORCYCLE CHANGING ITS DIRECTION OF MOTION. THE EQUATIONS OF MOTION DEVELOPED ARE VERIFIED BY ENERGY CONSERVATION AND EQUILIBRIUM PO -INTS.BY CHANGING THE PARAMETERS IN THE MODEL,THE DYNAMIC BEHAVIOR OF THE MOTORCYCLE IS STUDIED AND THE RESULT CAN BE USED TO IMPROVE THE MOTORCYCLE DESIGN.
Keywords : RIDER-MOTORCYCLE SYSTEM, LAGRANGE EQUATION, MOTORCYCLE HANDLING, EQUILIBRIUMS ANALYSIS, MOTORCYCLE SIMULATION DYNAMIC.
Table of Contents
第一章 緒論--P1 1.1 前言--P1 1.2 文獻回顧--P2 1.3 研究目的及本文架構--P4 第二章 機車運動數學模式推導--P6 2.1 運動方程 式推導--P6 2.1.1 騎士-機車系統數學模型--P6 2.1.2 轉換矩陣之定義--P12 2.1.3 LAGRANGE方程式推導--P15 2.1.4 矩陣型式 的LAGRANGE方程式--P23 2.2 輪胎受力模式--P26 2.2.1 輪胎的拘束條件推導--P27 2.2.2 後輪之拘束條件--P28 2.2.3 前輪之 拘束條件--P29 2.2.4 拘束條件數值解方法的推導--P30 第三章 機車運動模式之數值模擬--P33 3.1 程式架構--P34 3.2 數值模擬 與驗證--P36 3.3 穩態值計算--P38 第四章 結果與分析--P44 4.1 穩態彎行--P44 4.2 切換軌跡之運動控制與分析--P48 4.2.1 彎行 時車速切換--P49 4.2.2 繞圓軌跡切換--P53 4.2.3 穩態彎行受側向擾動--P57 第五章 完整電腦動態模型建立--P62 5.1 騎士-機 車系統模型之建構--P62 5.1.1 騎士-機車系統各零件之質量特性--P63 5.1.2 組合騎士-機車系統電腦模型--P64 5.2 系統運動條 件之設定--P65 5.2.1 設定限制條件--P65 5.2.2 騎士-機車系統參數設定--P66 5.2.3 輪胎與路面間的接觸碰撞力設定--P68 5.3 電腦動態控制介面之建立--P70 5.3.1 動態控制介面連結--P70 5.3.2 電腦模型之數值模擬--P73 第六章 結論--P76 參考文 獻--P77 附錄A 騎士-機車系統之物理量--P80 附錄B 騎士-機車系統運動方程式推導之MAPLE程式--P82 B.1推導機車與騎士 運動方程式--P82 B.2矩陣型式之LAGRANGE運算--P86
REFERENCES
[ 1]R. S. SHARP, "THE STABILITY AND CONTROL OF MOTORCYCLE," J.MECH. ENG.SCI.,VOL.13, NO.5, PP. 316-329, 1971.
[ 2]R. S. SHARP, "THE INFLUENCE OF THE SUSPENSION SYSTEM ON MOTORCYCLE WEAVE-MODE OSCILLA -TIONS,"
VEHICLE SYSTEM DYNAMICS, VOL. 5, PP. 147-154, 1976.
[ 3]R. S. SHARP, "THE DYNAMICS OF SINGLE TRACK VEHICLES," VEHICLE SYSTEM DYNAMICS, VOL. 5, PP. 67-77, 1975/76.
[ 4]R. S. SHARP, C. J. ALSTEAD? "FREQUENCY RESPONSES OF MOTORCYCLE TO STEERING TORQUE INP -UT AND TO FRONT WHEEL AND TYRE IMPERFECTIONS," I. MECH. E., C129, PP. 193-200, 1983.
[ 5]葉莒和莊健弘, "機車飛越落地時之運動模擬與分析," 機械工業, PP. 74-82, 1985年8月.
[ 6]古有彬, 機車轉向機構對操安性之研究, 中山大學碩士論文, , 1989年6月.
[ 7]TSUYOSHI KATAYAMA AND TOMOO NISHIMI, "ENERGY FLOW METHOD FOR THE STUDY OF MOTORCYCLE WOBBLE
MODE," VEHICLE SYSTEM DYNAMICS, VOL.19, PP. 151-175, 1990.
[ 8]游凱程, 電動機車穩定性分析及最佳化設計, 台灣大學碩士論文, 1986年6月.
[ 9]陳志鏗, 許惠琳, 機車三維動態模擬之研究, 大葉大學碩士論文, 2001年7月.
[10]蕭印宏, 機車穩定性之研究, 交通大學碩士論文, 1990年6月.
[11]陳俊賢, 機車-人系統之實驗設計與穩定分析, 交通大學碩士論文, 1991年6月.
[12]K. GUO, H.GUAN, "MODELING OF DRIVER/VEHICLE DIRECTIONAL CONTROL SYSTEM," VEHICLE SYST -EM DYNAMICS, VOL. 22, PP. 141-184, 1993.
[13]FARSHID FOROUHAR, ANDREW PACKARD, "ROBUST STABILIZATION OF HIGH SPEED OSCILLATIONS IN SINGLE TRACK VEHICLES," AMERICAN CONTROL CONFERENCE, VOL. 1, PP. 26~30, 1994.
[14]吳仁琛, 騎士-機車系統運動控制:模糊控制方法, 交通大學博士論文, 1995年6月。
[15]YOUNG H. CHO. AND J. KIM, "STABILITY ANALYSIS OF THE HUMAN CONTROLLED VEHICLE MOVING ALONG A CURVED PATH ," VEHICLE SYSTEM DYNAMICS, VOL.25, PP.51-69, 1996.
[16]MOTOMU YOKOMORI, TAKIO OYA, AKIRA KATAYAMA, "RIDER CONTROL BEHAVIOR TO MAINTAIN STABL -E UPRIGHT," JSAE REVIEW, VOL. 21, PP. 61-65, 2000.
[17]R. S. SHARP, "STABILITY, CONTROL AND STEERING RESPONSES OF MOTORYCLE," VEHICLE SYSTEM DYNAMICS, VOL. 35, NO. 4-5, PP. 291-318, 2001.
[18]BENGT BRORSSON AND JAN IFVER, "WOBBLING IN MODERN MOTORCYCLES," ACCID. ANAL. & PREV., VOL. 16, PP.
451-456 , 1984.
[19]賴耿陽, 車輛驅動及控制, 復漢出版社, PP.5-50, 1993年, 11月.
[20]J. Y. WONG, THEORY OF GROUND VEHICLE, JOHN WILEY & SON, SECOND EDITION, PP. 3-72,1993.
[21]VITTORE COSSALTER, ALBERTO DORLA AND ROBERTO LOT, "STEADY TURNING OF TWO-WHEELED VEHI -CLES,"
VEHICLE SYSTEM DYNAMICS, VOL. 31, PP. 157-181, 1999.
[22]DONALD T. GREENWOOD, PRINCIPLES OF DYNAMICS, PRENTICE-HALL, SECOND EDITION, 1988.
[23]FARID M. L. AMIROUCHE, COMPUTATIONAL METHODS IN MULTIBODY DYNAMICS, PRENTICE-HALL, PP. 424-461, 1992.
