(1)

+DUGZDUH0DQXDO

(2)

Thank you for purchasing Pro-face’s GP3000 Series Programmable Operator Interface (Hereafter referred to as the “GP unit”).

Before operating your GP unit, be sure to read this manual to familiarize yourself with the GP unit’s operation procedures and features.

©

Product names used in this manual are the trademarks / registered trademarks of their respective owners.

NOTICE

1. Copying this manual’s contents, either in whole or in part, is prohibited without the express permis- sion of Digital Electronics Corporation, Japan.

2. The information contained in this manual is subject to change without notice.

3. If you should you find any errors or omissions in this document, please contact Digital Electronics Corporation to report your findings.

4. Regardless of Clause 3 above, Digital Electronics Corporation shall not be held responsible for any damages, losses or third-party damages resulting from the use of this product.

(3)

All safety-related procedures stated in this document must be followed to operate the GP correctly and safely. Be sure to read this and any related documents thoroughly to understand the correct operation and functions of the GP unit.

Safety Icons

Throughout this manual, these icons provide essential safety information for GP operation procedures requiring special attention. These icons indicate the following levels of danger:

System Design

Indicates situations where severe bodily injury, death or major equipment damage can occur.

Indicates situations where slight bodily injury or minor equipment damage can occur.

Indicates actions or procedures that should NOT be performed.

Indicates actions or procedures that MUST be performed to ensure correct unit operation.

Be sure to design your GP control system so that, in the event of a main power supply failure or a GP accident, the user system’s overall safety integrity will be maintained. If this is not done, incorrect output signals or a GP malfunction may cause an accident.

1) Interlock and other circuits designed to interrupt or oppose normal machine movement (such as Emer- gency Stop, General Protection, and forward and reverse rotation), as well as those designed to prevent machine damage (such as upper, lower, and traverse movement limit positioning) should all be designed to be located outside of the GP.

2) When the GP generates a “Watchdog Timer Error” during logic program operating, the logic program operation will halt. Also, when Errors occur in Input/Output control areas that the GP cannot detect, unexpected movement may occur in those areas. Therefore, and to prevent unsafe machine movement, a “Failsafe Circuit” should be created which is completely external to the GP.

For a failsafe circuit, refer to “Installation Precautions” (page 8-15).

3) If a problem arises with an external unit’s relay or transistor, causing an output (coil) to remain either ON or OFF, a major accident can occur. To prevent this, be sure to set up external watchdog circuits that will monitor vital output signals.

(4)

(signal) or malfunction could cause an accident.

Design a user program that ensures the safety of the user’s system, in the event of a GP display or control error, or either a data transmission error or power failure between the GP and a connected unit. These types of problems can lead to an incorrect output (signal) or malfunction, resulting in an accident.

Do not make switches using the switches on the touch panels which may cause operator injury and machine damage. An output may remain either ON or OFF and a major accident can occur. To prevent this, set up circuits such as limiters that will monitor vital output signals. Design switches for important operations to be performed by separate devices. An incorrect output or malfunction can occur and thereby cause an accident.

Do not create GP touch panel switches to control machine safety operations, such as an emergency stop switch. Install these switches as separate hardware switches, otherwise severe bodily injury or equipment damage can occur.

Be sure to design your system so that a communication fault between the GP and its host controller will not cause equipment to malfunction. This is to prevent any possibility of bodily injury or equipment damage.

Do not use the GP as a warning device for critical alarms that can cause serious operator injury, machine damage or can halt system operation. Critical alarm indicators and their control/activator units must be designed using stand-alone hardware and/or mechanical interlocks.

Do not use the GP with aircraft control devices, aerospace equipment, central trunk data transmission (communication) devices, nuclear power control devices, or medical life support equipment, due to these devices’ inherent requirements of extremely high levels of safety and reliability.

When using the GP with transportation vehicles (trains, cars, and ships), disaster and crime prevention devices, various types of safety equipment, and medical devices that are not life-support related, use redundant and/or failsafe system designs to ensure proper reliability and safety.

(5)

Handling

Wiring

Maintenance

ous machine operation error can occur. Therefore, do not create GP unit touch panel switches that may cause injury and/or equipment damage. If your GP unit’s backlight suddenly turns OFF, use the following steps to determine if the backlight is actually burned out.

1) If the GP unit’s “Backlight Control” is not set and the screen has gone blank, your backlight is burned out.

2) If the GP unit’s “Backlight Control” is set to Standby Mode and the screen has gone blank, and touching the screen or performing another input operation does not cause the display to reappear, your backlight is burned out.

Do not disassemble or modify the GP unit. Doing so may cause a fire or an electric shock.

Do not operate the GP in an environment where flammable gases are present, since it may cause an explosion.

To prevent electrical shock or equipment damage, unplug the GP unit’s power cord from the power supply prior to installing or wiring the GP.

After completing any GP wiring work, be sure the terminal block’s protective plastic cover is reattached. If this cover is not reattached, an electrical shock could easily occur.

To prevent an electric shock be sure to disconnect your GP unit’s power cord from the power supply before wiring the GP.

Do not use voltage beyond the GP unit’s specified range. Doing so may cause a fire or an electric shock.

The cables connected to the GP should be secured by cable clamps to prevent weight or tension of the cables added to the connectors or terminals.

The GP unit’s wiring should be checked to confirm that both the operating voltage and wiring terminal locations are correct. If either the voltage or the wiring terminal location is incorrect, it can cause a fire or accident.

NEVER touch a live power terminal. Doing so could cause an electrical shock or a machine malfunction.

To prevent an electrical shock, unplug the GP unit’s power cord before either cleaning the GP or attaching/

detaching the power terminal attachment screws.

When replacing the GP unit’s backlight, be sure to unplug the unit’s power cord to prevent an electrical

(6)

Wiring Layout Precautions

Installation

Wiring

Maintenance

clock data and the battery may explode if it is replaced incorrectly. When replacement is required, please contact your local GP distributor.

To prevent a GP unit malfunction due to excessive noise, isolate all GP input/output signal lines from all power wiring or power cables via a separate wiring duct.

Be sure all cable connectors are securely attached to the GP unit. A loose connection may cause incorrect input or output signals.

Be sure to ground the GP unit’s FG wire separately from other equipment FG lines. Also, be sure to use a grounding resistance of 100. or less and a 2mm² [0.0062inch²] or thicker wire, or your country’s applicable standard. Otherwise, electric shock or malfunctions may result.

Be sure to use only the designated torque to tighten the GP unit’s terminal block screws. If these screws are not tightened firmly, it may cause a short-circuit, fire or incorrect unit operation.

Be sure that metal particles and wiring debris do not fall inside the GP unit. They can cause a fire, malfunction or incorrect unit operation.

Be sure to read the GP unit’s manual carefully before performing program changes, entering forced output, or using the RUN, STOP, or PAUSE commands while the GP is operating. Mistakes made when using these items can cause machine accidents or damage.

Be sure the electricity is turned OFF before attaching or detaching an I/O unit. If the electricity is ON when an I/O unit is attached or detached, damage or malfunction to the I/O unit may occur.

Be sure to turn the GP unit’s CF Card ACCESS switch OFF and confirm that the ACCESS lamp is not lit prior to inserting or removing a CF Card. Otherwise, CF Card internal data may be damaged or lost.

Do not reset or turn the GP OFF, or insert or remove the CF Card while the GP unit’s CF Card is being accessed. Create special application screens to perform operations like turning power OFF, resetting the GP or inserting or removing the CF Card.

(7)

General Safety Precautions

with, the user country's industrial machinery disposal/recycling standards.

Do not press on the GP unit’s display with excessive force or with a hard object, since it can damage the display. Also, do not press on the touch panel with a pointed object, such as the tip of a mechanical pencil or a screwdriver, since doing so can damage the touch panel.

Do not install the GP where the ambient temperature exceeds the specified range. Doing so may cause a unit malfunction.

To prevent abnormally high temperatures from occurring inside the GP, do not restrict or block the GP unit’s rear-face ventilation slots.

Do not operate the GP in areas where large, sudden temperature changes can occur. These changes can cause condensation to form inside the GP, possibly causing it to malfunction.

Do not allow water, liquids or metal fragments to enter inside the GP unit’s case, since they can cause either a malfunction or an electric shock. The allowable pollution degree is 2.

Do not operate or store the GP in locations where it can be exposed to direct sunlight, high temperatures, excessive dust, moisture or vibration.

Do not operate or store the GP where chemicals evaporate, or where chemicals are present in the air.

Corrosive chemicals: Acids, alkalines, liquids containing salt Flammable chemicals: Organic Solvents

Do not use paint thinner or organic solvents to remove dirt or oil from the GP unit’s surface. Instead, use a soft cloth moistened with a diluted neutral detergent.

Do not use or store the GP in areas with direct sunlight, since the sun’s ultraviolet rays may cause the LCD’s quality to deteriorate.

Do not store the GP in an area where the temperature is lower than that recommended in the GP unit’s specifications. Doing so may cause the LCD display’s liquid to congeal, which can damage the LCD.

Also, if the storage area’s temperature becomes higher than the specified level, the LCD’s liquid may become isotropic, causing irreversible damage to the LCD. Therefore, only store the GP in areas where temperatures are within the GP unit’s specifications.

After turning OFF the GP, be sure to wait a few seconds before turning it ON again. The GP may not operate correctly if it is restarted too quickly.

Be sure to back up the GP screen data and logic programs in case they are lost accidentally.

(8)

ately rinse the area with running water for at least 15 minutes. If the liquid gets in your eyes, immediately rinseyour eyes with running water for at least 15 minutes and consult a doctor.

• The GP unit’s LCD screen may flicker or show unevenness in the brightness of certain images or at some contrast settings. This is an LCD characteristic and not a product defect.

• There’s an individual difference in brightness and tone of LCD screen. Please be aware of this difference before using the lined-up plural units.

• Depending on the ambient temperature, LCD displays may sometimes look whitish (at high temperatures) or blackish (at low temperatures). This is an LCD characteristic and not a product defect.

• Some of GP unit’s LCD screens may contain light or dark pixels. This is an LCD characteristic and not a product defect.

• Extended shadows, or “Crosstalk” may appear on the sides of screen images. This is an LCD characteristic and not a product defect.

• The color displayed on the GP unit’s LCD screen may appear different when seen from outside the specified viewing angle. This is an LCD characteristic and not a product defect.

• When the same image is displayed on the GP unit’s screen for a long period, an afterimage may appear when the image is changed. This is an LCD characteristic and not a product defect.

• To prevent an afterimage:

* Set the GP unit’s display OFF feature when you plan to display the same screen image for a long period of time.

* Change the screen image periodically and try to not display the same image for a long period of time.

• Please be aware that characteristics of the GP unit’s LCD screen with a white LED backlight may change gradually owing to the deterioration of the backlight LED and the LCD display may look bluish.

About the Manuals

For the detailed information on GP3000 Series, refer to the following manuals.

• Maintenance/Troubleshooting

For the Offline Settings, see Maintenance/Troubleshooting (Offline Settings Guide).

• GP-Pro EX Device/PLC Connection Manual

• GP-Pro EX Reference Manual

The manuals can be downloaded from Pro-face Home Page “Otasuke Pro!”.

URL “Otasuke Pro!”

http://www.pro-face.com/otasuke/

(9)

This manual uses the following icons:

GP3000 Series Model Name Indication

Model name

A G P 3 * ** - * 1 - * - **

Indicates a warning or a product limitation. Be sure to follow the instructions given with this icon to ensure the safe operation of the GP.

Screen Editor Indicates the GP-Pro EX software.

PLC Abbreviation for Programmable Logic Controller.

Logic program Indicates a ladder program created with the GP-Pro Ex.

* Indicates useful or important supplemental information.

Contains additional or useful information.

Indicates pages containing related information.

A

2 GP-3200 series (3.8-inch): QVGA (320 x 240 dots)

3 GP-3300 series (5.7-inch): QVGA (320 x 240 dots), VGA (640 x 480 dots)^*1 4 GP-3400 series (7.5-inch): VGA (640 x 480 dots)

5 GP-3500 series (10.4-inch)^*2: VGA (640 x 480 dots),SVGA(800 x 600 dots)^*3 6 GP-3600 series (12.1-inch): SVGA (800 x 600 dots)

7 GP-3700 series (15-inch): XGA (1024 x 768 dots)

B

00 Standard machine

10^*1*3

01 Low-cost machine

02

50 Multimedia machine

60^*1*3

C

A Monochrome amber/red mode LCD

B Monochrome blue mode LCD

L Monochrome LCD

S STN color LCD

T TFT color LCD

U TFT Color LCD (Ultra luminance)

D AF AC type power supply is used.

D24 DC type power supply is used.

E

Omitted Standard type

D81K DIO board type (sink type) D81C DIO board type (source type) FN1M FLEX NETWORK board type CA1M CANopen board type

*1 AGP-3310T/3360T only.

*2 The AGP-3500L and The AGP-3500S have the same dimensions as a 12.1-inch display unit.

SEE

A B C D E

(10)

Series Names Models

GP3000 series

GP-3200 series AGP-3200A AGP3200-A1-D24

AGP-3200T AGP3200-T1-D24

GP-3300 series

AGP-3300L AGP3300-L1-D24

AGP-3300L-D81 AGP3300-L1-D24-D81K AGP3300-L1-D24-D81C AGP-3300L-FN1M AGP3300-L1-D24-FN1M AGP-3300L-CA1M AGP3300-L1-D24-CA1M

AGP-3300S AGP3300-S1-D24

AGP-3300S-D81 AGP3300-S1-D24-D81K AGP3300-S1-D24-D81C AGP-3300S-CA1M AGP3300-S1-D24-CA1M

AGP-3300T/U AGP3300-T1-D24

AGP3300-U1-D24 AGP-3300T-D81 AGP3300-T1-D24-D81K

AGP3300-T1-D24-D81C AGP-3300T-FN1M AGP3300-T1-D24-FN1M AGP-3300T-CA1M AGP3300-T1-D24-CA1M

AGP-3302B AGP3302-B1-D24

AGP-3301L AGP3301-L1-D24

AGP-3301S AGP3301-S1-D24

AGP-3310T AGP3310-T1-D24

AGP-3360T AGP3360-T1-D24

GP-3400 series

AGP-3400S AGP3400-S1-D24

AGP-3400S-D81 AGP3400-S1-D24-D81K AGP3400-S1-D24-D81C AGP-3400S-CA1M AGP3400-S1-D24-CA1M

AGP-3400T AGP3400-T1-D24

AGP-3400T-D81 AGP3400-T1-D24-D81K AGP3400-T1-D24-D81C AGP-3400T-FN1M AGP3400-T1-D24-FN1M AGP-3400T-CA1M AGP3400-T1-D24-CA1M

AGP-3450T AGP3450-T1-D24

GP-3500 series

AGP-3500L AGP3500-L1-D24

AGP-3500L-D81 AGP3500-L1-D24-D81C

AGP-3500S AGP3500-S1-AF

AGP3500-S1-D24 AGP-3500S-D81

AGP3500-S1-AF-D81K AGP3500-S1-AF-D81C AGP3500-S1-D24-D81K AGP3500-S1-D24-D81C AGP-3500S-CA1M AGP3500-S1-AF-CA1M

AGP3500-S1-D24-CA1M

AGP-3500T AGP3500-T1-AF

AGP3500-T1-D24 AGP-3500T-D81

AGP3500-T1-AF-D81K AGP3500-T1-AF-D81C AGP3500-T1-D24-D81K AGP3500-T1-D24-D81C AGP-3500T-FN1M AGP3500-T1-AF-FN1M

AGP3500-T1-D24-FN1M AGP-3500T-CA1M AGP3500-T1-AF-CA1M

AGP3500-T1-D24-CA1M

AGP-3510T-CA1M AGP3510-T1-AF-CA1M

GP-3600 series

AGP3600-T1-D24 AGP-3600T-D81

AGP3600-T1-AF-D81K AGP3600-T1-AF-D81C AGP3600-T1-D24-D81K AGP3600-T1-D24-D81C AGP-3600T-FN1M AGP3600-T1-AF-FN1M

AGP3600-T1-D24-FN1M AGP-3600T/U-CA1M AGP3600-T1-AF-CA1M

AGP3600-T1-D24-CA1M AGP3600-U1-D24-CA1M AGP-3650T/U

AGP3650-T1-AF AGP3650-T1-D24 AGP3650-U1-D24

GP-3700 series AGP-3750T AGP3750-T1-AF

AGP3750-T1-D24

(11)

The following items are included in the GP unit’s package. Before using the GP, please check that all items listed here are present.

GP Unit: 1 • English and Japa-

nese Installation Guides (1 of each)

• Warning/Caution Information (1)

Installation Gasket: 1 Installation Fasteners:

4 per set (Attached to the GP

unit)

(GP-3700 series only:

4 x 2 sets)

DC Power Connector: 1

• GP-3200/3300/3400 series (Attached to the GP unit for GP-3200/3300 series)

• GP-3500/3600/3700 series (DC model only)

(Attached to the GP unit)

USB Cable Clamp 1 set

• GP-3300 series

Holder: 1, Clamp: 1

<AGP-3310T/3360T only>

Clip: 2, Tie: 2

• GP3000 series except GP-3300 series Holder: 1, Cover: 2

(GP-3200 series only: Holder: 1, Cover: 1)

AUX Connector: 1 RCA-BNC Convertor: 1

• GP3000 series except GP-3200/3300 series (Attached to the GP unit for GP-3500/3600/3700 series)

• GP-3*50 series/AGP- 3360T/3560T only

DIO Connector 1, Installation Guide 1 FLEX NETWORK Connector 1, Installation Guide 1

• DIO board type only • FLEX NETWORK board

type only

(12)

DC Type

• UL listed products

• c-UL listed products

• DC Type List

UL/c-UL File No.: E220851, E210412, E182139

Industrial Control Equipment refer to UL508 see [a] in the

“DC Type List“

Suitable for use in Class I, Division 2, Groups A, B, C, and D Hazardous (classified) locations, or Non-Hazardous Locations.

refer to

ANSI/ISA 12.12.01

see [b] in the

“DC Type List“

Industrial Control Equipment refer to CSA-C22.2

No.14 or 142

see [c] in the

“DC Type List“

Suitable for use in Class I, Division 2, Groups A, B, C, and D Hazardous (classified) locations, or Non-Hazardous Locations.

refer to

CSA-C22.2 No. 213

see [d] in the

“DC Type List“

Product Model No. Registration Model No.

UL c-UL

[a] [b] [c] [d]

AGP3200-A1-D24 3580205-03 9 9 9 9

AGP3200-T1-D24 3580205-04 9 9 9 9

AGP3300-L1-D24-**** ^*1

*1 Additional four digits at the end of the model name do not affect the registration model No.

For example,

AGP3300-L1-D24 and AGP3300-L1-D24-D81K are approved for the same UL/c-UL/CSA registration model No.of 3280007-03.

3280007-03 9 9 9 9

AGP3300-S1-D24-**** ^*1*2

*2 As for the units that have the additional four digits "CA1M" at the end of the model name, the sales area is limited.

3280007-02 9 9 9 9

AGP3300-T1-D24-**** ^*1 3280007-01 9 9 9 9

AGP3300-U1-D24 3710015-01 9 - 9 -

AGP3301-L1-D24 3280007-13 9 9 9 9

AGP3301-S1-D24 3280007-12 9 9 9 9

AGP3302-B1-D24 3280007-24 9 9 9 9

AGP3310-T1-D24 3710011-01 9 9 9 9

AGP3360-T1-D24 3710011-02 9 9 9 9

AGP3400-S1-D24-**** ^*1*2 3280035-02 9 9 9 9

AGP3400-T1-D24-**** ^*1 3280035-01 9 9 9 9

AGP3450-T1-D24 3280035-31 9 9 9 9

AGP3500-L1-D24-**** ^*1 3280024-32 9 9 9 9

AGP3500-S1-D24-**** ^*1*2 3280024-22 9 9 9 9

AGP3500-T1-D24-**** ^*1 3280035-41 9 9 9 9

AGP3600-T1-D24-**** ^*1 3280024-14 9 9 9 9

AGP3650-T1-D24 3280024-12 9 9 9 9

AGP3650-U1-D24 3910018-01 9^*3

*3 The GP unit with Revision "D" or later are all compliant this standard.

- 9^*3 -

AGP3750-T1-D24 3280024-02 9 9 9 9

(13)

• c-UL recognized components

• AC Type List

UL/c-UL File No.: E171486, E231702

For the detailed certification's information, refer to the Pro-face Home page.

Information Technology Equipment - Safety - Part 1 refer to UL60950-1 Suitable for use in Class I, Division 2, Groups A, B, C, and

D Hazardous (classified) locations, or Non-Hazardous Locations.

refer to

ANSI/ISA 12.12.01

Information Technology Equipment - Safety - Part 1 refer to CAN/CSA- C22.2 No.60950-1 Suitable for use in Class I, Division 2, Groups A, B, C, and

D Hazardous (classified) locations, or Non-Hazardous Locations.

refer to

CSA-C22.2 No. 213

Product Model No. ^*1

*1 Additional four digits at the end of the model name do not affect the registration model No. For example,

AGP3500-S1-AF and AGP3500-S1-AF-D81K are approved for the same UL/c-UL registration model No. of 3280024-21.

Registration

Model No. Product Model No. ^*1 Registration Model No.

AGP3500-S1-AF-****^*2

*2 As for the units that have the additional four digits "CA1M" at the end of the model name, the sales area is limited.

3280024-21 AGP3560-T1-AF 3581301-03

AGP3500-T1-AF-**** 3280035-45 AGP3600-T1-AF-**** 3280024-13 AGP3510-T1-AF-**** ^*2 3581301-03 AGP3650-T1-AF 3280024-11

AGP3550-T1-AF 3280035-75 AGP3750-T1-AF 3280024-01

(14)

• The GP unit’s rear face is not approved as an enclosure. When building the GP unit into an end-use product, be sure to use an enclosure that satisfies standards as the end-use product’s overall enclosure.

• The GP unit must be used indoors only.

• Install and operate the GP with its front panel facing outwards.

• If the GP is mounted so as to cool itself naturally, be sure to install it in a vertical panel. Also, it’s recommended that the GP should be mounted at least 100 mm away from any other adjacent structures or machine parts. The temperature must be checked on the final product in which the GP is installed.

• For use on a flat surface of a Type 4X (Indoor Use Only) and/or Type 13 Enclosure (Type 1 Enclosure for AGP3300- U1-D24 / AGP3650-U1-D24).

(1) Power and input/output wiring must be in accordance with Class I, Division 2 wiring methods - Article 501.10(B) of the National Electrical Code, NFPA 70 within the United States, and in accordance with Section 18-152 of the Canadian Electrical Code for units installed within Canada.

(2) Suitable for use in Class I, Division 2, Groups A, B, C, and D Hazardous Locations, or Non-Hazardous Locations.

(3) WARNING: Explosion hazard-substitution of any components may impair compliance to Class I, Divi- sion 2

(4) WARNING: Explosion hazard-when in hazardous locations, turn the power OFF before replacing or wiring modules.

(5) WARNING: Explosion hazard-confirm that the power supply has been turned OFF before disconnecting equipment, or confirm that the location is not subject to the risk of explosion.

(6) WARNING: Explosion hazard-do not disconnect equipment unless power has been switched off or the area is known to be Non-Hazardous.

(7) In the case of use in Hazardous Locations, be sure to check that the externally connected unit and each interface have been fixed with screws and locked. In Hazardous Locations, it’s impossible to insert or pull the cable from the applicable port. Be sure to check that the location is Non-Hazardous before inserting or pulling it.

The safety certificate can be downloaded from Pro-face Home Page.

Home Page URL http://www.pro-face.com/

(15)

The following units are CE marked products complying with the EMC Directive.

The following units are CE marked products complying with the EMC Directive.^*1

*1 Additional four digits at the end of the model name do not affect compliance. For example, AGP3500- T1-D24 and AGP3500-T1-D24-D81K are CE marked products complying with the same EMC Directive.

*2 As for models of "CA1M" at the end of the model no., the sales area is limited.

The following units are CE marked products complying with both the EMC Directive and low-voltage directive.^*1

*1 Additional four digits at the end of the model name do not affect compliance. For example, AGP3500- T1-AF and AGP3500-T1-AF-D81K are CE marked products complying with the same EMC Directive and low-voltage directive.

*2 As for models of "CA1M" at the end of the model no., the sales area is limited.

For the detailed information on CE Marked, be downloaded and refer the Declaration of Conformity from Pro-face Home Page.

Home Page URL http://www.pro-face.com/

AGP3200-A1-D24 AGP3200-T1-D24

AGP3300-L1-D24-∗∗∗∗ AGP3300-S1-D24-∗∗∗∗ ^*2 AGP3300-T1-D24-∗∗∗∗

AGP3300-U1-D24 AGP3301-L1-D24 AGP3301-S1-D24

AGP3302-B1-D24 AGP3310-T1-D24 AGP3360-T1-D24

AGP3400-S1-D24-∗∗∗∗ ^*2 AGP3400-T1-D24-∗∗∗∗ AGP3450-T1-D24 AGP3500-L1-D24-∗∗∗∗ AGP3500-S1-D24-∗∗∗∗ ^*2 AGP3500-T1-D24-∗∗∗∗

AGP3600-T1-D24-∗∗∗∗ AGP3600-U1-D24-CA1M ^*2 AGP3750-T1-D24

AGP3650-T1-D24 AGP3650-U1-D24

AGP3500-S1-AF-∗∗∗∗ ^*2 AGP3500-T1-AF-∗∗∗∗ AGP3510-T1-AF-∗∗∗∗ ^*2

AGP3550-T1-AF AGP3560-T1-AF AGP3600-T1-AF-∗∗∗∗

AGP3650-T1-AF AGP3750-T1-AF

(16)

The nameplate on the GP has the revision number of the GP. In the example below, the asterisk, which is placed at the “A”

position, shows that the revision number is “A”.

• Only for Rev.4 GP (where "*" is marked in the position of "4" on the nameplate), the "R4" mark is placed on the nameplate.

When GP is Rev. A

(17)

Preface... 1

Essential Safety Precautions ... 2

About the Manuals ... 7

Information Symbols ... 8

GP3000 Series Model Name Indication ... 8

GP3000 Series Model Names... 9

Package Contents... 10

Installation prerequisites for standards ...11

CE Marking ... 14

About Revision ... 15

Contents ... 16

Chapter 1 System Design

1.1 AGP-3300

∗

/3301

∗

/3310T/3360T and GP-3200/3400/3500/3600/3700 Series1-2 1.2 AGP-3302

∗... 1−8

1.3 DIO Board Type ... 1-12 1.4 FLEX NETWORK Board Type ... 1-12 1.5 CANopen Board Type... 1-13

Chapter 2 Accessories

2.1 Accessories ... 2-2

2.1.1 Serial Interface Item...2-2 2.1.2 USB Host Interface ...2-3 2.1.3 CF Card Items...2-4 2.1.4 Option Items...2-4 2.1.5 Maintenance Items...2-5 2.1.6 Expansion Unit...2-6

2.2 Optional Item for the DIO Board Type ... 2-7

2.2.1 Maintenance Items...2-7

2.3 Optional Items for the FLEX NETWORK Board Type... 2-7

2.3.1 I/O Units ...2-7 2.3.2 Analog Units...2-8 2.3.3 Single-Axis Positioning Units ...2-8 2.3.4 High-Speed Counter Unit ...2-8 2.3.5 Optional Items...2-8 2.3.6 Maintenance Items...2-9

(18)

Chapter 3 Part Names and Functions

3.1 GP-3200 Series ... 3-2 3.2 GP-3300 Series ... 3-3 3.3 GP-3400 Series ... 3-7 3.4 GP-3500 Series ... 3-10 3.5 GP-3600 Series ... 3-14 3.6 GP-3700 Series ... 3-17

Chapter 4 Specifications

4.1 GP-3200 Series ... 4-2

4.1.1 General Specifications ...4-2 4.1.2 Performance Specifications ...4-4 4.1.3 Interface Specifications ...4-6 4.1.4 Dimensions ...4-8

4.2 GP-3300 Series ... 4-12

4.3 GP-3400 Series ... 4-30

4.4 GP-3500 Series ... 4-43

4.5 GP-3600 Series ... 4-60

4.6 GP-3700 Series ... 4-74

4.6.1 General Specifications ...4-74 4.6.2 Performance Specifications ...4-77 4.6.3 Interface Specifications ...4-80

(19)

Chapter 5 DIO Connector

5.1 DIO Interface (Connector) ... 5-2 5.2 Wiring to the DIO Connector... 5-6

Chapter 6 FLEX NETWORK Connector

6.1 FLEX NETWORK Specifications ... 6-2

6.1.1 FLEX NETWORK Interface (Connector)...6-2 6.1.2 Flex Network Data Transfer Settings ...6-3

6.2 Wiring to the FLEX NETWORK Connector... 6-3

6.2.1 FLEX NETWORK Communication Cable ...6-3 6.2.2 Wiring to the FLEX NETWORK Connector...6-4

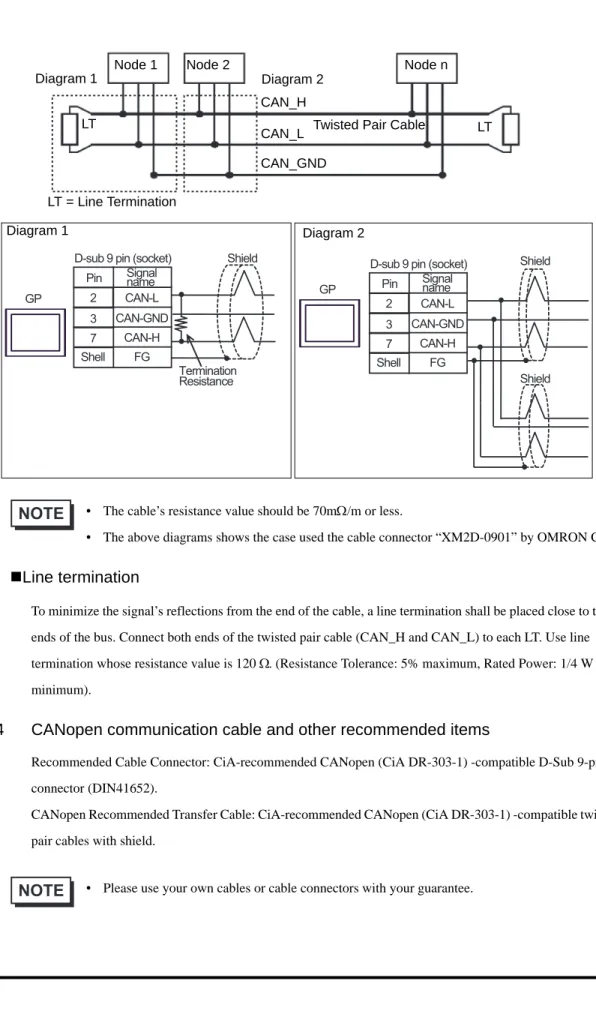

Chapter 7 CANopen Interface

7.1 CANopen Specifications ... 7-3

7.1.1 CANopen Interface ...7-3 7.1.2 CANopen Data Transfer Settings...7-3 7.1.3 CANopen cable arrangement ...7-3 7.1.4 CANopen communication cable and other recommended items...7-4

Chapter 8 Installation and Wiring

8.1 Installation... 8-2

8.2 Wiring Precautions... 8-7

8.2.1 Connecting the Power Cord...8-7 8.2.2 Connecting the Power Supply...8-12 8.2.3 Grounding ...8-13 8.2.4 Wiring Precautions...8-14 8.2.5 Installation Precautions...8-15

8.3 CF Card Insertion/Removal ... 8-18

8.3.1 Inserting the CF Card...8-19 8.3.2 Removing the CF Card ...8-19 8.3.3 CF Card Handling ...8-20

8.4 USB Cable Clamp Attachment/Removal ... 8-21

8.4.1 GP-3200 Series ...8-21 8.4.2 GP-3300 Series (except AGP-3310T/3360T) ...8-23 8.4.3 AGP-3310T/3360T units ...8-24 8.4.4 GP-3400/3500/3600/3700 Series ...8-27

(20)

8.6.2 AGP-35*0T ...8-33 8.6.3 AGP-3500L/3500S, GP-3600/3700 Series ...8-36

Chapter 9 Maintenance

9.1 Cleaning the Display ... 9-2

9.2 Periodic Check Points... 9-3

9.3 Replacing the Installation Gasket ... 9-4

9.4 Replacing the Backlight ... 9-6

9.4.1 AGP-35∗0T ...9-6 9.4.2 AGP-3500S...9-16 9.4.3 AGP-3600T/3650T...9-20 9.4.4 GP-3700 Series ...9-24

(21)

(22)

1 System Design

1. AGP-3300∗/3301∗/3310T/3360T and GP-3200/3400/3500/3600/

3700 Series 2. AGP-3302∗

3. DIO Board Type

4. FLEX NETWORK Board Type

5. CANopen Board Type

(23)

1.1 AGP-3300∗/3301∗/3310T/3360T and GP-3200/3400/3500/3600/3700 Series

The following diagram illustrates the standard range of items that can be connected to AGP-3300∗/3301∗/

3310T/3360T and GP-3200/3400/3500/3600/3700 Series units.

For host controller (PLC, etc.) connection information, refer to the “GP-Pro EX Device/PLC Connection Manual”.

GP RUN Mode Peripherals

GP Unit

(2)

(3)

(4)

(5)

VM Unit

GP2000-VM41 (Available with AGP-35*0T/36*0T/36*0U only) GP3000-VM01 (Available with AGP-35*0T/36*0T/36*0U/37*0T only)

To an Ethernet Network

USB-to-IEEE1284 Conversion Cable (Commercial type)

USB Cable FP-US00 or commercial type

USB Hub (Commercial type)

CA3-CFCALL/128MB-01 CA3-CFCALL/256MB-01 CA3-CFCALL/512MB-01 CA6-CFCALL/1GB-01 CA8-CFCALL/2GB-01 Bar-Code Reader ^*1

(Commercial type)

Printer ^*1 (Commercial type)

CF Card

RS-232C Cable CA3-CBL232/5M-01

USB Front Cable (CA5-USBEXT-01) (1)

Hub (commercial type) Twisted Pair Cable(commercial type)

(13)

Expansion Unit

(14) Fuction Expansion Memory (Available with GP-3400/3500/3600/3700 Series) GP3000-EXDM01

USB Memory Strage^*1 (Commercial type) DVI Input Unit (Available with AGP-35*0T/AGP-36*0T/36*0U/AGP-37*0T only) GP 3000-DVI01

RGB Input Unit (Available with AGP-35*0T/AGP-36*0T/36*0U/AGP-37*0T only) GP3000-RGB201

Bar-Code Reader^*1 (Commercial type)

USB-Serial (RS-232C) Conversion Cable CA6-USB232-01

Mouse Emulator (Commercial type) (Available with AGP-35*0T/36*0T/

36*0U/37*0T only)

(24)

• When connecting the CA3-ISO232-01, the 9 Pin’s setting of COM port is required to be VCC.

COM port settings can be set with the GP-Pro EX or in GP’s offline mode.

(8)

(12) (5)

Mitsubishi PLC Q-Series Link Cable CA3-CBLLNKMQ-01

Omron PLC SYSMAC Link Cable CA3-CBLSYS-01

Mitsubishi PLC Q-Series Connection Cable CA3-CBLQ-01

RS-232C Isolation Unit CA3-ISO232-01 Switch setting

:RS-232C Host Controller

PLC etc.

(9)

(11)

(9) (5)

COM Port Conversion Adapter CA3-ADPCOM-01 RS-232C

Isolation Unit CA3-ISO232-01^*2,3 Switch setting :RS-422

RS-422 Cable (Prepared by user) Terminal Block

Conversion Adapter CA3-ADPTRM-01

Mitsubishi PLC A, QnA, FX Series' 2 Port Adapter II GP070-MD11

2 Port Adapter Cable CA3-MDCB11 RS-422 Cable CA3-CBL422-01 RS-422 Cable

CA3-CBL422/5M-01

Siemens TTY Converter Cable CA6-CBLTTY/5M-01

(5) (8)

(8)

(12)

Host Controller PLC etc.

(25)

(11)

(11) (9)

(9) (9) (6)

RS-422 Cable (Prepared by user) Mitsubishi PLC

A-Series Connection Cable CA3-CBLA-01

Multi-Link Cable CA3-CBLMLT-01 RS-422 Cable

CA3-CBL422-01

Terminal Block Conversion Adapter CA3-ADPTRM-01

RS-422 Cable CA3-CBL422/5M-01

Mitsubishi PLC

FX-Series Connection Cable CA3-CBLFX/1M-01 CA3-CBLFX/5M-01

2 Port Adapter Cable CA3-MDCB11

COM Port Conversion Adapter CA3-ADPCOM-01

MPI Cable (10)

ST03-A2B-MPI21-PFE

(26)

(7)

(9) (9)

(10) (11)

(9)

(9) (9) (11) Online Adapter

CA4-ADPONL-01

RS-422 Cable (Prepared by user) Multi-Link Cable

CA3-CBLMLT-01 RS-422 Cable

CA3-CBL422-01

Siemens COM Port Conversion Adapter CA3-ADPSEI-01

PROFIBUS Cable (Prepared by user)

(10)

MPI Cable CA3-MPI-PGN-PFE CA3-MPI-PG1-PFE

CA3-CBLMLT-01 RS-422 Cable

CA3-CBL422-01

(9)

MPI Cable GP3000-MPI21-PFE

(10)

*Online adapter is required for these cases:1:1 Communication.

For use in 1:n, n:1, n:m communication terminal (1 unit can be used.)

(27)

GP Interfaces (1)Ethernet Interface

(10BASE-T/100BASE-TX) Not available with AGP-3301* units (2)VM Unit Interface

(3)USB Host Interface (4)CF Card Interface

Not available with GP-3200 series

(5)Serial Interface (COM1) (RS232C mode) (6)Serial Interface(COM1) (RS422 mode) (7)Serial Interface(COM2)

Not available with GP-3200 series (13)Expansion Unit Interface

PLC Interfaces (8)RS-232C Port (9)RS-422 Port (10)RS-485 Port

(11)Programming Console Port (12)PG Port

(7)

(9) (9) (11)

(9)

(9) (9) (11)

(7) (10)

Online Adapter CA4-ADPONL-01

CA3-CBLMLT-01 RS-422 Cable CA3-CBL422-01

RS-485 Isolation Unit CA3-ISO485-01

PROFIBUS Cable (Prepared by user) RS-485

Isolation Unit CA3-ISO485-01

(9)

Switch setting :4-wire (RS422)

Switch setting 2-wire (RS485)

*Online adapter is required for these cases:

1:1 Communication.

For use in 1:n, n:1, n:m communication terminal

(1 unit can be used.)

(28)

Edit Mode Peripherals

*1 For supported models, refer to Pro-face’s support site “Otasuke Pro!” (http://www.pro-face.com/

otasuke/).

You can connect to this site by clicking the GP-Pro EX’s [Help (H)] menu-[Connect to Support Site

“Otasuke Pro!” (C)] command.

*2 The RS-232C Isolation Unit does not correspond to RS-422/485 (2 wire) communication.

*3 The RS-232C Isolation Unit does not correspond to Serial Multilink communication.

*4 For details regarding connection methods, be sure to read “Transferring Projects and Data” under

“COM Transfer Connections” in the GP-Pro EX Reference Manual.

*5 Certain types and models of PCs cannot be used.

GP Interfaces (1)Ethernet Interface

(10BASE-T/100BASE-TX) Not available with AGP-3301* units (2)USB Host Interface

(3)CF Card Interface

SEE GP-Pro EX Reference Manual

USB Transfer Cable CA3-USBCB-01

USB Port

Personal Computer (Commercial type)^*5

Screen Editor Software GP-Pro EX To an Ethernet Network

GP Unit

CF Card CA3-CFCALL/128MB-01 CA3-CFCALL/256MB-01 CA3-CFCALL/512MB-01 CA6-CFCALL/1GB-01 CA8-CFCALL/2GB-01

CF Card Adapter GP077-CFAD10

PCMCIA Slot (3)

(2)

(1)

USB Memory Strage^*1 (Commercial type)

RS-232C Cable^*4 (Prepared by user)

Modem^*1 (Commercial type)

Serial Port

Telephone lines

(29)

1.2 AGP-3302∗

The following diagram illustrates the standard range of items that can be connected to AGP-3302∗ units.

For host controller (PLC, etc.) connection information, refer to the “GP-Pro EX Device/PLC Connection Manual”.

GP RUN Mode Peripherals GP Unit

(2) (1)

(2)

(4)

USB-to-IEEE1284 Conversion Cable (Commercial type)

USB Cable FP-US00 or commercial type

USB Hub (Commercial type)

Bar-Code Reader ^*1 (Commercial type)

Printer ^*1 (Commercial type)

USB Front Cable CA5-USBEXT-01 Expansion Unit

(8)

USB Memory Strage^*1 (Commercial type)

(9)

(30)

• When connecting the CA3-ISO232-01, the 9 Pin’s setting of COM port is required to be VCC.

COM port settings can be set with the GP-Pro EX or in GP’s offline mode.

(5)

(7)

(5) (4)

(4)

(9) (2)

(2)

COM Port Conversion Adapter CA3-ADPCOM-01

RS-232C Isolation Unit CA3-ISO232-01 Switch setting :RS-422

RS-232C Isolation Unit CA3-ISO232-01^*2,3 Switch setting :RS-422

RS-422 Cable (Prepared by user) Terminal Block

Conversion Adapter CA3-ADPTRM-01

Mitsubishi PLC A, QnA, FX Series 2 Port Adapter II GP070-MD11

2 Port Adapter Cable CA3-MDCB11 RS-422 Cable CA3-CBL422-01 RS-422 Cable

CA3-CBL422/5M-01

(31)

GP Interfaces (1) USB I/F

(2) Serial Interface (COM1) (3) Serial Interface (COM2) (8) Expansion Unit Interface

PLC Interfaces (4) RS-232C Port (5) RS-422 Port (6) RS-485 Port

(7) Programing Console Port (9) PG Port

(3)

(7)

(5)

(7)

(5)

(6)

(6) COM Port

Conversion Adapter CA3-ADPCOM-01

Mitsubishi PLC

FX-Series Connection Cable CA3-CBLFX/1M-01 CA3-CBLFX/5M-01 Mitsubishi PLC A-Series Connection Cable CA3-CBLA-01

RS-422 Cable CA3-CBL422/5M-01

RS-422 Cable CA3-CBL422-01

RS-422 Cable (Prepared by user)

Siemens COM Port Conversion Adapter CA3-ADPSEI-01

MPI Cable GP3000-MPI21-PEE

PROFIBUS Cable (Prepared by user) Multi-Link Cable

CA3-CBLMLT-01

Mitsubishi PLC A , QnA, FX Series 2 Port Adapter II GP070-MD11

(6) MPI Cable

ST03-A2B-MPI21-PEE

(32)

Edit Mode Peripherals

*1 *1 For supported models, refer to Pro-face’s support site “Otasuke Pro!” (http://www.pro-face.com/

otasuke/).

*2 The RS-232C Isolation Unit does not correspond to RS-422/485 (2 wire) communication.

*3 The RS-232C Isolation Unit does not correspond to Serial Multilink communication.

*4 For details regarding connection methods, be sure to read “Transferring Projects and Data” under

“COM Transfer Connections” in the GP-Pro EX Reference Manual.

*5 Certain types and models of PCs cannot be used.

GP Interfaces

(1) USB Host Interface

SEE GP-Pro EX Reference Manual

GP Unit

(1) USB Transfer Cable

CA3-USBCB-01

USB Port

Screen Editor Software GP-Pro EX Personal Computer ^*5

(Commercial type) USB Memory Strage^*1

(Commercial type)

RS-232C Cable^*4 (Prepared by user)

Modem^*1 (Commercial type)

Serial Port

Telephone lines

(33)

1.3 DIO Board Type

1.4 FLEX NETWORK Board Type

GP Interfaces (1) DIO Interface

GP Interfaces

(1) FLEX NETWORK Interface GP Unit

DIO Connector CA6-DIOCNALL-01

DIO Cable

Various parts including I/O Unit, Indicator, LED, Sensor, Switch, etc.

(1)

(Prepared by the user)

GP Unit FLEX NETWORK

Connector CA6-FNCNALL-01

FLEX NETWORK Communication Cable FN-CABLE2010-31-MS (10m) FN-CABLE2050-31-MS (50m) FN-CABLE2200-31-MS (200m)

FLEX NETWORK I/O Unit, Analog Unit, etc (1)

(34)

1.5 CANopen Board Type

*1 For supported models, refer to Pro-face’s support site “Otasuke Pro!” (http://www.pro-face.com/otasuke/).

*2 Up to seven EX modules can be connected next to the Hybrid Terminal Block (HTB).

GP Interface

(1) CANopen Interface GP Unit

(1)

CANopen slave (Commercial type^*1) IO Cable

(Prepared by user)

Various types of I/O equipment

Indicators, LEDs, sensors, switches, and so on

IO Cable

(Prepared by user)

Various types of I/O equipment

Indicators, LEDs, sensors, switches, and so on

EX Module^*2 CANopen slave

(Hybrid Terminal Block)

(35)

(36)

2 Accessories

1. Accessories

2. Optional Item for the DIO Board Type

3. Optional Items for the FLEX NETWORK Board Type 4. Optional Item for the CANopen Board Type

This chapter describes peripheral devices that can be connected to GP Series units.

(37)

2.1 Accessories

All accessories listed here are produced by Pro-face.

2.1.1 Serial Interface Item

Product Name Model No. Description

RS-232C Cable CA3-CBL232/5M-01 (5m)

Connects Mitsubishi PLC A-Series (or other host controller) to the AGP. (RS- 232C)

RS-422 Cable CA3-CBL422/5M-01 (5m) Connects a host controller to the GP. (RS- 422 / Socket Type)

Mitsubishi PLC Q-Series

Link Cable CA3-CBLLNKMQ-01 (5m)

Connects Mitsubishi PLC Q-Series (or other

host controller) to the AGP. (RS-232C) Omron PLC SYSMAC Link

Cable CA3-CBLSYS-01 (5m)

Connects Omron PLC SYSMAC Series unit (or other host controller) to the AGP.

(RS-232C)

Mitsubishi PLC A-Series

Connection Cable CA3-CBLA-01 (5m)

Connects Mitsubishi PLC A, QnA Series programming console I/F to AGP.

(Simultaneous use of programming console is not possible.)

Mitsubishi PLC Q-Series

Connection Cable CA3-CBLQ-01 (5m)

Connects Mitsubishi PLC Q-Series programming console I/F to AGP.

Mitsubishi PLC FX-Series Connection Cable

CA3-CBLFX/1M-01 (1m) CA3-CBLFX/5M-01 (5m)

Connects Mitsubishi PLC FX-Series programming console I/F and AGP.

9-pin-to-25-pin RS-a232C Conversion Cable

CA3-CBLCBT232-01 (0.2m)

Connects a standard RS-232C cable (GP Connector,D-sub 25-pin) to the GP.

9-pin-to-25-pin RS-422 Conversion Cable

CA3-CBLCBT422-01 (0.2m)

Connects a standard RS-422 cable (GP Connector,D-sub 25-pin) to the GP.

RS-422 Cable CA3-CBL422-01 (5m) Connects a host controller to the GP. (RS- 422 / Plug Type)

2 Port Adapter Cable CA3-MDCB11 (5m) Connects Mitsubishi PLC to the GP using 2 port adapter II (RS-422).

Mitsubishi PLC A, QnA,

FX Series 2 Port Adapter II GP070-MD11

Allows simultaneous use of an GP Series unit and a Mitsubishi PLC A, QnA, FX Series peripheral device.

Multi-Link Cable CA3-CBLMLT-01 (5m) Connects a host controller to the GP for multi-link (n:1) communication.

Terminal Block Conversion

Adapter CA3-ADPTRM-01 Connects output from a serial interface

with an RS-422 terminal block.

COM Port Conversion

Adapter CA3-ADPCOM-01

Connects optional RS-422 communication items to AGP unit’s COM1 port. (AGP-3302 is compatible with COM1 and COM2 port.) Terminal adapter in the case of performing

(38)

2.1.2 USB Host Interface

Siemens COM Port

Conversion Adapter CA3-ADPSEI-01 Connects Siemens PLCs to the AGP. (for RS-485 communication)

Siemens TTY Converter

Cable CA6-CBLTTY/5M-01 (5m) Connects Siemens PLC S5 Series to the GP.

MPI Cable

ST03-A2B-MPI21-PFE (3.5m) GP3000-MPI21-PFE (3.5m) CA3-MPI-PGN-PFE (3.5m) CA3-MPI-PG1-PFE (3.5m)

Connects a host controller to the GP for MPI communication.

RS-232C Isolation Unit CA3-ISO232-01

Connects a host controller to the GP with provides isolation.(RS-232C and RS-422 are switchable.)

RS-485 Isolation Unit CA3-ISO485-01

Connects a host controller to the GP with provides isolation.(RS-422 and RS-485 are switchable.)

USB Transfer Cable CA3-USBCB-01 (2m) Downloads project data created with the Screen Editor via the GP unit’s USB I/F.

USB Cable FP-US00 (5m) Connects a USB printer. (TYPE-B)

USB Front Cable CA5-USBEXT-01 (1m) Extension cable attaching USB port to front panel.

USB-Serial (RS-232C)

Conversion Cable CA6-USB232-01(0.5m)

Cable for converting a GP unit's USB interface into a serial interface (RS-232C).

Allows connection to modems^*1 or barcode readers^*1 that support RS-232C.

Can be used to transfer project data created with the Screen Editor via a serial interface.^*2

*1 For supported models, refer to Pro-face’s support site “Otasuke Pro!” (http://www.pro-face.com/

otasuke/).

You can connect to this site by clicking the GP-Pro EX’s [Help (H)] menu-[Connect to Support Site “Otasuke Pro!” (C)] command.

*2 Requires an RS-232C cable (prepared by user) for connection. For details regarding system design, refer to "Edit Mode Peripherals" (page 1-7) if using models except for AGP-3302*;

refer to "Edit Mode Peripherals" (page 1-11) if using AGP-3302*.

For instructions on how to connect between USB-Serial (RS-232C) Conversion Cable and your PC, always refer to the "GP-Pro EX Reference Manual -> Transferring Projects and Data -> COM Transfer Connections".

(39)

2.1.3 CF Card Items

(GP-3200 series and AGP-3302B are not available)

2.1.4 Option Items

CF Card (128MB) CA3-CFCALL/128MB-01

Inserted into the GP unit’s CF Card slot.

CF Card (1GB) CA6-CFCALL/1GB-01

CF Card (2GB) CA8-CFCALL/2GB-01

CF Card Adapter GP077-CFAD10 Used for read/write of CF Card data via a PC’s PCMCIA slot.

Product Name Model No. Corresponding GP Description

Screen Protection Sheet

CA6-DFS4-01 GP-3200 Series

Disposable, dirt-resistant sheet for the GP unit’s screen. (5 sheets/set) (Hard type)

CA3-DFS6-01

GP-3300 Series (except AGP- 3300U^*1)

*1 If protecting the surface of the unit and preventing dirt buildup is more important than preventing external light from reflecting off the AGP-3300U display, use the protective cover (CA4-DCMDL-01).

PS400-DF00 GP-3400 Series CA5-DFS10-01 AGP-35*0T

CA3-DFS12-01

AGP-3500L AGP-3500S GP-3600 Series CA3-DFS15-01 GP-3700 Series

Protective Cover

CA4-DCMDL-01 GP-3300 Series The installation of the cover is to protect Display from leaking liquid and raise resistant performance against chemical substance (5 sheets)

CA8-ODP10-01 AGP-35*0T

Function Expansion Memory^*2

*2 Note that the GP’s screen dimensions cannot be expanded.

GP3000-EXDM01

GP-3400 Series GP-3500 Series GP-3600 Series GP-3700 Series

Pro-face’s Screen Editor’s alarm and text table Function Expansion Memory

(40)

2.1.5 Maintenance Items

Product Name Model No. Corresponding GP Description

Installation Fastener CA3-ATFALL-01 GP3000 Series Used to install the GP into a solid panel.

Installation Gasket

ST400-WP01 GP-3200 Series

Provides dust and moisture resistance when GP is installed into a solid panel.

CA3-WPG6-01 GP-3300 Series CA5-WPG8-01 GP-3400 Series CA5-WPG10-01 AGP-35*0T

CA3-WPG12-01

AGP-3500L AGP-3500S GP-3600 Series CA3-WPG15-01 GP-3700 Series

Replacement Backlight

CA5-BLU10T-01

AGP-35*0T^*1*2

This backlight is used for replacement.

CA6-BLU10T-02

PS501S-BU00 AGP-3500S

CA3-BLU12-01 AGP-3600T^*2 AGP-3650T^*2 CA3-BLU15-01 GP-3700 Series^*2

Connector Cover CA3-BUSCVR-01

GP3000 Series (except GP-3200 series)

Protects the AGP unit’s rear face connector.

AUX Connector CA5-AUXCNALL-01

GP-3400 Series GP-3500 Series GP-3600 Series GP-3700 Series

AUX connector for GP3000 series required in case an external output is used.

USB Cable Clamp (1 port)

CA5-USBATM-01

GP-3300 Series (except AGP-3310T/

3360T) USB Cable clamp for 1 port products to prevent disconnection.

CA8-USBATALL-01 AGP-3310T AGP-3360T

USB Cable Clamp

(2 ports) CA5-USBATL-01

GP-3200 Series GP-3400 Series GP-3500 Series GP-3600 Series GP-3700 Series

USB Cable clamp for 2 port products to prevent disconnection.

DC Power Supply Connector for Medium-sized Units

CA5-DCCNM-01

GP-3200 Series GP-3300 Series GP-3400 Series

Connector for attaching power supply to medium-sized units.

DC Power Supply Connector for Large- sized Units

CA5-DCCNL-01

GP-3500 Series GP-3600 Series GP-3700 Series

Connector for attaching power supply to large-sized units.

(41)

2.1.6 Expansion Unit

Panel Cutout Adapter

CA4-ATM5-01 GP-3300 Series

Panel cutout adapter for mounting GP-3300 series in cutout of GP-37W2B.

CA4-ATM10-01 AGP-35*0T

Panel cutout dapper for mounting GP-3500 series (TFT color LCD type only) in cutout of GP-2500/2600 series.

*1 The corresponding backlight unit depends on your GP’s revision. For details, please refer to “9.4.1 AGP-35∗0T (page9-6)”.

*2 When LED backlight is used for your GP, it is not user-replaceable.

For the backlight type you use, refer to the following information.

• GP-3500 Series " Display Specifications" (page4-48)

When the LED backlight needs to be replaced, please contact your local GP distributor.

Product Name Model No. Corresponding

GP Description

VM Unit

GP2000-VM41 AGP-35*0T AGP-36*0T

Video-Mix Unit (32,000 colors, Video Input x 4ch, Analog RGB Input/Output x 1ch each)

GP3000-VM01

AGP-35*0T AGP-36*0T AGP-37*0T

Video-Mix Unit (262,000 colors, Video Input x 4ch, DVI Input/Output x 1ch each)

DVI Input Unit GP3000-DVI01

Expansion Unit to enable DVI input (1ch).

RGB Input Unit GP3000-RGB201

Expansion Unit to enable analog RGB input (2ch).

PROFIBUS-DP Slave Unit

CA5-PFSALL/

EX-01

GP3000 series (except GP-3200 series)

Expansion Unit for connecting GP to PROFIBUS network or communicating with a PROFIBUS-DP master.

Device Net Slave Unit

CA6-DNSALL/

EX-01

Expansion Unit for connecting GP to DeviceNet network or communicating with a DeviceNet master.

CC-Link Unit CA7-CCLALL/

EX-01

Expansion Unit for connecting GP to CC-Link network or communicating with a CC-Link master.

CANopen Slave Unit

CA9-CANALL/

EX-01

Expansion unit, for communicating with the CANopen master and connecting the GP to a CANopen network.

(42)

2.2 Optional Item for the DIO Board Type 2.2.1 Maintenance Items

2.3 Optional Items for the FLEX NETWORK Board Type 2.3.1 I/O Units

DIO Connector CA6-DIOCNALL-01 Connector attached to the DIO interface. Connects an external I/O device. (Set of 5 connectors)

FLEX NETWORK 16-Point Input Sink

Source Type I/O Unit FN-X16TS41 16-point sink/source shared I/O Unit.

DC24V input signal can be connected.

FLEX NETWORK 32-Point Input Sink

Source Type I/O Unit FN-X32TS41 32-point sink-source shared I/O Unit.

DC24V input signal can be connected.

FLEX NETWORK 16-Point Output

Sink Type I/O Unit FN-Y16SK41 16-point output sink I/O Unit.

FLEX NETWORK 16-Point Output

Source Type I/O Unit FN-Y16SC41 16-point output source I/O Unit.

FLEX NETWORK 8-Point Input Sink Source / 8-Point Transistor Output Sink Type I/O Unit

FN-XY08TS41

8-point input sink-source and 8-point transistor output sink mixed I/O unit. Both DC24V input signals and DC24V output (load current: 200mA max.) devices can be connected.

FN-XY16SK41

16-point input sink-source and 16-point transistor output sink mixed I/O unit. Both DC24V input signals and DC24V output (load current: 200mA max./1.6A/common) devices can be connected.

FLEX NETWORK 16-Point Input Sink Source/16-Point Transistor Output Source Type I/O Unit

FN-XY16SC41

16-point input sink-source and 16-point transistor output source mixed I/O unit. Both DC24V input signals and DC24V output (load current: 200mA max./1.6A/common) devices can be connected.

FN-

XY32SKS41

32-point input sink-source and 32-point transistor output sink mixed I/O unit. Both DC24V input signals and DC24V output (load current: 200mA max./1.6A/common) devices can be connected.

FLEX NETWORK 8-Point Relay

Output / 1 Common Type I/O Unit FN-Y08RL41

8-point relay output (1 common) I/O Unit.

Up to AC240V (1A) load current can be connected.

(43)

2.3.2 Analog Units

2.3.3 Single-Axis Positioning Units

2.3.4 High-Speed Counter Unit

2.3.5 Optional Items

FLEX NETWORK 2-Channel

Analog/Digital Conversion Input Unit FN-AD02AH41 Converts 2-channel analog signals to digital signals at 12-bit resolution.

FLEX NETWORK 2-Channel Digital/Analog Conversion Output Unit

FN-DA02AH41 Converts 2-channel 12-bit digital signal to analog signal and sends output.

FLEX NETWORK 4-Channel

Analog/Digital Conversion Input Unit FN-AD04AH11 Converts 4-channel analog signals to digital signals at 12-bit resolution.

FLEX NETWORK 4-Channel Digital/Analog Conversion Output Unit

FN-DA04AH11 Converts 4-channel 12-bit digital signal to analog signal and sends output.

FLEX NETWORK

Single-Axis Positioning Unit FN-PC10SK41

Both of this unit and GP can store positioning data. Motor driver connection cable (FN- PC10CB01) is required.

Teaching Loader for Single-Axis

Positioning Unit FN-PC10LD41

Programmer for Single-Axis Positioning Unit.

Allows entry, editing and operation checking of high-precision positioning data. (5m cable included)

FLEX NETWORK

High Speed Counter Unit FN-HC10SK41

High performance High-Speed counter that can easily change counter input types. Can create both a wide range of data and cam output.

FLEX NETWORK Communication Cable

FN-CABLE2010-31-MS (10m)

Connect GP units with FLEX NETWORK units.

FN-CABLE2050-31-MS (50m) FN-CABLE2200-31-MS (200m)

Motor Driver Connection Cable FN-PC10CB01 (1m)

Connects the FLEX NETWORK single-axis positioning unit and the servo and stepping drivers.

Proface AGP3400-T1-D24-CA1M硬件手册_广州菱控

+DUGZDUH0DQXDO

©

NOTICE

Safety Icons

System Design

Handling

Wiring

Maintenance

Wiring Layout Precautions

Installation

Wiring

Maintenance

General Safety Precautions

About the Manuals

GP3000 Series Model Name Indication

A G P 3 * ** - * 1 - *** - ****

DC Type

Preface... 1

Essential Safety Precautions ... 2

About the Manuals ... 7

Information Symbols ... 8

GP3000 Series Model Name Indication ... 8

GP3000 Series Model Names... 9

Package Contents... 10

Installation prerequisites for standards ...11

CE Marking ... 14

About Revision ... 15

Contents ... 16

Chapter 1 System Design

1.1 AGP-3300

/3301

/3310T/3360T and GP-3200/3400/3500/3600/3700 Series1-2 1.2 AGP-3302

1.3 DIO Board Type ... 1-12 1.4 FLEX NETWORK Board Type ... 1-12 1.5 CANopen Board Type... 1-13

Chapter 2 Accessories

2.1 Accessories ... 2-2

2.2 Optional Item for the DIO Board Type ... 2-7

2.3 Optional Items for the FLEX NETWORK Board Type... 2-7

Chapter 3 Part Names and Functions

3.1 GP-3200 Series ... 3-2 3.2 GP-3300 Series ... 3-3 3.3 GP-3400 Series ... 3-7 3.4 GP-3500 Series ... 3-10 3.5 GP-3600 Series ... 3-14 3.6 GP-3700 Series ... 3-17

Chapter 4 Specifications

4.1 GP-3200 Series ... 4-2

4.2 GP-3300 Series ... 4-12

4.3 GP-3400 Series ... 4-30

4.4 GP-3500 Series ... 4-43

4.5 GP-3600 Series ... 4-60

4.6 GP-3700 Series ... 4-74

Chapter 5 DIO Connector

5.1 DIO Interface (Connector) ... 5-2 5.2 Wiring to the DIO Connector... 5-6

Chapter 6 FLEX NETWORK Connector

6.1 FLEX NETWORK Specifications ... 6-2

6.2 Wiring to the FLEX NETWORK Connector... 6-3

Chapter 7 CANopen Interface

7.1 CANopen Specifications ... 7-3

Chapter 8 Installation and Wiring

8.1 Installation... 8-2

8.2 Wiring Precautions... 8-7

8.3 CF Card Insertion/Removal ... 8-18

8.4 USB Cable Clamp Attachment/Removal ... 8-21

Chapter 9 Maintenance

9.1 Cleaning the Display ... 9-2

9.2 Periodic Check Points... 9-3

9.3 Replacing the Installation Gasket ... 9-4

9.4 Replacing the Backlight ... 9-6

1 System Design

1. AGP-3300∗/3301∗/3310T/3360T and GP-3200/3400/3500/3600/

3700 Series 2. AGP-3302∗

3. DIO Board Type

4. FLEX NETWORK Board Type

5. CANopen Board Type

1.1 AGP-3300∗/3301∗/3310T/3360T and GP-3200/3400/3500/3600/3700 Series

1.2 AGP-3302∗

1.3 DIO Board Type

1.4 FLEX NETWORK Board Type

1.5 CANopen Board Type

2 Accessories

1. Accessories

2. Optional Item for the DIO Board Type

3. Optional Items for the FLEX NETWORK Board Type 4. Optional Item for the CANopen Board Type

2.1 Accessories

A G P 3 * ** - * 1 - * - **

DC Type
