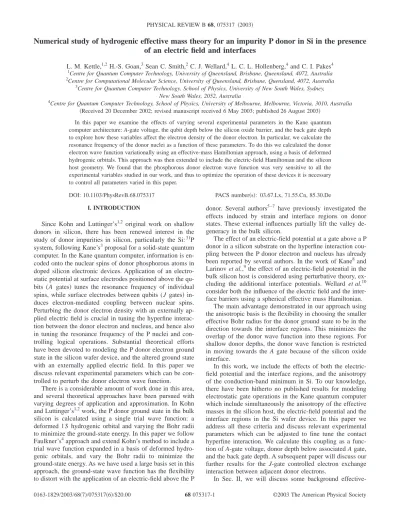

Numerical study of hydrogenic effective mass theory for an impurity P donor in Si in the presence of an electric field and interfaces

Numerical study of hydrogenic effective mass theory for an impurity P donor in Si in the presence of an electric field and interfaces

L. M. Kettle,^1,2H.-S. Goan,³Sean C. Smith,²C. J. Wellard,⁴ L. C. L. Hollenberg,⁴and C. I. Pakes⁴

1Centre for Quantum Computer Technology, University of Queensland, Brisbane, Queensland, 4072, Australia

2Centre for Computational Molecular Science, University of Queensland, Brisbane, Quensland, 4072, Australia

3Centre for Quantum Computer Technology, School of Physics, University of New South Wales, Sydney, New South Wales, 2052, Australia

4Centre for Quantum Computer Technology, School of Physics, University of Melbourne, Melbourne, Victoria, 3010, Australia 共Received 20 December 2002; revised manuscript received 6 May 2003; published 26 August 2003兲

In this paper we examine the effects of varying several experimental parameters in the Kane quantum computer architecture: A-gate voltage, the qubit depth below the silicon oxide barrier, and the back gate depth to explore how these variables affect the electron density of the donor electron. In particular, we calculate the resonance frequency of the donor nuclei as a function of these parameters. To do this we calculated the donor electron wave function variationally using an effective-mass Hamiltonian approach, using a basis of deformed hydrogenic orbitals. This approach was then extended to include the electric-field Hamiltonian and the silicon host geometry. We found that the phosphorous donor electron wave function was very sensitive to all the experimental variables studied in our work, and thus to optimize the operation of these devices it is necessary to control all parameters varied in this paper.

DOI: 10.1103/PhysRevB.68.075317 PACS number共s兲: 03.67.Lx, 71.55.Cn, 85.30.De I. INTRODUCTION

Since Kohn and Luttinger’s^1,2 original work on shallow donors in silicon, there has been renewed interest in the study of donor impurities in silicon, particularly the Si:³¹P system, following Kane’s³proposal for a solid-state quantum computer. In the Kane quantum computer, information is en- coded onto the nuclear spins of donor phosphorous atoms in doped silicon electronic devices. Application of an electro- static potential at surface electrodes positioned above the qu- bits (A gates兲 tunes the resonance frequency of individual spins, while surface electrodes between qubits (J gates兲 in- duces electron-mediated coupling between nuclear spins.

Perturbing the donor electron density with an externally ap- plied electric field is crucial in tuning the hyperfine interac- tion between the donor electron and nucleus, and hence also in tuning the resonance frequency of the P nuclei and con- trolling logical operations. Substantial theoretical efforts have been devoted to modeling the P donor electron ground state in the silicon wafer device, and the altered ground state with an externally applied electric field. In this paper we discuss relevant experimental parameters which can be con- trolled to perturb the donor electron wave function.

There is a considerable amount of work done in this area, and several theoretical approaches have been pursued with varying degrees of application and approximation. In Kohn and Luttinger’s^1,2work, the P donor ground state in the bulk silicon is calculated using a single trial wave function: a deformed 1S hydrogenic orbital and varying the Bohr radii to minimize the ground-state energy. In this paper we follow Faulkner’s⁴approach and extend Kohn’s method to include a trial wave function expanded in a basis of deformed hydro- genic orbitals, and vary the Bohr radii to minimize the ground-state energy. As we have used a large basis set in this approach, the ground-state wave function has the flexibility to distort with the application of an electric-field above the P

donor. Several authors^5–7 have previously investigated the effects induced by strain and interface regions on donor states. These external influences partially lift the valley de- generacy in the bulk silicon.

The effect of an electric-field potential at a gate above a P donor in a silicon substrate on the hyperfine interaction cou- pling between the P donor electron and nucleus has already been reported by several authors. In the work of Kane⁸and Larinov et al.,⁹the effect of an electric-field potential in the bulk silicon host is considered using perturbative theory, ex- cluding the additional interface potentials. Wellard et al.¹⁰ consider both the influence of the electric field and the inter- face barriers using a spherical effective mass Hamiltonian.

The main advantage demonstrated in our approach using the anisotropic basis is the flexibility in choosing the smaller effective Bohr radius for the donor ground state to be in the direction towards the interface regions. This minimizes the overlap of the donor wave function into these regions. For shallow donor depths, the donor wave function is restricted in moving towards the A gate because of the silicon oxide interface.

In this work, we include the effects of both the electric- field potential and the interface regions, and the anisotropy of the conduction-band minimum in Si. To our knowledge, there have been hitherto no published results for modeling electrostatic gate operations in the Kane quantum computer which include simultaneously the anisotropy of the effective masses in the silicon host, the electric-field potential and the interface regions in the Si wafer device. In this paper we address all these criteria and discuss relevant experimental parameters which can be adjusted to fine tune the contact hyperfine interaction. We calculate this coupling as a func- tion of A-gate voltage, donor depth below associated A gate, and the back gate depth. A subsequent paper will discuss our further results for the J-gate controlled electron exchange interaction between adjacent donor electrons.

In Sec. II, we will discuss some background effective-

mass theory and the approach we took to obtain the phos- phorous donor ground state in bulk silicon with no electric field applied. Section III discusses how we obtained the electric-field potential and modeled the silicon host geometry to include the silicon oxide layer and back gate. The numeri- cal results using the methods outlined in the previous sec- tions are presented in Sec. IV for the varying experimental parameters studied. Finally, we summarize our major find- ings in Sec. V.

II. FAULKNER’S METHOD

Neglecting intervalley terms, the one-valley effective- mass equation for the energy levels of donors in silicon is given below:⁴

⫺

冋

^2mប2⬜

冉

^{⳵⳵x22⫹⳵⳵y22}

冊

^{⫹2mប2储 ⳵⳵z22⫹e⑀2r}

册

⌿共r兲⫽E⌿共r兲, 共1兲 where ⑀⫽11.4 is the dielectric constant, and m_⬜

⫽0.1905m0 and m_储⫽0.9163m0are the transverse and longi- tudinal effective masses, respectively, and m₀ is the mass of a free electron. Here we are expanding the energy E_k⁰around the conduction-band minimum along the z axis at kជ

⫽(0,0,k0):

E_k⁰⫽E0 0⫹ ប²

2m_⬜共kx 2⫹ky

2兲⫹ ប² 2m_储共kz

2⫺k0

2兲. 共2兲

We followed Faulkner’s approach and kept the full anisot- ropy of the conduction-band minimum. We expanded the do- nor electron wave function⌿(r) in a basis of deformed hy- drogenic orbitals:

⌿共r兲⫽

兺

nlm

冉

^␤␥

冊

^1/4␺nlm

冉

^{x,y ,}

^冑

^␤␥z,a

冊

^,

where ␺nlm(x, y ,z,a)⫽Rnl(a,r)Y_lm(␪^,␾) are the normal- ized hydrogenic orbitals,␥⫽m_⬜/m_储⫽0.2079, a is the effec- tive Bohr radius in the x,y directions, and␤ is an adjustable parameter which gives the effective Bohr radius b in the z direction.

If we use atomic units, where the unit of length a_b

⫽ប²⑀^/m_⬜^e2⫽31.7 Å and unit of energy m_⬜e⁴/2ប²⑀²

⫽19.94 meV, Eq. 共1兲 becomes

⫺

冉

^{⳵⳵x22⫹⳵⳵y22⫹␥⳵⳵z22⫹2r}

冊

⌿共r兲⫽E⌿共r兲. 共3兲 Equation 共3兲 was diagonalized with the effective Bohr radius a and parameter␤varied to minimize the ground-state energy E. The ground-state energy converged using a basis of 91 hydrogenic orbitals to give E⫽⫺31.23 meV, and ef- fective Bohr radii: a⫽23.81 Å and b⫽

冑

⁽␥^/␤^)a⫽13.68 Å.

These results are consistent with Kohn’s results of a⫽25 Å and b⫽14.2 Å 共Refs. 1,2兲 and Faulkner’s ground-state en- ergy E⫽⫺31.27 meV⁴for phosphorous.

The ground-state wave function obtained was a deformed hydrogenic 1S orbital. Figure 1 shows the ground-state elec-

tron density plotted in the x, y , and z directions for compari- son of the different effective Bohr radii obtained in the dif- ferent directions. Also shown in this figure is the ground state obtained using a spherical effective mass Hamiltonian and isotropic hydrogenic orbitals as a basis, here the effective electron mass is given by m

*^{⬇m⬜⫽0.1905m0}, which gives an effective Bohr radius of 3.17 nm.

III. INCLUDING THE ELECTRIC FIELD AND SILICON HOST POTENTIAL

Faulkner’s method was then extended to include the ef- fects of an electric field above the qubit, and boundary con- ditions of the silicon host. The solution of Poisson’s equation to extract the electric-field potential for our device with the A gate at varying voltages was obtained by simulation using a Technology Computer Aided Design 共TCAD兲 modeling package.¹²

TCAD is used in the electronics industry as a tool for two-dimensional共2D兲 and three-dimensional 共3D兲 modeling and simulation of semiconductor devices. It employs a coupled Newton-like solver at discrete nodes to obtain the

FIG. 1. Ground-state electron density without electric field.

FIG. 2. Schematic design parameters implemented in TCAD to model the Kane computer architecture.

self-consistent solution of the Poisson and electron-hole con- tinuity equations. Figure 2 shows the 2D device scheme implemented in TCAD used to model the application of a voltage to the A gate above qubit Q₁. The lateral edges of the silicon lattice were assumed to extend infinitely in the y di- rection, but the electrostatic potential was only obtained on a finite grid 210 nm wide, with the potential set to zero outside this region. We checked that this approximation is valid at the boundaries and found that the TCAD potential had fallen close to zero (10^⫺4⫺10^⫺5 eV), at y⫽⫾105 nm. The poten- tial in 2D from TCAD is assumed to have a ‘‘thickness’’ in the third dimension共x兲 of 1 ␮^m.

In this paper we examine the effects of varying several experimental parameters: A gate voltage, qubit depth below the silicon oxide barrier, and the back gate depth to explore how these variables affect the electron density of the donor electron at the phosphorous nuclei. In particular, we calculate the resonance frequency of the donor nucleus as a function of these parameters.

The application of a potential and the silicon host geom- etry in the device shown in Fig. 2 splits the degeneracy of the two local minima along the z axis, compared to the other four along the x and y axis in the lower A₁ ground state.⁵ With no electric field applied, the ground-state wave function is ⬎99%1S in character. When the voltage applied is low enough so that the wave function stays predominantly 1S in character, diagonalizing the single valley effective-mass equation is equivalent for solving in either valley,⫾z, since the deformed 1S wave function is symmetric in z.⁶

Using these justifications we can formulate the problem using a coordinate system with the z axis in the direction from Q₁to the interface. With this convention we expand the donor wave function around the conduction-band minimum oriented along the z axis. Because of the smaller effective Bohr radius in the z direction towards the interface and back gate, the ground state is lower in energy since there is less penetration of the wave function into these barrier regions.

With the electric field the Hamiltonian is H⫽H0⫹H1, where H₀ is the zero-field Hamiltonian and H₁⫽V(y,z) is the electric-field potential term. V( y ,z) is the electric-field potential generated from TCAD, and here we also add an additional term to model the SiO₂ layer and the back gate.

The Si/SiO₂ barrier was modeled as a step function with height 3.25 eV, since most insulators have a work function greater than 3 eV.¹¹The back gate serves as a reference volt- age point 共ground兲 to the voltages applied to the top gates.

Outside the back gate the potential was set at 3.25 eV also.

To calculate the perturbed donor electron wave function and energies, we constructed the electric-field Hamiltonian matrix H₁ with its elements given by

具ⁿ⬘^l⬘^m⬘兩H1兩nlm典⫽

冑

^␤␥

冕

^{dx3␺n*⬘l⬘m⬘}

冉

^{x,y ,}

^冑

^␤␥z,a

冊

⫻V共y,z兲␺nlm

冉

^{x,y ,}

^冑

^␤␥z,a

冊

^{. 共4兲}

The integrals in Eq. 共4兲 were then calculated numerically for the varying voltages at the A gate and qubit position.

Once H₁was obtained the total Hamiltonian was then diago- nalized to find the donor electron ground state with the vary- ing experimental parameters.

IV. NUMERICAL RESULTS

A. Results obtained varying A-gate voltage and donor depth The perturbed donor electron ground state was calculated for each set of experimental parameters to compare and op- timize the conditions for addressing the target qubit Q₁. Once the electron ground state was found, we calculated the value of the contact hyperfine coupling A(V) for each par- ticular voltage at the A gate and qubit depth below this gate.

The general formula for the contact hyperfine coupling A(V) is given below:

A共V兲⫽2

3␮Bg_N␮N␮0兩⌿共V,0兲兩², 共5兲 where⌿(V,0) is the donor electron ground-state wave func- tion evaluated at the donor nucleus, ␮B is the Bohr magne- ton, g_N is Lande’s factor for ³¹P, ␮N is the nuclear magne- ton, and ␮0 is the permeability of free space.^9,10

Since we use effective-mass theory, instead of calculating the donor wave function with the full expansion of the Bloch functions, we calculate the envelope function, which de- scribes the smooth donor-related modulation of the electron wave function. So instead of calculating the contact hyper- fine coupling A(V) directly, we calculate the relative shift in A(V) with the potential applied and assume this shift will be similar to those of the true wave function.¹⁰Thus, we need to calculate

A共V兲⫽兩⌿共V,0兲兩²

兩⌿共0,0兲兩²A共0兲, 共6兲 where A(0)/h⫽28.76 MHz is determined for ³¹P in silicon from experimental data^3,9 and⌿(V,r) are the donor enve- lope wave functions calculated by our method.

The phosphorous nuclear resonant frequency is affected by the donor electron when the valence electron is spin po- larized by a background magnetic field B of the order of 2 T.

The hyperfine interaction constant is related to the frequency separation of the nuclear levels, via the following equation 共accurate to second order兲:³

h␯⫽2gN␮NB⫹2A⫹ 2A²

␮BB. 共7兲 In all the calculations we considered the background mag- netic field fixed at 2 T. Figure 3 shows the nuclear resonant frequency shift of Q₁, calculated for a lower range of posi- tive A gate voltages, between 0 V and 0.8 V, for the varying donor depths below the silicon oxide barrier. Figure 4 shows the nuclear resonant shifts calculated for the full range of A gate voltages, between ⫺1.0 V and 1.0 V, for the varying donor depths below the silicon oxide barrier. These plots are calculated with a close back gate depth set at 60 nm

For comparison of our method with previous results¹⁰re- ported using a spherical effective-mass Hamiltonian, we cal- culated the resonance frequency of Q₁ using an isotropic effective Bohr radius of⬇3 nm. Our results were consistent with the calculations of Wellard et al.¹⁰ The results for the isotropic basis showed that for donor depths close to the silicon oxide barrier, the wave function was restricted in moving towards the applied A gate voltage. The donor wave function obtained using the anisotropic basis is advantageous because of the smaller effective Bohr radius in the direction toward the silicon oxide layer, which results in less penetra- tion of the donor wave function into the interface regions.

Thus, the anisotropic basis produced a more energetically favorable ground state than the isotropic ground state.

For the lower voltages (⭐0.8 V), the results are consis- tent with the expectation that the closer the donor depths are to the applied voltage, the greater the frequency shift. At voltages above a certain threshold and donor depths further away from the silicon oxide barrier, there is a huge differ- ence in the donor wave function from the zero-field ground

state, as it is perturbed almost completely away from the nucleus. Figure 5 shows an example of this change in elec- tron density for a voltage of 1.0 V at the A gate and donor depth of 40 nm. Here the P nucleus is at the origin and as z decreases the electric field increases.

In Figs. 6 and 7 we observe the difference in the donor electron ground state obtained for a donor depth of 20 and 40 nm with a positive voltage of 1.0 V at the A gate. In both these plots the donor wave function moves toward the ap- plied A gate voltage in the negative z direction. For a close donor depth of 20 nm we observe that even though the donor wave function moves slightly toward the A gate, it is signifi- cantly restricted in moving in this direction because of the silicon oxide interface in this direction also. In contrast the donor wave function for a depth of 40 nm deforms unhin- dered toward the A gate, and most of the electron density has been transformed away from the nucleus.

Figure 8 shows the donor electron density obtained in the y z plane for a negative voltage of⫺1.0 V at the A gate and a donor depth of 20 nm. A negative applied voltage causes the electron to disperse in all directions away from the posi- tive potential, this plot demonstrates that because of the close back gate in the positive z direction, the electron density predominantly perturbs away from the applied voltage in ei- ther direction laterally.

FIG. 3. Nuclear resonant frequency shifts of qubit Q₁ at lower voltages with varying donor depths, back gate depth at 60 nm, using anisotropic basis.

FIG. 4. Nuclear resonant frequency shifts of qubit Q1at varying voltage and donor depth, back gate depth at 60 nm, using aniso- tropic basis.

FIG. 5. Ground-state electron density in y z plane for donor depth at 40 nm and voltage at 1 V at the A gate.

FIG. 6. Ground-state electron density for donor depth at 20 nm and voltage at 0.0 and 1.0 V at the A gate, in the z direction.

Because of the interface regions, it is either energetically favorable for the donor electron wave function at shallow donor depths to distort completely away from the nucleus, when the gate voltage is negative, or for the donor wave function to be restricted in distorting towards the A gate, with a positive voltage.

In Table I we present a comparison of the difference in the ground-state energy for the donor wave function without the electric field E₀ and with a positive voltage of 1.0 V applied to the A gate (E_1V). Also reported in this table is the TCAD potential at the P nucleus for the varying donor depths.

For the close donor depth at 20 nm we observe that the energy difference is approximately equal in magnitude to the TCAD potential at the nucleus. This is because the donor wave function has perturbed only slightly from the zero-field ground-state wave function. In contrast, the energy differ- ence for the donor depth at 40 nm is much higher as the wave function deforms significantly from the ground-state wave function towards the applied voltage.

If we compare the results obtained in our work, including the effect of the interface barriers in addition to the electric- field potential, with Kane’s⁸results wherein only the poten- tial of a uniform electric field in the bulk was considered, we observe that the silicon oxide layer and the back gate exert a significant influence on the donor electron’s ground state.

Instead of the contact hyperfine coupling A(V) being inde- pendent of whether a positive or negative voltage is applied at the A gate as reported by Kane, we observe in Fig. 4 that the interface regions in the silicon host geometry break this symmetry.

Even without considering the influence of the interface regions, the effect of whether a positive or negative voltage is applied at the A gate causes very different changes in the donor electron density. For a positive voltage the electron is bound to both the nucleus and the A gate. In contrast, when a high enough negative voltage is applied, so that the elec- tron is no longer bound to the P nucleus, the electric-field profile causes the electron to disperse in all directions away from the positive potential.

B. Results obtained varying back gate depth and donor depth To observe the effect that the back gate depth has on the donor electron wave function we repeated the calculation with a back gate depth at 100 nm. Figure 9 shows the com- parison between nuclear resonant frequency shifts of the do- nor electron with the application of a voltage at the A gate with a close and far back gate. These calculations were per- formed with a close back gate at 60 nm and a far back gate at 100 nm, with a bias of 1.0 V at the A gate and donor depths ranging from 30 to 75 nm.

With a closer back gate the electric-field strength was higher within the Si wafer, and the donor electron wave func- tion was perturbed greater, and so the frequency shift was more pronounced for donor depths with a close back gate.

For donor depths close to the back gate the interface barrier FIG. 7. Ground state electron density for donor depth at 40 nm

and voltage at 1.0 V at the A gate, in the z direction.

FIG. 8. Ground state electron density in y z plane for donor depth at 20nm and voltage at⫺1.0 V at the A gate.

TABLE I. E_1V⫺E0for a back gate depth of 60 nm.

Q1depth TCAD potential E1V⫺E0

共nm兲 at Q1共meV兲 共meV兲

20 ⫺90.02 ⫺91.70

40 ⫺37.06 ⫺47.73

FIG. 9. Nuclear resonant frequency shifts of qubit Q1at varying donor depths with back gate depth at 60 and 100 nm, and 1.0 V at A gate.

effectively ‘‘pushes’’ the electron towards the A gate. With the back gate at 100 nm, the electric-field strength is lower, and there is no substantial overlap of the donor electron wave function with the back gate barrier for donor depths of 30 and 40 nm, so it is not as energetically favorable for the donor electron to perturb away from the back gate toward the A gate.

Figure 10 shows the ground-state wave function, plotted in the y z plane for a donor depth of 75 nm and with back gate depth of 100 nm and a positive voltage of 1.0 V at the A gate. This plot demonstrates that even at a donor depth far from the A gate, the ground-state wave function distorts freely toward the A gate because of the close proximity of the back gate, and the remoteness of the silicon oxide inter- face.

In Table II we present a comparison of the difference in the ground-state energy for the donor wave function without the electric field, and with a voltage of 1.0 V applied to the A gate, and the back gate at 100 nm. Also reported in this table is the TCAD potential at the P nucleus for the varying donor depths. This table reflects the trend noted in Table I that a significantly lower ground-state energy is obtained for the deeper donor depths, where the electron density perturbs sig- nificantly away from the nucleus toward the applied voltage.

V. CONCLUSIONS AND IMPLICATIONS FOR CURRENT FABRICATION TECHNOLOGY AND DEVICE

MODELING

We believe that the results reported here using effective- mass theory are quantitatively reasonable. It is reasonable to

expect that the variation of the donor wave function with the experimental parameters calculated here using the smooth donor envelope function would be similar to that of the true wave function.

It is evident that the P donor electron wave function is sensitive to all experimental parameters studied in this paper.

The donor wave function exhibits a fundamental change at crucial experimental parameters, where the electron wave function transforms from being only slightly perturbed from the zero-field ground state to being almost completely per- turbed from the nucleus. These results highlight the signifi- cance of the influence of the silicon host geometry on the donor electron wave function. Ongoing work in our labora- tory is focusing on verification of these results, using the full Bloch wave structure in our calculations. These results dem- onstrate the importance of the boundary conditions imposed by the interface regions, and the need to use a basis set which has the flexibility to meet the boundary conditions.

However, including the Bloch wave structure, the inter- valley terms and the electric-field and interface potentials is a challenging task. The results presented are quantitatively rea- sonable and provide a fast and reliable method which gives insight into the behavior of the P donor electron wave func- tion under several different experimental conditions. To op- timize the fabrication of these devices, it is necessary to take into account the dependence of the donor electron wave function on all parameters varied in this paper: donor depth below the A gate, back gate depth and voltage at the A gate.

ACKNOWLEDGMENTS

This work was supported by the Australian Research Council and the Australian Partnership for Advanced Com- puting National Facility. L.M.K. and H.-S.G. would like to thank G.J. Milburn for valuable discussions relating to this work. H.-S.G. would like to acknowledge the support of a Hewlett-Packard program.

1W. Kohn and J.M. Luttinger, Phys. Rev. 97, 1721共1955兲.

2W. Kohn and J.M. Luttinger, Phys. Rev. 98, 915共1955兲.

3B.E. Kane, Nature共London兲 393, 133 共1998兲.

4R.A. Faulkner, Phys. Rev. 184, 713共1969兲.

5B. Koiller, X. Hu, and S. Das Sarma, Phys. Rev. B 66, 115201 共2002兲.

6C. Tahan, M. Friesen, and R. Joynt, Phys. Rev. B 66, 035314 共2002兲.

7L.J. Sham and M. Nakayama, Phys. Rev. B 20, 734共1979兲.

8B.E. Kane, Fortschr. Phys. 48, 1023共2000兲.

9A.A. Larionov, L.E. Fedichkin, A.A. Kokin, and K.A. Valiev, Nanotechnology 11, 392共2000兲.

10C.J. Wellard, L.C.L. Hollenberg, and C.I. Pakes, Nanotechnology 13, 570共2002兲.

11P. Y. Yu and M. Cardona, Fundamentals of Semiconductors 共Springer-Verlag, Berlin, 1996兲.

12Technology Computer Aided Design modeling package, Inte- grated Systems Engineering AG, Zurich.

FIG. 10. Ground-state electron density in y z plane for donor depth at 75 nm with back gate depth of 100 nm, and 1.0 V at A gate.

TABLE II. E_1V⫺E0for a back gate depth of 100 nm.

Q1depth TCAD potential E1V⫺E0

共nm兲 at Q1共meV兲 共meV兲

40 ⫺67.25 ⫺68.33

75 ⫺26.00 ⫺36.57
